Frymaster Super Cascade Filtration Systems CE User manual

Frymaster, a member of the Commercial Food Equipment Service Association, recommends
using CFESA Certified Technicians.
Price: $6.00
24-Hour Service Hotline [phone]-5726
10-99
Super Cascade Filtration Systems (CE)
Operation Manual
CE ONLY

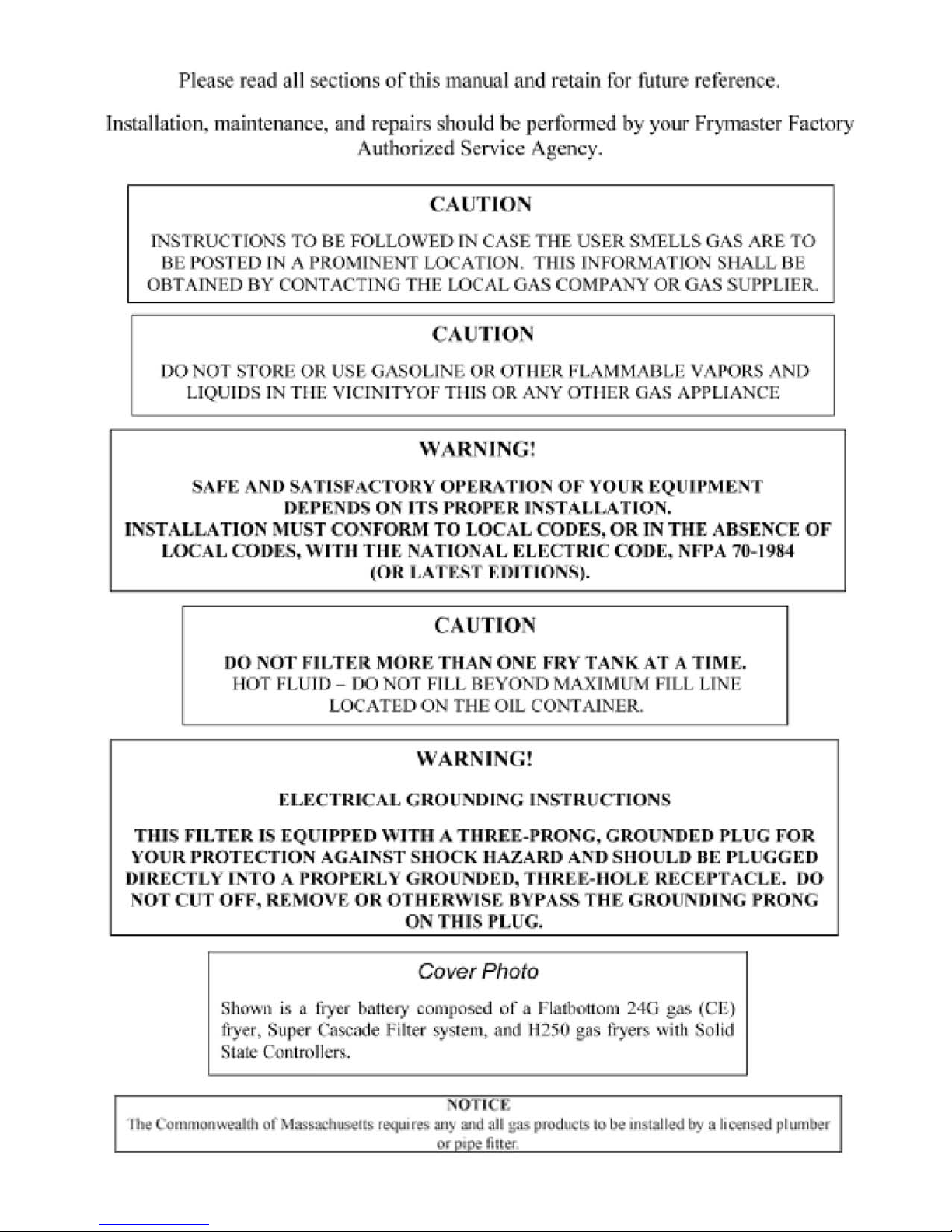

1
SUPER CASCADE
FILTRATION SYSTEM
OPERATION MANUAL
TABLE OF CONTENTS PAGE
1. PARTS ORDERING AND SERVICE INFORMATION 1
2. GENERAL 2
3. FILTER PREPARATION 2
4. FILTER OPERATIONS 3
5. FILTER TROUBLESHOOTING 5

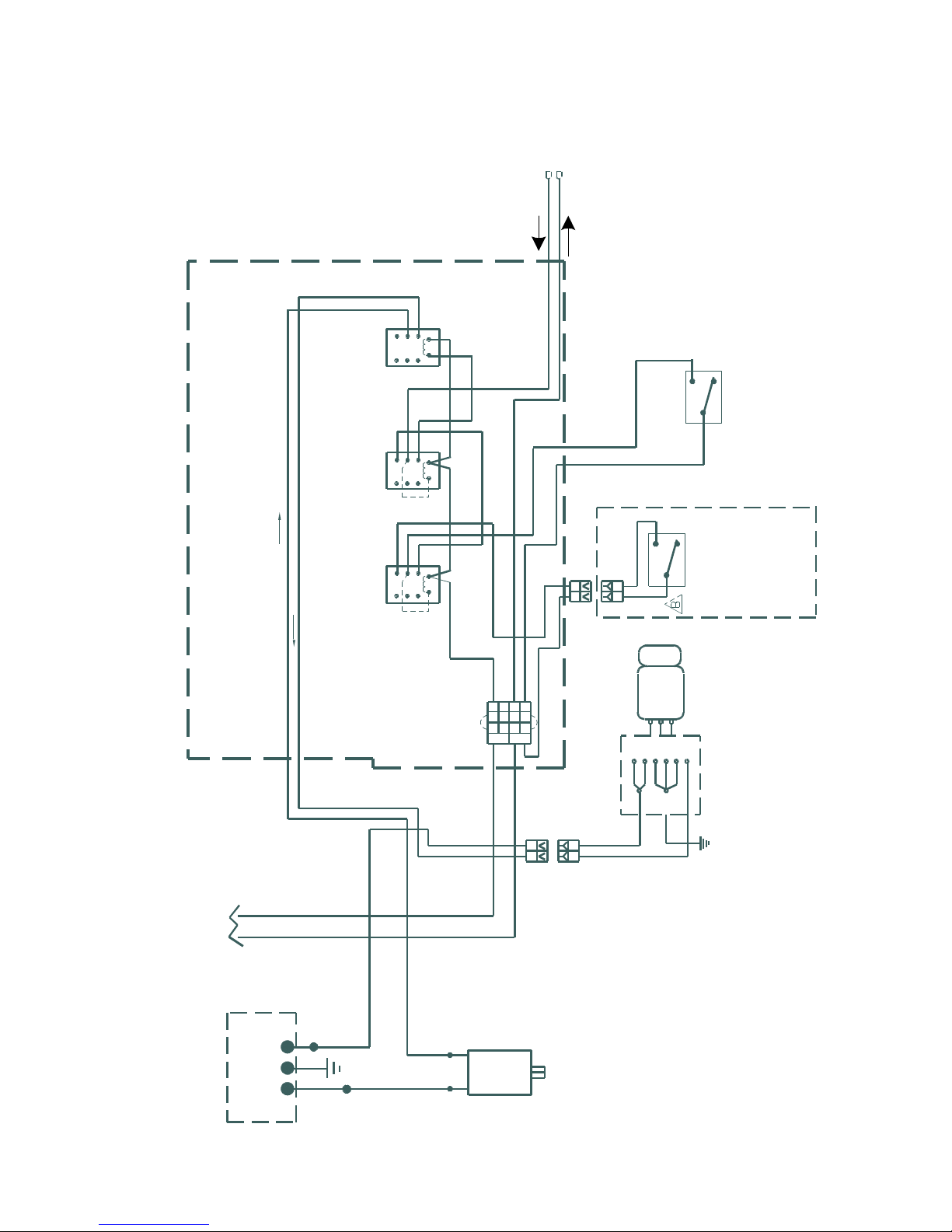

6. WIRING DIAGRAM 10
1. PARTS ORDERING AND SERVICE INFORMATION
1.1 ORDERING PARTS:
Customers may order parts directly from their local Authorized Parts Distributor. For this address and
phone number, contact your Maintenance & Repair Center or call the factory. The factory address and
phone number are on the cover of this manual.
To speed up your order, the following information is required:
Model Number
Type
Serial Number
With/Without Heater
Optional Equipment
Item Part Number
Quantity Needed
1.2 SERVICE INFORMATION:
Call the “800” number on the cover of this manual for the location of your nearest Maintenance &
Repair Center or contact the factory direct. Always give the model and serial numbers of your filter and
fryer.
To assist you more efficiently, the following information will be needed:
Model Number
Type
Serial Number
With/Without Heater
Optional Equipment
Nature of Problem
Any other information which may be helpful in solving your service problem

2
2. GENERAL:
a. The Flatbottom 24G (CE)/H250 Fryer System is equipped with the Super Cascade Filter
Model 99.
b. For consistent product quality, convenience and long-term savings, use a high-quality liquid
frying compound.
c. The frying compound should be filtered at least daily or even more frequently if cooking is
heavy. This ensures the longest life possible for the frying compound, gives better taste to
the food being prepared, and minimizes flavors being transferred from batch to batch.
d. If using solid shortening, always make sure the return lines are clear before turning off the
filter motor and hang any flexible lines up to drain. Solid shortening will solidify as it cools
and clog the lines.
3. FILTER PREPARATION:
a. Assemble tools to be used for filtering. These are supplied with the filter starter kit:
1. L-shaped Teflon Brush - used to clean the frypot while filtering.
2. Clean-Out Rod - long rod used if needed to dislodge heavy debris in the drain tube.
3. Filter Powder, Frymaster Part No. 803-0002.
4. Filter Paper, Frymaster Part No. 803-0170 (100 sheets) or 803-0173 (25 sheets).
Note: Use only genuine Frymaster filter paper and filter powder for best results. Use of
other filter powder may clog filter paper causing longer refill times and could cause
premature motor failure.
b. The following tools are not required, but are recommended to make the filtering task easier.
1. Measuring Cup - used to measure filter powder.
2. Stainless Steel Crumb Scoop - for scraping debris from the filter paper.
c. Always wear oil-resistant, insulated gloves and/or protective gear when working with hot
oil.
d. Put on protective gear.
e. Pull the filter pan out from the Flatbottom 24G fryer/ filter cabinet. Remove cover.
CAUTION
The on-site supervisor is responsible for ensuring that operators are made
aware of the inherent dangers of operating a hot oil filter system, particularly
aspects of oil filtration, draining, and cleaning of the filter.

3
Hold down ring latched into position.
24G Drain
Hole H250 Drain
Hole
Filter Pan Lid Drain Holes
f. Unlatch and remove the hold down ring.
Remove and discard old filter paper sheet from
the filter pan.
g. Clean out the filter pan.
h. Place one sheet of filter paper in the bottom of
the filter pan. Reinstall and latch the hold down
ring into position.
i. Sprinkle 8 ounces (1 cup)/ 227 grams evenly
over the paper. Return cover to the filter pan.
j. Return filter pan to fryer cabinet, making sure
the two drain pipe extensions are directly over openings in filter pan cover.
k. Ensure the oil pickup tube fits snugly in the
filter pan connector.
4. FILTER OPERATIONS:
a. Flatbottom 24G:
1. Stir the oil in the frypot with the L-shaped teflon brush.
2. Open the flatbottom frypot drain valve by turning the large red drain handle from the 9:00
o'clock position to the 6:00 o'clock position.
3. Continue stirring the oil in the frypot with the L-shaped teflon brush as the oil drains into the
filter pan. Brush down the vessel sides to remove debris. Use the clean-out rod to clear the
drain if necessary.
Oil Pickup Tube
CAUTION
Filter one frypot at a time. The filter
pan is designed to safely hold the oil
from one fryer only.
SCF99 ready for operation.

4
Air bubbles from the Oil Return Line
4. Open the oil return valve by turning the smaller red handle located under the control panel of
the fryer. Move the handle left to right to open the oil return line. This will activate the filter
pump also.
5. If the circuit breaker kicks out, this often means that there is an obstruction in the oil return
lines.
Note:The filter circuit is protected by a 5-amp circuit breaker located under the control
panel of the filter cabinet. If the circuit breaker trips, the filter pump will stop,
manually reset breaker, and continue.
6. Polishing: If desired, the oil can be polished. Leave the fryer drain valve open for
approximately 5 minutes and allow the oil to circulate from the frypot into the filter and
return to the frypot several times before closing the drain valve. The circulating oil will be
cleansed repeatedly and polished by the micro filtering powder. Polishing extends oil life and
improves cooking flavor.
7. Close the fryer drain valve. To close the flatbottom frypot drain valve, turn the large red
drain handle from the 6:00 o'clock position to the 9:00 o'clock position. The frypot will
begin to fill up with filtered oil.
Note:After filtering it may be necessary to discard filter paper before filtering another fryer.
Replace filter paper when it becomes dark or scuffed in appearance or if refill time
becomes extended.
8. Allow the filter to pump bubbles into the fryer for
approximately 10-15 seconds to ensure the
evacuation of all oil from the filter pan and the oil
return lines.
9. Turn the filter off by turning the oil return handle
from right to left. This closes the oil return line to
the filtered frypot and shuts down the filter pump
motor.
Oil return handle
Flatbottom 24G Flatbottom Drain Valve in Closed Position

5
Drain Valve
Handle
Oil Return
Handle
H250 Drain & Oil Return Handles
Air bubbles from the Oil Return Line
b. H250 Fryers:
1. Turn the lower red drain valve handle from left to right to open the drain valve. The photo
below shows the drain valve in the open position.
2. Stir the oil in the frypot with the L-shaped
teflon brush as the oil drains into the filter
pan. Brush down the vessel sides to remove
debris. Use the clean-out rod to clear the drain
if necessary.
3. Open the oil return valve by turning the
smaller red handles located under the frypot.
The oil return handle is located above the
drain valve handle. Push this handle away
from you to open the oil return line. This will
activate the filter pump also.
4. If the circuit breaker kicks out, this often means
that there is an obstruction in the oil return lines.
Note:The filter circuit is protected by a 5-amp circuit breaker located under the control
panel of the filter cabinet. If the circuit breaker trips, the filter pump will stop,
manually reset breaker and continue.
5. Polishing: If desired, the oil can be polished. Leave the fryer drain valve open for
approximately 5 minutes and allow the oil to circulate from the frypot into the filter and
return to the frypot several times before closing the drain valve. The circulating oil will be
cleansed repeatedly and polished by the micro filtering powder. Polishing extends oil life and
improves cooking flavor.
6. Close the fryer drain valve. Turn the lower red drain valve handle from right to left to close
the drain valve. The frypot will begin to fill up with filtered oil.
Note:After filtering it may be necessary to discard filter paper before filtering another fryer.
Replace filter paper when it becomes dark or scuffed in appearance or if refill times
become extended.
7. Allow the filter to pump bubbles into the fryer for
approximately 10-15 seconds to ensure the
evacuation of all oil from the filter pan and the oil
return lines.
8. Turn the filter off by pulling the oil return handle
towards you to close the oil return line. This shuts
down the filter pump motor also.

6
5. FILTER TROUBLESHOOTING:
The problems and possible solutions covered are those most commonly encountered.
To troubleshoot, perform the test set-up at the beginning of each condition. Start at the top of the
diagram. Arrows direct the troubleshooter through the sequence. Follow each step in sequence as
shown in the troubleshooting diagrams.
Troubleshooting Diagram Index
Section Problem Page
5.1 Super Cascade filter pump fails to pump oil? 6
5.2 Rate of oil return slowing? 7
5.3 Blockage between filter pan and oil return valve? 8
5.1 SUPER CASCADE FILTER PUMP FAILS TO PUMP OIL?
WARNINGS!
INSPECTION, TESTING, AND REPAIR OF GAS OR ELECTRICAL
EQUIPMENT SHOULD BE PERFORMED BY QUALIFIED PERSONNEL.
USE EXTREME CARE DURING ELECTRICAL CIRCUIT TESTS. LIVE
CIRCUIT WILL
BE EXPOSED.
Reset filter circuit
breaker and wall circuit
breaker (if necessary).
Filter pump
fails to pump
oil.
Turn pump motor
ON by turning the
oil return handle.
Does oil flow?
Conduct
normal filter
operations.
Is the pump
motor running?
Yes
No
There may be
blockages in the
oil lines.
Contact your
Frymaster
Servicer.
Go to page 7 and
follow procedures
for Rate of Oil
Return Slowing.
No
Yes

7
5.2 RATE OF OIL RETURN SLOWING?
Blockage may be
between the filter pan
bottom and the oil
return valve.
No
No
Yes
No Has the oil
return rate
improved?
Go to the flowchart titled
"Blockage between Filter
Pan and the Oil Return
Valve.
Rate of oil return
to the fryer is
slowing.
Check the filter paper in
the filter pan.
Paper may not be secured
by the hold down ring. Air
is being allowed into the
filter system.
Paper may be plugged
due to improper use of
filter powder.
Change the filter paper.
Take a new sheet and
place it in the bottom of
the filter pan.
Secure the filter paper by
snapping the hold down
ring into place.
Sprinkle 8 oz/
.27kg of
filter powder evenly
across the filter paper
surface.
Check the filter sump.
Sediment collects around
the suction pipe in the filter
pan bottom.
Remove the filter
pan cover.
Unlatch hold down ring
and remove filter paper
and filter paper support
grid.
Clean support grid
and set aside
temporarily.
Wipe sediments out
of the filter pan
bottom.
Inspect drain port on the
oil pickup tube in the filter
pan bottom and remove
any sediment or visible
blockages.
Reassemble the filter pan
assembly. Turn pump
motor ON by turning the
oil return handle.
Conduct normal
filter operations.
Is the filter paper
properly secured by the
hold down ring?
Is this the
first fryer to be
filtered in this
filtering session?
Yes
Yes

8
5.3 BLOCKAGE BETWEEN FILTER PAN AND OIL RETURN VALVE?
Does the pump
motor run?
Yes
No
Blockage has been
determined to be between
the filter pan bottom and
the oil return valve.
Disconnect oil line running
from the filter pan to the
pump at the pump end.
Check filter circuit breaker. Push
the filter circuit breaker reset button
located in the right-hand fryer.
Activate pump by turning
oil return valve handle.
Put finger over the
inlet connection to the
filter pump.
Allow the pump to run 20
seconds to verify that
pump is not running
backwards.
Activate pump by turning
oil return valve handle.
Does the pump
motor run? Yes
Do you feel
suction?
Yes
No
Pump motor is
clogged or faulty.
Contact your local
Factory Authorized
Service Center.
Pump is clear of any
blockages. Go to page 9
and continue.
Contact your local Factory
Authorized Service Center.
Filter motor's internal
circuit breaker has tripped.

9
Plug is in the bottom of the
filter pan or in the line from the
filter to the pump.
Disconnect the tubing from
the filter pan to the motor.
Make sure the pipe is cool.
The line is clear.
Reconnect hose to the
pump inlet.
Can you blow air
through it?
Yes
No
The line is clogged.
Run a cable through the
line to clear clogs.
Continue until you can
blow air through it.
Turn pump ON.
Does oil flow?
Conduct normal
filter operations.
Yes
No
There may be a plug in
the oil return line
system.
Disconnect the oil return line
running from the pump to the oil
return valve. Clean the pipe to
remove residual shortening.
Disconnect the oil return line
running from the oil return valve
to the frypot. Clean the pipe to
remove residual shortening.
Reconnect the oil
return lines.
Turn pump ON.
Does oil flow?
Conduct normal
filter operations.
Yes
No
Contact your
Factory
Authorized
Servicer.
Enter from
page 8 here.
DANGER!
NEVER USE A PROPANE TORCH
TO MELT SOLIDIFIED
SHORTHENING IN ANY PART OF
THE SYSTEM. YOU WOULD BE
USING AN OPEN FLAME NEAR
COMBUSTIBLES. THE FIRE
HAZARD IS EXTREME!

10
6. WIRING DIAGRAM (Super Cascade Filter (CE), 230VAC/50Hz)
Block
810-0164
Power Cord
807-1697
230 VAC
24 VAC
Connection from
Fryer SCF24MCD Oil Return
Transformer/Relay
Assy
Relay
24V DPDT
501-0058
Add-on RH
Fryer Relay
24V DPDT
501-0058
Add-on LH Fryer
Relay
24V DPDT
501-0058
Oil Return Micro
Switch (Polishing
Valve)
501-0111
Oil Return Micro
Switch Connection
Add-on Fryers
Male Push-on Pins
807-1397
Shown in OFF
Position
Pump Motor (5D)
501-0087
Motor
For change of rotation,
interchange leads T5 and
T8 on the motor.
Circuit Breaker
5 AMP
Amp
Connector
Oil Return Micro
Switch
501-0111
Add-on from LH
Fryer when
used.
91.44 cm/36 inch long leads
33.02 cm/13 inch
long leads
RED
20.32 cm/8 inch long leads
WHT
RED
WHT
WHT RED
WHT WHT WHT
WHT
YEL PUR
PUR
WHT
YEL YEL
YEL#1
YEL#1
YEL#1PUR
RED BLU
BLK
BLU
RED
BLK YEL
ORG BLK
ORG ORG
BLKBLK
ORG
BLK
BLK
WHT#2
WHT
BLU
BLU
WHT
WHT#2
WHT#2
ORG
BLK
BLK
WHT#1
BLK
WHT#1
BLK
T1 T2 T3 T5 T4 T8
GRN
WHT
BLU
NC NO
COM
NC NO
COM
NC
NO
COM
24V24V
NC
NO
COM
NC
NO
COM
24V
230V Filter Circuit 230V Filter Circuit
CB
2
21
121
21
1
T1 T2
2 3 4

Frymaster, L.L.C., 8700 Line Avenue, PO Box 51000, Shreveport, Louisiana 71135-1000
Shipping Address: 8700 Line Avenue, Shreveport, Louisiana 71106
TEL [phone] FAX (Parts) 1-318-219-7140 (Tech Support) 1-318-219-7135
Price: $6.00
PRINTED IN THE UNITED STATES SERVICE HOTLINE
1-800-551-8633 819-5726
10-99
