FScurtis ECO Scroll Series User manual

Revision:2022‐02‐03
InstructionManual
Controllerv1.01.05



ECOScrollSeries
Oil‐FreeCompressors–ModelsES08,ES11&ES15




ES08‐15Controllerv1.01.05


2022‐02‐03FS‐CurtisPagei

Contents
1.0 Basic Operation …………………………………………………………………………………….. 1
1.1 Description of Controller Interface ………………………………………………………………… 1
1.2 Password Security ………………………………………………………………………………….. 1
1.3 Controller Screens Map ……………………………………………………………………………. 1
2.0 Controller Screens ……..…………………………………………………………………………… 3
2.1 Home Screen ……………………………………………………………………………………….. 3
2.2 User Login Screen ………………………………………………………………………………….. 6
2.3 System Menu Screen ………………………………………………………………………………. 7
2.4 Temperature Menu Screen ………………………………………………………………………… 10
2.5 Pressure Menu Screen …………………………………………………………………………….. 11
2.6 System Operation Menu …………………………………………………………………………… 14
2.7 Calibration Menu ……………………………………………………………………………………. 18
2.8 Sequential Operation Menu ……………………………………………………………………….. 20
2.9 Maintenance Status Screen ……………………………………………………………………….. 24
2.10 Motor, V-Belt, Air-End, Air Filter, High Pressure Hose, Check Valve and Safety Valve
Maintenance Screens ……………………………………………………………………………… 25
2.11 Maintenance Log Screen ………………………………………………………………………….. 28
2.12 Time Settings Menu ………………………………………………………………………………… 28
2.13 Communication Settings Menu ……………………………………………………………………. 29
2.14 Language Menu …………………………………………………………………………………….. 30
2.15 Sequential Control Screen ………………………………………………………………………… 31
2.16 Equipment Status Screen …………………………………………………………………………. 33
2.17 Alarm Status Screen ……………………………………………………………………………….. 35
2.18 HMI System Menu ………………………………………………………………………………….. 37

ES08‐15Controllerv1.01.05


2022‐02‐03FS‐CurtisPage1

1.0 Basic Operation
1.1 Description of Controller Interface
The ES08-15 controller features a 7-inch LCD full-colour, touch screen display as the human-machine
interface.
The controller is always switched on and active whenever the compressor set is energised from its electrical
power supply. It is operated by touching the displayed icons on the screen with a fingertip or stylus pen tip.
An automatic screen-saver function switches off the display after two minutes of inactivity. The display can
be reactivated by a single touch.
The controller should be provided with weather protection against precipitation and direct sunlight. Keep the
screen clean and dry. If necessary, use a proprietary LCD screen cleaning solution and a soft anti-static,
scratch-free cloth to remove any dust and fingerprints. Do not use harsh solvents or abrasive cleaners.
1.2 Password Security
A three-tiered system of passwords is used to safeguard the controller’s settings and records.
The lowest-level User password is: C456
The mid-level Service password is made available to compressor service technicians upon request.
The highest-level Factory password is reserved for use by the manufacturer.
1.3 Controller Screens Map
A hierarchical systematic view of the interface screens that are accessible via the controller is shown in
Figure 1.1.

ES08‐15Controllerv1.01.05


2022‐02‐03FS‐CurtisPage2

Figure 1.1 – Controller Screens Map
HomeScreen
UserLogin
SystemMenu
Temperature
Menu
PressureMenu
SystemOperation
Menu
CalibrationMenu
Sequential
OperationMenu
Maintenance
StatusScreen
Motor
Maintenance
Screen
V‐Belt
Maintenance
Screen
Air‐End
Maintenance
Screen
Tip‐Seal
Maintenance
Screen
BearingGrease
Maintenance
Screen
AirFilter
Maintenance
Screen
HighPressure
HoseMaintenance
Screen
CheckValve
Maintenance
Screen
SafetyValve
Maintenance
Screen
MaintenanceLog
Screen
TimeSettings
Menu
Communication
SettingsMenu
LanguageMenu
SequentialControl
Screen
EquipmentStatus
AlarmStatus
HMISystemMenu

ES08‐15Controllerv1.01.05


2022‐02‐03FS‐CurtisPage3

2.0 Controller Screens
2.1 Home Screen
Upon initial power-up and any subsequent restart, the home screen is automatically displayed on the
controller as shown in Figure 2.1.
Figure 2.1 – Home Screen
Each of the home screen symbols is described in Table 2.1.
Table 2.1 – Home Screen Symbols
Item Symbol
or Field Name Description Password
1 Control Mode
Indicates the control mode setting:
Local On / Off Control
Remote On / Off Control
None

ES08‐15Controllerv1.01.05


2022‐02‐03FS‐CurtisPage4

Item Symbol
or Field Name Description Password
2
Compressor Set
Status
Indicates the compressor’s operating status:
Off
Stand-by
Running
Shutdown (Alarm)
None
3 Outlet Pressure Indicates the compressor’s discharge air
pressure. None
4 Start Button
Press and hold for two seconds to turn this
compressor on (i.e. start this compressor).
Note: To start an interconnected group of
compressors, it is necessary to access the
sequential control menu screen on the
master unit.
None
5 Stop Button
Press and hold for two seconds to turn this
compressor off (i.e. stop this compressor).
Note: To stop an interconnected group of
compressors, it is necessary to access the
sequential control menu screen on the
master unit.
None
6 System Menu Press to access the system menu screen.
User to view
or
Service to
edit.
7
Equipment
Status
Press to access the equipment status
screen. None
8 Alarm Status Press to access the alarm status screen. None

ES08‐15Controllerv1.01.05


2022‐02‐03FS‐CurtisPage5

Item Symbol
or Field Name Description Password
9 User Login
The default user login display is “None” if no
password access is active. Otherwise, press
to access the user login screen and then
enter either the User, Service or Factory
password.
User, Service
or Factory.
10 Station 1 Compressor
Station Number
Indicates the compressor’s assigned Modbus
address from 1 to 99 as entered into the
communication parameters.
None
11 V.1.01.05 Software
Version Indicates the controller’s software version. None
12 Time and Date
Indicates the current time and date.
Note: There is no automatic adjustment for
daylight saving time.
None
13
Compressor
Module Status
Indicates each motor and air-end module’s
operating status:
Stopped (Off or Stand-by)
Running
None
14 USB In Use
Indicates that the controller’s USB port is
being used to download software or upload
historical operating data.
None
14
Sequential
Control Active
Indicates that the compressor is configured
for operation in a sequentially controlled
group.
None
14 Warning
Indicates an active operation or maintenance
warning. It should be investigated via the
alarm, system or maintenance menu screens
and then rectified as appropriate.
None
14 Auto Restart Indicates that the compressor is configured
for automatic restart after a power outage. None
14 Timer
Indicates that the compressor is configured
for automatic on / off switching by the
adjustable timer.
None

ES08‐15Controllerv1.01.05


2022‐02‐03FS‐CurtisPage6

Item Symbol
or Field Name Description Password
14 Alarm
Indicates an active shutdown alarm. It should
be investigated via the alarm menu, rectified
as appropriate and then reset.
None
14
Emergency
Stop
Indicates that the emergency stop button has
been pressed. It should be investigated,
rectified as appropriate and then reset via
the alarm menu.
None
15
Sequential
Control Screen
Press to access the sequential control
screen.
Note: This symbol appears only on the
controller of the master unit in a sequentially
controlled group.
None
2.2 User Login Screen
The user login screen is accessed by pressing the User Login button on the bottom right-hand side of the
home screen. The user login screen is shown in Figure 2.2.
Figure 2.2 – User Login Screen
Enter the User, Service or Factory password via the displayed touch screen keypad and then press the
“ENT” button. The display will revert to the home screen and indicate “User”, “Service” or “Factory” on the
User Login button.

ES08‐15Controllerv1.01.05


2022‐02‐03FS‐CurtisPage7

Note: After completing the task(s) for which the password was required, press the Home button on the
bottom right-hand side of any subordinate page after the home screen to logout. Check that the User Login
button indicates “None” to verify the logged-out status.
2.3 System Menu Screen
The system menu is accessed from the home screen after logging-in using either the user or service
passwords. It has limited programmable functions directly, but rather serves as a portal to the various sub-
menus for the compressor’s operation and maintenance. The system menu screen is shown in Figure 2.3.
Figure 2.3 – System Menu Screen
Each of the system menu screen symbols is described in Table 2.2.
Table 2.2 – System Menu Screen Symbols
Symbol Name Description Password
Temperature Menu Press to access the temperature menu screen. User or
Service.
Pressure Menu Press to access the pressure menu screen. User or
Service.
System Operation
Menu
Press to access the system operation menu
screen.
User or
Service.
Calibration Menu Press to access the calibration menu screen. Service
Sequential
Operation Menu
Press to access the sequential operation menu
screen.
User or
Service.

ES08‐15Controllerv1.01.05


2022‐02‐03FS‐CurtisPage8

Symbol Name Description Password
Maintenance Status
Screen Press to access the maintenance status screen. User or Service.
Time Settings
Menu Press to access the time settings menu. User
Communication
Settings Menu
Press to access the communication settings
menu. Service
Compressor Brand Displays the compressor brand. Factory
Language Menu Press to access the language menu screen. It is
recommended to keep English as the selection.
User or
Service.
Reset Button
Press to change all controller parameters to their
factory default settings.
Note: The factory defaults may differ from the
parameter setpoints specified herein.
Factory
Bottom Right-
Hand Side of
Screen
Control Mode
Switch
Press to toggle between local automatic control
via the controller screen or remote on / off
control via a hardwired switch or switches. The
symbol indicates the control setting:
Local On / Off Control
Remote On / Off Control
Note: The control mode symbol in the top left-
hand corner of the screen mirrors this one.
User or
Service.
Home Screen Press to return to the home screen. None

ES08‐15Controllerv1.01.05


2022‐02‐03FS‐CurtisPage9

Symbol Name Description Password
Left-Hand
Slider Switch
Status Indicator
Output #1
With the slider button pushed to the left-hand
side and displaying grey colour only as shown in
Figure 2.3, the compressor can provide remote
indication of an active warning.
With the slider button pushed to the right-hand
side and displaying green colour, the
compressor can provide remote indication of an
active shutdown alarm. This is the standard
setting.
Note: The remote status indicator circuit for
Output #1 should be connected across terminals
C3 and Y3 on PLC2 in the electrical cabinet. The
externally applied voltage and current should not
exceed 24 V and 5 A, respectively.
Service
Right-Hand
Slider Switch
Status Indicator
Output #2
With the slider button pushed to the left-hand
side and displaying grey colour only as shown in
Figure 2.3, the compressor can provide remote
indication of when it is running.
With the slider button pushed to the right-hand
side and displaying green colour, the
compressor can provide remote indication of
when it is either running or on active standby
and ready to run. This is the standard setting.
Note: The remote status indicator circuit for
Output #2 should be connected across terminals
101 and 102 on TB1 in the electrical cabinet.
The externally applied voltage and current
should not exceed 24 V and 5 A, respectively.
Service
Warning: The compressor’s built-in remote control function allows it to be switched on remotely. This feature
does not include provision for any alarm or annunciation that the unit is about to start. The remote control
function should therefore NOT be used unless the person conducting a business or undertaking involving the
management or control of the plant has first implemented at least the following risk control

ES08‐15Controllerv1.01.05


2022‐02‐03FS‐CurtisPage10

recommendations:
a) Do not operate the compressor with any of its maintenance access panels open or removed.
b) Before opening or removing any of its maintenance access panels or performing any maintenance
work on the compressor or connected pneumatic system: Switch off the unit; isolate and tag-out the
power supply; carefully release the residual air pressure from the internal piping and any external air
receiver tank and connected piping; and close the air outlet valve.
2.4 Temperature Menu Screen
The temperature menu is accessed via the system menu. Logging-in with the user password allows limited
access to view or edit the parameters; logging-in with the service password is necessary to edit most of the
set values. The temperature menu screen is shown in Figure 2.4.
Figure 2.4 – Temperature Menu Screen
Each of the temperature menu parameters is described in Table 2.3.
Table 2.3 – Temperature Menu Parameters
Parameter Set Value Function Password
To View
Password
To Edit
Ambient
Temperature
Monitoring
Disable (with the
slider pushed to the
left-hand side and
displaying grey colour
only).
Provision for enabling or disabling the
ambient temperature warning and
shutdown alarms in the future. Note:
The compressor set does not have
this functionality.
User Service
Unit of
Temperature °C Temperature unit of measure. User Service

ES08‐15Controllerv1.01.05


2022‐02‐03FS‐CurtisPage11

Parameter Set Value Function Password
To View
Password
To Edit
Shutdown
Outlet
Temperature
235 °C
A shutdown alarm will be activated if
the air-end discharge temperature
reaches this set value.
Note: Only the over-temperature air-
end(s) will be shut down; the other(s)
will continue to run.
User Factory
Warning Outlet
Temperature 230 °C
A warning will be activated if the air-
end discharge temperature reaches
this set value.
Note: Only the over-temperature air-
end(s) will be flagged.
User Service
Shutdown
Ambient
Temperature
This parameter will
not be displayed if
the ambient
temperature
monitoring function is
disabled.
Provision for a shutdown alarm that
will be activated if the ambient
temperature reaches this set value
and the ambient temperature
monitoring function has been
enabled. Note: The compressor set
does not have this functionality.
Service Factory
Warning
Ambient
Temperature
This parameter will
not be displayed if
the ambient
temperature
monitoring function is
disabled.
Provision for a warning that will be
activated if the ambient temperature
reaches this set value and the
ambient temperature monitoring
function has been enabled. Note: The
compressor set does not have this
functionality.
Service Service
Note: Compressor operation in ambient temperatures above 30°C will significantly reduce the service life of
the consumable parts and necessitate shorter maintenance intervals. Refer to the Instruction Manual.
2.5 Pressure Menu Screen
The pressure menu is accessed via the system menu. Logging-in with the user password allows full access
to view but limited access to edit the parameters; logging-in with the service password is necessary to edit
most of the set values. The pressure menu screen is shown in Figure 2.5.

ES08‐15Controllerv1.01.05


2022‐02‐03FS‐CurtisPage12


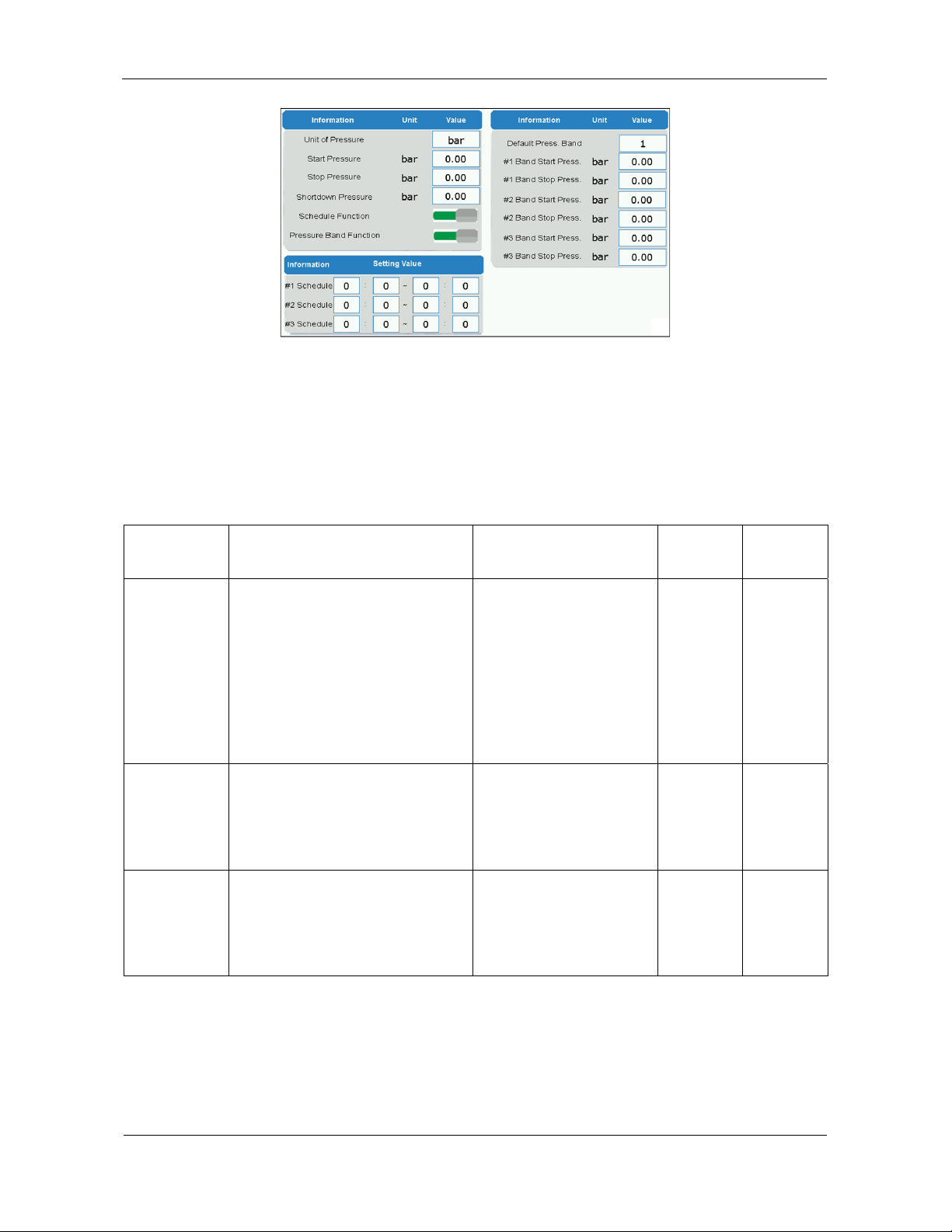

Figure 2.5 – Pressure Menu Screen
Each of the pressure menu parameters is described in Table 2.4.
Table 2.4 – Pressure Menu Parameters
Parameter Set Value Function Password
To View
Password
To Edit
Unit of
Pressure bar
Pressure unit of measure.
Note: 1 bar = 100 kPa.
Note: Changing the unit
of pressure to MPa, psi or
kg/cm2will reset all the
pressure menu values.
User Service
Start
Pressure 6.00 bar
The compressor set will
start running at or below
this discharge air
pressure.
User User
Stop
Pressure 8.00 bar
The compressor set will
stop running at or above
this discharge air
pressure.
User User

ES08‐15Controllerv1.01.05


2022‐02‐03FS‐CurtisPage13

Parameter Set Value Function Password
To View
Password
To Edit
Shutdown
Pressure 8.50 bar
A shutdown alarm will be
activated if the discharge
air pressure reaches this
set value.
Note: The entire
compressor set will be
shut down.
User Factory
Schedule
Function
Enable with the slider button
pushed to the right-hand side and
displaying green colour as shown
in Figure 2.5; or
Disable with the slider pushed to
the left-hand side and displaying
grey colour only. Disable is the
standard setting.
Enables or disables the
three adjustable daily
on / off timers.
Note: These timers will
switch the compressor on
and off every day
provided the power
supply is energised.
User Service
Pressure
Band
Function
Enable with the slider button
pushed to the right-hand side and
displaying green colour as shown
in Figure 2.5; or
Disable with the slider pushed to
the left-hand side and displaying
grey colour only. Disable is the
standard setting.
Enables or disables
different start and stop
pressures to apply during
compressor operation in
each of the three
schedule timer periods.
User Service
Schedule
On and Off
Times
If the schedule function is enabled,
up to three different on / off timing
pairs can be specified for a single
24-hour period from 00:00 to
23:59. The schedule periods
should not overlap, for example:
#1 Schedule: 00:00 ~ 07:50
#2 Schedule: 08:00 ~ 15:50
#3 Schedule: 16:00 ~ 23:50
Adjustable daily on / off
timers.
Note: These timers will
switch the compressor on
and off every day
provided the power
supply is energised.
User Service

ES08‐15Controllerv1.01.05


2022‐02‐03FS‐CurtisPage14

Parameter Set Value Function Password
To View
Password
To Edit
Schedule
Start and
Stop
Pressures
If the schedule and pressure band
functions are enabled, different
start and stop pressures can be
specified for each of daily
scheduled operating periods.
It is recommended to maintain a
pressure differential of at least
1.50 bar between the start and
stop pressure settings here.
Start and stop discharge
air pressures for each of
the scheduled daily
operating periods.
User Service
Warning: The compressor set’s built-in schedule function allows it to be switched on and off automatically
according to the preset timer(s). This feature does not include provision for any alarm or annunciation that
the unit is about to start or stop. The schedule function should therefore NOT be used unless the person
conducting a business or undertaking involving the management or control of the plant has first implemented
at least the following risk control recommendations:
a) Do not operate the compressor with any of its maintenance access panels open or removed.
b) Before opening or removing any of its maintenance access panels or performing any maintenance
work on the compressor or connected pneumatic system: Switch off the unit; isolate and tag-out the
power supply; carefully release the residual air pressure from the internal piping and any external air
receiver tank and connected piping; and close the air outlet valve.
Note: Reducing the differential between the start and stop pressures will increase the on and off cycling
frequency of the compressor modules. This may cause the permissible number of air-end drive motor starts
per hour to be exceeded, which will trigger a shutdown alarm for the affected motor(s). Refer to the
Instruction Manual for guidance about the pressure differential and recommended air receiver tank volume.
2.6 System Operation Menu
The system operation menu is accessed via the system menu. Logging-in with the user password allows full
access to view the parameters; logging-in with the service password is necessary to edit most of the set
values. The system operation menu screen is shown in Figure 2.6.

ES08‐15Controllerv1.01.05


2022‐02‐03FS‐CurtisPage15

Figure 2.6 – System Operation Menu Screen
Each of the system operation menu parameters is described in Table 2.5.
Table 2.5 – System Operation Menu Parameters
Parameter Set Value Function Password
To View
Password
To Edit
Compressors
2 [ES08]
3 [ES11]
4 [ES15]
The number of motor and
air-end modules in the
compressor set.
User Factory
Motor Starts per
Hour 30
The maximum permissible
number of motor starts per
hour for each module.
User Factory
Start Delay 2 seconds
The response delay time for
a start signal to the first
module.
User Service
Stop Delay 2 seconds
The response delay time for
a stop signal to the first
module.
User Service
Start Interval 2 seconds
The response delay time for
a start signal to each
successive module.
User Service
Stop Interval 2 seconds
The response delay time for
a stop signal to each
successive module.
User Service

ES08‐15Controllerv1.01.05


2022‐02‐03FS‐CurtisPage16

Parameter Set Value Function Password
To View
Password
To Edit
Drain On 4 seconds
The duration of the
condensate drain valve
being open each cycle.
User Service
Drain Off 600 seconds
The interval between
successive condensate drain
valve opening cycles during
which time the valve is
closed.
User Service
Fan Stop Delay 120 seconds
The run-on time for the
electric cooling fan after all
compressor modules have
stopped running.
User Service
Auto Restart
Delay
0 seconds is the standard
setting, which disables this
function.
The function can be enabled,
if required, by setting a value
of 1 ~ 1,200 seconds.
The elapsed time after a
power supply interruption is
rectified before the
compressor will
automatically restart if it was
previously operating in
automatic on / off mode.
User Service
#1 Main Motor
Test O ut p ut
#2 Main Motor
Test O ut p ut
#3 Main Motor
Test O utp ut
[ES11 & ES15]
#4 Main Motor
Test O utp ut
[ES15]
Fan Motor
Drain Valve
Push and hold the slider to
the right-hand side on (“I”)
position for 2 seconds to
initiate a momentary motor
rotation or drain valve
opening test.
The slider automatically
resets to the left-hand side off
(“O”) position after use.
For use during
commissioning or after
electrical repairs to check
the direction of motor
rotation or drain valve
function.
User Service

ES08‐15Controllerv1.01.05


2022‐02‐03FS‐CurtisPage17

Parameter Set Value Function Password
To View
Password
To Edit
#1 Main Motor
Starts Reset
#2 Main Motor
Starts Reset
#3 Main Motor
Starts Reset
[ES11 & ES15]
#4 Main Motor
Starts Reset
[ES15]
Push and hold the slider to
the right-hand side for
2 seconds to reset the
cumulative motor start
counter to zero. The slide will
temporarily appear green in
colour to acknowledge the
command.
The slider automatically
resets to the left-hand side
and appears all-grey in colour
after use.
For use as required to reset
the cumulative motor start
counter to zero. Check the
equipment status display
screen for confirmation of
this action.
User Service
Remote Control
Single Contact is the
standard setting.
Double Contact is the
alternate setting.
Specifies the type of hard-
wired remote control
switch(es) and switching
logic.
User Service
Rotation
Interval 48 hours
The interval in running hours
between the starting
sequence being cycled so as
to maintain equal run time
across all the modules.
User Service
Warning: The compressor set’s built-in auto restart function allows it to be switched on automatically after a
power supply interruption has been rectified. This feature does not include provision for any alarm or
annunciation that the unit is about to start. The auto restart function should therefore NOT be used unless
the person conducting a business or undertaking involving the management or control of the plant has first
implemented at least the following risk control recommendations:
a) Do not operate the compressor with any of its maintenance access panels open or removed.
b) Before opening or removing any of its maintenance access panels or performing any maintenance
work on the compressor or connected pneumatic system: Switch off the unit; isolate and tag-out the
power supply; carefully release the residual air pressure from the internal piping and any external air
receiver tank and connected piping; and close the air outlet valve.

ES08‐15Controllerv1.01.05


2022‐02‐03FS‐CurtisPage18

Note: To utilise the single contact remote control function, connect one latching switch between terminals
24G and X06 on Terminal Board 1 (TB1) inside the compressor’s electrical cabinet. Closing this 24 V DC
control circuit by means of the switch will send an “on” or “start” signal to the controller and opening the
circuit will send an “off” or “stop” signal. The compressor’s on or off status can be ascertained visually by
checking the two-position remote-control switch or an indicator light wired into this circuit.
It is recommended to use the single contact option for remote control operation.
Note: To utilise the double contact remote control function, connect one non-latching switch between
terminals 24G and X06 for the “start” command and another non-latching switch between terminals 24G and
X07 for the “stop” command. Momentarily closing either of these 24 V DC control circuits by pulsing one
switch or the other will send the relevant “on” (i.e. “start”) or “off” (i.e. “stop”) signal to the controller.
Note: Neither the single nor double contact remote control functions are compatible with sequential control
operation of multiple compressor sets. Only a single standalone compressor set can be operated by remote
control.
Note: Incorrect rotation of the drive motor will cause permanent damage to the compressor air-end that is
not a warrantable fault. Ensure that the 3-phase electrical power supply is connected with clockwise red →
white →blue phase sequence rotation BEFORE starting the compressor. When using the main motor test
function after carrying out any electrical installation, maintenance or repair work, visually check and confirm
that each drive motor and air-end is rotating COUNTER-CLOCKWISE when viewed looking onto its drive
shaft.
Note: When using the fan motor test function, check and confirm that the fan discharges upwards and away
from the cooling air exhaust vent on top of the compressor set. Temporarily affixing a piece of A4 paper with
adhesive tape along one long edge only above the vent can provide reliable indication of the cooling airflow’s
direction.
Note: Increasing either the stop delay or stop interval above the recommended 2-second value may cause
nuisance activation of the discharge air pressure shutdown alarm.
2.7 Calibration Menu
The calibration menu is accessed via the system menu using either the service or factory passwords. The
set values should NOT be altered without first seeking guidance from the manufacturer. The calibration menu
screen is shown in Figure 2.7.
