FSR WM-CMPT User manual

FSR
244 Bergen Boulevard, Woodland Park, NJ 07424, Phone: [phone] - Fa : 973.785.4207
43246 LIT1667
1. WIRING CAN BE DONE DURING OR AFTER INSTALLATION. SEE CUSTOMER
SPECIFICATIONS FOR LOCATING WM-CMPT. ORIENT AS REQUIRED SO THAT
THE WIREWAY AND WIREWAY OPENING IS BEST ACCESSED FOR
SERVICABILITY. ENSURE WIREWAY DOORS ARE NOT OBSTRUCTED.

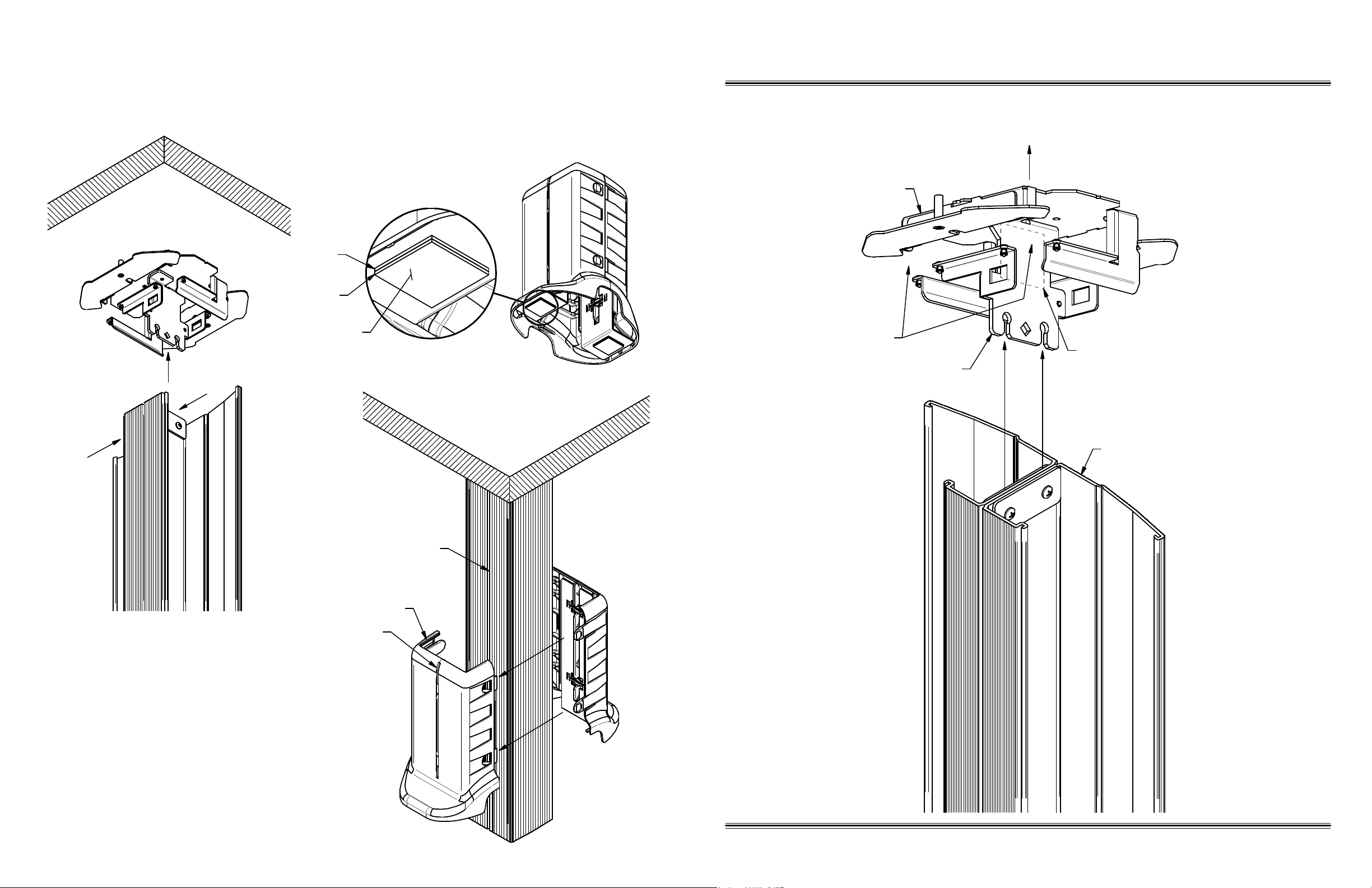

WM-CMPT Installation Instruction
PUSH WIREWAY UP TO MOUNTING BRAC ET UNTIL IT STOPS.
4a.
(2) BOOT HALF
ALIGN GROOVE IN BOOT
WITH GROOVE ON WIREWAY
GROOVE ON WIREWAY
TO TABLE
UNDERSIDE
TUBE WIREWAY
SHOWN OPEN
MOUNTING BRAC ET
LABEL ON OTHER SIDE
INDICATING WIREWAY
MOUNTING SIDE
5. INSTALL AND ROUTE ALL WIRING AS DESIRED/NECESSARY,
BEFORE CLOSING AND LATCHING THE SIDES OF THE WIREWAY
(WIRING CAN ALSO BE INSTALLED AT A LATER DATE).
a.
c.
b.
4b. PUSH PLATE WITH STANDOFFS TOWARDS TONGUE SO THAT
WIREWAY WILL HANG UNASSISTED.
4c. TIGHTEN SCREWS TO SECURE WIREWAY TO MOUNTING
BRAC ET.
OPENING TO WIREWAY
6. WITH WIREWAY CLOSED, INSTALL BOOT HALVES AND SLIDE
DOWN TO MEET FLOOR. REMOVE "LOOP PAD" FOR CARPETED
FLOORS, AND REMOVE JUST THE ADHESIVE PROTECTOR FOR
NON-CARPETED FLOORS.
TONGUE
HOO
LOOP
ADHESIVE
PROTECTOR

INSTALL MOUNTING BRAC ET TO UNDERSIDE OF
TABLE AS SHOWN.
2. OPEN TUBE WIREWAY AND INSTALL MOUNTING PLATES AS SHOWN.
THREAD THE SCREWS IN ONLY 1/8" SO THAT THE WIREWAY CAN BE
INSTALLED ONTO TONGUE.
3.
PLATE
PLATE WITH
STANDOFFS
(2) #8-32 x 3/8 LONG
PAN HEAD SCREW
TUBE WIREWAY
SHOWN OPEN
MOUNTING BRAC ET
(4) #6 x 1/2 LONG TYPE AB
PAN HEAD SCREW
TABLE
3.25
3.00
REMOVABLE SERVICE LOOP
SUPPORT PLATFORM
REMOVABLE SERVICE LOOP
SUPPORT PLATFORM
NOTCHES TO ASSIST
IN CENTERING BRAC ET
WITH CHAL LINES
UNDERSIDE OF
MOUNTING BRAC ET
TONGUE SIDE TONGUE SIDE
OR
TONGUE
ONLY THE #8-32
HARDWARE CAN
PASS THRU SLOTS
(4) .172 DIA MOUNTING HOLE
TONGUE
