Fujitsu AB G36LRTE Series Service manual

DESIGN & TECHNICAL MANUAL
INDOOR
OUTDOOR
AOG30LETL
AOG36LETL
ABG30LRTE
ABG36LRTE
AIR CONDITIONER
Ceiling type

1. INDOOR UNIT
CEILING TYPE :
ABG30LRTE
ABG36LRTE
DTR_AB037E_01
2013.02.28

CEILING TYPE ABG30-36LRTE CEILING TYPE ABG30-36LRTE
CONTENTS
1. INDOOR UNIT
1. FEATURES.............................................................................................................. 01 - 01
2. WIRELESS REMOTE CONTROLLER............................................... 01 - 03
3. SPECIFICATIONS.............................................................................................. 01 - 05
4. DIMENSIONS ........................................................................................................ 01 - 07
5. WIRING DIAGRAMS........................................................................................ 01 - 09
6. CAPACITY TABLE ............................................................................................ 01 - 10
6-1. COOLING CAPACITY...................................................................................... 01 - 10
6-2. HEATING CAPACITY........................................................................................01 - 11
7. FAN PERFORMANCE.................................................................................... 01 - 12
7-1. AIR VELOCITY DISTRIBUTION..................................................................... 01 - 12
7-2. AIRFLOW........................................................................................................... 01 - 14
7-3. FRESH AIR CHARACTERISTIC.................................................................... 01 - 16
8. OPERATION NOISE......................................................................................... 01 - 17
8-1. NOISE LEVEL CURVE .................................................................................... 01 - 17
8-2. SOUND LEVEL CHECK POINT..................................................................... 01 - 18
9. ELECTRIC CHARACTERISTICS........................................................... 01 - 19
10. SAFETY DEVICES ............................................................................................ 01 - 20
11. EXTERNAL INPUT & OUTPUT............................................................... 01 - 21
11-1. EXTERNAL INPUT ........................................................................................... 01 - 21
11-2. EXTERNAL OUTPUT....................................................................................... 01 - 22
12. FUNCTION SETTINGS .................................................................................. 01 - 24
12-1. INDOOR UNIT ................................................................................................... 01 - 24
12-2. INDOOR UNIT (Setting by remote controller)........................................... 01 - 25
13. OPTIONAL PARTS ........................................................................................... 01 - 29
13-1. CONTROLLER.................................................................................................. 01 - 29
13-2. OTHERS............................................................................................................. 01 - 30

- (01 - 01) -
CEILING TYPE ABG30-36LRTE CEILING TYPE ABG30-36LRTE
FEATURES1.
MODEL

ABG30LRTE / AOG30LETL
ABG36LRTE / AOG36LETL
FEATURES

Energy efciency class
z
MODEL
ABG30LRTE ABG36LRTE
Cooling A++ A+
Heating A+ A+
Quiet operation
z
Air ow mode can be set in 4 steps and more detailed air ow setting is possible.
30 type: 32 dB / 36 type: 32 dB at operation in the Quiet mode.
Filter sign
z
Dirtying of lter is detected by air conditioner operating time and the user is informed.
Economy operation
z
The power consumption can be reduced.
Wired/wireless simultaneous use possible
z
Wired remote controller and wireless remote controller can be simultaneously used.
Flexible installation
z
A high installation of the
construction of the ceiling
and degree of freedom
corresponding to height is
possible.
Double auto swing
z
Combination of up/down and right/left air direction swing allows three-dimensional air direction
control.
Since up/down air direction aps operate automatically, according to the operating mode of the
unit, it is possible to set the air direction based on the operating mode.
(Field Supplied)
Open Concealed Wall mounted
5 steps selectable
1
2
5
4
3
1
2
5
4
3
Steps
Swing: Cooling, Dry and Fan mode
Swing: Heating and Fan mode
5 steps selectable
Up and Down SwingRight and Left Swing

- (01 - 02) -
CEILING TYPE ABG30-36LRTE CEILING TYPE ABG30-36LRTE
Fresh-air intake
z
OUTDOOR
Fresh-air
INDOOR
FUNCTION SETTINGS

Ceiling switching function (standard/high ceiling)
z
Also delivers air to high ceilings by selecting the mode and raising the air ow according to the
height of the ceiling.
Standard ...Operates at normal air ow.
Mode 1 ...Air ow becomes greater than normal.
Auto restart
z
The units restart automatically when the current was returned even when there was a power
interruption during operation.
Room temperature sensor switching
z
Switches from room temperature judgment by room temperature sensor attached to indoor
unit body to room temperature judgment by room temperature sensor attached to wired remote
controller.
Cooling room temperature correction
z
Heating room temperature correction
z

- (01 - 03) -
CEILING TYPE ABG30-36LRTE CEILING TYPE ABG30-36LRTE
WIRELESS REMOTE CONTROLLER2.
FEATURES

4 mode timer setup available (ON / OFF / PROGRAM / SLEEP).

Four kinds of timers. Easy operation.

Easy to change signal code (max. 4 units) by button operation.

Simple function setting
z
Setting of the air conditioner selection function is performed by remote controller.
Built-in timers
z
Select from four different timer programs (On/Off/Program/Sleep).
Program timer
z
The program timer operates the ON and OFF timer once within a 24 hour period.
Sleep timer
z
The sleep timer function automatically corrects the temperature thermostat setting according to
the time setting to prevent excessive cooling and heating while sleeping.
Switching remote controller signal code
z
A B C D
A B CD
Mixed-up
I.U. I.U. I.U. I.U. I.U. I.U. I.U. I.U.
After code change
Code selector switch eliminates unit

•
being wrongly switched.
(Up to 4 codes can be set.)
*I.U.=Indoor unit
60min.
1 °C 2 °C
Timer setting
Cooling operation/dry operation
When the sleep timer is set, the set temperature
automatically rises 1°C every hour. The set
temperature can rise up to a maximum of 2°C.
1 °C
30min.
60min.
90min.
2 °C 3 °C 4 °C
Timer setting
Heating operation
When the sleep timer is set, the set temperature
automatically drops 1°C every 30 minutes. The set
temperature can drop to a maximum of 4°C.

- (01 - 04) -
CEILING TYPE ABG30-36LRTE CEILING TYPE ABG30-36LRTE
FUNCTIONS

Note: Functions will be different due to type of indoor unit.
For details, please see operation manual.
SPECIFICATION

SIZE (H × W × D mm) 170 × 56 × 19
WEIGHT (g) 85 (w/o batteries)
ACCESSORY Holder
Display panel
2
49
3
1
16
15
510
13
11
12
14
8
7
6
17
18
19
21
24
23
22
20
MODE button1
Selects the operating mode (AUTO, COOL, DRY, FAN, HEAT).
/Start / end R.C. signal code change. (Max 4 types)
10°C2 HEAT button
SET TEMP. button ( ▲ / ▼ )3
Sets the indoor temp./ Sets R.C. signal code.
ECONOMY button4
SLEEP button5
Pressed to select sleep timer.
FAN button6
Selects the fan speed (AUTO, HIGH, MED, LOW, QUIET).
START/STOP button7
Pressed to start and stop operation.
SET button (Vertical)8
Air ow direction vertical set button.
SET button (Horizontal)9
Air ow direction horizontal set button.
SWING button10
Air ow direction swing button.
TIMER MODE button11
Pressed to select the timer mode. (OFF TIMER, ON TIMER,
PROGRAM TIMER, TIMER RESET)
TIMER SET (12 / ) button
Sets the current time and on-off time.
CLOCK ADJUST button13
Sets the current time.
RESET button14
Used when replacing batteries.
TEST RUN button15
Used when testing the air conditioner after installation.
Signal transmitter16
Temperature set display17
Operating mode display18
Sleep display19
Transmit indicator20
Fan speed display21
Swing display22
Timer mode display23
Clock display24

- (01 - 05) -
CEILING TYPE ABG30-36LRTE CEILING TYPE ABG30-36LRTE
SPECIFICATIONS3.
Note :
Specications are based on the following conditions.
Cooling : Indoor temperature of 27 °CDB / 19 °CWB.and outdoor temperature of 35 °CDB/24 °CWB.
Heating : Indoor temperature of 20 °CDB / 15 °CWB.and outdoor temperature of 7 °CDB/6 °CWB.
Pipe length : 5 m, Height difference : 0 m.(Outdoor unit - Indoor unit)
The protective function might work when using outside the operation range.
*The maximum current is the maximum value when operated with in the operation range.
Drain hose should be eld supplied.
Type CEILING MODEL
INVERTER HEATPUMP
Model name ABG30LRTE ABG36LRTE
Power source 230V~ 50Hz
Available voltage range 198-264V~ 50Hz
Capacity
Cooling
Rated kW 8.50 9.40
Btu/h 29000 32100
Min.-Max. kW 2.80 -10.00 2.80 -11.20
Btu/h 9500 -34100 9500 -38200
Heating
Rated kW 10.00 11.20
Btu/h 34100 38200
Min.-Max. kW 2.70 -11.20 2.70 -12.70
Btu/h 9200 -38200 9200 -43300
Input power
Cooling Rated
kW
2.65 2.93
Max. 3.88 4.22
Heating Rated 2.77 3.02
Max. 3.88 4.56
Current Cooling Rated A11.6 12.8
Heating Rated 12.2 13.2
EER Cooling kW/kW 3.21 3.21
COP Heating 3.61 3.71
Moisture removal l/h (pints/h) 2.5(5.3) 3.0 (6.3)
Maximum operating current * Cooling Max. A17. 0 18.5
Heating 17.0 20.0
Fan
Airow
rate
Cooling
High
m3/h
1660 1900
Med 1500
Low 1200
Quiet 1000
Heating
High 1660 1900
Med 1500
Low 1200
Quiet 1000
Type × Q'ty Sirocco × 4
Motor output W 120
Sound pressure level
Cooling
High
dB(A)
45 47
Med 43
Low 37
Quiet 32
Heating
High 45 47
Med 43
Low 37
Quiet 32
Heat exchanger type
Dimensions (H × W × D) mm 252 × 1350 × 39.9
Fin pitch 1.45
Rows x Stages 3 × 12
Pipe type Copper
Fin type Aluminium
Enclosure
Material ABS
Colour WHITE
Approximate colour of MUNSELL N 9.25 /
Dimensions
( H×W×D)
Net mm 240 × 1660 × 700
Gross 318 × 1800 × 790
Weight Net kg 46
Gross 58
Connection pipe Size Liquid mm Ø 9.52 (Ø 3 / 8 in.) Gas Ø15.88 (Ø 5 / 8 in.)
Method Flare
Operation range Cooling °C 18 to 32 %RH 80 or less
Heating °C 16 to 30
Remote controller type Wireless
Drain port Material ABS
Size mm Ø 22.0 (I.D.), Ø25.6 (O.D.)

- (01 - 06) -
CEILING TYPE ABG30-36LRTE CEILING TYPE ABG30-36LRTE
Model name ABG30LRTE ABG36LRTE
Energy efciency class Cooling A++ A+
Heating (Average) A+ A+
Pdesign Cooling kW 8.5 9.4
Heating (Average) 8.0 8.7
SEER Cooling kWh/kWh 6.10 6.00
SCOP Heating (Average) 4.20 4.10
Annual energy consumption QCE kWh/a 487 548
QHE (Average) 2662 2965
Sound power level Cooling High dB (A) 57 60
Heating 60 61

- (01 - 07) -
CEILING TYPE ABG30-36LRTE CEILING TYPE ABG30-36LRTE

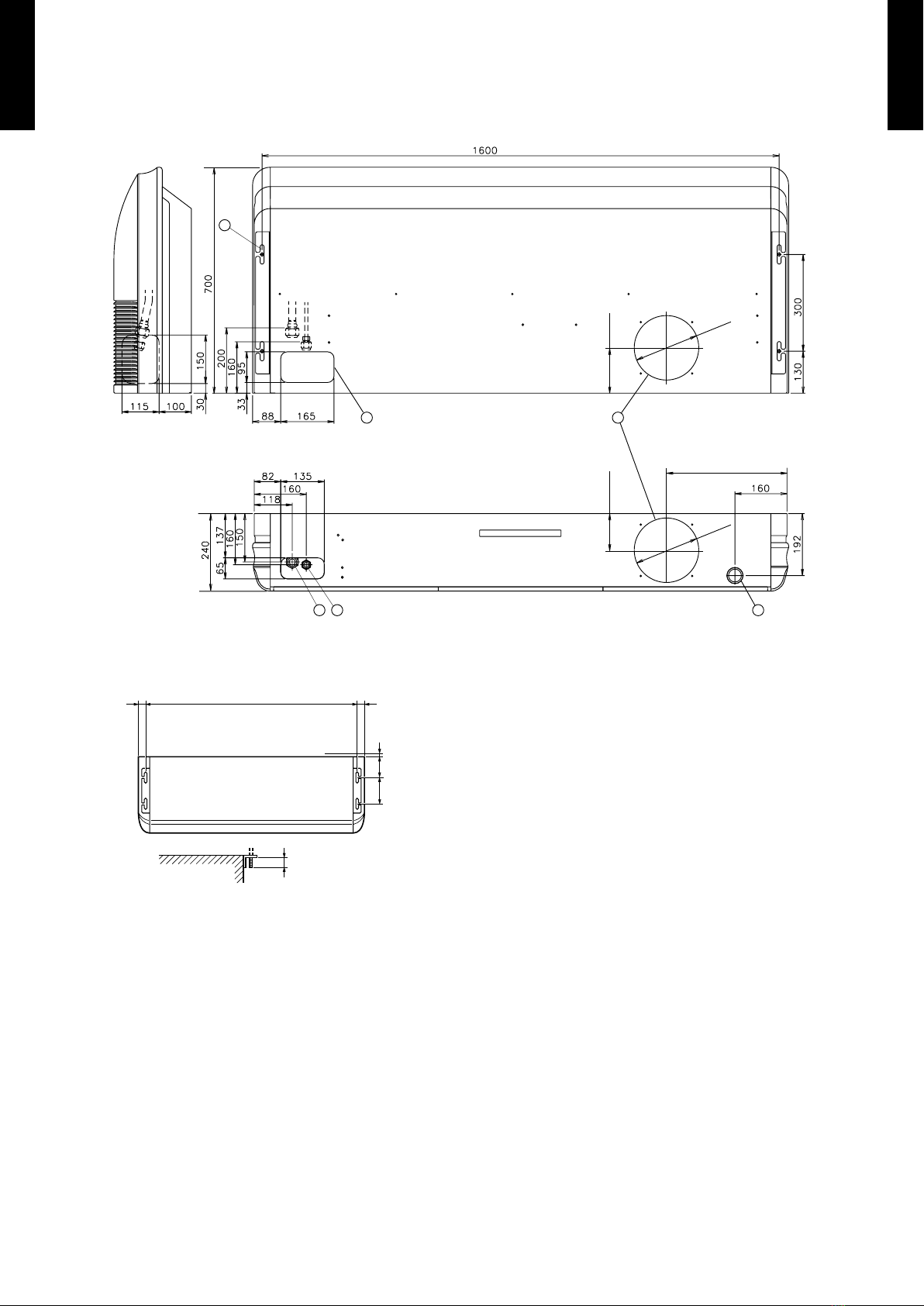

DIMENSIONS4.
MODEL
 : ABG30LRTE, ABG36LRTE
(Unit : mm)
 Refrigerant piping are connection (Gas)
 Refrigerant piping are connection (Liquid)
 Drain piping connection
 Knock out hole for fresh air
 Knock out hole for refrigerant piping
 Hole for lifting bolt (Use M10 screw bolt)
Top view
Side view
Rear view
1 2 3
45
6
30 30
Suspension bolt pitch
1,600
INDOOR UNIT (Top view)
Dimensions
(Space Required
for Installation)
10
155
300
INDOOR UNIT
Suspension bolt
should extend
outward 30 to 75.
141
Ø200
114
373
Ø200

- (01 - 08) -
CEILING TYPE ABG30-36LRTE CEILING TYPE ABG30-36LRTE
INSTALLATION PLACE

(Unit : mm)
Ceiling
150 or more80 or more
10 or more
2300 or more
1000 or more
INDOOR UNIT
Ceiling
Obstruction
Floor
INDOOR UNIT
Ceiling panel
Ceiling panel
150 or more80 or more
10 or more
2300 or more
1000 or more
Obstruction
Floor

- (01 - 09) -
CEILING TYPE ABG30-36LRTE CEILING TYPE ABG30-36LRTE

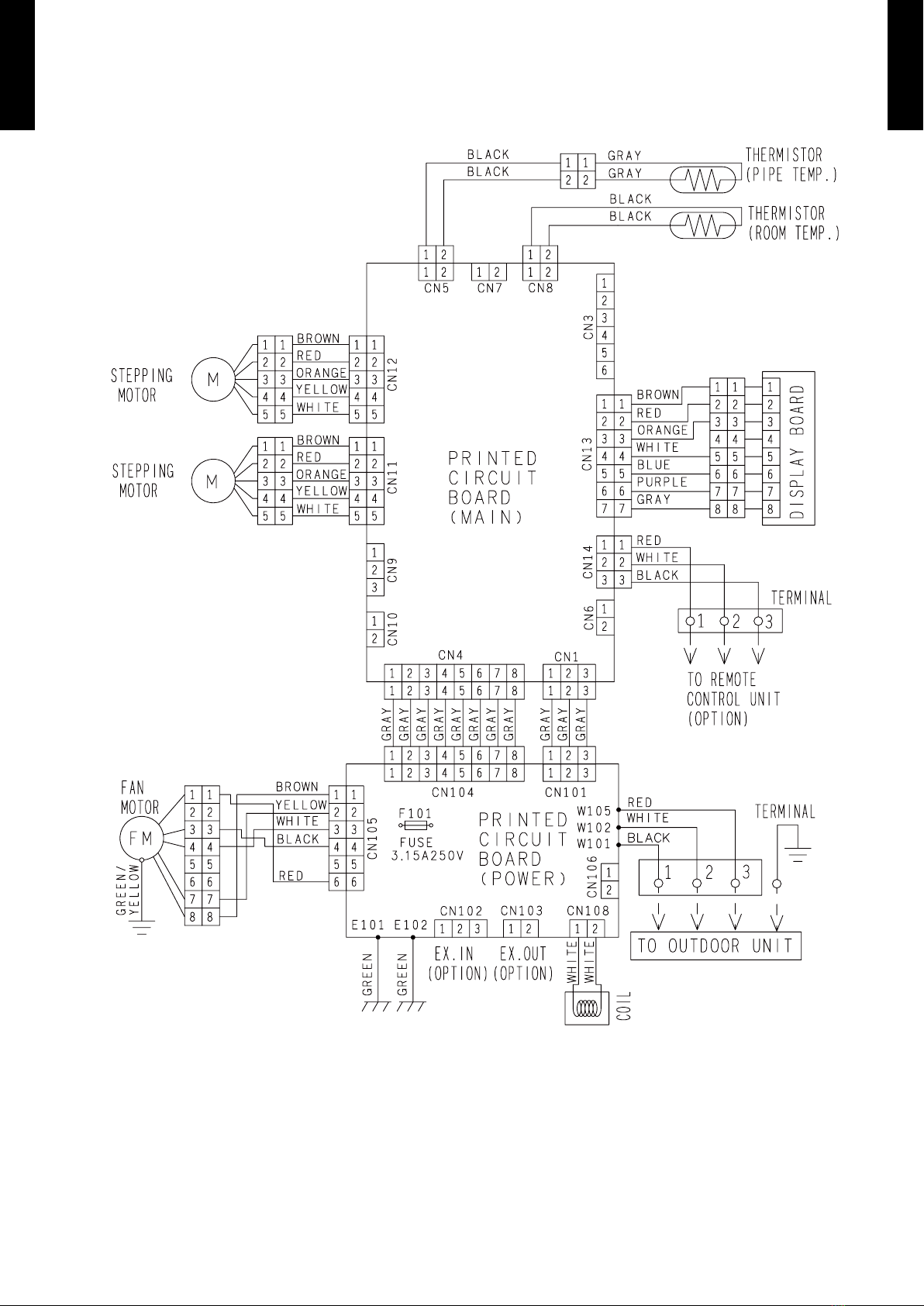

WIRING DIAGRAMS5.
MODEL
 : ABG30LRTE, ABG36LRTE

- (01 - 10) -
CEILING TYPE ABG30-36LRTE CEILING TYPE ABG30-36LRTE
CAPACITY TABLE6.
COOLING CAPACITY6-1.
This table is created using the maximum capacity.
MODEL
 : ABG30LRTE
MODEL
 : ABG36LRTE
AFR : Air Flow Rate (m3/min)
TC : Total Capacity (kW)
SHC : Sensible Heat Capacity (kW)
IP : Input Power (kW)
AFR 27.7
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
-15 8.60 6.53 1.32 9.59 6.57 1.35 9.91 7.14 1.35 10.57 7.17 1.37 10.89 7.74 1.37 11.55 7.71 1.39 12.20 8.21 1.40
-10 8.38 6.44 1.71 9.33 6.48 1.73 9.65 7.05 1.74 10.28 7.07 1.76 10.60 7.64 1.77 11.24 7.61 1.79 11.87 8.10 1.80
0 7.96 6.33 2.19 8.87 6.37 2.23 9.17 6.92 2.24 9.77 6.94 2.26 10.08 7.50 2.27 10.68 7.47 2.29 11.29 7.96 2.32
5 7.85 6.17 2.24 8.75 6.21 2.28 9.04 6.75 2.29 9.64 6.77 2.31 9.94 7.32 2.33 10.54 7.29 2.35 11.13 7.76 2.37
10 7.82 6.27 2.27 8.71 6.31 2.30 9.00 6.86 2.31 9.60 6.88 2.34 9.89 7.43 2.35 10.49 7.40 2.37 11.08 7.89 2.39
15 8.20 6.31 2.47 9.13 6.35 2.51 9.44 6.90 2.52 10.07 6.92 2.54 10.38 7.48 2.56 11.00 7.45 2.58 11.62 7.93 2.61
20 9.45 6.90 3.00 10.53 6.94 3.05 10.89 7.55 3.06 11.61 7.57 3.09 11.97 8.18 3.11 12.68 8.14 3.14 13.40 8.67 3.17
25 9.12 6.77 3.34 10.16 6.81 3.39 10.51 7.40 3.41 11.20 7.42 3.44 11.55 8.02 3.46 12.24 7.99 3.49 12.93 8.51 3.53
30 8.71 6.67 3.35 9.70 6.71 3.40 10.03 7.30 3.42 10.69 7.32 3.45 11.02 7.91 3.47 11.68 7.88 3.51 12.34 8.39 3.54
35 7.90 6.31 3.36 8.80 6.34 3.41 9.10 6.90 3.43 9.70 6.92 3.47 10.00 7.47 3.48 10.60 7.44 3.52 11.20 7.93 3.55
40 6.03 5.20 2.98 6.72 5.23 3.03 6.95 5.68 3.04 7.41 5.70 3.07 7.63 6.16 3.09 8.09 6.13 3.12 8.55 6.53 3.15
46 5.39 5.10 2.92 6.01 5.13 2.97 6.21 5.58 2.99 6.62 5.59 3.02 6.82 6.04 3.03 7.23 6.02 3.06 7.64 6.41 3.09
AFR 31.7
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
-15 8.73 6.97 1.32 9.72 7.02 1.34 10.05 7.63 1.35 10.72 7.65 1.36 11.05 8.26 1.37 11.71 8.23 1.39 12.37 8.77 1.40
-10 8.49 6.76 1.71 9.46 6.80 1.74 9.78 7.39 1.75 10.43 7.41 1.77 10.75 8.01 1.78 11.40 7.97 1.79 12.04 8.49 1.81
0 8.15 6.72 2.20 9.08 6.76 2.24 9.39 7.35 2.25 10.01 7.37 2.27 10.31 7.96 2.28 10.93 7.93 2.31 11.55 8.45 2.33
5 8.04 6.54 2.24 8.95 6.58 2.28 9.26 7.16 2.29 9.87 7.18 2.31 10.17 7.75 2.33 10.78 7.72 2.35 11.39 8.23 2.37
10 8.01 6.65 2.26 8.92 6.69 2.30 9.22 7.28 2.31 9.83 7.30 2.33 10.13 7.88 2.35 10.74 7.85 2.37 11.35 8.37 2.39
15 8.43 6.70 2.47 9.39 6.74 2.50 9.71 7.33 2.52 10.35 7.35 2.54 10.67 7.94 2.56 11.31 7.90 2.58 11.95 8.42 2.61
20 9.82 7.34 3.00 10.94 7.38 3.05 11.31 8.03 3.06 12.06 8.05 3.10 12.43 8.69 3.11 13.18 8.66 3.14 13.92 9.23 3.17
25 9.38 7.13 3.34 10.45 7.18 3.39 10.80 7.80 3.41 11.52 7.83 3.44 11.87 8.45 3.46 12.59 8.42 3.49 13.30 8.97 3.53
30 9.20 7.05 4.06 10.25 7.09 4.13 10.60 7.71 4.15 11.30 7.74 4.19 11.65 8.36 4.21 12.35 8.32 4.25 13.05 8.86 4.30
35 8.85 7.03 4.05 9.86 7.08 4.11 10.19 7.69 4.13 10.86 7.72 4.17 11.20 8.33 4.19 11.87 8.30 4.24 12.54 8.84 4.28
40 6.61 5.89 3.07 7.37 5.93 3.12 7.62 6.44 3.14 8.12 6.46 3.17 8.37 6.98 3.18 8.87 6.95 3.22 9.38 7.41 3.25
46 5.95 5.91 2.95 6.62 5.94 2.99 6.85 6.46 3.01 7.30 6.48 3.04 7.53 7.00 3.05 7.98 6.97 3.09 8.43 7.42 3.12

- (01 - 11) -
CEILING TYPE ABG30-36LRTE CEILING TYPE ABG30-36LRTE
HEATING CAPACITY6-2.
This table is created using the maximum capacity.
MODEL
 : ABG30LRTE
MODEL
 : ABG36LRTE
AFR : Air Flow Rate (m3/min)
TC : Total Capacity (kW)
IP : Input Power (kW)
AFR 27.7
Indoor temperature
°CDB 16 18 20 22 24
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP TC IP
-15 -16 8.22 3.38 8.02 3.45 7.83 3.52 7.63 3.59 7.44 3.67
-10 -11 8.79 3.39 8.58 3.46 8.37 3.53 8.16 3.60 7.95 3.67
-5 -7 9.54 3.40 9.31 3.47 9.08 3.54 8.86 3.61 8.63 3.69
0 -2 10.11 3.41 9.87 3.48 9.63 3.55 9.39 3.62 9.15 3.69
5 3 11.22 3.37 10.96 3.44 10.69 3.51 10.42 3.58 10.16 3.65
7 6 11.76 3.34 11.48 3.41 11.20 3.48 10.92 3.55 10.64 3.62
10 8 12.12 3.27 11.83 3.34 11.54 3.40 11.25 3.47 10.97 3.54
15 10 10.86 2.56 10.60 2.61 10.34 2.67 10.08 2.72 9.82 2.76
20 15 10.85 2.26 10.59 2.30 10.33 2.35 10.07 2.40 9.81 2.43
24 18 11.31 2.27 11.04 2.31 10.77 2.36 10.50 2.41 10.23 2.45
AFR 31.7
Indoor temperature
°CDB 16 18 20 22 24
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP TC IP
-15 -16 9.17 3.97 8.95 4.05 8.73 4.13 8.51 4.22 8.29 4.30
-10 -11 9.88 4.02 9.65 4.10 9.41 4.19 9.18 4.27 8.94 4.35
-5 -7 10.56 4.04 10.31 4.12 10.06 4.21 9.81 4.29 9.56 4.38
0 -2 11.81 4.06 11.53 4.15 11.25 4.23 10.97 4.32 10.69 4.40
5 3 12.95 3.97 12.64 4.05 12.33 4.14 12.02 4.22 11.72 4.30
7 6 13.34 3.46 13.02 3.53 12.70 3.61 12.38 3.68 12.07 3.75
10 8 13.75 3.34 13.42 3.41 13.09 3.47 12.77 3.54 12.44 3.61
15 10 12.18 2.59 11.89 2.65 11.60 2.70 11.31 2.76 11.02 2.80
20 15 12.17 2.28 11.88 2.33 11.59 2.38 11.30 2.43 11.01 2.46
24 18 12.71 2.26 12.41 2.31 12.10 2.36 11.80 2.40 11.50 2.44

- (01 - 12) -
CEILING TYPE ABG30-36LRTE CEILING TYPE ABG30-36LRTE
FAN PERFORMANCE7.
AIR VELOCITY DISTRIBUTION7-1.
MODEL
 : ABG30LRTE
2 1 0.5 0.25
1
4
3
2
4
1
2
3
0
(m) Unit : m/s
TOP VIEW
VERTICAL : UPWARD
HORIZONTAL : CENTER
21
1
0.5
0.5
0.25
0.25
1
4
3
2
4
1
2
3
0
(m) Unit : m/s
TOP VIEW
VERTICAL : UPWARD
HORIZONTAL : RIGHT AND LEFT
210.5 0.25
2
3
1
(m) Unit : m/s
SIDE VIEW
FLAP : UPWARD
HORIZONTAL : CENTER
2
1
0.5 0.25
2
3
1
0
(m) Unit : m/s
SIDE VIEW
FLAP : CENTER
HORIZONTAL : CENTER
2
1
0.5 0.25
2
3
1
0
(m) Unit : m/s
SIDE VIEW
FLAP : DOWNWARD
HORIZONTAL : CENTER
Note:
Condition
Fan speed : High
Operation mode : FAN
0 1 18 (m) 2345678910 11 12 13 14 15 16 17
0 1 (m)
2345678910 11 12 13 14
0 1 (m)
2345678910 11 12 13 14
0 1 18 (m)
2345678910 11 12 13 14 15 16 17
0 1 18 (m)
2345678910 11 12 13 14 15 16 17

- (01 - 13) -
CEILING TYPE ABG30-36LRTE CEILING TYPE ABG30-36LRTE
MODEL
 : ABG36LRTE
2 1 0.5 0.25
1
4
3
2
4
1
2
3
0
(m) Unit : m/s
TOP VIEW
VERTICAL : UPWARD
HORIZONTAL : CENTER
21
1
0.5
0.5
0.25
0.25
1
4
3
2
4
1
2
3
0
(m) Unit : m/s
TOP VIEW
VERTICAL : UPWARD
HORIZONTAL : RIGHT AND LEFT
2 1 0.5 0.25
2
3
1
(m) Unit : m/s
SIDE VIEW
FLAP : UPWARD
HORIZONTAL : CENTER
2
1
0.5 0.25
2
3
1
0
(m) Unit : m/s
SIDE VIEW
FLAP : CENTER
HORIZONTAL : CENTER
2
1
0.5 0.25
2
3
1
0
(m) Unit : m/s
SIDE VIEW
FLAP : DOWNWARD
HORIZONTAL : CENTER
Note:
Condition
Fan speed : High
Operation mode : FAN
0 1 18 (m) 2345678910 11 12 13 14 15 16 17
0 1 (m)
2345678910 11 12 13 14
0 1 (m)
2345678910 11 12 13 14
0 1 18 (m)
2345678910 11 12 13 14 15 16 17
0 1 18 (m)
2345678910 11 12 13 14 15 16 17

- (01 - 14) -
CEILING TYPE ABG30-36LRTE CEILING TYPE ABG30-36LRTE
AIRFLOW7-2.
MODEL
 : ABG30LRTE
COOLING
z
HEATING
z
Fan speed
Number of
rotations
(r.p.m.)
Airow
HIGH 1000
m3/h 1660
l/s 461
CFM 977
MED 910
m3/h 1500
l/s 417
CFM 883
LOW 750
m3/h 1200
l/s 333
CFM 706
QUIET 650
m3/h 1000
l/s 278
CFM 589
Fan speed
Number of
rotations
(r.p.m.)
Airow
HIGH 1000
m3/h 1660
l/s 461
CFM 977
MED 910
m3/h 1500
l/s 417
CFM 883
LOW 750
m3/h 1200
l/s 333
CFM 706
QUIET 650
m3/h 1000
l/s 278
CFM 589

- (01 - 15) -
CEILING TYPE ABG30-36LRTE CEILING TYPE ABG30-36LRTE
MODEL
 : ABG36LRTE
COOLING
z
HEATING
z
Fan speed
Number of
rotations
(r.p.m.)
Airow
HIGH 1100
m3/h 1900
l/s 528
CFM 1118
MED 910
m3/h 1500
l/s 417
CFM 883
LOW 750
m3/h 1200
l/s 333
CFM 706
QUIET 650
m3/h 1000
l/s 278
CFM 589
Fan speed
Number of
rotations
(r.p.m.)
Airow
HIGH 1100
m3/h 1900
l/s 528
CFM 1118
MED 910
m3/h 1500
l/s 417
CFM 883
LOW 750
m3/h 1200
l/s 333
CFM 706
QUIET 650
m3/h 1000
l/s 278
CFM 589

- (01 - 16) -
CEILING TYPE ABG30-36LRTE CEILING TYPE ABG30-36LRTE
FRESH AIR CHARACTERISTIC7-3.
MODEL
 : ABG30LRTE, ABG36LRTE
36
30
01234567
(mmAq)
0
2
4
6
8
(Pa) 98
0
49
Fresh air ow (m3/min)
Intake duct static pressure
10

- (01 - 17) -
CEILING TYPE ABG30-36LRTE CEILING TYPE ABG30-36LRTE
OPERATION NOISE8.
NOISE LEVEL CURVE8-1.
MODEL
 : ABG30LRTE
MODEL
 : ABG36LRTE
QUIET
HIGH
Cooling
z
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
QUIET
HIGH
Heating
z
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
QUIET
HIGH
Cooling
z
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
QUIET
HIGH
Heating
z
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
