AIR CONDITIONER
Ceiling type
SERVICE MANUAL
INDOOR
ABYG36KRTA
ABYG45KRTA
OUTDOOR
AOYG36KBTB AOYG45KBTB
SR_AB004EF_01
2020.01.07

Notices:
• Product specifications and design are subject to change without notice for future improvement.
• For further details, please check with our authorized dealer.
Trademarks
FGLair™ is trademark of Fujitsu General Limited in the United States, other countries or both.
Google Play™ is trademark of Google Inc.
App Store® is a service mark of Apple Inc., registered in the U.S. and other countries.
Copyright © 2020 Fujitsu General Limited. All rights reserved.

CONTENTS
1. GENERAL INFORMATION
2. TECHNICAL DATA AND PARTS LIST

1. GENERAL INFORMATION
2020.01.07
SR_CH01_AB004EF_01

CONTENTS
1. GENERAL INFORMATION
1. Specifications..............................................................................................01-1
1-1. Indoor unit ......................................................................................................................01-1
1-2. Outdoor unit....................................................................................................................01-3
2. Dimensions..................................................................................................01-4
2-1. Indoor unit ......................................................................................................................01-4
2-2. Outdoor unit....................................................................................................................01-6

1. Specifications
1-1. Indoor unit
Type
Ceiling
Inverter heat pump
Model name ABYG36KRTA ABYG45KRTA
Power supply 230 V ~ 50 Hz
Power supply intake Outdoor unit
Available voltage range 198—264 V
Capacity
Cooling
Rated kW 9.5 12.1
Btu/h 32,400 41,300
Min.—Max. kW 2.8—11.2 4.0—13.5
Btu/h 9,600—38,200 13,600—46,000
Heating
Rated kW 10.8 13.5
Btu/h 36,900 46,000
Min.—Max. kW 2.7—12.7 4.2—16.2
Btu/h 9,200—43,300 14,300—55,300
Input power
Cooling Rated
kW
2.96 4.22
Max. 4.52 4.79
Heating Rated 2.88 3.84
Max. 4.31 4.81
Current Cooling Rated A 13.1 18.6
Heating 12.7 16.9
EER Cooling kW/kW 3.21 2.87
COP Heating 3.75 3.52
Power factor Cooling %98.9 99.0
Heating 98.8 98.9
Moisture removal L/h (pints/h) 2.6 (4.6) 4.5 (7.9)
Maximum operating current *1Cooling A22.6 28.5
Heating 22.6 28.5
Fan
Airflow rate
Cooling
HIGH
m3/h
1,850 1,900
MED 1,470 1,510
LOW 1,300 1,380
QUIET 1,050 1,130
Heating
HIGH 1,800 1,850
MED 1,470 1,510
LOW 1,300 1,380
QUIET 1,050 1,130
Type × Q'ty Sirocco × 4
Motor output W 110
Sound pressure level *2
Cooling
HIGH
dB (A)
44 45
MED 40 41
LOW 37 39
QUIET 32 34
Heating
HIGH 44 45
MED 40 41
LOW 37 39
QUIET 32 34
Heat exchanger type
Dimensions (H × W × D) mm 294 × 1,335 × 39.9
Fin pitch mm 1.30
Rows × Stages 3 × 14
Pipe type Copper
Fin type Aluminum
Enclosure
Material Steel sheet
Color White
Approximate color of Munsell N9.25/
Dimensions
(H × W × D)
Net mm 235 × 1,700 × 705
Gross 330 × 1,785 × 825
Weight Net kg 38
Gross 48
Connection pipe Size Liquid mm (in) Ø9.52 (Ø3/8) Gas Ø15.88 (Ø5/8)
Method Flare
Drain hose Material PVC
Tip diameter mm Ø25 (I.D.), Ø32 (O.D.)
Operation range Cooling °C 18 to 32
%RH 80 or less
Heating °C 16 to 30
Remote controller (Option) Wired remote controller, Wireless remote controller, Mobile app*3 (FGLair™)
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27 °CDB/19 °CWB, and outdoor temperature of 35 °CDB/24 °CWB.
– Heating: Indoor temperature of 20 °CDB/15 °CWB, and outdoor temperature of 7 °CDB/6 °CWB.
– Pipe length: 5 m, Height difference: 0 m. (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Maximum current is maximum value when operated within the operation range.
• *2: Sound pressure level:
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
• *3: Available on Google Play™ store or on App Store®. Optional WLAN adapter is also required. For details, refer to the setting manual.
1-1. Indoor unit - (01-1) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

Specifications for ErP Lot10
Model name ABYG36KRTA
Energy efficiency class Cooling A++
Heating (Average) A+
Pdesign Cooling kW 9.5 (35°C)
Heating (Average) 8.7 (-10°C)
SEER Cooling kWh/kWh 6.37
SCOP Heating (Average) 4.21
Annual energy consump-
tion
QCE kWh/a 524
QHE (Average) 2,904
Sound power level Cooling HIGH dB (A) 59
Heating 59
1-1. Indoor unit - (01-2) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

1-2. Outdoor unit
Type Inverter heat pump
Model name AOYG36KBTB AOYG45KBTB
Power supply 230 V ~ 50 Hz
Power supply intake Outdoor unit
Available voltage range 198—264 V
Starting current A 13.0 18.6
Fan
Airflow rate Cooling m3/h 3,750 4,450
Heating 3,750 4,450
Type × Q'ty Propeller × 1
Motor output W 100 120
Sound pressure level *1 Cooling dB (A) 55 57
Heating 55 57
Sound power level Cooling dB (A) 70 71
Heating 70 71
Heat exchanger type
Dimensions
(H × W × D) mm
Main1: 756 × 905 × 18.19
Main2: 756 × 905 × 18.19
Main1: 966 × 905 × 18.19
Main2: 966 × 905 × 18.19
Sub: 966 × 543 × 18.19
Fin pitch 1.45
Rows × Stages 1 × 36 1 × 46
Pipe type Copper
Fin Type (Material) Aluminum
Surface treatment Blue fin
Compressor Type × Q'ty DC Twin rotary × 1
Motor output W 1,500 2,180
Refrigerant Type (Global warming potential) R32 (675)
Factory charge g 1,900 2,700
Refrigerant oil Type FW68D RmM68AF
Amount cm3600 800
Enclosure
Material Steel sheet
Color Beige
Approximate color of Munsell 10YR 7.5/1.0
Dimensions
(H × W × D)
Net mm 788 × 940 × 320 998 × 940 × 320
Gross 966 × 1,027 × 445 1,176 × 1,027 × 445
Weight Net kg 52 67
Gross 60 75
Connection pipe
Size Liquid mm (in) Ø9.52 (Ø3/8)
Gas Ø15.88 (Ø5/8)
Method Flare
Pre-charge length
m
30
Max. length 50
Max. height difference 30
Operation range Cooling °C -15 to 46
Heating -15 to 24
Drain hose Material LDPE
Tip diameter mm Ø13.0 (I. D.), Ø16.0 to Ø16.7 (O. D.)
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27 °CDB/19 °CWB, and outdoor temperature of 35 °CDB/24 °CWB.
– Heating: Indoor temperature of 20 °CDB/15 °CWB, and outdoor temperature of 7 °CDB/6 °CWB.
– Pipe length: 5 m, Height difference: 0 m. (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Sound pressure level
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
1-2. Outdoor unit - (01-3) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

2. Dimensions
2-1. Indoor unit
¢Models: ABYG36KRTA and ABYG45KRTA
Unit: mm
Top viewSide view
Rear view
Suspension bolt pitch
1,543
Indoor unit (Top view)
Indoor unit
Dimensions
(Space required for installation)
The length of the bolt
here is 30 mm.
75
10
175290
75
49 84
55
110
1,543
1,700
705
206
179
115
41
125 103
349
119
145
181
98
325
89
235
100
125
91
80140
290178
ø100-mm hole
126
109
2-1. Indoor unit - (01-4) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

Installation space requirements
Unit: mm
Ceiling
Ceiling
30 or more
2,500 or more
1,000 or more
200 or more
0 or more
Obstruction
Floor
Indoor unit
Required ceiling height varies according to the ceiling mode setting of function setting No. 20.
Ceiling height
Ceiling mode Standard High ceiling
(m) 3.5 4.3
2-1. Indoor unit - (01-5) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

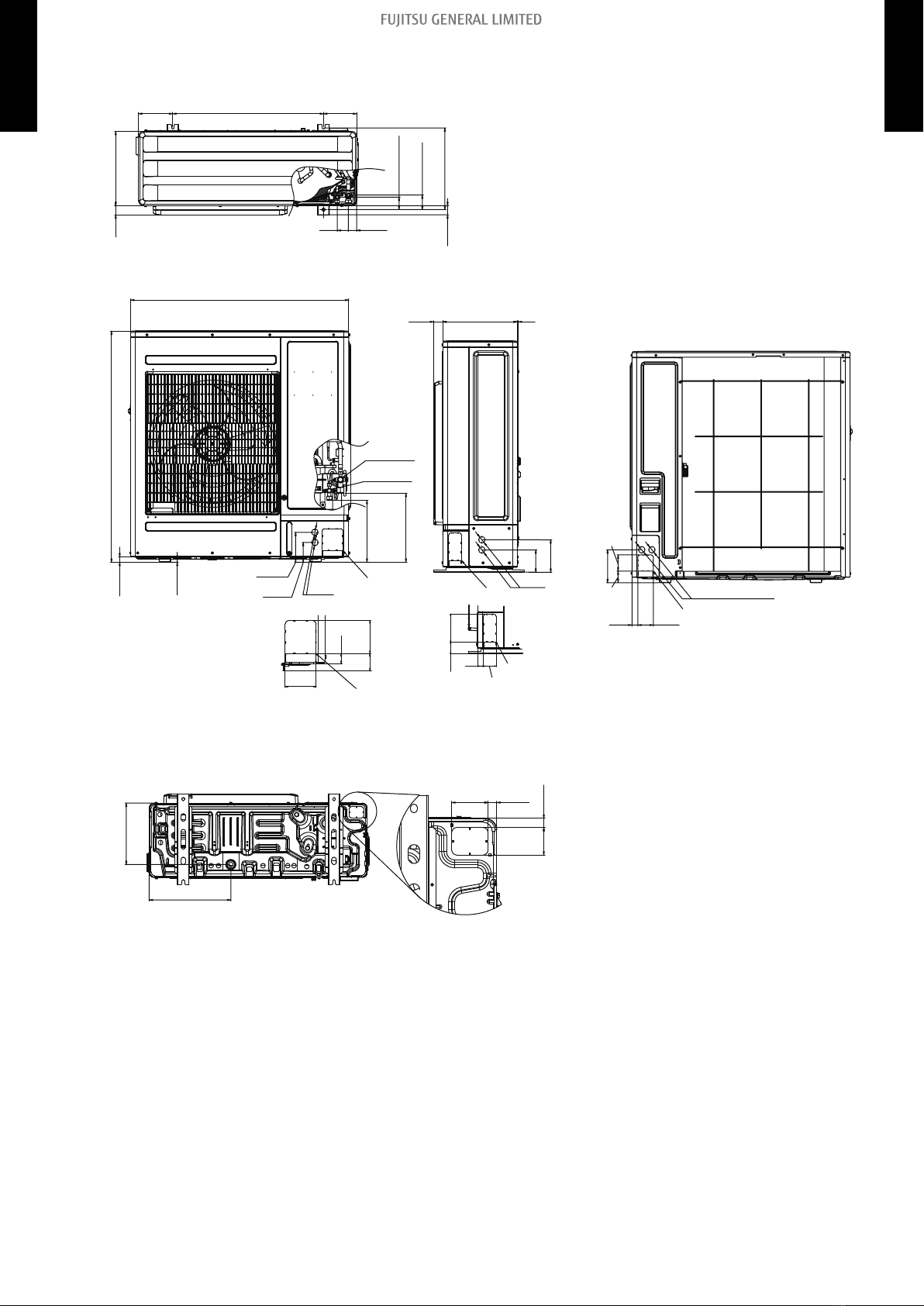

2-2. Outdoor unit
¢Model: AOYG36KBTB
Unit: mm
Top view
Bottom view
Side viewFront view
940
3 Way valve
(Liquid)
786.2
23.4
12.9
129.1
85.3
50 95
29
296.2
265.7
Pipe port
(Gas valve)
3 Way valve
(Gas)
(Liquid valve)
Ф28: Cable port
Ф28: Cable port
89
650
35.748
143147
39.8
53.9: Liquid
40 320
354.8
62.9: Gas
320
139.8
Ф28: Cable port
Ф28: Cable port
96
50 120
Pipe port
5525
40 5
264.6
351.9
Pipe & Cable port
47.6
15.262.6
15.6
Rear view
50
Ф28: Cable port
Ф28: Cable port
25
141.9
70
67
Pipe port
2-2. Outdoor unit - (01-6) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

¢Model: AOYG45KBTB
Unit: mm
Top view
Bottom view
Side viewFront view
940
996.2
266.7
Pipe & Cable port
Rear view
Ф28: Cable port
Pipe port
650
35.748
143147
39.8
53.9 Liquid
40 320
354.8
62.9 Gas
12.9
297.2
(Gas valve)
(Liquid valve)
Ф28
Cable port
1-1/8
(29)
Pipe port
23.4
129.1
85.3
50
29
Pipe port
A
95
89
A
3 Way valve
(Liquid)
3 Way valve
(Gas)
320
139.8
96
40 5
Ф28
Cable port
120
Pipe port
55
25
50
B
B
50
25
141.9 70
67 Pipe port
264.6
351.9
47.6
15.262.6
15.6
2-2. Outdoor unit - (01-7) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

2-2. Outdoor unit - (01-8) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

2. TECHNICAL DATA AND PARTS LIST
2020.01.07
SR_CH02_AB004EF_01

CONTENTS
2. TECHNICAL DATA AND PARTS LIST
1. Precautions..................................................................................................02-1

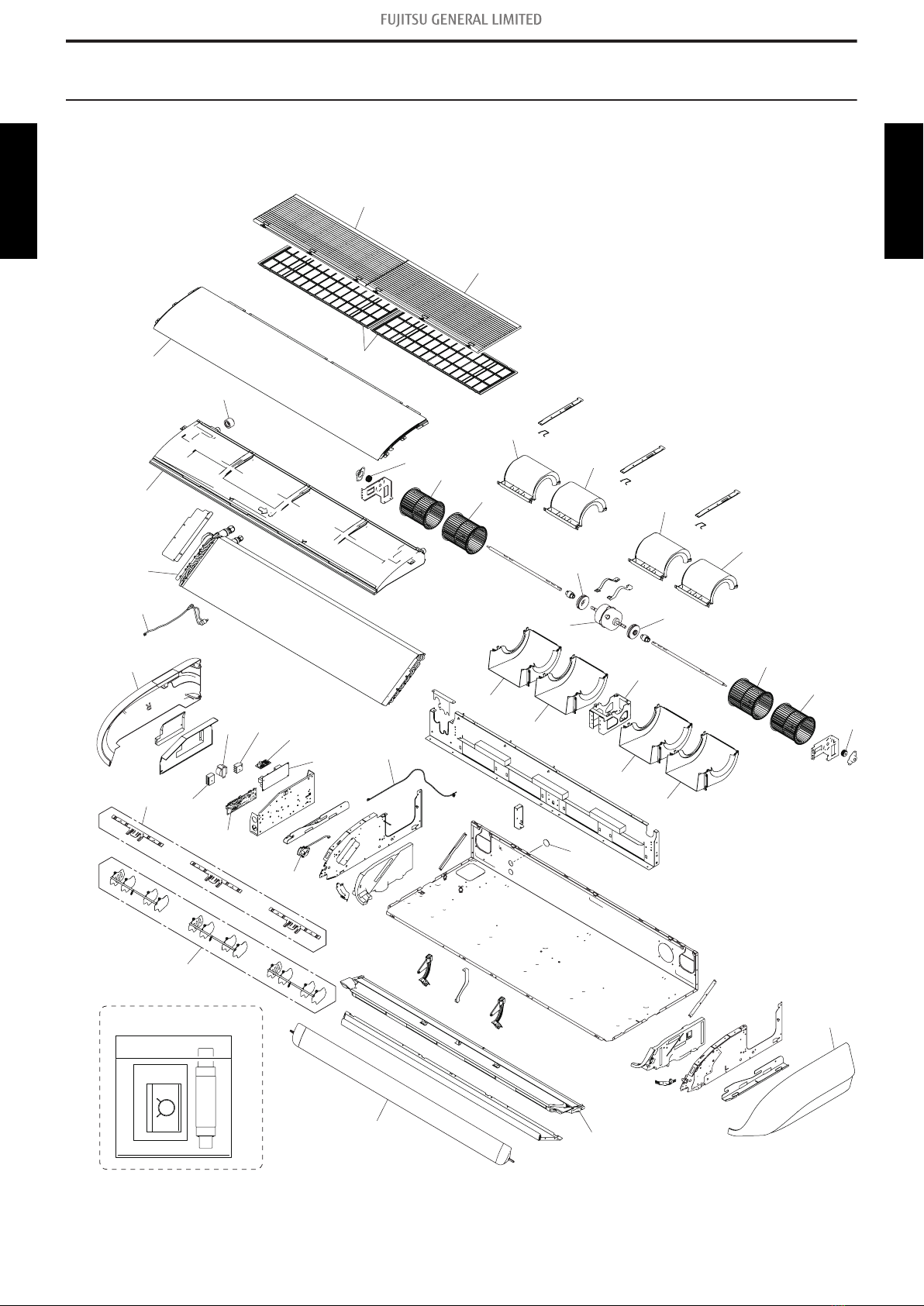

2. Indoor unit parts list....................................................................................02-2
2-1. Models: ABYG36KRTA and ABYG45KRTA ...................................................................02-2
3. Outdoor unit parts list.................................................................................02-4
3-1. Model: AOYG36KBTB ....................................................................................................02-4
3-2. Model: AOYG45KBTB ....................................................................................................02-8
4. Accessories ...............................................................................................02-12
4-1. Indoor unit ....................................................................................................................02-12
4-2. Outdoor unit..................................................................................................................02-12
5. Optional parts ...........................................................................................02-13
5-1. Indoor unit ....................................................................................................................02-13
6. Refrigerant system diagrams...................................................................02-16
6-1. Models: AOYG36KBTB and AOYG45KBTB.................................................................02-16
7. Wiring diagrams ........................................................................................02-17
7-1. Indoor unit ....................................................................................................................02-17
7-2. Outdoor unit..................................................................................................................02-18
8. PC board diagrams ...................................................................................02-19
8-1. Models: ABYG36KRTA and ABYG45KRTA .................................................................02-19
8-2. Models: AOYG36KBTB and AOYG45KBTB.................................................................02-20

1. Precautions
When you start servicing, pay attention to the following points. For detailed precautions, refer to the
installation manual of the products.
CAUTION
• Service personnel
– Any person who is involved with working on or breaking into a refrigerant circuit should hold a
current valid certificate from an industry-accredited assessment authority, which authorizes
their competence to handle refrigerants safely in accordance with an industry recognized as-
sessment specification.
– Servicing shall only be performed as recommended by the equipment manufacturer. Mainte-
nance and repair requiring the assistance of other skilled personnel shall be carried out under
the supervision of the person competent in the use of flammable refrigerants.
– Servicing shall be performed only as recommended by the manufacturer.
• Work
– Prior to beginning work on systems containing flammable refrigerants, safety checks are nec-
essary to ensure that the risk of ignition is minimized. When repairing the refrigerant system,
refer to the precautions written in the installation manual of the products before you start ser-
vicing.
– Work shall be undertaken under a controlled procedure so as to minimize the risk of a
flammable gas or vapor being present while the work is being performed.
– All maintenance staff and others working in the local area shall be instructed on the nature of
work being carried out.
– Work in confined spaces shall be avoided.
– The area around the workspace shall be sectioned off.
– Ensure that the conditions within the area have been made safe by control of flammable ma-
terial.
– Electric shock may occur. After turning off the power, always wait 5 minutes before touching
electrical components.
– Do not touch the fins of the heat exchanger. Touching the heat exchanger fins could result in
damage to the fins or personal injury such as skin rupture.
– Do not place any other electrical products or household belongings under the product.
– Condensation dripping from the product might get them wet, and may cause damage or mal-
function to the property.
• Checking for presence of refrigerant
– The area shall be checked with an appropriate refrigerant detector prior to and during work, to
ensure the technician is aware of potentially flammable atmospheres.
– Ensure that the leak detection equipment being used is suitable for use with flammable refrig-
erants, i.e. non-sparking, adequately sealed or intrinsically safe.
• Service parts information and design are subject to change without notice for product improve-
ment.
• For the latest information of the service parts, refer to our Service Portal.
https://fujitsu-general.force.com/portal/
• Precise figure of the service parts listed in this manual may differ from the actual service parts.
- (02-1) - 1. Precautions
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

2. Indoor unit parts list
2-1. Models: ABYG36KRTA and ABYG45KRTA
¢Chassis
10
16
15
14
8
12
13
19
20
17
23
24
18
22
21
25
9
7
6
6
4
5
3
3
3
3
5
4
28
27
26
11
29
30 2
9
9
9
5
5
1
1
2-1. Models: ABYG36KRTA and ABYG45KRTA - (02-2) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

Item no. Part no. Part name Service part
1 9384321008 Intake grille A sub assy ♦
2 9383342004 Air filter A ♦
3 9384307002 Casing U assy ♦
4 9357921006 Bearing B assy ♦
5 9384110008 Sirocco fan assy ♦
6 9383443008 Rubber (Vibration proof) ♦
7 9603815004 Brushless DC motor ♦
8 9384236005 Motor mount assy ♦
9 9384311009 Casing B assy ♦
10 9352173011 Cap (Power) ♦
11 9383406003 Side panel L ♦
12 9384308009 Top panel cover assy (4-fan) ♦
13 9384144003 Flap assy (4-fan) ♦
14 9384324009 Hose sub assy ♦
15 9383384004 L and R louver ♦
16 9383385001 Base (Louver) ♦
17 9900896027 Terminal (5P) ♦
18 9711524010 Main PCB (for 36 model) ♦
9711524027 Main PCB (for 45 model) ♦
19 9384312006 Box (Gear) sub assy ♦
20 9900960049 Thermistor (Room) ♦
21 9710661044 Power supply PCB (for 36 model) ♦
9710661037 Power supply PCB (for 45 model) ♦
22 9710019005 2-way remote PCB ♦
23 9306489045 Terminal (3P) ♦
24 9707457056 Reactor assy ♦
25 9384320001 Side panel R sub assy ♦
26 9900892029 Thermistor (Pipe) ♦
27 9384287007 Evaporator total assy ♦
28 9384364005 Drain pan total assy (4-fan) ♦
29 9358746004 Drain cap ♦
30 9384241009 Front panel (4-fan) assy ♦
2-1. Models: ABYG36KRTA and ABYG45KRTA - (02-3) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

3. Outdoor unit parts list
3-1. Model: AOYG36KBTB
¢Exterior parts and chassis
14
6
9
11
7
2
1
8
15
21
16
17
13
12
24
25
18
19
20
22
23
a
b
10
4
5
3
3
3-1. Model: AOYG36KBTB - (02-4) - 3. Outdoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST
