Fujitsu AGYG12KVCA User manual

AIR CONDITIONER
Floor type
SERVICE MANUAL
INDOOR
AGYG09KVCA
AGYG12KVCA
AGYG14KVCA
OUTDOOR
AOYG09KVCA
AOYG12KVCA
AOYG14KVCA
SR_AG001EF_03
2020.11.25

Notices:
• Product specifications and design are subject to change without notice for future improvement.
• For further details, please check with our authorized dealer.
Trademarks
FGLair™ is trademark of Fujitsu General Limited in the United States, other countries or both.
Google Play™ is trademark of Google Inc.
App Store® is a service mark of Apple Inc., registered in the U.S. and other countries.
Copyright © 2020 Fujitsu General Limited. All rights reserved.

CONTENTS
1. GENERAL INFORMATION
2. TECHNICAL DATA AND PARTS LIST
3. TROUBLESHOOTING
4. CONTROL AND FUNCTIONS
5. FILED WORKING

1. GENERAL INFORMATION
2020.10.02
SR_CH01_AG001EF_01

CONTENTS
1. GENERAL INFORMATION
1. Specifications..............................................................................................01-1
1-1. Indoor unit ......................................................................................................................01-1
1-2. Outdoor unit....................................................................................................................01-3
2. Dimensions..................................................................................................01-4
2-1. Indoor unit ......................................................................................................................01-4
2-2. Outdoor unit....................................................................................................................01-6

1. Specifications
1-1. Indoor unit
Type Floor type
Inverter heat pump
Model name AGYG09KVCA AGYG12KVCA AGYG14KVCA
Power supply 230 V ~ 50 Hz
Available voltage range 198—264 V
Capacity
Cooling
Rated kW 2.50 3.50 4.20
Btu/h 8,500 11,900 14,300
Min.—Max. kW 0.9—3.5 0.9—4.0 0.9—5.2
Btu/h 3,100—11,900 3,100—13,700 3,100—17,700
Heating
Rated kW 3.50 4.50 5.20
Btu/h 11,900 15,400 17,700
Min.—Max. kW 0.9—5.1 0.9—5.3 0.9—6.3
Btu/h 3,100—17,400 3,100—18,100 3,100—21,500
Input power
Cooling Rated
kW
0.53 0.88 1.06
Max. 1.29 1.29 2.11
Heating Rated 0.81 1.22 1.41
Max. 1.64 1.64 1.98
Current Cooling Rated A 2.9 4.3 4.7
Heating 4.1 5.7 6.2
EER Cooling kW/kW 4.70 4.00 3.95
COP Heating 4.30 3.70 3.70
Power factor Cooling %79.5 88.5 98.1
Heating 85.9 93.1 98.9
Moisture removal L/h (pints/h) 1.3 (2.3) 1.8 (3.2) 2.1 (3.7)
Maximum operating current *1 Cooling A7 7 11
Heating 8.5 8.5 12
Fan
Airflow rate
Cooling
HIGH
m3/h
570 570 650
MED 460 460 520
LOW 360 360 400
QUIET 270 270 270
Heating
HIGH 600 600 650
MED 480 480 520
LOW 370 370 390
QUIET 270 270 270
Type × Q'ty Cross flow fan × 2
Motor output W 16 × 2
Sound pressure level *2
Cooling
HIGH
dB (A)
40 40 44
MED 35 35 38
LOW 29 29 31
QUIET 22 22 22
Heating
HIGH 41 41 43
MED 35 35 37
LOW 29 29 29
QUIET 22 22 22
Heat exchanger type
Dimensions (H × W × D) mm 378 × 550 × 26.6
Fin pitch 1.2
Rows × Stages 2 × 18
Pipe type Copper tube
Fin type Aluminium
Enclosure Material Polystyrene
Color White
Dimensions
(H × W × D)
Net mm 600 × 740 × 200
Gross 700 × 820 × 310
Weight Net kg 14
Gross 18
Connection pipe Size Liquid mm (in) Ø 6.35 (Ø 1/4) Gas Ø 9.52 (Ø 3/8)
Method Flare
Drain hose Material PP + LLDPE
Size mm Ø 13.8 (I.D.), Ø 15.8 to Ø 16.7 (O.D.)
Operation range Cooling °C 18 to 32
%RH 80 or less
Heating °C 30 or less
Remote controller type Wireless (Wired, Mobile app*3 [FGLair™] [option])
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27 °CDB/19 °CWB, and outdoor temperature of 35 °CDB/24 °CWB.
– Heating: Indoor temperature of 20 °CDB/15 °CWB, and outdoor temperature of 7 °CDB/6 °CWB.
– Pipe length: 5 m, Height difference: 0 m. (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Maximum current is maximum value when operated within the operation range.
• *2: Sound pressure level:
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
• *3: Available on Google Play™ store or on App Store®. Optional WLAN adapter is also required. For details, refer to the setting manual.
1-1. Indoor unit - (01-1) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

Model name AGYG09KVCA AGYG12KVCA AGYG14KVCA
Energy efficiency class Cooling A+++ A++ A++
Heating (Average) A+ A+ A+
Pdesign Cooling kW 2.5 (35 °C) 3.5 (35 °C) 4.2 (35 °C)
Heating (Average) 2.6 (-10 °C) 3.5 (-10 °C) 4.2 (-10 °C)
SEER Cooling kWh/kWh 8.50 8.20 8.10
SCOP Heating (Average) 4.30 4.10 4.00
Annual energy consumption QCE kWh/a 103 149 181
QHE (Average) 845 1,192 1,466
Sound power level Cooling High dB (A) 53 53 57
Heating 54 54 56
1-1. Indoor unit - (01-2) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

1-2. Outdoor unit
Type Inverter heat pump
Model name AOYG09KVCA AOYG12KVCA AOYG14KVCA
Power supply 230 V ~ 50 Hz
Available voltage range 198—264 V
Starting current A 4.1 5.7 6.2
Fan
Airflow rate Cooling m3/h 1,530 1,530 2,210
Heating 1,510 1,510 2,100
Type × Q'ty Propeller × 1
Motor output W 23
Sound pressure level *1 Cooling dB (A) 43 45 51
Heating 47 51 50
Sound power level Cooling dB (A) 58 61 63
Heating 61 64 63
Heat exchanger type
Dimensions
(H × W × D) mm
Main1: 504 × 881 × 18.19
Main2: 504 × 851 × 18.19
Fin pitch 1.3
Rows × Stages 2 × 24 2 × 28
Pipe type Copper
Fin type Type (Material) Aluminium
Surface treatment PC Fin
Compressor Type × Q'ty DC ROTARY DC TWIN ROTARY
Motor output W 900 925
Refrigerant Type (Global warming potential) R32 (675)
Charge g 850 940
Refrigerant oil Type RB68A RmM68AF
Amount cm3340 400
Enclosure
Material Steel sheet
Color BEIGE
Dimensions
(H × W × D)
Net mm 542 × 799 × 290 632 × 799 × 290
Gross 602 × 940 × 375 692 × 940 × 375
Weight Net kg 31 38
Gross 35 42
Connection pipe
Size Liquid mm (in) Ø 6.35 (Ø 1/4)
Gas Ø 9.52 (Ø 3/8)
Method Flare
Pre-charge length
m
15
Max.length 20
Max. height difference 15
Operation range Cooling °C -10 to 46
Heating -15 to 24
Drain hose Material PP
Size mm φ13.0(I.D.), φ16.0 to φ16.8(O.D.)
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27 °CDB/19 °CWB, and outdoor temperature of 35 °CDB/24 °CWB.
– Heating: Indoor temperature of 20 °CDB/15 °CWB, and outdoor temperature of 7 °CDB/6 °CWB.
– Pipe length: 5 m, Height difference: 0 m.
• Protective function might work when using it outside the operation range.
• *1: Sound pressure level
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
1-2. Outdoor unit - (01-3) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

2. Dimensions
2-1. Indoor unit
¢Models: AGYG09KVCA, AGYG12KVCA, and AGYG14KVCA
600
200
Side view
Front view
740
Unit: mm
Installation space
100 or more
80 or more
80 or more
150 or below from the floor
50 or more
2-1. Indoor unit - (01-4) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

Grating
PROHIBITED
WARNING
• The appliance shall be installed, operated and stored in a room with a floor area larger than X
m2.
Amount of refrigerant charge
M (kg)
Minimum room area
X (m2)
M ≤ 1.22 -
1.22 < M ≤ 1.23 12.99
1.23 < M ≤ 1.50 19.31
1.50 < M ≤ 1.75 26.28
1.75 < M ≤ 2.0 34.33
2.0 < M ≤ 2.5 53.63
2.5 < M ≤ 3.0 77.23
3.0 < M ≤ 3.5 105.12
3.5 < M ≤ 4.0 137.29
(IEC 60335-2-40)
2-1. Indoor unit - (01-5) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

2-2. Outdoor unit
¢Models: AOYG09KVCA and AOYG12KVCA
Unit: mm
580 109
330 353
Pitch of bolts for installation
Pitch of bolts for installation
Top view
4- M1 0 hole
Side viewSide view Front view
799 68 29016
33 30
19
542
20
Airflow
Bottom view Side view (Valve part)
37
399
Drain port Ø42
184
120
180
2-2. Outdoor unit - (01-6) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

¢Model: AOYG14KVCA
Unit: mm
Side view
Side view Front view
Bottom view Side view (Valve part)
Top view
580
79919 68 16 290
33 30
109
353
632
20
330
Pitch of bolts for installation
Pitch of bolts for installation
4-
M1 0 hole
Airflow
Drain port Ø42
37
120
184
399 180
2-2. Outdoor unit - (01-7) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

2-2. Outdoor unit - (01-8) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

2. TECHNICAL DATA AND PARTS LIST
2020.11.25
SR_CH02_AG001EF_02

CONTENTS
2. TECHNICAL DATA AND PARTS LIST
1. Precautions..................................................................................................02-1
2. Indoor unit parts list....................................................................................02-2
2-1. Models: AGYG09KVCA, AGYG12KVCA, and AGYG14KVCA.......................................02-2
3. Outdoor unit parts list.................................................................................02-8
3-1. Models: AOYG09KVCA and AOYG12KVCA..................................................................02-8
3-2. Model: AOYG14KVCA..................................................................................................02-12
4. Accessories ...............................................................................................02-16
4-1. Indoor unit ....................................................................................................................02-16
4-2. Outdoor unit..................................................................................................................02-17
5. Optional parts ...........................................................................................02-18
5-1. Indoor unit ....................................................................................................................02-18
6. Refrigerant system diagrams...................................................................02-20
6-1. Models: AOYG09KVCA and AOYG12KVCA................................................................02-20
6-2. Model: AOYG14KVCA..................................................................................................02-21
7. Wiring diagrams ........................................................................................02-22
7-1. Indoor unit ....................................................................................................................02-22
7-2. Outdoor unit..................................................................................................................02-23
8. PC board diagrams ...................................................................................02-24
8-1. Models: AGYG09KVCA, AGYG12KVCA, and AGYG14KVCA.....................................02-24
8-2. Models: AOYG09KVCA and AOYG12KVCA................................................................02-25
8-3. Model: AOYG14KVCA..................................................................................................02-26

1. Precautions
When you start servicing, pay attention to the following points. For detailed precautions, refer to the
installation manual of the products.
CAUTION
• Service personnel
– Any person who is involved with working on or breaking into a refrigerant circuit should hold a
current valid certificate from an industry-accredited assessment authority, which authorizes
their competence to handle refrigerants safely in accordance with an industry recognized as-
sessment specification.
– Servicing shall only be performed as recommended by the equipment manufacturer. Mainte-
nance and repair requiring the assistance of other skilled personnel shall be carried out under
the supervision of the person competent in the use of flammable refrigerants.
– Servicing shall be performed only as recommended by the manufacturer.
• Work
– Prior to beginning work on systems containing flammable refrigerants, safety checks are nec-
essary to ensure that the risk of ignition is minimized. When repairing the refrigerant system,
refer to the precautions written in the installation manual of the products before you start ser-
vicing.
– Work shall be undertaken under a controlled procedure so as to minimize the risk of a
flammable gas or vapor being present while the work is being performed.
– All maintenance staff and others working in the local area shall be instructed on the nature of
work being carried out.
– Work in confined spaces shall be avoided.
– The area around the workspace shall be sectioned off.
– Ensure that the conditions within the area have been made safe by control of flammable ma-
terial.
– Electric shock may occur. After turning off the power, always wait 5 minutes before touching
electrical components.
– Do not touch the fins of the heat exchanger. Touching the heat exchanger fins could result in
damage to the fins or personal injury such as skin rupture.
– Do not place any other electrical products or household belongings under the product.
– Condensation dripping from the product might get them wet, and may cause damage or mal-
function to the property.
• Checking for presence of refrigerant
– The area shall be checked with an appropriate refrigerant detector prior to and during work, to
ensure the technician is aware of potentially flammable atmospheres.
– Ensure that the leak detection equipment being used is suitable for use with flammable refrig-
erants, i.e. non-sparking, adequately sealed or intrinsically safe.
• Service parts information and design are subject to change without notice for product improve-
ment.
• For the latest information of the service parts, refer to our Service Portal.
https://fujitsu-general.force.com/portal/
• Precise figure of the service parts listed in this manual may differ from the actual service parts.
- (02-1) - 1. Precautions
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

2. Indoor unit parts list
2-1. Models: AGYG09KVCA, AGYG12KVCA, and AGYG14KVCA

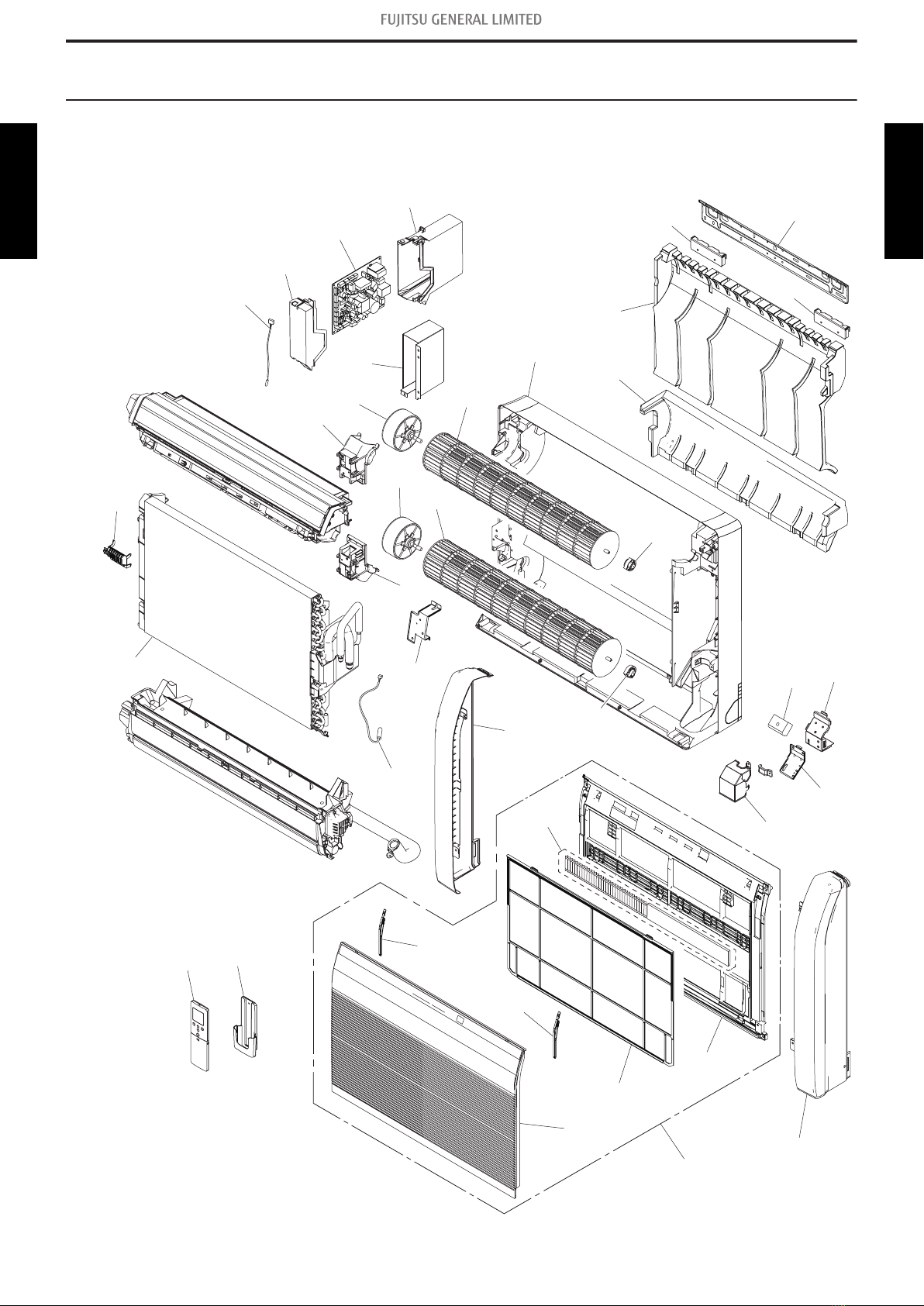

¢Exterior parts and chassis
25
1
5
2
7
3
4
4
6
24
6
20
23
26
20
18
h
f
a
b
c
g
19
e
17
21
d
11
9
8
16
10
12
13
14
12
15
22
2-1. Models: AGYG09KVCA, AGYG12KVCA, and AGYG14KVCA - (02-2) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

Item no. Part no. Part name Service part
1 9316193024 Base ♦
2 9316197015 Base cover A ♦
3 9316373013 Base cover B ♦
4 9316405011 Base bracket ♦
5 9316272019 Bracket panel ♦
6 9306628024 Bearing C assy ♦
7 9900720087 Terminal (3P) ♦
8 9316186019 Front panel R ♦
9 9316415164 Front panel total assy ♦
10 9316189027 Air filter ♦
11 9316418059 Intake grille assy ♦
12 9316458017 Rope assy ♦
13 9316474017 Air clean filter assy ♦
14 9318912005 Remote controller holder ♦
15 9332438864 Remote controller ♦
16 9316187016 Front panel L ♦
17 9900991005 Pipe thermistor ♦
18 9316091269 Evaporator total assy ♦
19 9316192027 Thermistor holder ♦
20 9316195011 Motor holder ♦
21 9602851003 Fan motor (MFD-14SXN) ♦
22 9316309012 Crossflow fan B assy ♦
23 9602850006 Fan motor (MFD-14TXN) ♦
24 9312004034 Crossflow fan assy ♦
25 9900975067 Room thermistor ♦
26
9711694065 Main PCB (09 model) ♦
9711694072 Main PCB (12 model) ♦
9711694089 Main PCB (14 model) ♦
a— Terminal bracket —
b— Cable bracket —
c— Terminal cover —
d— Front panel —
e— Terminal bracket (COM) —
f— Control box shield —
g— Control box cover —
h— Control box —
2-1. Models: AGYG09KVCA, AGYG12KVCA, and AGYG14KVCA - (02-3) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

¢Casing
64
65
63
63 58
59
66
51
69
a
b
60
61
62
d
e
c
68
67
54
54
50
54
53
56
57
55
52
52
56
56
2-1. Models: AGYG09KVCA, AGYG12KVCA, and AGYG14KVCA - (02-4) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST
