Fujitsu ASHG07KPCA User manual

Split type room air conditioner
Wall-mounted type
CONTENTS
SPECIFICATIONS. . . . . . . . . . . . . . . . . . .
1
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . 4
REFRIGERANT SYSTEM DIAGRAM. . . .7

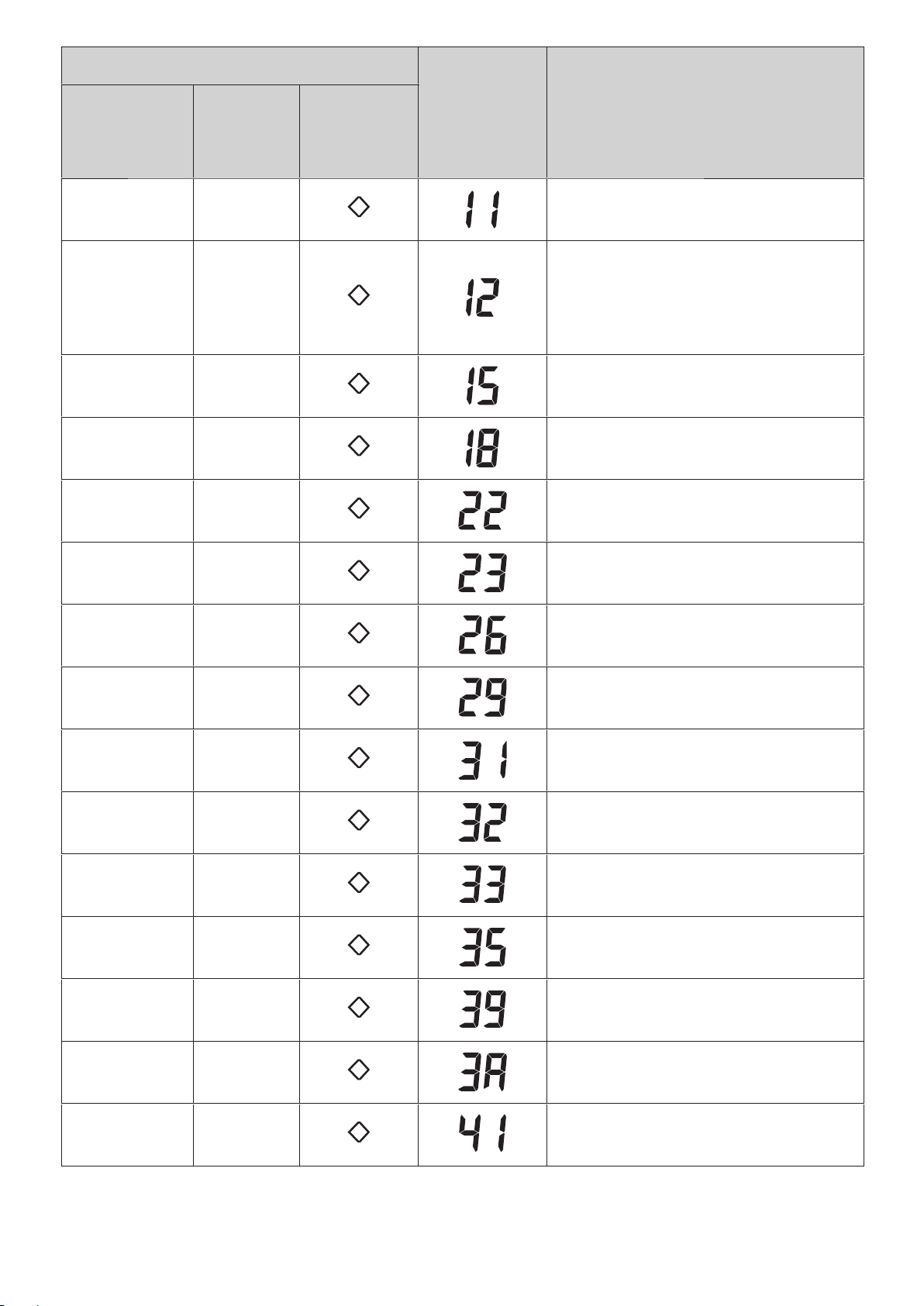

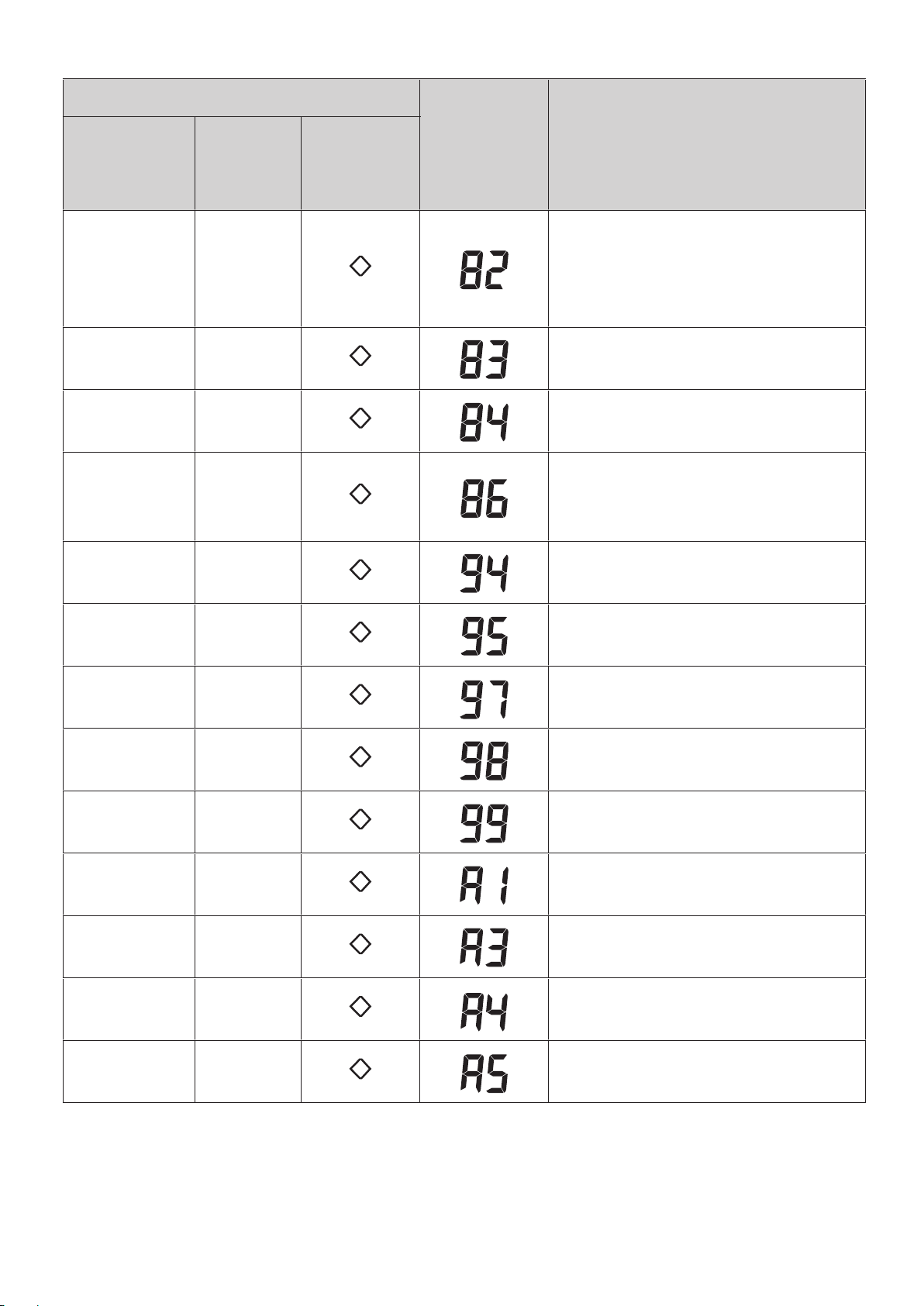

ERROR DETECTION . . . . . . . . . . . . . . . .
8
PCB CIRCUIT DIAGRAM . . . . . . . . . . . . .
10
14
ACCESSORIES . . . . . . . . . . . . . . . . . . .
Indoor unit Outdoor unit
ASHG07KPCA
ASHG09KPCA
ASHG12KPCA
AOHG07KPCA
AOHG09KPCA
AOHG12KPCA

Specifications
Type
Wall mounted
Inverter heat pump
Model name ASHG07KPCA ASHG09KPCA ASHG12KPCA
Power supply 230 V ~ 50 Hz
Power supply intake Outdoor unit
Available voltage range 198—264 V
Capacity
Cooling
Rated kW 2.00 2.50 3.40
Btu/h 6,800 8,500 11,600
Min.—Max. kW 0.9—2.8 0.9—3.0 0.9—3.7
Btu/h 3,100—9,600 3,100—10,200 3,100—12,600
Heating
Rated kW 2.50 2.80 3.80
Btu/h 8,500 9,500 13,000
Min.—Max. kW 0.9—3.4 0.9—3.8 0.9—4.80
Btu/h 3,100—11,600 3,100—12,900 3,100—16,400
Input power
Cooling Rated
kW
0.48 0.71 1.00
Min.—Max. 0.25—1.03 0.25—1.05 0.25—1.14
Heating Rated 0.63 0.79 1.14
Min.—Max. 0.25—1.39 0.25—1.39 0.25—1.60
Fan
HIGH
W
21.5 26.9
MED 12.5 14.5
LOW 6.3 7.1
QUIET 3.0 3.0
Current Cooling Rated A 2.7 3.5 4.7
Heating 3.2 3.8 5.6
EER Cooling kW/kW 4.17 3.52 3.40
COP Heating 3.97 3.54 3.33
Sensible capacity Cooling kW 1.9 2.1 2.6
Power factor Cooling %77 87 92
Heating 85 90 89
Moisture removal L/h (pints/h) 1.0 (1.8) 1.3 (2.30) 1.8 (3.20)
Maximum operating current *1 Cooling A6.5 6.5 6.5
Heating 9.0 9.0 9.0
Fan
Airflow rate
Cooling
HIGH
m3/h
580 580 630
MED 460 460 490
LOW 340 340 360
QUIET 240 240 240
Heating
HIGH 580 580 630
MED 460 460 490
LOW 380 380 380
QUIET 260 260 260
Type × Q'ty Cross flow fan × 1
Motor output W 27 27 27
Sound pressure level *2
Cooling
HIGH
dB (A)
45 45 46
MED 38 38 40
LOW 31 31 33
QUIET 22 22 22
Heating
HIGH 45 45 46
MED 40 40 40
LOW 36 36 35
QUIET 28 26 27
Heat exchanger type
Dimensions (H × W × D) mm 210 × 600 × 26.6
Fin pitch 1.3
Rows × Stages 2 × 10
Pipe type Copper tube
Fin type Aluminum
Enclosure
Material Polystyrene
Color White
Approximate color of Munsell N 9.25/
Dimensions
(H × W × D)
Net mm 270 × 784 × 224
Gross 279× 864 × 334
Weight Net kg 8.0
Gross 11.0
Connection pipe Size Liquid mm (in) Ø 6.35 (1/4)
Gas Ø 9.52 (3/8)
Method Flare
Drain hose Material PP+HDPE
Size mm Ø 11.8 (I.D.), Ø 15 to Ø 16.8 (O.D.)
Operation range Cooling °C 18 to 32
%RH 80 or less
Heating °C 16 to 30
Remote controller type Wireless
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27 °CDB/19 °CWB, and outdoor temperature of 35 °CDB/24 °CWB.
– Heating: Indoor temperature of 20 °CDB/15 °CWB, and outdoor temperature of 7 °CDB/6 °CWB.
– Pipe length: 5 m, Height difference: 0 m. (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Maximum current is maximum value when operated within the operation range.
• *2: Sound pressure level:
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
- 1 -

Specifications for Lot10
Model name ASHG07KPCA ASHG09KPCA ASHG12KPCA
Energy efficiency class Cooling A++
Heating (Average) A+
P design Cooling kW 2.0 (35 °C) 2.5 (35 °C) 3.4 (35 °C)
Heating (Average) 2.2 (-10 °C) 2.4 (-10 °C) 2.5 (-10 °C)
SEER Cooling kWh/kWh 6.7 6.7 6.3
SCOP Heating (Average) 4.0 4.0 4.1
Annual energy consumption QCE kWh/a 104 131 189
QHE (Average) 769 840 853
Sound power level Cooling HIGH dB (A) 57 58 59
Heating 58 58 59
- 2 -

Type Inverter heat pump
Model name AOHG07KPCA AOHG09KPCA AOHG12KPCA
Power supply 230 V ~ 50 Hz
Power supply intake Outdoor unit
Available voltage range 198—264 V
Starting current A 3.2 3.8 5.6
Fan
Airflow rate Cooling m3/h 1,650 1,650 1,700
Heating 1,450 1,450 1,470
Type × Q'ty Propeller fan × 1
Motor output W 23
Sound pressure level *1 Cooling dB (A) 45 47 49
Heating 46 47 51
Sound power level Cooling dB (A) 57 59 62
Heating 58 59 62
Heat exchanger type
Dimensions
(H × W × D) mm 504 × 650 × 18.2 504 × 630 × 36.4
Fin pitch 1.3
Rows × Stages 1 × 24 2 × 24
Pipe type Copper
Fin type Type (Material) Corrugate (Aluminum)
Surface treatment PC Fin
Compressor Type × Q'ty DC Rotary × 1
Motor output W 850
Refrigerant Type (Global warming potential) R32 (675)
Charge g 550 590
Refrigerant oil Type POE
Amount cm3240
Enclosure
Material Steel sheet
Color Beige
Approximate color of Munsell 10YR 7.5/1.0
Dimensions
(H × W × D)
Net mm 541 × 663 × 290
Gross 596 × 798 × 369
Weight Net kg 23 25
Gross 25 27
Connection pipe
Size Liquid mm (in) Ø 6.35 (1/4)
Gas Ø 9.52 (3/8)
Method Flare
Pre-charge length
m
15
Max. length 20
Max. height difference 15
Operation range Cooling °C -10 to 46
Heating -15 to 24
Drain hose Material PP
Size mm Ø 13.0 (I. D.), Ø 16.0 to Ø 16.8 (O. D.)
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27 °CDB/19 °CWB, and outdoor temperature of 35 °CDB/24 °CWB.
– Heating: Indoor temperature of 20 °CDB/15 °CWB, and outdoor temperature of 7 °CDB/6 °CWB.
– Pipe length: 5 m, Height difference: 0 m.
• Protective function might work when using it outside the operation range.
• *1: Sound pressure level
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
- 3 -

Dimensions
Models: ASHG07KPCA, ASHG09KPCA, and ASHG12KPCA
Unit: mm
422487
Outline of indoor unit
for pipe inlet Ø65
for pipe inlet Ø65
43
43
292 13329267
10432148 311 94
84
270
- 4 -

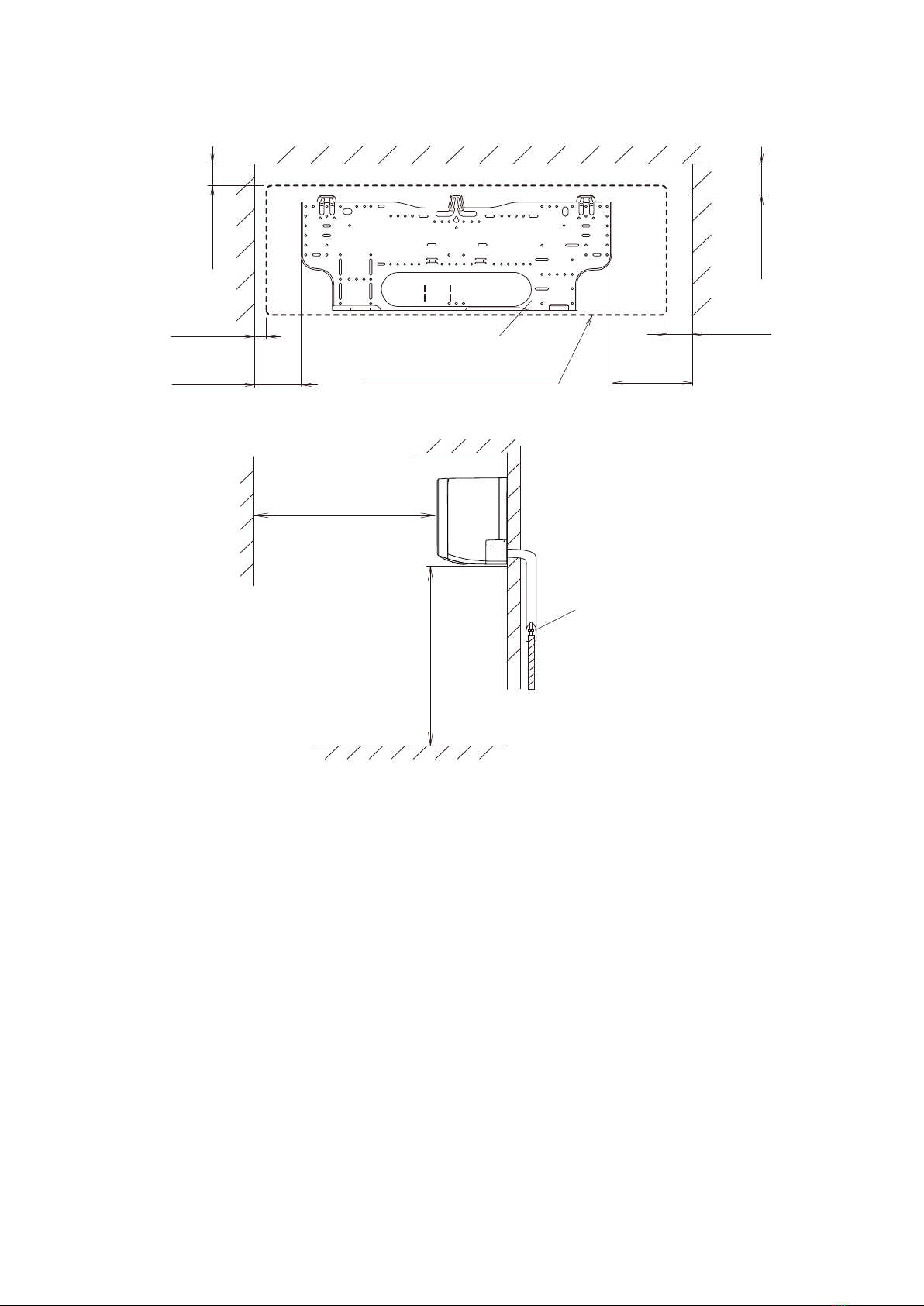

Installation space requirement
Provide sufficient installation space for product safety.
Unit: mm
Wall hook bracket
Outline of the indoor unit
50 or more
67 or more
The flare connection
part should be installed
outdoors.
40 or more
30 or more
107 or more
1,500 or more
1,800 or more
163 or more
- 5 -

Models: AOHG07KPCA, AOHG09KPCA, and AOHG12KPCA
Unit: mm
Airflow
106450
618636691
0333
290
353
330
Pitch of bolts for installation
4-
M1 0 hole
)trapbluB(weivediSweivmottoB
Top view
Side viewSide view Front view
Pitch of bolts for installation
353
541
20
184
120
37
170
331
Drain port Ø42
- 6 -

Refrigerant circuit
Strainer
Strainer
3-way
valve
2-way
valve
4-way valve
Expansion valve
Heat exchanger
Heat exchanger
(INDOOR)
(OUTDOOR)
Compressor
Cooling
Heating
Th
D
ThR
ThPI
ThO
ThHO
: Thermistor (Discharge temperature)
: Thermistor (Outdoor temperature)
: Thermistor (Heat exchanger out temperature)
ThD
ThO
ThHO
: Thermistor (Room temperature)
: Thermistor (Pipe temperature)
ThR
Th
PI
Muffler
- 7 -

2
1
3
4
5
6
7
8
9
10
11
12
2
1
3
4
2
1
3
4
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
1
4
5
6
7
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
UL1015 AWG22 GREEN
UL1061 AWG28 WHITE
UL1061 AWG28 WHITE
UL1061 AWG28 WHITE
UL1061 AWG28 WHITE
UL1061 AWG28 WHITE
UL1061 AWG28 WHITE
UL1061 AWG28 WHITE
UL1061 AWG28 WHITE
UL1061 AWG28 WHITE
UL1061 AWG28 WHITE
WHITE
RED
BLACK
YELLOW
BLUE
RED
ORANGE
YELLOW
PINK
BLUE
RED
WHITE
BLACK
UL1430 AWG26 x 4
WHITE
RED
BLACK
GREEN ( 2 BLACK )
( 4 GREEN )
( 3 WHITE )
( 1 RED )
DC FAN MOTOR
LOUVER ( UP / DOWN )
EARTH
TERMINAL
L
N
SERIAL
1
2
3
OUTDOOR UNIT
E1
B
CN9
B10B-PASK-1
WHITE
CN5
B5 ( 7-2.3 ) B-XASK-1-A
WHITE
CN7
B05B-PLISK-1
WHITE
CN6
B04B-PASK-1
WHITE
CN4
B12B-PASK-1
WHITE
CN1
B04B-PLIRK-1
RED
CN14
B3 ( 5.0 ) B-XASK-1-A
WHITE
F1
3.15A
250V
THERMISTOR ( PIPE TEMPERATURE )
THERMISTOR ( ROOM TEMPERATURE )
FM
M
J2
USB5-A4M2-KNSO-01
WHITE

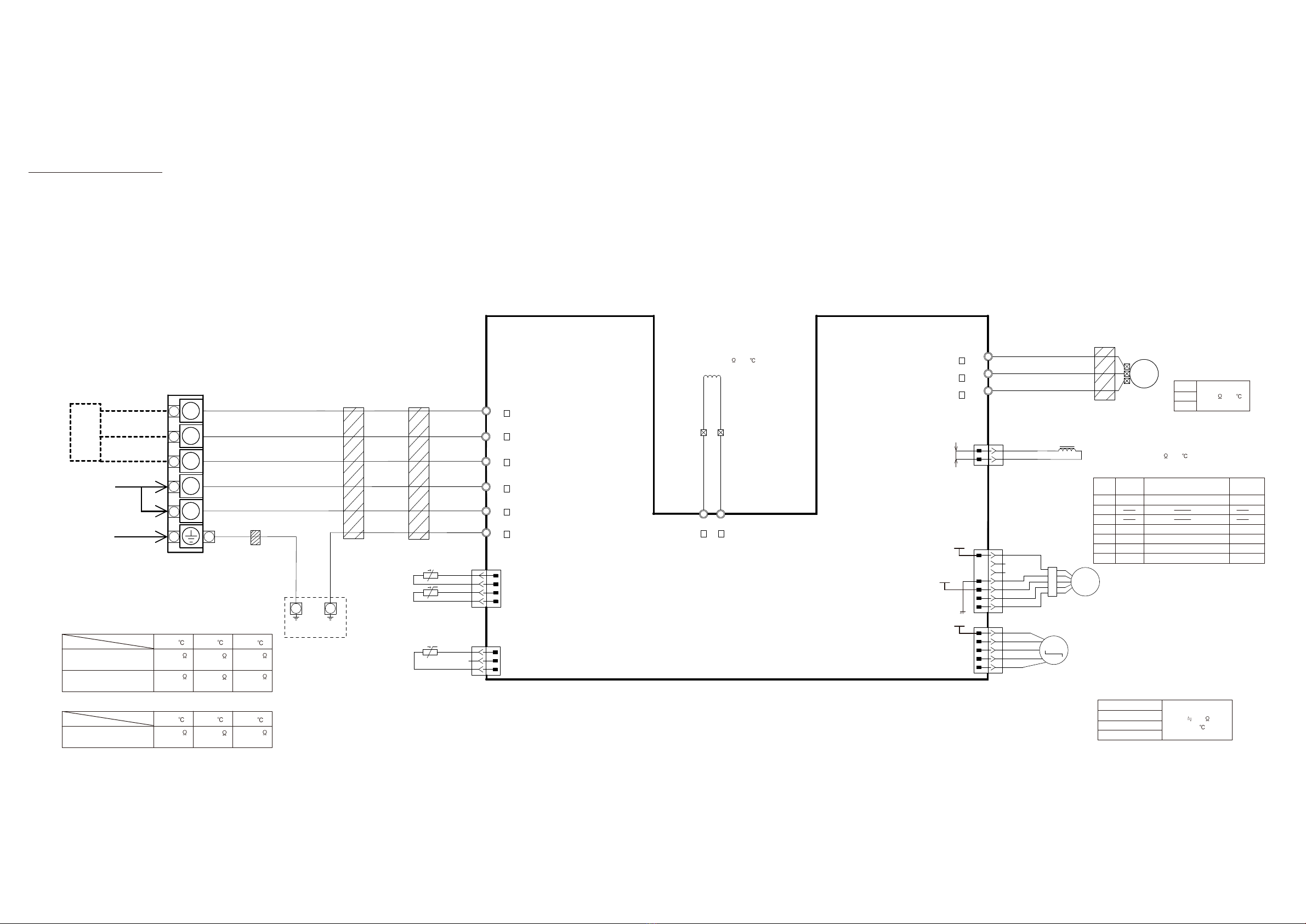

PCB circuit diagram
Models : ASHG07KPCA
ASHG09KPCA
ASHG12KPCA
CONTROL UNIT
ASHG07KPCA : EZ-0180BHSE
ASHG09KPCA : EZ-0180CHSE
ASHG12KPCA : EZ-0180DHSE
DC12V-3
WIRELESS LAN ADAPTER ( OPTION )
AP-WF1E
CN200
S10B-PASK-2
WHITE
INDICATOR PCB
K18RB-1801HSE-D0
MAIN PCB
ASHG07KPCA : K18RA-1803HSE-C1
ASHG09KPCA : K18RA-1804HSE-C1
ASHG12KPCA : K18RA-1805HSE-C1
DC5V
DC12V
DC12V
DC340V
DC15V
A
DC5V
TEST
- 8 -
CN5 DC Fan motor
1
3
4
5
6
7
Pin No. Terminal
code
Vm
GND
Vcc
Vsp
FG
Function of terminal
Revolution pulse output
Speed control voltage input
Control power voltage input
GND
Motor power voltage input
Lead wire
color
Red
Black
White
Yellow
Blue
2
CN1 Thermistor Characteristics.
Thermistor
Thermistor ( Pipe temp. ) 176.0 k 62.9 k 39.6 k
1.1 V 2.2 V 2.8 V
Thermistor ( Room temp. ) 33.6 k 12.5 k 8.0 k
1.1 V 2.2 V 2.8 V
Temperature ( 20 ) ( 30 )
( 0 )

W103
B
W104
B
W70
B
W100
B
W101
B
W102
B
W200
B
W201
B
W400
BU
W401
BV
W402
BW
COMPRESSOR
DC FAN MOTOR
EXPANSION VALVE COIL
P1
B04B-PLIRK-1
RED
P5
B03B-PLISK-1
WHITE
P30
B05B-PLISK-1
WHITE
RED
BLACK
WHITE
YELLOW
BROWN or BLUE
BLUE
RED
ORANGE
YELLOW
WHITE
UL3271 AWG16
RED
UL3271 AWG16
WHITE
UL3271 AWG16
BLACK
RED
WHITE
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
1
2
3
4
5
1
5
6
4
7
1
2
1
2
3
4
1
2
3
UL1015
AWG16
BROWN
UL1015
AWG16
GRAY
UL1015 AWG20
BLACK
UL1015 AWG20
WHITE
UL1015 AWG22
RED
UL1015 AWG16
BLACK
UL1015 AWG16
WHITE
UL1015 AWG16
GREEN
THERMISTOR ( PIPE TEMP. )
THERMISTOR ( DISCHARGE TEMP. )
THERMISTOR ( OUTDOOR TEMP. )
FRAME FRAME
L
N
SERIAL
1
2
3
L
N
POWER SOURCE
AC230V
50Hz
EARTH
TERMINAL
TO INDOOR UNIT
WIRE w/TERMINAL ( CORE )
1015#22
GREEN
FM
CM
M
Models : AOHG07KPCA
AOHG09KPCA
AOHG12KPCA
- 9 -
P60
B2P3-VH-B
WHITE
AC230V
( ON )
BLACK
BLACK
4-WAY VALVE COIL
DC Resistance 2085 (20 )
U-V
V-W
U-W
Compressor
Winding Resistance
1.862 (25 )
EMI FILTER
F8CT
or
TR-28-16-13
3 TURNS
REACTOR
13mH 8A
DC Resistance 408.0m (20 )
EMI FILTER
TRCB-25-15-12
or
ZC4KA T25*15*12-C
8 TURNS
EMI FILTER
GRFC-8
1 TURN
EMI FILTER
GRFC-8
1 TURN
P650
B5(7-2.3)B-XASK-1-A(LF)SN
or
B5(7-2.3)B-XASS-1-T(LF)SN
WHITE
1
3
4
5
6
Pin No. Terminal
code
Vm
GND
Vcc
Vsp
FG
Function of terminal
Revolution pulse output
Speed control voltage input
Control power voltage input
GND
Motor power voltage input
Lead wire
color
Red
Black
White
Yellow
Brown
2
7
P650 DC Fan Motor
1(Red) - 2(Blue)
1(Red) - 3(Orange)
1(Red) - 4(Yellow)
1(Red) - 5(White)
P30 Expansion Valve Coil
46.0
(20 )
Recommended Drive Condition
Unipolar Drive, 1-2 Phase Excitation.
Coil resistance
DC340V
DC15V
DC12V
P5 Thermistor Characteristics.
Thermistor ( Discharge temp. ) 168.6 k 62.6 k 40.0 k
0.4 V 0.9 V 1.2 V
0 20 30
Thermistor
Thermistor ( Outdoor temp. ) 35.2 k 12.6 k 8.0 k
2.6 V 3.8 V 4.1 V
Temperature
P1 Thermistor Characteristics.
0 20 30
Thermistor
Thermistor ( Pipe temp. ) 16.1 k 6.0 k 3.8 k
1.1 V 2.2 V 2.8 V
Temperature
MAIN PCB
AOHG07KPCA : K18SA-1800HUE-C1
AOHG09KPCA : K18SA-1801HUE-C1
AOHG12KPCA : K18SA-1802HUE-C1
INVERTER ASSEMBLY
AOHG07KPCA : EZ-018GHUE
AOHG09KPCA : EZ-018HHUE
AOHG12KPCA : EZ-018KHUE

Error detection
- 10 -
If you use a wireless remote controller, the lamp on the photo detector unit will output error
codes by way of blinking patterns. If you use a wired remote controller, error codes will ap-
pear on the remote control display. See the lamp blinking patterns and error codes in the
table. An error display is displayed only during operation.
[Troubleshooting with the indoor unit display]
OPERATION indicator lamp (green)
TIMER indicator lamp (orange)
ECONOMY indicator lamp (green)

- 11 -
Error display
Error code Description
OPERATION
lamp
(green)
TIMER
lamp
(orange)
ECONOMY
lamp
(green)
(1) (1) Serial communication error
(1) (2)
• Wired remote controller com-
munication error
• Server room control communi-
cation error
(1) (5) Check run unfinished
Automatic airflow adjustment error
(1) (8) External communication error
(2) (2) Indoor unit capacity error
(2) (3) Combination error
(2) (6) Indoor unit address setting error
(2) (9) Connection unit number error in
wired remote controller system
(3) (1) Power supply interruption error
(3) (2) Indoor unit PCB model information
error
(3) (3) Indoor unit motor electricity
consumption detection error
(3) (5) Manual auto switch error
(3) (9) Indoor unit power supply error for
fan motor
(3) (10) Indoor unit communication circuit
(wired remote controller) error
(4) (1) Room temp. sensor error
Display mode ●: 0.5s ON / 0.5s OFF
◊ : 0.1s ON / 0.1s OFF
( ) : Number of flashing

- 12 -
Error display
Error code Description
OPERATION
lamp
(green)
TIMER
lamp
(orange)
ECONOMY
lamp
(green)
(4) (2)
Indoor unit heat ex. middle temp.
sensor error
(5) (1) Indoor unit fan motor error
(5) (15) Indoor unit error
(6) (2)
Outdoor unit main PCB
model information error or
communication error
(6) (3) Inverter error
(6) (4) Active filter error, PFC circuit error
(6) (5) Trip terminal L error
(6) (8) Outdoor unit rush current limiting
resister temp. rise error
(6) (10) Display PCB microcomputers
communication error
(7) (1) Discharge temp. sensor error
(7) (2) Compressor temp. sensor error
(7) (3) Outdoor unit Heat Ex. liquid temp.
sensor error
(7) (4) Outdoor temp. sensor error
(7) (5) Suction Gas temp. sensor error
(7) (6) • 2-way valve temp. sensor error
• 3-way valve temp. sensor error
(7) (7) Heat sink temp. sensor error
Display mode ●: 0.5s ON / 0.5s OFF
◊ : 0.1s ON / 0.1s OFF
( ) : Number of flashing

- 13 -
Error display
Error code Description
OPERATION
lamp
(green)
TIMER
lamp
(orange)
ECONOMY
lamp
(green)
(8) (2)
• Sub-cool Heat Ex. gas inlet
temp. sensor error
• Sub-cool Heat Ex. gas outlet
temp. sensor error
(8) (3) Liquid pipe temp. sensor error
(8) (4) Current sensor error
(8) (6)
• Discharge pressure sensor error
• Suction pressure sensor error
• High pressure switch error
(9) (4) Trip detection
(9) (5) Compressor rotor position
detection error (permanent stop)
(9) (7) Outdoor unit fan motor 1 error
(9) (8) Outdoor unit fan motor 2 error
(9) (9) 4-way valve error
(10) (1) Discharge temp. error
(10) (3) Compressor temp. error
(10) (4) High pressure error
(10) (5) Low pressure error
Display mode ●: 0.5s ON / 0.5s OFF
◊ : 0.1s ON / 0.1s OFF
( ) : Number of flashing

Accessories
Part name Exterior Q’ty Part name Exterior Q’ty
Operating manual 1 Battery 2
Operating manual
(CD-ROM) 1 Cloth tape 1
Installation manual 1 Tapping screw 5
Wall hook bracket 1 Remote controller 1
- 14 -

Part name Exterior Q’ty Part name Exterior Q’ty
Drain pipe 1
- 15 -

Optional parts
Exterior Part name Model name Summary
Remote
controller holder UTZ-RXLA Wall or pillar mountable, and holds the wireless remote controller.
Wireless LAN
adapter UTY-TFSXF2
Remotely manage an air conditioning
system using mobile devices such as
smartphones and tablets.
- 16 -

1902G4799
