Fujitsu G09LMCA Service manual

AIR CONDITIONER
Wall Mounted type
INDOOR
OUTDOOR
ASG07LMCA
ASG09LMCA
ASG12LMCA
ASG14LMCA
AOG07LMCA
AOG09LMCA
AOG12LMCA
DESIGN & TECHNICAL MANUAL
AOG14LMCA

1. INDOOR UNIT
WALL MOUNTED TYPE :
ASG07LMCA
ASG09LMCA
ASG12LMCA
ASG14LMCA
DTR_AS076E_05
2015.01.16

WALL MOUNTED TYPE ASG07-14LMCA WALL MOUNTED TYPE ASG07-14LMCA
CONTENTS
1. INDOOR UNIT
1. FEATURES.............................................................................................................. 01 - 01
2. WIRELESS REMOTE CONTROLLER............................................... 01 - 03
3. SPECIFICATIONS.............................................................................................. 01 - 05
4. DIMENSIONS........................................................................................................ 01 - 07
5. WIRING DIAGRAMS........................................................................................ 01 - 09
6. CAPACITY TABLE............................................................................................ 01 - 10
6-1. COOLING CAPACITY...................................................................................... 01 - 10
6-2. HEATING CAPACITY........................................................................................01 - 11
7. FAN PERFORMANCE.................................................................................... 01 - 12
7-1. AIR VELOCITY DISTRIBUTION..................................................................... 01 - 12
7-2. AIR FLOW.......................................................................................................... 01 - 14
8. OPERATION NOISE (SOUND PRESSURE)................................. 01 - 16

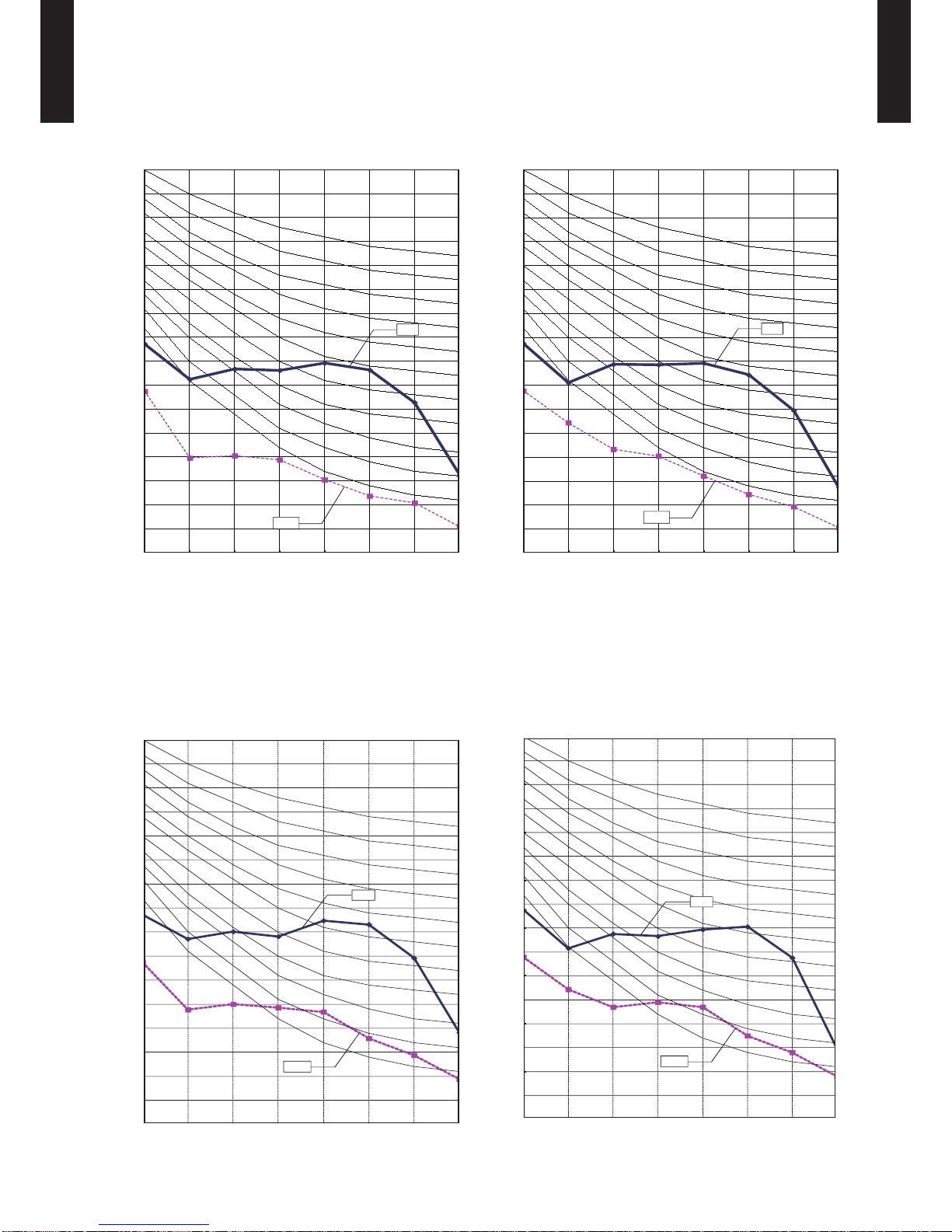

8-1. NOISE LEVEL CURVE .................................................................................... 01 - 16
8-2. SOUND LEVEL CHECK POINT..................................................................... 01 - 18
9. ELECTRICAL CHARACTERISTICS................................................... 01 - 19
10. SAFETY DEVICES............................................................................................01 - 20
11. EXTERNAL INPUT & OUTPUT............................................................... 01 - 21
11-1. EXTERNAL INPUT........................................................................................... 01 - 21
11-2. EXTERNAL OUTPUT....................................................................................... 01 - 23
12. FUNCTION SETTINGS.................................................................................. 01 - 25
13. OPTIONAL PARTS........................................................................................... 01 - 30
13-1. CONTROLLERS...............................................................................................01 - 30
13-2. OTHERS............................................................................................................. 01 - 30

- (01 - 01) -
WALL MOUNTED TYPE ASG07-14LMCA WALL MOUNTED TYPE ASG07-14LMCA
FEATURES1.MODELS

ASG07LMCA / AOG07LMCA
ASG09LMCA / AOG09LMCA
ASG12LMCA / AOG12LMCA
ASG14LMCA / AOG14LMCA

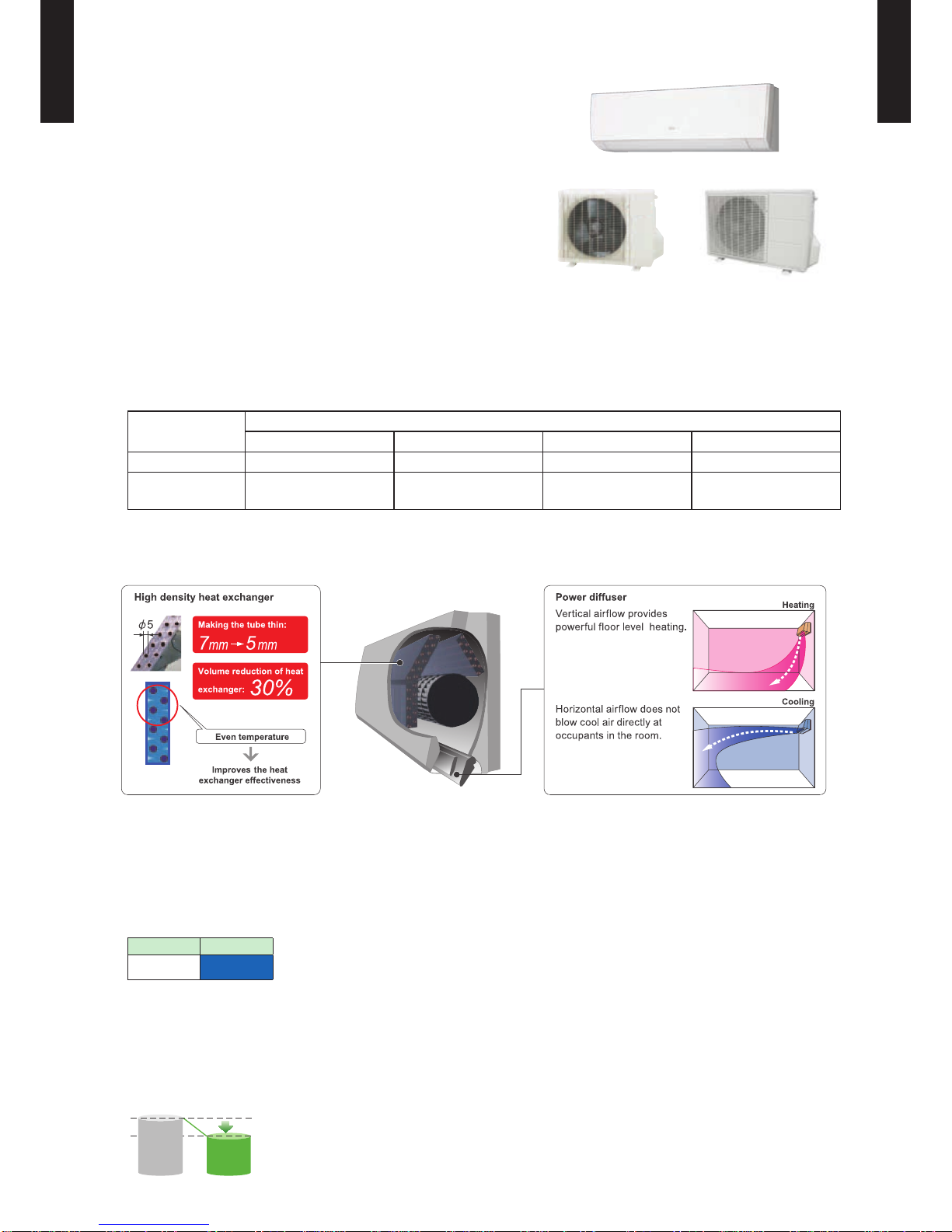

FEATURES

Energy efciency class
z
MODEL
ASG07LMCA ASG09LMCA ASG12LMCA ASG14LMCA
Cooling A++ A++ A++ A++
Heating
(Average) A+ A+ A+ A+
High efcient compact design
z z More comfortable airow
Quiet operation
z
INDOOR UNIT
Airow mode can be set in 4 steps and more detailed airow setting is possible.
*21dB only at cooling operation (22dB at heating operation)
Fan speed Noise level
Quiet 21dB(A)
(ASG07/09/12LMCA)
Outdoor unit low noise
z
When air-conditioner operates in large capacity, operation noise of outdoor unit will be
suppressed. ＊In case of room temperature being close to setting temperature, operation noise may not decrease.
Rated
noise level
Noise level
down
AOG07LMCA
AOG09LMCA
AOG12LMCA
AOG14LMCA

- (01 - 02) -
WALL MOUNTED TYPE ASG07-14LMCA WALL MOUNTED TYPE ASG07-14LMCA
10°C HEAT Operation
z
The room temperature can be set to go no lower than 10°C,
thus ensuring that the room does not get too cold when not occupied.
NOTE:
When the room temperature is higher than 10°C, “10°C HEAT” operation will not start. Operation starts and maintains the room •
temperature at 10°C when the temperature drops below 10°C.
Powerful operation
z
20 minutes continuous operation by maximum airow and maximum compressor speed is
possible. Rapid cooling and heating makes the room comfortable quickly.
Powerful
Setting temp.
Normal mode
Time
Temperature
Economy operation
z
Example : Cooling operation
• Economy operation is energy saving, as the set temperature of indoor unit is shifted by 1°C and
the maximum electric value of the outdoor unit is suppressed.
Temp.
Economy operation Shift
setting
temp
Control maximum current
Normal operation Time
Set temperature
Low outdoor air temperature correspondence
z
Corresponds to cooling operation at -10°C outdoor air temperature
Corresponds to heating operation at -15°C outdoor air temperature
Cooling Heating
-10 to 43°C -15 to 24°C
Corresponds to maximum 20m long piping
z
10°C
20°C
“10°C HEAT”
Button ON
Indoor unit
operation START

- (01 - 03) -
WALL MOUNTED TYPE ASG07-14LMCA WALL MOUNTED TYPE ASG07-14LMCA
WIRELESS REMOTE CONTROLLER2.
FEATURES

4 mode timer setup available (ON / OFF / PROGRAM / SLEEP).

Easy operation.

Easy to change custom code (max. 4 custom codes) by button

operation.
Simple function setting
z
Setting of the air conditioner selection function is performed by remote controller.
Built-in timers
z
Select from four different timer programs (On / Off / Program / Sleep).
Program timer
z
The program timer operates the on and off timer once within a 24 hour period.

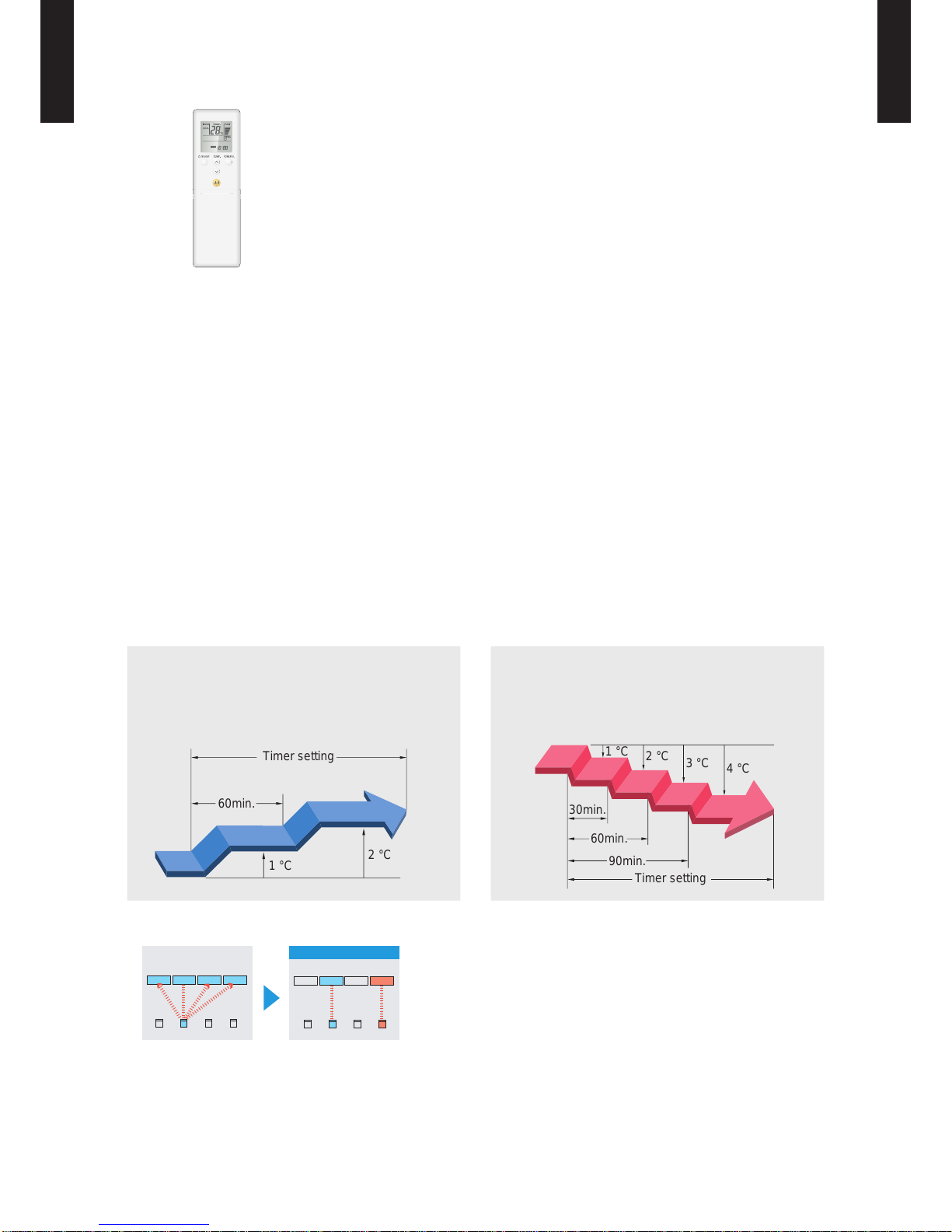

Sleep timer
z
The sleep timer function automatically corrects the temperature thermostat setting according to
the timer setting to prevent excessive cooling and heating while sleeping.
60min.
1 °C 2 °C
Timer setting
1 °C
30min.
60min.
90min.
2 °C 3 °C 4 °C
Timer setting
Cooling operation/dry operation
When the sleep timer is set, the set temperature
automatically rises 1 °C every hour. The set
temperature can rise up to a maximum of 2 °C.
Heating operation
When the sleep timer is set, the set temperature
automatically drops 1 °C every 30 minutes. The set
temperature can drop to a maximum of 4 °C.
Switching remote controller custom code
z
A B C D
A B CD
Mixed-up
I.U. I.U. I.U. I.U. I.U. I.U. I.U. I.U.
After code change
Code selector switch eliminates unit

•
being wrongly switched.
(Up to 4 custom codes can be set.)
*I.U.=Indoor unit

- (01 - 04) -
WALL MOUNTED TYPE ASG07-14LMCA WALL MOUNTED TYPE ASG07-14LMCA
FUNCTIONS

Display panel
19
20
22
23
24
25
21
To facilitate explanation, the accompanying
illustration has been drawn to show all
possible indicators; in actual operation,
however, the display will only show those
indicators appropriate to the current
operation.
SPECIFICATION

2
3
6
1
18
9
15
12
13
11
10
14
16
17
4
8
7
5
SIZE (H x W x D mm) 205 x 61 x 17
WEIGHT ( g ) 122
ACCESSORY Holder
1 Signal Transmitter
2 10 °C HEAT button
3 MODE button
4 ECONOMY button
5 OUTDOOR UNIT LOW NOISE button
6 ON TIMER button
7 OFF TIMER button
8 CLOCK ADJUST button
9 POWERFUL button
10 TEMP. Set button ( / )
11 Start/Stop button
12 FAN button
13 SWING button
14 SET button
15 SLEEP TIMER button
16 CANCEL button
17 RESET button
18 TIMER SELECT button ( / )
19 Remote Controller Display
20 Operation Mode indicator
21 Low Noise Mode indicator
22 Temperature Set indicator
23 Fan Speed indicator
24 Swing indicator
25 Clock & Timer indicator
NOTE:
Some button operations may not be available for all units or
systems, refer to the operation manual.

- (01 - 05) -
WALL MOUNTED TYPE ASG07-14LMCA WALL MOUNTED TYPE ASG07-14LMCA
SPECIFICATIONS3.
NOTES:
●Specications are based on the following conditions
Cooling:Indoor temperature of 27°C DB / 19°CWB and outdoor temperature of 35°C DB / 24°CWB.
Heating:Indoor temperature of 20°C DB/15°CWB and outdoor temperature of 7°C DB / 6°CWB.
Pipe length: 5 m, Height difference: 0 m (Outdoor unit - Indoor unit)
●The protective function might work when using it in environment out of the temperature range mentioned above.
*: The maximum current is the maximum value when operated within the operation range.
Type WALL MOUNTED
INVERTER HEAT PUMP
Model name ASG07LMCA ASG09LMCA ASG12LMCA ASG14LMCA
Power source 230V~ 50Hz
Available voltage range 198-264V~ 50Hz
Capacity
Cooling Rated kW 2.00 2.50 3.40 4.00
Btu/h 6,800 8,500 11,600 13,600
Min - Max kW 0.5~3.0 0.5 - 3.2 0.9 - 3.9 0.9~4.4
Btu/h 1,700~10,200 1,700 - 10,900 3,100 - 13,300 3,100~15,000
Heating Rated kW 3.00 3.20 4.00 5.00
Btu/h 10,200 10,900 13,600 17,1 0 0
Min - Max kW 0.5~3.4 0.5 - 4.0 0.9 - 5.3 0.9~6.0
Btu/h 1,700 - 11,600 1,700 - 13,600 3,100 - 18,000 3,100 - 20,400
Input power
Cooling Rated
kW
0.465 0.65 0.97 1.135
Min - Max 0.25 - 1.29 0.25 - 1.29 0.25 - 1.40 0.25 - 1.98
Heating Rated 0.685 0.730 1.02 1.365
Min - Max 0.25 - 1.63 0.25 - 1.63 0.25 - 1.98 0.25 - 2.32
Current Cooling Rated A2.5 3.2 4.6 5.3
Heating 3.3 3.5 4.8 6.3
EER Cooling kW/kW 4.30 3.85 3.50 3.52
COP Heating 4.38 4.38 3.92 3.66
Sensible capacity Cooling kW 1.2 1.6 2.2 3.2
Power factor Cooling %81 88 91 93
Heating 90 90 92 94
Moisture removal l/h(pints/h) 1.0(1.8) 1.3(2.3) 1.8(3.2) 2.1(3.7)
Maximum operating current * Cooling A6.0 6.0 6.5 9.0
Heating 7.5 7.5 9.0 10.5
Fan
Airow
rate
Cooling
High
m3/h
750 770
Med 640 680
Low 480 530
Quiet 310 360
Heating
High 750 770
Med 640 680
Low 520 560
Quiet 330 380
Type × Q’ty Crossow fan x 1
Motor output W30
Sound pressure level
Cooling
High
dB(A)
43 44
Med 40 40
Low 32 33
Quiet 21 25
Heating
High 43 44
Med 38 40
Low 33 35
Quiet 22 27
Heat exchanger type
Dimensions
(H × W × D) mm
Main:320 x 630 x 20
Sub:84 x 630 x 13.3
Fin pitch Main:1.1, Sub:1.4
Rows × Stages Main:2 x 20, Sub:1 x 4
Pipe type Copper
Fin type Aluminium
Enclosure
Material Polystyrene
Colour White
(Approximate colour of MUNSELL N9.25)
Dimensions
(H × W × D)
Net mm 268 x 840 x 203
Gross 270 x 884 x 336
Weight Net kg 8.5
Gross 10.5
Connection pipe Size Liquid mm Ø 6.35 (Ø 1/4 in.)
Gas Ø 9.52 (Ø 3/8 in.) Ø 12.7 (Ø 1/2 in.)
Method Flare
Operation range Cooling °C 18 to 32
%RH 80 or less
Heating °C 16 to 30
Remote controller type Wireless
Drain hose Material PP + LLDPE
Size mm Ø 13.8 (I.D.), Ø 15.8 to Ø 16.7 (O.D.)

- (01 - 06) -
WALL MOUNTED TYPE ASG07-14LMCA WALL MOUNTED TYPE ASG07-14LMCA
Model name ASG07LMCA ASG09LMCA ASG12LMCA ASG14LMCA
Energy efciency class Cooling A++ A++ A++ A++
Heating (Average) A+ A+ A+ A+
Pdesign Cooling kW 2.0 (35°C) 2.5 (35°C) 3.4 (35°C) 4.0 (35°C)
Heating (Average) 2.3 (-10°C) 2.4 (-10°C) 3.5 (-10°C) 3.9 (-10°C)
SEER Cooling kWh/kWh 6.80 7.00 7.00 6.90
SCOP Heating (Average) 4.10 4.10 4.00 4.00
Annual energy consumption QCE kWh/a 103 125 170 203
QHE (Average) 786 820 1225 1365
Sound power level Cooling High dB (A) 59 59 59 60
Heating 59 59 59 60

- (01 - 07) -
WALL MOUNTED TYPE ASG07-14LMCA WALL MOUNTED TYPE ASG07-14LMCA
DIMENSIONS4.
MODELS
 : ASG07LMCA, ASG09LMCA, ASG12LMCA, ASG14LMCA
(Unit : mm)

- (01 - 08) -
WALL MOUNTED TYPE ASG07-14LMCA WALL MOUNTED TYPE ASG07-14LMCA

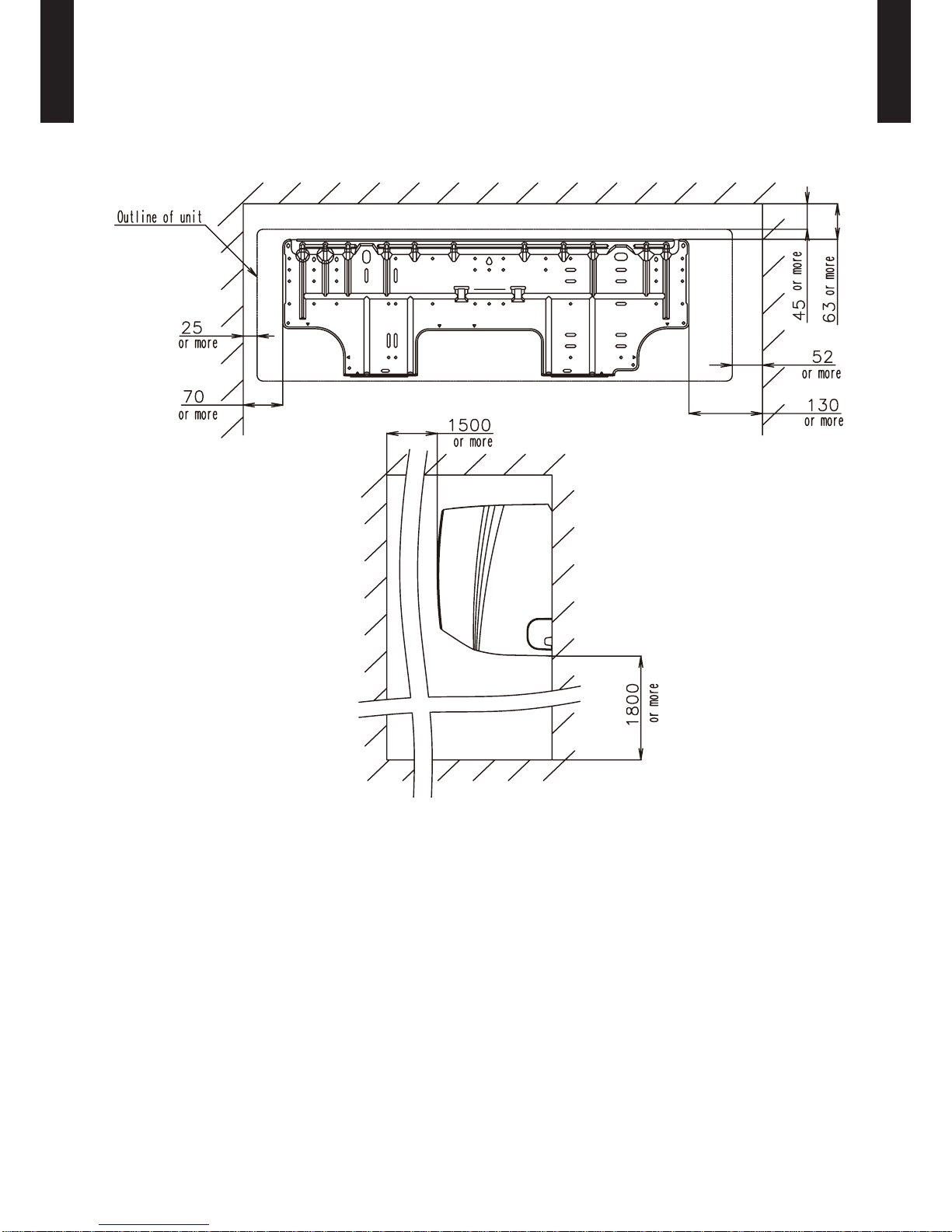

INSTALLATION PLACE

(Unit : mm)

- (01 - 09) -
WALL MOUNTED TYPE ASG07-14LMCA WALL MOUNTED TYPE ASG07-14LMCA

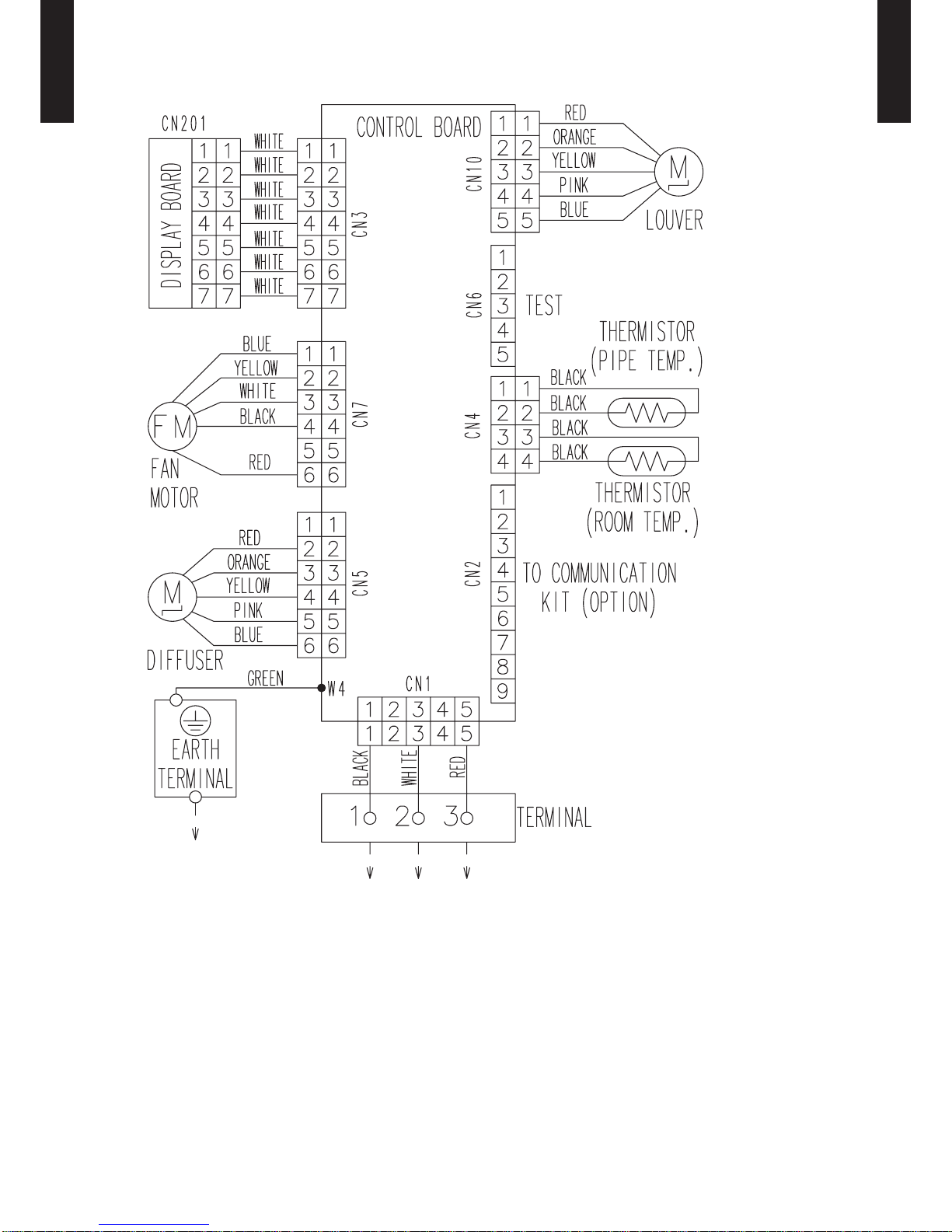

WIRING DIAGRAMS5.
MODELS
 :ASG07LMCA, ASG09LMCA, ASG12LMCA
, ASG14LMCA

- (01 - 10) -
WALL MOUNTED TYPE ASG07-14LMCA WALL MOUNTED TYPE ASG07-14LMCA
CAPACITY TABLE6. COOLING CAPACITY6-1.
MODEL
 : ASG07LMCA
MODEL
 : ASG09LMCA
MODEL
 : ASG12LMCA
MODEL
 : ASG14LMCA
AFR : AirFlow Rate (m3/min)
TC : Total Capacity (kW)
SHC : Sensible Heat Capacity (kW)
IP : Input Power (kW)
AFR 12.5
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
20 1.87 1.32 0.33 2.09 1.33 0.33 2.16 1.45 0.33 2.30 1.45 0.34 2.37 1.57 0.34 2.51 1.56 0.34 2.65 1.66 0.35
25 1.78 1.26 0.37 1.98 1.26 0.37 2.05 1.37 0.37 2.18 1.38 0.38 2.25 1.49 0.38 2.39 1.48 0.38 2.52 1.58 0.39
30 1.68 1.19 0.41 1.87 1.19 0.41 1.94 1.30 0.42 2.06 1.30 0.42 2.13 1.41 0.42 2.25 1.40 0.43 2.38 1.49 0.43
35 1.58 1.12 0.45 1.76 1.12 0.46 1.82 1.22 0.46 1.94 1.23 0.46 2.00 1.32 0.47 2.12 1.32 0.47 2.24 1.40 0.47
40 1.41 1.00 0.45 1.57 1.00 0.46 1.62 1.09 0.46 1.73 1.09 0.46 1.78 1.18 0.46 1.89 1.17 0.47 2.00 1.25 0.47
43 1.31 0.92 0.45 1.45 0.93 0.45 1.50 1.01 0.46 1.60 1.01 0.46 1.65 1.09 0.46 1.75 1.09 0.47 1.85 1.16 0.47
AFR 12.5
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
20 2.34 1.62 0.46 2.61 1.63 0.46 2.70 1.77 0.47 2.87 1.78 0.47 2.96 1.92 0.47 3.14 1.91 0.48 3.32 2.04 0.48
25 2.22 1.54 0.51 2.48 1.55 0.52 2.56 1.68 0.52 2.73 1.69 0.53 2.81 1.82 0.53 2.98 1.82 0.54 3.15 1.93 0.54
30 2.10 1.45 0.57 2.34 1.46 0.58 2.42 1.59 0.58 2.58 1.60 0.59 2.66 1.72 0.59 2.82 1.72 0.60 2.98 1.83 0.60
35 1.98 1.37 0.63 2.20 1.38 0.64 2.28 1.50 0.64 2.43 1.50 0.65 2.50 1.62 0.65 2.65 1.61 0.66 2.80 1.72 0.66
40 1.76 1.22 0.63 1.96 1.23 0.64 2.03 1.33 0.64 2.16 1.34 0.65 2.23 1.44 0.65 2.36 1.44 0.66 2.50 1.53 0.66
43 1.63 1.13 0.62 1.82 1.14 0.63 1.88 1.24 0.64 2.00 1.24 0.64 2.07 1.34 0.65 2.19 1.33 0.65 2.31 1.42 0.66
AFR 12.5
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
20 3.18 2.18 0.66 3.55 2.19 0.67 3.67 2.39 0.68 3.91 2.39 0.68 4.03 2.59 0.69 4.27 2.57 0.70 4.51 2.74 0.70
25 3.03 2.07 0.75 3.37 2.08 0.77 3.49 2.27 0.77 3.72 2.27 0.78 3.83 2.45 0.78 4.06 2.44 0.79 4.29 2.60 0.80
30 2.86 1.96 0.84 3.19 1.97 0.86 3.30 2.14 0.86 3.52 2.15 0.87 3.63 2.32 0.87 3.84 2.31 0.88 4.06 2.46 0.89
35 2.69 1.84 0.94 2.99 1.85 0.95 3.09 2.01 0.96 3.30 2.02 0.97 3.40 2.18 0.97 3.60 2.17 0.98 3.81 2.31 0.99
40 2.27 1.64 0.87 2.53 1.65 0.88 2.62 1.79 0.89 2.79 1.80 0.90 2.87 1.94 0.90 3.05 1.94 0.91 3.22 2.06 0.92
43 2.09 1.52 0.87 2.33 1.53 0.89 2.41 1.66 0.89 2.57 1.67 0.90 2.65 1.80 0.90 2.81 1.80 0.91 2.96 1.91 0.92
AFR 12.8
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
20 3.72 2.44 0.77 4.15 2.46 0.78 4.29 2.67 0.79 4.57 2.68 0.80 4.71 2.90 0.80 4.99 2.89 0.81 5.28 3.07 0.82
25 3.54 2.34 0.88 3.94 2.36 0.89 4.08 2.56 0.90 4.34 2.57 0.91 4.48 2.78 0.91 4.75 2.77 0.92 5.02 2.95 0.93
30 3.36 2.31 0.99 3.74 2.32 1.00 3.87 2.52 1.01 4.12 2.53 1.02 4.25 2.73 1.02 4.50 2.72 1.03 4.76 2.90 1.04
35 3.16 2.19 1.10 3.52 2.21 1.11 3.64 2.40 1.12 3.88 2.41 1.13 4.00 2.60 1.14 4.24 2.59 1.15 4.48 2.76 1.16
40 2.30 1.87 0.75 2.56 1.88 0.76 2.65 2.04 0.77 2.83 2.05 0.78 2.91 2.21 0.78 3.09 2.20 0.79 3.26 2.35 0.80
43 2.20 1.84 0.80 2.45 1.85 0.81 2.53 2.01 0.81 2.70 2.02 0.82 2.78 2.18 0.83 2.95 2.17 0.83 3.12 2.31 0.84

- (01 - 11) -
WALL MOUNTED TYPE ASG07-14LMCA WALL MOUNTED TYPE ASG07-14LMCA
HEATING CAPACITY6-2.
MODEL
 : ASG07LMCA
MODEL
 : ASG09LMCA
MODEL
 : ASG12LMCA
MODEL
 : ASG14LMCA
AFR : AirFlow Rate (m3/min)
TC : Total Capacity (kW)
IP : Input Power (kW)
AFR 12.5
Indoor temperature
(°CDB) 16 18 20 22 24
Outdoor temperature
(°CDB) (°CWB) TC IP TC IP TC IP TC IP TC IP
-15 -16 1.72 0.71 1.68 0.73 1.64 0.74 1.60 0.75 1.56 0.77
-10 -11 2.38 0.86 2.33 0.88 2.27 0.90 2.21 0.92 2.16 0.94
-5 -7 2.90 0.97 2.83 0.99 2.76 1.01 2.69 1.03 2.62 1.05
0-2 3.18 1.02 3.10 1.04 3.03 1.06 2.95 1.08 2.87 1.10
5 3 3.46 1.06 3.38 1.09 3.29 1.11 3.21 1.13 3.13 1.15
7 6 3.57 1.08 3.49 1.10 3.40 1.13 3.32 1.15 3.23 1.17
10 8 3.98 1.19 3.88 1.21 3.79 1.24 3.69 1.26 3.60 1.29
15 10 3.72 1.09 3.63 1.12 3.54 1.14 3.45 1.16 3.36 1.18
AFR 12.5
Indoor temperature
(°CDB) 16 18 20 22 24
Outdoor temperature
(°CDB) (°CWB) TC IP TC IP TC IP TC IP TC IP
-15 -16 1.72 0.71 1.68 0.73 1.64 0.74 1.60 0.75 1.56 0.77
-10 -11 2.38 0.86 2.33 0.88 2.27 0.90 2.21 0.92 2.16 0.94
-5 -7 2.99 0.97 2.91 0.99 2.84 1.01 2.77 1.03 2.70 1.05
0-2 3.49 1.02 3.41 1.04 3.33 1.06 3.24 1.08 3.16 1.10
5 3 4.00 1.06 3.90 1.09 3.81 1.11 3.71 1.13 3.62 1.15
7 6 4.20 1.08 4.10 1.10 4.00 1.13 3.90 1.15 3.80 1.17
10 8 4.76 1.19 4.65 1.21 4.53 1.24 4.42 1.26 4.31 1.29
15 10 4.53 1.09 4.42 1.12 4.31 1.14 4.20 1.16 4.10 1.18
AFR 12.5
Indoor temperature
(°CDB) 16 18 20 22 24
Outdoor temperature
(°CDB) (°CWB) TC IP TC IP TC IP TC IP TC IP
-15 -16 2.94 1.54 2.87 1.57 2.80 1.60 2.73 1.63 2.66 1.66
-10 -11 3.73 1.60 3.64 1.63 3.55 1.67 3.46 1.70 3.37 1.73
-5 -7 4.40 1.62 4.29 1.65 4.19 1.69 4.08 1.72 3.98 1.75
0-2 4.88 1.57 4.77 1.60 4.65 1.64 4.53 1.67 4.42 1.70
5 3 5.37 1.52 5.24 1.56 5.11 1.59 4.99 1.62 4.86 1.65
7 6 5.57 1.51 5.43 1.54 5.30 1.57 5.17 1.60 5.04 1.63
10 8 5.85 1.51 5.71 1.54 5.57 1.57 5.43 1.60 5.29 1.63
15 10 5.66 1.39 5.52 1.42 5.39 1.45 5.25 1.48 5.12 1.51
AFR 12.8
Indoor temperature
(°CDB) 16 18 20 22 24
Outdoor temperature
(°CDB) (°CWB) TC IP TC IP TC IP TC IP TC IP
-15 -16 3.65 1.43 3.57 1.46 3.48 1.49 3.39 1.52 3.31 1.55
-10 -11 4.29 1.51 4.19 1.54 4.09 1.57 3.99 1.60 3.89 1.63
-5 -7 4.68 1.58 4.57 1.61 4.46 1.64 4.34 1.68 4.23 1.71
0-2 5.31 1.69 5.19 1.72 5.06 1.76 4.93 1.79 4.81 1.83
5 3 5.73 1.79 5.59 1.83 5.46 1.86 5.32 1.90 5.18 1.94
7 6 6.30 1.86 6.15 1.89 6.00 1.93 5.85 1.97 5.70 2.01
10 8 6.64 1.90 6.49 1.94 6.33 1.98 6.17 2.02 6.01 2.06
15 10 6.44 1.65 6.28 1.69 6.13 1.72 5.98 1.76 5.82 1.79

- (01 - 12) -
WALL MOUNTED TYPE ASG07-14LMCA WALL MOUNTED TYPE ASG07-14LMCA
FAN PERFORMANCE7. AIR VELOCITY DISTRIBUTION7-1.
MODELS
 :ASG07LMCA, ASG09LMCA, ASG12LMCA
Conditions:
Fan speed: HIGH
Operation mode: FAN
2.0 1.0 0.5
2
1
0
1
2
Unit : m/s(m)
(m)
TOP VIEW
Vertical ap: Up
Horizontal ap: Center
0123456789
2.0
1.0
1.0
0.5
0.5
3
2
1
0
1
2
3
Unit : m/s(m)
TOP VIEW
Vertical ap: Up
Horizontal ap: Right & Left
(m)
0123456789
2.0
1.0 0.5
3
2
1
0
Unit : m/s(m) SIDE VIEW
Vertical ap: Up
Horizontal ap: Center
(m)
0123456789
2.0
1.0
0.5
3
2
1
0
Unit : m/s(m) SIDE VIEW
Vertical ap: Down
Horizontal ap: Center
(m)
0123456789

- (01 - 13) -
WALL MOUNTED TYPE ASG07-14LMCA WALL MOUNTED TYPE ASG07-14LMCA
MODEL
 : ASG14LMCA
Conditions:
Fan speed: HIGH
Operation mode: FAN
2.0 1.0 0.5
2
1
0
1
2
Unit : m/s(m)
(m)
TOP VIEW
Vertical ap: Up
Horizontal ap: Center
0123456789
2.0
1.0
1.0
0.5
0.5
3
2
1
0
1
2
3
Unit : m/s(m)
TOP VIEW
Vertical ap: Up
Horizontal ap: Right & Left
(m)
0123456789
2.0
1.0 0.5
3
2
1
0
Unit : m/s(m) SIDE VIEW
Vertical ap: Up
Horizontal ap: Center
(m)
0123456789
2.0
1.0
0.5
3
2
1
0
Unit : m/s(m) SIDE VIEW
Vertical ap: Down
Horizontal ap: Center
(m)
0123456789

- (01 - 14) -
WALL MOUNTED TYPE ASG07-14LMCA WALL MOUNTED TYPE ASG07-14LMCA
AIR FLOW7-2.
MODELS
 :ASG07LMCA, ASG09LMCA, ASG12LMCA
Cooling
z
Heating
z
Fan speed
Number of
rotations
(r.p.m.)
Air ow
HIGH 1320
m3/h 750
l/s 208
CFM 441
MED 1160
m3/h 640
l/s 178
CFM 376
LOW 930
m3/h 480
l/s 133
CFM 282
QUIET 680
m3/h 310
l/s 86
CFM 182
Fan speed
Number of
rotations
(r.p.m.)
Air ow
HIGH 1320
m3/h 750
l/s 208
CFM 441
MED 1160
m3/h 640
l/s 178
CFM 376
LOW 980
m3/h 520
l/s 144
CFM 306
QUIET 710
m3/h 330
l/s 92
CFM 194

- (01 - 15) -
WALL MOUNTED TYPE ASG07-14LMCA WALL MOUNTED TYPE ASG07-14LMCA
MODEL
 :
ASG14LMCA
Cooling
z
Heating
z
Fan speed
Number of
rotations
(r.p.m.)
Air ow
HIGH 1360
m3/h 770
l/s 213
CFM 453
MED 1220
m3/h 680
l/s 188
CFM 400
LOW 990
m3/h 530
l/s 147
CFM 311
QUIET 750
m3/h 360
l/s 100
CFM 212
Fan speed
Number of
rotations
(r.p.m.)
Air ow
HIGH 1360
m3/h 770
l/s 213
CFM 453
MED 1220
m3/h 680
l/s 188
CFM 400
LOW 1040
m3/h 560
l/s 155
CFM 329
QUIET 770
m3/h 380
l/s 105
CFM 223

- (01 - 16) -
WALL MOUNTED TYPE ASG07-14LMCA WALL MOUNTED TYPE ASG07-14LMCA
OPERATION NOISE (SOUND PRESSURE)8. NOISE LEVEL CURVE8-1.
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
MODEL
 : ASG07LMCA
Cooling
z
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Heating
z
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
HIGH
QUIET
HIGH
QUIET
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
MODEL
 : ASG09LMCA
Cooling
z
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Heating
z
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
HIGH
QUIET
HIGH
QUIET

- (01 - 17) -
WALL MOUNTED TYPE ASG07-14LMCA WALL MOUNTED TYPE ASG07-14LMCA
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
MODEL
 : ASG12LMCA
Cooling
z
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Heating
z
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
HIGH
QUIET
HIGH
QUIET
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
MODEL
 : ASG14LMCA
Cooling
z
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Heating
z
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
HIGH
QUIET
HIGH
QUIET
