Fujitsu Waterstage DHW Series User manual

U0651601_2010_EN_1
24/06/2019
OPERATING INSTRUCTIONS
Air to Water Heat Pump
Split single service & Split integrated DHW type
For users. To be kept by the user for future reference.
EN

- 2 -
Contents
 Safety instructions 3
 Overview of installation 4
Precautions and warnings about your installation ..4
Appliance end-of-life .......................5
Overview of the installation ..................5
 Carrying out the installation 6
User interface, Room control unit (option) and
Room thermostat (option) ...................6
Display Description ........................8
Appliance start up .........................9
Quick start-up ............................9
Setting the time ..........................10
Structure of the "End user" control menu ......11
Parametering the setting ...................12
Information display .......................17
Details .................................18
Operation of the DHW system* ..............18
Selecting cooling mode* ...................18
Pilot wire* (if kit regulation extension AVS 55)...18
Telephone modem* (if Regulation extension kit
AVS 55) ................................19
Conguring room control unit* (option) ........19
 Maintenance 20
Regular checks ..........................20
Checking the outdoor unit ..................20
Hot water tank* ..........................20
Waterstage / OPERATING INSTRUCTIONS / 2010 - EN

 Safety instructions
Please comply with the following instructions in order to avoid any risk of injury or
inappropriate use of the appliance.
Commissioning
Do not switch the appliance ON until every lling operation has been performed
Do not attempt to install this appliance yourself. This heat pump must be installed by
qualied personnel holding a certicate of competence.
The installation must always be properly earthed and tted with a safety circuit breaker.
Do not change the power supply.
The appliances are not reproof and should not therefore be installed in an explosive
environment.
How to Use
This appliance can be used by children 8 years and above. Also persons with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, provided
they have been given supervision or instruction concerning use of the appliance in a safe
way and with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.
Do not let children insert foreign bodies inside the propeller protection grate or climb onto
the roof of the outdoor unit. The ns of the air heat exchanger are extremely thin and can
cause cuts.
Nothing should obstruct the air circulation through the evaporator and out from the fan.
The outdoor unit must only be installed outside. If a shelter is required,it must have broad
openings on all 4 sides and installation clearances must be observed (see your installation
engineer).
Do not climb on top of the outdoor unit.
The room in which the unit is operating must be correctly ventilated in order to avoid any
shortage of oxygen in the event of a refrigerant gas leak.
If your installation location already meets safety standards, do not carry out any
modications (ventilation, exhaust evacuation, openings, etc.) without the advice of your
installation engineer.
Do not place any heat source under the remote control.
Maintenance
Do not try to repair the appliance yourself.
This appliance does not contain any components which can be repaired by the user.
Removing either of the covers can expose you to dangerous electrical voltages.
In any case, switching o󰀨 the current is not su󰀩cient to protect you from any external
electrical shocks (condensers).
Do not open the outdoor unit or the hydraulic unit while they are in operation.
If you hear unusual noises, smell smoke or other odours coming from the appliance, turn
o󰀨 the power and contact your installation engineer.
Before starting any cleaning, turn o󰀨 the power to the appliance.
Do not use aggressive cleaning liquids or solvents to clean the body work.
Do not use a pressure hose to clean the outdoor unit. You may damage the air exchanger
and get water inside the electrical circuits.

- 4 -
►
Precautions and warnings about
your installation
▼
Outdoor unit
The outdoor unit contains the equipment that enables
the capture of energy from the surrounding air.
This unit was installed by your installer in a location
where it is able to operate with best performance.
Nothing should obstruct the air circulation through the
evaporator and out from the fan.
The water contained in the air may condense and ow
out of the outdoor unit. The outdoor unit can generate a
large volume of water called condensate.
In cold weather, this water freezes on contact with the
exchanger and must be regularly removed using the
defrosting cycles. The defrosting cycle is managed
automatically by the control system and can produce
steam emissions which are completely normal.
▼
Hydraulic unit
The hydraulic unit contains the appliance's control
system which manages the room temperature and the
production of domestic hot water.
The hydraulic unit is tted with an electrical backup*
or boiler connection* which intervenes to provide
additional heat during the coldest periods.
▼
Settings
Your installer has carefully adjusted your installation.
Do not change the settings without their consent.
If in doubt, do not hesitate to contact them.
Your heating system is controlled by adjustment in
relation to the outside temperature (temperature
control).
The installation of a room thermostat (option) makes it
possible to improve the operation of the control system
(inuence of the ambient temperature is taken into
account).
▼
Radiators
In order to ensure operation of the control system,
the room containing the thermostat must not also
contain a thermostatic valve. If this is the case, it must
be opened as far as possible.
▼
Underoor heating system
A new underoor heating system must initially be
heated slowly to avoid any problems involving cracking.
Check with your installer that this initial heating
procedure has indeed been performed before freely
using your heating system.
An underoor heating system's signicant inertia
prevents sudden room temperature di󰀨erences.
However, this inertia implies a reaction time of around
several hours (approx 6 hours).
Any changes to the setting must be made slowly
and leave the installation su󰀩cient time to react. Any
exaggerated or abrupt adjustments to the settings
always result in signicant temperature uctuations
during the day.
Similarly if your dwelling has an underoor heating
system, do not reduce it or switch it o󰀨 if you will be
absent for only short periods. The reheating period is
always quite long (approx 6 hours).
▼
Fan coils / dynamic radiators with an
integrated control system
Do not use a room sensor in the area in question.
▼
Domestic Hot Water (DHW)*
When hot water is required, the heat pump adapts its
priority to meet the request.
No heating is produced during the preparation of
domestic hot water.
The heat pump produces the domestic hot water
(DHW), which is then additionally heated, if required,
by the electrical backup.
To ensure a DHW setpoint over 45°C, the electrical
backup heating or boiler (boiler connection kit)* must
be left on.
The electrical backup allows the correct operation of the
anti-legionella cycles.
 Overview of installation
* depending on conguration / option
Waterstage / OPERATING INSTRUCTIONS / 2010 - EN

- 5 -
►
Appliance end-of-life
The appliances must be dismantled and recycled by a
specialised service. The appliances must not, under any
circumstances, be thrown out with household waste,
bulky waste or at a tip.
At the end of its service life, please contact your installer
or local representative to proceed with its dismantling
and recycling.

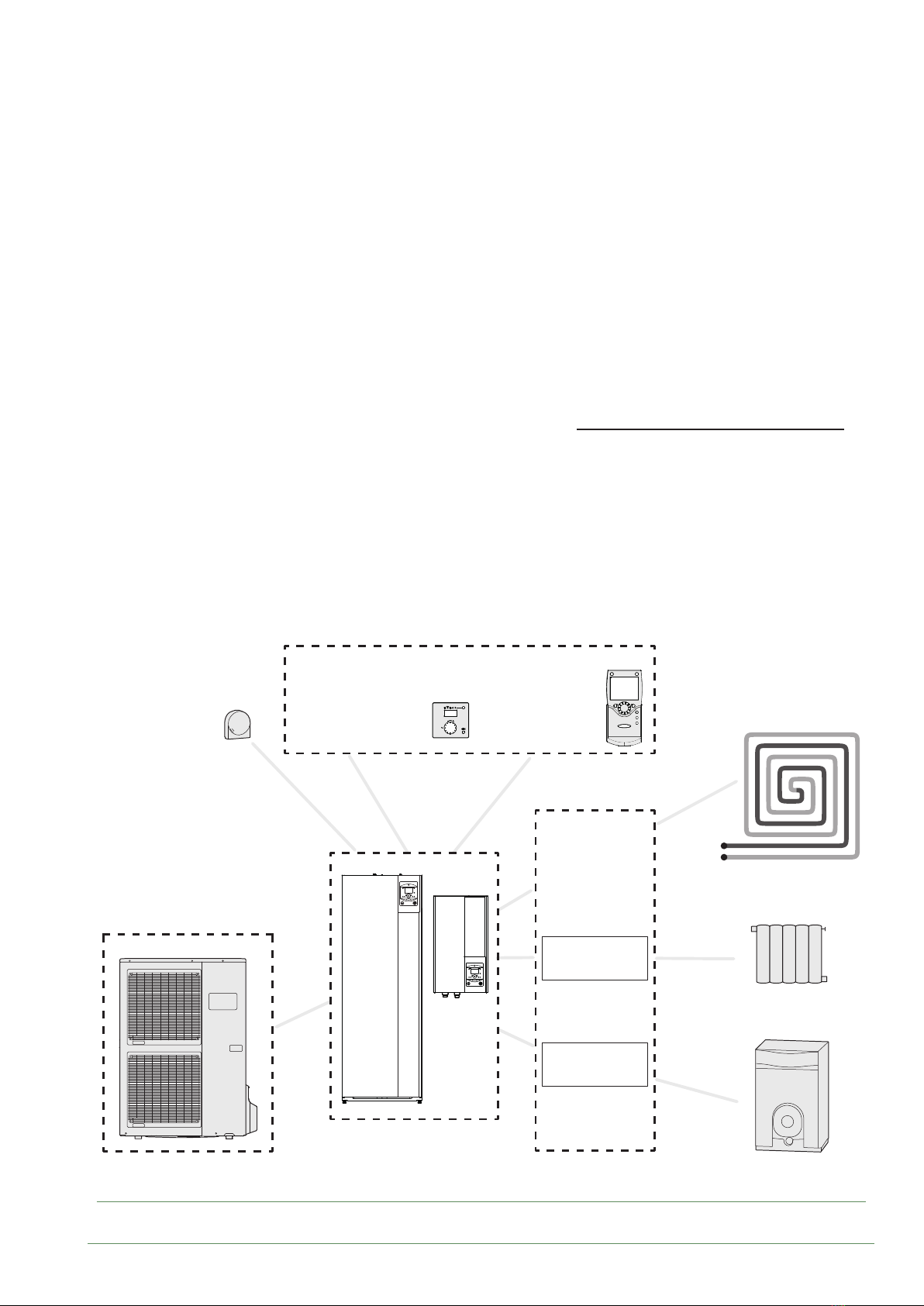

g. 1 - Overview of complete installation conguration
►
Overview of the installation
Your heat pump has been congured by your installation
engineer. It is made up of the following main parts:
- The outdoor unit, as its name suggests, is placed
outside your dwelling, and extracts energy from the
outside air.
- The hydraulic unit is located in your boiler room, cellar,
garage or even in your kitchen, and transfers energy to
the heating and domestic hot water circuits*.
- The outside sensor monitors the outside temperature.
Optional:
- Room sensor(s).
Heat pumps are systems which can be connected to
any type of low temperature distribution system and
the heat captured by the heat pump can be used in
di󰀨erent ways:
- Underoor heating system.
- Radiators.
- Domestic Hot Water (DHW)*.
Menu
* depending on conguration / option
Room thermostat
(wired or radio)
Remote control
(wired or radio)
Outside
sensor
Heating circuit
underoor heating
Radiators heating
circuit
Boiler
Options depending
on hydraulic
congurations
2
circuit kit
Boiler
connection kit
Hydraulic unit
Outdoor unit
Control options
and/or
or
Waterstage / OPERATING INSTRUCTIONS / 2010 - EN

- 6 -
 Carrying out the installation
►
User interface, Room control unit (option) and Room thermostat (option)
Auto
ESC OK
0 4 8 12 16 20 24
1
2
3
4
5
6
7
8
11 °C
Auto
5
2
10
11
49
1
2
3
5
6
7
8
Waterstage / OPERATING INSTRUCTIONS / 2010 - EN

- 7 -
Ref. Functions - Denitions
1Selecting of the DHW operating mode
(Domestic hot water).
On
Off
- If the installation is tted with a DHW tank.
-On: Production of DHW according to the time program.
-O󰀨: Preparing the domestic hot water for stopping with the anti-frost function
active.
-Manual start button: Hold down the DHW key for 3 seconds. Switch from
"reduced" to "comfort" until the next time the ECS timer switches over.
2Digital display. - Operating control. Readout of the current temperature, of the heating mode
and of any faults .
- View the settings.
3Exit "ESC". - Quit the menu.
4Navigation and setting. - Selecting the menu.
- Setting parameters.
- Adjusting the ambient temperature setpoint.
5Selecting the heating mode. -
Auto
Heating operating according to the heating program
(Summer/winter mode switchover is automatic).
- Constant comfort temperature.
- Constant reduced temperature.
- Stand-by mode with anti-frost protection
(Provided that the heat pump's electrical power supply is not interrupted).
6Information display. - Various data (see page 17).
- Reading error codes.
- Information concerning maintenance, special mode.
7Conrm "OK". - Input into the selected menu.
- Conrmation of the parameter settings.
- Conrmation of the adjustment to the comfort temp. setting.
8Selecting cooling mode. - If the installation is tted with the cooling kit:
- Cooling operating according to the heating program
(Summer/winter mode switchover is automatic).
9RESET button
(Brief press)
- Reinitialising the parameters and cancelling error messages.
Do not use during normal operation.
10 Control knob. - Adjusting the ambient temperature setpoint.
11 Presence key. - Comfort / Reduced switchover.
Waterstage / OPERATING INSTRUCTIONS / 2010 - EN

- 8 -
►
Display Description
Xxxxxxxxxxxxxxxxxxxxxxxxxxx
Xxxxxxxxxxxxxxxxxxxxxxxxxxx
Xxxxxxxxxxxxxxxxxxxxxxxxxxx
Symbols Denitions
- Heating mode active with reference
to the heating circuit*.
- Heating in comfort mode.
- Heating in reduced mode.
- Heating in "standby" mode
(freeze protection).
- Cooling mode active*.
- Holiday mode activated.
- Process in progress.
- Compressor operation.
- Burner operation*.
- Default message.
- Service / Special operation.
INFO - Information level activated.
PROG - Program activated.
ECO - ECO mode activated
(Heating temporarily stopped).
temperature ambiante
- Hour /
Parameter number /
Setpoint value.
temperature ambiante
- Room temperature /
Setpoint value.
temperature ambiante
- Setpoint information /
Parameter Information.
* depending on conguration / option
g. 2 - Closing the display
Waterstage / OPERATING INSTRUCTIONS / 2010 - EN

- 9 -
►
Appliance start up
• The installation and 1st start up of the appliance
must be done by a qualied installer. That person will
also give you instructions on starting and running the
appliance.
• Ensure that the installation is fully lled with water
and has been correctly bled and that there is a
su󰀩cient pressure of 1.5 to 2 bars on the manometer
(ref. 2, g. 3).
• Close the installation's main circuit breaker.
In winter, so that the compressor can be
preheated, close the installation's main circuit
breaker (outdoor unit's power supply) some
hours before pressing the on/o󰀨 button.
►
Quick start-up
Once your installer has started your installation for the
rst time:
• Engage the start/stop switch.
During the regulator initialisation phase, the
display shows all the symbols and then "Data,
update" and then "State heat pump".
• Select the "AUTO" heating mode (g. 4).
• Select the DHW mode (g. 4).
• Adjust the date and time if necessary (g. 5)).
g. 3 - Start-up
1. User interface
2. Manometer (installation hydraulic pressure)
3. Start/stop switch
1
2
3
g. 4 - Selecting the heating mode AUTO
and Select the DHW mode g. 5 - Setting the time and the date
_______________
Press OK
Press OK
Press OK
Press heating mode key to
return to basic display
Select menu
hour and date
Select one of the
lines :
hour / minutes
or day / month
or years
Make all the
settings
Press OK to
conrm each
setting
Time and date
Operator section
Time and date
Hours / minutes
Time and date
Hours / minutes
Waterstage / OPERATING INSTRUCTIONS / 2010 - EN

- 10 -
►
Setting the time
04812 16 20 24
AUTO
2
04812 16 20 24
AUTO
3
04812 16 20 24
AUTO
4
04812 16 20 24
AUTO
1
5
04812 16 20 24
AUTO
6
04812162024
AUTO
g. 6 -
Keys Display example Description
Basic display
If the basic display is not shown,
press ESC to return to it
Press OK to conrm.
Turn the knob
Select menu hour and date
Press OK to conrm.
Turn the knob
Select line 1 Hours / minutes
Press OK to conrm.
The hour display ashes
Turn the knob to set the time
Press OK to conrm.
The minutes display ashes
Turn the knob to set the minutes
Press OK to conrm.
The setting are recorded
Room temperature
Time and date
Operator section
Time and date
Hours / minutes
Time and date
Hours / minutes
Time and date
Hours / minutes
Time and date
Hours / minutes
Turn the knob to make other settings
or
Press heating mode key to return to
basic display.
Waterstage / OPERATING INSTRUCTIONS / 2010 - EN

- 11 -
►
Structure of the "End user" control menu
1
2
3
20
500
501
502
503
504
505
506
515
516
641
642
643
648
710
712
714
6711
7141
8410
8412
8413
8700
8701
8702
...
8900
65 °C
1610
1 ...24h
0...60 min
28 °C
4°C...
...
English, German...
Basic
display
Brief
press
End user Commissioning Engineer OEM
Time of day and date Hours / minutes
Day / Month
Year
Hours
Minutes
Operator section Language
Time prog heating circuit 1
Time prog heating circuit 2
Time program 4/DHW
Pre-selection
Pre-selection
1st phase on
1st phase off
1st phase on
1st phase off
2nd phase on
2nd phase off
3rd phase on
3rd phase off
Default values
Copy
Mon-Sun
Mon-Fri
Sat-Sun
Monday
Tuesday
…
Sunday
Holidays heating circuit 1
Holidays heating circuit 2 Operation level
Period 1
Period 2
...
Period 8
Heating circuit 1
Heating circuit 2
Comfort setpoint Reduced temp...
Reduced setpoint
Temp. frost protect... comfort
Frost protect. setpoint
reduced temp.
Domestic hot water Nominal setpoint
Reduced temp...
Fault Reset HP No, Yes
Service/special operation
Emergency operation
Off, On
Diagnostics heat generation
Return temp HP
Flow temp HP
Compressor modulation
Diagnostics consumers Outdside temp.
Reset outside temp min Off, On
Reset outside temp max
Swimming pool temp.
g. 7 -
Waterstage / OPERATING INSTRUCTIONS / 2010 - EN

- 12 -
►
Parametering the setting
▼
General
Only the parameters accessible to levels:
End user
... are described in this document.
The parameters accessible at level:
Commissioning
Engineer
… are described in the document reserved for these
professional specialists. Do not make any modications
to these parameters without advice from these
professional specialists. Incorrect use of any kind
may result in serious malfunctioning.
▼
Setting parameters
With the screen on basic display.
- Press OK.
Once in "End user" level.
- Scroll the menu list.
- Choose the desired menu.
- Scroll the function lines.
- Choose the desired line.
- Adjust the parameter.
- Check the setting by pressing OK.
- To return the menu, press ESC.
If no setting is made for 8 minutes, the screen returns
automatically to the basic display.
▼
List of "End user" settings
Line Function Setting range
or display
Setting
increment
Basic
setting
Time of day and date
1Hours / Minutes 00:00... 23:59 1
2Day / Month 01.01... 31.12 1
3Year 1900... 2099 1
Operator Section
20 Language English, Français, Italiano,
Nederlands...
English
OK Brief
press End user
OK OK OK
Time and date Hours / minutes 1 Hours 1...24 h
User interface Day / Month 2 Minutes 0...60 min
CC1 time program Year 3
...
Waterstage / OPERATING INSTRUCTIONS / 2010 - EN

- 13 -
Line Function Setting range
or display
Setting
increment
Basic
setting
Time program heating / cooling, circuit 1
500 Pre-selection (Day / Week) Mon-Sun, Mon-Fri, Sat-Sun,
Monday, Tuesday, …
Mon-Sun
501 1st phase On (start) 00:00... --:-- 10 min 6:00
502 1st phase O󰀨 (end) 00:00... --:-- 10 min 22:00
503 2nd phase On (start) 00:00... --:-- 10 min --:--
504 2nd phase O󰀨 (end) 00:00... --:-- 10 min --:--
505 3rd phase On (start) 00:00... --:-- 10 min --:--
506 3rd phase O󰀨 (end) 00:00... --:-- 10 min --:--
516 Default values, Circuit 1 No, Yes No
Yes + OK: The default values memorised in the regulator replace and cancel the customised heating programs.
Your customised settings are therefore lost.
Time program heating / cooling, circuit 2
Only with the 2nd circuit kit option.
520 Pre-selection (Day / Week) Mon-Sun, Mon-Fri, Sat-Sun,
Monday, Tuesday, …
Mon-Sun
521 1st phase On (start) 00:00... --:-- 10 min 6:00
522 1st phase O󰀨 (end) 00:00... --:-- 10 min 22:00
523 2nd phase On (start) 00:00... --:-- 10 min --:--
524 2nd phase O󰀨 (end) 00:00... --:-- 10 min --:--
525 3rd phase On (start) 00:00... --:-- 10 min --:--
526 3rd phase O󰀨 (end) 00:00... --:-- 10 min --:--
536 Default values, Circuit 2 No, Yes No
Yes + OK: The default values memorised in the regulator replace and cancel the customised heating programs.
Your customised settings are therefore lost.
Time program 4 / DHW
If the installation is tted with the DHW kit.
560 Pre-selection (Day / Week) Mon-Sun, Mon-Fri, Sat-Sun,
Monday, Tuesday, …
Mon-Sun
561 1st phase On (start) 00:00... --:-- 10 min 00:00
562 1st phase O󰀨 (end) 00:00... --:-- 10 min 05:00
563 2nd phase On (start) 00:00... --:-- 10 min 14:30
564 2nd phase O󰀨 (end) 00:00... --:-- 10 min 17:00
565 3rd phase On (start) 00:00... --:-- 10 min --:--
566 3rd phase O󰀨 (end) 00:00... --:-- 10 min --:--
576 Default values No, Yes No
Yes + OK: The default values memorised in the regulator replace and cancel the customised heating programs.
Your customised settings are therefore lost.
Holidays, heating circuit 1 (For the Holiday program is active, the heating mode should be on AUTO).
641 Preselection Period 1 to 8 Period 1
642 Period Start (Day / Month) 01.01... 31.12 1
643 Period End (Day / Month) 01.01... 31.12 1
648 Operating level Frost protection, Reduced Frost
protection
Waterstage / OPERATING INSTRUCTIONS / 2010 - EN

- 14 -
Line Function Setting range
or display
Setting
increment
Basic
setting
Holidays, heating circuit 2 (For the Holiday program is active, the heating mode should be on AUTO).
If the installation consists of 2 heating circuits (Only with the 2nd circuit kit option).
651 Preselection Period 1 to 8 Period 1
652 Period Start (Day / Month) 01.01... 31.12 1
653 Period End (Day / Month) 01.01... 31.12 1
658 Operating level Frost protection, Reduced Frost
protection
Heating adjustment, circuit 1
710 Comfort setpoint Reduced setpoint…
Comfort setpoint maximum
0,5 °C 20 °C
712 Reduced setpoint Frost protection setpoint…
Comfort setpoint
0,5 °C 19 °C
714 Frost protection setpoint 4 °C… Reduced setpoint 0,5 °C 8 °C
Cooling circuit 1
If the installation is tted with the cooling kit (Only with the cooling kit option).
901 Operating mode Protection, Automatic, Reduced,
Comfort
Protection
902 Comfort cooling setpoint 17... 40 °C 0,5 °C 24 °C
903 Reduced setpoint 5... 40°C 26 °C
Heating adjustment, Circuit 2
Only with the 2nd circuit kit option (If the installation consists of 2 heating circuits).
1010 Comfort setpoint Reduced setpoint…
Comfort setpoint maximum 0,5 °C 20 °C
1012 Reduced setpoint Frost protection setpoint…
Comfort setpoint 0,5 °C 19 °C
1014 Frost protection setpoint 4 °C… Reduced setpoint 0,5 °C 8 °C
Cooling circuit 2
If the installation is tted with the cooling kit (Only with the cooling kit option).
1201 Operating mode Protection, Automatic, Reduced,
Comfort
Protection
1202 Comfort cooling setpoint 17... 40 °C 0,5 °C 24 °C
1203 Reduced setpoint 5... 40°C 26 °C
Domestic hot water
If the installation is tted with the DHW kit.
1600 Operating mode O󰀨, On, Eco On
1610 Nominal setpoint Reduced setpoint (line 1612)…
65 °C 155 °C
The backup electrical system is required to reach this level.
1612 Reduced setting 8 °C...
Nominal setting (line 1610) 140 °C
Swimming pool (Only with swimming pool kit option)
2055 Setpoint solar heating 8... 80 °C 26 °C
2056 Setpoint source heating 8... 35 °C 22 °C
Waterstage / OPERATING INSTRUCTIONS / 2010 - EN

- 15 -
Line Function Setting range
or display
Setting
increment
Basic
setting
Energy meter
3095 --> 3110 : Not used
3113 Energy brought in Kwh --
Cumulation of total consumed electrical energy.
Electrical energy consumed = Electrical energy absorbed by outdoor unit + electric energy absorbed by the heating
electrical backup and / or DHW electrical backup (if installed).
3121 --> 3123 : Not used
3124 Energy brought in heating 1 (N - 1) Kwh --
3125 Energy brought in DHW 1 Kwh --
3126 Energy brought in cooling 1 Kwh --
3128 --> 3130 : Not used
3131 Energy brought in heating 2 (N - 2) Kwh --
3132 Energy brought in DHW 2 Kwh --
3133 Energy brought in cooling 2 Kwh --
3135 --> 3137 : Not used
3138 Energy brought in heating 3 (N - 3) Kwh --
3139 Energy brought in DHW 3 Kwh --
3140 Energy brought in cooling 3 Kwh --
3142 --> 3144 : Not used
3145 Energy brought in heating 4 (N - 4) Kwh --
3146 Energy brought in DHW 4 Kwh --
3147 Energy brought in cooling 4 Kwh --
3149 --> 3151 : Not used
3152 Energy brought in heating 5 (N - 5) Kwh --
3153 Energy brought in DHW 5 Kwh --
3154 Energy brought in cooling 5 Kwh --
3156 --> 3158 : Not used
3159 Energy brought in heating 6 (N - 6) Kwh --
3160 Energy brought in DHW 6 Kwh --
3161 Energy brought in cooling 6 Kwh --
3163 --> 3165 : Not used
3166 Energy brought in heating 7 (N - 7) Kwh --
3167 Energy brought in DHW 7 Kwh --
3168 Energy brought in cooling 7 Kwh --
3170 --> 3172 : Not used
3173 Energy brought in heating 8 (N - 8) Kwh --
3174 Energy brought in DHW 8 Kwh --
3175 Energy brought in cooling 8 Kwh --
3177 --> 3179 : Not used
Waterstage / OPERATING INSTRUCTIONS / 2010 - EN

- 16 -
Line Function Setting range
or display
Setting
increment
Basic
setting
3180 Energy brought in heating 9 (N - 9) Kwh --
3181 Energy brought in DHW 9 Kwh --
3182 Energy brought in cooling 9 Kwh --
3184 --> 3186 : Not used
3187 Energy brought in heating 10 (N - 10) Kwh --
3188 Energy brought in DHW 10 Kwh --
3189 Energy brought in cooling 10 Kwh --
390 --> 3267 : Not used
Error
6710 Reset Defaut relais No, Yes No
6711 Reset HP No, Yes No
Maintenance / special regime
7141 Emergency operation O󰀨, On O
O󰀨: Heat pump functions normally (with boosters if necessary).
On: Heat pump uses the electric boost system or the boiler connection.
Use the “On” position only in Assist mode or Test mode: may result in high power bills.
Generator diagnosis
8410 Return temp HP 0... 140 °C --
Setpoint (ow) HP --
8412 Flow temp HP 0... 140 °C --
Setpoint (ow) HP --
8413 Compressor modulation 0... 100% --
Diagnostics consumers
8700 Outdoor temperature -50... 50 °C --
8701 Outdoor temp min
Reset ? (no, yes) -50... 50 °C 50 °C
8702 Outdoor temp max
Reset ? (no, yes) -50... 50 °C -50 °C
8740 Room temperature 1 0... 50 °C --
Room setting 1 20 °C
8743 Flow temperature 1 0... 140 °C --
Flow temperature setpoint 1 --
8756 Cooling ow temperature 1 0... 140 °C --
Cooling ow temperature setpoint 1 --
8830 DHW (domestic hot water) temperature 0... 140 °C --
DHW temperature setpoint 50 °C
Waterstage / OPERATING INSTRUCTIONS / 2010 - EN

- 17 -
►
Information display
Various data can be displayed by pressing the info
button .
Depending on the type of unit, conguration and
operating state, some of the info lines listed below may
not appear.
- Possible error messages: The display shows the "Bell"
symbol .
Consult your heating technician.
- Service messages ; Special mode messages:
The display shows the “Key” symbol .
Consult your heating technician.
- Various data (see below).
Designation Line
Floor drying current setpoint . -
Current drying day. -
Terminated drying days. -
State heat pump. 8006
State supplementary source. 8022
State DHW. 8003
State swimming pool. 8011
State heating circuit 1. 8000
State heating circuit 2. 8001
State cooling circuit 1. 8004
Outdoor temperature. 8700
Room temperature 1. 8740
Room setpoint 1.
Flow temperature 1. 8743
Flow temperature setpoint1.
Room temperature 2. 8770
Room setpoint 2.
Flow temperature 2. 8773
Flow temperature setpoint 2.
DHW (domestic hot water) temperature. 8830
Heat pump return temperature. 8410
Setpoint (return) HP.
Heat pump ow temperature. 8412
Setpoint (ow) HP.
Swimming pool temperature. 8900
Swimming pool temperature setpoint.
Minimum remaining stop time for compressor 1. -
Minimum remaining running time for compressor 1. -
Waterstage / OPERATING INSTRUCTIONS / 2010 - EN

- 18 -
►
Details
If the electrical power supply has been cut o󰀨 while
the heat pump is operating (electrical power failure or
unprogrammed pressing of the on/o󰀨 switch on the
hydraulic unit) the display will show error 370 when
the appliance restarts. Do not be concerned, the
communication between the outdoor and hydraulic unit
will re-establish itself in a few moments.
►
Operation of the DHW system*
The key enables you to switch the DHW (domestic hot
water) mode on and o󰀨. The selection is shown by a
bar, which appears under the corresponding symbol.
Manual activation: Hold down the DHW key for 3 seconds
(Switch from "reduced" to "nominal" until the next time
the DHW timer switches over).
To ensure a DHW setting over 45°C, the electrical back-
up heating or the boiler must be left on.
In order to optimise operation of the DHW, it is possible to:
- Program the timer settings (parameters 560 to 576),
- Adjust the comfort temperature set point (parameter 1610),
- Adjust the reduced temperature set point (parameter 1612).
Press the info key to obtain the details on the DHW
(temperature setting operation).
►
Selecting cooling mode*
If the installation is tted with the cooling kit.
The key activates and deactivates cooling mode.
►
Pilot wire* (if kit regulation
extension AVS 55)
It's possible to order up to 15 electric heaters via output
"pilot wire".
The "pilot wire" handles only the hourly operation
of electric heaters (comfort mode / reduced mode
commutation and Frost protection mode).
The comfort temperature setting should be done
directly on the electric heater(s). The "pilot wire" does
not handle the temperature of the electric heaters.
Refer to the manual supplied with the electric heater(s).
Put the electric heaters on "PROG" mode or "AUTO"
mode for piloting by the regulation board.
The di󰀨erence between the comfort temperature and
the reduced temperature is from 3.5°C.
Frost protection temperature is set directly on the
electric heaters. Refer to the manual supplied with the
electric heater(s).
In the absence of signal, electric heaters operating in
comfort mode.
g. 8 - Select the DHW mode
g. 9 - Information key
Brief
press
Details of any error
Operating values
...
g. 10 - Selecting cooling mode
g. 11 - Selecting the frost protection
* depending on conguration / option
Waterstage / OPERATING INSTRUCTIONS / 2010 - EN

- 19 -
►
Telephone modem* (if Regulation
extension kit AVS 55)
It is possible to command the switching of the heating
mode to the "freeze" protection mode / reduced
(and vise versa) on the heat pump using a modem
contact.
The telephone command switches the current heat
pump settings to "freeze" protection mode / reduced
(and vise versa). In accordance with the setting, any
temperature requests from the heating circuits and the
DHW are ignored or activated.
The "freeze" protection mode / reduced must not be
selected on the heat pump and/or the remote control.
See with your installer.
►
Conguring room control unit*
(option)
In the event that the room control unit (see page 6),
is used, on start-up, after initialising for around
3 minutes, the language needs setting:
- Press OK.
- Choose menu "Operator section".
- Choose language "Language" English.
Waterstage / OPERATING INSTRUCTIONS / 2010 - EN

- 20 -
 Maintenance
In order to ensure that your appliance operates correctly
for many years, the maintenance operations described
below are required at the start of each heating season.
They are generally carried out as part of a maintenance
contract.
►
Regular checks
- Check the water pressure in the heating circuit
regularly (refer to the installer's recommended
pressure - between 1 and 2 bar)
- If a lling operation and a pressure increase are
required, check what type of uid was used initially
(when in doubt, contact your installer).
- If frequent rells are required it is absolutely essential
that you check for any leaks.
The frequent addition of water risks scaling the
exchanger and a󰀨ects its performance and lifespan.
►
Checking the outdoor unit
Remove any dust from the exchanger, if necessary,
while making sure not to damage the blades.
Check that there is nothing blocking the air ow.
• Checking the refrigeration circuit
If the amount of refrigerant in the system exceeds 2kg
(models > 10 kW), the refrigeration circuit must be
checked annually by an approved engineer (they must
have a certicate of competence for the handling of
refrigerants).
Consult your heating technician.
►
Hot water tank*
Maintenance on the tank must be carried out annually
(frequency may vary according to water hardness).
Consult your heating technician.
* depending on conguration / option
Waterstage / OPERATING INSTRUCTIONS / 2010 - EN
