PREFACE
Thank you for purchasing the MB2144-227-01 (LQFP-64P*1probe header for the MB89051 series).
The MB2144-227-01 is used for the probe header to connect an emulator for the F2MC*2-8L to a
user system. The MB2144-227-01 is used with the MB2144-210A universal cable assembly (sold
separately).
This manual explains the handling of the probe header (MB2144-227-01).
Before using the MB2144-227-01, be sure to read this manual.
*1: The FPT-64P-M09 is the package for the probe header.
*2: F2MC is the abbreviation of FUJITSU Flexible Microcontroller.
■ Caution of the products described in this document
Cautions in the following correspond to the products described in this document.
CAUTION The wrong use of a device will give an injury and may cause
malfunction on customers system.
Electric shock
Turn off the product and any connected devices, and unplug the power cable from the
outlet in case of the following, otherwise you get an electric shock.
• When setting the jumper plug
• When connecting the universal cable assembly and the probe header
• When connecting the probe header and the user system
• When mounting a mass production MCU on the user system
Damage
When connect the probe header to the user system, correctly position the index mark (S)
on the NQPACK mounted on the user system with the index mark (T) on the probe
header, otherwise the adapter unit and the user system might be damaged.
Damage When mounting a mass production MCU, correctly position pin 1, otherwise the mass
production MCU and the user system might be damaged.

• The contents of this document are subject to change without notice.
Customers are advised to consult with FUJITSU sales representatives before ordering.
• The information, such as descriptions of function and application circuit examples, in this document are presented solely for the
purpose of reference to show examples of operations and uses of Fujitsu semiconductor device; Fujitsu does not warrant proper
operation of the device with respect to use based on such information. When you develop equipment incorporating the device
based on such information, you must assume any responsibility arising out of such use of the information. Fujitsu assumes no
liability for any damages whatsoever arising out of the use of the information.
• Any information in this document, including descriptions of function and schematic diagrams, shall not be construed as license
of the use or exercise of any intellectual property right, such as patent right or copyright, or any other right of Fujitsu or any third
party or does Fujitsu warrant non-infringement of any third-party' s intellectual property right or other right by using such
information. Fujitsu assumes no liability for any infringement of the intellectual property rights or other rights of third parties
which would result from the use of information contained herein.
• The products described in this document are designed, developed and manufactured as contemplated for general use, including
without limitation, ordinary industrial use, general office use, personal use, and household use, but are not designed, developed
and manufactured as contemplated (1) for use accompanying fatal risks or dangers that, unless extremely high safety is secured,
could have a serious effect to the public, and could lead directly to death, personal injury, severe physical damage or other loss
(i.e., nuclear reaction control in nuclear facility, aircraft flight control, air traffic control, mass transport control, medical life
support system, missile launch control in weapon system), or (2) for use requiring extremely high reliability (i.e., submersible
repeater and artificial satellite).
Please note that Fujitsu will not be liable against you and/or any third party for any claims or damages arising in connection
with above-mentioned uses of the products.
• Any semiconductor devices have an inherent chance of failure. You must protect against injury, damage or loss from such
failures by incorporating safety design measures into your facility and equipment such as redundancy, fire protection, and
prevention of over-current levels and other abnormal operating conditions.
• If any products described in this document represent goods or technologies subject to certain restrictions on export under the
Foreign Exchange and Foreign Trade Law of Japan, the prior authorization by Japanese government will be required for export
of those products from Japan.
©2003 FUJITSU LIMITED Printed in Japan

1
1. Checking the Delivered Product
Before using the MB2144-227-01, confirm that the following components are included in the product
package:
•
••
•
MB2144-227-01 (probe header) : 1
•
••
•
NQPACK064SB*1 : 1
•
••
•
HQPACK064SB140*1 *2 : 1
•
••
•
Screws for securing probe header*3 : 4
•
••
•
Operation manual in Japanese : 1
•
••
•
Operation manual in English ( this manual) : 1
*1: Manufactured by Tokyo Eletech Corporation
*2: Include with 4 screws for securing HQPACK (M2 ×6 mm, 0.4 mm pitch).
*3: Screws for securing prove header can be interchangeable with screws of M2×8 mm, 0.4 mm
pitch.
2. Handling Precautions
•The MB2144-227-01 is precision-manufactured to improve dimensional accuracy and to ensure
reliable contact. These products are therefore sensitive to mechanical shock, and must be handled
carefully. To ensure correct use in the appropriate environment, use the products only as instructed
in Section 4 "Using the Products" and Section 5 "Connection”.
•The bypass capacitor for the microcontroller (MCU) and power supply, the jumper plug for
switching the C terminal and two connectors for connection with the universal cable assembly are
mounted on the probe header. Be sure to read Section 4 "Using the Products" and Section 5
"Connection”, before using the probe header to prevent incorrect cable connection, which could
cause incorrect operation or product failure..
•Because ports 0 and 1 of the MCU are connected with cables, they are susceptible to noise. If ports
0 and 1 are used as input ports, drive the element connected to the ports with a current of 1 to 2
mA when the port outputs an L level voltage. Be careful not to read ports only with a pull-down
resistor connected, because the values may not be correctly read.

2
3. Notes on Designing
■ Restrictions of PC board design for the user system
Once the probe header is connected to the user system, the heights of parts mounted in the space
around the probe header are restricted.
The PC board of the user system must be designed with due consideration given to this restriction
(Figure 1).
*: The height differs slightly depending on how the socket is engaged.

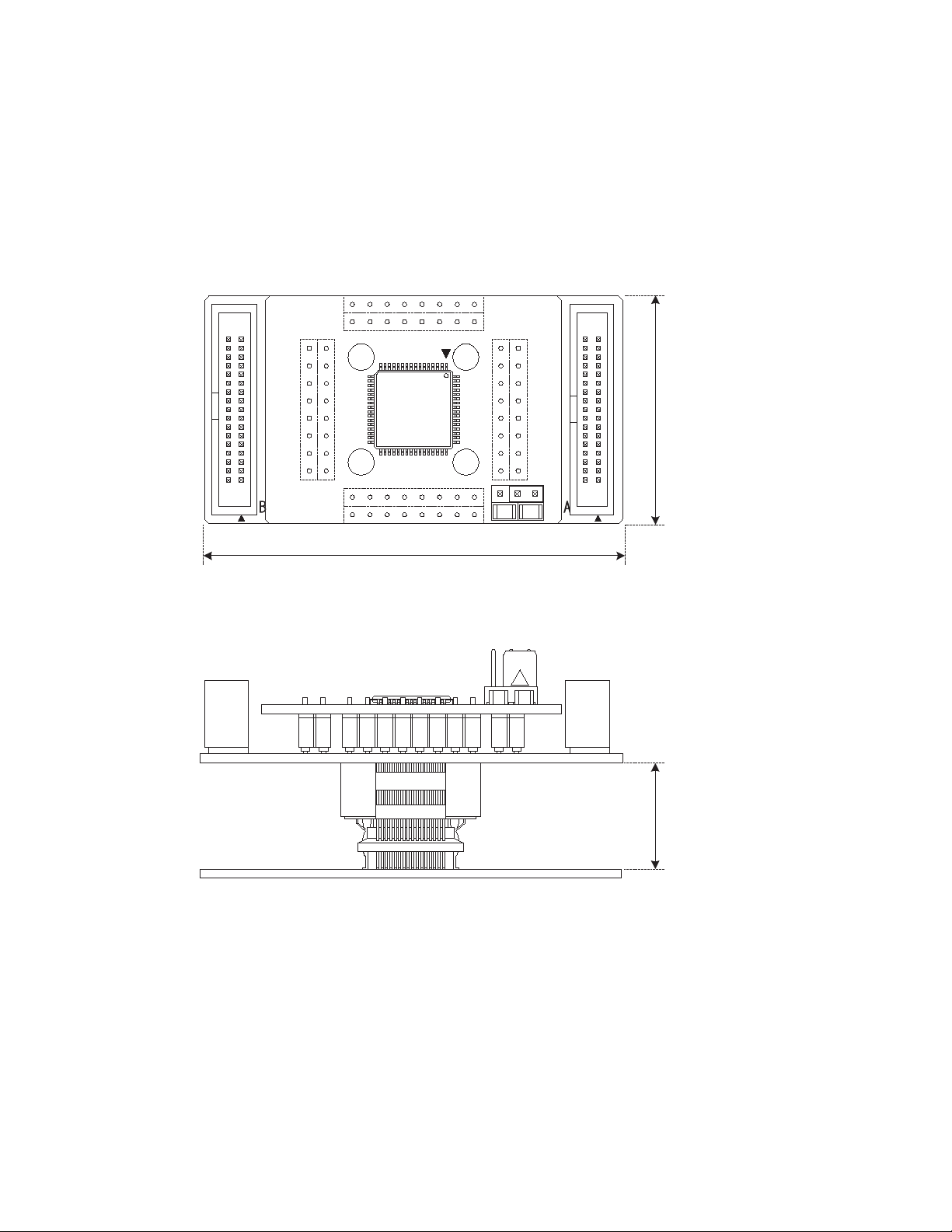

Figure 1 Header board dimensions
60 mm
36 mm
Approximately
14 mm*

3
4. Procedure for set
■ Setting the jumper plug to switch the C terminal
The jumper plug for switching the C terminal on the probe header is used to switch the C terminal
capacitive-termination.
A 0.1 µF capacitor is mounted on the probe header to perform C terminal capacitive-termination.
Depending on the operating environment, change the setting of the jumper plug to select whether
C terminal capacitive-termination is performed on a user system or on the probe header. When
the product is delivered, the jumper plug is set to side 3 (the probe header side). When C terminal
capacitive-termination is done on the user system, set the jumper plug to side 1.

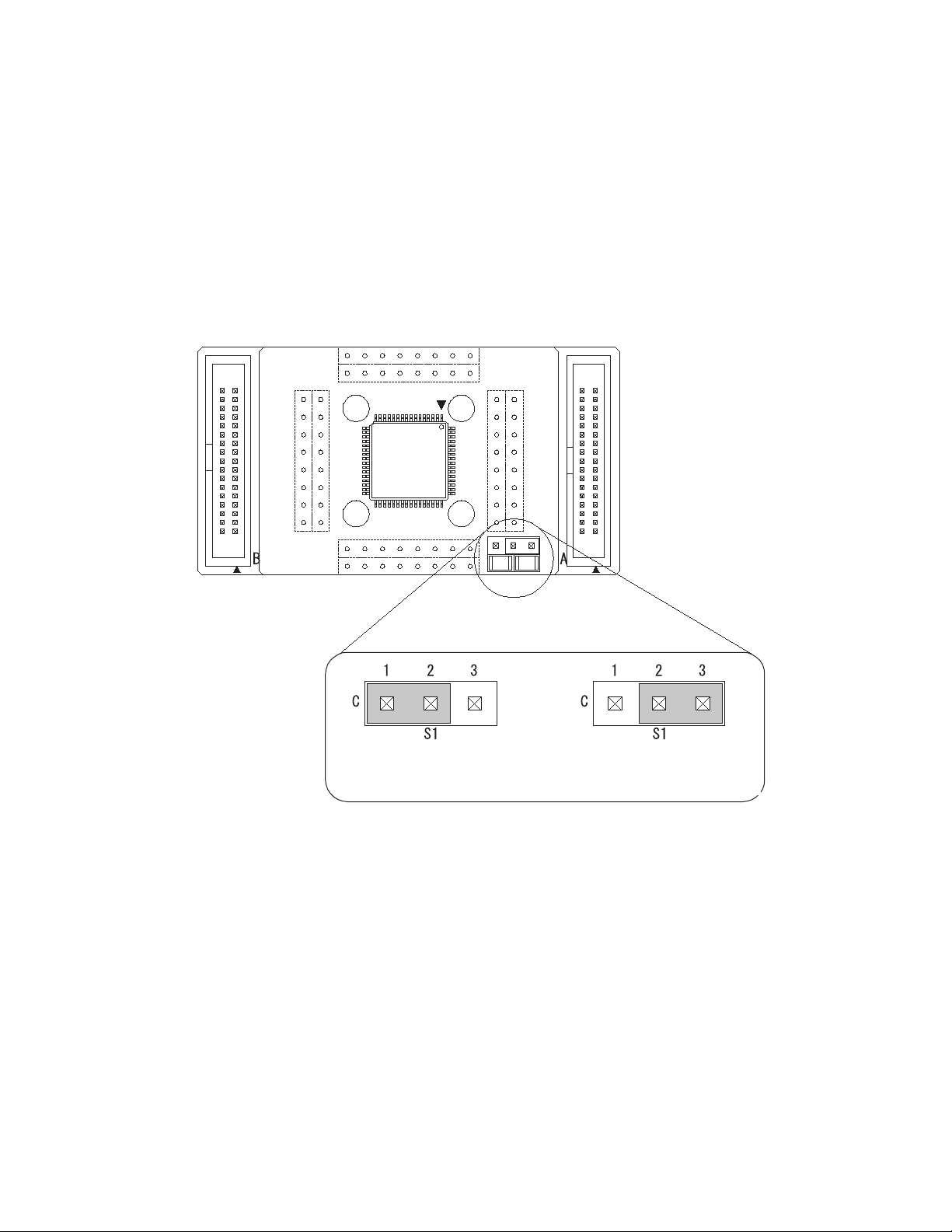

Figure 2 Setting the jumper plug to switch the C terminal
C terminal
capacitive-termination is
performed on a user system.
C terminal
capacitive-termination is
performed on the probe header.

4
5. Procedure for connection
■ Connecting the universal cable assembly
To connect the universal cable assembly and the probe header, connect the two 34-pin connectors of
the universal cable assembly and the two 34-pin connectors on the probe header.
•The connectors on the universal cable assembly, and the mounting section of the connectors on the
probe header are marked "A" and "B" to distinguish the connections. Correctly connect connector
A of the universal cable assembly to connector A on the probe header, and connector B of the
universal cable assembly to connector B on the probe header.
Figure 3 Connecting the universal cable assembly and the probe header
Connection to
the emulator probe connector
Connect connector A of the universal
cable assembly to connector A on
the probe header and connector B
of the universal cable assembly to
connector B on the probe header.
Universal cable assembly
(MB2144-210A: sold separately)
Probe header
(MB2144-227-01)

5
■ Connecting the probe header to a user system
To connect the probe header and the user system, connect the probe header to NQPACK064SB*
mounted on the user system using YQPACK064SB.
1) An index mark (one corner of the YQPACK064SB or NQPACK064SB is clipped) indicates the
first pin on the YQPACK064SB and on the NQPACK064SB. Mount the probe header by using the
index marks to align the first pins.
2) After connecting the probe header to the user system, secure the probe header using the supplied
screws*. Secure the probe header to the NQPACK064SB by inserting the screws in the holes
drilled in the four corners of the mounting part of the MCU. Be sure to secure the probe header
evenly at the four corners with the screws. Tightening the screws too much may damage the probe
header and NQPACK064SB.
*: The NQPACK064SB and screws for securing probe header are supplied with the product.
Figure 4 Connecting the probe header to a user system
Screws for securing
probe header
NQPACK064SB
YQPACK064SB
Probe header
User system

6
6. Mounting Mass-production MCUs
■ Mounting
In order to mount a mass production MCU on the user system, use the HQPACK064SB140 which is
supplied with the product.
1) To mount a mass production MCU on the user system, match the index mark (▲) on the
NQPACK064SB mounted on the user system with the index mark (●) on the mass production
MCU.
2) Confirm that the mass production MCU is correctly mounted on the NQPACK064SB. Next, insert
the HQPACK064SB140 into a NQPACK064SB (see Figure 5).
The pin of HQPACK064SB140 is thin and easy to bent. Insert NQPACK064SB after confirm that
the pin of HQPACK064SB140 is not bent.
3) Insert each HQPACK064SB140 screw for securing in each of four tapped holes on the
HQPACK064SB140, and then first tighten the screws in opposing corners followed by the two
remaining screws.
To tighten the screws, use the special screwdriver supplied with the NQPACK064SB to finally
tighten the four screws in sequence. Tightening the screws too tight might result in defective
contact.

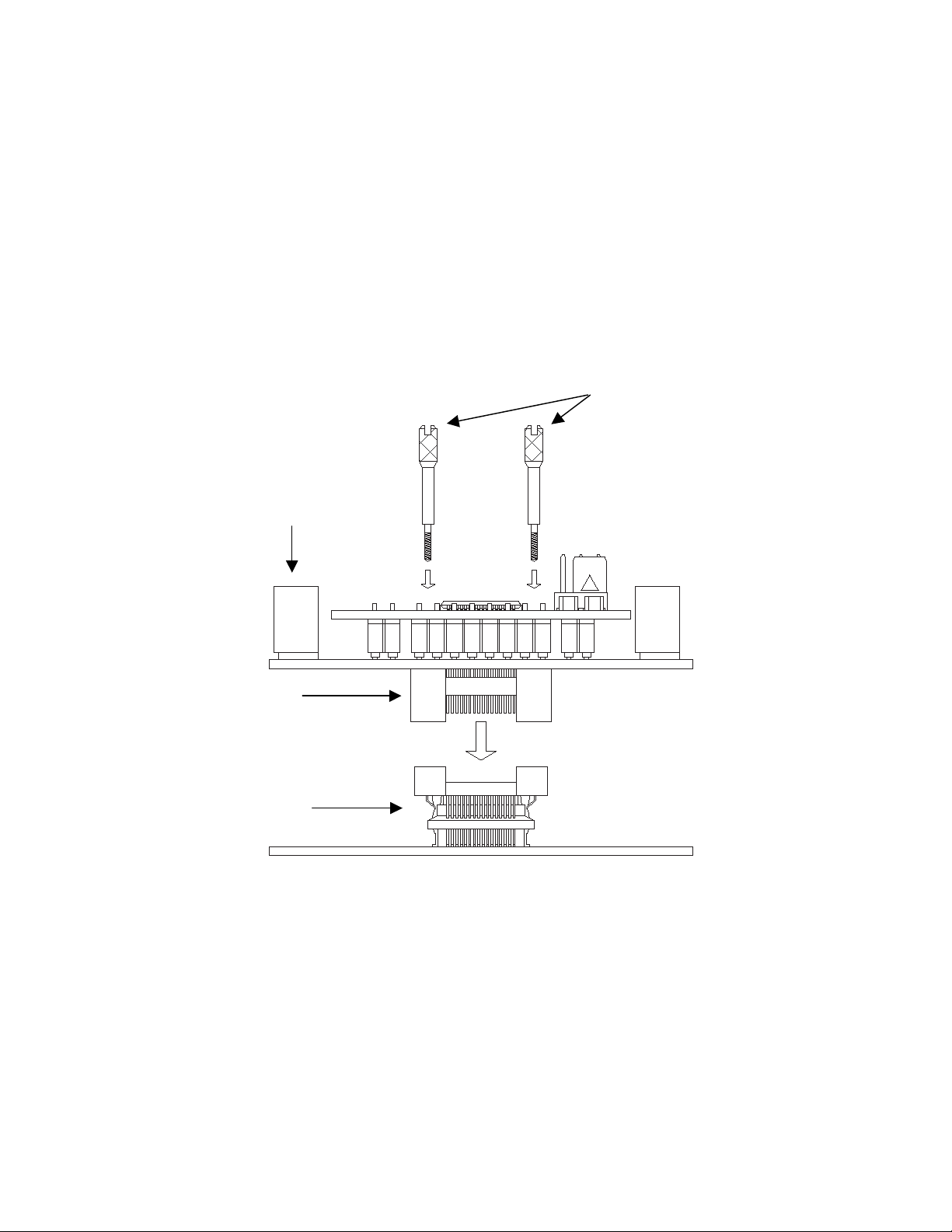

Figure 5 Mounting a mass-produced MCU
■ Disconnection
To remove the HQPACK, remove all four screws, then pull out the HQPACK vertically.
Screws for securing
HQPACK
HQPACK064SB140
MCU
NQPACK064SB
User system
