Fujitsu D2679-B11 User manual

System Board D2679-B11
for TX100 S1
Technical Manual
Edition June 2009

Comments…Suggestions…Corrections…
The User Documentation Department would like to
know your opinion of this manual. Your feedback helps
us optimize our documentation to suit your individual
needs.
Feel free to send us your comments by e-mail to
[email protected]ujitsu.com.
Certified documentation
according to DIN EN ISO 9001:2000
To ensure a consistently high quality standard and
user-friendliness, this documentation was created to
meet the regulations of a quality management system
which complies with the requirements of the standard
DIN EN ISO 9001:2000.
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de
Copyright and Trademarks
© cognitas. Gesellschft für Technik-Dokumentation mbH 2009 Pfad: G:\primergy\THB2179_TXC100S1\d2679-thb\d2679-thb-en\d2679-thb-en.vor
Copyright © 2009 FujitsuTechnologySolutionsGmbH.
All rights reserved.
Delivery subject to availability; right of technical modifications reserved.
All hardware and software names used are trademarks of their respective manufacturers.

D2679-B11 (TX100 S1) Technical Manual
Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Important notes . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 Notes on safety . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 CE certificate of conformity . . . . . . . . . . . . . . . . . . 10
2.3 Environmental protection . . . . . . . . . . . . . . . . . . . 11
3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.2 Main memory . . . . . . . . . . . . . . . . . . . . . . . . . . 16

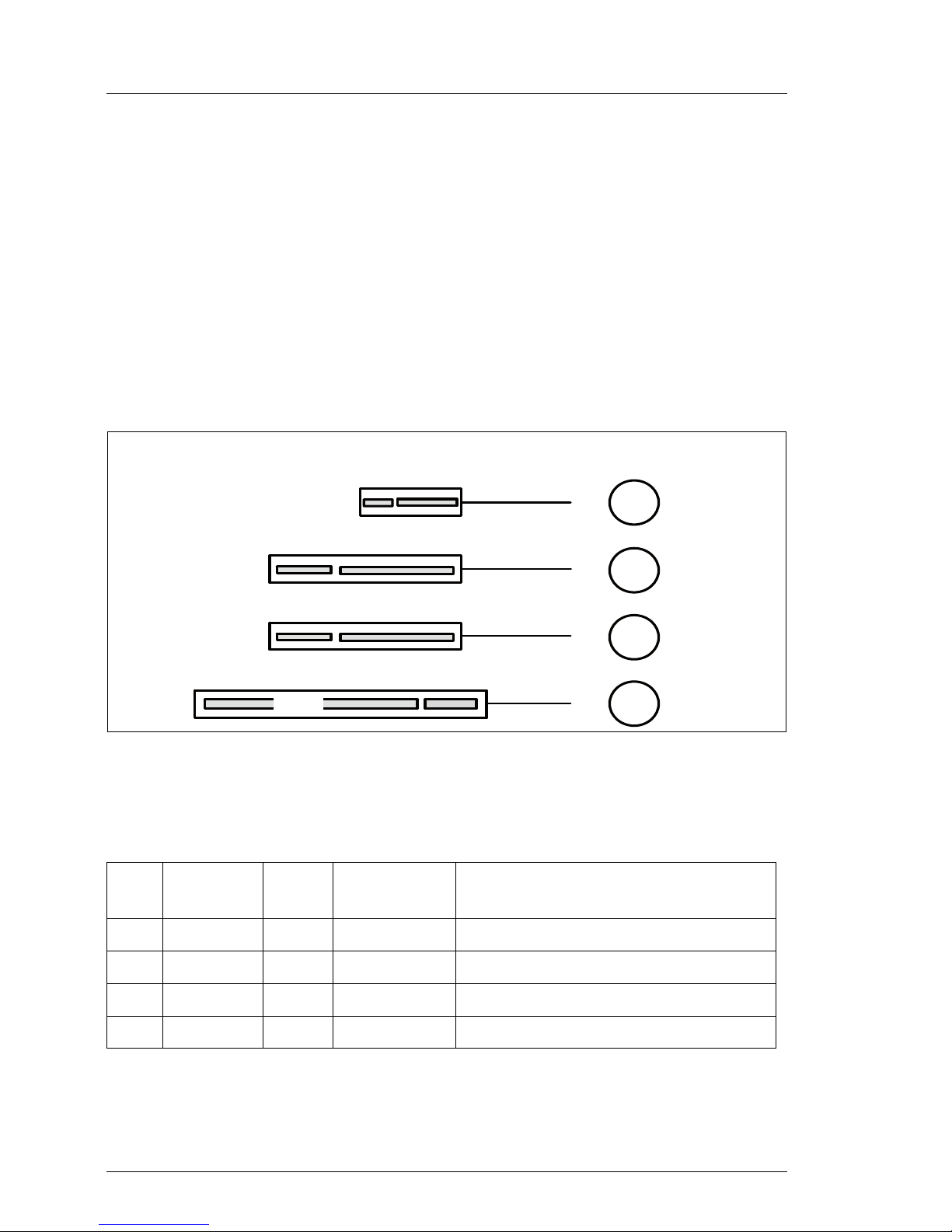

3.3 PCI slots . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.4 Screen resolution . . . . . . . . . . . . . . . . . . . . . . . 19
3.5 Temperature / system monitoring . . . . . . . . . . . . . . . 19
3.6 Connectors and jumpers . . . . . . . . . . . . . . . . . . . . 21
3.6.1 External connectors . . . . . . . . . . . . . . . . . . . . . . . 23
4 Replacing the lithium battery . . . . . . . . . . . . . . . . . 25
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

© cognitas. Gesellschft für Technik-Dokumentation mbH 2009 Pfad: G:\primergy\THB2179_TXC100S1\d2679-thb\d2679-thb-en\d2679-thb-en.ivz

D2679-B11 (TX100 S1) Technical Manual 5
1 Introduction
This technical manual describes the system board D2679-B11, which can be
equipped with one Intel®XEON™ processors.
Further information you will find in the "BIOS Setup“.
For additional driver information, refer to the Readme files located on the server
hard disk and on the supplied CDs or DVDs.
Notational conventions
The meanings of the symbols and fonts used in this manual are as follows:
Text in talics indicates commands or menu items.
Text in fixed
font
indicates system output on the monitor.
Text in semi-bold
fixed font
indicates values to be entered through the keyboard.
[Key symbol] indicates keys according to their representation on the
keyboard.
If capital letters are to be entered explicitly, then the
Shift key is shown, e.g. [SHIFT] - [A] for A.
If two keys need to be pressed at the same time, then
this is shown by placing a hyphen between the two key
symbols.
"Quotation marks" indicate names of chapters and terms that are being
emphasized.
Êdescribes activities that must be performed in the order
shown.
VCAUTION! describes activities that must be performed in the order
shown.
Iindicates additional information, notes and tips.
Table 1: Notational conventions

© cognitas. Gesellschft für Technik-Dokumentation mbH 2009 Pfad: G:\primergy\THB2179_TXC100S1\d2679-thb\d2679-thb-en\d2679-thb-en.k01

D2679-B11 (TX100 S1) Technical Manual 7
2 Important notes
In this chapter you will find essential information regarding safety when working
with your server.
VCAUTION!
With the system board installed you must open the system to access the
system board. How to access the system board of your system is
described in the appropriate service supplement.
When handling the system board, refer to the specific notes on safety in
the operating manual and/or service supplement for the respective
server.
2.1 Notes on safety
VCAUTION!
●The actions described in these instructions should only be performed
by authorized, qualified personnel. Equipment repairs should only be
performed by qualified staff. Any failure to observe the guidelines in
this manual, and any unauthorized openings and improper repairs
could expose the user to risks (electric shock, fire hazards) and could
also damage the equipment. Please note that any unauthorized
openings of the device will result in the invalidation of the warranty
and exclusion from all liability.
●Transport the device only in the antistatic original packaging or in
packaging that protects it from knocks and jolts.
●Only install expansions that are allowed for the system board. If you
install other expansions, you may damage the requirements and rules
governing safety and electromagnetic compatibility or your system.
Information on which system expansions are approved for installation
can be obtained from our customer service center or your sales
outlet.
●The warranty expires if the device is damaged during the installation
or replacement of system expansions.

8 Technical Manual D2679-B11 (TX100 S1)
Notes on safety Important notes
© cognitas. Gesellschft für Technik-Dokumentation mbH 2009 Pfad: G:\primergy\THB2179_TXC100S1\d2679-thb\d2679-thb-en\d2679-thb-en.k02
VCAUTION!
●Components can become very hot during operation. Ensure you do
not touch components when making extensions to the system board.
There is a danger of burns!
●Transmission lines to peripheral devices must be adequately
shielded.
●To the LAN wiring the requirements apply in accordance with the
standards EN 50173 and EN 50174-1/2. As minimum requirement
the use of a protected LAN line of category 5 for 10/100 Mbit/s
Ethernet, and/or of category 5e for Gigabit Ethernet is considered.
The requirements of the specification ISO/IEC 11801 are to be
considered.
●Never connect or disconnect data transmission lines during a storm
(risk of lightning hazard).
Batteries
VCAUTION!
●Incorrect replacement of lithium battery may lead to a risk of
explosion. The batteries may only be replaced with identical batteries
or with a type recommended by the manufacturer.
It is essential to observe the instructions in the chapter “Replacing the
lithium battery”.

D2679-B11 (TX100 S1) Technical Manual 9
Important notes Notes on safety
Modules with electrostatic-sensitive components
Boards with electrostatic sensitive devices (ESD) are marked with the following
label:
Figure 1: ESD label
When you handle components fitted with ESDs, you must observe the following
points under all circumstances:
●You must always discharge yourself of static charges (e.g. by touching a
grounded object) before touching the components.
●The equipment and tools you use must be free of static charges.
●Shut-down the system and remove the power plug from the power socket
before inserting or removing boards containing ESDs.
●Always hold boards with ESDs by their edges.
●Never touch pins or conductors on boards fitted with ESDs.
●Use a grounding cable designed for this purpose to connect yourself to the
system unit as you install/deinstall the board.
●Place all components on a static-free surface.
IYou will find a detailed description for handling ESD components in the
relevant European or international standards (EN 61340-5-1,
ANSI/ESD S20.20).

10 Technical Manual D2679-B11 (TX100 S1)
CE certificate of conformity Important notes
© cognitas. Gesellschft für Technik-Dokumentation mbH 2009 Pfad: G:\primergy\THB2179_TXC100S1\d2679-thb\d2679-thb-en\d2679-thb-en.k02
Notes about boards
●During installation/deinstallation of the board, observe the specific instruc-
tions described in the service supplement for the respective server.
●before you make modifications on an installed board.
●To prevent damage to the board, the components and conductors on it,
please take great care when you insert or remove boards. Take great care
to ensure that extension boards are slotted in straight, without damaging
components or conductors on the board, or any other components, for
example EMI spring contacts.
●Be careful with the locking mechanisms (catches, centring pins etc.) when
you replace the system board or components on it, for example memory
modules or processors.
●Never use sharp objects (screw drivers) for leverage.
2.2 CE certificate of conformity
The board complies with the requirements of the EC directives
2004/108/EC regarding “Electromagnetic Compatibility” and
2006/95/EC “Low Voltage Directive”. This is indicated by the CE
marking (CE = Communauté Européenne).
Compliance was tested in a typical PRIMERGY configuration.

D2679-B11 (TX100 S1) Technical Manual 11
Important notes Environmental protection
2.3 Environmental protection
Environmentally friendly product design and development
This product has been designed in accordance with standards for “environmen-
tally friendly product design and development”. This means that key factors
such as durability, selection and labeling of materials, emissions, packaging,
ease of dismantling and recycling have been taken into account.
This saves resources and thus reduces the harm done to the environment.
Energy-saving information
Devices that do not need to be constantly switched on should be switched off
until they are needed as well as during long breaks and after completion of work.
Packaging information
Do not throw away the packaging. You may need it later for transporting the
system. If possible, the equipment should only be transported in its original
packaging.
Information on handling consumables
Please dispose of batteries in accordance with local regulations.
In accordance with EU directives, batteries must not be disposed of with
unsorted domestic waste. They can be returned free of charge to the manufac-
turer, dealer or an authorized agent for recycling or disposal.
All batteries containing pollutants are marked with a symbol (a crossed-out
garbage can). They are also marked with the chemical symbol for the heavy
metal that causes them to be categorized as containing pollutants:
Cd Cadmium
Hg Mercury
Pb Lead
Labels on plastic casing parts
Please avoid sticking your own labels on plastic parts wherever possible, since
this makes it difficult to recycle them.

12 Technical Manual D2679-B11 (TX100 S1)
Environmental protection Important notes
© cognitas. Gesellschft für Technik-Dokumentation mbH 2009 Pfad: G:\primergy\THB2179_TXC100S1\d2679-thb\d2679-thb-en\d2679-thb-en.k02
Returns, recycling and disposal
Details regarding the return and recycling of devices and consumables within
Europe can also be found in the "Returning used devices" manual, via your local
Fujitsu Technology Solutions branch or from our recycling center in Paderborn:
Fujitsu Technology Solutions
Recycling Center
D-33106 Paderborn
Tel. [phone]
Fax [phone]
The device must not be disposed of with domestic waste.
This device is labeled in compliance with European directive
2002/96/EG on waste electrical and electronic equipment
(WEEE).
This directive sets the framework for returning and recycling
used equipment and is valid across the EU. When returning
your used device, please use the return and collection
systems available to you. Further information can be found at
www.ts.fujitsu.com/recycling.

D2679-B11 (TX100 S1) Technical Manual 13
3 Features
3.1 Overview
Processors
– 1 x Intel®Celeron, Core 2 Duo and Core 2 Quad processor
– 1 x processor slot with LGA775 socket for processors with 533 or 800 MHz
Front Side Bus
Main memory
– 4 slots for main memory PC2-4200 DDR2 533 MHz (unbuffered),
DIMM memory modules with 1 Gbyte and 2 Gbyte
– maximum 8 Gbyte of memory
– minimum 1 Gbyte of memory
– ECC multiple bit error detection
Chips on the system board
– Intel®E7230 Northbridge
– Intel®ICH7 Southbridge
– GBit LAN controller (Broadcom BCM5751)
– VGA controller (ATI-VGA) onboard
– Super I/O controller (SMSC DME1737)
– thermal and system management controller (BMC Heimdall)
Internal connectors
– floppy disk drive
– main power connector (ATX 24 pin)
– main power connector (ATX 4 pin)
– system fan
– USB front

14 Technical Manual D2679-B11 (TX100 S1)
Overview Features
© cognitas. Gesellschft für Technik-Dokumentation mbH 2009 Pfad: G:\primergy\THB2179_TXC100S1\d2679-thb\d2679-thb-en\d2679-thb-en.k03
– 6 x SATA hard disk drive
– 4 x hard disks
– 2 x optical drives
– 1x connector for TPM (optional)
– front panel
– battery holder
External connectors
– serial port (COM1)
– 2 x PS/2 interfaces for keyboard and mouse
– 4 x USB 2.0 ports (rear)
– 2 x USB 2.0 ports (front)
– VGA port
– RJ45 LAN port
– parallel port
PCI slots
– 4 x PCI-X (32 Bit / 33 MHz) slots
– PCI-Express x1 slot
– PCI-Express x4/x8 slot
– PCI-Express x8/x8 slot
BIOS features
– Phoenix BIOS
– Power on self-test
– system boot possible from:
– CD/DVD-ROM
–USB
–LAN
– hard disk
– floppy disk drive

D2679-B11 (TX100 S1) Technical Manual 15
Features Overview
– IPMI V1.5 support
Environmental protection
Battery in holder
Form factor
ATX format 12“ x 9,6“
TPM (option)
The system board can be equipped with a TPM (Trusted Platform Module) by
the manufacturer or by an add-on kit. This module enables programs from third
party manufacturers to store key information (e.g. drive encryption using
Windows Bitlocker Drive Encryption).
The TPM is activated via the BIOS system (for more information, refer to the
BIOS manual).
VCAUTION!
– When using the TPM, note the program descriptions provided by the
third party manufacturers.
– You must also create a backup of the TPM content. To do this, follow
the third party manufacturer's instructions. Without this backup, if the
TPM or the system board is faulty you will not be able to access your
data.
– If a failure occurs, please inform your service about the TPM
activation before it takes any action, and be prepared to provide them
with your backup copies of the TPM content.

16 Technical Manual D2679-B11 (TX100 S1)
Main memory Features
© cognitas. Gesellschft für Technik-Dokumentation mbH 2009 Pfad: G:\primergy\THB2179_TXC100S1\d2679-thb\d2679-thb-en\d2679-thb-en.k03
3.2 Main memory
The system board supports up to 8 Gbyte main memory. 4 slots are available
for the main memory. Each slot can be populated with 1 Gbyte or 2 Gbyte
PC2-4200 DDR2 533 MHz (unbuffered) DIMM memory modules.
IYou will find the descriptions how to install memory modules in the
Options Guide of your server.
3.3 PCI slots
Figure 2: PCI slots
PCI slots
The following table shows an overview of the PCI slots:
No. PCI slot 64Bit/
32Bit
Frequency
in MHz
Description
1 PCI e x1 PCI-Express x1 slot
2 PCIe x8 PCI-Express x8 slot
3 PCIe x4 PCI-Express x4 slot
4 PCI 32 Bit 33 32 Bit PCI bus slot
PCI
PCI Express x1
PCI Express x8
4
3
2
1
PCI Express x4

D2679-B11 (TX100 S1) Technical Manual 17
Features PCI slots
PCI IRQ Line x - Assignment of the PCI interrupts
PCI IRQ Line x defines which ISA interrupts are used for the separate PCI slots.
If you select Auto in the BIOS setup, the interrupts are assigned automatically
and no further settings are required.
Multifunctional PCI boards or boards with an integrated PCI-to-PCI bridge can
use several PCI interrupts (INTA#, INTB#, INTC#, INTD#). Mono functional PCI
boards (default) only use one PCI interrupt (INTA#) per PCI slot.
The PCI interrupts INTA#, INTB#, INTC# and INTD# are available for each PCI
slot.
The same interrupt can be assigned simultaneously to several PCI boards. You
should avoid this condition due to reduced performance.
If you use a setting other than Auto, the Plug&Play functionality of the system
BIOS for the corresponding PCI boards is deactivated.
Auto The PCI interrupts are assigned automatically in accordance with
the Plug&Play guidelines.
Disabled No ISA interrupt is assigned to the PCI interrupt.
3, 4, 5, 6, 7, 9, 10, 11, 12, 14, 15
The selected ISA interrupt is assigned to the PCI interrupt. You
may not select an ISA interrupt that is used by a component on
the system board (e.g. controller) or an ISA board.

18 Technical Manual D2679-B11 (TX100 S1)
PCI slots Features
© cognitas. Gesellschft für Technik-Dokumentation mbH 2009 Pfad: G:\primergy\THB2179_TXC100S1\d2679-thb\d2679-thb-en\d2679-thb-en.k03
PCI
INT
LINE
Controller oder slot INT
Onboard controller Slot
USB 1.1 U
S
B
2.0
U
S
B
2.0
S
M
B
u
s
A
TI
-
V
G
A
L
A
N
PCIe PCI
1. 2. 3. 4. 5. x4 x8 x1 ICH
1 (A) A A A
2 (B) B B B
3 (C) C C C D
4 (D) x D D D C
5 (E) x x
6 (F) x x x x B
7 (G) x A
8 (H) x x

D2679-B11 (TX100 S1) Technical Manual 19
Features Screen resolution
3.4 Screen resolution
Depending on the operating system used the screen resolutions in the following
table refer to the screen controller on the system board. If you are using an
external screen controller, you will find details of supported screen resolutions
in the operating manual or technical manual supplied with the controller.
3.5 Temperature / system monitoring
Temperature and system monitoring aim to reliably protect the computer
hardware against damage caused by overheating. In addition, any unnecessary
noise is also prevented by reducing the fan speed, and information is provided
about the system status.
The temperature and system monitoring are controlled by an onboard controller.
The following functions are supported:
Temperature monitoring
Measurement of the processor temperature, measurement of the inside temper-
ature by a temperature sensor on the system board, measurement of the
outside temperature by a second onboard temperature sensor.
Fan monitoring
Fans that are no longer available, blocked or sticky fans are detected.
Fan control
The fans are regulated according to temperature.
Screen resolution Refresh rate (Hz) Max. number of colors
640x480 200 16.7 Mio.
800x600 200 16.7 Mio.
1024x768 150 16.7 Mio.
1152x864 120 16.7 Mio.
1280x1024 100 16.7 Mio.

20 Technical Manual D2679-B11 (TX100 S1)
Temperature / system monitoring Features
© cognitas. Gesellschft für Technik-Dokumentation mbH 2009 Pfad: G:\primergy\THB2179_TXC100S1\d2679-thb\d2679-thb-en\d2679-thb-en.k03
Sensor monitoring
A fault in a temperature sensor is detected. Should this happen all fans
monitored by this sensor run at maximum speed, to achieve the greatest
possible protection of the hardware.
Voltage monitoring
When voltage exceeds warning level high or falls below warning level low an
alert will be generated.
System Event Log (SEL)
All monitored events of the system board are recorded in the System Event Log.
They could be retrieved after a system reboot via ServerView.
