USER'S MANUAL
GA-8SGXP-FS
P4 Titan Series Motherboard
Pentium®4ProcessorMotherboard
Rev.2001
12ME-8SGXPFS-2001

- 2 -GA-8SGXP-FS Motherboard
English
Table of Contents
Chapter 1 Introduction............................................................................5
Features Summary......................................................................................5
GA-8SGXP-FS Motherboard Layout...........................................................7
Block Diagram.............................................................................................8
Chapter 2 Hardware Installation Process............................................. 11
Step 1: Install the Central Processing Unit (CPU).....................................12
Step 1-1: CPU Installation............................................................................................... 12
Step 1-2: CPU Cooling Fan Installation......................................................................... 13
Step 2: Install Memory Modules................................................................14
Step 3: Install Expansion Cards ................................................................16
Step 4: Connect Ribbon Cables, Cabinet Wires and Power Supply ........17
Step 4-1: I/O Back Panel Introduction............................................................................ 17
Step 4-2: Connectors and Jumpers Introduction .......................................................... 19
Chapter 3 BIOS Setup ........................................................................31

Table of Content
English
- 3 -
The Main Menu (For example: BIOS Ver. : E8) ........................................ 32
Standard CMOS Features.........................................................................34
Advanced BIOS Features ..........................................................................37
Integrated Peripherals ...............................................................................39
Power Management Setup .......................................................................42
PnP/PCI Configurations.............................................................................44
PC Health Status........................................................................................45
Frenquency/Voltage Control* ....................................................................46
Load Fail-Safe Defaults.............................................................................47
Load Optimized Defaults...........................................................................48
Set Supervisor/User Password..................................................................49
Save& Exit Setup.......................................................................................50
Exit Without Saving ....................................................................................51
* This item will not be shown if you are using a CPU with the locked ratio.

- 4 -GA-8SGXP-FS Motherboard
English
ComputermotherboardsandexpansioncardscontainverydelicateIntegratedCircuit
(IC)chips.Toprotectthemagainstdamagefromstaticelectricity,youshouldfollow
someprecautionswheneveryouworkonyourcomputer.
1. Unplugyourcomputerwhenworkingontheinside.
2. Useagroundedwriststrapbeforehandlingcomputercomponents.Ifyoudonothaveone,
touchbothofyourhandstoasafelygroundedobjectortoametalobject,suchasthepower
supplycase.
3. HoldcomponentsbytheedgesandtrynottouchtheICchips,leadsorconnectors,orother
components.
4. Placecomponentsonagroundedantistaticpadoronthebagthatcamewiththecomponents
wheneverthecomponentsareseparatedfromthesystem.
5. EnsurethattheATXpowersupplyisswitchedoffbeforeyoupluginorremovetheATXpower
connectoronthemotherboard.
Ifthemotherboardhasmountingholes,buttheydon'tlineupwiththeholesonthebaseandthere
are no slots to attach the spacers, do not become alarmed you can still attach the spacers to the
mountingholes.Justcutthebottomportionofthespacers(thespacermaybealittlehardtocutoff,so
becarefulofyourhands).Inthiswayyoucanstillattachthemotherboardtothebasewithoutworrying
aboutshortcircuits.Sometimesyoumayneedtousetheplasticspringstoisolatethescrewfromthe
motherboardPCBsurface,becausethecircuitwiremaybenearbythehole.Becareful,don'tletthe
screwcontactanyprintedcircuitwriteorpartsonthePCBthatarenearthefixinghole,otherwiseit
maydamagetheboardorcauseboardmalfunctioning.
Installing the motherboard to the chassis...

Introduction
English
- 5 -
FormFactor y30.5cm x24.4cm ATXsizeformfactor,4layers PCB
CPU ySocket478 forIntel®MicroFC-PGA2Pentium®4processor
ySupportIntel®Pentium®4(Northwood,Prescott)processor
ySupportIntel®Pentium®4ProcessorwithHTTechnology(Note)
yIntel®Pentium®4800/533/400MHzFSB
y2ndcachedependsonCPU
Chipset ySiS 648FX HOST/AGP/Controller
ySiS 964 MuTIOL Media I/O
Memory y2 x 184-pin DDR DIMM sockets
ySupportsDDR400/DDR333/DDR266/DDR200DIMM
ySupports up to 2GB DRAM (Max)
ySupports only 2.5V DDR DIMM
I/OControl yIT8705AF
Slots y1AGPslotsupports8X/4Xmode
y5 PCI slots support 33MHz & PCI 2.2 compliant
On-BoardIDE y2IDEbusmaster(UDMA33/ATA66/ATA100/ATA133)IDEports
forupto4ATAPIdevices
ySupportsPIOmode3,4(UDMA33/ATA66/ATA100/ATA133)IDE
& ATAPI CD-ROM
SerialATA yBuilt-inSiS964chipset
y2SerialATAconnectorsin150MB/soperationmode
On-BoardPeripherals y1Floppyportsupports2FDDwith360K,720K,1.2M,1.44M
and2.88Mbytes
y1ParallelportsupportsNormal/EPP/ECPmode
y1 Serial port (COMA)
y8 USB 2.0/1.1 ports (4 x Rear, 4 x Front by cable)
y2IEEE1394(1rear,1frontbycable,rearIEEE1394optional)
y1FrontAudioconnector
HardwareMonitor yCPU/System/Powerfanrevolutiondetect
yCPUtemperaturedetect
ySystemvoltagedetect
yCPUsmartfancontrol
yCPUthermalshutdown
Chapter 1 Introduction
Features Summary
tobecontinued...

- 6 -GA-8SGXP-FS Motherboard
English
Please set the CPU host frequency in accordance with your processor's specifications.
We don't recommend you to set the system bus frequency over the CPU's specification because
thesespecificbusfrequenciesarenotthestandardspecificationsforCPU,chipsetandmostofthe
peripherals. Whether your system can run under these specific bus frequencies properly will
depend on your hardware configurations, including CPU, Chipsets, Memory, Cards...etc.
HT functionality requirement content :
EnablingthefunctionalityofHyper-ThreadingTechnologyforyourcomputersystemrequiresall
ofthefollowingplatformcomponents:
- CPU:An Intel®Pentium 4 Processor with HT Technology
- Chipset:ASiS®Chipset that supports HT Technology
- BIOS:ABIOS that supports HTTechnology and has it enabled
- OS:An operation system that has optimizations for HT Technology
On-Board LAN yBuilt-inSiS964chipset
Datatransferrate10/100supported
y1RJ45port
On-BoardSound yRealtekALC655codec
ySupportsJack-Sensingfunction
yLineOut/2frontspeaker
yLine In / 2 rear speaker (by s/w switch)
yMic In / center & subwoofer (by s/w switch)
ySPDIF Out
yAUX In
On-Board1394 yBuilt-inVT6307chip
PS/2Connector yPS/2KeyboardinterfaceandPS/2Mouseinterface
BIOS yLicensed AWARD BIOS
ySupportsQ-Flash
AdditionalFeatures yPS/2 Keyboard power on by password
yPS/2 Mouse power on
yExternalModemwakeup
ySTR(Suspend-To-RAM)
yWakeon LAN (WOL)
yAC Recovery
yPolyfuseforkeyboardover-currentprotection
yUSB KB/Mouse wake up from S3
— Supportsclearpasswordfunction

Introduction
English
- 7 -
GA-8SGXP-FS Motherboard Layout
GA-8SGXP
KB_MS
SPDIF
LPT
USB LAN
ATX_12V
SOCKET 478
CPU_FAN
FDD
IDE1
IDE2
DDR2
COMA
PWR_LED
BAT
PCI1
PCI2
PCI3
F_USB1
IT8705AF
BIOS
CODEC
PWR_FAN
SiS 964
PCI4
PCI5
F_USB2
F_AUDIO
AUX_IN
S_IRQ
SATA1
RAM_LED
ATX
SYS_FAN
DDR1
AUDIO
F_PANEL
CLR_CMOS
P4 Titan
SiS648FX
VT6307
SATA0
F1_1394
AGP
RTL8201BL
USB
1394
(optional)
BUZZER
FS
BIOS_RE

- 8 -GA-8SGXP-FS Motherboard
English
Block Diagram
SiS 648FX
SiS 964
CPUCLK+/- (100/133/200MHz)
System Bus
800/533/400MHz
MCHCLK (100/133/200MHz)
66 MHz
33 MHz
14.318 MHz
48 MHz
LPCBUS
AGP
4X/8X
AGPCLK
(66MHz)
5 PCI
PCICLK
(33MHz)
RJ45
AC97 Link
8 USB
Ports
ATA33/66/100
IDE Channels
RTL8201BL
IT8705AF
24 MHz
33 MHz
Floppy
LPT Port
PS/2 KB/Mouse
1 COM port
MIC
LINE-IN
LINE-OUT
Pentium 4
Socket 478
CPU
AC97
CODEC
VT6307
1 IEEE1394
200/266/333/400MHz
2 Serial ATA
DDR RAM
BIOS
1 IEEE1394

Introduction
English
- 9 -

- 10 -GA-8SGXP-FS Motherboard
English

Hardware Installation Process
English
- 11 -
Tosetupyourcomputer,youmustcompletethefollowingsteps:
Step1-InstalltheCentralProcessingUnit(CPU)
Step2-Installmemorymodules
Step3-Installexpansioncards
Step4-Connectribboncables,cabinetwires,andpowersupply
Chapter 2 Hardware Installation Process
Step 2
Step 3
Step 4 Step 4
Congratulations!Youhaveaccomplishedthehardwareinstallation!
Turnonthepowersupplyorconnectthepowercabletothepoweroutlet.Continuewiththe
BIOS/softwareinstallation.
Step 1

- 12 -GA-8SGXP-FS Motherboard
English
Step 1: Install the Central Processing Unit (CPU)
Step1-1: CPUInstallation
Angling the
rod to 650
1. Anglingtherodto65-degreemaybe
feelakindoftight,andthencontinue
pulltherodto90-degreewhenanoise
"cough"made.
2.Pulltherodtothe90-degreedirectly.
Pin1 indicator
3. CPU Top View
Pin1 indicator
4. Locate Pin 1 in the socket and
lookfora(golden)cutedgeonthe
CPU upper corner. Then insert
theCPUintothesocket.
Socket
Actuation
Lever
Before installing the processor, adhere to the following warning:
1.Please make sure the CPU type is supported by the motherboard.
2. If you do not match the CPU socket Pin 1 and CPU cut edge well, it will
cause improper installation. Please change the insert orientation.

Hardware Installation Process
English
- 13 -
Step 1-2: CPU Cooling Fan Installation
1. Fastenthecoolingfansupporting-
base onto the CPU socket on the
motherboard.
Before installing the CPU cooling fan, adhere to the following warning:
1.Please use Intel approved cooling fan.
2.We recommend you to apply the thermal tape to provide better heat
conduction between your CPU and cooling fan.
(The CPU cooling fan might stick to the CPU due to the hardening of
the thermal paste. During this condition if you try to remove the cool-
ing fan, you might pull the processor out of the CPU socket alone with
the cooling fan, and might damage the processor. To avoid this from
happening, we suggest you to either use thermal tape instead of
thermal paste, or remove the cooling fan with extreme caution.)
3.Make sure the CPU fan power cable is plugged in to the CPU fan
connector, this completes the installation.
Please refer to CPU cooling fan user's manual for more detail
installation procedure.
2. Makesure theCPUfanis plugged
to the CPU fan connector, than
installcomplete.

- 14 -GA-8SGXP-FS Motherboard
English
Before installing the memory modules, adhere to the following warning:
1.When RAM LED is ON, do not install / remove DIMM from socket.
2.Please note that the DIMM module can only fit in one direction due to
the one notch. Wrong orientation will cause improper installation.
Please change the insert orientation.

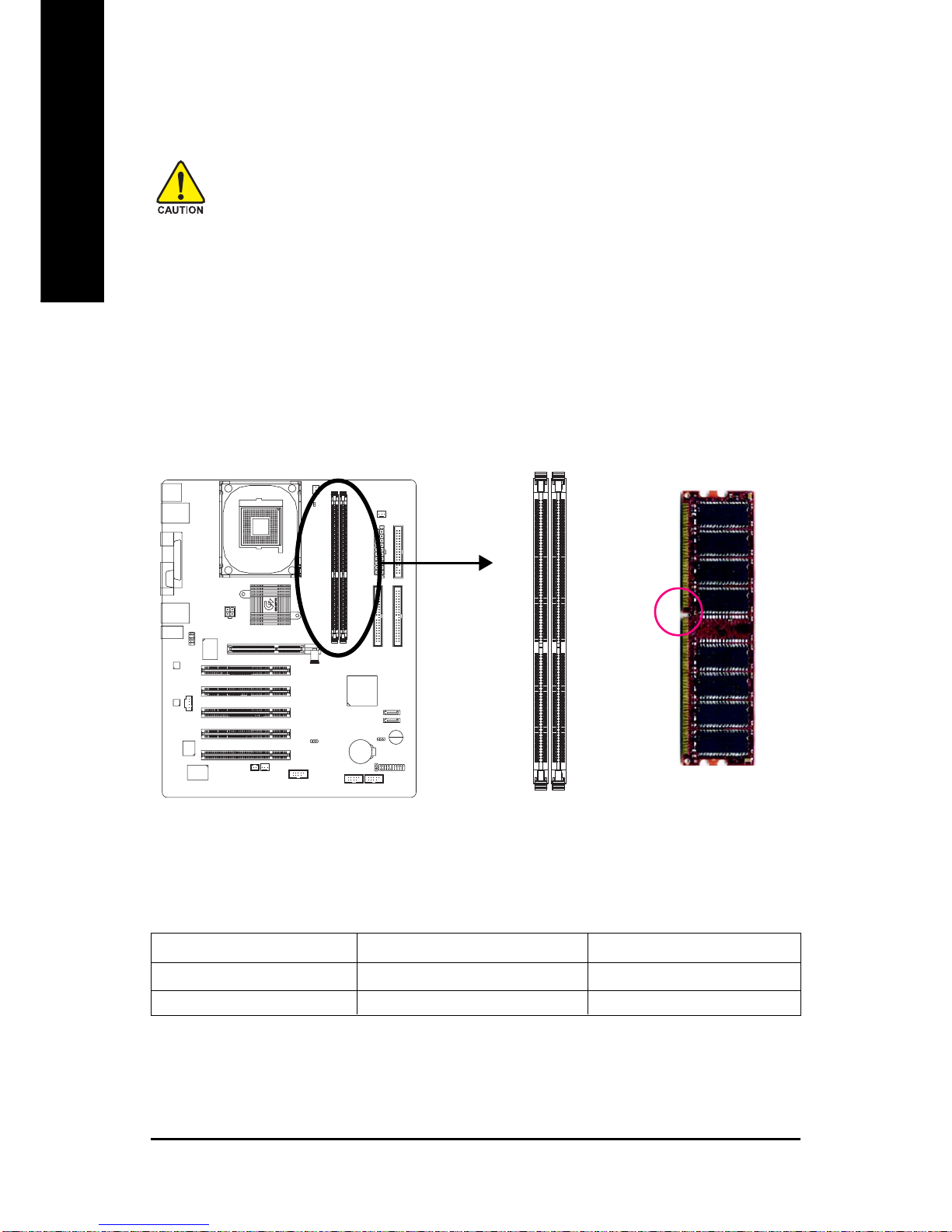

Step 2: Install Memory Modules
Themotherboardhas2dualinline memory module (DIMM) sockets. TheBIOSwillautomatically
detectsmemorytypeandsize.To installthememory module,justpush itverticallyinto theDIMM
socket.TheDIMMmemorymodulecanonlyfitinonedirectionduetothenotch.Memorysizecan
varybetweensockets.
DDR
Notch
SupportUnbufferedDDRDIMMSizestype:
64Mbit(2Mx8x4 banks) 64Mbit(1Mx16x4banks) 128Mbit(4Mx8x4banks)
128Mbit(2Mx16x4banks) 256Mbit(8Mx8x4banks) 256Mbit(4Mx16x4banks)
512Mbit(16Mx8x4banks) 512Mbit(8Mx16x4banks)

Hardware Installation Process
English
- 15 -
DDR Introduction
EstablishedontheexistingSDRAMinfrastructure, DDR(DoubleDataRate)memoryisahigh
performanceandcost-effectivesolutionthatallowseasyadoptionformemoryvendors,OEMs,and
systemintegrators.
DDR memory is a great evolutionary solution for the PC industry that builds on the existing
SDRAMarchitecture,yetmaketheawesomeadvancesinsolvingthesystemperformancebottleneck
bydoublingthememorybandwidth. Nowadays,withthehighestbandwidthof3.2GB/sofDDR400
memory and complete line of DDR400/333/266/200 memory solutions, DDR memory is the best
choiceforbuildinghighperformanceandlowlatencyDRAMsubsystemthataresuitableforservers,
workstations,andfullrangeofdesktopPCs.
1. The DIMM socket has a notch, so the DIMM memory
module can only fit in one direction.
2. Insert the DIMM memory module vertically into the
DIMM socket. Then push it down.
3. Close the plastic clip at both edges of the DIMM sock-
ets to lock the DIMM memory module.
Reverse the installation steps when you wish to re-
move the DIMM memory module.

- 16 -GA-8SGXP-FS Motherboard
English
Step 3: Install Expansion Cards
1. Readtherelatedexpansioncard'sinstructiondocumentbeforeinstalltheexpansioncardintothe
computer.
2. Removeyourcomputer'schassiscover,screwsandslotbracketfromthecomputer.
3. Presstheexpansioncardfirmlyintoexpansionslotinmotherboard.
4. Besurethemetalcontactsonthecardareindeedseatedintheslot.
5. Replacethescrewtosecuretheslotbracketoftheexpansioncard.
6. Replaceyourcomputer'schassiscover.
7. Poweronthecomputer,ifnecessary,setupBIOSutilityofexpansioncardfromBIOS.
8. Installrelateddriverfromtheoperatingsystem.
AGP Card
Please carefully pull out the small white-drawable
bar at the end of the AGP slot when you try to
install/ uninstall the AGP card. Please align the
AGP card to the onboard AGP slot and press firmly
down on the slot. Make sure your AGP card is
locked by the small white-drawable bar.

Hardware Installation Process
English
- 17 -
Step 4: Connect Ribbon Cables, Cabinet Wires and Power
Supply
Step 4-1: I/O Back Panel Introduction
XY
Z[
\
XX
XX
XPS/2 Keyboard and PS/2 Mouse Connector
This connector supports standard PS/2
keyboardandPS/2mouse.
PS/2MouseConnector
(6pinFemale)
PS/2KeyboardConnector
(6pinFemale)
Y/[IEEE1394/ USB/ LAN Connector LANisfastEthernetwith10/100Mbpsspeed.
Before you connect your device(s) into USB
connector(s),please makesureyourdevice(s)
such as USB keyboard, mouse, scanner, zip,
speaker...etc. Have a standard USB interface.
AlsomakesureyourOSsupportsUSBcontroller.
IfyourOSdoesnotsupportUSBcontroller,please
contact OS vendor for possible patch or driver
upgrade.Formoreinformationpleasecontactyour
OSordevice(s)vendors.
USB 0
USB 1 USB 2 USB 3
LAN
IEEE1394*
* optional (only available up PCB
revision 2.1)

- 18 -GA-8SGXP-FS Motherboard
English
ZParallel Port, Serial Port (COMA) and SPDIF
ParallelPort
(25pinFemale)
SPDIF COMA
SerialPort
(9pinMale)
LineIn(RearSpeaker)
MICIn(CenterandSubwoofer)
LineOut(FrontSpeaker)
\Audio Connectors
Thisconnectorsupports1standardCOMport,1
Parallel port and 1 SPDIF port. Devices like
printercanbeconnectedtoParallelport;mouse
andmodemetc.canbeconnectedtoserialport.
SPDIFoutputiscapableofprovidingdigitalaudio
toexternalspeakersofcompressedAC3datato
anexternalDolbyDigitalDecoder.
After install onboard audio driver, you may
connectspeakertoLineOutjack,microphoneto
MIC In jack. Devices like CD-ROM, walkman
etc.canbeconnectedtoLine-Injack.
Pleasenote:
Youareabletouse2-/4-/6-channelaudiofeature
by S/W selection.
Connect"FrontSpeaker"to"LineOut"
Connect"RearSpeaker"to"LineIn"
Connect"CenterandSubwoofer"to"MICIn".

Hardware Installation Process
English
- 19 -
Step4-2:Connectorsand JumpersIntroduction
1) ATX_12V
2) ATX
3) CPU_FAN
4) PWR_FAN
5) SYS_FAN
6) FDD
7) IDE1 / IDE2
8) SATA0/SATA1
9) F_PANEL
10) PWR_LED
11) RAM_LED
12) F_AUDIO
13) AUX_IN
14) F_USB1 / F_USB2
15) F1_1394
16) S_IRQ
17) CLR_CMOS
18) BATTERY
19) BIOS_RE
16
3
17
7
6
15
1
13
12
14
8
9
5
11 42
10
19 18

- 20 -GA-8SGXP-FS Motherboard
English
1) ATX_12V(+12VPowerConnector)
This connector (ATX_12V) supplies the CPU operation voltage (Vcore).
If this "ATX_12V connector" is not connected, system cannot boot.
PinNo. Definition
1 GND
2 GND
3 +12V
4 +12V
2) ATX(ATXPower)
AC power cord should only be connected to your power supply unit after ATX power cable and
other related devices are firmly connected to the mainboard. Pin No. Definition
1 3.3V
2 3.3V
3 GND
4 VCC
5 GND
6 VCC
7 GND
8 Power Good
95VSB (standby+5V)
10 +12V
11 3.3V
12 -12V
13 GND
14 PS_ON(soft on/off)
15 GND
16 GND
17 GND
18 -5V
19 VCC
20 VCC
12 34
1
10
11
20
