Fulgor Milano SOFIA User manual

RANGE TOP GAS 30”- 36”- 48”
USE & CARE MANUAL
GUIDE D’UTILISATION ET D’ENTRETIEN
MANUAL DE USO Y CUIDADO

Dear Customer,
Thank you for purchasing a Fulgor Milano product. Fulgor Milano is
committed to excellence and our signature technologies provide you with
professional tools for your kitchen. One of our central philosophies is
continuous investment in research that is rooted in developing life enhancing
technology. Our goal is to deliver products that are worthy of your family
recipes and that will breathe life into your kitchen, the heart of your home.
We invite you to enjoy your new Fulgor Milano product with same amount
of care and attention that we have put into creating it.
Your Life | Our Passion

EN
1
TABLE OF CONTENTS PAGE
1 -Safety Precautions 2
2 -Safety Instructions 4
Warnings for Gas and Electric Installation 4
3 -Features of your Rangetop 5
4 -Features of your Cooktop 6
5 -Gas Cooktop Operation 9
Gas Control Knob Setting 9
Gas burners 9
Burners with two flame rings 9
Super Sealed Surface Burners 10
6 -Gas Cooktop Griddle Operation 11
Electric gas ignition 11
Cooking Tips 12
Griddle Cooking Chart 12
7 -Minute minder 13
Knob of minute minder 13
8 -Cookware 14
Cookware Characteristics 14
Match Pan Diameter to Flame Size 14
9 -Cleaning the Cooktop 15
Cooktop Part / Material Suggested Cleaners 16
10-Solving Operational Problems 18
11-Assistance or Service 19
Service Data Record 19
Pay attention to these symbols present in this
manual:
WARNING
• This is the safety alert symbol. This symbol alerts you to
potential hazards that can kill or hurt you and others.
• Youcanbekilledorseriouslyinjuredifyoudon’tfollow
these instructions.
READ AND SAVE THESE INSTRUCTIONS.
WARNING
If the information in this manual
is not followed exactly, a fire or
explosion may result causing
property damage, personal injury
or death.
Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.ì
WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance.
- Do not touch any electrical switch.
- Do not use any phone in your
building.
- Immediately call your gas supplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
- If you cannot reach your gas
supplier, call the fire department.
Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
IMPORTANT: Save these instructions for the local
electrical inspector use.
INSTALLER: Please leave this manual with owner for
future reference.
OWNER: Please keep this manual for future
reference.

EN
2
1 - Safety Precautions
WARNING
When properly cared for, your new rangetop has been
designed to be a safe, reliable appliance. Read all
instructions carefully before using this rangetop.
These precautions will reduce the risk of burns,
electric shock, fire, and injury to yourself and
others. When using kitchen appliances, basic
safety precautions must be followed, including
the following:
This appliance must be properly installed and grounded by
a qualified technician. Connect only to properly grounded
outlet.See“GroundingInstructions”foundintheInstallation
Instructions.
• This appliance should be serviced only by a qualified
service technician. Contact the nearest authorized service
center for examination, repair or adjustment.
• Do not repair or replace any part of the appliance unless
specifically recommended. Refer service to an authorized
servicer.
• Do not operate this appliance if it is not working properly
or if it has been damaged, until an authorized servicer
has examined it.
• Install or locate this appliance only in accordance with
the Installation Instructions.
• Use this rangetop only as intended by the manufacturer.
If you have any questions, contact the manufacturer.
• Do not cover or block any openings on this appliance.
• Use this appliance only for its intended use as described
in this manual. Do not use corrosive chemicals, vapors,
or nonfood products in this appliance. This type of
appliance is specifically designed to heat or cook. It is
not designed for industrial or laboratory use. The use of
corrosive chemicals in heating or cleaning will damage
the appliance.
• In the event that personal clothing or hair catches fire,
DROP AND ROLL IMMEDIATELY to extinguish flames.
WARNING
• In the event of a grease fire SMOTHER FLAMES with a
close-fitting lid, cookie sheet, or other metal tray, then
turn off the gas burner.
• BE CAREFUL TO PREVENT BURNS. If the flames do not
go out immediately, EVACUATE AND CALL THE FIRE
DEPARTMENT.
• Do not use water, including wet dishcloths or towels
on grease fires. A violent steam explosion may result.
• NEVER PICK UP A FLAMING PAN. You may be burned.
• ALWAYS have a working SMOKE DETECTOR near the
kitchen.
• LEAVE THE HOOD VENTILATOR ON when flambéing
food.
• NEVER use this appliance as a space heater to heat
or warm the room. Doing so may result in carbon
monoxide poisoning and overheating the oven.
To reduce the risk of burn injuries during
cooktop use, observe the following:
• Children or pets should not be left alone or unattended in
an area where appliances are in use.
• Children should never be allowed to sit or stand on any
part of the appliance.
• Do not store flammable materials on or near the cooktop.
• When using the cooktop: DO NOT TOUCH THE BURNER
GRATES OR THE IMMEDIATE SURROUNDING AREA.
• Use only dry potholders; moist or damp potholders on
hot surfaces may cause burns from steam.
• Never leave the cooktop unattended when in use.
• Boilovers cause smoking, and greasy spillovers may
ignite. A spill on a burner can smother all or part of the
flame or hinder spark ignition. If a boilover occurs, turn
off burner and check operation. If burner is operating
normally, turn it back on.
• During cooking, set the burner control so that the flame
heats only the bottom of the pan and does not extend
beyond the bottom of the pan.
• Take care that drafts like those from fans or forced air
vents do not blow flammable material toward the flames
or push the flames so that they extend beyond the edges
of the pan.
• Always position handles of utensils inward so they do not
extend over adjacent work areas, burners, or the edge
of the cooktop.
• Wear proper apparel. Loose fitting garments or hanging
sleeves should never be worn while cooking.
IMPORTANT INSTRUCTION
Please read all instructions before using this appliance.

EN
3
1 - Safety Precautions
• Never let clothing, potholders, or other flammable
materials come in contact with hot burners or hot burner
grates.
• Use only certain types of glass, heatproof glass ceramic,
ceramic, earthenware, or other glazed utensils that are
suitable for cooktop use.
• Do not clean the cooktop while it is still hot. Some cleaners
produce noxious fumes when applied to a hot surface.
CAUTION
Do not allow aluminium foil, plastic, paper or cloth to
come in contact with hot burners or grates. Do not allow
pans to boil dry.
CAUTION
Do not store items of interest to children above the
appliance. If children should climb onto the appliance to
reach these items, they could be seriously injured.
WARNING
Keeping appliance area clear and free from combustible
materials, gasoline, and other flammable vapors and
liquids.

EN
4
2 - Safety Instructions
WARNING
• For proper lighting and performance of the burners,
keep the igniters clean and dry.
• In the event that a burner goes out and gas escapes,
open a window or a door. Wait at least 5 minutes
before using the cooktop.
• Do not obstruct the flow of combustion and ventilation
air.
• Do not use aluminium foil to line any part of the cooktop.
• If the rangetop cookers is near a window, be certain
blow over or near the burners; they could catch on fire.
Warnings for Gas and Electric
Installation
In case of Propane gas installation
The appliance is produced ready for use with natural gas.
It may be converted for use with propane gas using the
propane conversion kit supplied with the appliance.
Be sure the unit being installed is correct for the type of
gas being used. Refer to the rating plate (see Installation
Instructions).
WARNING
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
CAUTION
• Always disconnect the electrical plug from the wall
receptacle before servicing this unit.
• For personal safety, this appliance must be properly
grounded.
• Do not under any circumstances cut or remove the third
(ground) prong from the power cord plug..
CAUTION
When connecting the unit to propane gas, make certain
the propane tank is equipped with its own high pressure
regulator. In addition, the pressure regulator supplied with
the appliance must be on the inlet gas pipe of this unit.
In case of electrical failure
If for any reason a gas control knob is turned ON and there
is no electric power to operate the electronic igniter of the
cook top, turn OFF all gas control knobs and wait 5 minutes
for the gas to dissipate before lighting the burner manually.
To light the burner manually, carefully hold a lighted match
to the burner ports and push and turn the gas control knob
to HI until it lights and then turn the knob to desired setting.

EN
5
3 - Features of your Rangetop
CONTENTS OF YOUR RANGETOP PACK
QTY DESCRIPTION QTY DESCRIPTION
1 RANGETOP COOKER
CAST IRON GRATES
2Psc.FOR30”RANGE
3Psc.FOR36”,48”
RANGE
1
FOR 30’’-36”
RANGETOP
1x1”CASTIRON
ISLAND TRIM
2x FIXING SCREWS
2x BRACKETS
1 GRILLE(POURGAMME48”)
1
FOR 48” RANGETOP
2x1”ISLANDTRIM
5x FIXING SCREWS
3x BRACKETS
1 PRESSURE REGULATOR
1 GASKET / WASHER 1 NIPPLE
1 FIXING BRAKETS
MANUAL & GENERAL
DOCUMENTATION
1“INSTALLATION
INSTRUCTIONS”
1“USE&CARE”
1 GAS CONVERSION KIT

EN
6
4 - Features of your Cooktop
COOKTOP 30”
BURNER OUTPUT RATINGS:
BTU/HR NG (Natural) Gas, 5” W.C.P LP (Propane) Gas, 10” W.C.P.
1 DOUBLE CROWNS (burner & knob) 750to18000Btu/h (220 to 5300W) 750 to 15000 Btu/h (220 to 4400W)
2 DOUBLE CROWNS (burner & knob) 750to18000Btu/h (220 to 5300W) 750 to 15000 Btu/h (220 to 4400W)
3 DOUBLE CROWNS (burner & knob) 750to18000Btu/h (220 to 5300W) 750 to 15000 Btu/h (220 to 4400W)
4 DOUBLE CROWNS (burner & knob)
750to18000Btu/h
750to20000*Btu/h
(220 to 5300W)
(220to5850W) 750 to 15000 Btu/h (220 to 4400W)
COOKTOP 36”
BURNER OUTPUT RATINGS:
BTU/HR NG (Natural) Gas, 5” W.C.P LP (Propane) Gas, 10” W.C.P.
1 DOUBLE CROWNS (burner & knob)
750to18000Btu/h
750to20000*Btu/h
(220 to 5300W)
(220to5850W) 750 to 15000 Btu/h (220 to 4400W)
2 DOUBLE CROWNS (burner & knob) 750to18000Btu/h (220 to 5300W) 750 to 15000 Btu/h (220 to 4400W)
3 DOUBLE CROWNS (burner & knob) 750to18000Btu/h (220 to 5300W) 750 to 15000 Btu/h (220 to 4400W)
4 DOUBLE CROWNS (burner & knob) 750to18000Btu/h (220 to 5300W) 750 to 15000 Btu/h (220 to 4400W)
5 DOUBLE CROWNS (burner & knob) 750to18000Btu/h (220 to 5300W) 750 to 15000 Btu/h (220 to 4400W)
6 DOUBLE CROWNS (burner & knob)
750to18000Btu/h
750to20000*Btu/h
(220 to 5300W)
(220to5850W) 750 to 15000 Btu/h (220 to 4400W)
* (on some models)
A - Grates
A - Grates

EN
7
4 - Features of your Cooktop
COOKTOP 48”
2
A
5
6
1
4
12
3
78
37
456
BURNER OUTPUT RATINGS:
BTU/HR
MODEL 48”
NG (Natural)
Gas, 5” W.C.P LP (Propane) Gas, 10” W.C.P.
1 DOUBLE CROWNS (burner & knob) 750to20000Btu/h(220to5850W) 750 to 15000 Btu/h (220 to 4400W)
2 DOUBLE CROWNS (burner & knob) 750to18000Btu/h(220to5300W) 750 to 15000 Btu/h (220 to 4400W)
3 DOUBLE CROWNS (burner & knob) 750to18000Btu/h(220to5300W) 750 to 15000 Btu/h (220 to 4400W)
4 DOUBLE CROWNS (burner & knob) 750to18000Btu/h(220to5300W) 750 to 15000 Btu/h (220 to 4400W)
5 DOUBLE CROWNS (burner & knob) 750to18000Btu/h(220to5300W) 750 to 15000 Btu/h (220 to 4400W)
6 DOUBLE CROWNS (burner & knob) 750to20000Btu/h(220to5850W) 750 to 15000 Btu/h (220 to 4400W)
7 GRIDDLE (burner & knob) 2000 to 11500 Btu/h (590 to 3370W) 2000 to 11500 Btu/h (590 to 3370W)
8 MINUTE MINDER (knob) See Knob of minute minder, page 13
BURNER
B
C
A - Grates
B - Burner Cap
C - Burner Gas Spreader

EN
8
4 - Features of your Cooktop

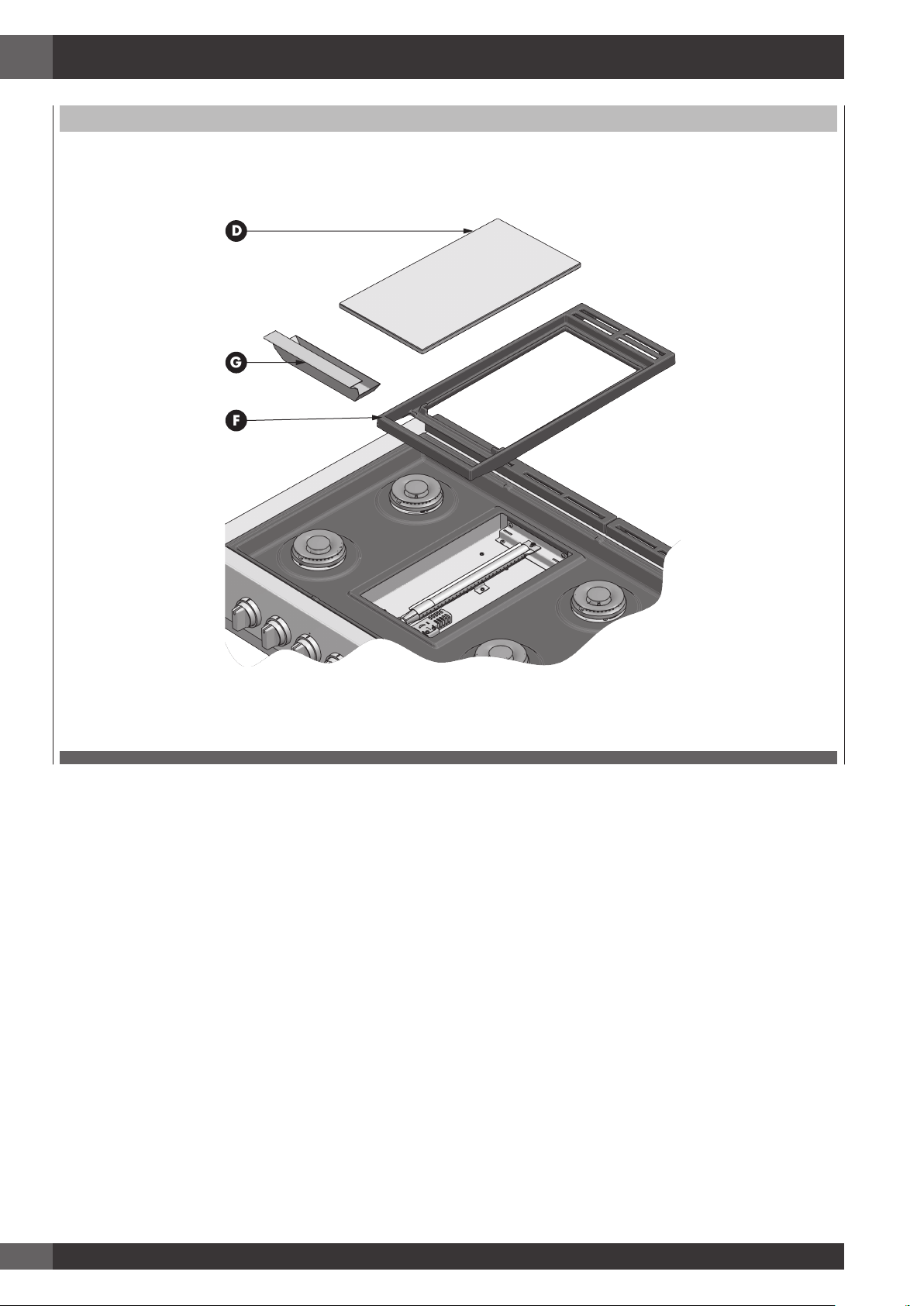

GRIDDLE
D
G
F
D - Griddle Plate
G- Drip tray
F - Griddle Plate support

EN
9
5 - Gas Cooktop Operation
Gas Control Knob Setting
Electric gas ignition
The gas burner use an electric ignition device located near
each burner that by means a spark igniters ensure its surface
light automatically.
ELECTRIC IGNITION
Models with automatic re-ignition
The electronic auto re-ignition lights the surface burner
when the corresponding control knob is turned at any valve
rotation allowing sufficient gas flow to support a flame.
If any burner flame goes out for any reason, the igniter
automatically sparks to relight the flame.
NOTE: this feature is provided as a convenience
and is not intended as a safety feature.
To set:
• Push and turn a knob counter clockwise to any setting,
the corresponding spark plugs will generate a clicking
sound (spark), the burner will produce a flame and
reignite automatically if the flame goes out.
WARNING
• Do not operate a burner using empty cookware or
without cookware on the grate.
• Do not touch the burner when the igniters are clicking
(sparking).
• Do not let the burner flame extend beyond the edge of
the pan.
• Turn off all controls when not cooking.
Failure to follow these instruction can result in personal
injury or fire.
Gas burners
The gas burners design of these cooktop models, allow
a pleasing option for cooking where size, power and
simmering are a primary concern.
Burners with two flame rings
This special burner has two separate flame rings to provide
a complete heat regulation from high power to simmering.
To set :
1. Push and turn the knob counter clockwise withing the
main HI - LO range, when the burner is turned on, the
main flame and the Simmer flame will both ignite and
remain on.
2. Set desired temperature within the main HI - LO range.
Note: The knob has a designed stop at MED heat setting.
To continue to low and / or simmer, push the knob
in as you continue to turn counter-clockwise. This
method is not required to go from LO / Simmer to
OFF.
Simmer setting
Continue turning the knob counter-clockwise to the ‘HI-
LOSIMMER’range.Theouterflameringwillgooutand
temperature adjustment can be made using the inner flame
ring only.
Turning off the burner
Turn the knob clockwise as far as it will go to the off position.
Ensure flame extinguishes fully.
KNOB BURNER

EN
10
5 - Gas Cooktop Operation
The Burner Flames
Turn each burner on. Flames should be blue in color with no
trace of yellow. The burner flames should not flutter or blow
away from the burner. The inner cone of the flame should be
between1/2”and3/4”long.
NOTE:•Foreignmaterialinthegasline,especiallyinnew
construction, may cause an orange flame during
initial operation. The orange color will disappear
with further use. Small yellow tips on the ends of
the flames are normal when using LP gas.
•Iftheflameis not even around the edge ofthe
burner, wait for the cooktop to cool and check to
make sure the burner is assembled properly
Super Sealed Surface Burners
IMPORTANT
Do not obstruct the flow of combustion and
ventilation air around the burner grate edges.
Burner cap and gas spreader
Always keep the burner cap and gas spreader in place when
using a surface burner. A clean burner cap and spreader
will help prevent poor ignition and uneven flames. Always
clean the parts after a spillover and routinely remove and
cleanaccordingtothe“GeneralCleaning”section.
Burner base and injector
Gas must flow freely throughout the injector orifice to light
properly. Keep this area free of soil and do not allow spills,
food, cleaning agents or any other material to enter the
injector orifice opening.
Protect it during cleaning.
BURNER FLAME
Be sure when lighting the burner:
• Gas spreader is seated correctly and pin is properly
aligned with burner base slot.
• Cap is seated correctly and pin is properly aligned with
gas spreader slot.
Burner ports
Check burner flames occasionally. A good flame is blue in
color, not yellow.
Keep this area free of soil and do not allow spills, food,
cleaning agents or any other material to enter the burner
ports.
To Clean gas burner:
IMPORTANT
Before cleaning, make sure all controls are off
and the cooktop is cool.
1. Remove the burner cap from the burner base and clean
according to cleaning section.
2. Remove the burner spreader.
Clean the gas tube opening and burner port according to
cleaning section.
3. Clean the burner base with a damp cloth (keep the gas
injector area free of cleaning agents and any other
material from entering the injector orifice).
4. Replace the burner spreader and cap, making sure the
alignment pins are properly aligned with the slots.
5. Turn on the burner.
If the burner does not light, check cap and spreader
alignment. If the burner still does not light, do not service
the gas burner yourself.
Contact a trained repair specialist.
EXPLODED VIEW OF BURNER

EN
11
6 - Gas Cooktop Griddle Operation
Electric gas ignition
The griddle burner uses an electric glow wire located near
burner that ensures burner ignition. It is thermostatically
controlled to maintain a consistent temperature.
Topreventfoodfromsticking,itisnecessaryto“season”the
griddle prior to use.
ELECTRIC IGNITION
(A) IGNITION GLOW WIRE
To set:
• Turn the knob clockwise: the glow wire system will start
and when it will be to the maximum glow, the burner will
produce a flame.
• Thegriddlehasapower“ON”lightwhichglowswhen
the griddle thermostat is turned on, and will switch it
“OFF”whenitwillbetotheselectedtemperature.
Turning off the burner
Turn the knob counter clockwise as far as it will go to the
off position.
Ensure flame extinguishes fully.
GRIDDLE BURNER KNOB
ATTENTION
The range must be level for the griddle to operate properly.
CAUTION
• Do not overheat the griddle. This can damage the
coating of the griddle.
• Do not use metal utensils that can damage the griddle
surface.
• Always turn off when not in use or lower the heat
between cooking loads.
• Do not use the griddle for other purposes, for example,
as a cutting board or a storage shelf.
• Do not cook excessively greasy foods. The grease may
spill over.
• The griddle may become very hot. Use oven gloves
when placing or removing the griddle.
• Do not remove the griddle until the cooktop grates,
surfaces, and griddle itself cool down.
• The griddle is quite heavy. Use both hands when
placing or removing the griddle.

EN
12
6 - Gas Cooktop Griddle Operation
Cooking Tips
• Preheat the griddle plate for about 20 minutes, then set
the desired temperature.
• Use liquid cooking oil, cooking sprays, or butter for eggs,
pancakes, French toast, fish and sandwiches. This will
help reduce sticking. (Only use fats/oils that can tolerate
high temperature)
• Pat down wet food items with paper towel to prevent
splatters during grilling.
• Remove food particles with a metal spatula during cooking
to make the cleanup easier and to avoid including those
particles in the food.
Griddle Cooking Chart
Food °F °C
Eggs 250 - 300 121 - 149
Bacon 325 - 350 163 - 177
Pancakes 375 - 450 191 - 232
French Toast 425 218
Fish Fillets 300 149
Vegetables 300 149
Burgers 350 177
Steaks 350 177
IMPORTANT
After each cooking make sure to empty and clean the drip
pan and replace it in its proper place under the griddle.
Before cleaning, make sure all controls are off and the
griddle is cool.
1. Remove the griddle plate from the burner base and
clean according to cleaning section.
2. In case Clean the burner box with a damp cloth (keep
the gas injector and glow wire areas free of cleaning
agents and any other material).
3. Replace the Griddle plate, paying attention to the
correct position.
4. Turn on the burner.
If the burner does not light, wait a couple of minutes an
repeat the operation. If the burner still does not light, do
not service the gas burner yourself. Contact a trained
repair specialist.
EXPLODED VIEW OF BURNER GRIDDLE

EN
13
7 - Minute minder
Knob of minute minder
(pag. 7 reference 8)
(0 to 120 min)
By rotating knob to the full extent clockwise and bringing
pointer on selected time indicated in minutes on the
dashboard, the alarm will ring after the time set has elapsed
(120 min. max.).
During the operating of the clock, the relating knob will
bereturninggraduallyto“0”positionwiththepassageof
minutes and will indicate how long it should be waited for
the completion of the time set.

EN
14
8 - Cookware
IMPORTANT: Never leave empty cookware on a hot
surface cooking area, element or surface
burner.
Ideal cookware should have a flat bottom, straight sides,
a well fitting lid and the material should be of medium-to-
heavy thickness. Rough finishes may scratch the cooktop.
Aluminium and copper may be used as a core or base in
cookware. However, when used as a base it can leave
permanent marks on the cooktop or grates.
Cookware material is a factor in how quickly and evenly
heat is transferred, which affects cooking results. A nonstick
finish has the same characteristics as its base material.
For example, aluminium cookware with a non-stick finish
will take on the properties of aluminium.
Use the following chart as a guide for cookware material
characteristics.
Cookware Characteristics
Aluminum:
Heats quickly and evenly. Suitable for all types of cooking.
Medium or heavy thickness is best for most cooking tasks.
Cast Iron:
Heats slowly and evenly. Good for browning and frying.
Maintains heat for slow cooking.
Ceramic or Ceramic glass:
Followmanufacturer’sinstructions.
Heats slowly, but unevenly. Ideal results on low to medium
heat settings.
Copper:
Heats very quickly and evenly.
Earthenware:
Followmanufacturer’sinstructions.
Use on low heat settings.
Porcelain enamel on steel or cast Iron:
See stainless steel or cast iron.
Stainless steel:
Heats quickly, but unevenly. A core or base of aluminium or
copper on stainless steel provides even heating.
Match Pan Diameter to Flame Size
The flame should be the same size as the bottom of the pan
or smaller. Do not use small pans with high flame settings as
the flames can lick up the sides of the pan. Oversize pans
that span two burners are placed front to rear, not side to
side.
Use Balanced Pans
Pans must sit level on the cooktop grate without rocking.
Center pan over burner.
Use a Lid That Fits Properly
A well-fitting lid helps shorten the cooking time. Flat, heavy
bottom pans provide even heat and stability.
WARNING
BALANCED PAN
CONCAVE (HOLLOW)
CONVEX (ROUNDED)
FLAME TOO LARGE FOR PAN SIZE
USE LIDS THAT FIT PROPERLY
UNBALANCED PAN

EN
15
9 - Cleaning the Cooktop
The entire Cooktop can be safely cleaned by
wiping with a soapy sponge, then rinsing and
drying. If stubborn soil remains, follow the
recommended cleaning methods below.
ATTENTION
• Before cleaning, be certain the burners are turned off
and the grates are cool.
• Always use the mildest cleaner that will do the job. Use
clean, soft cloths, sponges or paper towels.
• Rub stainless steel finishes in the direction of the grain.
Wipe area dry to avoid water marks.
• Do not clean removable cooktop parts in any
selfcleaning oven.
• After cleaning, place all parts in their proper positions
before using cooktop.
The cleaners recommended below and on the following
page indicate cleaner types and do not constitute an
endorsement of a particular brand.
Use all products according to package directions.
CLEANING THE COOKTOP CLEANING THE COOKTOP

EN
16
9 - Cleaning the Cooktop
Cooktop Part / Material Suggested Cleaners
Parts and materials Suggested cleaners Suggestions/Reminders
Burner base
(Cast aluminium) Damp cloth. Keep the gas injector area free of cleaning
agents and any other material from entering
the injector orifice.
Gas spreader
(Cast aluminium) Detergent and hot water; rinse and dry.
Stiff nylon bristle-toothbrush to clean port
openings.
Abrasive cleansers: Revere ware® metal
polish. Following package direction Use
Brillo® or S.O.S.® pads.
Rinse and dry.
Rub lightly, in a circular motion.
Aluminium cleaners may dull the surface.
To clean port opening, use a tooth brush or
straightened paper clip. Take care not to
damage / augment the shape of the ports.
Gas spreader
(Brass) Wash them in hot soapy water, rinse, and
dry.
Use a stiff nylon brush or straight-ended
paper clip to clear the notches of a flame
spreader.
Rub lightly, in a circular motion.
Brass cleaners may dull the surface.
To clean port opening, use a tooth brush or
straightened paper clip.
Burner cap and grate
(Porcelain enamel on cast
iron)
Non abrasive cleaners: Hot water and
detergent, Fantastic, Formula 409. Rinse
and dry immediately.
Mild abrasive cleaners: Bon Ami® and
Soft Scrub®.
Abrasive cleaners for stubborn stains:
soap-filled steel wool pad.
The grates are heavy; use care when lifting.
Place on a protected surface.
Blisters/crazing/chips are common due to
the extreme temperatures on grate fingers
and rapid temperature changes.
Acidic and sugar-laden spills deteriorate
the enamel. Remove soil immediately.
Abrasive cleaners, used too vigorously or
too often, can eventually mar the enamel.
Trilaminate griddle
(three layers griddle stainless
steel / aluminum)
Warning: There is a danger of burns
when cleaning a cooking surface
that is still hot!
Never clean the cooking surface with
abrasive powders or aggressive detergents.
Clean the cooking surface with ice cubes
or cold water.
After Each Use:
Switch off the appliance and wait for it to
cooldowntoabout195/215°F(90/100
°C)20/30min.
Wipe the griddle with a dry, heavy, coarse
cloth to remove any remaining residue and
food particles.
Place single ice cubes on the cooking
surface one after another; simultaneously
detach the dirt with the spatula and remove
the dirt from the griddle and accumulate in
the drip pan. You can also use cold water
as an alternative to ice cubes.
When the cooking surface is cool, any
spots left by egg whites or the acids in
foods can be removed with lemon juice
and a clean cloth. Rinse thoroughly with a
damp cloth. Coat lightly with cooking oil.
If the cooking surface was already cool
before cleaning, warm it to 100 °C and
then switch it off again.
Exterior finish
(Porcelain enamel) Hot sudsy water: rinse and dry thoroughly.
Non abrasive cleansers: Ammonia,
Fantastic®, Formula 409®.
Mild abrasive cleansers: Bon Ami®,
Ajax®, Comet®.
Liquid cleaners: Kleen King®, Soft Scrub®
Acidic and sugar-laden spills deteriorate
the porcelain enamel. Remove soil
immediately.
Do not use wet sponge or towel on hot
porcelain.
Always apply minimal pressure with
abrasive cleaners.
