Dear Customer,
Thank you for purchasing a Fulgor Milano product. Fulgor Milano is
committed to excellence and our signature technologies provide you with
professional tools for your kitchen. One of our central philosophies is
continuous investment in research that is rooted in developing life enhancing
technology. Our goal is to deliver products that are worthy of your family
recipes and that will breathe life into your kitchen, the heart of your home.
We invite you to enjoy your new Fulgor Milano product with same amount
of care and attention that we have put into creating it.
Your Life | Our Passion

1
IMPORTANT:Save these instructions for the local electrical
inspector use.
INSTALLER: Please leave this manual with owner for future
reference.
OWNER: Please keep this manual for future reference.
GLOSSARYOFTERMS: NG-NaturalGas
LP -LiquidPropane
Payattentiontothesesymbolspresentinthismanual:
READANDSAVETHESEINSTRUCTIONS.
Toinstaller:
Leave these instructions with the appliance.
Tocustomer:
Retain these instructions for future reference.
Anti-TipBracketInstallation
DANGER
You can be killed or seriously
IMMEDIATELY follow instructions. injured
if you don’t
This is the safety alert symbol. This symbol alerts you to
potential hazards that can kill or hurt you and others. You
can be killed or seriously injured if you don’t follow these
instructions.
WARNING
If the information in this manual is not followed exactly, a fire
or explosion may resulting in product and property damage
and / or personal injury or death.
Do notstore or use gasoline or other flammable vapours and
liquids in the vicinity of this or any other appliance.
WARNING
EN
Anti-Tip Bracket
Range Foot
To verify the anti-tip bracket isinstalled and engaged:
• Slide range forward.
• Look for the anti-tip bracketsecurely attached to floor or wall.
• Slide range backso rear range foot isunder anti-tip bracket.
• See installation instructionsfor details.
TipOverHazard
A child or adult can tip the range and be killed.
Ensure the anti-tip bracket is engaged when the range is
moved.
Do not operate range without anti-tip bracket installed and
engaged.
Failuretofollow these instructionscanresultin death orserious
burnsto children and adults.
WARNING
TABLEOFCONTENTS
PAGE
1-SpecialWarnings 2
Before Starting Installation 2
Mobile Home Installation
2
Recreational ParkTrailers
2
2-ProductDimensionsandCutoutRequirements 3
Anti-Tip Bracket Installation
5
3- InstallationInformation 6
4-InstallationInstructions 7
5-GasRequirement 10
PressureTesting 11
PressureTest Method
11
Gas Connection 12
6-ConversionforLPorNGGas 13
Converting Appliance for Use withLPGas 13
Replace Injectors (two ring flame burner)
13
Replace Injector (griddle)
13
Converting Appliances for Use with NG Gas
14
PressureRegulator Conversion
14
InjectorsPosition
15
Low Flame Adjustment 17
Adjustment for Burners with One or Two Rings
17
Electronic Burner Ignition
18
The Burner Flames
18
7 Electricalsupply 19
8 Electricalconnections 20
4-wire connection
21
3-wire connection
21
DirectElectrical Connectionto the CircuitBreaker,
Fuse Box orJunctionBox
22
9 Finalchecklist 23
Connecting to 208 volt circuit
23

2
Proper installation is your responsibility. Have a qualified
technician install this range.
• Assure that gas connection conforms with local codes and
ordinances. In the absence of local codes, installations
must conform with American National Standard, National
Fuel Gas Code ANSI Z223.1 / NFPA 54 - latest edition**
Canadian CAN / CGA_B 149.1 or CAN / CGA-149.2
latest edition**
Copies of the standards listed may be obtained from:
** National Fire Protection Association One Batterymarch Park
Quincy, Massachusetts 02269
*** CSA International 8501 East Pleasant Valley Rd. Cleveland,
OH 44131-5575
NOTE: This range is manufactured for use with Natural gas
orPropane.
To convert to LP (propane) or NG (natural gas), see
instructions in the gas conversion kit provided in the
literature package. Proper gas supply connection
must be available. See gassupply requirements.
MobileHomeInstallation
BeforeStartingInstallation
• Check location where range will be installed. The location
should be away from strong drafty areas, such as windows,
doors and strong heating vents or fans.
• Electrical grounding is required. See “Electrical
Requirements”.
• Refer to manufacturer specifications of flexible gas line to
ensuresufficient gas flow is provided to the appliance.
• Assure that electrical installation is adequate and in
conformance with National Electrical Code, ANSI/
NFPA 70 - latest edition** , or Canadian Electrical Code,
part 1 C22.1 (latest edition)*** and all local codes and
ordinances.
The installation of this appliances must conform to the
Manufactured Home Construction and Safety Standards, Title
24 CFR, Part 3280 (formerly the Federal Standard for Mobile
Home Construction and Safety; Title 24 HUD part 280); or
when such standard is not applicable, the Standard for
Manufactured Home Installations (Manufactured Home Sites,
Communities and Setups), ANSI A225.1 - latest edition, or
with local codes.
When this range is installed in a mobile home, it must be
secured to the floor during transit. Any method of securing the
range is adequate as long as it conforms to the standards listed
above.
In Canada, the installation of this appliances must conform
with the current standards CAN / CSA-Z240 - latest edition, or
with local codes.
RecreationalParkTrailers
The installation of this appliances designed for Recreational
Park Trailers must conform with state or other codes or, in the
absence of such codes, with the Standard for Recreational
ParkTrailers, ANSI A119.5.
Before connecting the appliance to the gas supply line,
ensurethatitsgassettingisappropriate.
Thetype ofgas adjusted andshippedfromthefactory is
indicatedontheratingplate.
WARNING
- Observe all governing codes and ordinances.
- Write down the model and serial numbers before installing
the range. Both numbers are on the serial rating plate refer
to the illustration below.
IMPORTANT
EN 1 - Special Warnings
IMPORTANTINSTRUCTION
Pleasereadallinstructionsbeforeusingthisappliance.
LOCATIONOFRATINGPLATE
NOTE: Alternatively, the rating label can be placed in the
upper corner of the right wall of the enclosure

2 - Product Dimensions and Cutout Requirements
EN
3

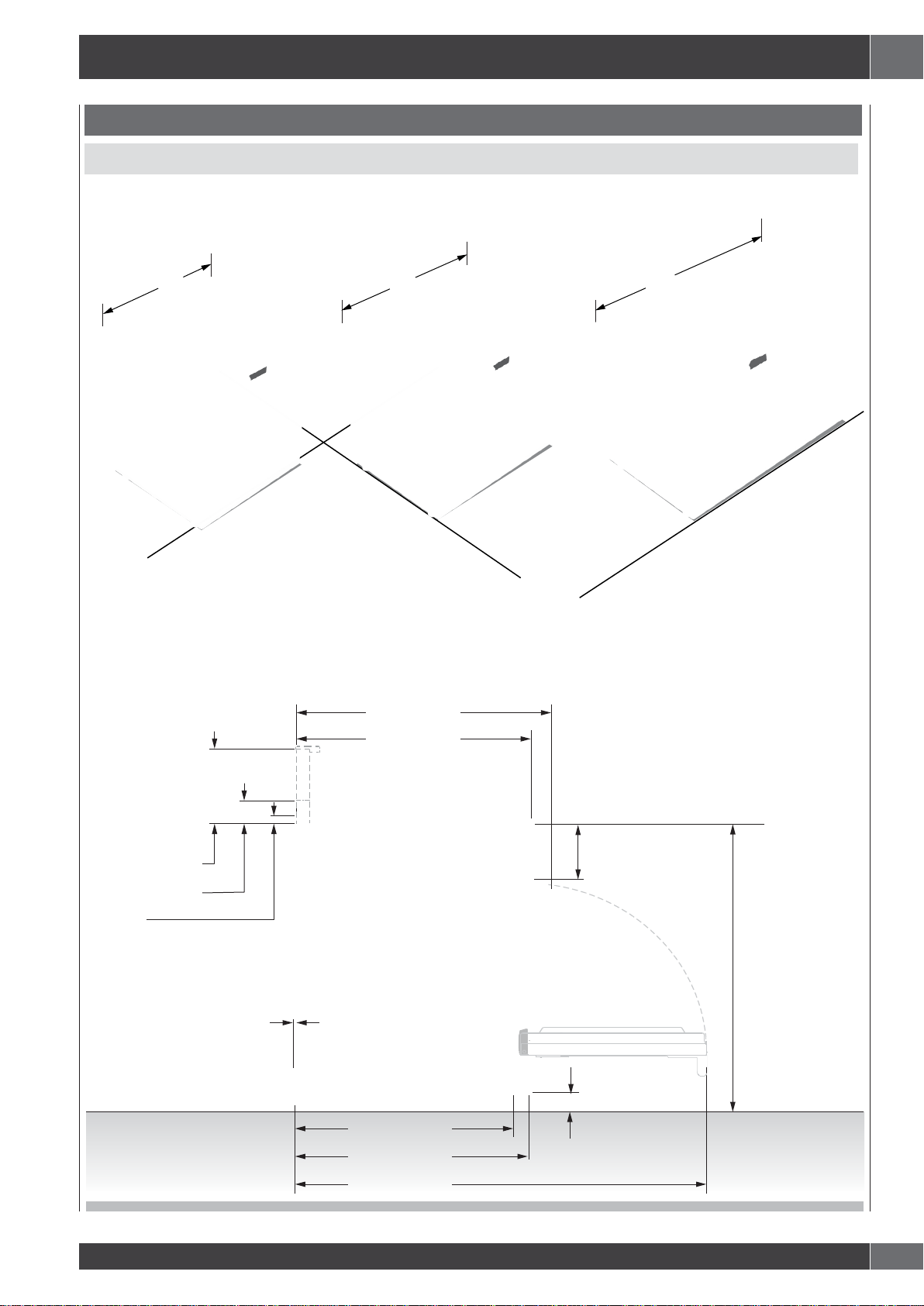

WIDERANGEMODELS
29 3/4” (75.8) 35 3/4” (91.0) 477/8” (121.6)
29 3 / 4” (75.6)
27 1 / 2” (69.7)
7” (17.9)
9" (22.8) [optional]
3" ( 7.6) [optional]
1" ( 2.5)
Max. 37 1 /4” (94.7)
Min. 35 3 / 8” (89.8)
3/8” (1)
25 3/ 4” ( 65.4)
1 3 /8” (3.5)
TO
3 3 /8” (8.5)
27 1 / 4” ( 69.1)
47 3 / 4” (121.4)
PRODUCTDIMENSIONS

4
**NOTE: Ensure your installation also complies with local and national building and fire codes.
If the surface of the entire back wall above the range and below the hood is not composed of a non-combustible material
then the 9” accessory back guard must be used.
*Consult local code for exact location requirements.
OPENINGWIDTH A&C B
Range 30” 30" (76.2) 6” (15.2)
Range 36” 36" (91.4) 7” (17.8)
Range 48” 48" (122 ) 7” (17.8)
Note: Clearances from non-combustible materials are not
part of the ANSI Z21.1 scope and not certied.
Clearances to non-combustible materials must
conform with local codes or, in the absence of local
codes, with the National Fuel Gas Code, ANSI
Z223.1/NFPA 54.
Minimum clearances:
Above cookingsurface (above 36” [91.4 cm])
• Sides- 6” (15.2 cm)
• Within 6” (15.2 cm) side clearance, wall cabinets no
deeper than 13” (33.0 cm) must be minimum 18” (45.7
cm) above cooking surface
• Wall cabinets directly above product must be a minimum
of 48” (122 cm) above cooking surface, no deeper than
13” (33.0 cm).
• Rear - 0” with 9 ” backguard; 0” with non-combustible
rear wall.
• Below cooking surface (36” [91.4 cm] and below)
• Install with zero clearance between adjacent combustible
construction below the cooking surface and the back
and sides of the appliance.
ADDITIONALCLEARANCES:
For island installation, maintain 2-½ in. minimum from
cutout to back edge of countertop and 3 in. minimum from
cutout to side edges of countertop (see top view).
For installation in a stepped island, 12” (30.5 cm) minimum
clearance is required from the back or sides of the range to
a combustible riser. The island installation is not part of the
ANSI Z21.1 scope and not certied.
FLUSHISLANDINSTALLATION
EN 2 - Product Dimensions and Cutout Requirements
CUTOUTREQUIREMENTS
C
Min. 30” (76.2)
To bottom of
ventilation hood
Min. 18” (45.7)
Min. 48” (122)
Minimum to
combustibles
when
no ventilation
hood is present**
Max.13” (33)
Min. 18”
(45.7)
Min. 6”
A
(15.2)
Min. 6 ”
(15.2)
3” (7.6)
*Suggested location
of utilities
2 ” (5.1) max. protusion from
wall for gas or electrical supply
GAS ELECTRIC
B
B
4” 3/4 (12.3)
BACK
min 2 1/2” (6.3)
min 3” (7.6)
min 3” (7.6)

2 - Product Dimensions and Cutout Requirements
EN
5
Before moving the range, protect any finished flooring and
secure oven door(s) closed to prevent damage.
VenthoodCombinations:
It is recommended that these ranges be installed in conjunction
with a suitable overhead vent hood.
Due to the high heat capacity of this unit, particular attention
should be paid to the hood and ductwork installation to assure
it meets local building codes.
A hood with suitable capture area and capable of at least
450 cfm is suggested to effectively evacuate odors, steam and
heat. Choosing to install a hood of lower cfm or configured for
recirculating may compromise the effectiveness of eliminating
the aforementioned factors.
Note: some State / Provincial building codes will require
make up air systems be installed for hoods above a
certain cfm threshold (300 cfm istypical).
It is your responsibility to understand and comply with
the local requirements for gas, electrical and ventilation
where these appliances are being installed.s.
Anti-TipBracketInstallation
Air curtain or other overhead hoods, which operate by
blowing a downward air flow on to a range, shall not be used
in conjunction with ranges with gas cooktop other than when
the hood and range have been designed, tested and certified
by an independent test laboratory for use in combination with
each other.
Clearancestohorizontalsurfacesabovetherange,measured
to the cooking surface are below. Failure to comply may
result in fire hazard.
• Installations without a hood require 48” (122) minimum
to combustibles.
• For other installations with a hood, refer to the hood
installation instructions for specific hood clearances.
WARNING
These ranges weigh up to 530 pounds. Some disassembly
will reduce the weight considerably. Due to the weight and
size of the range and to reduce the risk of personal injury or
damage to the product:
TWOPEOPLEAREREQUIREDFORPROPERINSTALLATION.
CAUTION
TipOverHazard
A child or adult can tip the range and be killed.
Ensure the anti-tip bracket is engaged when the range is
moved.
Do not operate range without anti-tip bracket installed and
engaged.
Failuretofollow these instructionscanresultin death orserious
burnsto children and adults.
WARNING
WARNING
To verify the anti-tip bracket isinstalled and engaged:
• Slide range forward.
• Look for the anti-tip bracketsecurely attached to floor or wall.
• Slide range backso rear range foot isunder anti-tip bracket.
• See installation instructionsfor details.
Anti-Tip Bracket
Range Foot

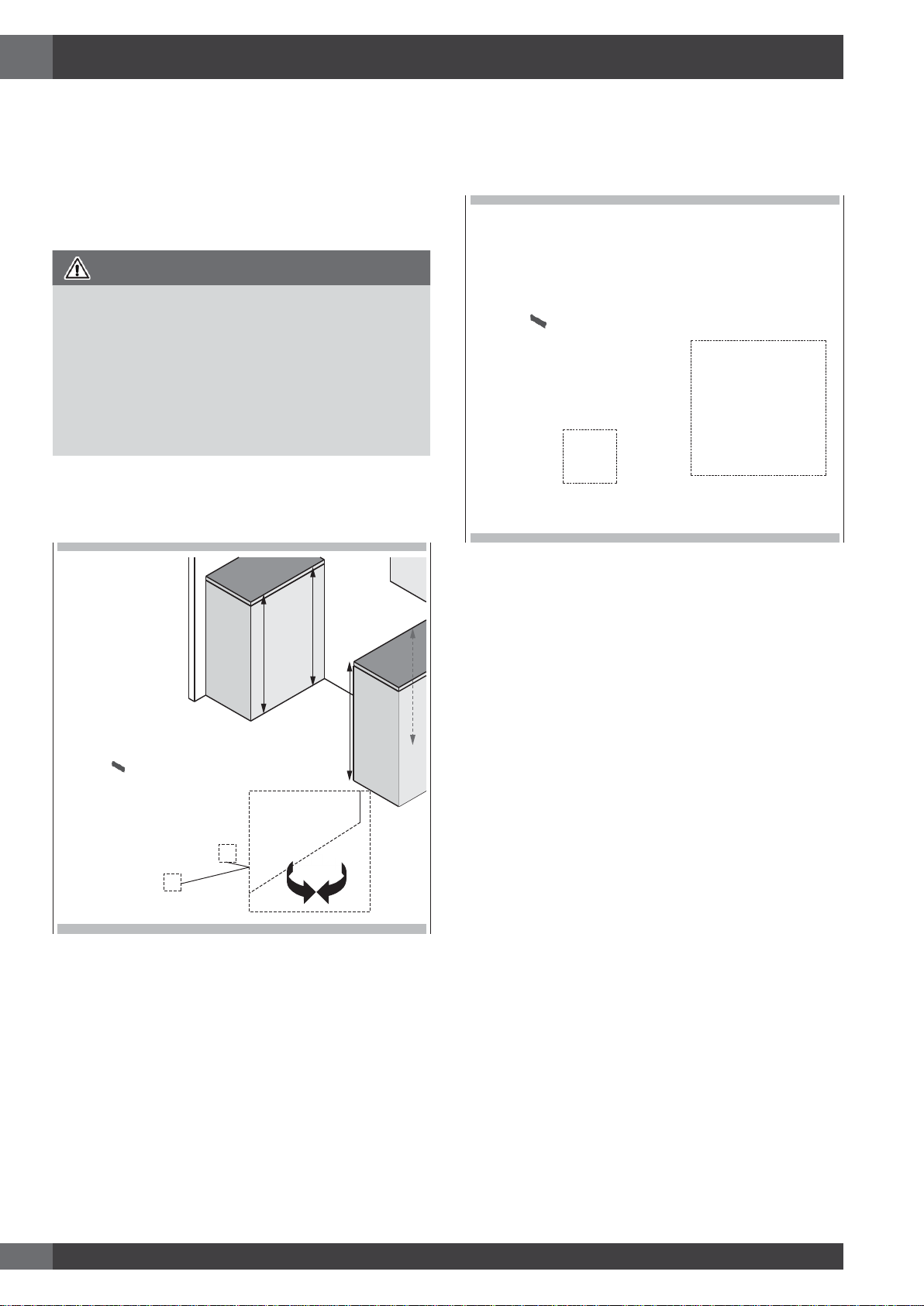

ANTI-TIPBRACKETINSTALLATION
BACKWALL
WALL
ANCHOR
CABINET
SIDEWALL
FLUSH
ANTI-TIP
BRACKET
For Concrete or Cement Construction:
You must use appropriate fastening hardware (not
provided).
Secure the bracket to the wall and/or floor with at least 4
wood screws(provided).
The anti-tip bracketshould be inserted into the opening on
the anti-tip brace on the range.

6
MATERIALSREQUIRED(notprovided)
Joint Sealant
Pipe Fittings
Shut-Off Valve
from 3-foot to 5-foot maximum (*) lengh, 5/8'' O.D.
CSA
-approved flexible metal gas supply.
*
If a longer connection line is used it may result in
noticeably
reduced performance if using many of the
burners
simultaneously.
NOTE:
Purchase new flexible line; do not use previously used
flexible gas line.
CHOOSINGRANGELOCATION
Carefully select the location where the range will be placed.
The range should be located for convenient use in the kitchen,
but away fromstrong drafts.
Strong draftsmay becaused by open doorsor windows, or by
heating and/or air conditioning vents or fans.
Before moving the range, protect any finished flooring and
secure oven door(s) closed to prevent damage.
Do not lift or carry the range door by the door handle.
To eliminate the risk of burns or fire by reaching over heated
surface units, cabinet storage space located above the surface
units should be avoided. If cabinet storage is to be provided,
the risk can be reduced by installing a range hood that projects
horizontally a minimum of inches beyond the bottom of the
cabinets.
All openings in the wall or floor where the range is to be
installed must besealed.
Remove packaging materials and literature package from the
cooktop before beginning installation.
Remove Installation Instructions from the literature pack and
read them carefully before you begin
EN 3 - Installation Information
• ExcessiveWeightHazard
Use two or more people to move and install range.
Failure to do so can result in back or other injury.
• CutHazard
Beware of sharp edges. Use the polystyrene ends when
carrying the product. Failure to use caution could result in
minor injury or cuts.
Donot obstructtheflow ofcombustion air atthe oven vent
nor aroundthebaseorbeneaththelowerfrontpanelofthe
range. Avoid touching the vent openings or nearby surfaces
asthey may become hot while the oven is in operation. This
range requires fresh air for proper burner combustion.
NEVER cover any slots, holes or passages in the oven or
cover an entire rack with aluminum foil. Doing so blocks
air flow through the oven and may cause carbon monoxide
poisoning. Aluminum foil linings may also trap heat, causing
a fire hazard.
WARNING
TOOLSWILLYOUNEED
When installing against a combustible surface, a minimum
riser is required for a the range, Follow all minimum
clearances to combustible surfaces shown in the illustration
on the previous pages.
IMPORTANTNOTE
MATERIALSPROVIDED
Anti-tip bracket
brace and screws
Appliance
pressure
regulator
Flare
union
adaptor
Gasket

4 - Installation Instructions
EN
7
Do not tip the range on its side when installing the legs.The
sidewalls are not designed to bear the weight of the range
and will bend. Any damage as a result of tipping will not
be covered by warranty. Follow the method in the enclosed
installation Manual.
STEP2
Open the top (2) and remove the accessories (3) then lift off
the cardboard sheath (4).
STEP1
Cut the banding (1) and remove the Installation Instructions
from the top of range and read them carefully before you
begin.
Standclear.Theendsofthecutbandingmaysnaptowardyou.
CAUTION
1
2
3
4

EN
4 - Installation Instructions
8
STEP3(For48”rangeonly)
Remove the rear wood brace (5) and the front metal securing
brackets(6).
STEP5
Slide back more and tilt back (9), putting the rear legs on the
floor and then mount the front legs (10) while in this angled
position supported by the rear legs and theskid.
STEP4
Slide the range back just enough to allow the rear feet to be
installed.
STEP6
Remove the base while supporting the front of the range (11)
and lower to the floor in a controlled manner (12).
11
12
5
6
9
10

4 - Installation Instructions
EN
9
STEP7
In case it is necessary to move the range; using the foam and /
or cardboard packaging (13), replace them around the range
strategically to protect the finished surfaces of the range from
contact with the hand-truck and any straps around the unit
(14). In the case of smaller ranges, you may use this technique
to remove the range from the skid and installing the legs (15).
Tilt the range to lower the hand-truck wheels off the skid. Place
appliance runners on the floor at the left and right sides in
front of the opening when moving into final position to protect
flooring. The oven door(s) add(s) a great deal to the overall
weight of the range, you may find it helpful to remove the
doors if moving the range a significant distance. Refer to the
included instruction manuals for how to remove and reinstall
the doors.
STEP8
Install the back guard (if provided) by the three screws on the
back. In some cases this may be an accessory back guard
that was ordered separately rather than the one which was
included with the range. Refer to instructions included with any
accessory for specific installation requirements.
13
14
15
9”
3”

EN
4 - Installation Instructions
10
STEP9
After completing the electrical and gas connections (see
included instructions) measure the four corners in cutout area
to verify if flooring islevel. Adjustthe leveling legsto the desired
height and ensure range is level. Turn the bottom section of
each leg counter-clockwise to raise the leg and clockwise to
lower it.
STEP10
Hook tabs on bottom of toekick into slots on either side of the
frame and rotate up until the magnets at the top of toekick
make contact and hold it in place securely
Ensure floor is protected. Slide unit into place making sure to
engage the anti-tip bracket.
When the unit first powers on, it must complete a safety door
lock test. Ensure doors are reinstalled if they were removed
to ease movement of the range prior to sending power to
the appliance. Do not open the oven door or attempt to
use the oven until you are sure the test has been completed
successfully. Opening / closing the door during the test
could result in damage to the lock mechanism. Refer to the
instruction manuals for more details if needed.
IMPORTANT

5 - Gas Requirement
EN
11
QUALIFIED SERVICE MAN OR GAS APPLIANCE INSTALLER
MUSTMAKETHEGASSUPPLYCONNECTION.
Leak testing of the applianceshall be conducted by the installer
according to the instructions given.
You must install the supplied connection parts seen here in
this configuration to the main gas manifold on the appliance.
Issues arising from a failure to do so will not be covered by
warranty.
Do not install the pressure regulator backwards as the gas will
not flow correctly. Check that the arrow on the back points in
the direction of gas flow.
Parts required for connection from gas supply to regulator are
the responsibility of the installer / owner
ImportantNotesforGasConnection
The appliance and its individual gas shutoff valve must be
disconnected from the gas supply piping system during any
pressure testing of thatsystem at test pressures in excess of 1 /2
psi (3.5 kPa).
The appliance must be isolated from the gas supply piping
system by closing its individual manual shut-off valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psi (3.5 kPa).
All supply piping, except as noted, should use common
National Pipe Thread (N.P.T.). For all pipe connections use an
approved pipe joint compound resistantto the action ofLPgas.
This appliance is designed for use with NG gas or LP gas.
The gas pressure regulator issupplied with this appliance.
It must be installed in the gas ahead of the manifold entrance.
It is pre-set for use with natural gas. To use it with different
gas it must be converted, as described in the Gas Conversion
paragraph.
If at any time the appliance is to be used with a different type
of gas, all the conversion adjustments must be made by a
qualified technician before attempting to operate the range
with that gas.
Thegasshould besupplied totheappliance’s pressureregulator
at line pressure between 6 and 14 inches of water column for
NG, and between 11 and 14 inches of water column forLP.

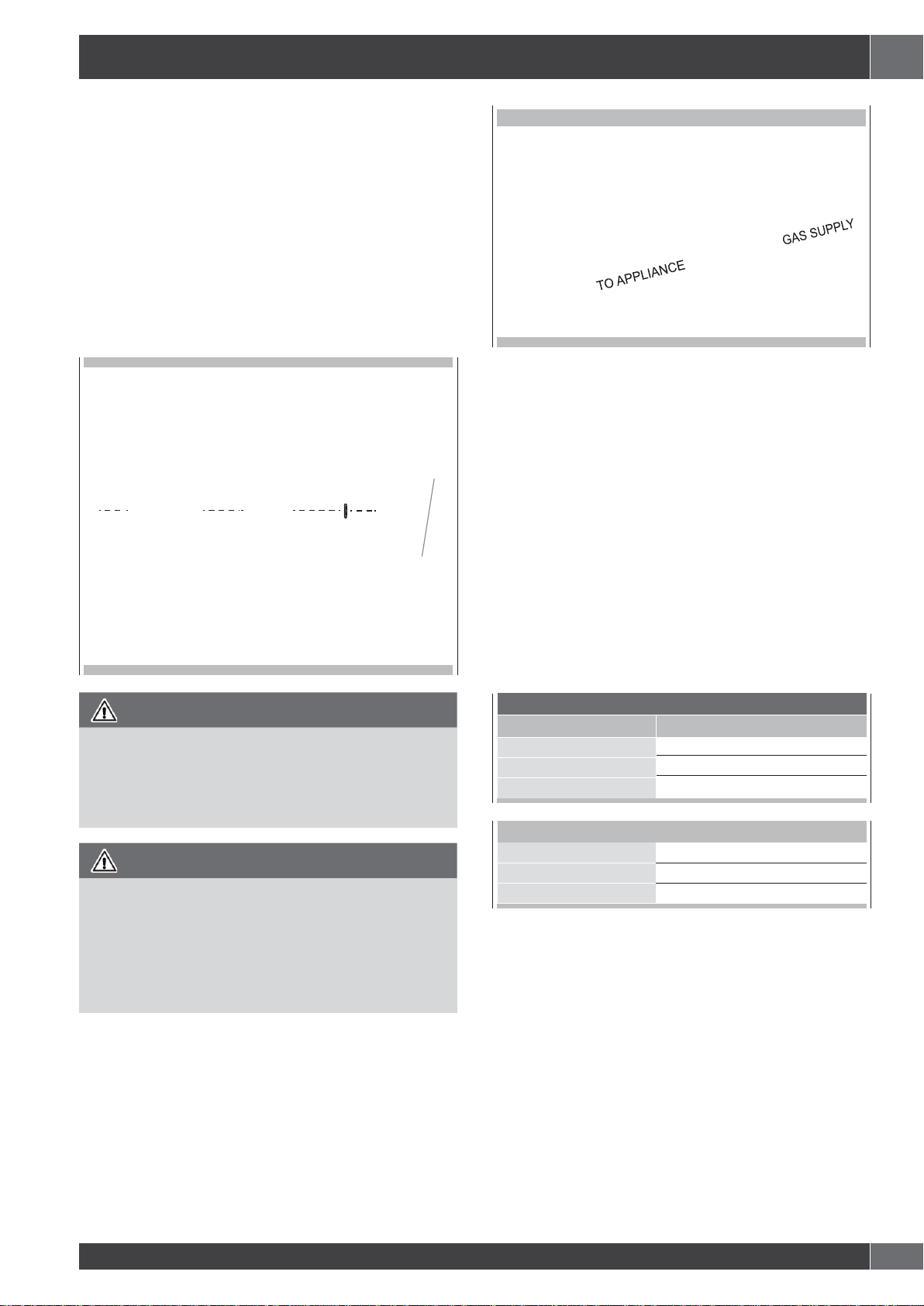

GASREQUIREMENTS
NATURALGAS WC
Manifold Pressure
5" (12.5 mb)
6" (15 mb)
14" (34.9 mb), .5 psi (3.5 kPa)
MinLinePressure
MaxLinePressure
LPGAS WC
Manifold Pressure
10” (25 mb)
MinLinePressure
11” (27.4 mb)
MaxLinePressure
14” (34.9 mb), .5 psi (3.5 kPa)
Use Teflon tape rated for gas applications at all threaded
connections.
Do not overtighten the connection at the manifold or you
could damage the gasket causing a leak.
ATTENTION
Ifthe line pressuresupplying the appliance pressure regulator
exceeds 14 inches W.C. (any gas), an external regulator
must be installed in the gas line ahead of the appliance
regulator to reduce the pressure to no more than 14 inches
W.C.Failure to do this can result inmalfunction and damage
to the appliance.
WARNING
Appliance
Appliance
pressure regulator
Flare union
adaptor
Gasket
GASSHUTOFFVALVE
OPEN POSITION

12
PressureTesting
The appliance must be isolated from the gas supply piping
system by closing its individual manual shut-off valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 PSIG (3.5 kPa).
This appliance, as well as its individual shut-off valve, must be
disconnected from the gas supply piping system during any
pressure testing of the system at test pressures in excess of 1 / 2
PSIG (3.5 kPa).
When checking appliance regulator function, make certain
pressure of natural gas supply is between 6 and 14 inches of
water column or, if converted for LP gas, between 11 and 14
inches.
THE PRESSURE TESTING SHOULD BE PERFORMED BY
MEANS OFTHE INJECTORTHREAD ZONE
PressureTestMethod
• Remove grate and burner cap (1).
• Remove aluminum gasspreader (2).
• Temporarily remove the injectors (A).
• Connect the pressure Test instrument into injector holder
thread zone (M6x0,75).
• Check if the cooktop has the correct pressure.
• Fix the injector removed for testing and replace the parts in
the right position.
EN 5 - Gas Requirement
EXPLODEDVIEWOFBURNER
LOCATIONOFGASRATINGPLATE
NEVERREUSEOLDCONNECTORSWHENINSTALLINGTHIS
RANGE.
To reduce the likelihood of gas leaks, apply teflon tape or a
thread compound approved for use withLP or Natural gases
to all threaded connections.
Apply a non-corrosive leak detection fluid to all joints
and
fittings in the gas connection between the supply line shut-
off
valve and the cooktop inlet.
Check for leaks!
Bubbles appearing around fittings and connections will
indicate a leak. If a leak appears, turn off supply line gas
shut-off valve, tighten connections, turn on the supply line
gas
shutoff valve, and retest for leaks. Never test for gas
leaks
with an open flame.
NEVERTIGHTENTOMORETHAN35ftlbsOFTORQUE
IMPORTANT
Do not attempt to attach the flexible connector directly to an
external pipe thread.
Connection requires flare union adapters.
For Massachusetts Installations:
1. Shut-off valve must be a “T” handle gasvalve.
2. Flexible gas connector must not be longer than 36 inch.
3. Notapprovedfor installationinabedroomor abathroom
unlessunit is direct vent.
CAUTION
1
2
A

5 - Gas Requirement
EN
13
PROPANEGAS
GasConnection
• Thread the appliances pressure regulator with 1 / 2” male
end connection bothsupplied with this appliance.
• Join the pressure regulator to the entrance threads of the
Gas Manifold with gasket supplied with this appliance.
The regulator is marked with a directional arrow indicating
correct direction of gas flow. Ensure the appliance regulator
is installed with the arrow pointing toward the gas manifold
entrance.
• Connect a manual shut-off valve to the gas supply in an
accessible location for turning on or shutting off gas to the
appliance.
• Install a coupling between the regulator and the shutoff valve
to completethe connection.
• Assure all pipe joint connections are gastight.
• Check alignment of valves after connecting the cooktop to the
gassupply to besurethemanifold pipehasnot beenmoved.
FOR ALTERNATIVE PIPING METHODS TO CONNECT THE
APPLIANCE TO THE GAS SUPPLY, A TRAINED SERVICE
TECHNICIANORGASAPPLIANCEINSTALLERMUSTMAKETHE
GASSUPPLYCONNECTION.Leaktestingoftheapplianceshallbe
conductedbytheInstalleraccordingtotheInstructionsgiven.
Unless prohibited by local codes or ordinances, a new A.G.A.
-Certified, flexible metal appliance connector may be used to
connect this appliance to its gassupply.
The connector must have an internal diameter not less than
nominal 1/2” NPT pipe and be no more than 5 feet in length.
A 1/2” NPT x 1/2” flare union adapter isrequired at eachend
of the flexible connector.
If a flexible connector is used assure that both the appliance
pressure regulator and manual shut-off valve are joined solidly to
other permanent hard piping (either gas supply or the appliance
manifold)so asto be physically stationary.
MAXIMUMGASPOWER
NATURALGAS
30”
74,000 Btu/h
36”
112,000 Btu/h
48”
123,500 Btu/h
30”
60,000 Btu/h
36”
90,000 Btu/h
48”
101,500 Btu/h
For MassachusettsInstallations:
1. Shut-off valve must be a “T” handle gasvalve.
2. Flexible gas connector must not be longer than 36 inches.
3. Not approved for installation in a bedroom or a bathroom
unlessunit is direct vent.
GASCONNECTION
FLARE UNION ADAPTOR APPLIANCEPRESSUREREGULATOR
FLARE UNION ADAPTOR
GASKET
FLARE UNION ADAPTOR
FLEXIBLE APPLIANCE CONNECTOR
(5 FT.) MAX, (1.52 m) MAX
MANIFOLD SHUTOFF VALVES
GASKET
FLARE UNION ADAPTOR
FLEXIBLE APPLIANCE CONNECTOR
(5 FT.) MAX, (1.52 m) MAX
APPLIANCEPRESSUREREGULATOR
MANIFOLD SHUTOFF VALVES
Do not attempt to attach the flexible connector directly to an
external pipe thread.
Connection requires flare union adapters.
CAUTION

EN
6 - Conversion for LP or NG Gas
14
ConvertingApplianceforUsewithLPGas
If this appliance is to converted for use with gas LP (propane
or butane), each of the following modifications must be
performed:
Gas conversion label (aluminium) to be placed on the back of
the appliance, near the data plate, after conversion has been
carried out;
ReplaceInjectors(tworingflameburner)
1. Remove the grates and burner caps.
2. Remove aluminium gasspreader.
3. Remove the three screws from the simmer gas spreader
(1).
4. Remove the two screws of the injector cover (2).
5. Remove injector (A) by using a 9-32” (7mm) nut driver
counter clockwise.
6. Remove injector (B) by using a 9-32” (7mm) box wrench
counter clockwise.
7. Install the injectors supplied with this appliance in the
appropriate burner. The injectors have small numbers
stamped on the side, this number corresponds with the
orifice diameter and its correct burner location (refer to
illustrations in the section: “InjectorsPosition”).
8. Turn clockwise to tighten (tighten to a torque of 15 to 20
inch-lbs).
9. Replace all parts following the reverse order.
10.Save the injectors removed from the appliances for
future use.
ReplaceInjector(griddle)
1. Remove griddle plate.
2. Remove the burner fixing screw (1).
3. Remove the springs (2) from thermocouple and ignitor to
shift the burner.
4. Remove injector (A) by using a 9-32” (7mm) nut driver
counter clockwise.
5. Install the injector supplied with this appliance. The injector
has small numbers stamped on the side, this number
corresponds with the orifice diameter.
6. Turn clockwise to tighten (tighten to a torque of 15 to 20
inch-lbs.)
7. Replace all parts following the reverse order.
8. Save the injectors removed from the appliances for future
use.
Conversion is to be performed by an AUTHORIZED
SERVICER(or other qualified agency) in accordance with the
manufacturer’s instructions and all codes and requirements of
the authority having jurisdiction. Failure to follow instructions
could result in serious injury or property damage.
The qualified agency performing this work assumes
responsibility for this conversion.
WARNING
Beforeproceedingwiththeconversion,shutoffthegassupply
totheappliancepriortodisconnectingtheelectricalpower.
CAUTION
EXPLODEDVIEWOFBURNER
1
2
B
A

6 - Conversion for LP or NG Gas
EN
15
Pressureregulatorconversion
The appliances is designed for use with NG gas or LP gas.The
gas pressure regulator is supplied. It must be installed in the
gassupply line ahead of the manifold entrance.
It is pre-set for use with the gas as indicated on the appliance
label supplied with the appliance. For use with different gas
the appliance must be converted.
For the pressure regulator conversion follow the instructions
below:
• Disconnect all electrical power, at the main circuit breaker
or fuse box.
• Shutoff the gassupply to thecooktop by closing themanual
shut-off valve.
• Adjust the pressure regulator, by following the instruction
(see figure)
1. Unscrew the regulator cap
2. Unscrew the plastic conversion plug from the cap turn
over and screw back (wide section away from cap for
LPand against cap for NG) see figures below.
3. Replace the regulator cap ensuring gasket is in place.
Proceed to Pressure Regulator Conversion noting the LP /
Propanepositiontocompletetheconversion.
After replacing the injectors adjust the burner flame (see Low
Flame Adjustment paragraph).
Check the appearance of each burner’s flame at HILO settings,
if the flame appears too large or too small make sure that all
stepswere completed correctly.
ConvertingAppliancesforUsewithNGGas
If this appliance should be converted for use with gas NG
(natural gas), each of the following modifications must be
performed.
1. Convert the pressure regulator to NG position as per the
section “PressureRegulator Conversion”.
2. Replace all injectors following the step described on the
previous pages, observe the number stamped on the side,
this number corresponds to the orifice diameter and its
correct burner location (refer to the illustrations in section:
“InjectorsPosition”).
3. Adjusttheburnerflame(seeLowFlameAdjustmentsection).
Check the appearance of each burner’s flame at HI - LO
settings, if the flame appears too large or too small make sure
that allsteps were completed correctly.
EXPLODEDVIEWOFBURNER
1
A
2
PRESSUREREGULATORCONVERSION
NG
LP
Before replacing the regulator cap, check ifthe position
of plug is suitable for the gas
CAP
GASKET
NG POSITION
LP/PROPANEPOSITION
PRESSUREREGULATOR
PLUG

EN
6 - Conversion for LP or NG Gas
16
NG-DUALFLAMERING36”
NG-DUALFLAMERING&GRIDDLE48”
* depending on the model
NG-DUALFLAMERING30”
INJECTORSPOSITION
*MAINFLAME180or
*MAINFLAME192
72
SIMMER
MAIN FLAME 180
72
SIMMER
*MAINFLAME180or
*MAINFLAME192
72
SIMMER
MAIN FLAME 180
72
SIMMER
MAIN FLAME 192
72
SIMMER
MAIN FLAME 155
MAIN FLAME 180
72
SIMMER

6 - Conversion for LP or NG Gas
EN
17
LP-DUALFLAMERING36”
LP-DUALFLAMERING&GRIDDLE48”
LP-DUALFLAMERING30”
INJECTORSPOSITION
MAIN FLAME 105
50
SIMMER
MAIN FLAME 105
50
SIMMER
MAIN FLAME 105
50
SIMMER
MAIN FLAME 94

EN
6 - Conversion for LP or NG Gas
18
LowFlameAdjustment
NOTE: If the burner does not light within five seconds, turn the
knob off and wait one minute before trying again.
This appliance is shipped from the factory with low and
medium flame settings adjusted.
If further adjustment is necessary, proceed as follows:
Adjustment for Burners with one or two flame
rings:
1. Light burner and set control knob for low flame.
2. Remove control knob from valve stem.
3. Remove knob seat from control panel.
4. Insert a slender, thin-blade screwdriver into the recess
behind the control knob (A, B or C) and engage blade with
slot in adjusting screw.
5. Turn adjusting screw to set flame size:
• clockwise to reduce
• counterclockwise to increase
6. Replace control knob when adjustment is completed.
LOWFLAMEADJUSTMENT
If you attempt to measure the inner cone of the flame, please
use caution.
Burns could result.
CAUTION
Lightinggasburnerswithamatchisdangerous.
Youshouldmatchlighttheburnersonly in anemergency.
Light a match and hold the flame near the burner you want
to light. Woodenmatches work best.
Push in and turn the control knob slowly.
Be sure you are turning the correct knob for the burner you
are lighting.
DANGER
A - SIMMER
B - MAIN FLAME
