1 - Important Instructions
1.1 Important safety instructions
Symbols used in the Guide:
NOTE
Tips for the correct use of the appliance
IMPORTANT
Directions to avoid appliance damage
WARNING
Directions to prevent injury
1.2 Children safety
DANGER: Risk of child entrapment. Before you throw away
your old refrigerator or freezer:
• Take off the doors
• Leave the shelves in place so that children may not easily
climb inside.
IMPORTANT
Dimensions in parentheses are in inches.
Weights in parentheses are in pounds.
Temperatures in parentheses are in Fahrenheit degrees.

EN
3
2.1 Appliance features and installation
requirements
Appliance dimensions Professional Built-In Series
Series 24” w: 599 mm (23 5/8”)
h: 2120 mm (83 1/2”)
d: 610 mm ( 24”)
Series 36” w: 899 mm (35 3/8”)
h: 2120 mm (83 1/2”)
d: 610 mm ( 24”)
Appliance dimensions Professional Series
Series 24” w: 599 mm (23 5/8”)
h: 2120 mm (83 1/2”)
d: 635 mm ( 25”)
Series 36” w: 899 mm (35 3/8”)
h: 2120 mm (83 1/2”)
d: 635 mm ( 25”)
Packaging dimensions
Series 24” w: 650 mm (25 5/8”)
h: 2260 mm ( 89”)
d: 800 mm (31 1/2”)
Series 36” w: 950 mm (37 3/8”)
h: 2260 mm
( 89”)
d: 800 mm
(31 1/2”)
Weight with packaging
Series 24” up to 230 kg (507 lb)
Series 36” up to 295 kg (650 lb)
Voltage AC 110 - 120V 60Hz
Power supply cable 90° Nema 5-15P
Potable water supply
pressure
from 0.05 MPa to 0.5 MPa
(0.5 Bar - 5 Bar)
Water connection 3/4” NPT (1/4” elbow
adapter included)
Provided installation
accessories
- Customized panels mounting
Kit (if applicable)
- Anti-tipping Kit
- Lateral connecting kit
- 4 mm (1/8”) allen wrench
Additional equipment
necessary
- Phillips head screwdriver
- wood drill
- 2.5 mm (1/8”) bit for wood
- 8 mm (3/8”) bit for walls
- 17 mm (11/16”) wrench
- 19 mm (3/4”) wrench
2. Technical Requirements

EN
4
2.2 Installation niche features: Professional
Built-In Series
A- area to be left clear for the anti-tipping brackets
Minimum Niche Height
2134 mm (84”)
Minimum Niche Width
36”: 902 mm (35 1/2”)
24”: 602 mm (23 3/4”)
Minimum Niche Depth
610 mm (24”) + panel thickness for flush install
Door Swing Clearance
36”: 1470 mm (57 7/8”)
24”: 1170 mm (46”)
Door Opening Angle
105°
Width
36”: 899 mm (35 3/8”)
24”: 599 mm (23 5/8”)
Height
2120 mm (83 1/2”) + 25 mm (1”)
Depth with door (without panel)
610 mm (24”)
Minimum distance from the wall (hinge side)
36”: 160 mm (6 1/4”)
24”: 90 mm (3 1/2”)
105°
560 (22”)
610 (24”)
36: 899 (35 ⅜”)
24: 599 (23 ⅝”)
10 (⅜”)
992 (39”)
36: 1470 (57 ⅞”)
24: 1170 (46”)
36: 160 (6 ¼”)
24: 90 (3 ½”)
A A
140 (5 ½”) 140 (5 ½”)
100 (4”) 100 (4”)
min 2064 (84”)
36”: 902 (35 ½”)
24”: 602 (23 ¾”)
610 (24”)
560 (22”)
1293 (50 ⅞” )
474
(18 ⅝”)
231 (9
⅛”
) +
25 (1”)
500 (19 ¾”)
248 (9
¾”
)
+ 25 (1”)
20 (¾”)
721 (28 ⅜”) +25 (1”)
2120 (83 ½”) +25 (1”)

EN
5
2.3 Installation niche features: Professional
Series
A- area to be left clear for the anti-tipping brackets
Minimum Niche Height
2134 mm (84”)
Minimum Niche Width
36”: 902 mm (35 1/2”)
24”: 602 mm (23 3/4”)
Door Swing Clearance
36”: 1470 mm (57 7/8”)
24”: 1170 mm (46”)
Door Opening Angle
105°
Width
36”: 899 mm (35 3/8”)
24”: 599 mm (23 5/8”)
Height
2120 mm (83 1/2”) + 25 mm (1”)
Depth with door
635 mm (25 ”)
Minimum distance from the wall (hinge side)
36”: 230 mm (9”)
24”: 160 mm (6 1/4”)
IMPORTANT
If the units are to be installed inside a niche or within an
enclosed structure, it is necessary to design a ventilation
shaft at the back of the niche to assure proper ventilation
at the back of the unit.
Cross-sectional chimney ventilation area should equal
200cm² (31in²)
1016 (40”)
36: 1470 (57 ⅞”)
24: 1170 (46”)
560 (22”)
75 (3”)
36: 899 (35 ⅜”)
24: 599 (23 ⅝”)
10 (⅜”)
58 (2 ¼”)
105°
635 (25”)
36: 230 (9”)
24: 160 (6 ¼”)
A A
140 (5 ½”) 140 (5 ½”)
100 (4”) 100 (4”)
min 2134 (84”)
36: 902 (35 ½”)
24: 602 (23 ¾”)
560 (22”)
2120 (83 ½”) +25 (1”)
613 (24 ⅛”)+25 (1”)
635 (25”)
693 (27 ¼”)
516 (20 ⅜”)1296 (50”)
195 (7 ⅝”)
8 (⅜”) 8 (⅜”)
97 (3 ⅞”)
+ 25 (1”)
min 10 (⅜”)
min 50 (2”)

EN
6
3.1 Transport to installation site and unpacking
WARNING
The appliance is very heavy.
Take maximum care during handling to avoid injury.
IMPORTANT
The appliance should always be transported in an erect
position.
Avoid at all costs leaning it on its front side.
1
4
1
2
3
Since this is a large and heavy appliance, before
transporting the appliance, check the access to the location
where it will be installed (door size, manoeuvring space in
stairwells, etc.).
The appliance is attached to the base of the packaging
(pallet) through four bolts which can be removed using a 19
mm (3/4”) wrench.
It is recommended to use a manual transporting device to
move the appliance to the installation site, and only at this
point to remove the base of the packaging.
The appliance should always be transported in an erect
position.
If this is not possible, transport the appliance laying on its
rear side.
Once at the installation site, the appliance, which is
equipped with four wheels, can be taken off the pallet and
positioned in the installation area.
Operate as follows:
•Take off the four bolts securing [ 1 ] the appliance to the
pallet by means of a 19 mm (3/4”) wrench or socket.
• Remove the fixing brackets [ 3 ] and [ 4 ].
•To release the front fixing bracket [ 3 ], unscrew the rear
wheel adjusting bolt [ 2 ] by means of a 13 mm (1/2”)
wrench or socket. Avoid straining this bolt at its stop
points one way or the other so as to not damage the rear
leveling system.
Ensure the front leveling legs are retracted so that
all 4 wheels are able to contact the floor for easiest
maneuvering.
•From the back of the unit and by means of a suitable,
high duty hand trolley, take off the appliance and place
it on the floor.
Be very careful to avoid any damage to floors. Delicate
floors should be protected with plywood, hard cardboard
or similar material panels.
3.2 Electrical and Water connection
NOTE
The Built-in filter cannot make it safe to drink any water
which is not already suitable for human consumption.
WARNING
The appliance should be connected only to a potable
water supply system.
IMPORTANT
Do not use extension cords or adapters.
Once the appliance is fully installed, connected to the
water supply (if applicable) and operational, in the event
that the water supply must be turned off, touch the button
on control panel to disable the ice maker before the
main water is shut off to prevent the appliance from
entering a ‘NO WATER IN’ alarm state.
EW
E W
EW
E W
The appliances are delivered from the factory for operation
at 110V-120V AC - 60Hz (US and Canada).
They are provided with a suitable supply cable and plug to
be connected to an appropriate 15A socket providing an
effective grounding.
A dedicated 15A circuit breaker should also be installed and
should be easily accessible so that it can be easily switched
off before performing any installation or maintenance.
3. Preparing The Installation

EN
7
To connect to the water supply system (for appliances
equipped with ice makers) a 1/4” waterline with accessible
shut-off valve must be supplied.
The appliance is provided with a water adapter elbow
which is suitable for the recommended water pressure and
complies the applicable food and water regulations.
The water filter cartridge, which is provided with
the appliance, should be installed according to the
accompanying instructions. The solenoid connection on the
appliance is 3/4” diameter but is metric threaded (NPT).
A standard garden hose threaded connector such as a
braided stainless hose found at typical hardware stores will
strip or damage the solenoid threads. It is recommended to
use only the supplied 1/4” quick connect elbow adapter
for connecting a 1/4” copper or polyethylene source water
line to the appliance.
IMPORTANT
Do not use extension cords and/or multiple adapters for
the power supply connection.
ELECTRICAL AND WATER SUPPLY BEHIND THE UNIT
Professional Built-In Series Professional Series
E
W
E
W
3.3 Energy: Alternatives and Home Automation
If energy is supplied through an alternative energy power
source (solar, geothermal, etc..) or if home automation
systems are installed with carrier signals in the power
lines, it may be necessary to install an isolation transformer
(not supplied) to prevent interference with the appliance’s
electronics.
Professional Built-In Series:
FIG.1 - BACK OF APPLIANCE
Water connection
Electrical connection
Operate as follows:
• Unwind the electric cable and connect it directly to the
wall socket.
• Make sure the appliance is in the Stand-by condition and
that all lights are off; should it be not so press the Unit
button to switch it off.
FIG.1
1

EN
8
Professional Series:
FIG.2 - BACK OF APPLIANCE
Electrical connection
Water connection
Operate as follows:
• Unwind the electric cable and connect it directly to the
wall socket.
• Make sure the appliance is in the Stand-by condition and
that all ights are off; should it be not so press the Unit
button to switch it off.
FIG.3 - FRONT OF APPLIANCE
1
• Firmly tighten with fingers - a tool / wrench should not
be needed to make a proper seal. Turn on the water and
ensure all connections are not leaking prior to pushing
the unit into the niche.
3.4 Levelling
Adjust the appliance level by means of the front levelling
feet and the rear adjustable wheels
1
2
1
2
Operate as follows:
• If necessary, remove the bottom plinth or grille (it is kept
in position by magnets), adjust the height of the levelling
feet [ 1 ] by means of a 17 mm (11/16”) wrench.
• Then adjust the height of the rear wheels by turning the
front adjusting bolts [ 2 ] clockwise (raise) or counter-
clockwise as it may be required.
Take care if using a power driver for this and lower the
clutch to prevent damaging the leveling mechanism.
• Remount the bottom plinth or grille.

EN
9
4. Niche Dimensions
4.1 Niche Dimensions and Installation Styles:
Professional Built-In Series
24”: 602 (23 ¾”)
36”: 902 (35 ½”)
Series Niche Panels Width
36” 902 (35 1/2”) 897 (35 1/4”)
24” 602 (23 3/4”) 597 (23 1/2”)
B- KCCITU: Central connection Kit
REFSBSPRO60 600/SOFIA
SOFIA 1 PIECE JOINING
KIT (includes joining strip,
60” one piece upper grill
& toe kick and insulated
blanket
REFSBSINT60 600/SOFIA
Destinto 1 PIECE
JOINING KIT (includes
joining strip only)
REFSBSPRO72 600/SOFIA
SOFIA 1 PIECE JOINING
KIT (includes joining strip,
72” one piece upper grill,
toe kick and insulated
blanket
(not included - must be ordered as a separate accessory)
4.2 Flush installation with standard aluminum
trims
6,5 (¼”)
4.3 Prominent installation with standard
aluminum trims
6,5 (¼”)
10 (3⁄8”)

EN
10
Professional Built-In SERIES
5.1 Decorative door and Bottom-Drawer panels
layout
The dimensions of the panels are indicated in the table and
drawings on subsequent pages.
Nevertheless, according to the requirements for aligning
with other kitchen structures, the door panel can be higher
than the upper edge of the refrigerator door, and the drawer
panel can be lower than the edge of the drawer.
The panels must be mounted using special brackets which
attach to adjustable devices provided on the door and
drawer and with brackets that anchor and adjust the panel’s
vertical direction.
Brackets and fixing screws are provided with the appliance
and must be applied to the panel as indicated.
Operate as follows:
To prepare the panels to be mounted on the appliance,
follow these steps, working on the back of the panel.
Door Panel
• Draw a vertical center line on the panel from top to
bottom [ 1 ].
1
• Starting from the bottom edge of the panel, mark the
positioning of the brackets [ 2 ].
2
• Following the corresponding table, mark the external and
then the internal hole [ 3 ].
3
• Position the brackets on each set of marks to make sure
they are aligned [ 4 ], if you choose to drill small pilot
holes for the screws pay special attention to not pass
through the panel entirely. [ 5 ].
4
• Screw the brackets in place [ 6 ].
65
5. Panels Mounting

EN
11
Drawer Panel
•When preparing the Drawer Panel, follow the same
instructions as per the door panel, but make sure
measurements are taken starting from the top edge [ 7 ].
The height-adjustment support brackets are oriented the
opposite way [ 8 ] (note imgs 4 and 8).
7
8
•Prepare the appliance door (and drawer(s) if applicable)
for panel mounting by threading the shoulder bolts into
the recessed receivers and the set screws into the other
hole [ 9 ]. Ensure the end with the hex key socket is
threaded into the door and not on the visible end. Thread
this in far enough that it is flush with appliance door face
so as not to interfere with hanging the panel. You will
adjust these later.
9

EN
12

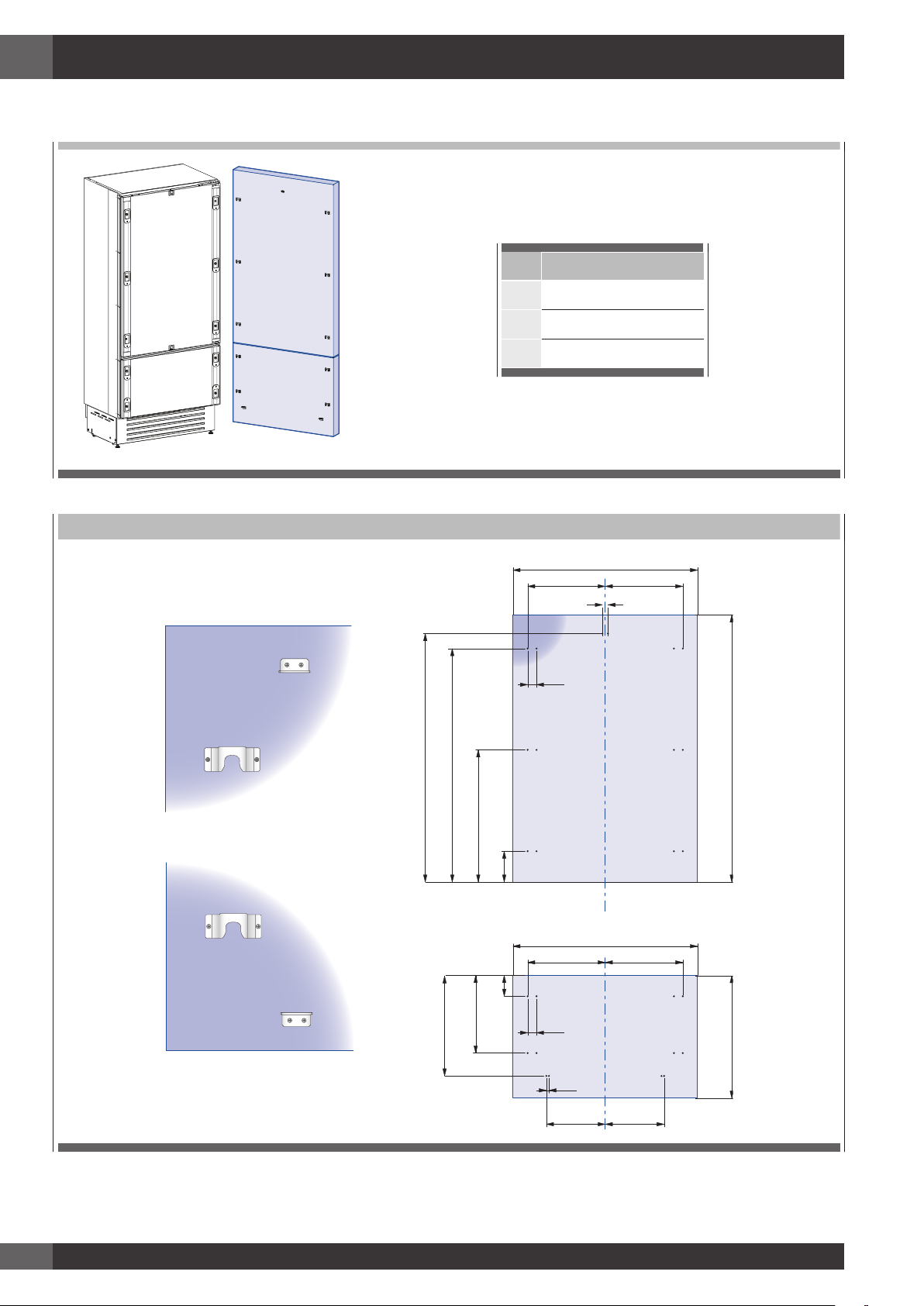

5.2 Decorative panels layout for Fridge with one Bottom-Drawer
SERIES 36”
A897 (35 1/4”)
B417 (16 3/8”)
C354.5 ( 14”)
HOLES POSITIONS
A
BB
A
BB
C C
13 (½”)
34 (1 3⁄8”)
6.5 (¼”)6.5 (¼”)
34 (1 3⁄8”)
1273 (501⁄8”)
1163 (45 ¾”)
660 (26”)
157 (6 ¼”)
min 1390 (54 ¾”)max 635 (25”)
507.5 (20”)
382 (15 1⁄8”)
100 (4”)

EN
13
5.3 Decorative panels layout for Fridge with Glass door and one Bottom-Drawer
SERIES 24”
A597 (23 1/2”)
B276.5 (10 7/8”)
C203.5 ( 8”)
DOOR WINDOW DIMENSIONS HOLES POSITIONS
327 (12 7⁄8”)
1075 (42 3⁄8”)
<200 (7 7⁄8”)
115 (4 ½”)
135 (5
3⁄8”)135 (5 3⁄8”)
B B
B B
A
C C
1286 (50 5⁄8”)
1152.5 (45 3⁄8”)
650.5 (25 5⁄8”)
148.5 (5 7⁄8”)
6.5 (¼”)
6.5 (¼”)
13 (½”)
34 (1 3⁄8”)
34 (1 3⁄8”)
min 1390 (54 ¾”)
max 635 (25”)
507.5 (20”)
382 (15 1⁄8”)
100 (4”)

EN
14
5.4 Panels Dimensions Single Bottom - Drawer
Panels can have thickness ranging between 18 mm (3/4”)
and 28 mm (1-1/8“).
Door panels can have a maximum weight 23 kg (51 lbs)
and drawer panels may be a maximum weight of 11kg
(25 lbs)
Exceeding these weights could void your warranty for any
service issues which can be attributed to overweight panels.
The hinging mechanism on appliances is considered to be
`Zero-clearance`. The door and drawer widths specified
below assume the minimum niche width is being used and
a 3.5mm (1/8”) reveal is desired around the panels. Adjust
your panel dimensions accordingly to your own design
criteria considering your niche width and your reveal.
Minimum reveal / gap should not be less than 1.5mm
(1/16”).
SERIES
DOOR/DRAWER
WIDTH A
DOOR CUTOUT
WIDTH B
36” 897 (35 1/4”)
24” 597 (23 1/2”) 327 (12 7/8”)
Example:
84” niche height
36” niche width
4” toe kick height
1/8” gap desired all around
Door panel:
Width: 35-3/4”
Height: 54-3/4”
Drawer panel:
Width: 35-3/4”
Height: 84”-1/8”-54-3/4”-1/8”-4”=25”
If you want a 6” toe kick height then your bottom drawer
panel height would be 23”
2121 (83 ½") + 25 (1")
min 540 (21 ¼”)
max 635 (25”)
A B
3 (1⁄8”)
1390 (54 ¾”)
115 (4 ½”)
min 200 (7 7⁄8”)
135
(5 3⁄8”)
135
(5 3⁄8”)
1075 (42 3⁄8”)

EN
15

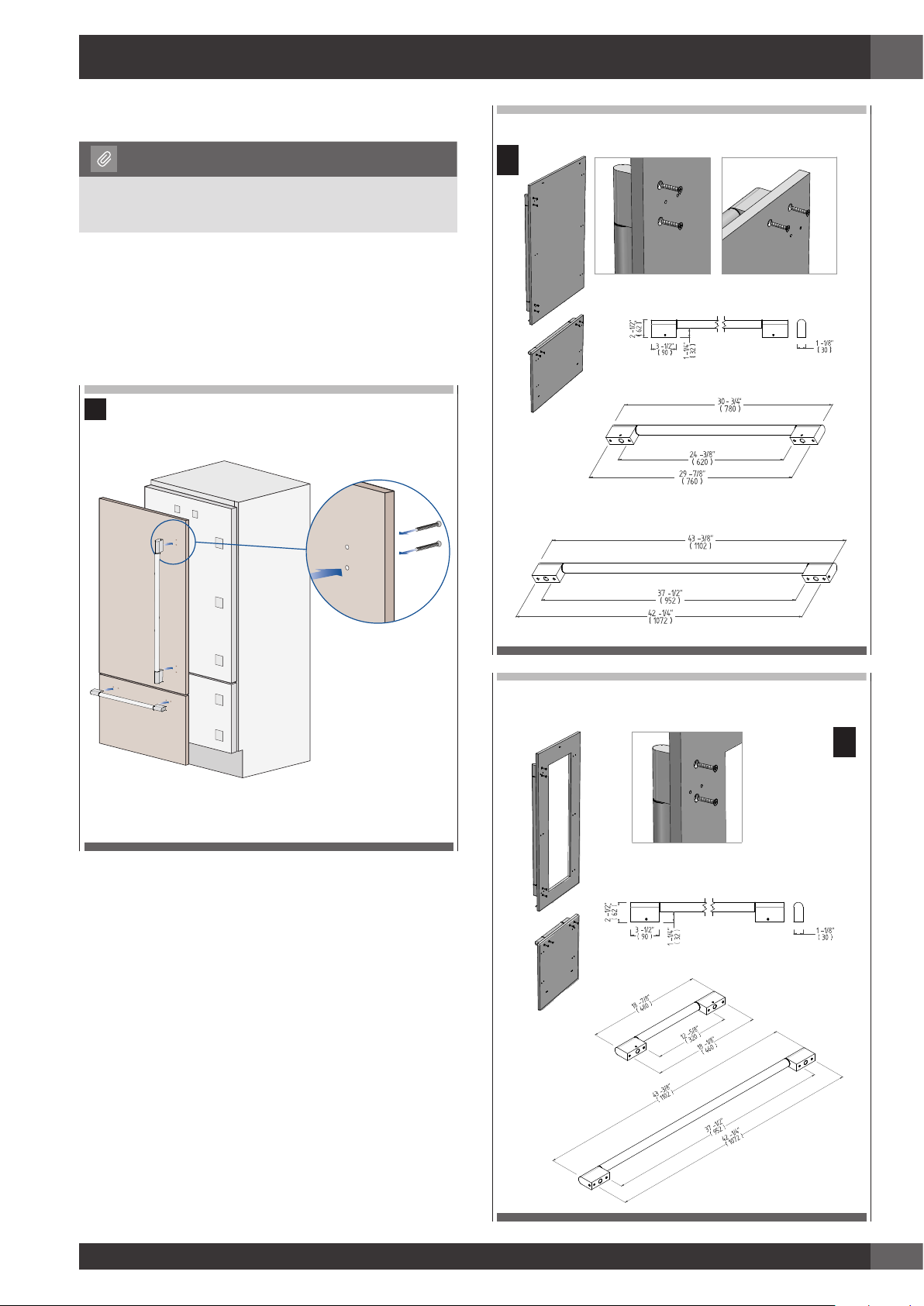

5.5 Mounting the handles
NOTE
Handles will have to be mounted on the panels before
they are applied to the fridge.
Operate as follows:
• Drill two holes on the back of the panels according to the
table below [ 1 ].
• Depending on the style of panel, it may be necessary to
create tapered countersinks for the screw heads
1
Decorativepanelslayoutforfridgewithonebottom-drawer
Horizontal drawer handle
Vertical door handle
2
Decorative panels layout for wine cooler with glass door
and one bottom-drawer
Horizontal
drawer handle
Vertical
door handle
2

EN
16
•Place the handle on top of the holes and insert the screws
through the panel and into the threaded receivers in the
handle [ 2 ].
•Snug firmly but do not over tighten as damage may occur
to the handle or the panel
5.6 Mounting panels to the door and the
drawer

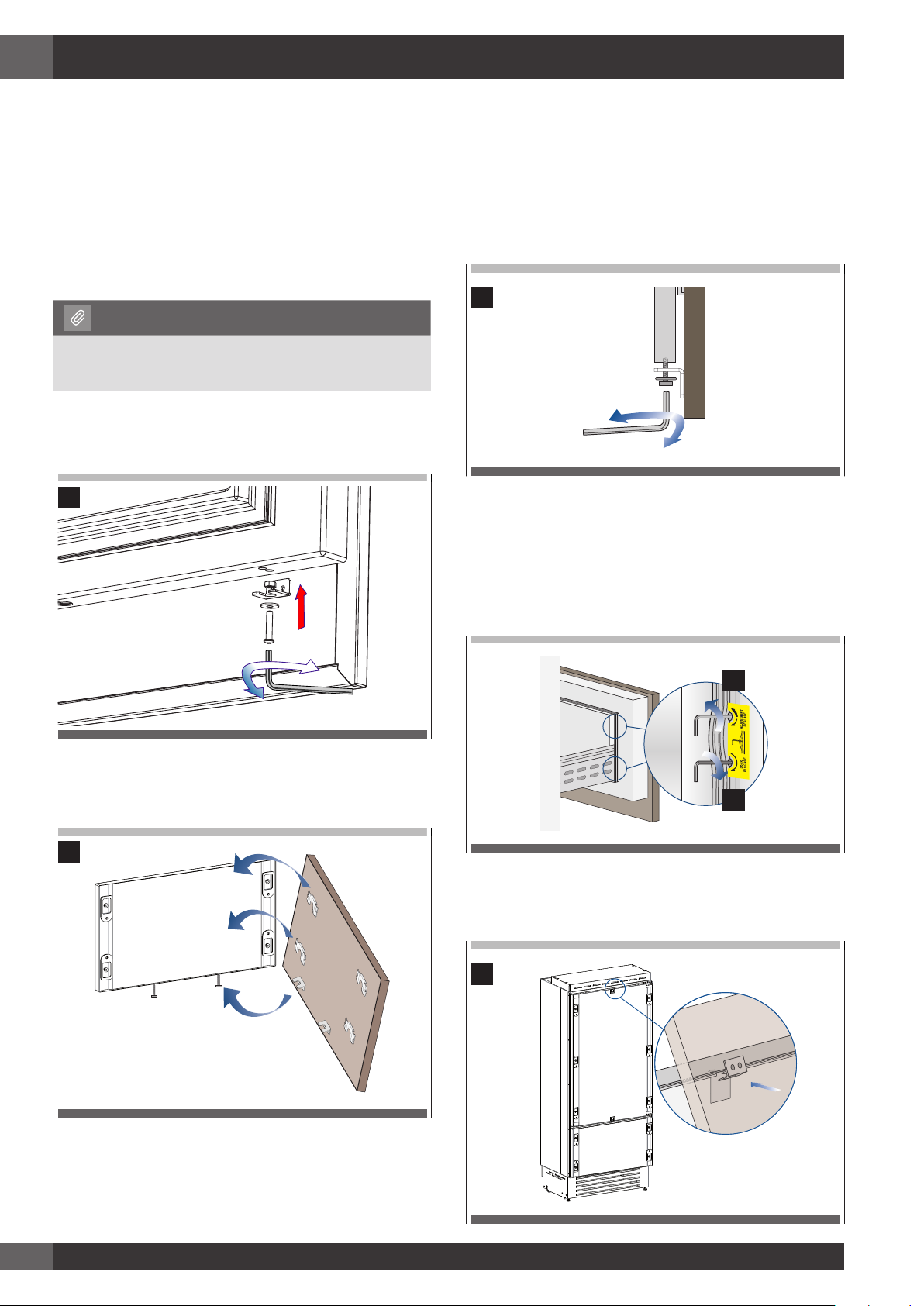

NOTE
Once all brackets and small brackets have been applied
to the panels, you can begin installing the bottom drawer.
Operate as follows:
• Partially tighten the screw to the receiver [ 1 ].
1
•Hook the bottom drawer panel starting from the
adjustment bolts on the bottom [ 2 ].
2
•It is now possible to align panels to adjacent cabinets in
height using the lower alignment brackets, [ 3 ] tightening
or untightening the screws into position as needed. With
the screw slighty tightened, move the panel sideways to
align it to the other panels on the unit or other adjacent
structures.
Set the bottom adjustment bolts using the lock nut once
you are happy with the height alignment.
3
•Depth alignment: working from the inside of the drawer,
after lifting up the magnetic seal, adjust the panel position
in the Z-direction by adjusting the shoulder bolts and
setscrews with the 4mm hex key in conjunction with each
other finally locking each mounting position in place [ 4
& 5 ].
4
5
•Hook the panel to the fixing devices starting from the top
aligning brackets [ 6 ].
6

EN
17
•At this point, alignment between the panel and adjacent
cabinets can be adjusted using the alignment brackets
and small brackets [ 7] and [ 8 ].
7
8
•Vertical alignment: tighten or loosen the screw in the
brackets to raise or lower the panel [ 9 ].
9
•Depth alignment: working from the inside of the door,
after lifting up the magnetic seal on the handle side and
rotating the plastic covers on the hinge side, adjust the
panel position in the Z-direction by adjusting the shoulder
bolts and setscrews with the 4mm hex key in conjunction
with each other finally locking each mounting position in
place. [ 10 & 11 ].
10
11
NOTE
Once the front panel has been adjusted, check that the
gasket has been repositioned correctly to assure the
door/drawer are closing correctly and avoid operational
errors of the unit.

EN
18

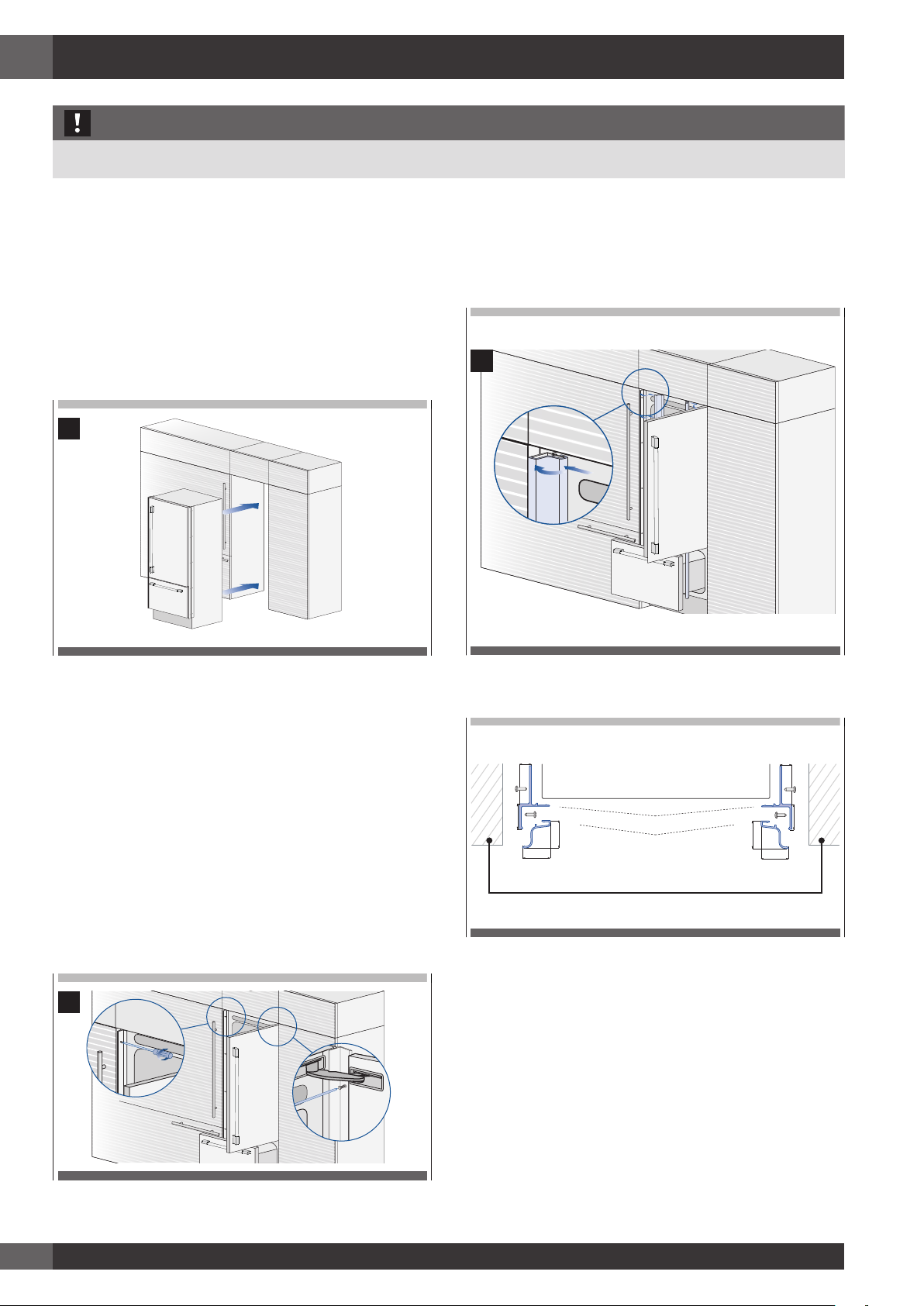

6. Installation
6.1 Built-in installation single appliance
For a built-in installation, to cover gaps between the
appliance and the adjacent cabinets, special side profiles
and aluminum covering frames are already factory installed.
Operate as follows:
• Push the appliance into the installation niche [ 1 ].
1
• If the unit is to be installed inside a niche or within an
enclosed structure, it is necessary to provide air flow
at the back of the niche to assure proper ventilation at
the back of the unit. A 5 mm gap is sufficient to prevent
overheating. Always mount front panels on door and
drawer before pushing the unit into its final position
inside the niche or structure.
• Check the levelling of the appliance, adjusting its feet
and wheels to correct it.
• Secure the appliance to the adjacent cabinets by fixing to
these the side profiles factory-installed on the appliance
[ 2 ].
To make this operation easier keep the door and the
drawer open.
2
• Mount the profiles the trim covers: first insert them
laterally and then push firmly until a “click” is heard [ 3 ].
3
Side profiles mounting:
B
A
6,5 (¼”) 6,5 (¼”)
20 (¾”)
20 (¾”)
22 (7⁄8”)
22 (7⁄8”)
22 (7⁄8”) 22 (7⁄8”)
Appliance
Wall or furniture
A- Profile connection trim (screws for fixing to cabinetry not
included)
B- Profile trim cover
IMPORTANT
The following instruction for installation apply to all models.
