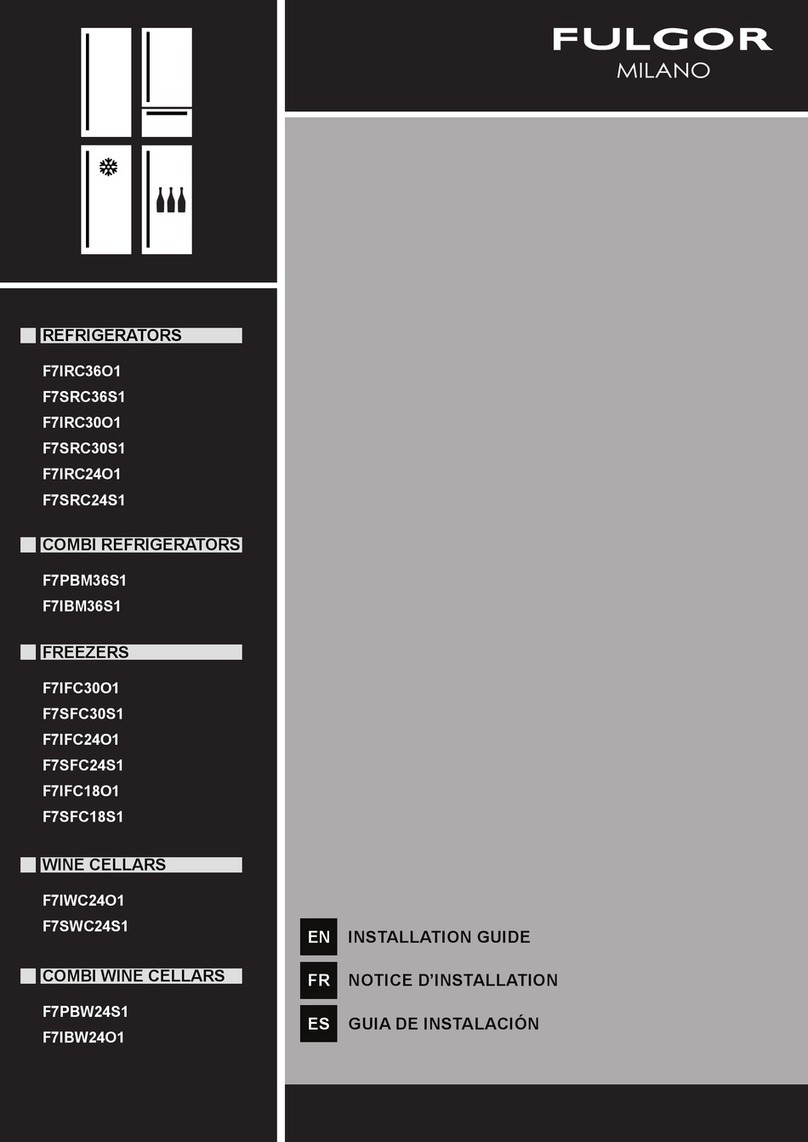

FULGOR F7PBM36S2 User manual

INSTALLATION GUIDE
NOTICE D’INSTALLATION
GUIA DE INSTALACIÓN
EN
FR
ES
REFRIGERATORS
F7IRC36O1
F7SRC36S1
F7IRC30O1
F7SRC30S1
F7IRC24O1
F7SRC24S1
COMBI REFRIGERATORS
F7PBM36S2
F7IBM36S1
FREEZERS
F7IFC30O1
F7SFC30S1
F7IFC24O1
F7SFC24S1
F7IFC18O1
F7SFC18S1
WINE CELLARS
F7IWC24O1
F7SWC24S1
COMBI WINE CELLARS
F7PBW24S2
F7IBW24O2

2
EN

3
EN
INDEX
1
1.1
1.2
IMPORTANT INSTRUCTIONS
Important safety instructions.....................................................................................................................................
Child safety.......................................................................................................................................................................
4
4
4
2
2.1
2.2
2.3
2.4
2.5
2.6
TECHNICAL REQUIREMENTS
Appliance features and installation requirements..............................................................................................
Installation cutout features: panel ready column................................................................................................
Installation cutout features: panel ready bottom-mount freezer....................................................................
Installation cutout features: cladded column........................................................................................................
Installation cutout features: Stainless exterior Pro (European standard)...................................................
Installation cutout features: Stainless exterior Pro (North American standard).......................................
5
5
6
8
10
12
14
3
3.1
3.2
3.3
3.4
PREPARING THE INSTALLATION
Transport to installation site and unpacking.........................................................................................................
Electrical and water connection................................................................................................................................
Energy: Alternatives and Home Automation.........................................................................................................
Leveling.............................................................................................................................................................................
19
19
19
20
21
4
4.1
CUTOUT DIMENSIONS
Cutout dimension for combined installation (for all models except top compressor units)...................
21
21
5
5.1
5.2
5.3
5.4
5.5
5.6
5.7
5.8
5.9
PANELS MOUNTING
Overlay door panel layout...........................................................................................................................................
Overlay panels layout for appliance with one bottom-drawer.........................................................................
Overlay panels layout for appliance with glass door and one bottom drawer...........................................
Overlay panel for column............................................................................................................................................
Overlay panels layout for column with glass door..............................................................................................
Panel dimensions: single bottom drawer...............................................................................................................
Panel dimensions column models...........................................................................................................................
Mounting panels to the door.......................................................................................................................................
Mounting panels to the drawer..................................................................................................................................
22
22
24
25
26
27
28
29
30
30
6
6.1
6.2
6.3
INSTALLATION: BOTTOM COMPRESSOR MODELS
Built-in installation of single appliance...................................................................................................................
Built-in installation of two or more appliances.....................................................................................................
Maximum cabinet depth for panel ready appliance with single door panel................................................
33
33
33
38
7
7.1
7.2
7.3
7.4
7.5
COMPLETING THE INSTALLATION
Anti-tipping safety assembly......................................................................................................................................
Ventilation........................................................................................................................................................................
Mounting the handles on cladded models.............................................................................................................
Post installation checklist...........................................................................................................................................
Start up.............................................................................................................................................................................
39
39
40
41
41
41

4
EN
1.1 Important safety instructions
Symbols used in the Guide:
Note
Tips for the correct use of the appliance
Important
Directions to avoid appliance damage
Warning
Directions to prevent injury
1.2 Child safety
DANGER: Risk of child entrapment. Before you
dispose of your old refrigerator, freezer or wine
cellar:
> Remove the doors;
> Cut the power cord of and dispose of separately;
>Leave the shelves in place so that children may not
easily climb inside.
Dimensions in parentheses are in inches.
Weights in parentheses are in pounds.
Temperatures in parentheses are
in degrees Fahrenheit.
1. IMPORTANT INSTRUCTIONS FOR SAFETY AND THE ENVIRONMENT

5
EN
2.1 Appliance features and installation
requirements
Weight with
packaging 18” model up to 150 kg (331 lb)
24” model
up to 170 kg (375 lb)
30” model
up to 190 kg (419 lb)
36” model
up to 200 kg (441 lb)
Voltage AC 110 - 120V 60Hz
Power supply
cable 90° Nema 5-15P
Dedicated circuit
breaker 15A
Potable water
supply pressure from 0.05 MPa to 0.5 MPa
(0.5 Bar - 5 Bar)
Water connection 3/4” NPT (1/4” elbow
adapter included)
Provided
installation
accessories
- Anti tipping kit
- Lateral mounting brackets
(10 pieces)
- Overlay panel mounting kit
(if applicable)
- Water connection kit (if
applicable)
- 4 mm (1/8”) allen / hex
key
Additional
equipment
necessary
- Phillips head screwdriver
- wood drill
- 2.5 mm (1/8”) bit for wood
- 8 mm (3/8”) bit for walls
- 10 mm (3/8”) bit for walls
- 17 mm (11/16”) wrench
- 19 mm (3/4”) wrench
- 13 mm (1/2”) socket to
adjust the rear leveling
legs
- 2.5 mm hex key for
installing handles
Other provided
accessories - Cleaning kit
2. TECHNICAL REQUIREMENTS

6
EN
2.2 Installation cutout features:
panel ready columns
AMinimum cutout height
2134 mm (84”)
Cutout width
36” model: 914 mm (36”)
30”model: 762 mm (30”)
24” model: 610 mm (24”)
18” model: 457 mm (18”)
Minimum cutout depth
610 mm (24”) + panel thickness for flush install
Area to be left clear for the anti-tipping brackets
127 mm (5”) for both right and left sides
BAppliance height
2120 mm (83 1/2”) + 25 mm (1”)
2. TECHNICAL REQUIREMENTS
615 (24 ¼”)
565 (22 ¼” )
505 (19 ¾”)
A A
127 mm (5") 127 mm (5")
36": 914 mm (36”)
18": 457 mm (18”)
24": 610 mm (24”)
30": 762 mm (30”)
82 mm
(3 1/2")
min 2134
(84”)
82 mm
(3 1/2")
2120 (83 ½”)
+25 (1”)
233 (9 ¼” ) + 25 (1”)
231 (9 ⅛” ) + 25 (1”)
1808
(71 ¼” )
610 (24”)
560 (22” )
500 (19 ¾”)
A A
127 mm (5") 127 mm (5")
36":914 (36”)
18": 457 (18”)
24": 610 (24”)
30": 762 (30”)
82 mm
(3 1/2")
min 2134
(84”)
82 mm
(3 1/2")
2120 (83 ½”)
+25 (1”)
233 (9 ¼” ) + 25 (1”)
231 (9 ⅛” ) + 25 (1”)
1808
(71 ¼” )
A
B

7
EN
90° hinges available
to order as spare part.
Door Swing Clearance Minimum distance from
the wall (hinge side)
100°
36" model: 910 mm (35 ⅞")
30" model: 758 mm (29 ⅞")
24" model: 606 mm (23 ⅞")
18" model: 453 mm (17 ⅞")
36" model: 158 mm (6 ¼")
30" model: 132 mm (5 ¼" )
24" model: 108 mm (4 ¼")
18" model: 82 mm (3 ¼")
36" model: 1489 mm (58 ⅝")
30" model: 1338 mm (52 ⅝")
24" model: 1187 mm (46 ¾")
18" model: 1036 mm (40
¾ ")
610 mm (24")
560 mm (22")
100°
36" model: 910 mm (35 ⅞")
30" model: 758 mm (29 ⅞")
24" model: 606 mm (23 ⅞")
18" model: 453 mm (17 ⅞")
36" model: 158 mm (6 ¼")
30" model: 132 mm (5 ¼" )
24" model: 108 mm (4 ¼")
18" model: 82 mm (3 ¼")
36" model: 1489 mm (58 ⅝")
30" model: 1338 mm (52 ⅝")
24" model: 1187 mm (46 ¾")
18" model: 1036 mm (40
¾ ")
610 mm (24")
560 mm (22")

8
EN
2.3 Installation cutout features:
panel ready with bottom-mount free-
zer
AMinimum cutout height
2134 mm (84”)
Cutout width
36” model: 914 mm (36”)
30” model: 762 mm (30”)
24” model: 610 mm (24”)
Minimum cutout depth
610 mm (24”) + panel thickness for flush install
Area to be left clear for the anti-tipping brackets
127 mm (5”) for both right and left sides
BAppliance height
2120 mm (83 1/2”) + 25 mm (1”)
2. TECHNICAL REQUIREMENTS
B
A A
140 (5 ½”) 140 (5 ½”)
36”: 914 mm (36”)
24”: 610 mm (24”)
30”: 762 mm (30”)
610 (24”)
560 (22”)
500 (19 ¾”)
100 (4”) 100 (4”)
min 2134
(84”)
2120 (83 ½”)
+25 (1”)
721 (28 ⅜”)
+25 (1”)
1293
(50 ⅞” )
20 (¾”)
474
(18 ⅝”)
248 (9 ¾”)
+ 25 (1”)
231 (9 ⅛”)
+ 25 (1”)
A

9
EN
90° hinges available
to order as spare part
Door Swing Clearance Minimum distance from
the wall (hinge side)
100°
36” model: 910 mm (35 ⅞")
30” model: 758 mm (29 ⅞")
24” model: 606 mm (23 ⅞")
10 (⅜”)
36” model: 160 mm (6 ¼”)
30” model: 125 mm (5”)
24” model: 90 mm (3 ½”)
36” model: 1489 mm (58 ⅝”
)
30” model: 1338 mm (52 ⅝”
)
24” model: 1187 mm (46 ¾”)
992 (39”)
610 (24”)
560 (22”)
100°
36” model: 910 mm (35 ⅞")
30” model: 758 mm (29 ⅞")
24” model: 606 mm (23 ⅞")
10 (⅜”)
36” model: 160 mm (6 ¼”)
30” model: 125 mm (5”)
24” model: 90 mm (3 ½”)
36” model: 1489 mm (58 ⅝”)
30” model: 1338 mm (52 ⅝”)
24” model: 1187 mm (46 ¾”)
992 (39”)
610 (24”)
560 (22”)

10
EN
2.4 Installation cutout features:
cladded columns
AMinimum cutout height
2134 mm (84”)
Cutout width
36” model: 914 mm (36”)
30” model: 762 mm (30”)
24” model: 610 mm (24”)
18” model: 457 mm (18”)
Minimum cutout depth (for flush install)
630 mm (24 3/4 ”)
Area to be left clear for the anti-tipping brackets
127 mm (5”) for both right and left sides
BAppliance height
2120 mm (83 1/2”) + 25 mm (1”)
2. TECHNICAL REQUIREMENTS
233 (9 ¼” ) + 25 (1”)
A A
127 mm (5") 127 mm (5")
36":914 mm (36”)
18": 457 mm (18”)
24": 610 mm (24”)
30": 762 mm (30”)
615 (24 ¼”)
565 (22 ¼” )
231 (9 ⅛” ) + 25 (1”)
505 (19 ¾”)
82 mm
(3 1/2")
82 mm
(3 1/2")
2120 (83 ½”)
+25 (1”)
min 2134
(84”)
1808
(71 ¼” )
A A
E W E W
140 (5 ½”) 140 (5 ½”)
100 (4”) 100 (4”)
KS899: 900 (35 ½”)
KS599: 600 (23 ¾”)
KS749: 750 (29 ⅝”)
620 (24 ⅜”)
558 (22”)
720 (28 ⅜”)
KS449: 450 (17 ¾”)
2120 (83 ½”)
+25 (1”)
2024 (79 ¾”)
2120 (83 ½”)
+25 (1”)
96 (3 ¾”) + 25(1”)
A
B

11
EN
90° hinges available
to order as spare part
Door Swing Clearance Minimum distance from
the wall (hinge side)
100°
36" model: 1487 mm (58 ½”)
30" model: 1336 mm (52 ⅝”)
24" model: 1185 mm (46 ⅝”)
18" model: 1034 mm (40 ¾’’)
36" model : 910 mm (35 ⅞")
30" model : 758 mm (29 ⅞")
24" model : 606 mm (23 ⅞")
18" model : 453 mm (17 ⅞ ")
36" model: 139 mm (5 ½”)
30" model: 103 mm (4 ⅛”)
24" model: 89 mm (3 ½”)
18" model: 63 mm (2 ½”)
620 (24 ⅜”)
558 (22”)
68 (2 ¾”)
100°
36" model: 1487 mm (58 ½”)
30" model: 1336 mm (52 ⅝”)
24" model: 1185 mm (46 ⅝”)
18" model: 1034 mm (40 ¾’’)
36" model : 910 mm (35 ⅞")
30" model : 758 mm (29 ⅞")
24" model : 606 mm (23 ⅞")
18" model : 453 mm (17 ⅞ ")
36" model: 139 mm (5 ½”)
30" model: 103 mm (4 ⅛”)
24" model: 89 mm (3 ½”)
18" model: 63 mm (2 ½”)
620 (24 ⅜”)
558 (22”)
68 (2 ¾”)

12
EN
2.5 Installation cutout features:
Stainless exterior Pro
(North American standard cutout width)
AMinimum cutout height
2134 mm (84”)
Minimum cutout width
36” model: 914 mm (36”)
30” model: 762 mm (30”)
24” model: 610 mm (24”)
Depth with door
635 mm (25 ”)
Area to be left clear for the anti-tipping brackets
127 mm (5”) for both right and left sides
BAppliance height
2120 mm (83 1/2”) + 25 mm (1”)
When installing
our top
compressor
models in a
standard NA
cut out it is
recommended to
use the J-profile
trim kit to close
the lateral gap
of the appliance,
alternatively use
the standard
plastic mounting
clips when
installing unit
into Euro width
cabinet. (Shown
on next page)
Installing in the
unit in a standard
North American
“cutout” without
the J-profile trim
kit, will result
in a larger gap
along the cabinet
opening.
2. TECHNICAL REQUIREMENTS
B
A
A A
140 (5 ½”) 140 (5 ½”)
36”: 914 mm (36”)
24”: 610 mm (24”)
30”: 762 mm (30”)
560 (22”)
635 (25”)
693 (27 ¼”)
195 (7 ⅝”)
8 (⅜”)
8 (⅜”)
97 (3 ⅞”)
+ 25 (1”)
100 (4”) 100 (4”)
min 2134
(84”)
2120 (83 ½”)
+25 (1”)
613 (24 ⅛”)
+25 (1”)
1296
(50”)
516
(20 ⅜”)
A A
140 (5 ½”) 140 (5 ½”)
36”: 914 mm (36”)
24”: 610 mm (24”)
30”: 762 mm (30”)
560 (22”)
635 (25”)
693 (27 ¼”)
195 (7 ⅝”)
8 (⅜”)
8 (⅜”)
97 (3 ⅞”)
+ 25 (1”)
100 (4”) 100 (4”)
min 2134
(84”)
2120 (83 ½”)
+25 (1”)
613 (24 ⅛”)
+25 (1”)
1296
(50”)
516
(20 ⅜”)

13
EN
If the units are to be installed inside
a cutout or within an enclosed
structure, it is necessary to design
a ventilation shaft at the back of the
cutout to assure proper ventilation at
the back of the unit.
Cross-sectional chimney ventilation
area should equal 200cm² (31in²).
When installing
our top
compressor
models in a
standard NA
cut out it is
recommended to
use the J-profile
trim kit to close
the lateral gap
of the appliance,
alternatively use
the standard
plastic mounting
clips when
installing unit
into Euro width
cabinet. (Shown
on next page)
Installing in the
unit in a standard
North American
“cutout” without
the J-profile trim
kit, will result
in a larger gap
along the cabinet
opening.
Door Swing Clearance Minimum distance from
the wall (hinge side)
min 10 (⅜”
)
36” model: 914 mm (36”)
30” model: 762 mm (30”)
24” model: 610 mm (24”)
100°
36" model: 230 mm (9”)
30" model: 195 mm (7 ¾”)
24" model: 160 mm (6 ¼”)
36" model: 1470 mm (57 ⅞”
)
30" model: 1320 mm (52”)
24" model: 1170 mm (46”)
1016 mm (40”)
635 mm (25”)
560 mm (22”)
75 mm (3”)
10 mm (⅜”)
58 mm (2 ¼”)
24: 610 (24”)
18: 457 (18”)
30: 762 (30”)
36: 914 (36”)
36” model: 914 mm (36”)
30” model: 762 mm (30”)
24” model: 610 mm (24”)
100°
36" model: 230 mm (9”)
30" model: 195 mm (7 ¾”)
24" model: 160 mm (6 ¼”)
36" model: 1470 mm (57 ⅞”)
30" model: 1320 mm (52”)
24" model: 1170 mm (46”)
1016 mm (40”)
635 mm (25”)
560 mm (22”)
75 mm (3”)
10 mm (⅜”)
58 mm (2 ¼”)
24: 610 (24”)
18: 457 (18”)
30: 762 (30”)
36: 914 (36”)

14
EN
2.6 Installation cutout features:
Stainless exterior Pro
(European standard cutout width)
AMinimum cutout height
2134 mm (84”)
Minimum cutout width
36” model: 900 mm (35 1/2”)
30” model: 750 mm (29 5/8”)
24” model: 600 mm (23 3/4”)
Depth with door
635 mm (25 ”)
Area to be left clear for the anti-tipping brackets
127 mm (5”) for both right and left sides
BAppliance height
2120 mm (83 1/2”) + 25 mm (1”)
2. TECHNICAL REQUIREMENTS
A A
140 (5 ½”) 140 (5 ½”)
36”: 900 mm (35 ½”)
24”: 600 mm (23 ¾”)
30”: 750 mm (29 ⅝”)
560 (22”)
635 (25”)
693 (27 ¼”)
195 (7 ⅝”
)
8 (⅜”)
8 (⅜”)
97 (3 ⅞”)
+ 25 (1”)
100 (4”) 100 (4”)
min 2134
(84”)
2120 (83 ½”)
+25 (1”)
613 (24 ⅛”)
+25 (1”)
1296
(50”)
516
(20 ⅜”)
B
A
A A
140 (5 ½”) 140 (5 ½”)
36”: 900 mm (35 ½”)
24”: 600 mm (23 ¾”)
30”: 750 mm (29 ⅝”)
560 (22”)
635 (25”)
693 (27 ¼”)
195 (7 ⅝”)
8 (⅜”)
8 (⅜”)
97 (3 ⅞”)
+ 25 (1”)
100 (4”) 100 (4”)
min 2134
(84”)
2120 (83 ½”)
+25 (1”)
613 (24 ⅛”)
+25 (1”)
1296
(50”)
516
(20 ⅜”)
When installing
our top
compressor
models in a new
construction, it is
recommended to
use the European
“cutout”
dimensions
to achieve a
minimal gap on
the lateral sides
and avoid the
need to use the
J-profile trim kit.
Installing in the
unit in a standard
North American
“cutout” without
the J-profile trim
kit, will result
in a larger gap
along the cabinet
opening.

15
EN
If the units are to be installed inside
a cutout or within an enclosed
structure, it is necessary to design
a ventilation shaft at the back of the
cutout to assure proper ventilation at
the back of the unit.
Cross-sectional chimney ventilation
area should equal 200cm² (31in²).
Door Swing Clearance Minimum distance from
the wall (hinge side)
min 10 (⅜”
)
36 " model : 899 mm (35 ⅜”)
30
" model : 749 mm (29 ½”)
24
" model : 599 mm (23 ⅝”)
100°
36" model: 230 mm (9”)
30" model: 195 mm (7 ¾”)
24" model: 160 mm (6 ¼”)
36" model: 1470 mm (57 ⅞”
)
30" model: 1320 mm (52”)
24" model: 1170 mm (46”)
1016 (40”)
635 mm (25”)
560 mm (22”)
75 mm (3”)
10 mm (⅜”)
58 mm (2 ¼”)
36 " model : 899 mm (35 ⅜”)
30
" model : 749 mm (29 ½”)
24
" model : 599 mm (23 ⅝”)
100°
36" model: 230 mm (9”)
30" model: 195 mm (7 ¾”)
24" model: 160 mm (6 ¼”)
36" model: 1470 mm (57 ⅞”)
30" model: 1320 mm (52”)
24" model: 1170 mm (46”)
1016 (40”)
635 mm (25”)
560 mm (22”)
75 mm (3”)
10 mm (⅜”)
58 mm (2 ¼”)

16
EN
3.1 Transport to installation site
and unpacking
The appliance is very heavy.
Take maximum care during handling
to avoid injury.
The appliance should always be
transported in an erect position.
Avoid at all costs leaning it on its front
side.
Since this is a large and heavy appliance, before
transporting the appliance, check the access to
the location where it will be installed (door size,
maneuvering space in stairwells, etc.).
The appliance is attached to the base of the packaging
(pallet) through four bolts which can be removed
using a 19 mm (3/4”) wrench.
It isrecommendedto usea manualtransportingdevice
to move the appliance to the installation site, and only
at this point to remove the base of the packaging.
The appliance should always be transported in an
erect position.
If this is not possible, transport the appliance laying
on its rear side.
Once at the installation site, the appliance, which is
equipped with four wheels, can be taken o the pallet
and positioned in the installation area.
Operate as follows:
> Take o the four bolts securing [ 1 ] the appliance
to the pallet by means of a 19 mm (3/4”) wrench or
socket.
> Remove the fixing brackets [ 3 ] and [ 4 ] .
> To release the front fixing bracket [ 3 ] , loosen the
rear wheel adjusting bolt [ 2 ] by means of a 13 mm
(1/2”) wrench or socket. Avoid straining this bolt at its
stop points one way or the other so as to not damage
the rear leveling system.
Ensure the front leveling legs are retracted so that
all 4 wheels are able to contact the floor for easiest
maneuvering.
> From the back or side of the unit and by means of a
suitable, heavy duty hand trolley, take o the appliance
and place it on the floor.
Be very careful to avoid any damage to floors. Delicate
floors should be protected with plywood, hard
cardboard or similar material panels.
3.2 Electrical and water connection
The Built-in filter cannot make it safe
to drink any water which is not already
suitable for human consumption.
The appliance should be connected only
to a potable water supply system.
Do not use extension cords or adapters.
Once the appliance is fully installed,
connected to the water supply (if
applicable) and operational, in the event
that the water supply must be turned off,
(touch the button ICE MAKER
WATER FILTER
SYSTEM CLEANING
on control panel to
disable the ice maker) before the main
water is shut off to prevent the appliance
from entering a ‘NO WATER IN’ alarm
state.
Electrical or water connections located
directly behind the appliance must be
recessed. Do not put the water shut-off
valve directly behind the appliance.
It should be in an accessible location.
EEEE
E
WWWW
WEW
• OVERHEAD VIEW •
3. PREPARING THE INSTALLATION
EW
E W
EW
E W
1
4
1
2
3
ELECTICAL & WATER
CONNECTION

17
EN
The appliances are delivered from the factory for
operation at 110V-120V AC - 60Hz (US and Canada).
They are provided with a suitable supply cable and
plug to be connected to an appropriate 15A socket
providing an eective grounding.
A dedicated 15A circuit breaker should also be
installed and should be easily accessible so that it
can be easily switched o before performing any
installation or maintenance.
To connect to the water supply system (for appliances
equipped with ice makers) a 1/4” waterline with
accessible shut-o valve must be supplied.
The appliance is provided with a water adapter
elbow which is suitable for the recommended water
pressure and complies the applicable food and water
regulations.
The water filter cartridge, which is provided with
the appliance, should be installed according to the
accompanying instructions. Please refer to water
filter installation instructions contained in the water
filter kit. The solenoid connection on the appliance
is 3/4” diameter but is metric threaded (NPT).
A standard garden hose threaded connector such as
a braided stainless hose found at typical hardware
stores will strip or damage the solenoid threads. It
is recommended to use only the supplied 1/4” quick
connect elbow adapter for connecting a 1/4” copper
or polyethylene source water line to the appliance.
Do not use extension cords and/or
multiple adapters for the power supply
connection.
ELECTRICAL AND WATER SUPPLY
BEHIND THE UNIT
BOTTOM COMPRESSORS
UNIT
TOP COMPRESSORS
UNIT
3.3 Energy: Alternatives and Home
Automation
If energy is supplied through an alternative
energy power source (solar, geothermal, etc..)
or if home automation systems are installed
with carrier signals in the power lines, it may
be necessary to install an isolation transformer
(not supplied) to prevent interference with the
appliance’s electronics.
Operate as follows:
> Unwind the electric cable and connect it directly to
the wall socket.
> Make sure the appliance is in the Stand-by condition
and that all lights are o; should it be not so press
the Unit button to switch it o.
> Connect the water cable behind the appliance [ 1 ].
fig.1 Back of appliance
Water connection
Electrical connection
BOTTOM COMPRESSOR UNITS
1
E
W
E
W

18
EN
TOP COMPRESSORS UNIT:
Operate as follows:
> Unwind the electric cable and connect it directly to
the wall socket.
> Make sure the appliance is in the Stand-by condition
and that all ights are o; should it be not so press the
Unit button to switch it o.
> Firmly tighten with fingers - a tool / wrench should
not be needed to make a proper seal. Turn on the
water and ensure all connections are not leaking
prior to pushing the unit into the opening.
3.4 Leveling
Adjust the appliance level by means of the front
levelling feet and the rear adjustable wheels.
fig.3 Front of appliance
fig.2 Back of appliance
Operate as follows:
> If necessary, remove the bottom plinth or grille
(it is kept in position by magnets), adjust the
height of the levelling feet [ 1 ] by means of a 17
mm (11/16”) wrench.
> Then adjust the height of the rear wheels by
turning the front adjusting bolts [ 2 ] clockwise
(raise) or counter-clockwise (lower) as it may be
required.
Take care if using a power driver for this and
lower the clutch to prevent damaging the leveling
mechanism.
> Remount the bottom plinth or grille.
3. PREPARING THE INSTALLATION
1
Electrical connection
Water connection
1
2
1
2

19
EN
4.1 Cutout dimension for combined installation (for all models except top
compressor units fitted to European-sized cutouts)
A
B
18” model 24” model 30” model 36” model
18” model 36”(914mm) 42”(1067mm) 48”(1220mm) 54”(1372mm)
24” model 42”(1067mm) 48”(1220mm) 54”(1372mm) 60”(1520mm)
30” model 48”(1220mm) 54”(1372mm) 60”(1520mm) 66”(1676mm)
36” model 54”(1372mm) 60”(1524mm) 66”(1676mm) 72”(1829mm)
CORRECT SPACING BETWEEN APPLIANCES SHOWN LATER IN THIS MANUAL.
4. CUTOUT DIMENSIONS
AB

20
EN
5.1 Overlay door panel layout
The dimensions of the panels are indicated in the
table and drawings on subsequent pages.
Nevertheless, according to the requirements for
aligning with other kitchen structures, the door
panel can be higher than the upper edge of the
refrigerator door.
The panels must be mounted using special
brackets which attach to adjustable devices
provided on the door and drawer and with
brackets that anchor and adjust the panel’s
vertical direction.
Brackets and fixing screws are provided with the
appliance and must be applied to the panel as
indicated.
For shaker or framed panel styles, it may
not be possible to affix the upper or lower
leveling brackets unless the cabinet
maker has accommodated their mounting
with additional material on the back of
the panel.
Operate as follows:
To prepare the panels to be mounted on the ap-
pliance, follow these steps, working on the back
of the panel.
Door Panel
> Draw a vertical center line on the panel from
top to bottom [ 1 ].
> Starting from the bottom edge of the panel,
mark the positioning of the brackets [ 2 ].
2
1
> Following the corresponding table, mark the
external and then the internal hole [ 3 ].
> Position the brackets on each set of marks to
make sure they are aligned [ 4 ], if you choose to
drill small pilot holes for the screws pay special
attention to not pass through the panel entirely.
[ 5 ].
> Screw the brackets in place [ 6 ].
6
4
3
5
5. PANELS MOUNTING
