SERVICE MANUAL
DVD PLAYER
DVP-7000

TABLE OF CONTENTS
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1
Laser Beam Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1
Important Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1
Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1

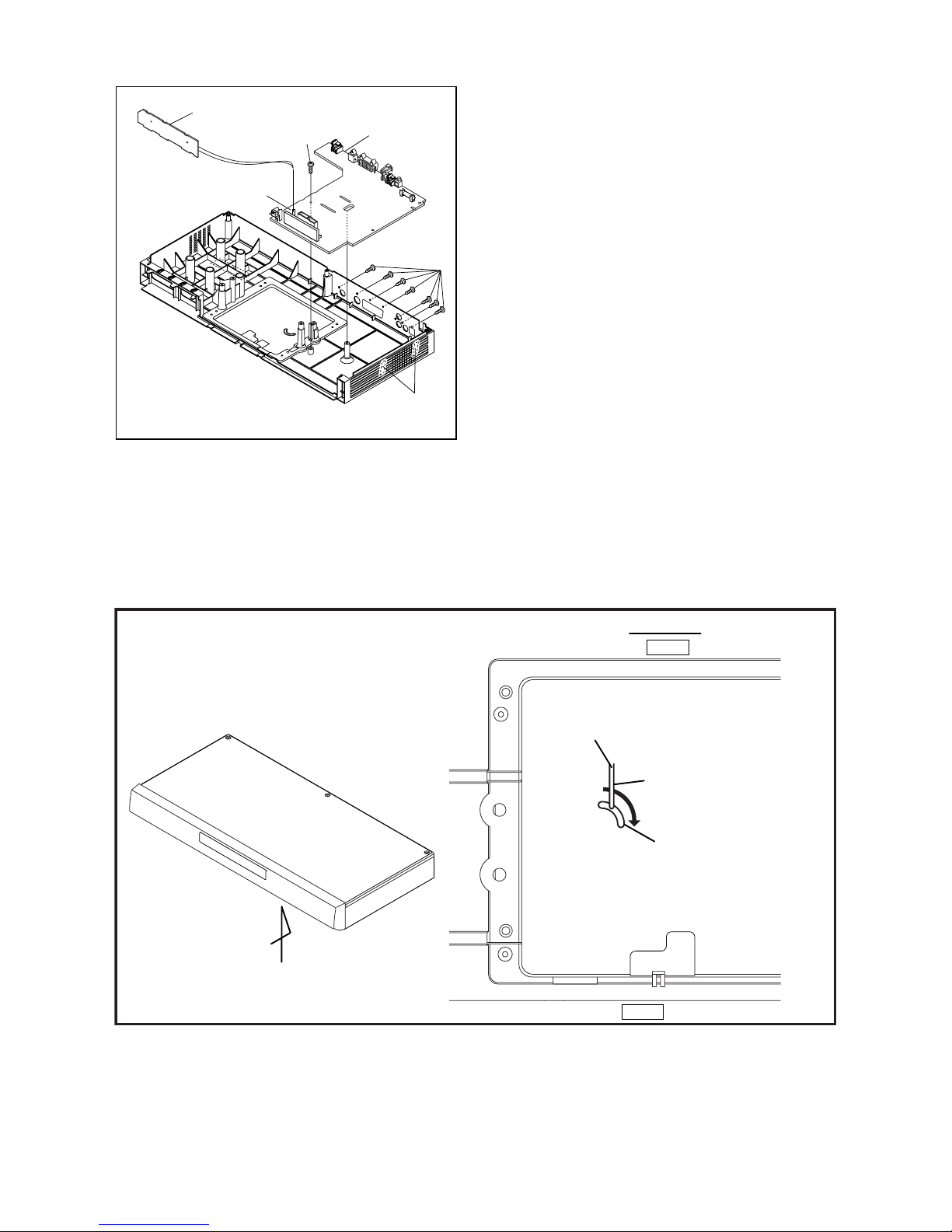

Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5-1
How to Initialize the DVD Player. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1
Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1
Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1
Schematic Diagrams / CBA’s and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1
Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10-1
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1
IC Pin Function Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1
Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1
Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1
Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1
Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16-1
Manufactured under license from Dolby Laboratories. “Dolby” and the
double-D symbol are trademarks of Dolby Laboratories.

1-1-1 E6D20SP
SPECIFICATIONS
Notes:
1. All Items are measured without pre-emphasis unless otherwise specified.
2. Power supply: AC 220 ~ 240 V, 50 Hz
3. Load Impedance: 100 kΩ load (Audio Output)
4. Room Ambient: 5 °C ~ 40°C
Item Conditions Unit Nominal Limit
1. Video Output 75 Ωload Vpp 1.0 ± 0.1
2. Optical Digital Out dBm -18
3. Audio (PCM)
3-1. Output Level 1 kHz, 0 dB Vrms 2.0
3-2. S/N dB 90
3-3. Freq. Response
DVD fs = 48 kHz, 20 Hz ~ 22 kHz dB ± 1.0
CD fs = 44.1 kHz, 20 Hz ~ 20 kHz dB ± 1.0
3-4. THD+N
DVD 1 kHz, 0 dB % 0.01
CD 1 kHz, 0 dB % 0.01

1-2-1 E7PLSP
LASER BEAM SAFETY PRECAUTIONS
This DVD player uses a pickup that emits a laser beam.
The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.
CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.
Location: Top of DVD mechanism.
Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.
Drive Mechanism
Assembly
Laser Beam Radiation
Laser Pickup
Turntable
CAUTION - CLASS 1M LASER RADIA -
-
TION WHEN OPEN. DO NOT VIEW
DIRECTLY WITH OPTICAL INSTRUMENTS

1-3-1 E6D20ISP
IMPORTANT SAFETY PRECAUTIONS
Product Safety Notice
Some electrical and mechanical parts have special
safety-related characteristics which are often not evi-
dent from visual inspection, nor can the protection
they give necessarily be obtained by replacing them
with components rated for higher voltage, wattage,
etc. Parts that have special safety characteristics are
identified by a !on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or other
hazards. The Product’s Safety is under review continu-
ously and new instructions are issued whenever
appropriate. Prior to shipment from the factory, our
products are carefully inspected to confirm with the
recognized product safety and electrical codes of the
countries in which they are to be sold. However, in
order to maintain such compliance, it is equally impor-
tant to implement the following precautions when a set
is being serviced.
Precautions during Servicing
A. Parts identified by the !symbol are critical for
safety. Replace only with part number specified.
B. In addition to safety, other parts and assemblies
are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise block-
ing capacitors, and noise blocking filters, etc.
C. Use specified internal wiring. Note especially:
1)Wires covered with PVC tubing
2)Double insulated wires
3)High voltage leads
D. Use specified insulating materials for hazardous
live parts. Note especially:
1)Insulation tape
2)PVC tubing
3)Spacers
4)Insulators for transistors
E. When replacing AC primary side components
(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before solder-
ing.
F. Observe that the wires do not contact heat produc-
ing parts (heatsinks, oxide metal film resistors, fus-
ible resistors, etc.).
G. Check that replaced wires do not contact sharp
edges or pointed parts.
H. When a power cord has been replaced, check that
5 - 6 kg of force in any direction will not loosen it.
I. Also check areas surrounding repaired locations.
J. Use care that foreign objects (screws, solder drop-
lets, etc.) do not remain inside the set.
K. Crimp type wire connector
The power transformer uses crimp type connectors
which connect the power cord and the primary side
of the transformer. When replacing the transformer,
follow these steps carefully and precisely to pre-
vent shock hazards.
Replacement procedure
1)Remove the old connector by cutting the wires at a
point close to the connector.
Important: Do not re-use a connector. (Discard it.)
2)Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.
3)Align the lengths of the wires to be connected.
Insert the wires fully into the connector.
4)Use a crimping tool to crimp the metal sleeve at its
center. Be sure to crimp fully to the complete clo-
sure of the tool.
L. When connecting or disconnecting the internal
connectors, first, disconnect the AC plug from the
AC outlet.

1-3-2 E6D20ISP
Safety Check after Servicing
Examine the area surrounding the repaired location
for damage or deterioration. Observe that screws,
parts, and wires have been returned to their original
positions. Afterwards, do the following tests and con-
firm the specified values to verify compliance with
safety standards.

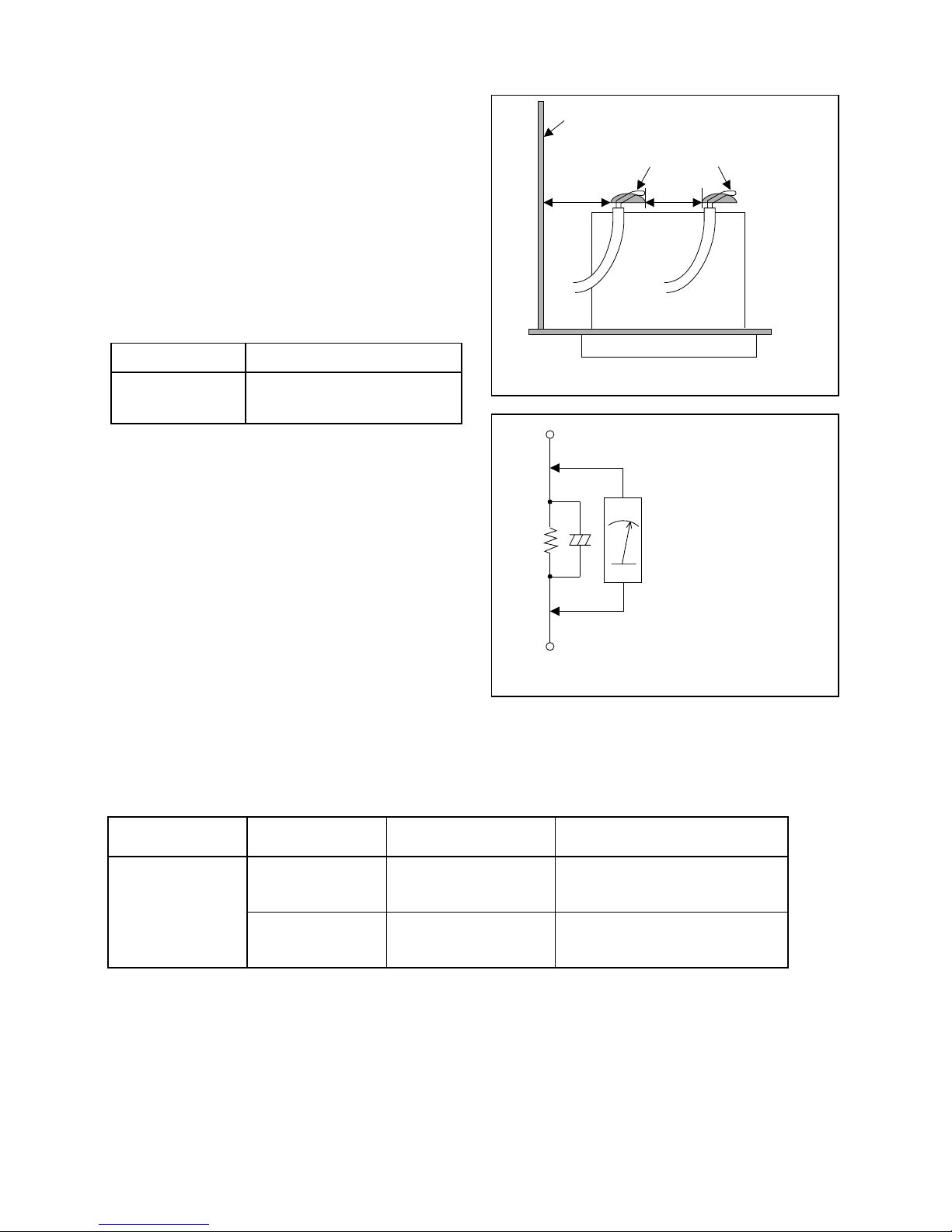

1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between sol-
dered terminals, and between terminals and surround-
ing metallic parts. (See Fig. 1)
Table 1 : Ratings for selected area
Note: This table is unofficial and for reference only.
Be sure to confirm the precise values.
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs)
and externally exposed accessible parts (RF termi-
nals, antenna terminals, video and audio input and
output terminals, microphone jacks, earphone jacks,
etc.) is lower than or equal to the specified value in the
table below.
Measuring Method (Power ON) :
Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across the terminals of load
Z. See Fig. 2 and the following table.
AC Line Voltage Clearance Distance (d), (d’)
220 to 240 V ≥3 mm(d)
≥6 mm(d’)
Fig. 1
Chassis or Secondary Conductor
Primary Circuit
d' d
AC Voltmeter
(High Impedance)
Exposed Accessible Part
BOne side of
Power Cord Plug Prongs
Z
Fig. 2
Table 2: Leakage current ratings for selected areas
Note: This table is unofficial and for reference only. Be sure to confirm the precise values.
AC Line Voltage Load Z Leakage Current (i) One side of power cord plug
prongs (B) to:
220 to 240 V
2kΩ RES.
Connected in
parallel
i≤0.7mA AC Peak
i≤2mA DC
RF or
Antenna terminals
50kΩRES.
Connected in
parallel
i≤0.7mA AC Peak
i≤2mA DC A/V Input, Output

1-4-1 DVDP_SN
STANDARD NOTES FOR SERVICING
Circuit Board Indications
1. The output pin of the 3 pin Regulator ICs is
indicated as shown.
2. For other ICs, pin 1 and every fifth pin are
indicated as shown.
3. The 1st pin of every male connector is indicated as
shown.
Instructions for Connectors
1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.
2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an
angle.
Pb (Lead) Free Solder
When soldering, be sure to use the Pb free solder.
How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:
1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
2. Remove the flat pack-IC with tweezers while
applying the hot air.
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
CAUTION:
1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.
2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)
Top View
Out In
Bottom View
Input
5
10
Pin 1
Pin 1
FFC Cable
Connector
CBA
* Be careful to avoid a short circuit.
Fig. S-1-1

1-4-2 DVDP_SN
3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.
With Soldering Iron:
1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

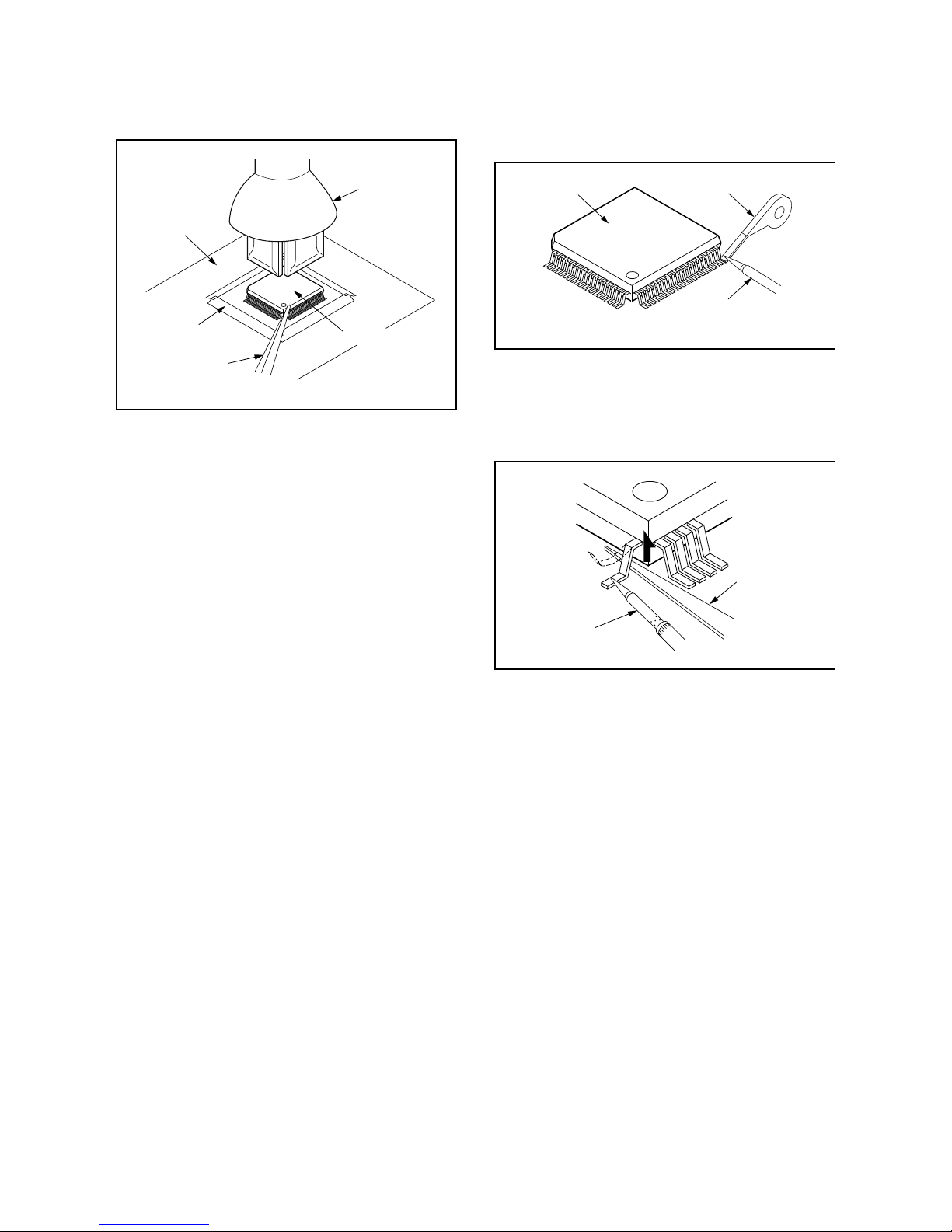

Hot-air
Flat Pack-IC
Desoldering
Machine
CBA
Flat Pack-IC
Tweezers
Masking
Tape
Fig. S-1-2
Flat Pack-IC Desoldering Braid
Soldering Iron
Fig. S-1-3
Fine Tip
Soldering Iron
Sharp
Pin
Fig. S-1-4

1-4-3 DVDP_SN

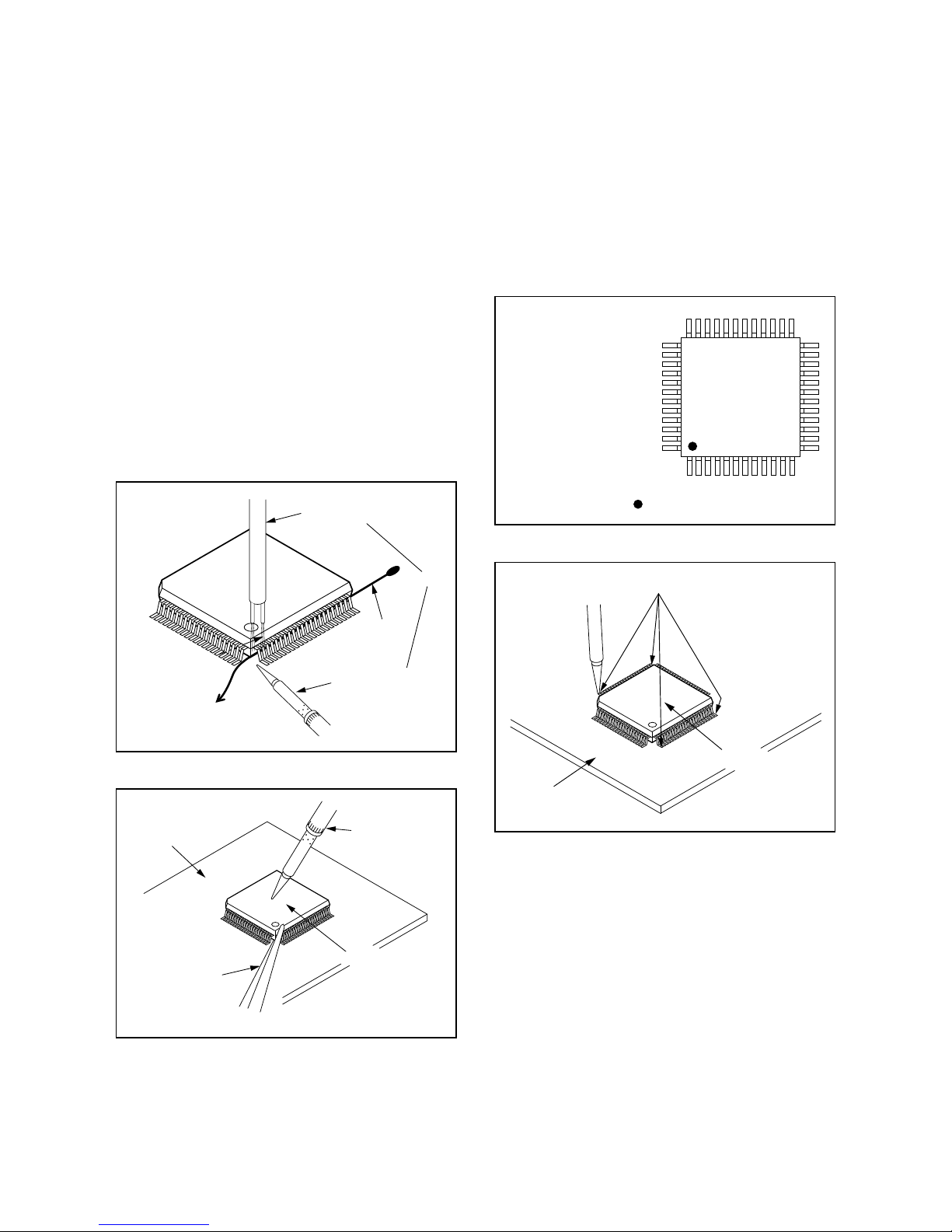

With Iron Wire:
1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.
4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Note: When using a soldering iron, care must be
taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.
2. Installation
1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.
2. The “●” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)
3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.
To Solid
Mounting Point
Soldering Iron
Iron Wire
or
Hot Air Blower
Fig. S-1-5
Fine Tip
Soldering Iron
CBA
Flat Pack-IC
Tweezers
Fig. S-1-6
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark. Fig. S-1-7
Presolder
CBA
Flat Pack-IC
Fig. S-1-8

1-4-4 DVDP_SN
Instructions for Handling Semi-
conductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.
2. Ground for Workbench
Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.
<Incorrect>
CBA
Grounding Band
Conductive Sheet or
Copper Plate
1MΩ
1MΩ
<Correct>
CBA

1-5-1 E6D20DC
CABINET DISASSEMBLY INSTRUCTIONS
1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
2. Disassembly Method
Note:
(1) Identification (location) No. of parts in the figures
(2) Name of the part
(3) Figure Number for reference
(4) Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
CN = Connector
* = Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
(5) Refer to “Reference Notes.”
About tightening screws
When tightening screws, tighten them with the
following torque.
Reference Notes
1. CAUTION 1: Locking Tabs (L-1), (L-2), (L-3), (L-4)
and (L-5) are fragile. Be careful not to break them.
1) Connect the wall plug to an AC outlet and press
the [AOPEN/CLOSE] button to open the tray.
2) Remove the Tray Panel by releasing two
locking tabs (L-1).
3) Press the [AOPEN/CLOSE] button again to
close the tray.
4) Press the [STANDBY-ON] button to turn the
power off.
5) Unplug an AC cord.
6) Release four Locking Tabs (L-2), then release
two Locking Tabs (L-3) and three Locking Tabs
(L-4).
7) Release three Locking Tabs (L-5), and remove
the Front Assembly.
2. CAUTION 2: Electrostatic breakdown of the laser
diode in the optical system block may occur as a
potential difference caused by electrostatic charge
accumulated on cloth, human body etc, during
unpacking or repair work.
To avoid damage of pickup follow next procedures.
1) Short the three short lands of FPC cable with
solder before removing the FFC cable (CN201)
from it. If you disconnect the FFC cable
(CN201), the laser diode of pickup will be
destroyed. (Fig. D4)
2) Disconnect Connectors (CN301), (CN401) and
(CN601). Remove Screw (S-3) and lift the DVD
Main CBA Unit. (Fig. D4)
3. CAUTION 3: When reassembling, confirm the
FFC cable (CN201) is connected completely. Then
remove the solder from the three short lands of
FPC cable. (Fig. D4).
ID/
Loc.
No.
Part
Removal
Fig.
No.
Remove/*Unhook/
Unlock/Release/
Unplug/Desolder
Note
[1] Top Case D1 3(S-1) -
[2] Front
Assembly D2
*2(L-1), Tray Panel,
*4(L-2), *2(L-3),
*3(L-4), *3(L-5)
1
[3] Reinforce
Plate D3 2(S-2) -
[4] DVD Main
CBA Unit D4
(S-3),
*CN201, *CN301,
*CN401, *CN601
2
[5] DVD
Mechanism
D4
D5 4(S-4) 2 3
[6] AV CBA D6 (S-5), 7(S-6), *2(L-6) -
[7] Function
CBA D6 *CN2001 -
↓
(1)
↓
(2)
↓
(3)
↓
(4)
↓
(5)
[1] Top Case
[2] Front Assembly
[3] Reinforce Plate
[4] DVD Main CBA Unit
[5] DVD Mechanism [6] AV CBA
[7] Function CBA
Screws Torque
(S-1), (S-2), (S-3), (S-4),
(S-5), (S-6) 0.45 ± 0.05 N·m

1-5-2 E6D20DC
.
(S-1)
[1] Top Case
Fig. D1
[2] Front Assembly
(L-4)
(L-5)
(L-2)
(L-2)
Tray Panel
(L-1)
(L-1)
Fig. D2
(L-3)
(L-3)
Fig. D3
(S-2)
(S-2)
[3] Reinforce Plate
[4] DVD Main
CBA Unit
(S-3)
CN201
CN301
CN401
CN601
A
Fig. D4
View for A
Short the three short lands by soldering.
(Either of two places.)
FPC Cable
[5] DVD Mechanism
(S-4)
(S-4)
(S-4)
Fig. D5

1-5-3 E6D20DC
3. How to Eject Manually
1. Turn the unit over.
2. Insert the shaft less than a diameter of 3 mm (e.g. screwdriver) straightly into the opening as shown.
3. Turn the shaft along with the opening clockwise.
4. Repeat steps 2 and 3 until the tray will open.
5. Pull the tray slowly manually.
[7] Function CBA
[6] AV CBA
(S-5)
(S-6)
CN2001
Fig. D6
(L-6)
B
Front
View for B
Turn the shaft along with
the opening clockwise.
Rear
Opening
Shaft
(e.g. screwdriver)

1-6-1 E6D20INT
HOW TO INITIALIZE THE DVD PLAYER
To put the program back at the factory-default,
initialize the DVD player as the following procedure.
1. Press [1], [2], [3], [4], and [DISPLAY] buttons on
the remote control unit in that order.
Fig. a appears on the screen.
2. Press [CLEAR] button on the remote control unit.
Fig. b appears on the screen.
When “OK” appears on the screen, the factory
default will be set.
3. To exit this mode, press [STANDBY-ON] button.
MODEL : *******
Version : *.**
Region : *
EXIT: POWEREEPROM CLEAR : CLEAR
Fig. a
"*******" differs depending on the models.
MODEL : *******
Version : *.**
Region : *
EEPROM CLEAR : OK
EXIT: POWEREEPROM CLEAR : CLEAR
"*******" differs depending on the models.
Fig. b

1-7-1 E6D20FW
FIRMWARE RENEWAL MODE
1. Turn the power on and remove the disc on the tray.
2. To put the DVD player into version up mode, press
[9], [8], [7], [6], and [SEARCH MODE] buttons on
the remote control unit in that order. The tray will
open automatically. Fig. a appears on the screen
and Fig. b appears on the VFD.
The DVD player can also enter the version up
mode with the tray open. In this case, Fig. a will be
shown on the screen while the tray is open.
3. Load the disc for version up.
4. The DVD player enters the F/W version up mode
automatically. Fig. c appears on the screen and
Fig. d appears on the VFD. If you enter the F/W for
different models, “Disc Error” will appear on the
screen, then the tray will open automatically.
The appearance shown in (*1) of Fig. c is
described as follows:
5. After programming is finished, the tray opens
automatically. Fig. e appears on the screen and
the checksum in (*2) of Fig. e appears on the VFD
(Fig. f).
At this time, no button is available.
6. Remove the disc on the tray.
7. Unplug the AC cord from the AC outlet. Then plug
it again.
8. Turn the power on by pressing the
[STANDBY-ON] button and the tray will close.
9. Press [1], [2], [3], [4], and [DISPLAY] buttons on
the remote control unit in that order.
Fig. g appears on the screen.
10. Press [CLEAR] button on the remote control unit.
Fig. h appears on the screen.
When “OK” appears on the screen, the factory
default will be set. Then the firmware renewal
mode is complete.
11. To exit this mode, press [STANDBY-ON] button.
No. Appearance State
1 Reading... Sending files into the memory
2 Erasing... Erasing previous version data
3 Programming... Writing new version data
F/W Version Up Mode Model No : *******
VERSION : *.**
Please insert a DISC
for F/W Version Up.
EXIT: POWER
"*******" differ depending on the models.
Fig. a Version Up Mode Screen
Fig. b VFD in Version Up Mode
VERSION : ************.abd
Reading...
F/W Version Up Mode Model No : *******
VERSION : *.**
Fig. c Programming Mode Screen
"*******" differ depending on the models.
(*1)
Fig. d VFD in Programming Mode (Example)
VERSION : ************.abd
Completed
SUM : 7ABC
F/W Version Up Mode Model No : *******
VERSION : *.**
"*******" differ depending on the models.
Fig. e Completed Program Mode Screen
(*2)
Fig. f VFD upon Finishing the Programming Mode (Example)
MODEL : *******
Version : *.**
Region : *
EXIT: POWEREEPROM CLEAR : CLEAR
Fig. g
"*******" differ depending on the models.
MODEL : *******
Version : *.**
Region : *
EEPROM CLEAR : OK
EXIT: POWEREEPROM CLEAR : CLEAR
"*******" differ depending on the models.
Fig. h

1-8-1 E6D20BLS
BLOCK DIAGRAMS
System Control / Servo Block Diagram
1 NOTE: Either IC461 or IC462 is used for DVD MAIN CBA UNIT.
12
7 8 9
10 11
REMOTE
SENSOR
RM2001
1G
7G
~
23 17
~
a/KEY-1 b/KEY-2
c/KEY-3
d/KEY-4
e
f
K1 K2
GRID FIP
SEGMENT
FL2001
IC2001
(FRONT PANEL CONTROL)
13 14 16
3 4
g h
i
KEY MATRIX
CN2001 CN2101
KEY-1 5
5
KEY-2 3
3
KEY-3 4
4
KEY-4 6
6
K2 1
1
K1 2
2
AV CBA
FUNCTION CBA
28
FP-DIN
2
FP-STB
1
FP-CLK
27
FP-DOUT
CN1001
IC301
(SERVO DRIVE)
CN301
M
SLED MOTOR
M
SPINDLE MOTOR
IC101
(MICRO CONTROLLER)
+
-
+
-
+
-
+
-
+
-
+
-
+
-
SLED MOTOR DRIVE
FOCUS ACTUATOR DRIVE
SPINDLE MOTOR DRIVE
TRACKING ACTUATOR DRIVE
126
TRAY-IN SLD
67
SPDL
66
TRACKING DRIVE
127
FOCUS DRIVE
65
FS(+) FS(-) TS(+) TS(-)
TRAY-IN
1SP(+) 2SP(-) 6TRAY-IN 3GND 4SL(-) 5SL(+)
VREF
RESET70
RESET
IC462
1 3
+3.3V
IC202 (OP AMP)
15 16 14 13 12 11 17 18 23
6
4
5 3
1
2
25
24
27
26
63
SL-AMP
121
SP-ROT
+3.3V
124
FD-OFST
123
TD-OFST
RESET
IC461
2 1
+3.3V
TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM
DRIVE CBA
DVD MAIN CBA UNIT
1
2
67
5 3
98
10
122
SL-ADS
1
CN401
53
FP-DOUT 21
FP-DOUT 19
54
FP-DIN 22
FP-DIN 20
55
FP-CLK 23
FP-CLK 21
56
FP-STB 24
FP-STB 22
49
REMOTE 25
REMOTE 23

1-8-2 E6D20BLD
Digital Signal Process Block Diagram
C16 D18
A17 B15
DVD-LD 8
CD-LD 10
PD-MONI 7
FS(+) 2
FS(-) 3
TS(+) 1
TS(-) 4
CN201 CN201 CN201
IC201 (SW)
IC101 (MICRO CONTROLLER)
FS
FS(+)
CD/DVD
FS(-)
TS(+)
TS(-)
TS
DETECTOR
CD/DVD 19
Q251,Q252
CD DVD
AMP
Q253,Q254
AMP
4
1 3
6
GND(DVD-PD)
6
GND(CD-PD)
5
GND(LD)
9
RF SIGNAL PROCESS CIRCUIT
DVD/CD FORMATTER
AUDIO I/F VIDEO I/F
NTSC/PAL ENCODER
DMA BCU
INST. ROM 32BIT
CPU
DATA RAM
INTERRUPT CONTROLLER
WATCH DOG TIMER
CPU I/F
TIMER
DECODER I/F
CPU I/F
READ MEMORY
DATA RAM
DSP DECODER
I/O PROCESSOR
INST. ROM DATA RAM INST. ROM
SERIAL
D/A
GENERAL I/O INTERRUPT CONTROLLER
TIMER WATCH DOG TIMER REMOTE CONTROL
32BIT CPU
STREAM I/F
EXTERNAL MEMORY I/F
SDRAM
ECC
UMAC
100 115 116 113 114
106 104 105 103
62
DEBUG
BCU
INST CACHE
DATA CACHE
D/A
131
139
Y/G(I/P)
C
VIDEO-Y/G(I/P)
VIDEO-C
152
SPDIF
ASPECT
ASPECT
151
AUDIO(R)-MUTE
146
AUDIO(R)
144
AUDIO(L)
SDRAM ADDRESS(0-10)
IC103 (FLASH ROM)
FLASH ROM
29 36 38 45
~
~
VIDEO SIGNAL
FDQ (0-15)
~
1 9
16 25 48
~
FADR (0-19)
SDRAM DATA(0-15)
PICK-UP UNIT
TO SYSTEM CONTROL/SERVO BLOCK DIAGRAM
DVD MAIN CBA UNIT
TO VIDEO /AUDIO BLOCK DIAGRAM TO VIDEO /AUDIO BLOCK DIAGRAM
IC503 (SDRAM)
SDRAM DATA(0-15)
SDRAM ADDRESS(0-10)
194 209
~
2
13 42 53
~
~
22 26 29 34
~~
159 178
~
99 98 97
21~30 34~42 212
1~4 7~14 17~18 215~216
AUDIO SIGNAL
AUDIO D/A CONVERTER
TO VIDEO /AUDIO BLOCK DIAGRAM
D/A D/A
129
130
Pr/R
Pb/B
VIDEO-Pr/R
VIDEO-Pb/B
I/P-SW 47 I/P-SW
60
D/A
138
Y(I) VIDEO-Y(I)

1-8-3 E6D20BLV
Video / Audio Block Diagram
VIDEO SIGNAL
AV CBADVD MAIN CBA UNIT
88
VIDEO-Y/G(I/P)
10 10VIDEO-C
66VIDEO-Pb/B 44VIDEO-Pr/R
VIDEO-Y/G(I/P) VIDEO-C VIDEO-Pb/B VIDEO-Pr/R
JK1401 S-VIDEO OUT
YC
I/P-SW
WF1
WF3
4dB AMP
IC1402 (VIDEO DRIVER)
4dB AMP
2dB AMP
LPF DRIVER
11
2dB AMP
LPF DRIVER
6
10
4dB AMP
2dB AMP
LPF DRIVER
8 313
IC1401 (VIDEO DRIVER)
4dB AMP
2dB AMP
LPF DRIVER
2dB AMP DRIVER
4dB AMP
2dB AMP
LPF DRIVER
3 1
5 6 7
11VIDEO-Y(I)
CN601 CN1601 CN601 CN1601
VIDEO-Y(I)
WF2
TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM
TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM
VIDEO OUT (COMPOSITE) VIDEO OUT (COMPOSITE)
VIDEO-G VIDEO-B VIDEO-R
JK1402
JK1405
19 11
7
15
22I/P-SW(NU)
33
ASPECT
8ASPECT
Q1521,Q1522
ASPECT SPDIF AUDIO(L) AUDIO(R) AUDIO(R)-MUTE
43
12
16 16
SPDIF
12 12
AUDIO(L)
14 14
AUDIO(R)
13 13
AUDIO(R)-MUTE
AUDIO SIGNAL
JK1202
BUFFER
MUTE-ON
Q1351
IC1201
Q1201 Q1202
(AMP)
AUDIO(L)- OUT AUDIO(R)- OUT
Q1204
IC1204
JK1201
DIGITAL AUDIO OUT
OPTICAL COAXIAL
MUTE-ON
1 7
2 3 6
5
WF4
WF6
WF5
+5V
1AUDIO(R)-
OUT
3AUDIO(L)-
OUT
JK1405
SWITCHING

1-8-4 E6D20BLP
Power Supply Block Diagram
CAUTION ! Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F1001) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.
NOTE: The voltage for parts in hot circuit is measured using hot GND as a common terminal.
CAUTION ! For continued protection against fire hazard, replace only with the same type fuse.
IC1006
(SHUNT REGULATOR)
REG
AC1001 AC CORD F1001
LINE
FILTER
L1001
D1001, D1002 D1004, D1005
Q1003
Q1001
2 4 6
3 4
IC1001
ERROR VOLTAGE DET
T1001
11 12 13 15 14 16 17 18
SWITCHING
SWITCHING
CONTROL
1 2
7
BRIDGE
RECTIFIER
HOT
HOT CIRCUIT. BE CAREFUL.
D1003
RECTIFIER
D1030
RECTIFIER
D1016
RECTIFIER
Q1016
Q1005
Q1011
Q1015
Q1002
CN1001
Q1004
-FL EV+5V F1 P-ON+11V EV+3.3V P-ON+5V
2,3 EV+1.2V
4,5,6 EV+3.3V
9,10 EV+11V
8P-ON+5V 7P-ON+3.3V
18 PWRCON
+1.2V
REG.
IC1002
D1006
SCHOTTKY BARRIER SCHOTTKY BARRIER
D1008
F2
AV CBA
TO CN401
Q1008
SWITCHING CONTROL
T1.6A L 250V Q1013

1-9-1 E7P_SC
SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS
Standard Notes
WARNING
Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using
replacement components rated for higher voltage,
wattage, etc. Replacement parts that have these
special safety characteristics are identified in this
manual and its supplements; electrical components
having such features are identified by the mark “!” in
the schematic diagram and the parts list. Before
replacing any of these components, read the parts list
in this manual carefully. The use of substitute
replacement parts that do not have the same safety
characteristics as specified in the parts list may create
shock, fire, or other hazards.
Notes:
1. Do not use the part number shown on these
drawings for ordering. The correct part number is
shown in the parts list, and may be slightly
different or amended since these drawings were
prepared.
2. All resistance values are indicated in ohms
(K = 103, M = 106).
3. Resistor wattages are 1/4W or 1/6W unless
otherwise specified.
4. All capacitance values are indicated in µF
(P = 10-6 µF).
5. All voltages are DC voltages unless otherwise
specified.
6. Electrical parts such as capacitors, connectors,
diodes, IC’s, transistors, resistors, switches, and
fuses are identified by four digits. The first two
digits are not shown for each component. In each
block of the diagram, there is a note such as
shown below to indicate these abbreviated two
digits.
