FUNAI PLF-76TD User manual

CAUTION: Before servicing the chassis, read the “IMPORTANT SERVICE SAFETY INFORMATION” section on
page 2 of this manual.
SPECIFICATIONS
zGENERAL SPECIFICATION
z7” ACTIVE-MATRIX TFT TYPE.
zDVD, VCD, CD, CD-R, CD-RW, MP3, DIVX, HDCD
SUPPORTS.
zUSB FUNCTION
z16:9 / 4:3 PICTURE SELECT.
zHIGH BRIGHTENNESS.
zHIGH CONTRAST.
zWITH LOGO OPENING SCREEN.
zSLOW MOTION ½, 1/4, 1/8, 1/16
zF.B / F.F x2, x4, x8, x16 SPEED.
zANGLE MENU.
z20 TRACK PROGRAM FOR CD PLAYING.
zZOOM x 2, 3, 4.
zREMOTE CONTROL.
zS. VIDEO OUTPUT (for Ext. TV Monitor)
zHEADPHONE OUT x 1.
zAUDIO OUTPUT 0.5W x 2/8 ohm.
zLONG BATTERY TIME OF OVER 2 HRS.
zDIMENSION :
212(L) x 170(W) x 430(H) mm(excluding battery)
zAC POWER SOURCE:
ADAPTER: 230V
zDC POWER SOURCE: BATTERY PACK: 7.2V
zFEATURES FOR DVB-T TUNER (FREE ON AIR)
zFREQUENCY RANGE :
VHF CH5 – CH12 (174MHZ – 230MHZ)
UHF CH21 - CH69 (470MHZ – 862MHZ)
z1,000 PROGRAMMABLE FAVORITE CHANNELS
z9 PICTURES FOR PROGRAM AUTO-SCAN
zEPG FUNCTION SUPPORT (TELE-TEXT OPTION)
zPROGRAM LIST WITH PROGRAM PREVIEW AFTER
TUNER POWER ON
zOSD TRANSPARENT ADJUSTMENT.
zFULL FUNCTION REMOTE CONTROL
CONTENTS
IMPORTANT SERVICE SAFETY INFORMATION................2
DISASSEMBLY FOR REPAIR .................................................3
WIRING DIAGRAM……………………………………....……4
BLOCK DIAGRAM....................................................................5
CIRCUIT DESCRIPTION .............................……………...6~16
PARTS LIST ..........................................…………............ 17~29
EXPLODED VIEW (CABINET)............................................. 30
EXPLODED VIEW (DVB-T).................................................. 30
SCHEMATIC DIAGRAMS.................................................32~40
PRINTED CIRCUIT BOARDS.......................................... 41~54
Note: Follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
TFT PORTABLE DVB-T/DVD PLAYER
FUNAI PLF-76TD
SERVICE MANUAL
©2006- PRINTED IN
M595MB

2
1. SAFETY PRECAUTIONS
Before returning a unit to the customer, always make a safety check
of the entire unit, including, but not limited to the following items:
a. Be sure that no built-in protective devices are defective and/or
have been defeated during servicing.
(1) Protective shields are provided to protect to protect both the
technician and the customer. Correctly replace all missing protective
shields including any removed for servicing convenience.
(2) When reinstalling the chassis and/or other assemblies in the
cabinet, be sure to put back in place all protective devices, including,
but not limited to, nonmetallic control knobs, insulating fishpapers,
adjustment and compartment covers/shields and isolation resistor
capacitor networks. Do not operate this unit of permit it to be operated
without all protective devices correctly installed and functioning.
b. Be sure that there are no cabinet openings through which an adult
or child might be able to insert their fingers and contact a hazardous
voltage. Such openings include, but are not limited to, excessively wide
cabinet ventilation slots, and an improperly fitted and/or incorrectly
secured cabinet back cover.
c. Leakage Current Hot Check - With the unit completely
reassembled, plug the AC line cord directly into a AC outlet. (Do not
use an isolation transformer during this test.) Use a leakage current
tester or a metering system that complies with American National
Standards institute (ANSI) C101.1 “Leakage Current for Appliances”
and Underwriters Laboratories (UL) 1410, (50.7). With the unit AC
switch first in the ON position and then in the OFF position, measure
from a known earth ground (metal water pipe, conduit, etc.) to all
exposed metal parts of the unit (antennas, handle bracket, metal cabinet,
screwheads, metallic overlays, control shaft, ect.), especially any
exposed metal parts that offer an electrical return path to the chassis.
Any current measured must not exceed 0.5 milliamp. Reverse the unit
power cord plug in the outlet and repeat test.
ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED
HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT
MUST BE ELIMINATED BEFORE RETURNING THE UNIT TO
THE CUSTOMER.
DEVICE
UNDER
TEST
TEST ALL EXPOSED
METAL SURFACES
AC LEAKAGE TEST
2-WIRE CORD ALSO
TEST WITH PLUG
REVERSED (USING AC
ADAPTER PLUG A
REQUIRED)
LEAKAGE
CURRENT
TESTER
EARTH
GROUND
(READING
SHOULD
NOT BE
ABOVE
0.5mA)
d. Insulation Resistance Test Cold Check
(1) Unplug the power supply cord and connect a jumper wire
between the two prongs of the plug.
(2) Turn on the power switch of the unit.
(3) Measure the resistance with an ohmmeter between the jumpered
AC plug and each exposed metallic cabinet part on the unit, such as
screwheads, antenna, control shaft, handle brackets, etc. When the
exposed metallic part has a return path to the chassis, the reading
should be between 1 and 5.2 Megohm. When there is no return path to
the chassis, the reading must be “infinite”. If it is not within the limits
specified, there is the possibility of a shock hazard, and the unit must
be repaired and rechecked before it is returned to the customer.
2. PRODUCT SAFETY NOTICE
Some electrical and mechanical parts have special safety related
characteristics which are often not evident from visual inspection, nor
can be protection they give necessarily be obtained by replacing them
with components rated for higher voltage, wattage, etc. Parts that have
special safety characteristics are identified by a ¡I on schematic and
parts list. Use of a substitute replacement that does not have the same
safety characteristics as the recommended replacement part might
create shock, fire, and/or other hazards. Product Safety is under review
continuously and new instructions are issued whenever appropriate.
3. SERVICING PRECAUTIONS
CAUTION: Before servicing the unit covered by this service manual
and its supplements, read and follow the SAFETY PRECAUTIONS on
this page. NOTE: If unforeseen circumstances create a conflict between
the following servicing precautions and any of the safety precautions,
always follow the safety precautions. Remember: Safety First.
General Servicing Precautions.
a. Always unplug the unit’s AC power cord from the AC power
source before:
(1) removing or reinstalling any component, circuit board, module,
or any other unit assembly.
(2) disconnecting or reconnecting any unit electrical plug or other
electrical connection.
(3) connecting a test substitute in parallel whit an electrolytic
capacitor in the unit.
Caution: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explosion hazard.
b. Do not defeat any plug/socket B+ voltage interlocks with which
the unit covered by this service manual might be equipped.
c. Do not apply AC power to this unit and/or any of its electrical
assemblies unless all solid-state device heat sinks are correctly installed.
d. Always connect a test unit ground lead to the unit chassis ground
before connecting the test unit positive lead. Always remove the test
instrument’s ground lead last.
4. LASER PRECAUTIONS
WARNING!
1. When servicing (in case it is necessary to confirm Laser Beam
Emission), be sure not to place your eyes any closer than 1 ft or 30cm
from the surface of the Object Lens on the Optical Pickup Block.
HANDLING THE LASER PICKUP
2. Laser diodes are extremely susceptible to damage from static
electricity. Even if a static discharge does not ruin the diode, it can
shorten its life or cause it to work improperly. When replacing the
pickup, use a conductive mat on the floor and desk and wear a wrist
band connected to ground through a 1M ohm resistor to protect the
laser diode from static damage. If the lens should get dusty, blow off
the dust carefully from the object.
3. There are no adjustable parts in the pickup assembly. If it is
defective, replace the whole pickup assembly.
CAUTION:
USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DANGER:
IF INTERLOCK FAILS OR IS DEFEATED, THE LASER LIGHT
IS ABLE TO FUNCTION. THE LASER IS INVISIBLE, AVOID
DIRECT EXPOSURE TO BEAM.
IMPORTANT SERVICE SAFETY INFORMATION
OM
ANTENNA
TERMINAL
EXPOSED
METAL
PART OHMMETER

3
DISASSEMBLY FOR REPAIR
TO DISASSEMBLY THE BOTTOM METAL CABINET
1. Remove the 14 screws (A) from bottom metal cabinet.
TO REMOVE THE INNER PANEL
2. Remove the 6 screws (B) from the inner panel and out panel.

4
WIRING DIAGRAM

BLOCK DIAGRAM
5

6
4
3
1
2
5
6
8
7
B +INPUT
B -INPUT
B OUTPUT
V +
A -INPUT
A +INPUT
V -
A OUTPUT
CIRCUIT DESCRIPTION
100mΩPower Distribution Switches: RT9701CB (U7)
NiMH BATTERY CHARGER CONTROLLER: LS2964S (U6)
DUAL OPERATIONAL AMPLIFIER: RC4558D (U7,16)
1
2
3
4
8
7
6
5
Time
r
LED
OSC
GND
VDD
PWM
Vdet
Idet

7
CIRCUIT DESCRIPTION
PROGRESSIVE SCAN DVD PLAYER COMBO CHIP: MT1389DE/B (U5)
SWITCHING REGULATOR CONTROLLER FOR LCD BIAS: AT1380HP(U2,13,14)

8

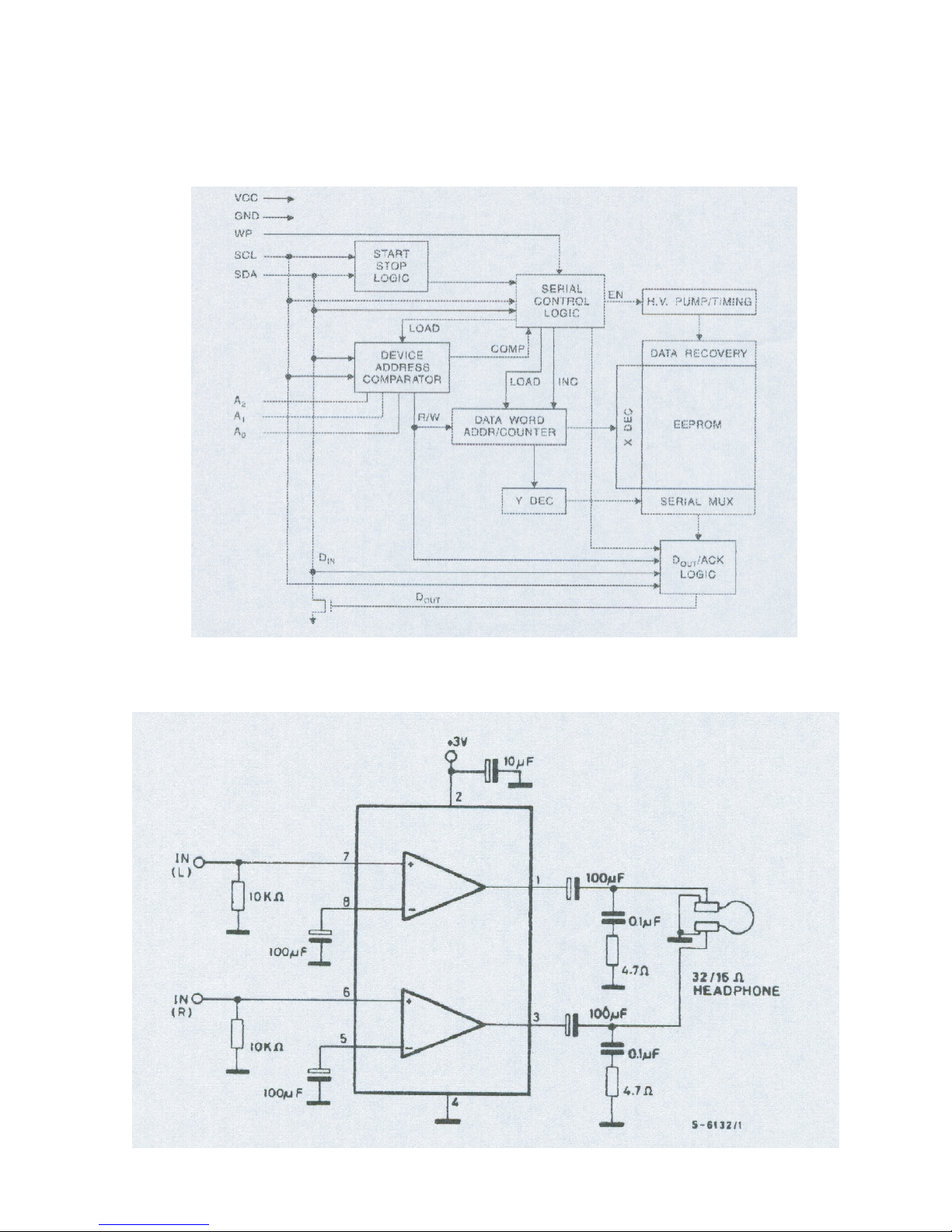

CIRCUIT DESCRIPTION
2-WIRE SERIAL EEPROM: AT24C02A-10SC-207 (U6,U12)
DUAL LOW-VOLTAGE POWER AMPLIFIER: NJM2073M (U3)

9
CIRCUIT DESCRIPTION
24-BIT, 96 KHZ STEREO D/A CONVERTER FOR AUDIO: CS4340 (U15)
DUAL COMPARATORS: LM393DR (U10)
VOLTAGE REGULATOR: 78 L 08 (Q1)
GND
OUTIN

10
CIRCUIT DESCRIPTION
4-CHANNEL BTL MOTOR DRIVER FOR CD-ROM: AT5654H (U4)
300/500MA LOW DROPOUT LINEAR VOLTAGE REGULATOR: RP1101-19CXL, RP1102-
33CGL (U1,Q2)

11
CIRCUIT DESCRIPTION
8M/16M-BIT CMOS SINGLE VOLTAGE 3V ONLY HIGH SPEED FLASH: AT49BV163A-70TU,
S29AL008D70TFI020 (U11,U4)
DIGITAL TV STB BACKEND PROCESSOR: CT212T (U3)

12
CIRCUIT DESCRIPTION
2 BANKS X 512K X 16 BIT SYNCHRONOUS DRAM : K4S641632H-UC75 TSOP-54 (U1,U9)
INFRARED REMOTE CONTROL TRANSMITTER : SC6122-001 (IC1)
1
KI/O19
66KI
7
DD
SS
SEL
REM
OSCI
OSCO
V
V
1411
12 13
8
10
9
717
16
15
18
7
KI/O
LMP
4
KI/O
KI/O
KI/O6
5
KI/O3
2
4
KI
KI
KI
KI
KI
33
54
5
21
222
20
21
24
23 0
CCS
KI/O
KI/O0
1
KI
KI

13
CIRCUIT DESCRIPTION
TV/VIDEO SINGNAL PROCESSOR WITH BUILT-IN TFT-LCD CONTROLLER: VS507 (U3)
8-BIT COMPATIBLE SHIFT/STORE REGISTER: HEF4094BT (U4)

14

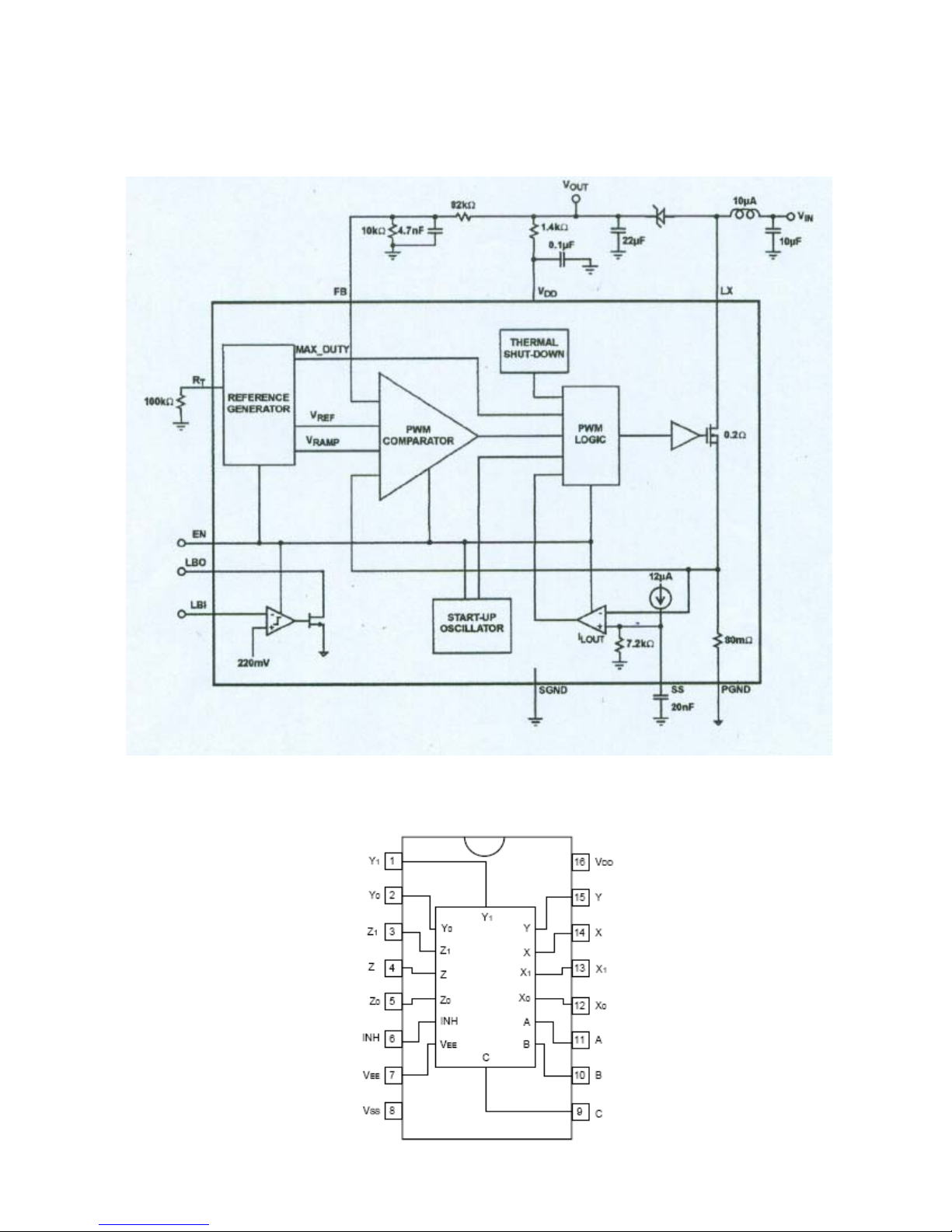

CIRCUIT DESCRIPTION
HIGH FREQUENCY PWM STEP-UP REGULATOR: EL5220CY (U1A)
TRIPLE 2-CHANNEL ANALOG MULTIPLEXER /DEMULTIPLEXER: 74HC4053 (U2)

15
CIRCUIT DESCRIPTION
2A STEP DOWN DC TO DC CONVERTER: MP1410ES (U8, 9)
10-pin, 24-Bit, 192 kHz Stereo D/A Converter: CS4345 (U5)
DIGITAL TV STB BACKEND PROCESSOR: B1117N-ADJ (U10)

16

Ref. No Parts No. Description QTY
185-04620-001 M462 INVERTER CHASSIS
IV1070LG-2(SHANGHAI
TECHGOOD) (FOR LG 7" TFT
DIS.)
1
HS-M595MB-
GY-507 M595MB H/S CHASSIS W/COSMETIC ASSY "FUNAI
PLF-76TD" (L.GY.MNC7-0) (48
KEY)
1
001-04050-710 N405M REMOTE CONTROL
P.C.B. (48 KEY) 1
IC 1 002-06322-990 IC AP6322-0002-S (ASP) SMT 1
Q1 003-24081-140 CHIP TRANSISTOR
2SC4081(RS)-TLB (ROHM) 1
004-01122-600 INFRARED EMITTING DIODES
EL-1L2 1
R1 005-52109-301 CHIP RESISTOR 1 OHM +-5%
(1608) (MCH03EZHJ109) 1
C2,3 006-72181-250 CERAMIC CHIP CAP 180 PF +-
5% 50V (1608)
(MCH185A181JK)
2
C1 009-10476C510 ELECT CAP 47 UF +80%-20%
10V (PIN LENGTH 9MM) 1
X1 028-00455-011 CERAMIC FILTER ZTB455E
(MEC) (2 PINS) 1
041-04051-002 N405 HANDSET BATTERY
PLATE (+) 1
041-04052-002 N405 HANDSET BATTERY
SPRING (-) 1
104-04050-0956 N405M H/S BOTTOM CAB.
(L.GREY MN7-0) 1
111-04050-0956 N405M H/S BATTERY DOOR
(L.GREY MN7-0) 1
124-05261-0499 M526MB H/S BACK
PLATE"ENZER E5698P7"
1
125-04050-001 T405M H/S MEMBRANE
SW.PLATE W/RED 032C
SIL.8001C/GN.375C 2X/SIL.GY
8403C/WH.SK.
1
FOR HENDSET 144-11405-402 SCREW 1.4 X 5 KB (D=2.5MM) 7
M515MB-SIL-
KNOB M515MB SP.SIL.SS9-1 KNOB VERSION ASSY 1
Ref. No Parts No. Description QTY
127-04625-0974 M515 POWER KNOB (INJ.GY
MN7-0/ABS) (SP.SIL.SS9-1) 1
127-04627-0974 M515 PANEL OPEN KNOB
(INJ.GY MN7-0/ABS)
(SP.SIL.SS9-1)
1
128-05152-0974 M515 DISC OPEN BUTTON
(INJ.GY MN7-0/ABS)
(SP.SIL.SS9-1)
1
128-05152-1974 M515 BUTTON SET
(INJ.GY.MN7-0/ABS)
(SP.SIL.SS9-1)
1
M462-CAR-
ADAPTOR-02 M518MB CAR ADAPTOR ASSY (OUTPUT DC 9V,1.2A) 1
001-35000-400 3500MC CAR BAT SUPPLY
P.C.B. 1
D1-4 004-05401-300 RECTIFIER IN-5401 4
R1 005-10152-314 RESISTOR 1.5 K +-5% 1/4W 1
C1 006-10203-550 CERAMIC CAP 0.02 UF +80%-
20% 50V 1
C2 009-10107-525 ELECT CAP 100 UF +80%-20%
25V 1
D10 019-12000-110 L.E.D. DIAMETER 3MM(RED)
SEL-2110R 1
031-02600-040 JUMPER WIRE AWG22UL
60MM RED 1
031-10500-100 JUMPER WIRE AWG22UL
50MM BLACK(ONE SIDE
4MM,ONE SIDE 10MM)
1
043-20192-300 T409 DC CORD 75"#20 WH/BLK
(2P)W/BUSHING &DC PLUG
(Y001-D19102C458505Q)(Y.C.)
1
050-05020-250 2.5A/250V GLASS FUSE
5X20MM FAST ACTING
BUSSMANN/VDE/SEMKO/BSI/I
MQ/UR
1
101-97030-010 9703 CAR ADAPTOR FRONT
CABINET (BLACK) 1
102-97030-010 9703 CAR ADAPTOR REAR
CABINET (BLACK) 1
105-97030-010 9703 CAR ADAPTOR CAP 1
17
PARTS LIST

Ref. No Parts No. Description QTY
(BLACK)
133-97031-311 GT9839 (9703) CAR ADAPTOR
SPRING PLATE T=1.0MM 1
133-97035-304 9703 CAR ADAPTOR SPRING
T=0.4MM 1
133-97036-352 9703 CAR ADAPTOR PLUG
(GENERAL TECHNIC) 1
FOR CAR ADAPTOR
FRONT CABINET 144-12606-111 SCREW 2.6 X 6 RT (BLACK) 4
20MM X 1(D5) 202-10005-001 TIN PLATE WIRE 0.5MM 0.000
065
M462M-DVD-
LOADER M462M LOADER (SONY KHM310AHC) SUBASS'Y 1
MAIN PCB (J1) TO
LOADER 025-10006-149 6P J.WIRE #30UL 100MM (2P 2MM) JST 1
037-45251-245 24P FILM CABLE 5+250+5 UL
(P=0.5MM) 1
FOR LOADER 145-69912-100 PVC WASHER W/HOLE
(L=9MM W=6.5MM T=1MM
DIA.=3.3MM)
2
160-00310-001 DVD MECHANISM SONY
KHM310AHC (SLIM
TYPE/BALL CLAW)
1
161-03102-001 KHM-310 INSULATOR
(IIR,HARDNESS=40 DEG)
(SILICON RUBBER)
4
M595M-
CASING M595M CASING ASSY 1
029-02808-403 28MM SPEAKER 8 OHM
NOM.0.5W;MAX.1W W/BLACK
CAP. (SAMOC NO.:Z28D3K01-
4)
2
FOR LCD GROUNDING 039-30005-000 SOLIDING LUG 5.5MM (DIA.
1.7MM) 1
041-04621-002 M462 BATTERY CONTACT
PLATE (+) 1
041-04622-002 M462 BATTERY CONTACT
PLATE (-) 1
041-04623-002 M462 BATTERY PLATE
SPRING (+/-) 2
049-00706-005 TFT DISPLAY LR070WA01B 1
Ref. No Parts No. Description QTY
(ELITE STAR) (7" COLOR TFT-
LCD MODULE)
FOR DRIVER BD. 125-04092-001 T409 INSULATION PLATE (A)
(PC CUT SHEET T=0.1MM) 1
FOR INVERTER 125-04092-002 T409 INSULATION PLATE (B)
(PC CUT SHEET T=0.1MM) 1
129-04629-010 M462 BATTERY CONTACT
BRACKET (L) (BLACK/POM) 1
129-04629-110 M462 BATTERY CONTACT
BRACKET (R) (BLACK/POM) 1
129-04629-210 M462 DISC DOOR OPEN
SWTICH ADAPTOR
(BLACK/POM)
1
129-05158-0887 M515 DISC DOOR OPEN
BRACKET (INJ.GY.MN7-0) 1
130-04624-110 M462 DISPLAY ADAPTOR
RING (BLACK/POM) 1
133-04099-302 T409 HOOK SPRING 1
133-04099-303 T409 OPEN BUTTON SPRING 1
133-04621-115 M462 METAL PLATE (D)
(IRON) (T=1.5 MM) 1
133-04623-115 M462 METAL BRACKET (A)
(IRON) (T=1.5 MM) 1
133-04623-125 M462 METAL BRACKET (B)
(IRON) (T=1.5 MM) 1
FOR CD DOOR SW. X
1
FORTFTSW. X1
133-04624-306 M462 SW. SPRING 2
133-04625-360 M462 METAL PIN(A)
(STEEL)(DIA.=6 MM) 1
FOR BATTERY LOCK 133-04626-103 M462 METAL PLATE (A)
(IRON) (T=0.3 MM) 1
FOR BOTTOM CAB. 133-04629-305 M462 BATTERY PLATE
SPRING FOR BOTTOM CAB. 2
FOR MAIN P.C.B.
GROUNDING X 1
FOR CONTROL P.C.B.
GROUNDING X 1
133-04629-303 M462 P.C.B. SPRING (B)
(STEEL T=0.3)MM 2
FOR P.C.B.
GROUNDING 133-04629-305- 002 M462 P.C.B. SPRING (A) (STEEL) (DIA.=0.5) 1
FOR CD DOOR USE 133-05159-306 M515 CD DOOR SPRING 1
18
PARTS LIST

Ref. No Parts No. Description QTY
(STEEL) (DIA.=0.6MM)
FOR BOTTOM CAB. 136-10015-480 RUBBER FOOT (DIA.4.8X1.5)
MM W/ONE SIDE TAPE 1
FOR BOTTOM CAB. 136-10020-480 RUBBER FOOT (DIA.4.8X2)MM
W/ONE SIDE TAPE 1
FOR BOTTOM
BATTERY CAB. USE 136-10510-050 RUBBER 5 X 5 X 1MM (W/ONE SIDE TAPE) 2
FOR BATTERY USE 136-10530-100 RUBBER 10 X 5 X 3MM
(W/ONE SIDE TAPE) 4
FOR 7" TFT USE 136-10540-100 RUBBER (10*5*4)MM W/ONE
SIDE TAPE 2
FOR BATTERY SET 136-11501-200 RUBBER 20 X 15 X 1.5MM
(W/ONE SIDE TAPE) 4
FOR BATTERY SET 136-21060-120 RUBBER 6 X 10 X 12MM
(W/TWO SIDE TAPE) 1
FOR 24P FLAT WIRE ON
LOADER 136-21503-200 RUBBER 15 X 2.5 X 20MM(W/TWO SIDE TAPE) 1
FOR TFT FRONT CAB. 136-80020-040 PANEL RUBBER FOOT
(DIA.3.6X2.2)MM (GREY) 2
138-04624-010 M462 DISC DOOR HOOK
(BLACK/POM) 1
FOR TFT FRONT CAB. 144-11405-201 SCREW 1.4X5 TB SILVER 2
FOR CONT.BD. 144-11704-411 SCREW 1.7X4 KT (BLACK) 5
FOR BATT. CAB. 144-11706-402 SCREW 1.7X6 KB 5
FOR BATTERY CAB. 144-11706-412 SCREW 1.7X6 KB (BLACK) 3
FOR TFT SPRING USE 144-12004-511 SCREW 2X4 CWB (BLACK)
HARDEN (D=5MM
T=0.5MM)(E6D8011-0)
2
FOR HOOK SPRING 144-12606-111 SCREW 2.6X6 RT (BLACK) 1
FOR DISPLAY 144-21702-201 SCREW 1.7X2 BM 1
FOR BOTTOM CAB. * 4
FOR BATTERY PLATE
* 2
144-52005-112 SCREW 2X5 STR (TB) BLACK
(SFBPN205R0SM) 6
FOR BATTERY PLATE
* 4
FOR MAIN BD. * 2
FOR HOOK * 1
FOR DISPLAY * 2
144-52005-122 SCREW 2X5 STR (TB) SILVER 9
FOR BOTTOM CAB. 144-52008-112 SCREW 2X8 STR (TB) BLACK 10
FOR BOTTOM CAB. 144-52010-112 SCREW 2X10 STR (TB) BLACK
(SFBPN20100SM) 2
Ref. No Parts No. Description QTY
145-24620-000 M462 METAL WASHER (A)
(IRON) (T=1.0 MM) 7
FOR TFT FRONT CAB.
X 1
FOR TOP CAB. X
1
146-50409-001 T409 MAGNET (NDFEB)
20X3.5X5MM "SMDC" 2
991-00004-003 SURFACE ACTIVATOR '3M' 0.002
M593MB-
BATT-ASSY M593MB DVD BATTERY PACK CHASSIS ASSY 1
103-05930-001 M593MB BATTERY CASY TOP
(BLACK/ABS)
(SP.MATT.BLACK) W/SIL.877C
SK.
1
104-05930-001 M593MB BATTERY CASE
BOTTOM (BLACK/ABS) 1
117-05930-0618 M593MB SENSOR FRONT
COVER LENS (DARK SMOKY
801691/ABS)
1
117-05931-0618 M593MB SENSOR REAR
COVER LENS (DARK SMOKY
801691/ABS)
1
FOR TUNER-KEY P.C.B. 125-04092-003 T409 X'FORMER PC CUT
SHEET (35X22X0.5)MM 1
129-05933-010 M593MB SENSOR HOLDER
(BLACK/ABS) 1
129-05939-010 M593MB BATTERY BACKET
(BLACK/ABS) 1
130-55268-040 M526MB BATTERY LOCKER
(BLK./ABS) (SP.MATT.BLK.) 1
133-04629-306-
001 M462 BATTERY HOOK SPRING (BLACK/STEEL) (DIA.=0.6MM) 1
133-05939-306 M593MB SENSOR SPRING
(DIA.:0.6MM) 1
144-11704-411 SCREW 1.7X4 KT (BLACK) 2
FOR SENSOR COVER 144-51407-110 SCREW 1.4*7 STR (TA) BLACK 2
FOR BOTTOM CAB. 144-52005-112 SCREW 2X5 STR (TB) BLACK
(SFBPN205R0SM) 3
FOR BOTTOM CAB. 144-52010-112 SCREW 2X10 STR (TB) BLACK
(SFBPN20100SM) 2
FOR BOTTOM CAB. 144-52012-112 SCREW 2*12 STR (TB) BLACK 3
PARTS LIST
19

Ref. No Parts No. Description QTY
M595MB-C-
0507 M595MB DVD "FUNAI" COSMETIC ASSY SPRAY
SILVER SS9-1 COLOR
1
103-05150-901 M515MB TOP CAB. (INJ.GREY
MN7-0/ABS) (EMI SP.SIL.SS9-1)
W/D.GREY 433C SK.
1
104-04623-903 M526MB BOTTOM
CAB.(INJ.BLK./ABS) (W/USB)
(EMI SP.MATT.BLK.)
W/SIL.877C/AV IN/OUT
1
108-04622-9507 M516MB INNER P.(EMI
SP.SIL.SS9-1/MAT.BK)
"FUNAI"(INJ.GY.MN7-
0/ABS)W/D.GY.433C SK.
1
108-05151-
9507-001 M595MB OUTER PANEL (INJ.GREY MN7-0/ABS)
"FUNAI" (EMI SP.SIL.SS9-
1)D.GY.433C SK.
1
113-05150-009 M595MB DVD DOOR
(INJ.GREY MN7-0/ABS)
(SP.SIL.SS9-1)W/D.GY.433C
(DIVX SK.R.1)
1
117-04620-0931 M462 SENSOR LENS (SEMI-
TRANS.WHITE/PMMA) 1
117-04621-0931 M462 LED LENS (SEMI-
TRANS.WHITE/PMMA) 1
138-04624-0887 M452 DISC DOOR HOOK
(L.GREY MNC7-0/POM) 1
FOR CD DOOR 138-05153-1887 M515 DISC DOOR HIGH
COVER (1) (INJ.GY.MN7-0) 1
FOR CD DOOR 138-05153-2887 M515 DISC DOOR HIGH
COVER (2) (INJ.GY.MN7-0) 1
FOR TFT RING 144-12005-401 SCREW 2X5 KT 1
FOR METAL BRACKET
* 2
FOR BOTTOM CAB. * 2
FOR METAL PLATE * 1
144-12005-411 SCREW 2X5 KT (BLACK) 5
180-04624-010 M462 METAL BOTTOM
CABINET (BLACK) 1
M595MB-P- M595MB DVD "FUNAI PLF-76TD" 1
Ref. No Parts No. Description QTY
0507 PACKING ASSY TO GERMANY
015-80593-001 M593 DVB-T ANTENNA TQJ-
V/U-BT4 (BOBOTO) VHF174-
230/UHF470-862MHZ
1
043-26102-541 1P RCA CABLE #26UL 1M (2
SIDE RCA PLUG) YELLOW
(Y001-D100U182549B) (YIP
CHUN)
1
043-26102-542 2P RCA CABLE #26UL 1M (2P
SIDE RCA PLUG) WHITE/RED
(Y001-D10025622637A49B)
(Y.C.)
1
FOR BATTERY
BOTTOM 136-70010-100 RUBBER FOOT (DIA.10X1)MM NITTO 500 TAPE MATERIAL:
PORON #HH48C
2
998-00000-060 BATTERY CR2025 3V
(XINKEDA) 1
M566MB-STD-
31 M566MB 100-240V VDE APP. STD. ASSY 1
059-05202-100 SWITCHING ADAPTOR(SPEC
LIN)VDE(W/M.I.C.) SW0901500-
W02
100~240V;OP:9V/1.5A;GS/CE
1
MI-M595MB-
001 M595MB (MI) DVD MAIN/CONT/TUNER BD. ASSY 1
MI-04620-100-
09 M462MB (MI) DVD MAIN BD.CHASSIS ASSY (W/LINE
SELECT SWITCH)
1
Q45 003-08050-393 TRANSISTOR 8050C (KEC) 1
R191 005-10680-314 RESISTOR 68 OHM +-5% 1/4W 1
CE14,15 009-10477-510 ELECT CAP 470 UF +80%-20%
10V 2
CE3,7,9,10,19,46,63,70,71,
7797,98,103, 105,107 009-30106-425 ELECT CAP 10 UF +-20% 25V (SS 4X7) 15
CE1,11,12,26,45,47,83,85,
86,89,90 009-30107-410 ELECT CAP 100 UF +-20% 10V (SS 5X7) 11
CE2,4,5 009-30107-416 ELECT CAP 100UF +-20% 16V
(SS 6.3X7) 3
CE62,73 009-30227-410 ELECT CAP 220 UF +-20% 10V
(SS 6.3X7) 2
CE52,57 009-30475-450 ELECT CAP 4.7 UF +-20% 50V 2
20
