SERVICEMANUAL
DVD RECORDER
DR-C3835
DR-B3737

TABLE OF CONTENTS
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1-1
Laser Beam Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2-1
Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3-1
Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4-1
Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5-1
How to Initialize the DVD Recorder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6-1
Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7-1
Function Indicator Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8-1
Block Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9-1
Schematic Diagrams / CBA’s and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10-1
Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-11-1
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-12-1
IC Pin Function Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-13-1
Lead Identifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-14-1
Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-15-1
Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-16-1
Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-17-1
Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

1-1-1 E7B20SP
SPECIFICATIONS
Notes:
1. All Items are measured without pre-emphasis unless otherwise specified.
2. Power supply: 220 - 240 V ~ 50 Hz
3. Load imp.: 100 kΩ
4. Room ambient : 5 °C ~ 40 °C
Item Conditions Unit Nominal Limit
1. VIDEO
1-1. Video Output 75 Ωload Vp-p 1.0
1-2. S-Video Output
Y (Luminance) 75 Ωload Vp-p 1.0
C (Chrominance) 75 Ωload Vp-p 0.3
2. AUDIO
2-1. Output Level Vrms 2.0
2-2. Frequency Response
DVD-VIDEO LPCM fs = 96 kHz Hz 20 - 44 k
fs = 48 kHz Hz 20 - 20 k
Audio CD fs = 44.1 kHz Hz 20 - 20 k
2-3. Signal/Noise Ratio
DVD-VIDEO LPCM dB 110
CD dB 110
REC & Playback Input: 2 Vrms, Rec Speed: SP dB 90
2-4. THD+N 1 kHz, 0 dB
DVD-VIDEO LPCM % 0.01
CD % 0.01
REC & Playback Input: 2 Vrms, Rec Speed: SP % 0.01
3. TUNER
3-1. Video Output 75 Ωload Vp-p 1.0
3-2. Video S/N dB 42
3-3. Audio Output dBv -12
3-4. Audio S/N dB 46

1-2-1 R3PLSP

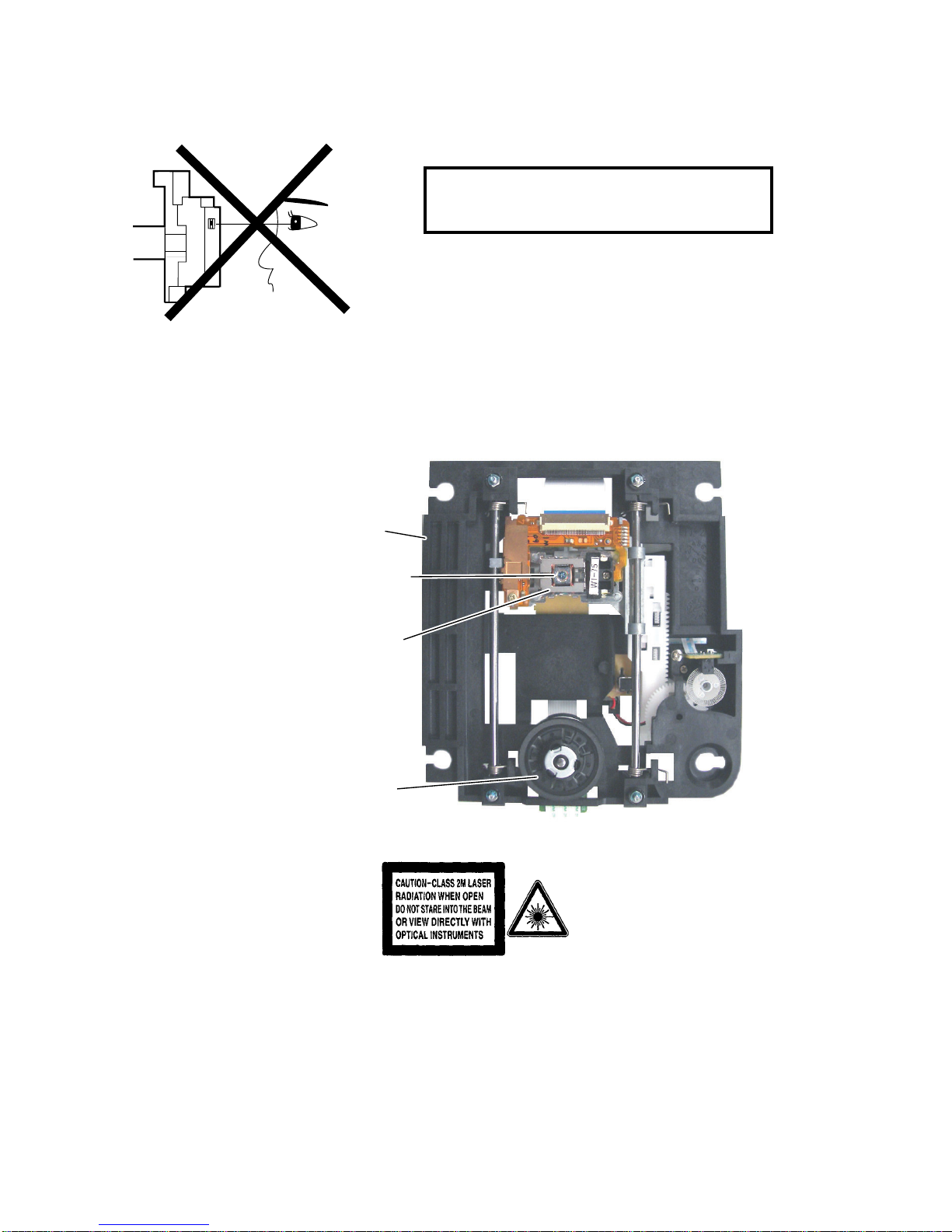

LASER BEAM SAFETY PRECAUTIONS
This DVD player uses a pickup that emits a laser beam.
The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.
CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.
Location: Inside Top of DVD mechanism.
Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.
Drive Mechanism Assembly
Laser Beam Radiation
Laser Pickup
Turntable

1-3-1 DVD_SFNP
IMPORTANT SAFETY PRECAUTIONS
Product Safety Notice
Some electrical and mechanical parts have special
safety-related characteristics which are often not evi-
dent from visual inspection, nor can the protection
they give necessarily be obtained by replacing them
with components rated for higher voltage, wattage,
etc. Parts that have special safety characteristics are
identified by a !on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or other
hazards. The Product’s Safety is under review continu-
ously and new instructions are issued whenever
appropriate. Prior to shipment from the factory, our
products are carefully inspected to confirm with the
recognized product safety and electrical codes of the
countries in which they are to be sold. However, in
order to maintain such compliance, it is equally impor-
tant to implement the following precautions when a set
is being serviced.
Precautions during Servicing
A. Parts identified by the !symbol are critical for
safety. Replace only with part number specified.
B. In addition to safety, other parts and assemblies
are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise block-
ing capacitors, and noise blocking filters, etc.
C. Use specified internal wiring. Note especially:
1)Wires covered with PVC tubing
2)Double insulated wires
3)High voltage leads
D. Use specified insulating materials for hazardous
live parts. Note especially:
1)Insulation tape
2)PVC tubing
3)Spacers
4)Insulators for transistors
E. When replacing AC primary side components
(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before solder-
ing.
F. Observe that the wires do not contact heat produc-
ing parts (heatsinks, oxide metal film resistors, fus-
ible resistors, etc.).
G. Check that replaced wires do not contact sharp
edges or pointed parts.
H. When a power cord has been replaced, check that
5 - 6 kg of force in any direction will not loosen it.
I. Also check areas surrounding repaired locations.
J. Be careful that foreign objects (screws, solder
droplets, etc.) do not remain inside the set.
K. Crimp type wire connector
The power transformer uses crimp type connectors
which connect the power cord and the primary side
of the transformer. When replacing the transformer,
follow these steps carefully and precisely to pre-
vent shock hazards.
Replacement procedure
1)Remove the old connector by cutting the wires at a
point close to the connector.
Important: Do not re-use a connector. (Discard it.)
2)Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.
3)Align the lengths of the wires to be connected.
Insert the wires fully into the connector.
4)Use a crimping tool to crimp the metal sleeve at its
center. Be sure to crimp fully to the complete clo-
sure of the tool.
L. When connecting or disconnecting the internal
connectors, first, disconnect the AC plug from the
AC outlet.

1-3-2 DVD_SFNP
Chassis or Secondary Conductor
Primary Circuit
d' d
AC Voltmeter
(High Impedance)
Exposed Accessible Part
BOne side of
Power Cord Plug Prongs
Z
Safety Check after Servicing
Examine the area surrounding the repaired location
for damage or deterioration. Observe that screws,
parts, and wires have been returned to their original
positions. Afterwards, do the following tests and con-
firm the specified values to verify compliance with
safety standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between sol-
dered terminals, and between terminals and surround-
ing metallic parts. (See Fig. 1)
Table 1 : Ratings for selected area
Note: This table is unofficial and for reference only.
Be sure to confirm the precise values.
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs)
and externally exposed accessible parts (RF termi-
nals, antenna terminals, video and audio input and
output terminals, microphone jacks, earphone jacks,
etc.) is lower than or equal to the specified value in the
table below.
Measuring Method (Power ON) :
Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across the terminals of load
Z. See Fig. 2 and the following table.
AC Line Voltage Clearance Distance (d), (d’)
220 to 240 V ≥3 mm(d)
≥6 mm(d’)
Table 2: Leakage current ratings for selected areas
Note: This table is unofficial and for reference only. Be sure to confirm the precise values.
AC Line Voltage Load Z Leakage Current (i) One side of power cord plug
prongs (B) to:
220 to 240 V
2kΩ RES.
Connected in
parallel i≤0.7mA AC Peak
i≤2mA DC RF or Antenna terminals
50kΩRES.
Connected in
parallel i≤0.7mA AC Peak
i≤2mA DC A/V Input, Output

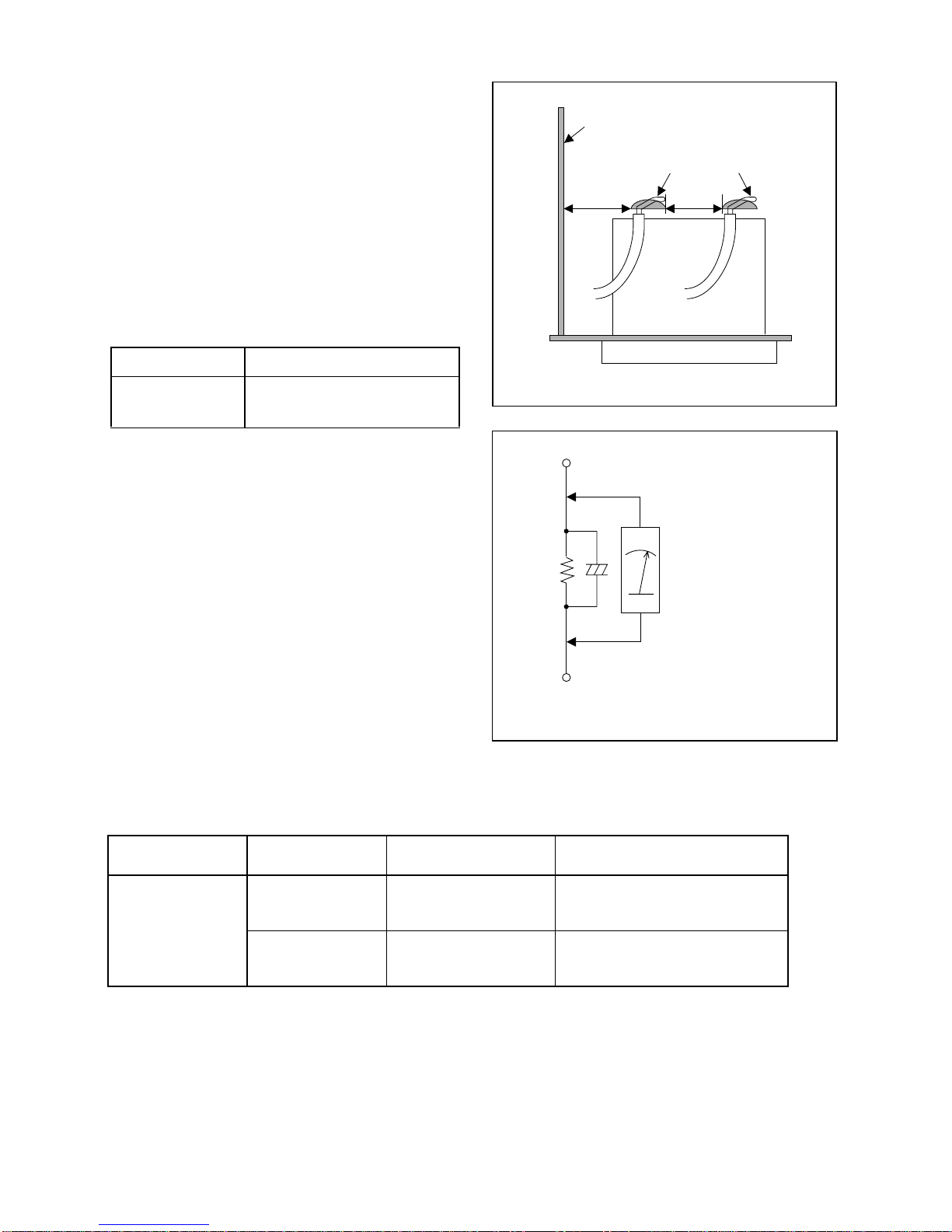

Fig. 1
Fig. 2

1-4-1 DVD_NOTE
STANDARD NOTES FOR SERVICING
Circuit Board Indications
1. The output pin of the 3 pin Regulator ICs is indi-
cated as shown.
2. For other ICs, pin 1 and every fifth pin are indicated
as shown.
3. The 1st pin of every male connector is indicated as
shown.
Instructions for Connectors
1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.
2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an angle.
Pb (Lead) Free Solder
When soldering, be sure to use the Pb free solder.
How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:.
(1)Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
(2)Remove the flat pack-IC with tweezers while apply-
ing the hot air.
(3)Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4)Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Caution:
1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.
2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage to
the chip parts may occur. Put masking tape around
the flat pack-IC to protect other parts from damage.
(Fig. S-1-2)
Top View
Out In
Bottom View
Input
5
10
Pin 1
Pin 1
FFC Cable
Connector
CBA
* Be careful to avoid a short circuit.
Fig. S-1-1

1-4-2 DVD_NOTE
3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when removing
it.
With Soldering Iron:
(1)Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)
(2)Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
(3)Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4)Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
With Iron Wire:
(1)Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)
(2)Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
(3)While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA con-
tact pads as shown in Fig. S-1-5.
Hot-air
Flat Pack-IC
Desoldering
Machine
CBA
Flat Pack-IC
Tweezers
Masking
Tape
Fig. S-1-2
Flat Pack-IC Desoldering Braid
Soldering Iron
Fig. S-1-3
Fine Tip
Soldering Iron
Sharp
Pin
Fig. S-1-4

1-4-3 DVD_NOTE
(4)Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(5)Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Note:
When using a soldering iron, care must be taken
to ensure that the flat pack-IC is not being held by
glue. When the flat pack-IC is removed from the
CBA, handle it gently because it may be damaged
if force is applied.
2. Installation
(1)Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.
(2)The “I” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)
(3)Solder all pins of the flat pack-IC. Be sure that none
of the pins have solder bridges.
To Solid
Mounting Point
Soldering Iron
Iron Wire
or
Hot Air Blower
Fig. S-1-5
Fine Tip
Soldering Iron
CBA
Flat Pack-IC
Tweezers
Fig. S-1-6
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark. Fig. S-1-7
Presolder
CBA
Flat Pack-IC
Fig. S-1-8

1-4-4 DVD_NOTE
Instructions for Handling
Semi-conductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by electro-
static charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1MΩ) that is prop-
erly grounded to remove any static electricity that may
be charged on the body.
2. Ground for Workbench
(1)Be sure to place a conductive sheet or copper plate
with proper grounding (1MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body ground-
ing band, be careful to avoid contacting semi-con-
ductors with your clothing.
CBA
< Incorrect >
CBA
Grounding Band
Conductive Sheet or
Copper Plate
1MΩ
1MΩ
< Correct >

1-5-1 E7B20DC
CABINET DISASSEMBLY INSTRUCTIONS
1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
2. Disassembly Method
Note:
(1) Identification (location) No. of parts in the figures
(2) Name of the part
(3) Figure Number for reference
(4) Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
CN = Connector
* = Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
(5) Refer to “Reference Notes.”
Reference Notes
1. CAUTION 1: Locking Tabs (L-1) and (L-2) are
fragile. Be careful not to break them.
ID/
Loc.
No. Part
Removal
Fig.
No.
Remove/*Unhook/
Unlock/Release/
Unplug/Desolder
Note
[1] TOP COVER D1 8(S-1) ---
[2] FRONT
ASSEMBLY
D2 *6(L-1), *3(L-2) 1
[3]
DVD
MECHANISM
& DVD MAIN
CBA
ASSEMBLY
D3 4(S-2), *CN101, *CN701, LOCKING
CARD SPACERS ---
[4] SW CBA D4 (S-3), Desolder ---
[5] PCB HOLDER D4 2(S-4) ---
[6] POWER
SUPPLY CBA D4 2(S-5), *CN1152 ---
[7] POWER
HOLDER D4 (S-6) ---
[8] FAN COVER D5 2(S-7) ---
[9] FAN D5 FAN EARTH,
*CN1601 ---
[10] REAR PANEL D5 (S-8), 6(S-9),
2(S-10) ---
[11] AV CBA D6 3(S-11) ---
[12] JACK CBA D6 Desolder ---
[1] TOP COVER
[2] FRONT
ASSEMBLY
[9] FAN
[8] FAN COVER
[3] DVD MECHANISM & DVD MAIN CBA ASSEMBLY
[4] SW CBA
[5] PCB HOLDER
[6] POWER SUPPLY CBA
[7] POWER HOLDER
[10] REAR PANEL
[11] AV CBA
[12] JACK CBA [13] AFV CBA
[13] AFV CBA D6 Desolder ---
↓
(1) ↓ (2) ↓ (3) ↓ (4) ↓ (5)
ID/
Loc.
No. Part
Removal
Fig.
No.
Remove/*Unhook/
Unlock/Release/
Unplug/Desolder
Note

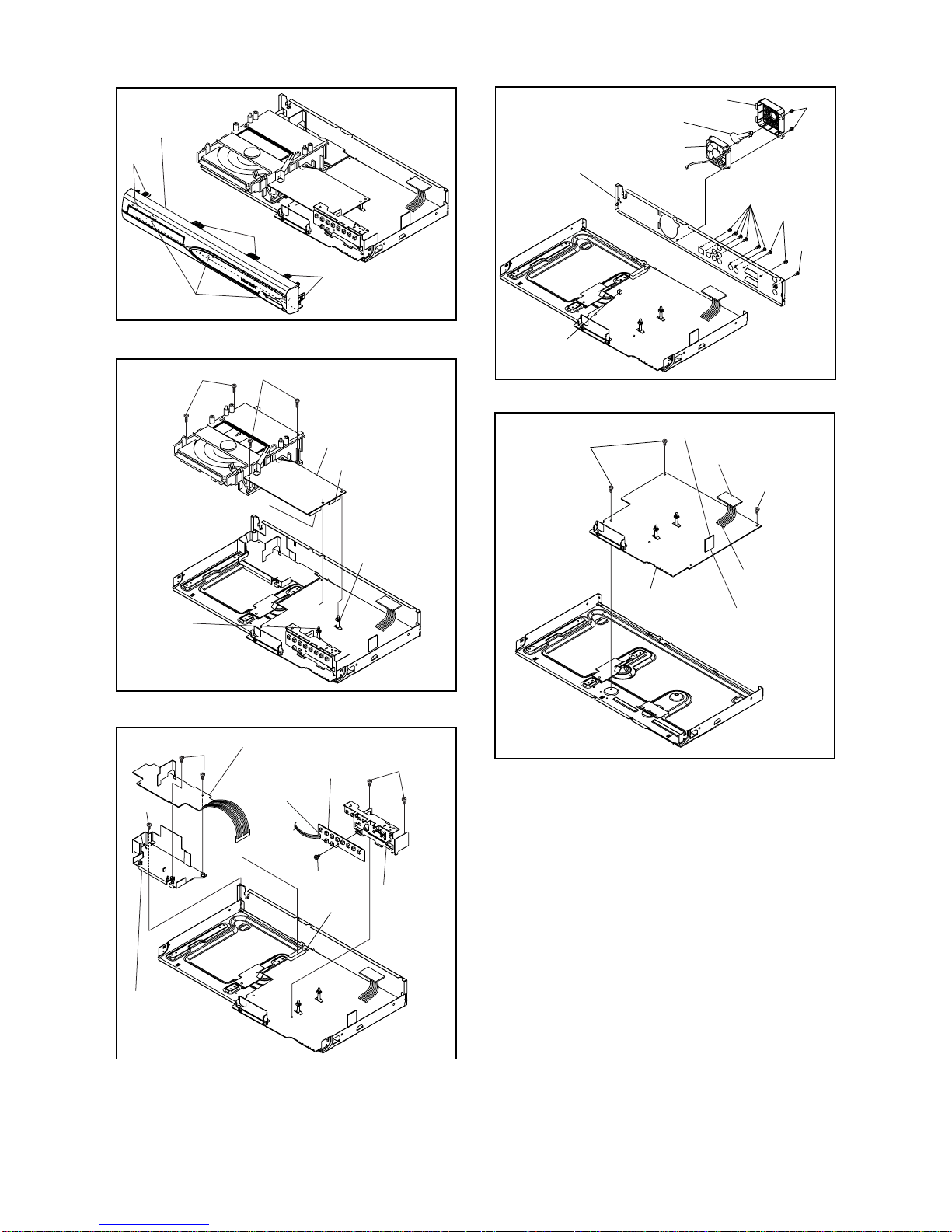

[1]TOP COVER
(S-1) (S-1)
(S-1)
Fig. D1

1-5-2 E7B20DC
(L-1)
(L-1)
(L-2)
(L-1)
Fig. D2
[2] FRONT
ASSEMBLY
(S-2) (S-2)
Fig. D3
CN101
CN701
[3] DVD MECHANISM
& DVD MAIN CBA
ASSEMBLY
LOCKING
CARD
SPACER
LOCKING
CARD
SPACER
(S-4)
Desolder
(S-3)
CN1152
(S-5)
(S-6)
[4] SW CBA
[5] PCB
HOLDER
[6] POWER SUPPLY CBA
[7] POWER
HOLDER
Fig. D4
Fig. D5
(S-9)(S-10)
FAN EARTH
CN1601
(S-8)
(S-7)
[9] FAN
[8] FAN COVER
[10] REAR PANEL
Fig. D6
(S-11)
(S-11)
Desolder
Desolder
[11] AV CBA
[12] JACK CBA
[13] AFV CBA

1-5-3 E7B20DC

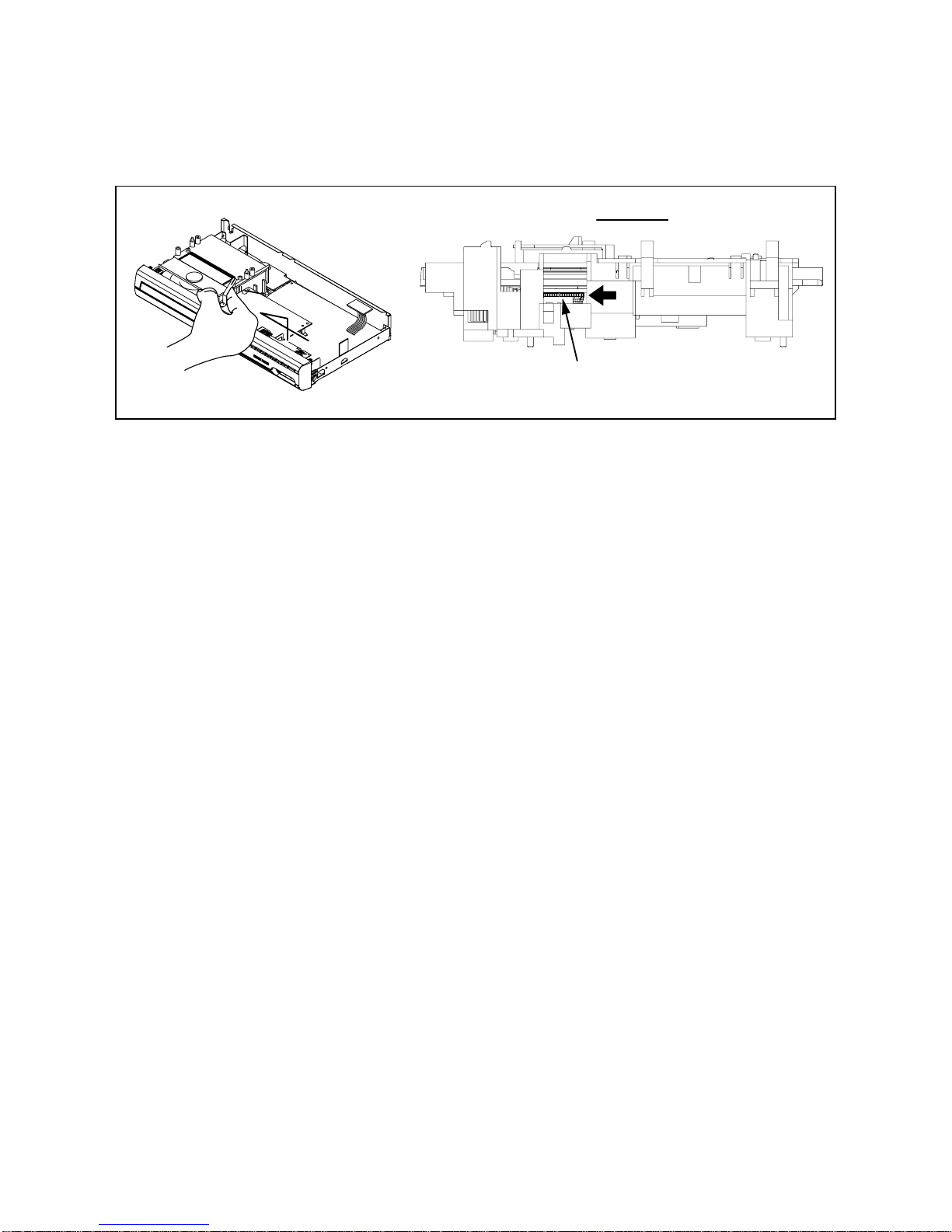

3. How to Eject Manually
Note: When rotating the gear, be careful not to damage the gear.
1. Remove the TOP COVER.
2. Rotate the gear in the direction of the arrow manually as shown below until the tray descends.
3. Pull the tray out manually and remove a disc.
A
View for A
Rotate this gear in
the direction of the arrow

1-6-1 E7B20INT
HOW TO INITIALIZE THE DVD RECORDER
To put the program back at the factory-default,
initialize the DVD recorder as the following procedure.
1. Turn the DVD recorder on.
2. Confirm that no disc is loaded or that the disc tray
is open. To put the DVD recorder into the Version
display mode, press [CM SKIP], [1], [2], and [3]
buttons on the remote control in that order.
Fig. a appears on the screen.
3. Press [ENTER] button, then the DVD recorder
starts initializing. When the initializing is
completed, the DVD recorder exits the Version
display mode and turns off the power
automatically.
* To move into the Normal mode from the
Version display mode, press [RETURN] button
on the remote control instead of [ENTER]
button.
* When [STANDBY-ON] button is pressed
before [ENTER] button is pressed, the DVD
recorder exits the Version display mode, then
the power turns off.
MODEL NAME : *******
FEVERSION :
BEVERSION :
TTVERSION :
LD ADJUSTMENT :
DISC ADJUSTMENT :
DEFAULT SETTING : ENTER
EXIT : RETURN
OK
OK
R30_011_00
R3E32684U2B
T30025FSP
*1: "*******" differs depending on the models.
*2: Firmware Version differs depending on the
models, and this indication is one example.
Fig. a Version Display Mode Screen
F/W VERSION DISP

1-7-1 E7B20FW
FIRMWARE RENEWAL MODE
1. Turn the power on and remove the disc on the tray.
2. To put the DVD recorder into version up mode,
press [CM SKIP], [6], [5], and [4] buttons on the
remote control unit in that order. Then the tray will
open automatically.
Fig. a appears on the screen and Fig. b appears
on the VFD.
3. Load the disc for version up.
Fig. c appears on the screen. The file on the top is
highlighted as the default.
When there is only one file to exist, Step 4 will
start automatically.
4. Select the firmware version pressing arrow
buttons, then press [ENTER].
Fig. d appears on the screen and Fig. e appears
on the VFD. The DVD recorder starts updating.
About VFD indication of Fig. e:
1) When Fig. d is displayed on the screen, “F-UP”
is displayed on the VFD.
2) When “Firmware Updating... XX% Complete.”
is displayed on the screen, “32684” % is
displayed on the VFD.
The appearance shown in (*1) of Fig. d is
described as follows.After updating is finished, the
5. After updating is finished, the tray opens
automatically.
At this time, no button is available.
6. Pull out the AC code once, then insert it again.
Fig. a Version Up Mode Screen
* Firmware Version differs depending on the
models, and this indication is one example.
Current
F/W version
is displayed.
Firm Update Mode
Please insert a disc.
ver. R3E32684U2B
Fig. b VFD in Version Up Mode
Fig. c Update Disc Screen
* Firmware Version differs depending on the
models, and this indication is one example.
Disc name
is displayed.
Firm Update Mode ver. R3E32684U2B
VOL_200604130934
1 R3E32684U2B
2 R3E32685U2B
3 R3E32686U2B
4 R3E32687U2B
1 / 1
Files included
in the disc are
displayed.
No. Appearance State
1 File Loading... Sending files into the memory
2Firmware Updating...
XX% Complete. Writing new version data
--- Firmware
Update Failure Failed in updating
Fig. d Programming Mode Screen
* Firmware Version differs depending on the
models, and this indication is one example.
Firm Update Mode ver. R3E32684U2B
File Loading...
(*1)
Fig. e VFD in Programming Mode (Example)

1-8-1 E7B22FIS
FUNCTION INDICATOR SYMBOLS
Note: If an error occurs, a message with the error number appears on the screen.
Message Solution Error
No. Error Description Priority
Can not record on this disc. Insert the recordable disc, and ensurethediscstatussatisfies
the recording requirements.
1 An error occurs during data reading. -
2There is no reply for 15 seconds in Test
Unit Ready. -
3Cannot write the data after trying three
times. -
4 An error occurs with OPC. -
5 During recovery in a record. -
6An error occurs even if recovery has been
tried three times. -
7 An error occurs in a format. -
8 It cannot start an encode. -
9NV_PCK/RDI_PCK is not in encoded
data. -
10 Encode Pause condition continued for 10
minutes. -
11 Encode Pause condition continued in
normal REC condition for 10 minutes. -
12 Difference in the address and can not get
StreamID of RDI/VIDEO. -
13 It is a reply that “ATAPI is not readable.” -
14 Cannot write the data after recovering
SMALL VMGI. -
15 Cannot write the data after DVD-R
Reverse Track. -
16 An error occurs in Finalize Close. -
17 An error occurs in Rec Stop Close. -
18 An error occurs in PCA Full (DVD_R). -
19 Safety Stop occurs during editing. -
20 High Speed Disc. 2
21 The disc is not formatted. 5
22 Disc Error has occurred. 3
23 The -R Disc of VR Mode. 6
24 The disc except DVD-R/RW or finalized
DVD-R. 1
This program is not allowed to
be recorded. You cannot record copy prohibited programs. 25 During the Macrovision picture input. 11
26 During the CGMS picture input. 12
This program is not recordable
in Video mode. Set “DVD-RW Recording Format” to “VR mode”. 27 During the CGMS picture (possible to record once) input. (Video Format Disc) 12
This program is not allowed to
be recorded on this disc. Insert a ver.1.1 CPRM compatible DVD-RW disc. 28 During the CGMS picture (possible to
record once) input. (Disc which is not for
the correspondence to VR Format
CPRM) 12
Recording Error
You cannot record on this disc as
Power Calibration Area is full.
E35 Error No.
Error message

1-8-2 E7B22FIS

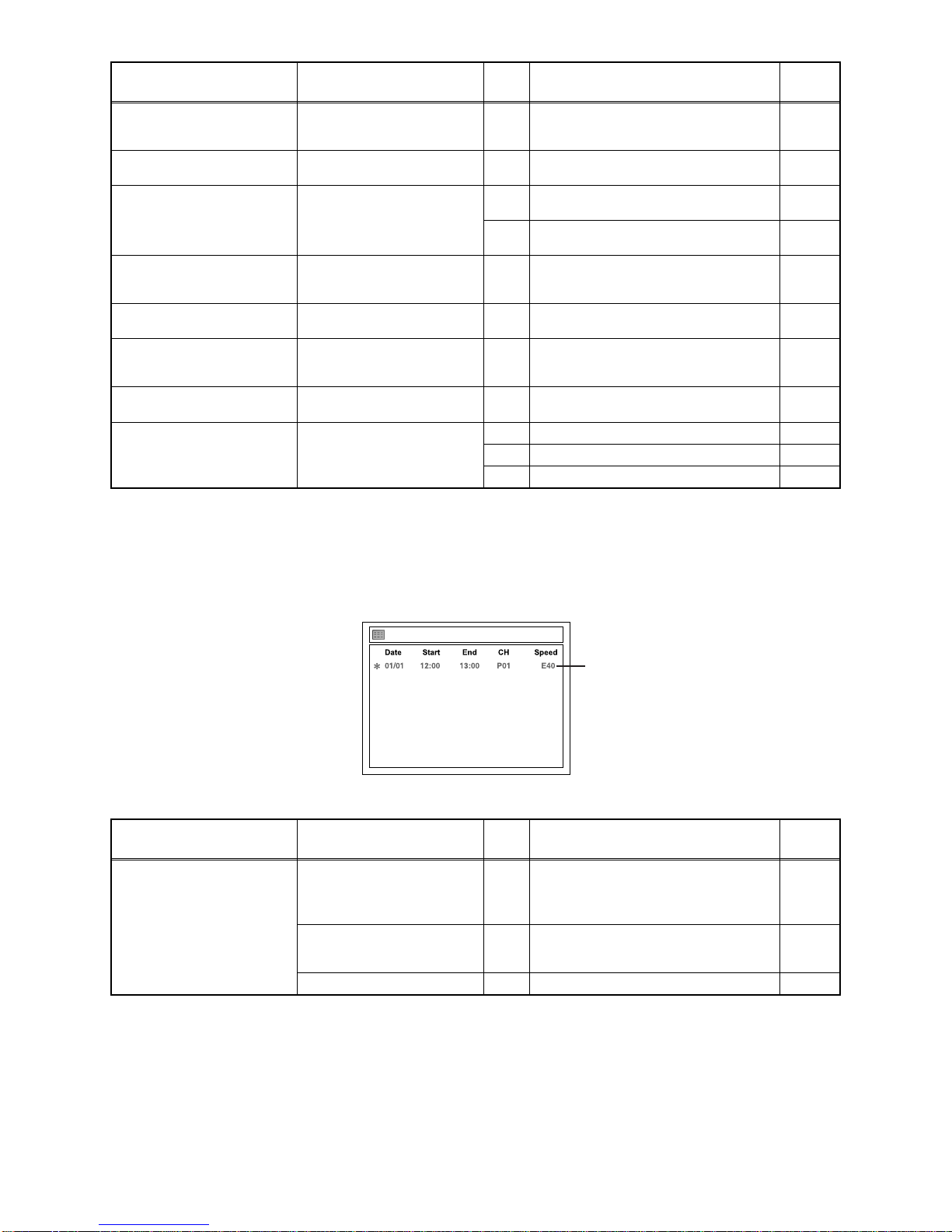

If an error occurs during the timer recording, one of the following error numbers (40 to 42) or the above error
messages (error number: 1 to 39) is displayed on the recording menu after timer recording.
(Once the screen of the program line is exited, the program line for the error will be cleared.)
(No Error Message is displayed for the error No. 40 ~ 42.)
This disc is protected and not
recordable. Release the disc protect
setting in the Disc Setting
menu. 29 Disc Protected Disc. 7
Disc is full.
(No area for new recording) Insert the recordable disc with enough recording space. 30 No avilable recording space. 5
You cannot record more than
99 titles on one disc.
(The maximum is 99.) Delete unnecessary titles. 31 Its recording capacity has been reached.
(Video Format Disc) 7
32 Its recording capacity has been reached.
(VR Format Disc) 8
You cannot record more than
999 chapters on one disc.
(The maximum is 999.) Delete unnecessary chapter
markers. 33 The 999 chapter has been reached. (VR Format Disc) 9
You cannot record on this disc
as Control Information is full. Delete unnecessary titles. 34 There is not space to record field of control information. 10
You cannot record on the disc
as Power Calibration Area is
full. Insert a new disc. 35 PCA is Full. (in REC start) 4
This disc is already finalized. Release the finalizing for this
disc. 36 It is finalized. (Video Format Disc) 6
Can not record on this disc. Repeat the same operation. 37 Access to Memory Area range outside. - 38 Sector Address is wrong. -
39 BUP writing error of chapter editing. -
Message Solution Error
No. Error Description Priority
Error message is not
displayed.
- Set the timer programming
correctly.
- Set the timer programming
before the start time. 40 - Some portion has not been recorded
because of program overlapping.
- Recording did not start at the start time. -
Turn the power on and set the
clock correctly then set timer
programming again. 41 Power failed -
Insert the recordable disc. 42 No disc when recording -
Message Solution Error
No. Error Description Priority
2. ---
3. ---
4. ---
5. ---
6. ---
7. ---
8. ---
A program with the error number is grayed out and asterisked on the timer programming list.
The speed mode changes
to the error number.
Timer Programming
Exsampl: DR-C3835

1-9-1
BLOCK DIAGRAMS

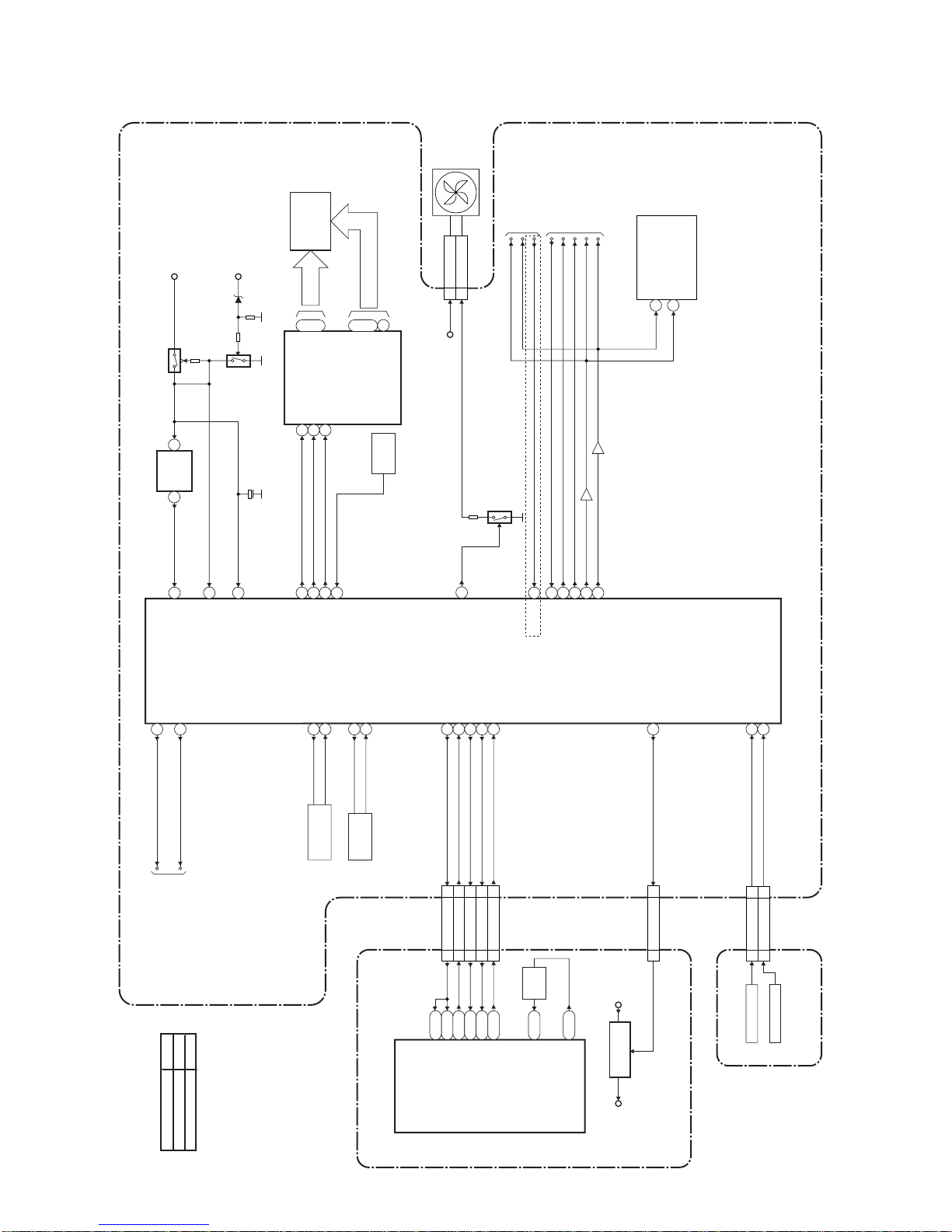

System Control Block Diagram
E7B22BLS
IC101
(MAIN MICRO CONTROLLER)
IC1501
(SUB MICRO CONTROLLER)
REMOTE
SENSOR
RM1501
1G
7G
~
23 17
~
a
h
i
~
7
14
~
GRID
RESET EV+3.3V
VFD
SEGMENT
FL1501
IC1503
IC1502
AV CBA
DVD MAIN CBA
(VFD DRIVER)
KEY SWITCH KEY SWITCH
CN1502
CN3001
KEY-1 1
1
KEY-2 2
2
SW CBA
16
28
1 2
48 50 49
27
1 2
52 53
38 39
33
34
22 19 18 20 29
N23
J25
T4
N24
L25
R24
8 9
12
14 30
7
1 2
11
27MHz X'TAL
X802
CLK 27 IN
CLK 27 OUT
SYS-RESET SYS-RESET
SUB-RXD
SUB-TXD
SUB-SCLK
RDY
CN701
SYS-RESET
SUB-RXD
SUB-TXD
SUB-SCLK RDY
CN1201
REG-CONT PWSW
AUDIO-MUTE
DVD-AUDIO-MUTE DVD-AUDIO-MUTE
SCART-AUDIO-MUTE SCART-AUDIO-MUTE
SUB-SDA
SUB-SCL
OSC2 OSC1
X OUT X IN
RESET
P-DOWN
BUP+3.3V
FL-DIN
FL-CLK FL-STB
REMOTE
KEY-1 KEY-2
REG-CONT PWSW
SDA
SCL
AUDIO-MUTE
37
TO POWER SUPPLY BLOCK DIAGRAM
TO AUDIO BLOCK DIAGRAM
8MHz RESONATOR
X1502
32.768KHz X'TAL
X1501
Q1504
Q1505
C1509
(BACKUP CAPACITOR)
DIN
CLK STB
2FAN-GND 1FAN+12V
CN1601
FAN
N1
SCL SDA
TU1701(TUNER UNIT)
9
10
EV+5V
Q1602
Q1506
Q1507
FAN-AL+12V
55
FAN-CONT2
N2
44SYS-RESET 11SUB-RXD 33SUB-TXD 55SUB-SCLK 22RDY
IC106
CN101 CN1151
26
P-ON+1.2V
30 301V2CONT
+1.2V REGULATOR
SDA
SCL TO VIDEO
BLOCK DIAGRAM
1V2CONT
VI+1.2V
DAVN-L DAVN-L
24B
Comparison Chart of
Models and Marks
MODEL MARK
DR-C3835 A
DR-B3737 B

1-9-2 E7B22BLD
Digital Signal Process Block Diagram
IC101
FRONT-END DIGITAL SIGNAL PROCESS
IC201
RF/ ERROR AMP
IC301
MOTOR DRIVER
MOTOR DRIVER
IC202
OP AMP
IC302
IC104 (FLASH MEMORY)
DVD MAIN CBA
TO VIDEO BLOCK DIAGRAM TO AUDIO BLOCK DIAGRAM
T2
M4
G4
L4
K1
G3
U1 R3 U2
M25
K26 P24
T3
P2
R1
P3
R2
R26
D/A D/A D/A D/A
AUDIO I/F
VIDEO ENCODER
BACK-END DIGITAL SIGNAL PROCESS
VIDEO I/F
FLASH MEMORY
FE ENCODER
TRAY OPEN
IC102,IC103 (DDR SDRAM)
DDR SDRAM
CN201
DVD MECHANISM
TILT TRACKING FOCUS
PICK -UP
SLED MOTOR
M
REC VIDEO SIGNAL PB VIDEO SIGNAL REC AUDIO SIGNAL PB AUDIO SIGNAL
D/A
ENCODER CBA
LPC
CN1001
CN701
CN1003
SPINDLE MOTOR
M
CN1002
RELAY CBA
CN301
+3.3V
IC701 (VIDEO DECODER)
DECODER A/D45-50
Y2, AA4,
AB1-AB4
DECODER A/D39-44
V3, Y3, W1,
Y4, W2, AA3
10 13
VIDEO-Y(I/P)-OUT
24
VIDEO-Y(I)-OUT
30
VIDEO-C-OUT
22
VIDEO-C-IN 8 VIDEO-Cb/Pb-OUT
28
VIDEO-Cr/Pr-OUT
26
VIDEO-Y/CVBS-IN
10
IC801 (AUDIO D/A CONVERTER)
AUDIO D/A CONVERTER
7 6 8
15 14 16
4 3
5
IC802 (AUDIO A/D CONVERTER)
AUDIO A/D CONVERTER
7 8 9
13 14
6 2
L-CH R-CH
MUTE
R-CH L-CH
10 11 12
CN701
AUDIO(L)-OUT
14
AUDIO(R)-OUT
16
DVD-AUDIO-MUTE
12
AUDIO(L)-IN
20
AUDIO(R)-IN
18
28 28SPDIF
CN101 CN1151
DIGITAL AUDIO OUT (COAXIAL)
JK1209 (REAR)
BUFFER
Q1803
AV CBA
WF7
JK1207 (REAR)
FIBER OPTIC TRANS MODULE
DIGITAL AUDIO OUT (OPTICAL)

1-9-3 E7B22BLV
Video Block Diagram
TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM
(VIDEO SIGNAL PROCESS)IC1201
TU1701 (TUNER UNIT)
17 VIDEO OUT
CN1201
10
VIDEO-Y/CVBS-IN
8 VIDEO-C-IN
24
VIDEO-Y(I/P)-OUT
26
VIDEO-Cr/Pr-OUT
28
VIDEO-Cb/Pb-OUT
30
VIDEO-Y(I)-OUT
22
VIDEO-C-OUT
JK1211 (REAR)
S-VIDEO IN2
3 4
2
1
CY
Y
JK1213 (REAR) S-VIDEO OUT
21
34CY
JK1212 (FRONT)
S-VIDEO IN1
3 4
21
C
VIDEO-IN2
JK1204 (REAR)
VIDEO-IN1
JK1201 (FRONT)
DRIVER
VIDEO OUT2
VIDEO-G
VIDEO-B
VIDEO-R
19
CN2001 CN1801
VIDEO-OUT2
88
JACK CBA JACK CBA
JK2001
CN1801 CN2001
VIDEO-IN2
10 10 VIDEO
IN2
20
JK2001
VIDEO IN1
20
JK1206
11 VIDEO-G-IN
13 13
15 VIDEO-B-IN
12 12
7
VIDEO OUT1
VIDEO-G
VIDEO-B
VIDEO-R
19 11
7
15
VIDEO-R-IN
14 14
JK1206
12 16 14 20
SW
SW
SW SW
IIC
I/F
SW
SW
SW
GCL
SW
SW
AGC
AGC
LPF
100
7 1 9
22 48 50 49 30 61 59 51 52 53 55 57 46 44 45
DRIVER DRIVER DRIVER
40 38 39
DRIVER DRIVER DRIVER DRIVER FBC
MUTE FBC
MUTE MUTE
MUTE MUTE
SW
DRIVER FBC DRIVER DRIVER
36 34
+
+
65 64
SW
SW
SW
SW
LPF
Q1202
Q2003
BUFFER
BUFFER
Q1201
BUFFER
Q1204
BUFFER
+
REC VIDEO SIGNAL PB VIDEO SIGNAL
42 43
AV CBA
WF5
WF4WF2
WF3
WF1
SW SW SW
TO SYSTEM CONTROL BLOCK DIAGRAM
62
IC1641
B
(VPS)
VPS-V SDA
SDA
DAVN-L
DAVN-L
SCL
SCL
6
14
7
16
Comparison Chart of
Models and Marks
MODEL MARK
DR-C3835 A
DR-B3737 B
