Funktel TETRA FT4 User manual

TETRA radio
Funktel FT4/FT5 S
Operating manual

(UHF/VHF)

2
Manufacturer:
Funktel GmbH
Windmühlenbergstraße 20-22
D-38259 Salzgitter
www.funktel.com
[e-mail]
Product / Version
Technical Documentation · 2021-07-21
Manual Handheld FT4/FT5
Part number 6187133001-a
Software Release V0.2.03-200707
The right to make technical changes and to alter availability without notice is
reserved.
Notes:
© Copyright 2012 - 2021 Funktel GmbH.
All rights reserved.
All product names are trademarks of the respective owners.
No part of this operating manual may be reproduced or copied in any form (printing,
photocopying or other processes) without the written approval of Funktel GmbH.
We reserve the right to modify this Operating Manual at any time and without prior
announcement. Delivered Operating Manuals are not subject to a revision service by
us and will not be updated when modifications are implemented.
Errors and misprints excepted.

Contents3
Contents
Instructions for use ................................................................................................... 7
Before commissioning ................................................................................................. 7
Equipment and type designation ................................................................................. 7
Attention: Explosion-proof version .............................................................................. 7
FT4/FT5 device models .............................................................................................. 8
Technical terms and abbreviations ............................................................................. 9
Symbols and special fonts ........................................................................................ 12
Design and function................................................................................................ 13

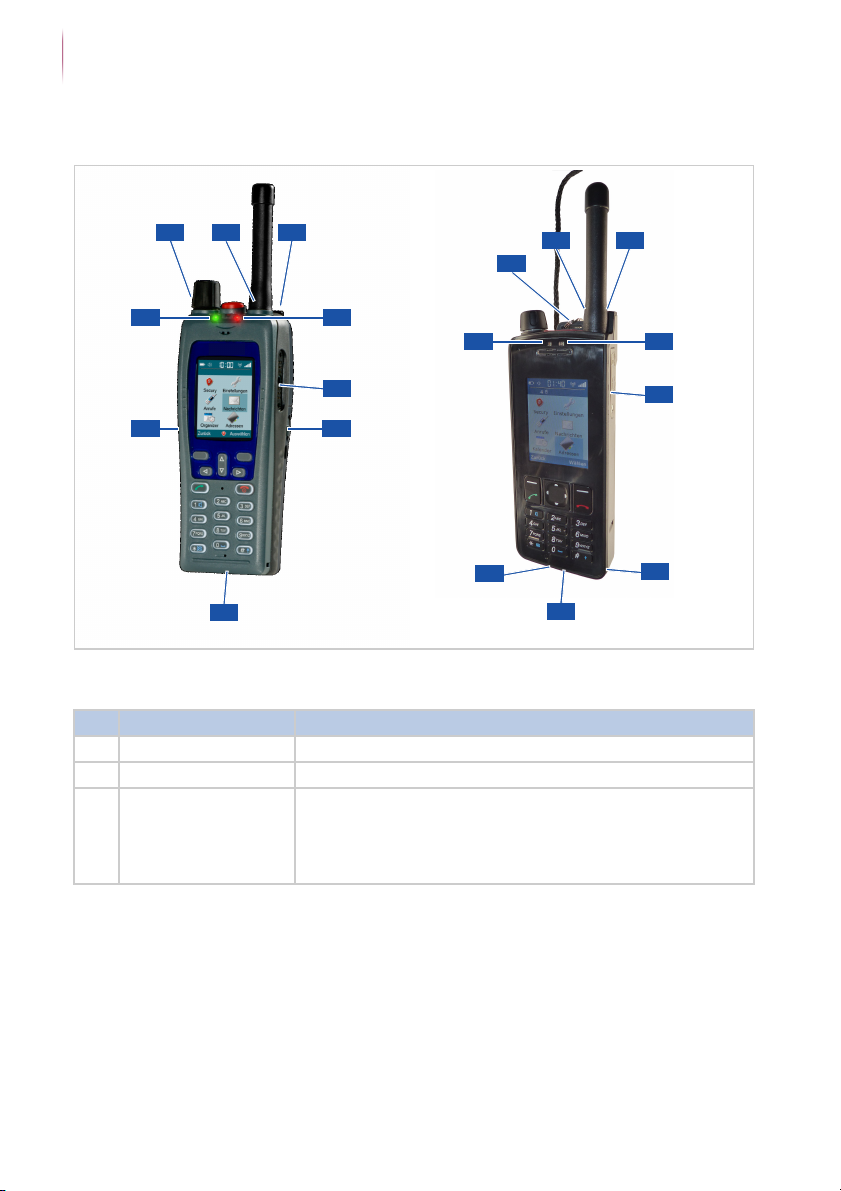

Components of the radio sets ................................................................................... 13
FT4 control elements ................................................................................................ 14
FT5 control elements ................................................................................................ 15
FT4 / FT5 control elements ....................................................................................... 16
Connections .............................................................................................................. 20
Signal tones .............................................................................................................. 22
Illuminated indicators ................................................................................................ 22
• Left-hand signal LED ............................................................................................ 22
• Operating conditions of the left-hand signal LED on the radio set ....................... 23
• Operating conditions of the right-hand signal LED on the radio set ..................... 23
• Right-hand signal LED in Personal Emergency Signal mode .............................. 24
• Right-hand signal LED of the charging status indication ...................................... 24
• Right-hand signal LED in charging mode ............................................................. 24
Display ...................................................................................................................... 25
• Header line ........................................................................................................... 25
• Footer ................................................................................................................... 27
• Idle display ............................................................................................................ 28
• Screen saver ........................................................................................................ 30
• Menu ..................................................................................................................... 31
First steps ................................................................................................................ 41
Programming............................................................................................................. 41
Putting the radio set into operation ........................................................................... 41

Contents4
Charging the battery .................................................................................................. 44
• Charging the FT4 battery with a Desktop Charger II FT4/Desktop Station FT4 ... 44
• Charging the FT5 battery with a Desktop Charger FT5/Desktop Station FT5 and 44
• Battery Charger FT5 ............................................................................................. 44
• Signalling the charging status ............................................................................... 51
• Indicator light of the Desktop Charger II FT4 ........................................................ 52
• Indicator light of the FT5 battery charger .............................................................. 53
• Setting and detection of charger types ................................................................. 54
TETRA basics .......................................................................................................... 55
Safety information ..................................................................................................... 55
TETRA connection types ........................................................................................... 55
• Trunking mode (TMO)........................................................................................... 56
• Direct mode (DMO) ............................................................................................... 58
Operation ................................................................................................................. 61
Switching on the radio set ......................................................................................... 61
Switching off the radio set ......................................................................................... 61
Menu ......................................................................................................................... 62
• Navigating the menu ............................................................................................. 62
• Changing back to the previous menu ................................................................... 65
Group calls ................................................................................................................ 66
• Selecting a group .................................................................................................. 66
• Starting a group call .............................................................................................. 69
• Receiving a group call........................................................................................... 70
• Answering a group call.......................................................................................... 71
• Scanner function ................................................................................................... 73
• Leaving a group call early ..................................................................................... 76
Individual calls ........................................................................................................... 77
• Duplex mode ......................................................................................................... 78
• Two-way call (Half-duplex) .................................................................................... 82
TETRA emergency calls (TMO emergency calls) ..................................................... 85
• Special features .................................................................................................... 85
• Ending a TETRA emergency call .......................................................................... 87
Messaging/Text messages ........................................................................................ 88
• Message types ...................................................................................................... 88
• Creating an SDS text message............................................................................. 89
• Composing an SDS text message from a template .............................................. 91
• Sending an SDS text message ............................................................................. 95
• Transmitting a status message ............................................................................. 98
• Display showing the call connection when the text message (SDS) is displayed . 99
Setting the volume ................................................................................................... 100

Contents5
Key lock................................................................................................................... 101
• Locking the keys ................................................................................................. 101
• Unlocking the keys ............................................................................................. 102
Open listening mode ON/OFF during a call ............................................................ 103
Muting the microphone during a call ....................................................................... 104
Brief instructions for selected functions ................................................................... 104
“Device functions by speed dial” key functions ....................................................... 112
Personal Emergency Signal (PES) Functions .................................................... 113
Will-dependent emergency signal functions ............................................................ 113
• Control elements ................................................................................................ 113
• Alarm types ......................................................................................................... 114
• Time sequence ................................................................................................... 115
Will-independent emergency signal functions ......................................................... 116
• Alarm types ......................................................................................................... 116
• Triggering the Tear-off alarm .............................................................................. 116
• Triggering the Loss alarm ................................................................................... 117
• Pre-alarm ............................................................................................................ 118
• Time sequence ................................................................................................... 119
Localisation functions .............................................................................................. 121
• Localisation of the radio set in the event of an alarm ......................................... 121
• Tracking of the radio set in an alarm situation .................................................... 121
• Guard Control ..................................................................................................... 122
Technical alarms and faults .................................................................................... 123
• Technical alarms ................................................................................................ 123
• Technical faults ................................................................................................... 123
Programming........................................................................................................... 123
Placing in operation................................................................................................. 124
• Quick reference guide ........................................................................................ 124
• Performing a visual inspection ............................................................................ 125
• Logging in to the personal emergency signal centre .......................................... 125
• Sensor test ......................................................................................................... 129
• Fitting the tear-off cord ....................................................................................... 132
• Affixing the radio set to your clothing .................................................................. 132
Operation ................................................................................................................ 133
• Alarm and alarm processing ............................................................................... 133
• Personal alarm signal ......................................................................................... 134
• Sensor test ......................................................................................................... 136
Shutting down ......................................................................................................... 139
• Logging out of the personal emergency signal centre ........................................ 139
• Logging out the radio set manually ..................................................................... 140

Contents6
Service and cleaning ............................................................................................. 141
Care information ...................................................................................................... 141
Care instructions for the batteries ........................................................................... 142
Technical data of the FT4 ..................................................................................... 143
Mechanical and electrical properties ....................................................................... 143
TETRA-specific features ......................................................................................... 143
Operating conditions ............................................................................................... 144
Energy supply data .................................................................................................. 144
Side connector ........................................................................................................ 145
Technical data of the FT5 ..................................................................................... 146
Mechanical and electrical properties ....................................................................... 146
TETRA-specific features ......................................................................................... 146
Operating conditions ............................................................................................... 147
Energy supply data .................................................................................................. 148
Side connector ........................................................................................................ 149

Instructions for use
Before commissioning
7
Instructions for use
This chapter contains information regarding the use of the operating manual.
Before commissioning
Before commissioning, read and take note of
Safety Note 6188133000 and this Operating Manual 6187133001
for your radio set and familiarise yourself with the basic functions, settings and appli-
cation options.
Equipment and type designation
The funktel FT4/FT5 radio set is available in many versions.
The type designation on the type plate provides detailed information about the fea-
tures of your radio set.
Attention: Explosion-proof version
The funktel FT4 radio set is also available in explosion-proof versions.
To ensure safe handling, it is imperative that you read and follow Ex Safety Note
5010920007 for your radio set and Ex Safety Note 5010920006 for the
FT4 1700 V Ex C battery before entering an area at risk of an explosion with an
explosion-proof radio set.
To ensure proper use, take note of the associated declarations of conformity with the
EU regulations in respect of the radio sets and the components used in each case.
Designation of the Type FT4 radio sets with explosion protection (Ex), 
in the standard or Secury version:
Ex marking
Standard version => FT4 Ex C
Secury version (personal emergency signal device) => FT4 S Ex C
The designations regarding the equipment features of the radio set follow the type of
device with an Ex designation. See the graphic presentation of the FT4/FT5 device
versions on page 8.

FT I 4S_ 1Ia1I iIgIbm
Device versions
Separation <blank space>
m: <blank> = Standard
b = with Bluetooth
g = with GNSS receiver
Separation <blank space>
Frequency range
a = 380 ... 430 MHz
c = 410 ... 470 MHz (FT4 only)
i = with ILB (inductive
Air Encryption Classification
1 = Air Encryption TEA 1
3 = Air Encryption TEA 3
4 = Air Encryption TEA 4
Output classification
1 = 1 W
2 = 2 W
3 = 3 W
Separation <underscore> FT4
Separation <blank space>
funktel TETRA™
FT5 only
Device type = FT4 or FT5
<blank> = Standard
2 = Air Encryption TEA 2
<blank> = Standard
S= SECURITY
<blank> = Standard FT5
g = 146 ... 175 MHz (FT5 only)
GNSS - FT5 only
GPS FT4
localisation beacon) receiver
Instructions for use
FT4/FT5 device models
8
FT4/FT5 device models
Equipment and type designation of the type plate: Example <FT4 S_1a ig>

Instructions for use
Technical terms and abbreviations
9
Technical terms and abbreviations
Overview
Term Description
AIE Air Interface Encryption: air interface encryption
BetrSichV German Ordinance on Industrial Safety and Health Ordinance
concerning safety and health protection when furnishing work
equipment and its use for work, safety when operating systems
that require supervision and on the organisation of in-house
industrial safety measures in the Federal Republic of Germany.
BG Berufsgenossenschaft = (Federal German) Employers' Liability
Insurance Association
BT Bluetooth is a radio frequency technology for wireless data trans-
mission between devices.
BOS Authorities and organisations fulfilling security tasks
DGNA Dynamic Group Number Assignment: The radio set is assigned
new group call numbers by radio.
DMO Direct Mode: Direct connection with other subscribers without the
TETRA infrastructure.
E2EE End-to-End Encryption
ILB / ILS
(MMI ≙IOS)
Inductive tracking beacon/system: By receiving the identification
code of a tracking beacon, the personal emergency signal centre
can determine the possible location of the radio set.
ISSI Individual Short Subscriber Identity: Individual, unambiguous sub-
scriber number of a terminal on the TETRA network.
GNSS Global Navigation Satellite System = a system for determining a
location and for terrestrial and airborne navigation by the recep-
tion of signals from navigation satellites. Well-known systems
include GPS (USA), GLONASS (Russian Federation), Galileo
(EU) and Beidou (People’s Republic of China).
Group scan-
ning
The radio set may include several scan lists. If one of the scan
lists is marked as "selected" and if the scan function is activated,
your radio set will monitor the radio traffic in all associated groups.
Consequently, you can listen to several important channels
without switching over. This feature is referred to as "Group scan-
ning". The scan lists are saved in the radio set by means of pro-
gramming.

Instructions for use
Technical terms and abbreviations
10
Group A group unites several subscribers who communicate directly with
one another. Calls to a group reach all subscribers within this
group at the same time. Other subscribers cannot hear these
group calls. Group calls are possible even when not all subscrib-
ers of this group can be reached, e.g. because a radio set is
switched off.
GSSI Group Short Subscriber Identity: Call number of a group in the
TETRA network
Late entry You can participate in an already set-up group call even when you
have not received the beginning of that group call. This feature is
referred to as "Late entry". You can also use this feature when
dialling from another group or when changing the radio cell.
Local Site
Trunking.
Fallback mode: This mode comes into operation whenever an
infrastructure failure occurs but the local base station is still func-
tioning
MNI Mobile Network Identity
PABX Private Automatic Branch Exchange: Private telephone system
PES Personal emergency signal system
PED Personal emergency signal device, special version of the radio
set with personal security functions.
PNZ Personal emergency signal control centre
PSTN Public Switched Telephone Network: Public telephone network
PTT Push to talk, i.e. push before talking (PTT key)
REG The TETRA radio set registers with a TMO infrastructure (regis-
tration).
Call priority The radio set evaluates the call priority of each individual group
call if it is either a member of this group or has selected this group
as "selected group" or scans this group. When several calls are
made at the same time, you can only hear the call with the
highest priority.
SSI Short Subscriber Identity: SSI is the collective term for TETRA
subscriber numbers (subscriber identities).
Overview (cont'd)
Term Description

Instructions for use
Technical terms and abbreviations
11
TA The TETRA radio set looks for carrier frequency entries in an
internal list that are to be used for radio operation. It compares
these entries with the signals of the received TMO infrastructure
and attempts to register with the infrastructure found on the best
suited frequency.
TEA TETRA Encryption Algorithm: Encryption algorithm of the TETRA
system. Further classifications are defined in the standards
according to ETSI TR 101 053-1 to ETSI TR 101 053-4.
TETRA Terrestrial Trunked Radio
TMO Trunked Mode: Connections with other subscribers via the
TETRA infrastructure.
TS The TETRA radio set scans the pre-set frequency range for
carrier frequencies that are suitable for radio operation. It
assesses the carrier frequencies found and attempts to register
with the TMO infrastructure on the best suited frequency.
Overview (cont'd)
Term Description

Instructions for use
Symbols and special fonts
12
Symbols and special fonts
Symbols and special fonts emphasize important information.
DANGER
This is a safety instruction!
Safety information should help you to recognise hazards and to avoid negative con-
sequences.
 An arrow indicates a precaution you have to take in order to avoid the hazard.
Perform the following steps: Start of a procedure
1. First work step to be carried out.
2. Second work step to be carried out.
 Work step to be carried out (without any following work steps).
End of procedure instructions.
Wildcard for variable values, e. g. synonym for a number: [Call number]
Key on the radio set: key ‹#› , function ‹Select›
Menu items in the radio set display: SETTINGS menu
Sequence of menu items in the display that are to be performed consecutively, e. g.
when navigating: MENU > SETTINGS > LANGUAGES
TIP
This is a tip. Tips contain additional useful information.

Design and function
Components of the radio sets
13
Design and function
This chapter enables you to familiarise yourself with the controls, displays and con-
nections of the radio set.
Components of the radio sets
The use of the radio set requires at least the following components:
funktel FT4/FT5 radio set
Antenna
Interchangeable battery
Charger with the plug-in power supply unit
Tear-off pin with carrying strap (lanyard)
Safety information
If needed, you can order the following optional accessories. Ask your specialist
retailer for more information..
microSD card (for storing application-related data and settings) for FT4/FT5.
Micro SIM card (for future upgrades) for FT4/FT5
Mini SIM card “standard SIM card” (for future upgrades and encryption data) for
FT4 only
The part numbers and the exact type designations of the individual components can
be found in our sales and accessories lists. Contact your dealer.
NOTE
microSD card:
Funktel GmbH cannot guarantee the fault-free functioning of any commercially avail-
able microSD cards of various specifications in its products! It is therefore recom-
mended that only microSD cards that are available from Funktel under part numbers
5900273689 and 5900273690 be used.

Design and function
FT4 control elements
14
FT4 control elements
3
4
6
5
2
8
9
11
12
14
7
10
13
1
Control elements of the FT4 radio set

Design and function
FT5 control elements
15
FT5 control elements
3
6
8
9
11
12
14
7
10
13
12
Control elements of the FT5 radio set

Design and function
FT4 / FT5 control elements
16
FT4 / FT5 control elements
Legend (Section 1 of 4)
No. Designation Function
1Volume/Group call Setting of volume, selection of a group, disabling of
rotary switch.
The following functions are possible:
Press the button briefly to change between volume
setting and group selection.
Turn the control knob for setting the volume or select-
ing the desired group.
Press the control knob briefly to confirm the selected
group. This function can be parametrised by means
of the TETRA Configurator. Caution, risk of accidental
operation.
Long press the control knob to disable or re-enable its
function as a rotary switch.
Note: The volume setting for an individual half-duplex
and full duplex call can only be set individually for the
respective call type. The earpiece volume for a full
duplex call can only be set during a call.
2Alarm If the radio set is logged into the personal emergency
signal centre:
Triggering of a personal alarm (will-dependent alarm).
Decide for yourself if you wish to trigger Alarm 1 or
Alarm 2:
Alarm 1: Press key for more than 1 second.
Alarm 2: Press key briefly three times.
If the radio set is not logged in at the personal emer-
gency signal control centre:
Triggering a TETRA emergency call: Long press the
button to trigger the TETRA emergency call.

Design and function
FT4 / FT5 control elements
17
3Function key 1 Function key 1 can be configured so that if a warning
alarm is not programmed for this key, one of the func-
tions described below can be preset.
Warning alarm function
For this function, the radio set must be logged in at the
personal emergency call control centre:
Triggering a warning alarm. Decide for yourself if you
wish to trigger Warning alarm 1 or Warning alarm 2:
Warning alarm 1: Press key for more than 1 second.
Warning alarm 2: Press key briefly three times.
Configurable function key assignment
For the following configurable functions, the radio set
must not be logged in at the personal emergency signal
control centre.
In order to execute a preset function, press the function
key.
Depending on the programming of the radio set, one of
the functions is possible:
No function.
Toggling between TMO/DMO operating mode.
Changing the operating mode is possible only when
the radio set is not logged in at a personal emergency
signal control centre.
Group dialling, confirming a group selected by means
of the rotary switch or menu.
To switch the screen saver on/off.
Upward cursor movement.
Downward cursor movement.
Legend (Section 2 of 4)
No. Designation Function

Design and function
FT4 / FT5 control elements
18
4Function key 2
(FT4 only)
Execution of a pre-set function: Press the key to execute
the function.
Depending on the programming of the radio set, one of
the following functions is possible:
No function.
Toggling between TMO/DMO operating mode..
Changing the operating mode is possible only when
the radio set is not logged in at a personal emergency
signal control centre.
Group dialling, confirming a group selected by means
of the rotary switch or menu.
To switch the screen saver on/off.
Upward cursor movement.
Downward cursor movement.
5Function key 3
(FT4 only)
Execution of a pre-set function: Press the key to execute
the function.
Depending on the programming of the radio set, one of
the following functions is possible:
No function.
Toggling between TMO/DMO operating mode..
Changing the operating mode is possible only when
the radio set is not logged in at a personal emergency
signal control centre.
Group dialling, confirming a group selected by means
of the rotary switch or menu.
To switch the screen saver on/off.
Upward cursor movement.
Downward cursor movement.
To transmit the GPS/LIP position
6PTT (transmit key) Starting and controlling an individual call (direct through)
or a group call:
Long press key for setting up a connection and
talking while the connection is active.
Release key to hear other subscribers.
7Left Menu Key Execution of the menu function shown in the footer at
the bottom left edge of the display: Press the key for
executing the function displayed directly above the key.
Legend (Section 3 of 4)
No. Designation Function

Design and function
FT4 / FT5 control elements
19
8Right Menu Key Executing the menu function shown in the footer at the
bottom right edge of the display: Press the key for exe-
cuting the function displayed directly above the key.
9Cursor keys / Navi-
gation rocker
Changing the selection marking on the display. Press
cursor keys to move the select marking or the cursor to
the left, right, up or down.
10 Pick up The following functions are possible, depending on the
operating situation:
Starting or accepting an individual call in duplex mode
(full duplex voice connection)
To show the SELECTED NUMBERS list (automatic redi-
alling list) in the display.
11 Hang up The following functions are possible, depending on the
operating situation:
Switching on the radio set.
Terminating the voice connection.
Switching off the radio set.
Displaying the idle display.
In addition, this key enables the performance of the fol-
lowing functions:
Cancelling the connection setup.
Rejecting an incoming voice call.
12 Numeric keypad
1 to 9, 0
The following functions are possible, depending on the
operating situation:
Entering digits and letters; the ‹1› key also allows for
special characters.
13 Characters
Star key => *
The following functions are possible, depending on the
operating situation:
Entering the * character.
Muting the microphone.
Activating and deactivating the keylock (together with
the ‹left menu key› [7]).
14 Characters
Hash => #
(Hashtag)
The following functions are possible, depending on the
operating situation:
Entering the # character.
Switching between capitalisation, non-capitalisation
and digits.
Legend (Section 4 of 4)
No. Designation Function

Design and function
Connections
20
Connections
19
17
1615 1615
17
18
19
18
FT4 FT5
20
20
18
22 23
22 23
21
Connections on the radio set
Legend
No. Designation Function
15 Antenna Socket for connecting the screw-on antenna.
16 Belt clip Affixes the radio set, e. g. to clothing.
17 Side connector Interface for connecting an optional system-compatible
accessory, e. g. headphones/headset.
When not in use, the interface is covered up with a
special screw-on side connector cover.
