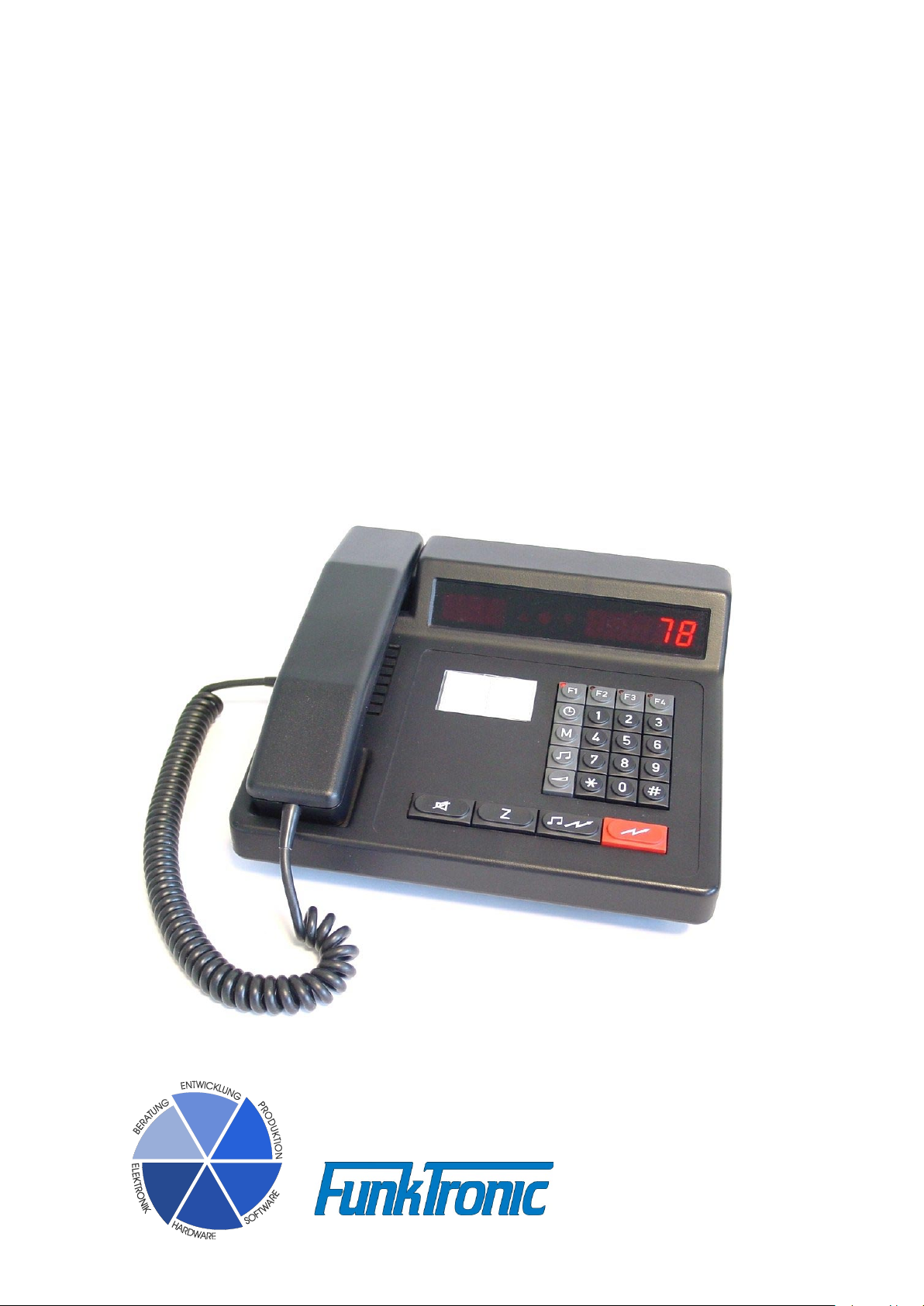

FunkTronic Major 4 User manual

Major 4
Kompetent für Elektroniksysteme
English Version 1.1

- 2 - Kompetent für Elektroniksysteme
Table of Contents
Section Page
Display and Control Elements 4
General Operating Instructions 5
Calling Radio subscriber 5
Call from Radio Subscriber 5
Call Handling 5
Loudspeaker 5
Volume Setting 6
Noise Suppression 6
Busy Indicator 7
Simplex/Duplex Mode 7
5-Tone Sequence Encoder 7
Coding 7
Call Start 7
Call Code Filter 7
Short Call Numbers 8
Identication 8
Group Call 8
Conference Call 8
5-Tone Sequence Parameters 9
Transmitter Pre-Running Time 9
Tone Length 9
6-Tone Sequence 9
Different Tone Systems 9
Tone Table 10
Transmitter Keying 10
TX Time-Out Timer 10
PTT Button Blocking 10
Transmitter Rodger Beep 11
Transmitter Keying Tone 11
5-Tone Sequence Decoder 11
Decoder 1 11
Acknowledgement 12
Decoder 2 12
Bell Tone 12
Alarm Switching Output 12
Group Call Decoder 0 12
Group Call Decoder A 12
Emergency Call Decoder 13
Conference Call Decoder 13
ID-Code Memory 13
Function 13
Monitor 13
Double Sequences 14
Key Tones 14
Memory updating 14
Display 14
Set-Up Mode 15
Set-Up Menu 15
EEPROM 1 Programming Mode 15
EEPROM 1 Addresses 16 -20
EEPROM 2 Addresses 20
Service Mode 21
Processor Board 21
Telephone Interface 21

m4_eng(11.03.02)
- 3 -
Kompetent für Elektroniksysteme
Printer Interface 22
Data Format 22
Connector 22
Function 22
Printer Switches 22
Print Format 22
Printer Text 23
Real-Time Clock 23
Function 23
Setting Time 23
Display Time 23
Channel Selection 23
Entering Channel Number 23
Conguration .. 24
Channel Table .. 24
Channel Scanning 24
Function 24
Conguration 25
FFSK Mode 25
Telegram Structure 25
FFSK Encoder 25
Operating Mode Reference 26
Limit Number 26
Rhomb 26
FFSK Identication 27
FFSK Emergency Call 27
FFSK Decoder 27
FFSK Acknowledgement 27
Connector 28
Adjustments 29
Order Information 30
Technical Data 31

- 4 - Kompetent für Elektroniksysteme
Display and Control Elements
123
15
16
9
13
10
11
12
14
17
18
4
5
8
6
7
1 - PTT Indicator
2 - Loudspeaker indicator,
incoming call indicator
3 - Busy indicator
4 - PTT key
5 - Call button
6 - Short call button
7 - Loudspeaker key
8 - Handsfree microphone
9 - Clock button
10 - Memory key
11 - Group call key
12 - Loudspeaker volume key
13 - Spezial funktion keys F1-F4
14 - LED Display right
15 - LED Display left
16 - Loudspeaker
17 - PTT key handset
18 - Handset
25-pol connector male
6-pol DIN connector female
220 V/AC connector
power switch
Rearview Major 4

m4_eng(11.03.02)
- 5 -
Kompetent für Elektroniksysteme
General Operating Instructions
The Major 4 is a microprocessor controlled desktop controller for a 2-way radio system. There are
two main versions, one for 12 Volt DC and one for 230 Volt AC. As all functions are controlled by
a microprocessor, its operation is very simple. The Major 4 is switched on by a power switch on
the rearside of the unit. After switching on, the message <Fun ctron> is shown for one second on
the display, then the display extinguishes and the cursor ashes at the input digit. Now the unit is
ready-to-operate; it is positioned in 5-tone mode.
Before using the Major 4, you have to adjust the input and the output levels of the LF. You can
congure it for 2 or 4-wire connection. On the rearside you have a connector with PTT input, squelch
input, LF input, LF output, emergency output and 12 outputs for channel switching.
Optional:
On an additional connector you have an RS232 output. You can connect a printer or a terminal
for documentation.
Optionaly you can connect the Major 4 on a telephone line using the Telephone Interface. With
this option it is possible to connect the radio manually or automatically to the telephone line or
visa versa. If you have noisy signals you can improve decodeing of 5-tones by the optionally
correlator module.
Calling a Radio Subscriber
At rst, the call number is entered via the keypad. The input is complete when the number is
right-aligned on the display. None of the input positions is ashing any longer. The call is transmitted
automatically or by pressing the call button. See also section 5-Tone Sequence Encoder. If not all call
numbers are allowed, the input can also be restricted (see section Call Code Filter).
Call from Radio Subscriber
An incoming call is indicated by a sounding tone like from a telephone. The loudspeaker is switched
on and the loudspeaker LED ashes. See also section 5-Tone Sequence Decoder.
Call Handling
There are two possibilities to communicate with the radio subscriber:
If you use the handset you hear the radio subscriber through the handset; for speaking you have to
press the PTT button on the handset. When the call is terminated, replace the handset.
It is also possible to speak via the red PTT button. In this case you will speak via the built-in
microphone, and after releasing the PTT button you will hear the radio subscriber through the
loudspeaker. See also section Transmitter Keying. Normally, after call termination the loudspeaker is
switched off by the loudspeaker key. It is also switched off by replacing the handset.
The loudspeaker and the handset volume can be set separately. See also section Loudspeaker.
Major 4

- 6 - Kompetent für Elektroniksysteme
Loudspeaker
The loudspeaker can be switched on by pressing the loudspeaker button. lt is switched off by
pressing the loudspeaker button again. lt is also switched on automatically after call transmission,
after pressing the PTT button, and after call identication. The loudspeaker can automatically be
swjtched oft by replacing the handset. The automatic switch-off is programmed at the second digit of
register 042 (EEPROM 1). The loudspeaker can also be switched off by a timer being
programmable in one-second intervals. That timer is automatically started when the loudspeaker is
switched on, and is post-triggered when the carrier signal is identied. The timer is programmed
at digits 3 to 5 of register 042 (EEPROM 1). If a timer is not required, it can be switched off by
programming '000' seconds. lf the loudspeaker has to be set for permanent operation, 'open
operation' has to be programmed at the first digit of register 042 (EEPROM 1). See section
EEPROM 1 Programming Mode.
Register 042
1. digit 1 = Selective operation
0 = Open operation
2. digit 0 = Loudspeaker off after replacing handset
1 = Loudspeaker remains in 'on' position
3. digit value x 100 sec.
4. digit value x 10 sec. Switch off loudspeaker after 'value' seconds
5. digit value x 1 sec.
In the following example the loudspeaker has to be switched off automatically after two minutes.
Selective operation should be switched:
Register 042 Value
1. digit 1 = Selective operation 1
0 = Open operation
2. digit 0 = Loudspeaker off after replacing the handset
1 = Loudspeaker remains in 'on' position 1
3. digit After N * 1 second 1
4. digit switch off 2
5. digit loudspeaker 0
Volume Setting
The loudspeaker and handset volume can be set separately. The handset volume is set by
potentiometer R610 on the handset. To modify the loudspeaker volume, the volume key has
to be pressed first. The message <VOL> is shown now on the left display, and the current
volume ashes on the right display. A volume level between '0' and '9' can be selected. After
setting the volume the previous display status is restored. The set value is maintained even
after switching off the unit.
Noise Suppression
In case of operation via telephone lines and open loudspeaker cross-talk interferences, dialling
noise, etc. may be audible via the loudspeaker. This can be eliminated by a noise suppressor
switch, if the noise level is not too high. This switch releases the loudspeaker only at normal
speech level. The noise suppression can be switched on at digit 2 of register 040 in EEPROM
1 ('0' = off, '1' = on).
}
}

m4_eng(11.03.02)
- 7 -
Kompetent für Elektroniksysteme
Busy Indicator
The busy indicator is programmed in register 041 (EEPROM 1). For busy indicator control the
carrier input is switched to ground. In case of a two-wire system the busy indicator is controlled by
voice activity. lt is congured as follows:
Register 041 5. digit 0 = audio squelch
1 = Carrier input low = LED on
2 = Carrier input high = LED on
Simplex/Duplex Mode
To avoid a side tone in case of a two-wire connection the Major 4 has to be programmed for simplex
mode. Therefore, the rst digit of register 043 (EEPROM 1) has to be programmed with a '1'. In case
of duplex mode a '0' has to be programmed.
5-Tone Sequence Encoder
Coding
The 5-tone sequence encoder is congured according to the application requirements and as well
for comfortable Operation. Logically, you will permanently code those digits which should not be
entered via the keypad. The permanently coded tones can be placed at any position of the tone
sequence. For example, it is possible to permanently code positions 1, 3, and 5. In this case
only position 2 and 4 are entered via the keypad. The positions to be freely entered are always
displayed right aligned. If two subsequent tones are identical, the repeat tone is automatically
used at the correct position. The 5-tone sequence encoder is coded in register 001 (EEPROM
1). See section EEPROM 1 Programming Mode. If not all digits are permitted, the input can also
be restricted (see section Call Code lter).
Call Start
The call is started either by pressing the call button or automatically after complete input. The call
can be repeated in both cases by pressing die call button. If it has to be started automatically,
the 4. digit of register 040 (EEPROM 1) has to be programmed as a '1'. See section EEPROM
1 Programming Mode.
Call Code Filter
Via the call code lter you can block special digits at any position of the tone sequence. The call code
lter is programmed in the EPROM starting with address 7B80H. For any tone of the tone sequence
16 bytes are reserved, where all permitted tones are listed ('00' H .. '0F' Hex). If one of these tones
shall be blocked, the corresponding position has to be programmed with 'FF' Hex. If no suitable
programming unit is available, FunkTronic can supply you with the modied EPROM.
Permitted tones for 1. position - start with address 7B80 Hex
Permitted tones for 2. position - start with adoress 7B90 Hex
Permitted tones for 3. position - start with address 7BA0 Hex
Pennitted tones for 4. position - start with address 7BB0 Hex
Permitted tones for 5. position - start with address 7BC0 Hex

- 8 - Kompetent für Elektroniksysteme
Short Call Numbers
The Major 4 is provided with 10 programmable short call numbers. By pressing the (Z) key and
the following input of a digit between 0 and 9, a precoded call is transmitted. These short call
numbers are coded in registers 000 to 009 (EEPROM 2) and may be changed at any time without
password input. See section EEPROM 2 Programming Mode.
Identication
The identication is coded in register 003 (EEPROM 1). See section EEPROM 1 Programming
Mode. If no identication number is required, please code the rst digit with an 'F'. Usually, the
identication is coded exactly as Decoder 1. The identication is transmitted automatically after
every call or short call. These two sequences are separated by a pause of one tone length.
The pause can also be replaced by a sixth tone. See section 6-Tone Sequence. In this case a
tone sequence of 11 tones is transmitted.
Group Call
In order to be able to use the 5-tone sequence call system without any restrictions, tone 'A' should
be used as group calling tone. Tone 'A' is entered by the (#) key. The group calling tone may be
placed at any position. The call starts by pressing the call button or automatically, depending on
the conguration. See section Call Start.
Conference Call
The conference call is transmitted by pressing the conference call button. The call duration is
programmed at digit 1 of register 048 (EEPROM 1). The programmed value N refers to the time
of N * 200 ms. But, if '0' is set at this digit, the tone will be transmitted as long as the button is
pressed. The tone frequency is programmed at digits 3 to 5 of register 048. The tone generator
can be programmed for frequencies from 601 Hz up to 3400 Hz or higher. The value to be
programmed is calculated using die following formula:
8 000 000
x = ---------------- - 1
52 * f (Hz)
In the following example a conference call is programmed with a frequency of 1000 Hz. The
call duration should be one second:
8 000 000
x = ---------------- - 1 = 152.846 Value = 153
52 * 1000
Therefore, register 048 (EEPROM 1) has to be programmed with '5-153'. See section EEPROM
1 Programming Mode.

m4_eng(11.03.02)
- 9 -
Kompetent für Elektroniksysteme
5-Tone Sequence Parameters
Transmitter Pre-Running Time
The pre-running timer is preceding every call. lt consists of a fixed value of 100 ms and a
variable value which can be programmed in 10 ms intervals at digits 3 to 5 of register 046
(EEPROM 1). See section EEPROM 1 Programming Mode. The variable value can be dened
freely between '000' and '255'.
Example 1: ...............................................................................................................................................
The variable value is dened as '010'.
The xed pre-running time value is now 100 ms plus a variable value of 100 ms. Therefore,
the total value is 200 ms.
Example 2: ...............................................................................................................................................
The variable value is dened as '255'.
The xed pre-running time value is now 100 ms plus a variable value of 2550 ms. Therefore, the
total value is 2650 ms or 2.65 seconds.
Tone Length
The length of the rst tone is dened at digits 3 to 5 of register 045 (EEPROM 1). The length of the
other tones can be adjusted at digits 3 to 5 of register 044 (EEPROM 1). See section EEPROM 1
Programming Mode. The value can be switched in 10 ms intervals from '003' up to '255'. In case
of ZVEI 1 and ZVEI 2 the tone length is usually 70 ms, and in case of CCIR it is 100 ms. The tone
length of the rst tone can also deviate from the other tones. For example: Tone length of 1. tone =
1500 ms and 2. to 5. tone = 70 ms. The programmed tone lengths are adhered exactly by the 5-tone
encoder. In case of tone identication a tolerance is added to the programmed values. This ensures
that even inexact 5-tone telegrams are evaluated correctly.
6-Tone Sequence
For special applications it may be necessary to add a sixth tone to the 5-tone sequence. For
every short call <Short Call Button> as well as for normal call <Call Button> the sixth tone can be
programmed separately . The sixth tone for normal call is programmed at digit 3 of register 041
(EEPROM 1). The sixth tone for short calls is programmed in registers 014 and 015 (EEPROM 1). If
the sixth tone is not used, an 'F' has to be programmed at the corresponding address.
Register 014 Register 015
1. digit short call 0 1. digit short call 5
2. digit short call 1 2. digit short call 6
3. digit short call 2 3. digit short call 7
4. digit short call 3 4. digit short call 8
5. digit short call 4 5. digit short call 9
Different Tone Systems
The Major 4 can be congured for various tone systems without any hardware modication. The
tone system is selected at the rst digit of register 046 in EEPROM 1 (see the following table). See
section EEPROM 1 Programming Mode. When a tone system is selected, the tone length is not

- 10 - Kompetent für Elektroniksysteme
automatically adjusted. Therefore, if a change is made from ZVEI 1 to CCIR, the tone length has to
be redened as well. See section Tone Length.
Register 046 1. digit 0 = ZVEI 1
1 = CCIR
2 = ZVEI 2
3 = EEA
4 = ZVEI 3
Tone Table
Tone ZVEI 1 CCIR ZVEI 2 EEA ZVEI 3
0 2400 Hz 1981 Hz 2400 Hz 1981 Hz 2200 Hz
1 1060 Hz 1124 Hz 1060 Hz 1124 Hz 970 Hz
2 1160 Hz 1197 Hz 1160 Hz 1197 Hz 1060 Hz
3 1270 Hz 1275 Hz 1270 Hz 1275 Hz 1160 Hz
4 1400 Hz 1358 Hz 1400 Hz 1358 Hz 1270 Hz
5 1530 Hz 1446 Hz 1530 Hz 1446 Hz 1400 Hz
6 1670 Hz 1540 Hz 1670 Hz 1540 Hz 1530 Hz
7 1830 Hz 1640 Hz 1830 Hz 1640 Hz 1670 Hz
8 2000 Hz 1747 Hz 2000 Hz 1747 Hz 1830 Hz
9 2200 Hz 1860 Hz 2200 Hz 1860 Hz 2000 Hz
A 2800 Hz 2400 Hz 886 Hz 1055 Hz 886 Hz
B 810 Hz 930 Hz 810 Hz 930 Hz 810 Hz
C 970 Hz 2247 Hz 740 Hz 2247 Hz 740 Hz
D 886 Hz 991 Hz 680 Hz 991 Hz 680 Hz
E 2600 Hz 2110 Hz 970 Hz 2110 Hz 2400 Hz
Transmitter Keying
The transmitter can be keyed by the PTT button on the handset or by the red PTT button on the
keypad. The difference between these PTT buttons is the function of the microphones. The PTT
button on the handset switches on the microphone in the handset, and the PTT button on the keypad
switches on the microphone mounted in the housing of the unit. The transmitter is keyed as long
as the PTT button is pressed, except if the TX time out is exceeded. See also seotion TX Time Out
Timer. In the multi-wire Version the transmitter is controlled by optocoupler 1 and, at the same time,
by an open collector output. In the DC Version it is controlled by optocoupler 2, and in AC version by
a keying tone. During call transmission the transmitter is keyed automatically.
TX Time-Out Timer
The TX time-out timer is programmed in one-second intervals at digits 3 to 5 of register 047
(EEPROM 1). Values of '000' up to '255' are permitted. If the programmed value is '000', the TX
time-out timer is out of operation.
PTT Button Blocking
The PTT button blocking is programmed at the fth digit of register 040 (EEPROM 1) as follows:
0 = PTT button blocking is switched off
1 = PTT button is blocked in case of sensed carrier

m4_eng(11.03.02)
- 11 -
Kompetent für Elektroniksysteme
2 = Transmitter keying is possible only after call transmission or call evaluation. The PTT button
release is reset by replacing the handset or by switching off the loudspeaker.
Transmitter Rodger Beep
The pressing of the PTT button may be signalled by transmission of a tone or the identication.
The signal can be transmitted when pressing the PTT button, when releasing the PTT button,
or when pressing and when releasing the PTT button. The function is programmed at digit 5 of
register 033 (EEPROM 1) as follows:
0 = No Signal (default setting)
1 = Tone when pressing the PTT button
2 = Tone when releasing the PTT button
3 = Tone when pressing and when releasing the PTT button
4 = Identication when pressing the PTT button
5 = Identication when releasing the PTT button
6 = Identication when pressing and when releasing the PTT button
Transmitter Keying Tone
The keying tone is programmed at digits 2 to 5 of register 043 (EEPROM 1). If no keying tone
is required the digits have to be programmed with '0000'. The keying tone generator can be
programmed for frequencies of 15,4 Hz up to 3400 Hz or higher. The value to be programmed
is calculated using the following formula:
8 000 000
x = -------------- - 1
52 * f (Hz)
In the following example a keying tone with a frequency of 3300 Hz is programmed:
8 000 000
x = -------------- - 1 = 45,62 Value = 46
52 * 3300
The digits 2 to 5 of register 043 have to be programmed with '0046'.
5-Tone Sequence Decoder
Decoder 1
The Decoder 1 is coded in register 000 (EEPROM 1). See section EEPROM 1 Programming Mode.
Every 5-tone sequence is compared with the decoder 1 coding and, in case of digits being coded
with 'F', every tone of the tone system will be accepted. If the 5-tone sequence has been identied
as correct, the loudspeaker and the handset are switched on, the loudspeaker lamp ashes, and
if you are not operating with double sequences, the acknowledgement is transmitted. After that,
the bell tone is activated. If you operate with double sequences, the acknowledgement delay is at
most one second. See also identication Memory. Any further tone sequence check, for example by
decoder 2 or the conference call decoder, is not performed.

- 12 - Kompetent für Elektroniksysteme
Acknowledgement
The automatic acknowledgement after a selective call can operate in different ways. The
acknowledgement mode is programmed at digit 4 of register 033 (EEPROM 1) as follows:
0 = no acknowledgement
1 = acknowledgement with a single tone of 600 Hz, 300 ms
2 = acknowledgement with a tone sequence from register 002
3 = acknowledgement with the identifcation stored last.
Decoder 2
The decoder 2 is coded in register 007 (EEPROM 1). See section EEPROM 1 Programming
Mode. Every 5-tone sequence which has not been identied as correct in decoder 1, is compared
with decoder 2 coding and, in case of digits being programmed with 'F', every tone of the tone
system will be accepted. If the 5-tone sequence bas been identied as correct, the loudspeaker
and the handset are switched on, the loudspeaker lamp flashes, and then the bell tone is
activated. Any further tone sequence check, e.g. by a group call decoder, will not be performed.
An acknowledgement is not transmitted.
Bell Tone
The bell tone volume is programmed at the rst digit of register 040 (EEPROM 1). The setting '1' ...
'9' corresponds to the volume ('1' = lowest level, '9' = highest level). If no bell tone is desired, a '0' has
to be programmed at this digit. See also section EEPROM 1 Programming Mode.
Alarm Switching Output
After successful evaluation the bell tone is generated and the alarm contact is switched for
n*1 seconds. The alarm contact time is programmed in one-second intervals in register 020
(EEPROM 1) as follows:
1. digit Alarm contact time for emergency call
2. digit Alarm contact time for normal call (Decoder 1)
3. digit Alarm contact time for normal call (Decoder 2)
4. digit Alarm contact time for group call
5. digit Alarm contact time for conference call
Group Call Decoder 0
The group call decoder 0 is coded in register 005 (EEPROM 1). If this decoder is not required,
please code an 'F' (blank) at the rst digit of the tone sequence. The group call decoder is usually
coded with the same tones as decoder 1. The read-in tone sequence is compared with the coded
tone sequence whereby tone '0' is also accepted. In case of successful decoding the loudspeaker
and the handset are switched on, the loudspeaker lamp ashes, and the bell tone is started. An
acknowledgement is not transmitted.
Group Call Decoder A
The group call decoder A is coded in register 006 (EEPROM 1). If this decoder is not required,
please code an 'F' (blank) at the rst digit of the tone Sequence. The group call decoder is normally
coded with the Same tones as decoder 1. The read-in tone sequence is compared with the coded

m4_eng(11.03.02)
- 13 -
Kompetent für Elektroniksysteme
tone Sequence whereby tone 'A' is also accepted. In case of successful decoding the loudspeaker
and the handset are switched on, the loudspeaker lamp ashes, and the bell tone is started. An
acknowledgement is not transmitted.
Emergency Call Decoder
The emergency call decoder is coded in register 004 (EEPROM 1). If this decoder is not required,
please code an 'F' at the rst digit of the tone sequence. The read in 5-tone sequence is compared
with the emergency coding. From the second up to the fth digit those positions being coded with
'F' will accept all tones of the tone system. In case of successful decoding the loudspeaker and
the handset are switched on, the loudspeaker lamp ashes, and a time window with a duration of
three seconds is opened. The rst tone sequence to be received within the time window closes the
time window, and is then stored as emergency call, and ashes on the right display. As long as an
emergency call is indicated on the display, the keypad is blocked with exception of the PTT button and
the 'F1' key. The emergency call number can be deleted only with the 'F1' key.
Conference Call Decoder
The conference call decoder detects a tone of at least one second duration. After detection the
loudspeaker and the handset are switched on, the loudspeaker lamp ashes, and the bell tone is
activated. No acknowledgement is transmitted. The conference call tone frequency is coded at digit
2 of register 046 (EEPROM 1) with the corresponding digit of the tone system ('0' ... 'E') . If this
decoder is not required, please code an 'F' at that digit.
ID-Code Memory
Function
The ID-code memory can be congured so that it is optimally adapted to current use. Up to 16
ID-codes can be stored. If all memory positions are engaged, the memory is updated by deleting the
oldest ID-code. The stored ID-codes can be scrolled through by pressing the (M) key in such way
that the ID-code stored last is displayed by the rst key pressing. The currently displayed ID-code
can be deleted from the memory by pressing the (*) key. If the "FIFO" function is switched on, always
the oldest number is shown on the display by pressing the (M) key, and only after deleting this
ID-code the next ID-code follows. The "FIFO" function is programmed at the rst digit of register 033
in EEPROM 1 ('0' = off, '1' = on). The ID-code memory can be used for single or double sequences.
In case of double sequences the rst or the second tone sequence is stored according to the
"ID-Mode" switch. The "ID-Mode" is programmed at digit 3 of register 033 in EEPROM 1 ('0' = 2nd
tone sequence, '1' = 1st tone sequence). The storing of an ID-code can be signalled by a beep tone
which can be programmed at digit 2 of register 033 in EEPROM 1 ('0' = off, '1' = on). The ID-code
memory can also be used as call-back memory. In order to avoid acknowledgement sequences to
get into the memory, the ID-code memory can be blocked for n * 100 ms after every call transmission.
The blocking time is programmed at digit 2 of register 041 (EEPROM 1).
Monitor
If every ID-code has to be stored, digit 3 of register 021 (EEPROM 1) has to be programmed with
a '1'. Now every ID-code is compared with the key tones and, if the test is positive, it is transferred
to the ID-code memory. But if the system is operating with double sequences, the monitor switch
must remain in "off" position ('0').

- 14 - Kompetent für Elektroniksysteme
Double Sequences
If the system has to operate with double sequences, digit 1 of register 021 (EEPROM 1) has to
be programmed with a '1'. Now after every evaluation of decoder 1, a time window of 1 second
is opened. The rst ID-code, within the time window, which ts the key tones, closes the time
window. The rst or the second ID-code can be transferred to the ID-code memory (according to the
"ID-Mode" switch). Therefore, the acknowledgement transmission is delayed.
Key Tones
The key tones are coded in register 008 (EEPROM 1). The coding of these tones selects the
ID-codes which are stored, and determines the digits to be displayed. Those digits where every tone
is allowed and which are displayed later on, have to be coded with 'F'.
Memory Updating
Before an ID-code is accepted by the ID-code memory, the software checks if the same ID-code
has already been stored in the memory. If the ID-code has already been stored and if the updating
has not been activated, the ID-code is rejected. If the updating is switched on, the ID-code at
the old position is deleted in order to be stored again at the rst position. Therefore, the ID-code
memory is always arranged in chronological order. The memory updating is programmed at digit 5
of register 021 in EEPROM 1 ('0' = off, '1' = on).
Display
The ID-code can be shown on the left as well as on the right display. In case of up to 3-digit
ID-codes the left display should be chosen. The ID-code is always displayed right aligned. If the
ID-code display is requested on the left display, digit 4 of register 021 (EEPROM 1) has to be
programmed with a '1'. If the ID-code shall be shown on the right display, please code a '0'. If an
ID-code is shown on the right display, it can be transmitted via the call button. If the ID-codes
shall be shown on the display automatically after storage, digit 2 of register 021 (EEPROM 1)
has to be programmed with a '1'.
Example:
The following example shows the conguration of an ID-code memory which stores and displays
automatically every ID-code beginning with 1 2. The ID-code memory should be "updated":
Register 008 1. digit 1
2. digit 2
3. digit F
4. digit F
5. digit F
Register 021 1. digit 0
2. digit 1
3. digit 1
4. digit 1
5. digit 1

m4_eng(11.03.02)
- 15 -
Kompetent für Elektroniksysteme
Setup Mode
Setup Menu
The setup menu is selected by pressing the (F1) key and the (F4) key simultaneously for one second.
Now the message <SET> is shown on the left display and the cursor ashes at the input digit of the
right display. Now it is possible to call the different programs by entering a two digit number (see the
following table). The input is terminated by pressing the (F4) key.
00 = Reset Program
01 = EEPROM 1 programming mode
02 = EEPROM 2 programming mode
03 = Time setting of built in real time clock
04 = Printout of EEPROM registers EEPROM 1
05 = Printout of EEPROM registers EEPROM 2
06 = Software Version display
50 = Service mode processor board
51 = Service mode telephone interface
EEPROM 1 Programming Mode
After selecting the EEPROM 1 in the setup menu, the left display shows the message <Pas>, and
the cursor ashes at the input digit of the right display. Now you have to enter your 5 digit password.
Units leave the factory without password, so that you can immediately start with the programming.
In this case or after you have entered your password, the left display shows the message <Adr>,
and the cursor ashes at the input digit of the right display.
Now the register address to be newly coded has to be entered (see the following table). If, instead
of a valid address, '222' is entered, all registers are programmed with default values. Immediately
after complete input the left display shows the message <Cod>, and the actual coding is shown
on the right display. Now that coding can be overwritten with new values. If the coding shall not be
modied, you can skip the coding by pressing the (F3) key and select a new address. Generally,
in setup mode you conrm the last input by pressing the (F4) key, and by pressing the (F3) key
you go to the next step of the program.
All values from 0 ... 9 and A ... F
can be used for coding. Value F
is shown on the display as '-'.
After complete coding the EEPROM is programmed by pressing the (F4) key. Now the Major
4 shows the word <donE> on the right display for half a second. Then the left display shows
the message <Adr>, and the cursor ashes at the input digit of the right display. Now the next
address can be entered.
If no further coding are requested, you have to quit the programming mode by pressing the (F3)
key. Now the Major 4 is executing a warm start; during this warm start all registers are read in
and the programming mode is terminated.
F1 F2 F3 F4
A 1 2
B 4
3
5 6
C 7 89
DE 0 F

- 16 - Kompetent für Elektroniksysteme
EEPROM 1 Addresses
Register Coding for
000 Decoder 1
001 permanently coded positions of 5-tone encoder
002 Acknowledgement
003 Identication
004 Emergency call 1
005 Group call decoder 0
006 Group call decoder A
007 Decoder 2 (without acknowledgement)
008 Key tones for ID-Code memory
009 Printer code
010 Short form tone call within telephone mode
011 Direct dialling within telephone mode
012 Touchtone dialling within telephone mode
013 Clear back call within telephone mode
014 6th Tone for short call
1. digit 6th tone for short call 0
2. digit 6th tone for short call 1
3. digit 6th tone for short call 2
4. digit 6th tone for short call 3
5. digit 6th tone for short call 4
015 6th Tone for short call
1. digit 6th tone for short call 5
2. digit 6th tone for short call 6
3. digit 6th tone for short call 7
4. digit 6th tone for short call 8
5. digit 6th tone for short call 9
017 Code for direct dialing with tone sequence (radio --> telephone)
019 Emergency call 2 ("Forstfunk")
020 Alarm contact hold time
1. digit Emergency call
2. digit Normal call (Decoder 1)
3. digit Normal call (Decoder 2)
4. digit Group call
5. digit Conference call
021 Flags for ID-code memory
1. digit Double sequences on/off --> 1/0
2. digit Display ID-code immediately on/off --> 1/0
3. digit Monitoring on/off --> 1/0
4. digit ID-code on the left display on/off --> 1/0
5. digit Update memory on/off --> 1/0

m4_eng(11.03.02)
- 17 -
Kompetent für Elektroniksysteme
029 Telephone settings
1. digit Check dial tone before dialling on/off --> 1/0
2. digit Call from Telephone to the radio
0 = only call
1 = call and ID-code
2 = call and clear back call
3. digit Call starts without key # on/off --> 1/0
4. digit Flash hold time (n * 10 msec * 10)
5. digit Flash hold time (n * 10 msec * 1)
030 Intercom, telephone setting, awake tone
1. digit Intercom on/off --> 1/0
2. digit number of periods for the awake tone
3. digit Dial tone check
0 ... 9 = number before dialing on main line
F = no prior checking of dial tone
031 FFSK Parameters
1. digit Raute
2. digit
3. digit Limit number hundreds
4. digit Limit number tens
5. digit Limit number ones
032 FFSK Parameters
1. digit FFSK identication on/off --> 1/0
2. digit
3. digit BAK for encoder
4. digit BAK for decoder
5. digit
033 Special Flags, acknowledgment, TX keying
1. digit FIFO mode (ID-code memory) on/off --> 1/0
2. digit Beep tone (ID-code memory) on/off --> 1/0
3. digit ID-mode for encoder and decoder (ID-code memory)
0 = call and ID-code
1 = ID-code and call
4. digit Acknowledgment mode
0 = no acknowledgment
1 = single tone 600 Hz for 300 msec
2 = normal acknowledgment
3 = received code
5. digit Transmitter keying signal
0 = no transmitter keying signal
1 = tone when pushing PTT key
2 = tone when releasing PTT key
3 = tone when pushing and releasing PTT key
4 = ID-code when pushing PTT key
5 = ID-code when releasing PTT key
6 = ID-code when pushing and releasing PTT key

- 18 - Kompetent für Elektroniksysteme
034 Telephone Parameters
(only if equipped with telephone interface)
1. digit n * 8 sec dial tone until cut-off
2. digit 0 = Pulse dialling
1 = DTMF dialling
3. digit Single tone '0' ... 'D' for clear back
4. digit Remote programming EEPROM 1 on/off --> 1/0
5. digit Remote programming EEPROM 2 on/off --> 1/0
035 Scanner Parameters
1. digit n * 20 ms dwelling time per channel
2. digit Wait time after call (sec): tens
3. digit Wait time after call (sec): ones
4. digit Stop scanning if carrier on/off
5. digit
036 Scanner Parameters
1. digit Scanner on/off
2. digit Scanning up from channel: tens
3. digit Scanning up from channel: ones
4. digit Scanning up to channel: tens
5. digit Scanning up to channel: ones
037 Telephone Parameters
(only if equipped with telephone interface)
1. digit 0 = Telephone mode off
1 = Manual telephone mode, telephone --> radio
2 = Automatic telephone mode with short call 0, telephone --> radio
3 = Telephone mode with touchtone dialling, telephone --> radio
2. digit Mode of TX keying
0 = Simplex mode, voice controlled
1 = Duplex mode, permanent
3. digit n * 10 sec. TX time out without modulation
4. digit n * 5 sec. TX time out in simplex mode
5. digit (n + 1) * 60 sec. TX time out
038 Channel Parameters
1. digit 0 = No channel selection
1 = One digit channel selection
2 = Two digit channel selection
2. digit 1 = Channel output decimal
2 = Channel output binary-1
3 = Channel output binary
4 = Channel output 2 * BCD
5 = Channel remote control with keying tone/PTT
6 = Channel remote control without keying tone/PTT
3. digit 0 = Channel output ordinary
1 = Channel output inverted
4. digit 0 = Short channel display
1 = Permanent channel display
5. digit 0 = acknowledge for remote channel selection (K1K2K3XY)
1 = acknowledge for remote channel selection (K2K1K3XY)

m4_eng(11.03.02)
- 19 -
Kompetent für Elektroniksysteme
039 Printer Parameters
1. digit Print transmitted code on/off --> 1/0
2. digit Print received code on/off --> 1/0
3. digit Print within telephone mode on/off --> 1/0
4. digit Print transmitted conference calls on/off --> 1/0
5. digit Print received conference calls on/off --> 1/0
040 1. digit Bell tone volume for ordinary calls, 1 to 9
2. digit Noise switch on/off --> 1/0
3. digit Bell tone volume for emerqency calls, 1 to 9
4. digit Automatic call transmission on/off --> 1/0
5. digit PTT button blocking
0 = allways off
1 = on when carrier is detected
2 = off only after call or call detecting
041 1. digit break after double sequence, n * 20 msec
2. digit Blocking time for ID-code memory, n * 100 msec
3. digit 6th tone for ordinary calls
4. digit Correlation module yes/no --> 2/0
5. digit Carrier display, carrier input
0 = depenting on modulation, for 2-wire
1 = carrier input low
2 = carrier input high
3 = depenting on modulation, carrier input is
used for ext. PTT key
4 = depenting on modulation, carrier input is
used for ext. short call key
042 Automatic Loudspeaker Switch-Off
1. digit 0 = open mode
1 = selective mode
2. digit 0 = Loudspeaker remains off after put back handset
1 = Loudspeaker on after put back handset
3. digit Loudspeaker timer hundreds
4. digit Loudspeaker timer tens
5. digit Loudspeaker timer ones
043 Keying tone Mode and frequency
1. digit Mode
0 = Duplex
1 = Simplex
2. digit Keying tone thousands
3. digit Keying tone hundreds
4. digit Keying tone tens
5. digit Keying tone ones
044 Tone sequence setting
1. digit
2. digit
3. digit Tone length 2. to 5. tone hundreds
4. digit Tone length 2. to 5. tone tens
5. digit Tone length 2. to 5. tone ones

- 20 - Kompetent für Elektroniksysteme
045 Tone sequence setting
1. digit
2. digit
3. digit Tone length 1. tone hundreds
4. digit Tone length 1. tone tens
5. digit Tone length 1. tone ones
046 Tone sequence setting
1. digit Tone system
0 = ZVEI 1
1 = CCIR
2 = ZVEI 2
3 = EEA
4 = ZVEI 3
2. digit Tone for conference call decoder (0 ... E)
3. digit Transmitter pre-running time hundreds
4. digit Transmitter pre-running time tens
5. digit Transmitter pre-running time ones
047 Transmitter time out
1. digit
2. digit
3. digit TX time out hundreds
4. digit TX time out tens
5. digit TX time out ones
048 Conference call encoder
1. digit Conference call tone duration, n * 200 msec
2. digit
3. digit Conference call frequency hundreds
4. digit Conference call frequency tens
5. digit Conference call frequency ones
049 Password
051 I²C port short call 1
. .
. .
. .
058 I²C port short call 8
222 Load factory default values for EEPROM 1
EEPROM 2 Addresses
Register Coding for
000 Short call 0
. .
. .
009 Short call 9
010 ... 012 Phone number 00
013 ... 015 Phone number 01
. . .
. . .
. . .
199 ... 201 Phone number 63
