FUNNY FASHION Stage effects Spark machine User manual

1
Spark machine – 85381
User’s manual
ONLY PROFESSIONAL USE
Please read carefully before installing or operating. It is extremely important to follow the safety instructions.
Content:
Please check if following parts are included:
1. Spark machine with power supply
2. User’s manual
WARNING : You can seriously hurt yourself or others when you don’t perform the procedures
carefully.
Safety instructions:
•Keep this user’s manual. Don’t forget to give this when reselling this item.
•Carefully read the manual which contains important information concerning the installation,
consummation and maintenance of this machine.
•While receiving the product, please take carefully and check whether it was been destroyed on
conveyance.
•Before installation, please make sure that the power voltage matches the system rated voltage.
•The device need to be grounded.
•The system should be kept dry. Please don’t use the system in the condition of rain ,wet or dust in
order to prevent the risks of hazards and electrical shocks.
•Keep away from children.
•Do not cover up any ventilation hole in order to prevent overheating the product.
•Do not turn the machine during installation.
•The maximum and safe temperature for this product is 10-40°. Do not use at higher temperatures.
The machine won’t be ready until it has reached this temperature.
•Outdoor use only.
•Dispose of the machine in a way that is environmentally and hygienically in consistence with the legal
requirements.

2
Safety instructions :
The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the
use or the presence of un-insulated “dangerous voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within the equilateral triangle is intended to alert the user to the presence
of important operation and maintenance (servicing) instructions in the literature accompanying
this appliance.
This symbol means : Hot surface
This symbol means : Fire hazardous substances
This symbol means : Observe instructions carefully before use.
Technical data:
Weight: 9.5 kg
Input:110V or 220 V AC, 50/60 Hz
Power consumption: 500W
Fountain Height: 1-5m
Working Temperature: -20°C to 50°C
Housing: aluminum
Fountain Direction: Vertical
Interface: Double DMX input interfaces,double AC power interfaces
Control Mode: standard DMX control
Warranty: 1 year
Consumables
Refill Sachet: Granulated Titanium Alloy Grains
Weight: 200g Containers
Usage: over 15 minutes per 200g of powder
CAUTION: To reduce the risk of electric shock, do not
remove the top cover. No user-serviceable parts inside. Refer
servicing to qualified service personnel only.

3
non-pyrotechnic spark generators
indoor fountain machine - fireworks simulator - non-pyrotechnic indoor fireworks - cold spark fountain
Spark machine

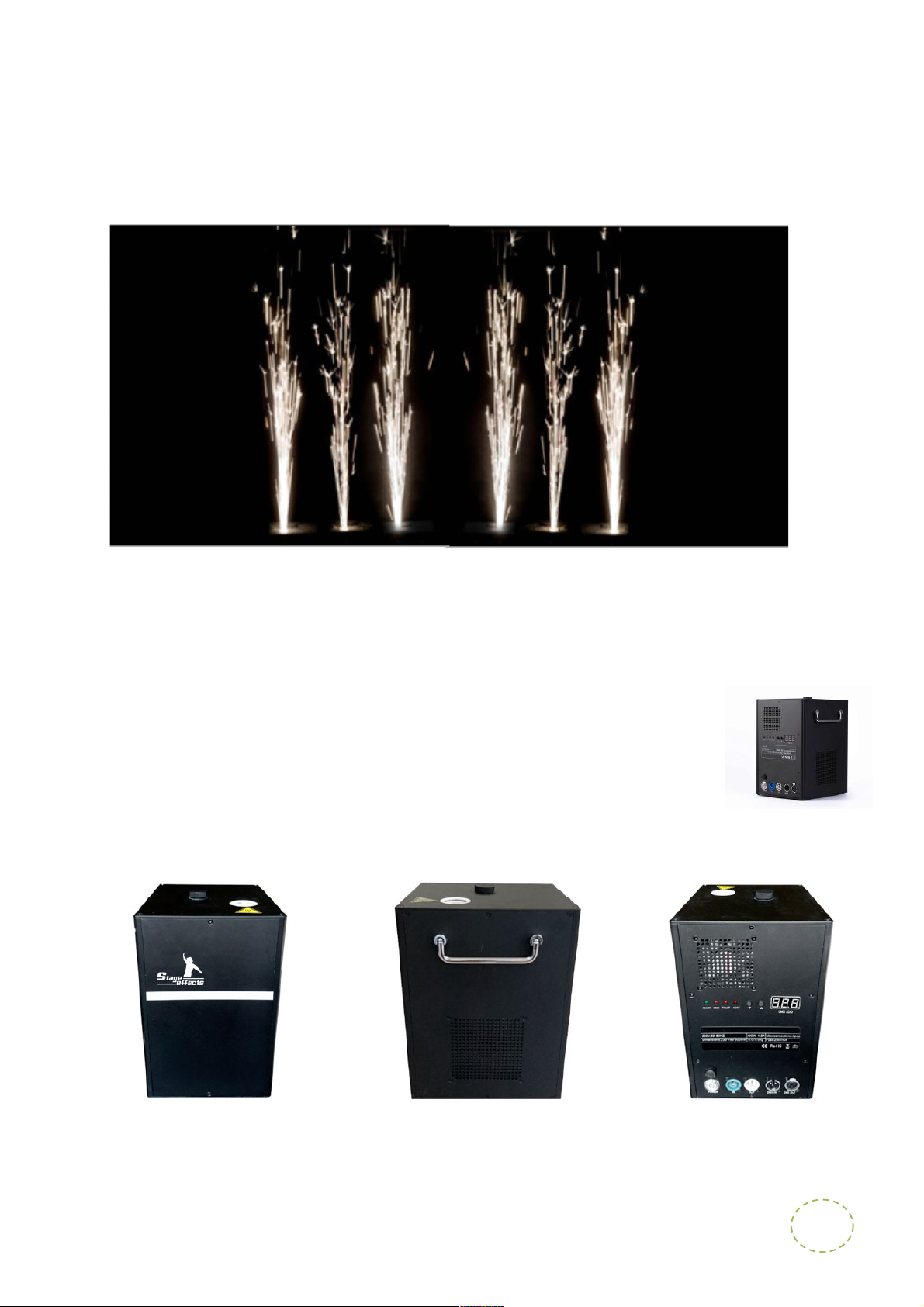

The Spark machine devices are non-pyrotechnic spark generators that can easily be
used on stage, at festivals, by entertainers or mobile DJs. The Spark machine spark
effects generators can easily be controlled through standard DMX, so they perfectly
integrate with existing stage infrastructure. It is possible to adjust the spark emission
height through DMX as well. The maximum emission height is 5 meters (may be
dependent on the model).
Non-pyrotechnic spark effects generator, indoor fountain ma-chine, fireworks simulator, non-pyrotechnic
indoor fireworks, cold spark fountain

4
-simple DMX control (2 channels) - no additional controller necessary
-very affordable consumables (Spark machine Granulate)
-no limitations of consumables, no locking mechanism linked to consumables
-indoor and outdoor use
-emission height adjustable via DMX
-easily daisy chain many units via DMX
-smoothly integrates with existing lighting setups
-no explosive content
-no strong pyrotechnical smell
-no hazardous content to deal with
-easy to use, easy to transport
-affordable granulate refill
As the special effects granulate of the Spark machine burns at rather low temperature and thus creates
the sparks, it is by far not as dangerous as flame effects or even pyrotechnical effects.
Spark machine Granulate
Spark machine Granulate suitable for the use with the Spark machine
non-pyrotechnic spark generators.
Package of 200g, lasts for approximately 20 minutes of use.
Contents:
200g Spark machine Granulate
Declaration:
The user should comply with the instructions and warning mentioned in this manual. Any damage caused by
incorrect operation, ignoring the operation manual or not following the manual, falls not under the warranty.
The distributor cannot be held responsible for any problems / accidents / damages caused by mal- or not
following the safety instructions and warnings mentioned in this manual.
The Spark machine creates cold sparks that are no fire hazard. The effect looks like pyrotechnics, but
it‘s not: The spark fountain can reach amaximum height of 5m and is created with aspecial granulate.
The unit can easily be controlled with standard DMX and the address can be set at the back of the
device. During the heat-up phase, the DMX address display shows the actual temperature of the heating
system, so it‘s easy to determine when the unit is ready to operate.
When having reached the operating temperature, the unit can output continuously without having
to reheat (at environmental temperature of around 20°C).
After using the spark machine please empty the powerder tank at once and
empty the working tank by using the machine untill there are no more sparks
coming out. In this way the machine is completely empty of composite powder.
