furniture123 AGL052 User manual

USER MANUAL
MEDIA WALL
ELECTRIC FIREPLACE
AGL052 72”
AGL051 60”
Thank you for choosing this electric fireplace.
Please read this manual before using or installing this electric fire
and keep it safe for future reference.

1
CONTENTS
PARTS SUPPLIED
2
SAFETY
2
INSTALLATION
6
OPERATION
7
CARE AND MAINTENANCE
11
SUPPORT
12
TECHNICAL SPECIFICATIONS
12
PRODUCT FICHE
13

2
PARTS SUPPLIED
NOTE: Pictures and contents in this manual may differ from the product due
to continuous product improve.
SAFETY INFORMATION
When using electrical appliances, basic safety precautions should
always be followed, including the following:
•IMPORTANT: Read all instructions and warnings carefully before starting
installation. Failure to follow these instructions may result in a possible
electric shock or fire hazard and will void the warranty.
•Before connecting the appliance, be sure that the mains voltage available
matches that specified on the rating plate and that the outlet is suitably
grounded.
•This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience andknowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
•Children aged from 3 years and less than 8 years shall only switch on/off
the appliance provided that it has been placed or installed in its intended
normal operating position and they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children aged from 3 years and less than 8 years
shall not plug in, regulate, or clean the appliance or perform user
maintenance.
Wall Mounting Brackets

3
•Children under 3 years should be kept away unless continuously
supervised.
•Some parts ofthis product can becomevery hot and causeburns. Particular
attention has to be given where children and vulnerable people are present.
•If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or a similarly qualified person in order to avoid a hazard.
•WARNING: In order to avoid overheating, do not cover the heater.
•The heater must not be located immediately below a socket outlet.
•CAUTION: In order to avoid a hazard due to the inadvertent resetting of the
thermal cut-out, this appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is regularly
switched on and off by the user or utility.
•Do not attempt to repair, disassemble or modify the appliance. This unit
contains no user-serviceable parts.
•Always unplug or disconnect the appliance from the mains power supply
when not in use, orwhen moving or cleaning it. Do not pullthe cord to unplug
the heater.
•Keep the heater clean. Do not allow any object to enter the ventilation or
exhaust opening as this may cause electric shock, fire, or damage to the
heater.
•Do not use the appliance for other than its intended use. It is designed for
domestic indoor use only.
•There may be a trace of odour during the first few minutes of initial use, or
after a period of storage. This is normal and will quickly disappear.
•If the glass is damaged, do not use the heater in order to avoid a hazard.
•Avoid the use of an extension cord, as the cord may overheat and cause a
risk of fire.
•This fireplace is hot when in use. To avoid burns, do not let bare skin touch
hot surfaced. If provided, use handles when moving this appliance.
•Keep combustible materials, such as furniture, pillows, bedding, papers,
clothes and curtains at least 3 feet from the front and sides of this appliance.
•This appliance is designed for indoor use only and is not intended for use in
bathrooms, laundry areas and similar indoor locations. Never locate this
appliance where it may fall into a bathtub or otherwise become exposed to
water.
•Do not run the cord under carpeting. Do not cover the cord with throw rugs,
runners or similar. Ensure the cord is kept away from traffic areas, and kept
in a position which would not present a trip hazard.
•To disconnect this appliance, turn the controls to the off position, then
remove the plug from the outlet.

4
•This appliance has hot and arching or sparking parts inside. Do not use it
in areas where gasoline, paint, or any flammable liquids are used or stored.
•This appliance should not be used as a drying rack for clothing, nor should
Christmas stockings or decorations be hung on or near it.
•This electric fire is an instant heat source to warm up a room and is great
for visual room ambiance it doesn’t necessarily need to be used as a
constant or permanent source of heating for the home.
•Clean the fire regularly to prevent the build-up of hairs dust or lint around
the fire, as this may cause the outlet to become blocked.
•Do not use aerosols or steam cleaners on or around the fire.
MANUAL HANDLING
•The heater must not be moved while in use. Please allow a suitable amount
of time for the unit to cool before attempting to move it.
•One person should be sufficient to lift the heater. If for any reason it is
considered too heavy then obtain assistance.
•When lifting always keep your back straight. Bend your legs and not your
back.
•Avoid twisting at the waist. It is better to reposition your feet.
•Avoid upper body / top heavy bending. Always bend from the knees rather
than the waist. Do not lean forward or sideways whilst handling the heater.
•Always grip with the palm of the hand. Do not use the tips of fingers for
support.
•Always keep the heater as close to the body as possible. This will minimize
the cantilever action.
•If required, use gloves to provide additional grip.
•Always use assistance if required.

5
ELECTRICAL SAFETY
The heater must not be located under an electrical socket; the socket must
always be accessible in order to disconnect the heater from the electrical
supply for maintenance and cleaning.
Important: This heater must be earthed. The mains supply must be safely
routed from the heater to an electrical socket.
•If the supply cord is damaged, it must be replaced by the manufacturer,
service agent or a similarly qualified person in order to avoid a hazard.
•This appliance is supplied with a BS1363 3 pin plug fitted with a 13 Amp
fuse. Should the fuse require replacement, it must be replaced with a fuse
rated at 13 Amp and approved to BS1362.
•In the event the mains plug has to be removed or replaced for any reason.
NOTE: The wires in the mains lead on this appliance are coloured in
accordance with the following code:
•Green and Yellow - Earth
•Blue - Neutral
•Brown - Live
NOTE: As the colours may not correspond with the markings identifying the
terminals in your plug, please proceed as follows.
•The green and yellow wire must be connected to the terminal in the plug
which is marked with the letter E or with the earth symbol or coloured green
and yellow.
•The blue wire must be connected to the terminal marked N or coloured black.
•The brown wire must be connected to the terminal marked L or coloured red.
Important - anycut off plugshould be disposed of safely toprevent a hazard.
There is a danger of electric shock if a cut off plug is inserted into a socket
outlet.

6
INSTALLATION INSTRUCTIONS
Installation must be completed by a competent person. This fire is designed to be fully inset
into a media wall. Please note the fire is not intended to be a structural part of the feature,
and so the wall must be designed in a way where the fire does not support the weight of the
wall above. This is best achieved by creating a stud wall firmly secured to the existing wall.
The media wall should be constructed to your own design, ensuring that an opening is left
for the installation of the fireplace. The depth of the opening must be at least 35 cm to allow
space for the fire and airflow to the inlets on the rear.
The openings should be the following dimensions, although we would always advise for
these to be checked against the actual product due to production variations.
WIDTH
HEIGHT
AGL051
153cm
42cm
AGL052
183cm
Within the media wall, we would strongly advise ventilation openings with a minimum
surface area of 200cm2. This will both help prevent any stagnation of moisture within the
wall, and also ensure the appliance has an adequate supply of air for heating.

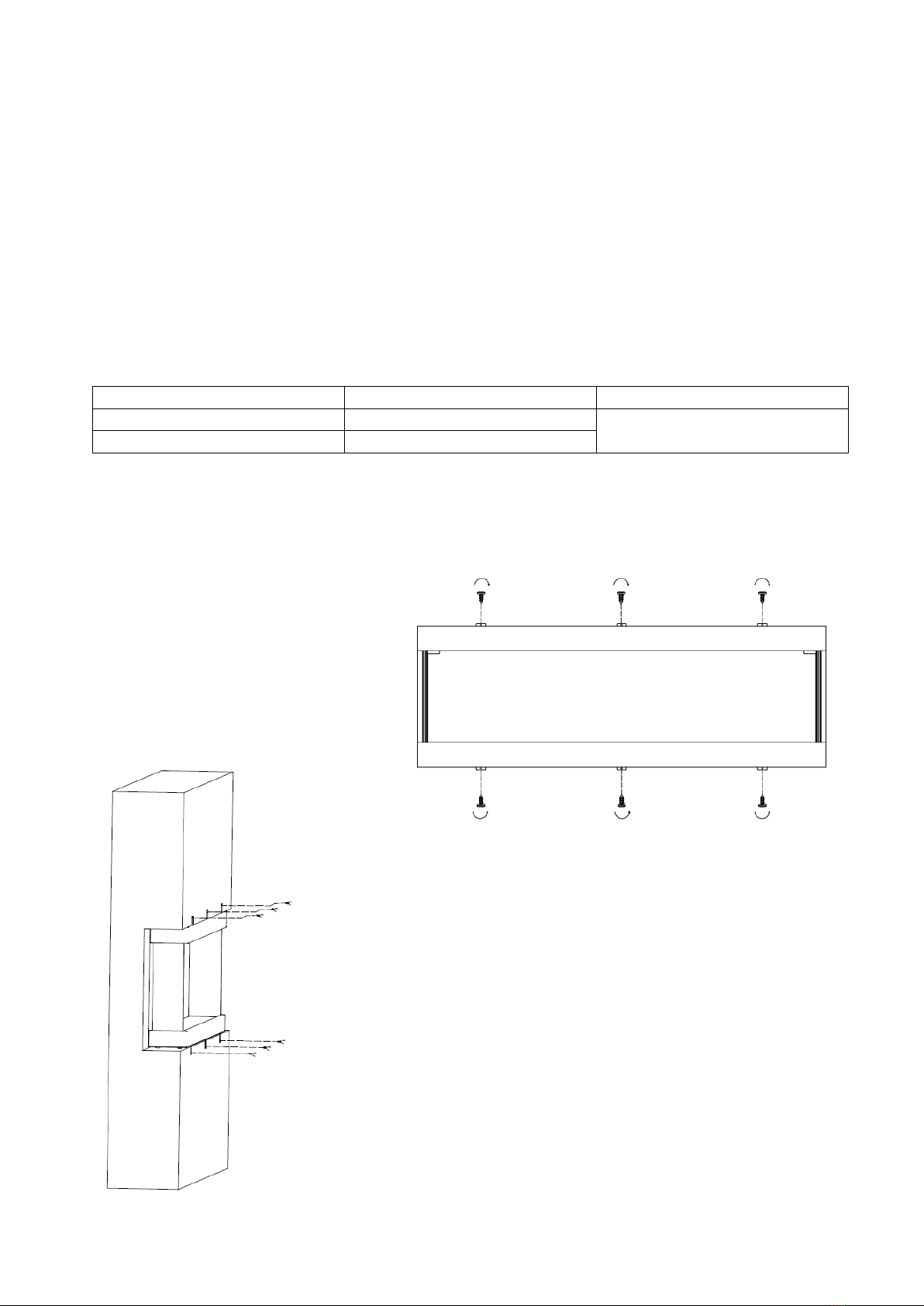

Once the wall has been created
and prepared, affix the wall
mounting brackets to the unit using
the screws provided:
When the brackets are securely in place on the unit, you can
then gently rest the unit within the media wall to ensure it fits
correctly.
Ensure that the fireplace is flush to the wall and then secure it in
place using suitable screws.

7

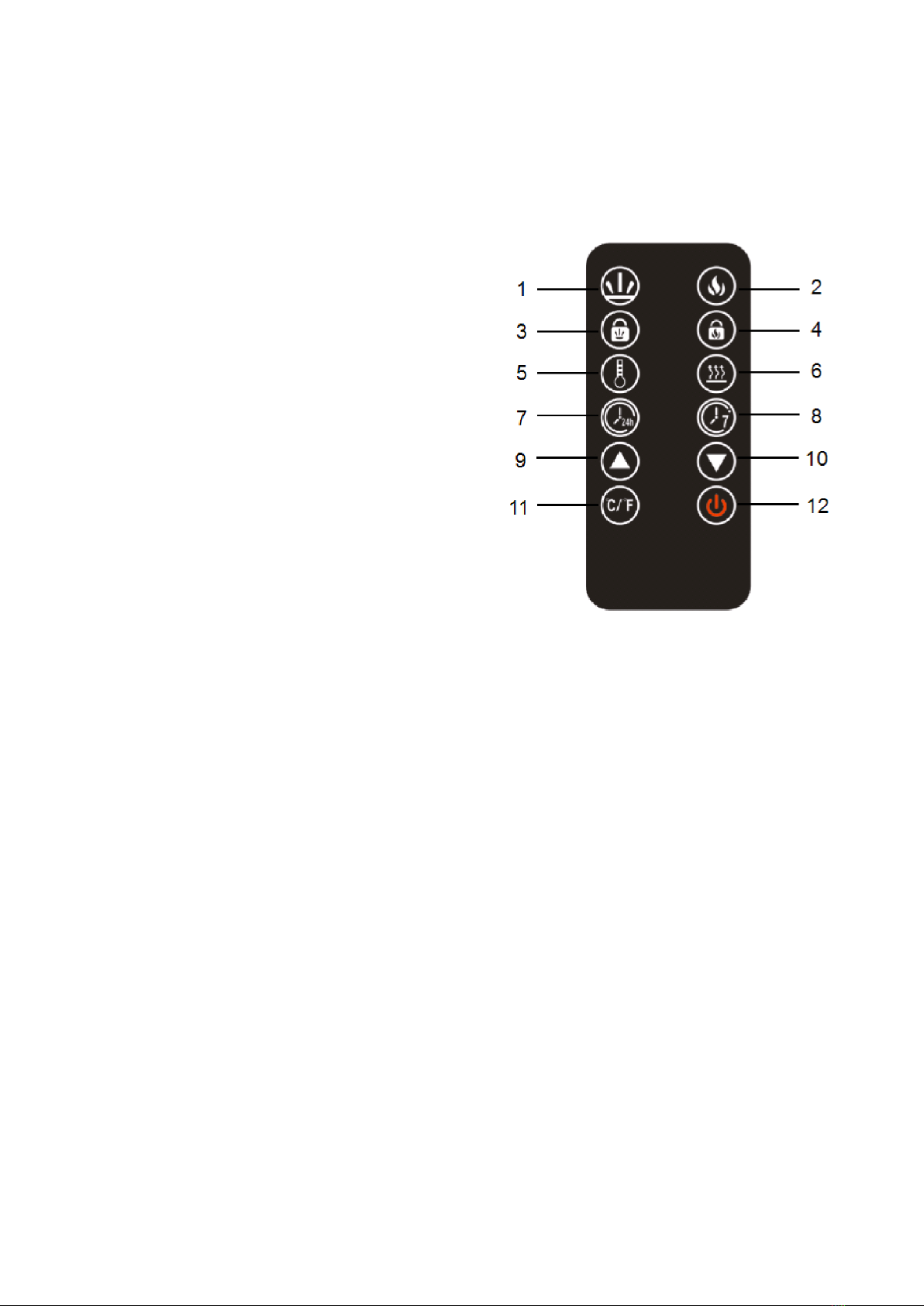

OPERATING BY MANUAL BUTTON
NOTE: The manual button on the firebox unit will not provide you with all the function
control, and its purpose is to control some basic function when you lose the
remote handset. Please use the remote handset to carry out all functions.
POWER BUTTON: Power ON/OFF.
FLAME BUTTON: Press once till the digital tube displays “F0”, this is the flame colour
selection. Press up or down to cycle between the colour selection. F0-F9 will be displayed
on the display as the flame colour changes.
Press twice till the digital tube displays “C0”, which is the colour selection of charcoal fire.
Press up or down to cycle between the colour selection. C0-C9 will be displayed when in
colour cycle selection.
Note: Hold flame till the digital tube displays “E0”, when E0 is displayed, you can press up
or down to select E0 or E1.
E0 means that the ERP weekly timer and window detection function is not turned on.
E1 means ERP weekly timer and window detection can be set to on. The SET setting
indicator will flash as long as the flame button is pressed.
HEATING BUTTON: Press once to turn on low heating mode. Press twice for high
heating mode, press 3 times to turn heating off. (Remark: For the heating to operate the
indoor temperature must be lower than the set temperature.)
Power
Heating
Flame
Timer
Up
Down

8
Hold the heating button to turn off the digital screen to then switch between Celsius or
Fahrenheit by pressing up or down to cycle through. The SET setting indicator light will be
flashing.
UP BUTTON: Press repeatedly to increase set temperature. The SET setting indicator will
be flashing and the current temperature unit light will be on.
DOWN BUTTON: Press repeatedly to decrease set temperature. The SET setting indicator
will be flashing and the current temperature unit light will be on.
TIMER BUTTON:
1. Press the timer button once to enter the weekly timer function.
2. To turn on, the timer light and setting light will flash together.
3. Press up or down to select “on” or “off” for the weekly timer function. When the weekly
timer function is off, the timer light is turned off. The timer lamp lights up when the
weekly timer function is turned on.
4. After setting the weekly timer to “on” or “off”, press the timer button again to enter the
Monday timer. At this time, the hour and 2 digits of the digital clock will be set, the SET
setting indicator will flash, and the TIMER clock will indicate. The timer light is on.
5. Press up or down to enter the hour setting of this day.
6. After the hour is set, press the timer button again, the minute digit tube flashes into the
minute setting.
7. After the minute is set, press the timer button again to enter the shutdown time of hour
of this day.
8. Then press the timer button to set shutdown minute.
9. After the setting is completed, press the timer button to enter the timer setting of the
next day, repeat instructions 4-9 until every day of the week has been set.

9
CURRENT CLOCK SETTING:
1. Press and hold the timer button to enter the current time setting. First, the LED of
the daylight will light up and flash.
2. Press up or down to select which day of the week.
3. After the selection is completed, press the timer button to confirm.
4. At this time, enter the current time setting and press up or down to select the time;
set the minutes after setting the hour.
5. Once completed, press the timer button to exit the current time setting.
OPEN WINDOW DETECTION：
When the product and heating function are turned on, the indoor temperature is rising.
When the ambient temperature gradually reaches the set value, the product
automatically defaults to a stable state, and the current temperature is automatically
recorded as a reference value. If the indoor temperature is lowered by 5 °C and above
within 10 minutes, and the trend is maintained or continued for 30 minutes, the product
self-test system defaults to the window has been opened, and the self-test system will
automatically turn off the heating function.
Press and hold the heating button to display E0. When E0 is displayed, you can press
up or down to select the E0 and E1 cycles.
E0: It means that the ERP window detection function is not turned on.
E1: It means the ERP window detection function is turn on.

10
REMOTE CONTROL
The buttons on the remote match the functions covered in the previous section unless
otherwise stated.
1. Charcoal Fire colour
2. Flame adjustment
3. Charcoal lock to currently displayed colour
displayed when in C0 Mode (Loop)
4. Flame lock to currently displayed colour
displayed when in F0 Mode (Loop)
5. Change the desired Temperature.
6. Change heat setting between low, high and
off
7. Set Current Time and Day:
•Press once to adjust day using arrow
buttons
•Press again to adjust hour value
•Press again to adjust the minute values
•Press to start the clock
8. 7 Day Timer
9. Up
10. Down
11. Fahrenheit and Celsius Switching:
Switch between showing the temperature in °C or °F
12. Standby

11
CARE AND MAINTENANCE
When cleaning unit, the power supply should be disconnected and the unit should be cool.
Dust can be removed by lightly wiping the glass surface with clean, lint free cloth or
paper towel. To remove fingerprints or other marks, use a damp cloth with a good quality
household glass cleaner. The front glass panel should be completely dried before
reusing the heater.
CAUTION:
•Do not use abrasive cleaner on glass panel.
•Do not spray liquids directly onto any surface of the unit.
•Do not clean the glass on the inside of the unit as this may cause damage to the surface.
TROUBLESHOOTING
Most problems are simple to resolve - please refer to the following table before calling a
service engineer:
Problem
Possible Cause
Check
Fire has stopped
working
The fire has overheated and
the thermal safety device has
activated or a circuit breaker
has tripped.
Check there is power
to the socket where
the fire is connected,
check the fuse in the
plug, and leave for 10
minutes in case of
thermal cut-out.
Flame is not
moving
Flame motor defective
Contact the retailer or
manufacturer.
SERVICING
It is hazardous for anyone, other than a qualified service technician, to carry out any service
or repair operation, which involves removal of any components.

12
WASTE ELECTRICAL RECYCLING
This symbol indicates that this product is classed as Electrical or Electronic
Equipment and should not be disposed of with other household waste.
The Waste Electrical and Electrical Equipment (WEEE) Directive has been
introduced across the European Union:
•To recycle waste electrical products using the best available recovery and recycling
techniques in order to minimize the impact on the environment.
•To treat any hazardous substances.
•To avoid increasing landfill.
WEEE product should be disposed of by handing it over at a designated collection point.
For more information about where you can drop off your waste product for recycling,
please contact your local authority.
SUPPORT
Please, for your own convenience, make these simple checks before calling the service line.
If the unit still fails to operate call: 0330 390 3062 or complete the online form
1. Is the unit plugged into the mains?
2. Is the fuse OK?
3. Switch the unit off and wait ten minutes to see if the issue is resolved. Restart the
unit.
0330 390 3062
Office hours: 9AM - 5PM Monday to Friday
BuyItDirect
Unit J6, Lowfields Business Park,
Lowfields Way, Elland,
West Yorkshire, HX5 9DA
TECHNICAL SPECIFICATION
Description
Fully inset media wall fire
Model
AGL051 60”
AGL052 70”
Rated Voltage
220-240V~
220-240V~
Rated Frequency
50Hz
50Hz
Rated Power
Max 1400W
Max 1400W
Dimensions (W) x (H) x (D)
1524*247*414.5mm
1828*247*414.5mm
Weight 50”
40.45Kg
47.5Kg

13
Model Identifier: AGL051 AGL052
Item
Symbol
Value
Unit
Item
Unit
Heat Output
Type of heat input, for electric storage local space
heaters only (select one)
Nominal heat
output
Pnom
1.4
kW
manual heat charge control, with integrated
thermostat
No
Minimal heat
output
Pmin
N/A
kW
manual heat charge control with room and/or
outdoor temperature feedback
No
Maximum
continuous
heat output
Pmax
N/A
kW
electronic heat charge control with room
and/or outdoor temperature feedback
No
Auxiliary electricity consumption
fan assisted heat output
No
At nominal
heat output
elmax
N/A
kW
Type of heat output/room temperature control
(select one)
At minimum
heat output
elmin
N/A
kW
single stage heat output and no room
temperature control
No
In standby
mode
elSB
N/A
kW
two or more manual stages, no room
temperature control
No
with mechanical thermostat room
temperature control
No
with electronic room temperature control
No
with electronic room temperature control plus
day timer
No
with electronic room temperature control plus
week timer
Yes
Other control options (multiple selections
possible)
room temperature control with presence
detection
No
room temperature control, with open window
detection
Yes
with distance control option
No
with adaptive start control
No
with working time limitation
No
with black bulb sensor
No
Contact
Details
Buy It Direct, Unit J6, Lowfields Business Park, Lowfields Way, Elland,
West Yorkshire, HX5 9DA
Buy It Direct, The Black Church, St Mary’s Place, Dublin 7
