Furuno DS-50 User manual

DOPPLER SPEEDLOG DS-50
INSTALLATION MANUAL
This manual provides the information
necessary for the installation of the
FURUNO DS-50 Doppler Speedlog.
For best performance please follow the
recommended procedures㸬
Table of Contents

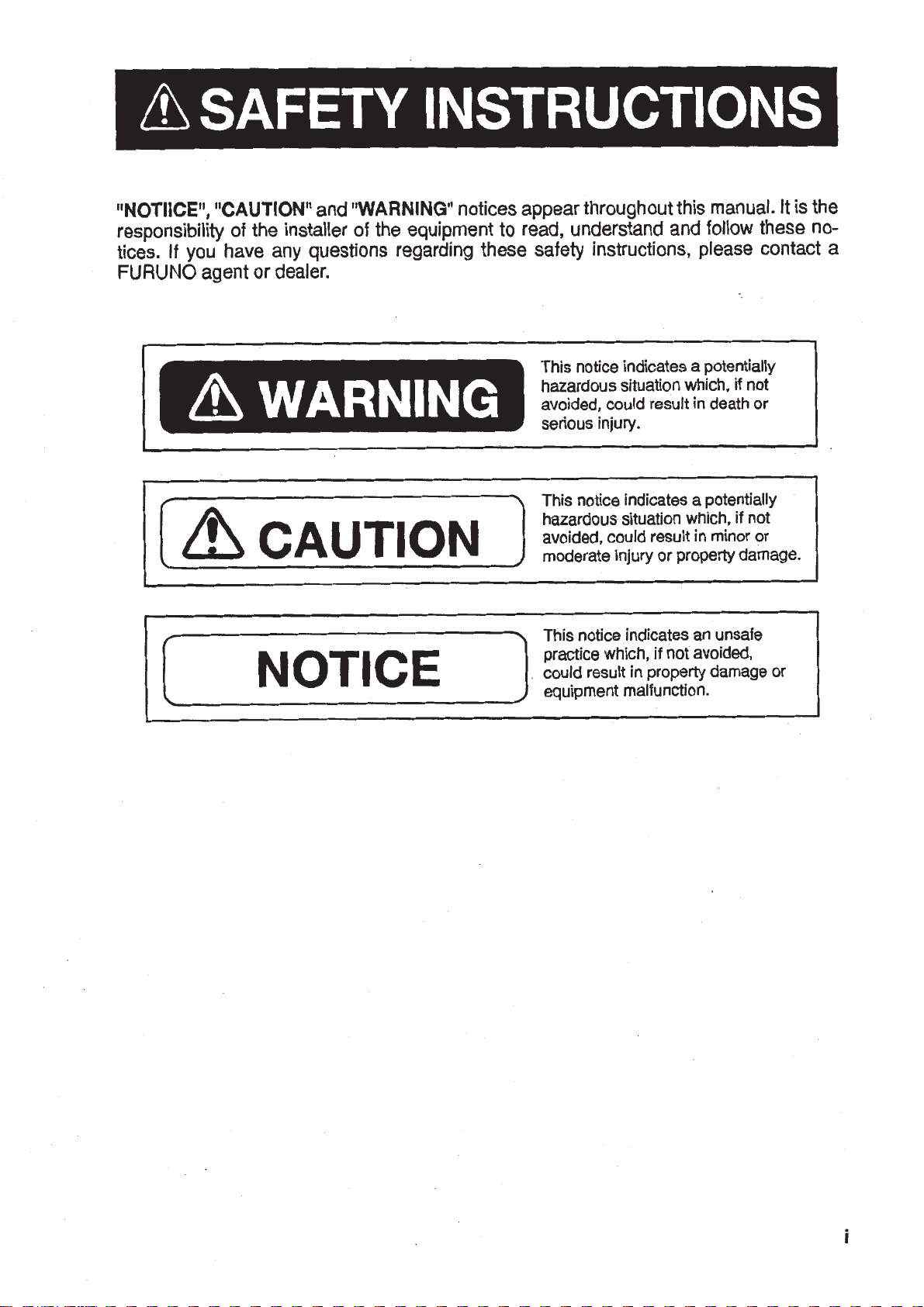

SAFETY INSTRUCTIONS.................... i
1. SYSTEM CONFIGURATION........... 1
2. EQUIPMENT LISTS ........................ 3
3. OVERVIEW ................................... 12
4. MOUNTING ................................... 15
5. WIRING ......................................... 24
6. INITIAL SETTING.......................... 31
7. CHANGING POWER SUPPLY
SPECIFICATION ............................... 35
8. LIST OF DIP SWITCH SETTING .. 37
OUTLINE DRAWINGS .................... D-1
INTERCONNECTION DIAGRAMS ..S-1
All brand and product names are trademarks, registered trademarks or service marks of their respective holders.
www.furuno.com

7KHSDSHUXVHGLQWKLVPDQXDO
LVHOHPHQWDOFKORULQHIUHH
࣭)85812$XWKRUL]HG'LVWULEXWRU'HDOHU
$VKLKDUDFKR
1LVKLQRPL\D-$3$1
$  -81 

3ULQWHGLQ-DSDQ
$OOULJKWVUHVHUYHG
6  129  
3XE1R ,0(6
7$68  '6 


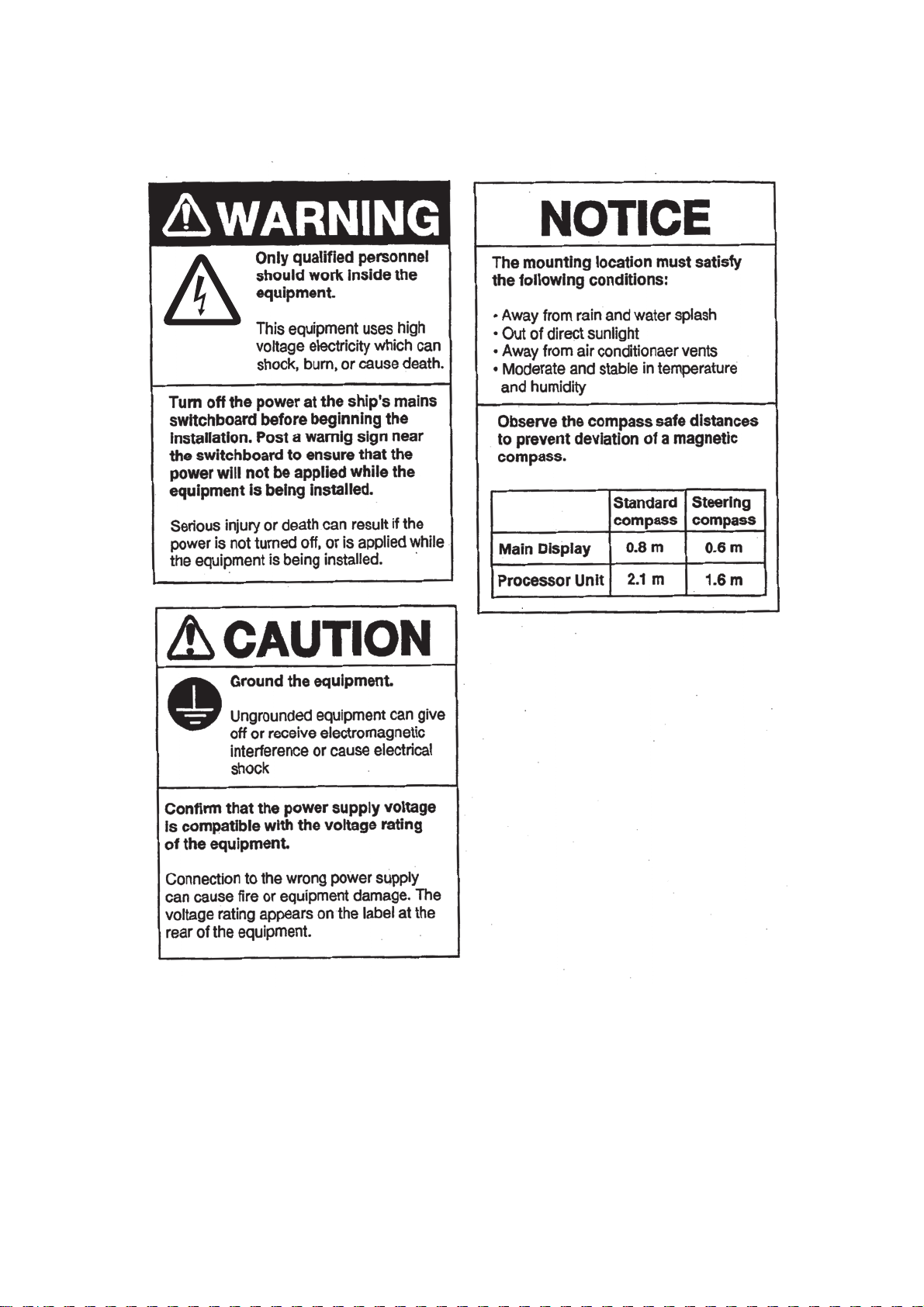

ii

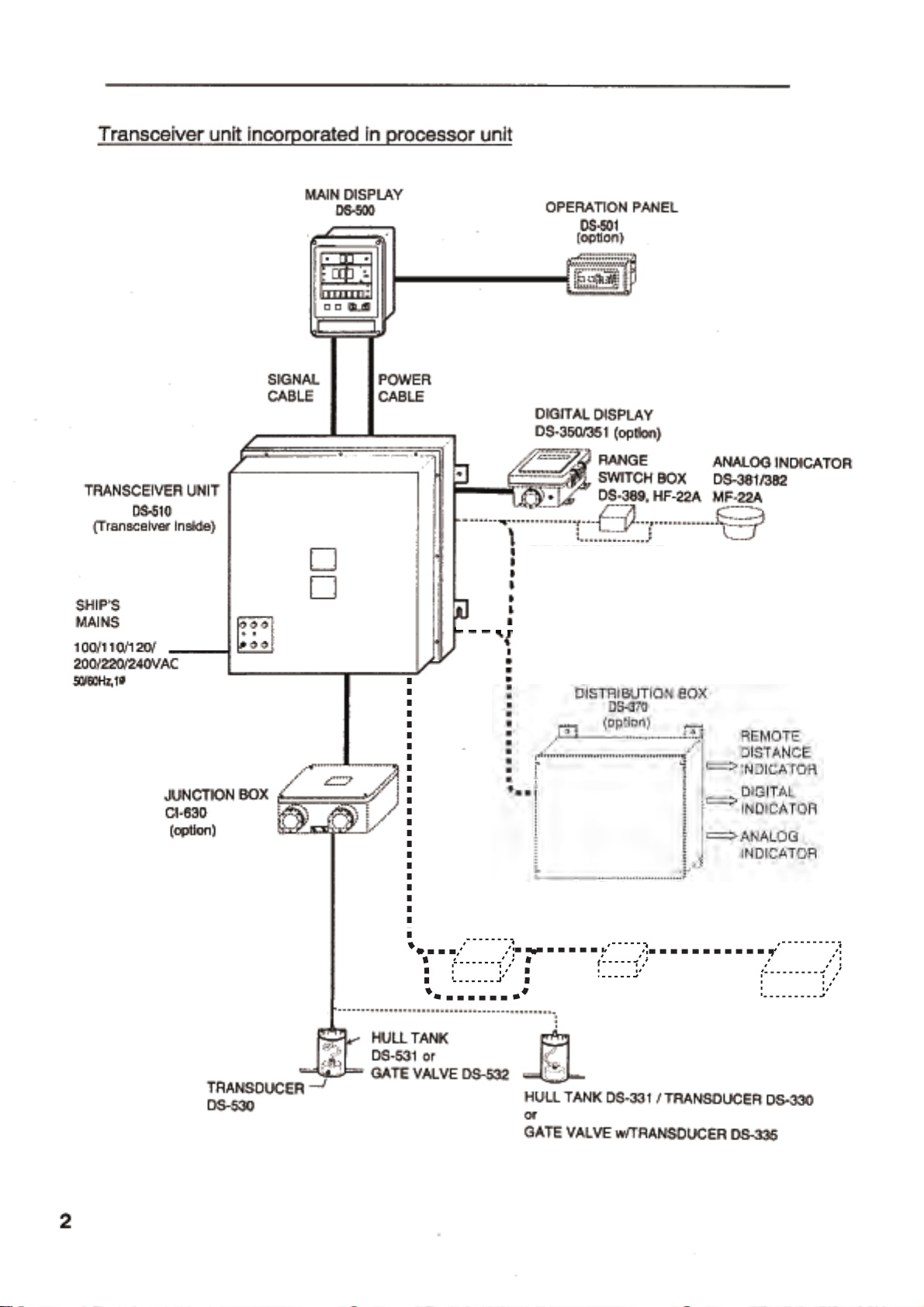

DISTRIBUTION BOX
MD-550
TERMINAL BOX
DS-802
DISTANCE INDICATOR
DS-840
Note: When Processor Unit DS-510
is used Transceiver Unit is
incorporated in the DS-510.

DISTRIBUTION BOX
MD-550
TERMINAL BOX
DS-802
DISTANCE INDICATOR
DS-840

3
2. EQUIPMENT LISTS
Standard Supply
No. Name Type Qty Remarks
1 Main Display DS-500 1 Flush mount/Bulkhead mount
2 Processor Unit DS-510/511 1 Bulkhead mount/Deck mount,
DS-510 incorporates DS-520
3 Transceiver Unit DS-520 1 Bulkhead mount/Deck mount,
required only with DS-511
4 Transducer DS-530 1
5 Tank DS-531 1

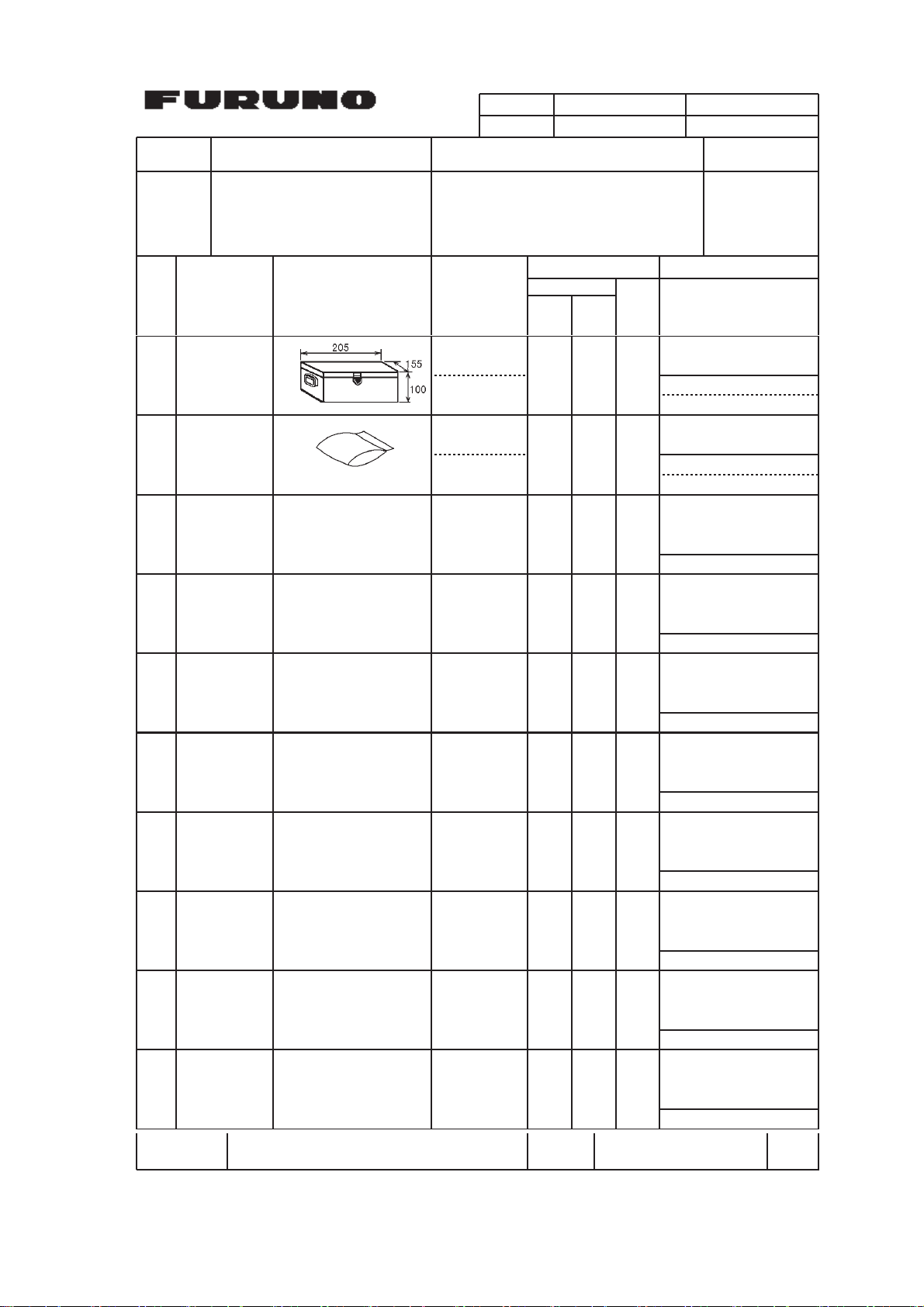

6 Spare Parts SP65-00400 1 set For DS-510
SP65-00410 For DS-511

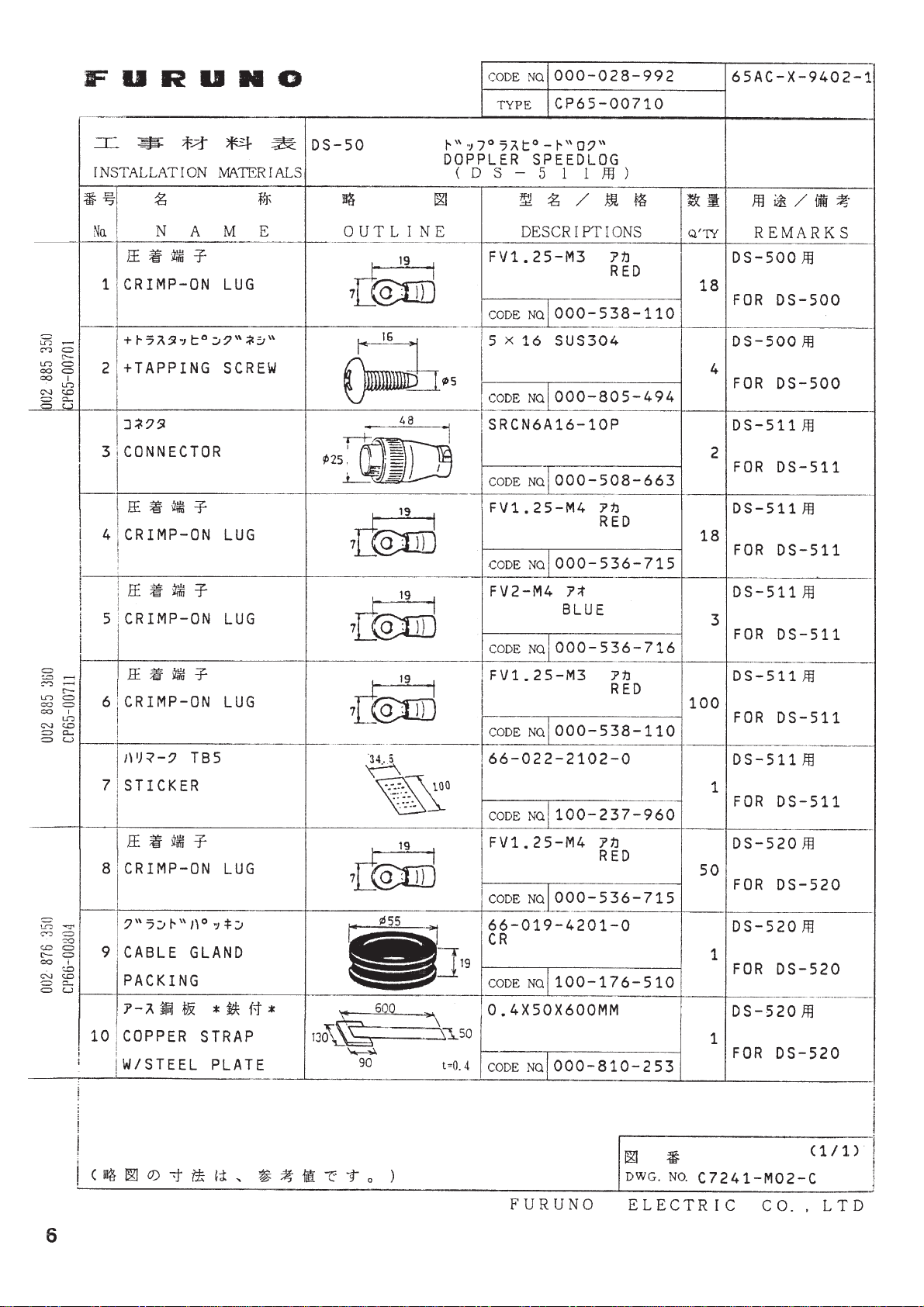

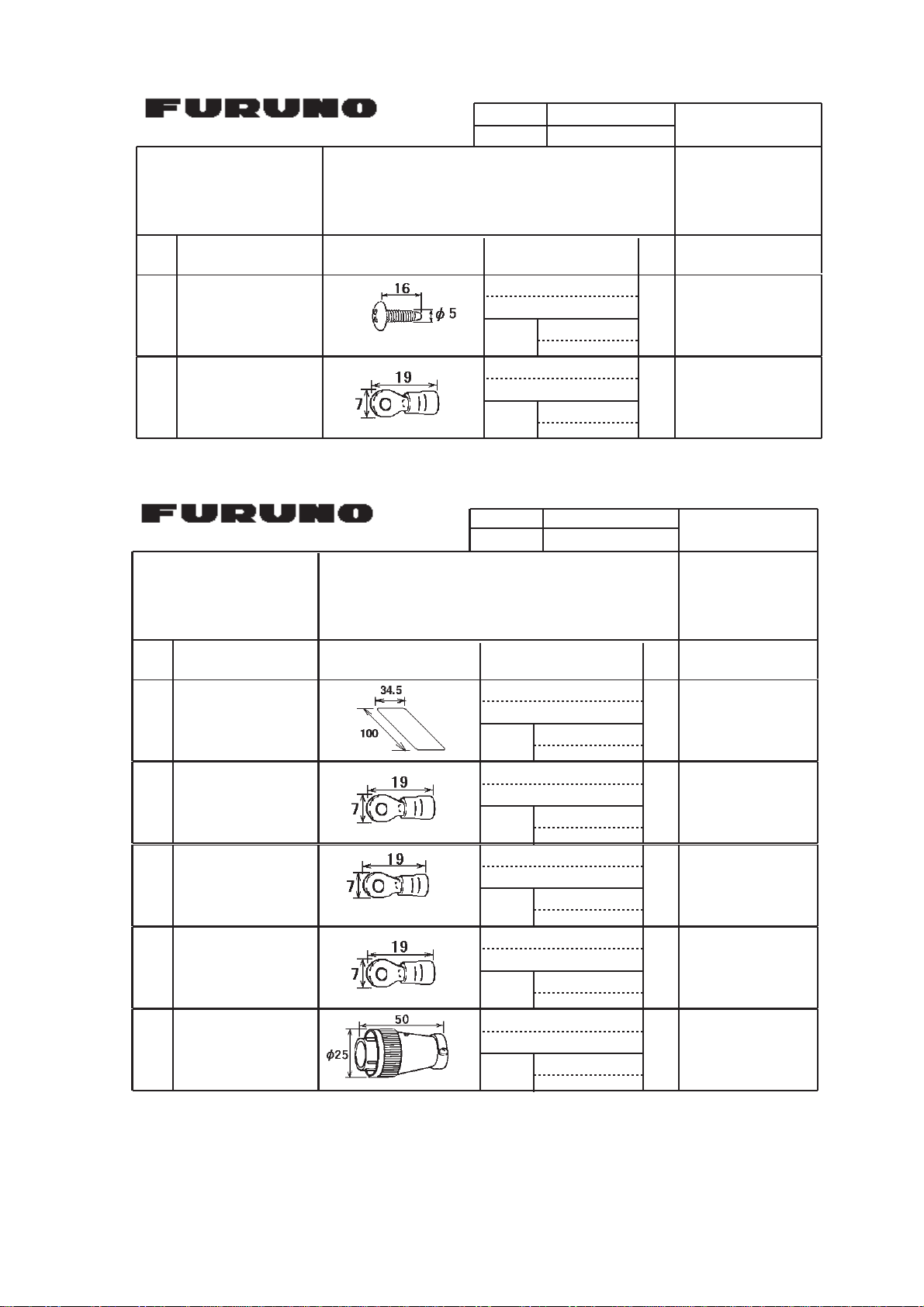

7 Installation
Materials
CP65-00700 1 set For DS-510
CP65-00710 For DS-511
Optional Supply
No. Name Type Code No. Remarks
1 Installation materials
for bulkhead mount CP65-00704 002-886-970 For main display unit
2 Gate Valve DS-532 000-028-993 Including installation materials
3 Gate Valve Inst.
Materials MF-220-C-6 000-069-367 For gate valve, option
4 Operation Panel DS-501 Including installation materials
5 Junction Box
CI-630 000-069-770 Including installation materials
CP66-02201: 001-509-920
DS-360 000-027-994 Including installation materials
CP66-00703: 006-927-330
6 Distribution Box DS-370 Bulkhead mount/Deck mount
7 Digital Indicator DS-350 Waterproof construction
DS-351 Indoor use
8 Analog Indicator
DS-381 Flush mount
DS-382 Bulkhead mount
MF-22A
FE-90 Flush mount
FL-90 Flush mount
9 Range Switch Box DS-389
MF-22R

4
Optional Supply
No. Name Type Code No. Remarks
11 Dimmer MF-22L
Z-6FVNV-SX-C 3P+1P *20m* 000-146-089
Z-6FVNV-SX-C 3P+1P *30m* 000-146-090
12 4 Paris Cable
Z-6FVNV-SX-C 3P+1P *100m* 000-146-091
13 VAE Board 66P3613 002-886-210 For DS-510/511.
Current output
14 VDE Board 66P3614 002-886-220
For DS-510/511.
To connect
CI-370/377 or
DS-720
15 Spare Parts Box SP65-00402 002-887-500
Transducer/Tank DS-330/DS-331
16 Gate valve w/
Transducer DS-335
Installation
materials page
9b and 9c.
17 DISTANCE
INDICATOR DS-840 000-029-062
18 Alarm Unit AU-12 -
