Sales Bulletin
Attention: All Furuno Distributors/Subsidiaries
SB No: FSB18-0003
Number of Pages: 28
Date: May 21, 2018
New Black Box
Model: TZT2BB
9-52 Ashihara-cho, Nisinomiya, 662-8580, Japan
www.furuno.co.jp

2
1. TZT2BB
1.1. Powerful Dual Processors for Dual
Monitors with Independent Resolutions
1.2. Multi Touch Operation in Consistent GUI
with TZTL12F/15F
1.3. MCU-005 for Full Keyboard Operation
1.4. HDMI Input
1.5. USB Output
1.6. Easy Access to I/Os with Pigtail
1.7. Built-in Wireless LAN and Fish Finder
2. Specifications
2.1. Comprising
2.2. Specifications
3. Operating TZT2BB
3.1. Basic User Interface
3.2. Operating with MCU-005

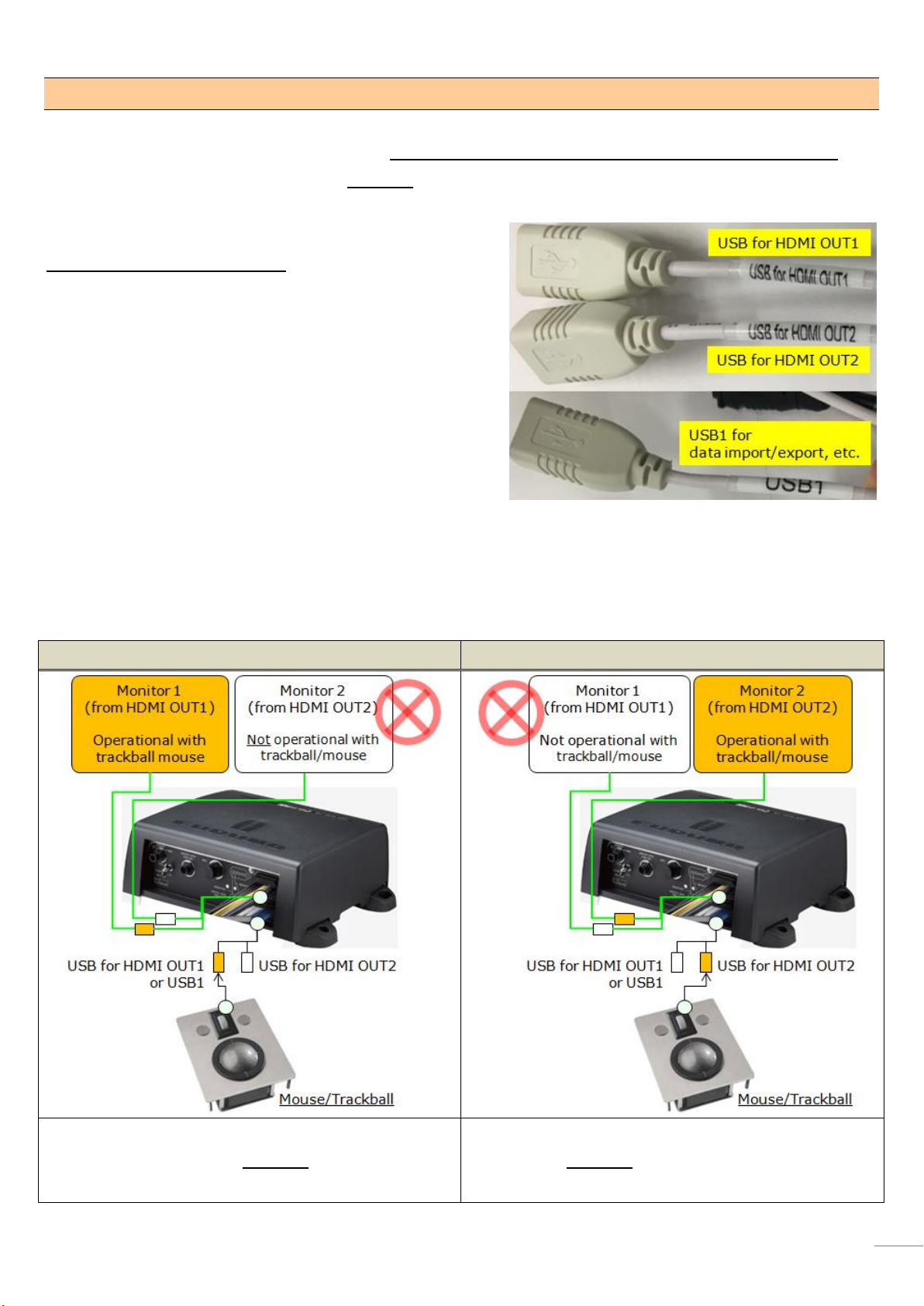

3.3. What Can You Do with a Mouse/Trackball
with Wheel?
4. About Monitors and Supporting Resolutions
4.1. Required Specifications of Multi Touch
Monitors for TZT2BB
4.2. Introducing Tested Monitors at FEC

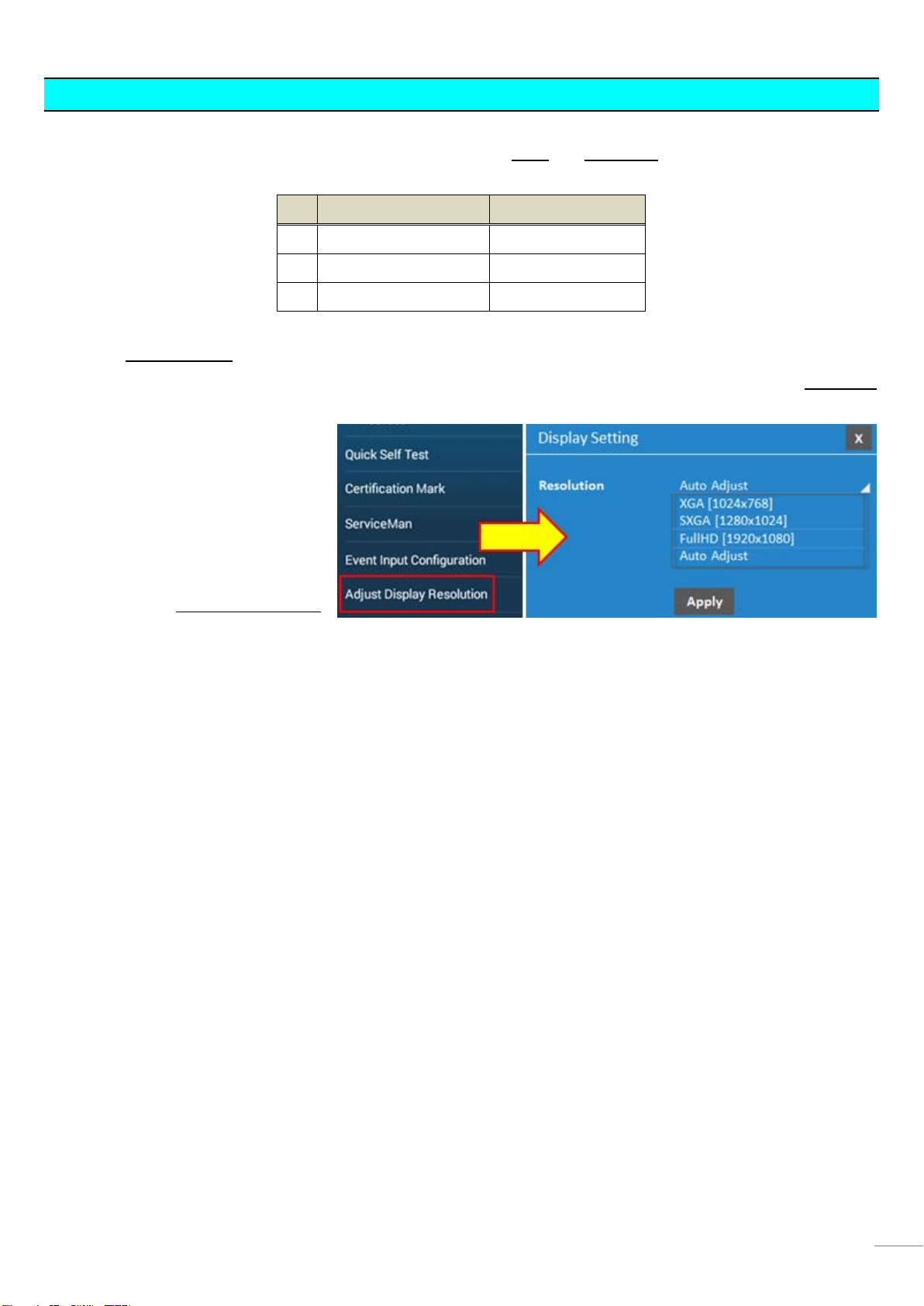

4.3. TZT2BB Supporting Resolutions
5. Installing TZT2BB

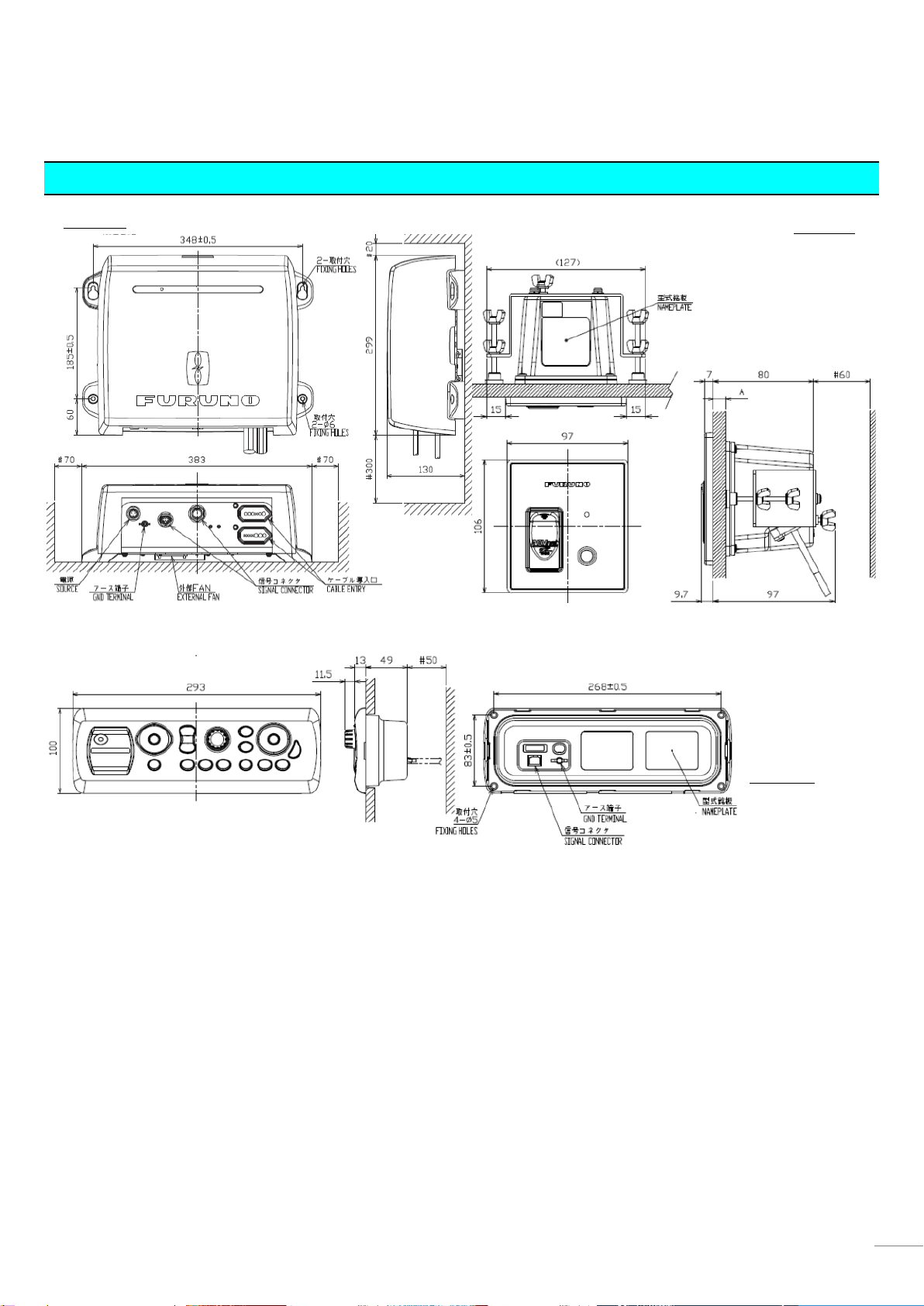

5.1. Dimensions

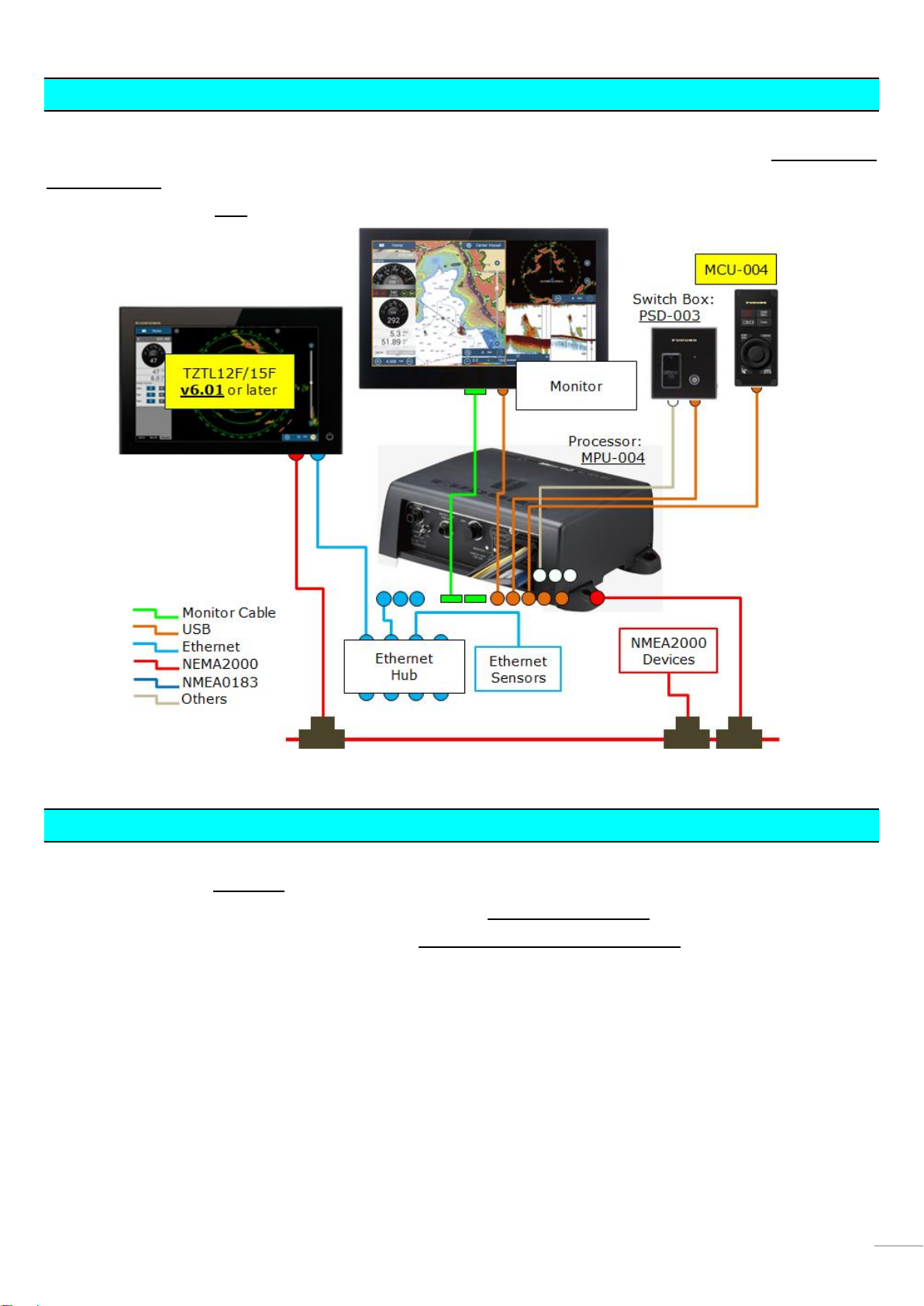

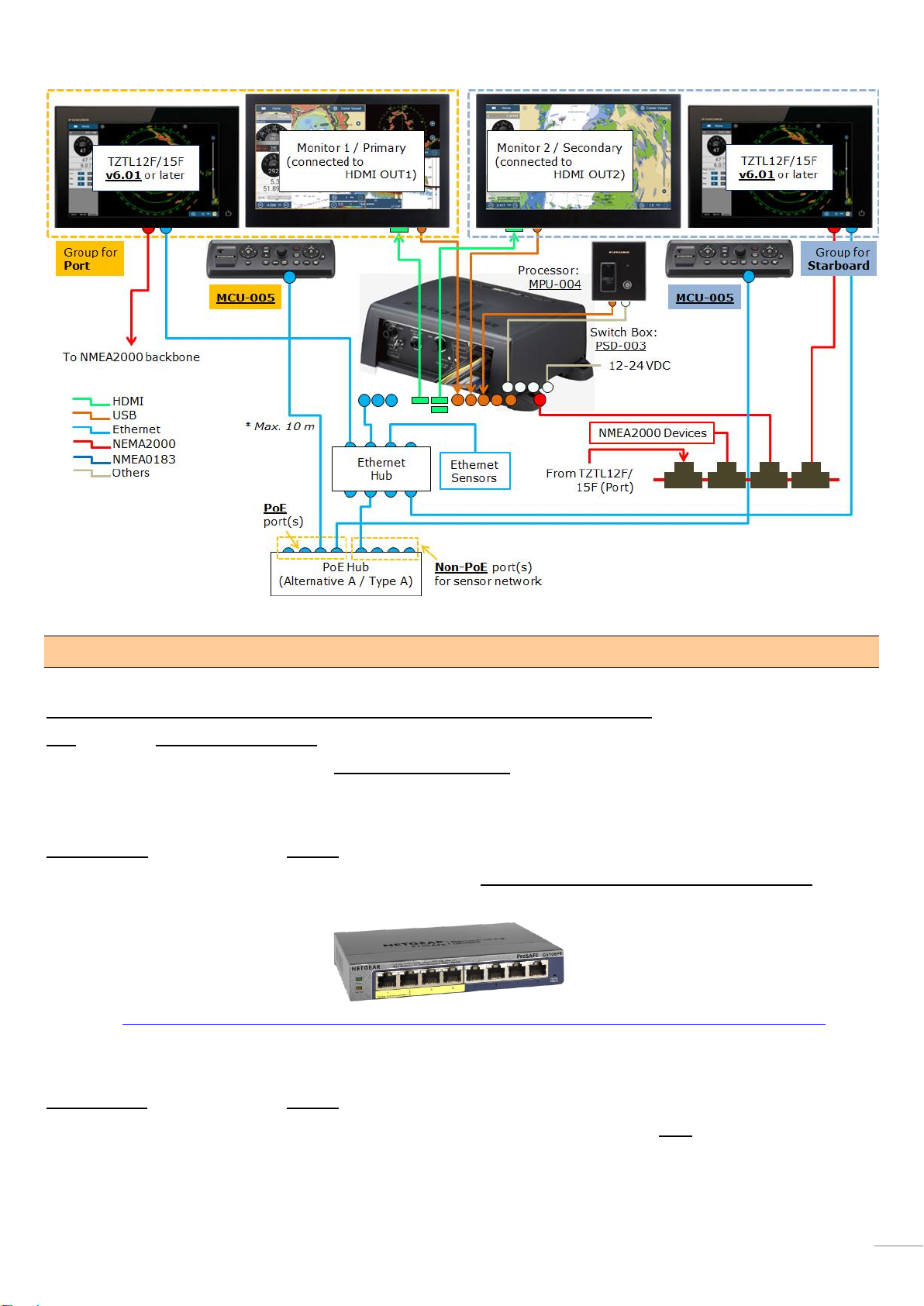

5.2. Interconnection
5.3. MCU-004
5.4. MCU-005
5.5. Utilizing HDMI Input
5.6. Utilizing USB Output
6. Retrofitting from Previous NavNet Series Black
Box
6.1. Retrofitting from TZTBB (NavNet TZtouch)
to TZT2BB
6.2. Retrofitting from MFDBB (NavNet 3D) to
TZT2BB
6.3. Retrofitting from GD-1920C-BB (NavNet
vx2) to TZT2BB
7. Other Notes
8. Software Versions - TZTL12F/15F and TZT2BB
INDEX

3
1. TZT2BB
The TZT2BB is a New Black Box for NavNet TZtouch2 series, which offers
versatile operational and installation options with unique features. This
document highlights advanced features, basic specifications, and
installation of the TZT2BB.

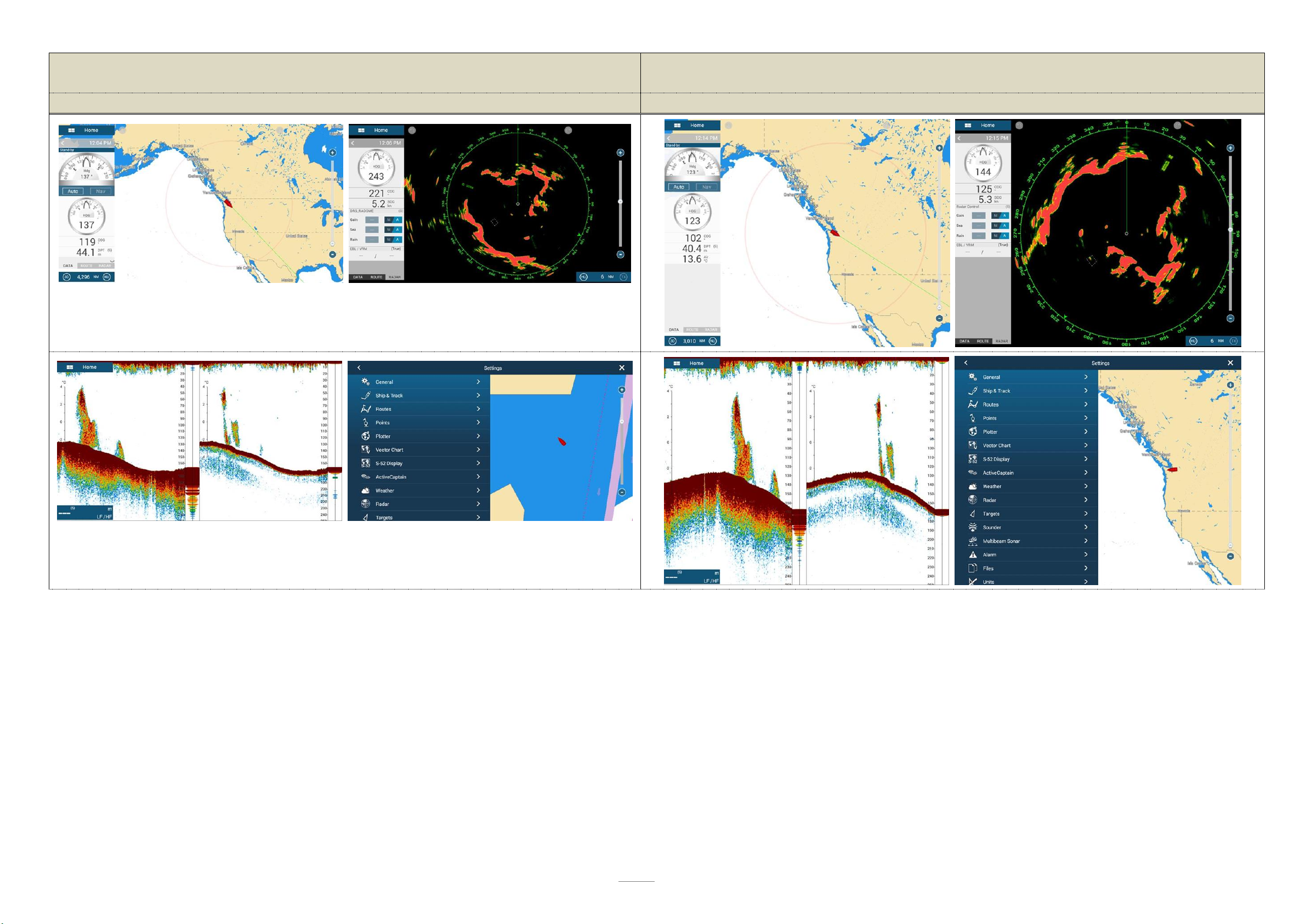

1.1. Powerful Dual Processors for Dual Monitors with Independent Resolutions
The TZT2BB consists of dual processors in one box for powerful performance and the ability to support independent
resolutions on dual monitors. In the TZT2BB configuration with dual monitors, each monitor shows independent
images, and you can operate each monitor independently and simultaneously. This is a big advancement from
the Extended Mode of the NavNet 3D MFDBB. The following table briefly summarizes the difference in image output
among TZT2BB, TZTBB, and MFDBB. See Section 4.3 for details of TZT2BB screen resolutions.
TZT2BB (NavNet TZtouch2)
TZTBB (NavNet TZtouch)
MFDBB (NavNet 3D)
Dual outputs in different resolutions are
supported.
Only the Clone mode is supported for
dual outputs. The same image in the
same resolution is output.
Different images in the same
resolution are output from the
processor in the Extended mode.
1.2. Multi Touch Operation in Consistent GUI with TZTL12F/15F
The TZT2BB supports multi touch operation over multi touch monitors connected via HDMI (for images) and USB (for
touch) cables. The intuitive GUI on the screen is consistent with the TZTL12F/15F. See Section 3.1 for basic GUI and
Section 4.1 and 4.2 for multi touch monitor requirements and tested monitors at FEC.
1.3. MCU-005 for Full Keyboard Operation
The MCU-005 is a new, full keyboard with multiple keys. When monitors are located away from the main helm or not
compatible with multi touch, the MCU-005 fully supports the operation of the TZT2BB.
Note:
(1) The TZTL12F/15F will also be compatible with the MCU-005 with the version 6.xx and later.
(2) See Section 3.2 and 5.4 for details of MCU-005 and Sales Bulletin FSB18-0004 for the summary of all the
available remote control units MCU-002/004/005 for NavNet TZtouch2.

4

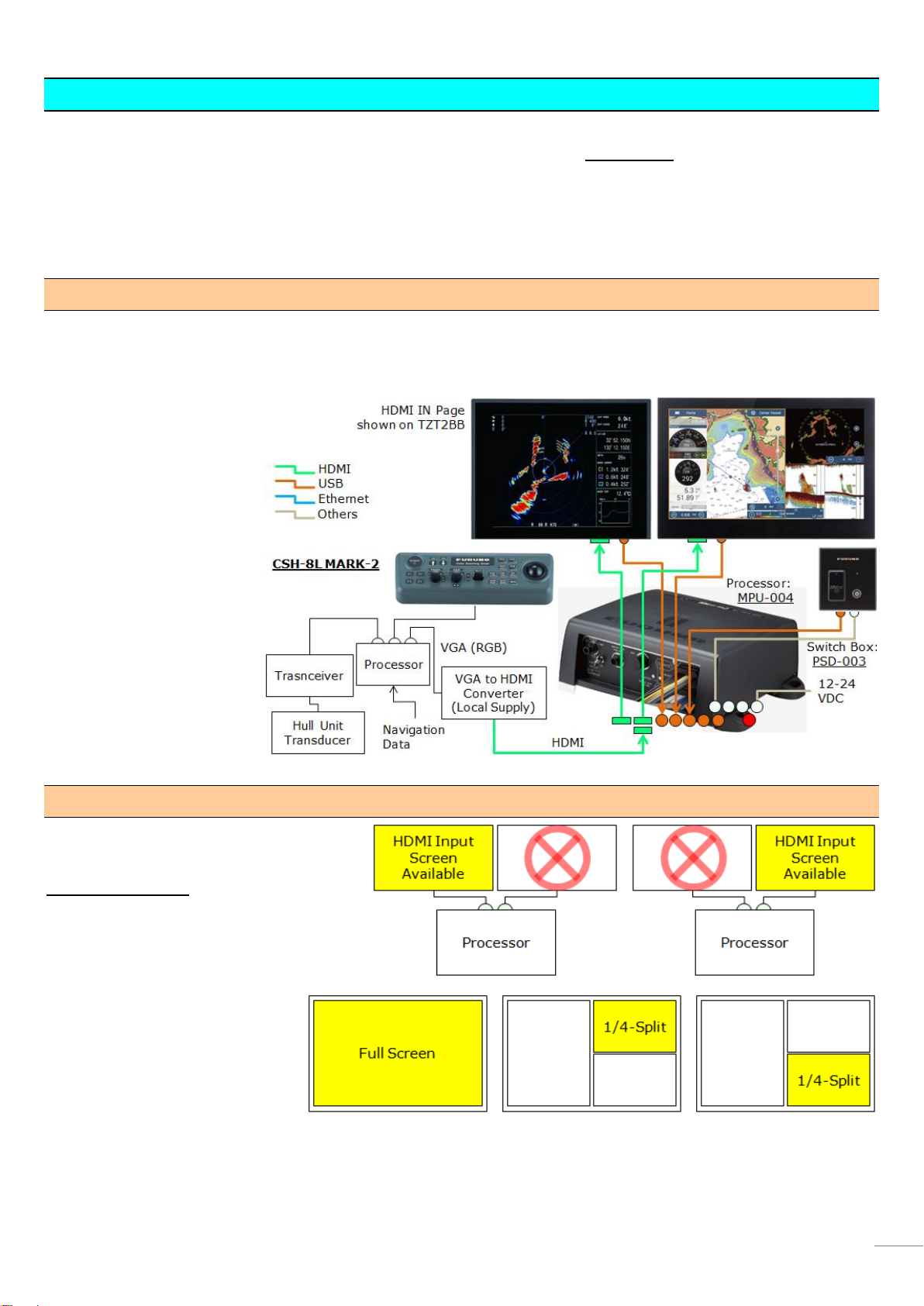

1.4. HDMI Input
In addition to conventional analog video inputs (RCA), the TZT2BB is equipped with one (1) HDMI input port. An
external device with HDMI output can be connected to the TZT2BB HDMI port to show the image on one of the TZT2BB
screens. See Section 5.5 for details and example cases utilizing the HDMI input.
1.5. USB Output
The TZT2BB is equipped with multiple USB ports for multi touch operation on multi touch monitors. One of the USB ports
(Micro-B) outputs multi touch signals to an external device. As an example, when the Wassp WMB-1320F is
connected to the TZT2BB USB output and HDMI input ports, images from the WMB-1320F are shown on a multi touch
monitor to control it over the touch screen. See Section 5.6 for details and example cases utilizing the USB output.

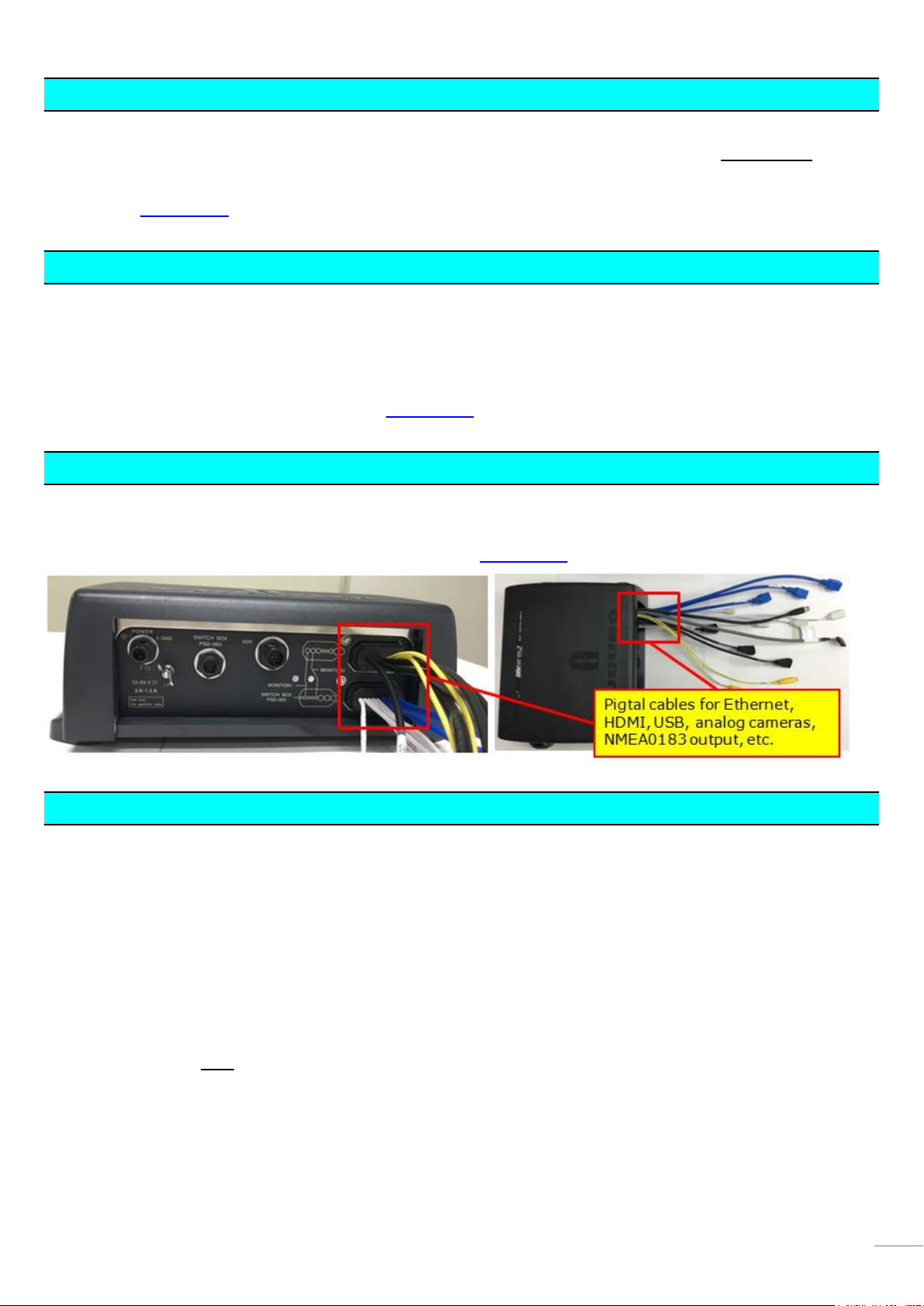

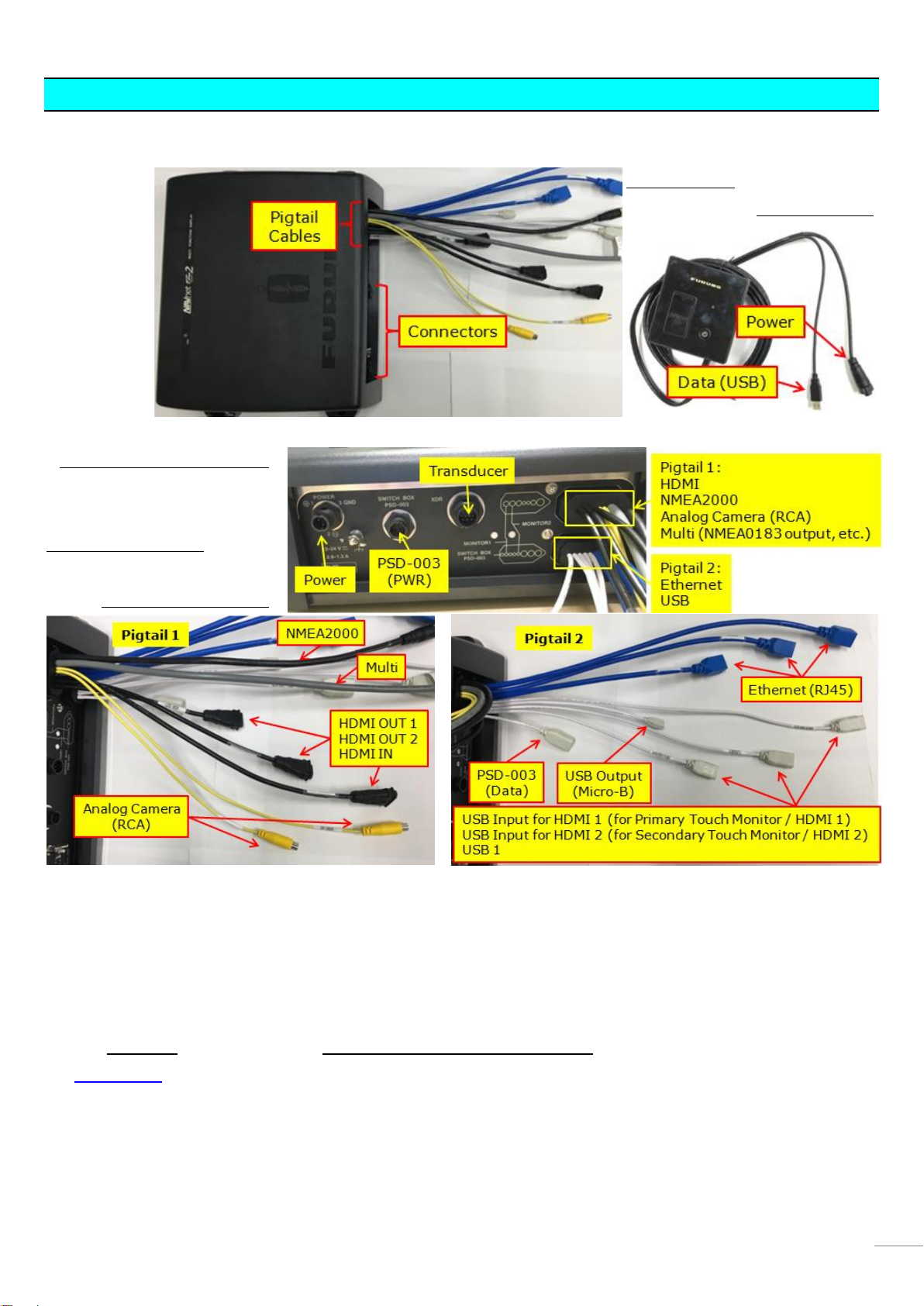

1.6. Easy Access to I/Os with Pigtail
The TZT2BB has two (2) sets of pigtail cables to support a variety of input and output ports. Each cable is labeled with
its signal type in order to easily plug into required ports. See Section 5.2 for details on pigtail cables.
1.7. Built-in Wireless LAN and Fish Finder
The TZT2BB has built-in wireless LAN and Fish Finder compatible with RezBoost™. The wireless LAN can be utilized
to download weather and unlock codes and connect to iOS and Android™ devices for NavNet Remote, NavNet Viewer,
and NavNet Controller apps.
Notes:
(1) The built-in wireless LAN of TZT2BB, TZTL12F/15F, and TZTBB is approved for use in the US (FCC), Canada (IC),
Europe (CE), Australia/New Zealand, and Japan only. For other areas, do NOT turn on the wireless LAN.
(2) A GPS receiver is NOT built in.

5
2. Specifications
2.1. Comprising
BOM
Type
Standard Comprising
IMD03460000
TZT2BB
Processor unit MPU-004 (left), switch box PSD-003 (right), installation materials,
spare parts, accessories, etc.
New Options
Code
Type
Descriptions
00003509700
MCU-005
Control unit with full keyboard
00150690000
OP19-19
MCU-005 modification kit to convert the MCU-001 to MCU-005 (See Section 6.2)
Other options are common with the TZTL12F/15F.
