Future Automation SPS1300 User manual

ISSUE 016
SLIDING PANEL SYSTEM &
SCREEN ADVANCE / SCREEN ADVANCE HEAVY
SPS800/1200/1300
INSTALLATION
INSTRUCTIONS

1
IMPORTANT SAFETY INSTRUCTIONS BELOW
WARNING: Failure to provide adequate structural strengthening, prior to installation can result in
serious personal injury or damage to the equipment. It is the installer’s responsibility to ensure the
structure to which the component is affixed can support four times the weight of the component and
any additional apparatus mounted to the component.
WARNING: Do not exceed the weight capacity for this product as listed below. This can result in serious
personal injury or damage to the equipment. It is the installer’s responsibility to ensure that the total
combined weight of all attached components does not exceed that of the maximum figure stated.
WARNING: Risk of death or serious injury may occur when children climb on audio and/or video
equipment or furniture. A remote control or toys placed on the furnishing may encourage a child to
climb on the furnishing and as a result the furnishing may tip over on to the child.
WARNING: Risk of death or serious injury may occur. Relocating audio and/or video equipment to
furniture not specifically designed to support audio and/or video equipment may result in death or
serious injury due to the furnishing collapsing or over turning onto a child or adult.
SAFETY
DISCLAIMER
ADDITIONAL WARNINGS:
1. Keep all documentation/instructions after tting.
2. Read all technical instructions fully before installation and use. It is the installer’s responsibility to ensure that all
documentation is passed on to the end user and read fully before operation.
3. Do not use near water or outdoors unless the product has been specically designed to do so.
4. Protect any cables or cords being used near this bracket from being walked on or pinched to prevent damage and
risk of injury.
5. Use this product only for its intended purpose as described in the product instructions and only use attachments/
accessories specied by the manufacturer.
6. Do not operate the product if it is damaged in any way, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Contact the original installer/manufacturer to arrange repair or return.
WARNING - To reduce the risk of burns, re, electric shock, or injury to persons:
1. Clean only with a dry cloth and always unplug any electrical items being used in conjunction with this product before
cleaning.
Future Sound & Vision trading as Future Automation intend to make this and all documentation as accurate as
possible. However, Future Automation makes no claim that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible contingency in connection with the installation or use
of this product. The information contained in this document is subject to change without prior notice or obligation of
any kind. Future Automation makes no representation of warranty, expressed or implied, regarding the information
contained herein. Future Automation assumes no responsibility for accuracy, completeness or sufficiency of the
information contained in this document.
WARNING – RISK OF INJURY!
Only for use with equipment weighing 22LBS (10KG) OR LESS.
Use with heavier projectors/equipment may lead to instability causing
tip over or failure resulting in death or serious injury.
Bracket Suitable for Residential and Commercial Use.

2
PRODUCT WARRANTY
& RISK ASSESSMENT
WARRANTY INFORMATION
WARNING - The warranty oered for this product shall be annulled if the product is used improperly or in a way
that is in breach of our Terms of Service.
Future Automation provides warranty for the mechanism you purchased for the period of 24 months from the date of
purchase, provided that it isn’t used for unintended purposes.
Under the warranty, Future Automation aims to either solve the issue remotely (via telephone or email support) or if the
mechanism requires a part, arrange a visit to your premises by a Future Automation approved engineer or send replacement
items where appropriate.
Warranty repairs will be carried out as quickly as possible, but subject to parts availability. This warranty period is
respectively extended for the period of a repair.
A malfunctioning product must be cleaned and placed into suitable packaging to protect against transit damage before
organising delivery to a repair workshop.
All the complaints about defects must be submitted to the vendor/installer that sold this product, rather than directly to
the manufacturer.
Any part of your system that needs to be replaced during a warranty repair becomes the property of Future Automation.
The warranty does not cover the following:
• Damages resulting from improper product use or maintenance.
• Repairs carried out by unauthorized persons.
• Natural wear and tear during operation.
• Damages caused by the buyer.
• Accidental damages caused by a customer or damages caused as a result of careless attitude or usage, or damages
caused by natural disasters (natural phenomena).
• Any electrical, or other environmental work external to your Future Automation mechanism including power cuts,
surges etc.
• Additional items not supplied by Future Automation although they may have been supplied together by the retailer
• Any 3rd party software products controlling your mechanism
• Any transfer of ownership. Warranty is provided only to the initial purchaser.
• Compensation for loss of use of the product, and consequential loss of any kind.
A separate Safety and Servicing Information document is provided with these instructions (additional copies can be found
at www.futureautomation.co.uk/safety), and this document MUST be lled out by the approved Future Automation Dealer
who is installing the product. This Warranty Sheet must be held by the end user for the duration of the products life and
will be referred to during servicing or warranty queries.
The Safety and Servicing Information document also contains two Service History Forms that must be lled in by the
approved Future Automation dealer who is performing the rst required yearly service of this product.
One copy of the Service History Form must be held by the customer (along with the Warranty Sheet) and a
duplicate copy must be held by the approved Future Automation dealer that performed the service. Missing and/or
mismatching documents may delay or invalidate warranty claims.
Additional Service History Forms can be found on the Future Automation website for further yearly services.
RISK ASSESSMENT INFORMATION
It is the installer’s responsibility to perform a risk assessment of installed products. Future Automation can provide
guidelines to installers/dealer about what should be included in a risk assessment, but due to the individual nuances of
each location/site, Future Automation cannot provide a full list of areas to risk assess.
For full risk assessment and safety information please view our Safety and Servicing guide available at
www.futureautomation.net/safety

3
GUIDE
CONTENTS
SAFETY DISCLAIMER 1
PRODUCT WARRANTY & RISK ASSESSMENT 2
GUIDE CONTENTS 3
PACKAGE CONTENTS 4
MECHANISM QUICK-START GUIDE 5
MECHANISM PRETESTING 6
SCREEN POSITIONING 7
PANEL MECHANISM INSTALLATION 8
DRIVE UNIT INSTALLATION 9
SCREEN ADVANCE POSITIONING (SA) 10
SCREEN ADVANCE MOUNTING (SA) 11
SETTING THE MECHANISM 12
OUT POSITIONS (SA) 12
SCREEN ADVANCE MOUNTING (SAH) 13
SCREEN ADVANCE MOUNTING (SAH) 14
SETTING THE MECHANISM IN / OUT POSITIONS (SAH) 15
CONNECTION WIRING 16
PANEL MOUNT PLATE FITTING 17
ENCLOSURE PANEL MOUNTING 18
PANEL UP POSITION ADJUSTMENT 19
PANEL DOWN 20
POSITION ADJUSTMENT 20
DISPLAY FITTING 21
GENERAL CONTROL 22
INFRARED (IR) 23
RADIO FREQUENCY (RF) 24
CONTACT CLOSURE 25
RS232 CONTROL 26

4

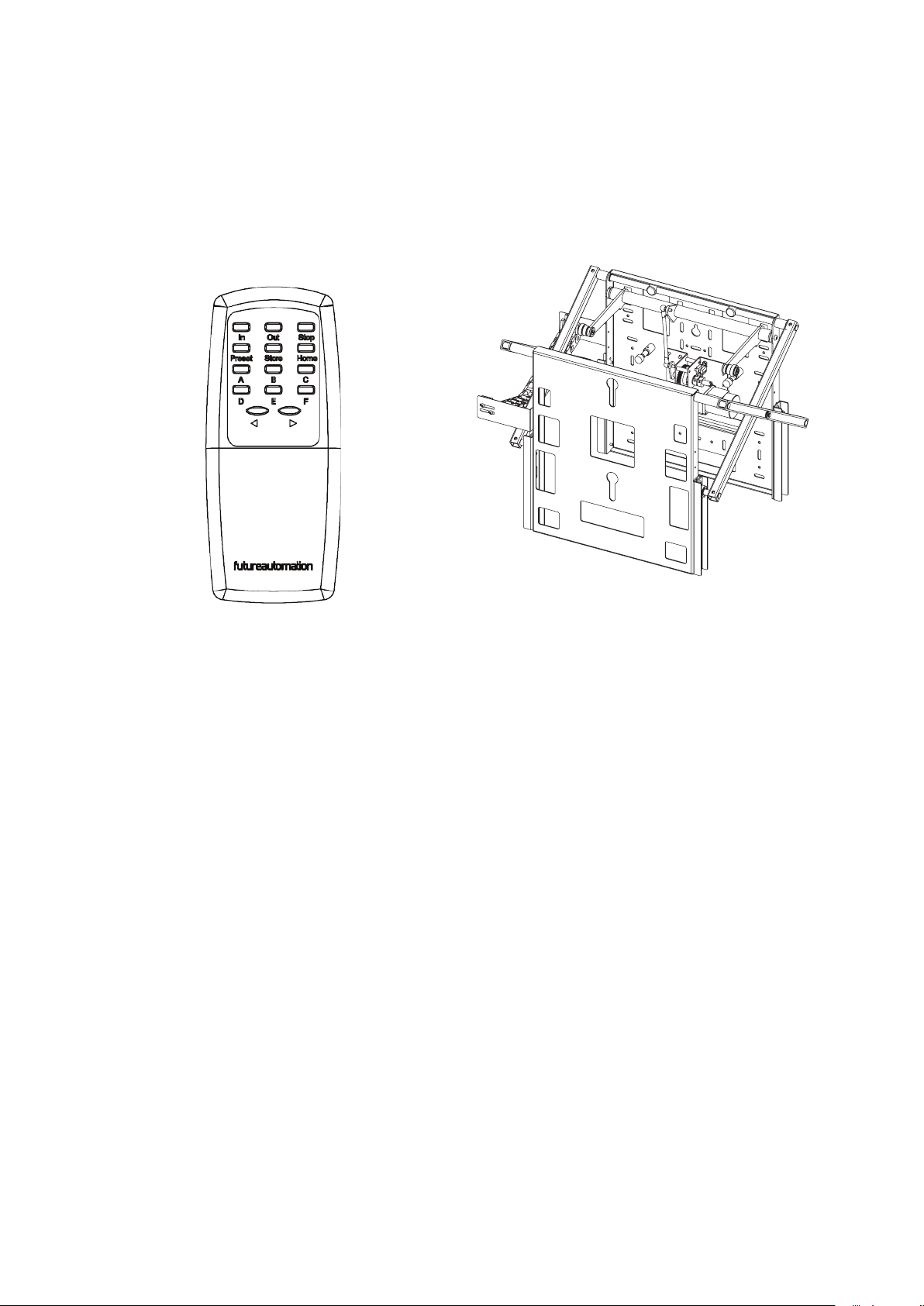

PACKAGE
CONTENTS
1 - SA/SAH OPTION & SPS MECHANISM
1.1 - PANEL MECHANISM RIGHT
1.2 - PANEL MECHANISM LEFT
1.3 - PANEL DRIVE UNIT
1.4 - SCREEN ADVANCE UNIT
1.5 - SCREEN ADVANCE UNIT HEAVY
1.6 - PANEL MOUNT PLATES
2 - CONTROL BOX
3 - IR REMOTE CONTROL
ITEMS NOT SHOWN ON PAGE
SPS ACCESSORY PACK:
- 2X AAA BATTERIES
- MULTI-PACK NUTS, BOLTS & WASHERS
- MAINS POWER, IR AND CONTACT CLOSURE LEADS
Only SA or SAH option will be provided
2
3
1.2
1.4
1.3
1.1
1.5
1.6

5
MECHANISM
QUICK-START GUIDE
Some Future Automation mechanisms may ship with the control box disconnected to prevent damage
during transit. In order to operate the mechanism, the control box will need to reconnected, then have
mains power applied along with the desired control method.
RECONNECTING THE CONTROL BOX
To reconnect the mechanism control box, follow the below steps:
1. Make sure the power is disconnected from the control box.
2. Remove the retaining screw and washer from the end of the control box to allow removal of the
control box lid. (Image 1 Below).
3. Slide o the control box lid to reveal the control board inside.
4. Locate the green connector on the end of the loom leading from the lift mechanism. This plug will
have a small tag attached stating the correct connecting socket on the control board (e.g. “AC1”,
“DC2”...) (Image 2 Below).
5. Plug the green connector into the corresponding socket on the control board. This plug is handed
and will only connect correctly one way. Do NOT force the connector into the socket, this can cause
serious damage to the control board and mechanism.
6. Route the wiring loom out of the end of the control box by inserting the black plastic inserts into the
slots provided. (Image 3 Below).
7. Slide the control box cover back over the control board and replace the xing screw and washer.
IMPORTANT
For the mechanism to operate, the green three way safety connector with the loop of
wire attached, must also be plugged into the end of the control box. (Image 4 above).
If this connector is not plugged in, a bright red LED will be visible inside control board
and the Input Conrmation Input LED will be permanently illuminated.
Image 1.
Image 3.
Image 2.
Image 4.

6
MECHANISM
PRETESTING
• The product is in good condition
• There is no damage to any parts
of the mechanism
• All wiring is secure
Before installing your mechanism,
it is important that you perform
the following checks.
1
Use the Quick Start Guide and connect
mechanism to control board and familiarise
yourself with mechanism operation.
Panel Drive Unit cams are factory set
to the correct positions and should not
be adjusted without rst contacting a
member of the Future Automation team.
2
Set up the mechanism as shown above,
engaging the shaft drive unit with the
couplers on the panel mechanism.
(M5 x 35mm bolts connect them)
Panel Access Shaft rotates 180° to create
a forward-back motion of 40mm.
(If out of sync by 180° it may jam)
Mechanism is precongured to travel
the maximum travel.

7
SCREEN
POSITIONING
1
Ensure cabinet dimensions
are correct. Refer to the
technical sheet for correct
dimensions.
2
Mark up the top position of the
screen inside the enclosure along
with a center line in preparation
for display positioning.
Enclosure height should
accommodate height of screen
and height of sliding panel.
C
L
Line marking
top edge of
screen
Line marking
centerline
screen

8
PANEL MECHANISM
INSTALLATION
1
Oer Side up to the inside of enclosure
and position so the Panel Mount are
central in relation to the screen centre
height marked previously.
2
Mark height between mounting
plate and bottom of enclosure.
A block of MDF can be cut to this
height to use as a guide.
3
Use appropriate xings
(NOT INCLUDED) to secure
the mounting plates to the
inside of the enclosure.
4
Use MDF block/
measurement to repeat for
opposite mounting plate.
Mounting plates will need to be
installed perfectly level and in the
DOWN position before proceeding
0.2
4
Approx.
Panel Mount

9
DRIVE UNIT
INSTALLATION
1
Locate Panel Drive Unit and
insert motor end of the unit
to the two couplers at the
top of the right hand panel.
2
Loosen the M8 locking bolt
to allow the telescopic end
to extend to join to left
panel.
3
Re-tighten xings attached
to telescopic arm once it
meets with the left panel.
M8 Locking
Bolt
Telescopic
End
Motor End
M5x35mm bolts with
nuts through both couplers
(Needs to be done at the
other end aswell)
Left Hand
Mechanism
Right Hand
Mechanism
Loosen bolt to allow
telescope. Re-tighten
once at length

10
SCREEN ADVANCE
POSITIONING (SA)
Oer display to Screen Advance
mechanism.
Measure from the top of the
display to the key-hole mount slot.
2
1
The measurement taken can
be used to correctly position
mechanism inside the enclosure.
3

11
SCREEN ADVANCE
MOUNTING (SA)
Mount the SA mechanism onto the
protruding screw and check positioning
is as desired.
With the mechanism in the IN position,
x through the front plate with the
square clearance holes provided.
(FIXINGS NOT INCLUDED)
Fix a screw into the wall with the head
protruding at marked position, so that
the SA can be freely supported inside
the enclosure.
5
6
3
Toggles
Mount
Bolts
Remove the Screen Mount Plate by
loosening the two Screen Mounting
Toggles and lifting up and away.
1
Take Screen Advance Positioning
measurement and mark position inside
the enclosure.
2Attach Screen Mounting Plate to the
back of the display using included M6
xings
4
Feed necessary cables through the
provided cable run.
7
Hook screen onto the SA using the
Screen Mounting Toggles and securing
the Locking Bolts into place.8

12
SETTING THE MECHANISM
OUT POSITIONS (SA)
3
To alter the OUT position of the screen advance, press the OUT
button followed by the STOP button when the screen is at the
desired position.
1
Press STORE, followed by OUT to set this position as the new
OUT position. The position can be ne tuned by pressing STORE
then STORE then >, this will move the screen forward 1-2mm and
set this position as the new OUT position.
To reset the OUT position back to its default (maximum
extension before hitting the service position) press Store then
STOP then OUT.
2
To enter service mode, push OUT to send the SA to its OUT
position. Once in its OUT position, press B to pulse out to the
Service Mode and then manually pull out the mechanism.
Once adjustments are made push the mechanism back and
press A to pulse the push arm back into the OUT position.
4

13
SCREEN ADVANCE
MOUNTING (SAH)
Oer display to Screen Advance
Heavy (SAH) mechanism.
Measure from the top of the
display to the two largest
mounting holes on the SAH
Bracket Wall Plate.
2
1
The measurement taken can
be used to correctly position
mechanism inside the enclosure.
3

14
SCREEN ADVANCE
MOUNTING (SAH)
Conrm that the mechanism is level
and in the correct position.
3
Remove the two Uprights from the SAH
and attach them to the display using the
supplied xings.
1
Using the previous measurement for
reference, secure the SAH mechanism
into the enclosure using the
appropriate xings (NOT INCLUDED)
2
Hook display onto the installed
SAH and secure in place with
supplied xings.4

15
SETTING THE MECHANISM
IN / OUT POSITIONS (SAH)
3
To alter the OUT position of the screen advance heavy, press the
OUT button followed by the STOP button when the screen is at
the desired position.
1
Press STORE, followed by OUT to set this position as the new
OUT position. The position can be ne tuned by pressing STORE
then STORE then >, this will move the screen forward 1-2mm and
set this position as the new OUT position.
To reset the OUT position back to its default (maximum
extension before hitting the service position) press Store then
STOP then OUT.
2
To enter service mode, push OUT to send the SAH to its OUT
position. Once in its OUT position, press B to pulse out to the
Service Mode and then manually pull out the mechanism.
Once adjustments are made push the mechanism back and
press A to pulse the push arm back into the OUT position.
4

16
CONNECTION
WIRING
Connect the Drive Unit to the Side Panels
using the 9 pin AMP plugs together
(Labelled A to A)
1
Inserts
A
A
Each mechanism has its own set of
wires that are control box inserts and
block connectors.
2
Each cable is labelled to show
which set of connectors the block
connectors must go to.
3
The inserts then slide into the
associated slots on the Control Box.
4

17
PANEL MOUNT
PLATE FITTING
The front mounting plates hold your
concealment panel onto the mechanism.
It is attached to the runners with
M6 x 10mm CSK bolts with washers.
1
Use one xing in each slot at one of
the three mounting heights available.
2
Oer the enclosure panel to the
mechanism and mark the position of
the mounting plates.
3

18
ENCLOSURE
PANEL MOUNTING
Conrm that the enclosure panel is
level and in the correct position to
attach the mounting plates.
3
Remove the mounting plates
from the mechanism to attach
the enclosure panel.1
Use the previous measurement as a guide
to attach the mounting plates to the
enclosure panel leaving 5mm of clearance
around the perimeter of the panel.
2
Use appropriate xings to secure
the mounting plates to the
enclosure panel.4
(Clearance)
Mounting
