Future Beach WB 400 User manual

Water Bee Pedal Boats
Owner’s Manual and Assembly Guide
(Models: WB 200, WB 202, WB 203, WB 400)
www.futurebeach.com
At Future Beach™, customer satisfaction is our top priority.
For all inquiries and product support contact us at:
1-800-357-7837 [e-mail]
Future Beach™is publicly traded on the TSX Venture Exchange, symbol FBC

Water Bee™Pedal Boat Owner’s Manual and Assembly Guide
Introduction
Future Beach™, The World’s Beach Company™, congratulates you on the purchase of your
Water Bee™pedal boat.
At Future Beach™, we are proud of our world-class product designs, workmanship, and quality.
Since our inception, the complete and permanent satisfaction of our customers has always been
our primary concern.
This manual will outline your Water Bee’s assembly instructions, product care, safety issues, and
warranty information. With proper care and consideration, your Water Bee™pedal boat will
provide many years of safe, enjoyable, and trouble-free reliability.
For your optimum safety, pleasure, and satisfaction, we urge you to read this manual carefully
and to follow its instructions and recommendations.
Table of Contents
I. Water Bee™Components……….…….…….…………………………………..3
II. Tools Required for Assembly…………….….…….……….…………….…...3
III. Assembly Instructions……….…….…..………………………………….…..4
A. Paddle Wheel Blade Installations………………………………………....4
B. Backrest Installation………………………………………………………5
C. Tiller and Rudder Installation………..…………………………………....6
D. Bimini Installation………………………………………………………...7
IV. Maintaining Your Water Bee™……………………………………………….…9
A. Checking your Bearings…………………………………………………..9
B. Draining Water from your Water Bee™…………………………..………...9
V. Water Bee™Specifications……………..……………………………………...10
VI. Water Bee™Technological Aspects…………………………………………...11
VII. Basic Water Bee Safety..……….……………………………………………13
VIII. Warranty Information………….…….………………………………………14
IX. Warranty Card…………………….…..……………………………………...15
Future Beach™Corporation
The World’s Beach Company™
2

Water Bee™Pedal Boat Owner’s Manual and Assembly Guide
I. Water Bee™Components
This section will identify your Water Bee™component parts, and will provide you with the
proper terminology for future reference.
Paddle hub Paddle blades Delrin bearings
Threaded Drive Shaft Crankshaft with pedals Steering Arm
Tiller Handle RudderRudder Shaft
Storage hatch coverBackrest with clip
II. Tools Required
• 1 set of vice-grips
• 1 set of pliers (optional)
• 1 ratchet (3/4” socket) with extension
• 1 Phillips star screwdriver
Future Beach™Corporation
The World’s Beach Company™
3

Water Bee™Pedal Boat Owner’s Manual and Assembly Guide
III. Assembly Instructions
A) Paddle Wheel Blade Installation
(Note: for purposes of clarity only, the paddle blade installation (photos 2-5) is
shown without boat)
1. Your paddle hub comes
already installed in your
Water Bee pedal boat. To
access the paddle hub,
simply turn the boat on its
side, or raise the boat onto
a table.
2. Locate open slot on
p
addle hub and align
base of paddle blade as
shown.
3. Push paddle blade
firmly into open slot.
5. Ensuring all paddle blades are installed in
the same direction (think of a swimmer
cupping the water), repeat procedure with
other paddle blades.
4. Ensure proper
installation of the paddle
b
lade: listen for the paddle
blade to snap into the
p
addle hub.
Incorrect paddle blade
installation
Correct paddle blade installation
Future Beach™Corporation
The World’s Beach Company™
4

Water Bee™Pedal Boat Owner’s Manual and Assembly Guide
B) Backrest installation
1. Your backrest will
come with seat clips
attached to backrest.
2. Using a Phillips star
screwdriver remove
screw and clip from
backrest.
3. Turn backrest over
and repeat previous
p
rocedure (step 2).
4. Using a flat
screwdriver, pry apart
seat clips from
backrest.
5. Ensuring that backrest is
reclined towards rear of
boat, place backrest
(without clips and screws)
onto adjustment rail as
shown above.
6. Place one seat clip and
screw onto one side of the
backrest (seat clip should
be placed underneath
adjustment rail).
7. Repeat previous
p
rocedure on other
side of the backrest.
9. Using your Phillips
star screwdriver,
attach seat clip to
backrest tightly.
8. Push seat clips firmly
into the backrest with
hands, or with hammer, if
required.
10. Repeat previous
p
rocedure on the other
side of the backrest.
12. Install the backrest
into the adjustment
slot of choice
Future Beach™Corporation
The World’s Beach Company™
5
11. Swing backrest
towards the center of
the boat

Water Bee™Pedal Boat Owner’s Manual and Assembly Guide
C) Tiller Installation
1. Open the hatch at the
rear of the hull by pulling
upwards from the front of
the hatch.
3. Ensuring that tiller
handle faces the front of
the boat, align handle with
screw hole on top of hatch
2. With the storage hatch
raised, align the steering
control arm with the screw
hole as shown above
4. From underneath
storage hatch, place screw
through steering control
arm to the tiller handle on
other side
5. Using your Phillips star
screwdriver, screw the
steering control arm and
tiller handle into place.
6. Turn boat on its side to
access rudder shaft. Lean
boat up against a wall to
p
erform rudder
installation. Locate screw
holes on rudder shaft.
D) Attaching Rudder
7. Ensuring that rudder
direction faces rear of
boat, push rudder firmly
onto rudder shaft. Align
screw holes on rudder
shaft with screw holes on
neck of rudder
8. Using your Phillips
screwdriver, attach rudder
to rudder shaft as shown
above.
Future Beach™Corporation
The World’s Beach Company™
6

Water Bee™Pedal Boat Owner’s Manual and Assembly Guide
D) Bimini Installation
6. Align the horizontal
attachment rod (white
washer facing the
screw hole of the long
p
ole) with the screw
hole at end of the long
p
ole.
Future Beach™Corporation
The World’s Beach Company™
7
8. Using your Phillips
star screwdriver,
attach these pieces
together as shown
above. Repeat steps 6-
8 with other long
bimini pole.
5. Weave the pole
through the canopy
holes (first under the
canopy, then over the
canopy, and so on).
3. Place the two long
b
imini poles (thick end
down) into the two
p
edal wells as shown
above.
4. Insert the long pole
through the first hole
of your bimini canopy.
7. Place tie-down cord
after the attachment
rod and then place tie-
down screw through
tie-down cord,
horizontal attachment
rod, and long pole.
Begin threading screw
by hand.
2. Before tightening the screw, ensure
that the D-rings face the upwards
direction as shown above.
1. Using your Phillips star screwdriver,
screw D-ring into hole at rear of hull.
Repeat with the second D-ring.
Contents of
Attachment Kit
Bimini kit includes:
• 2 poles
• 1 canopy with horizontal attachment rod
• 1 attachment kit
o 2 D-Rings
o 2 screws for attachment rod
o 2 tie-down cords
o 2 tie-down screws

Water Bee™Pedal Boat Owner’s Manual and Assembly Guide

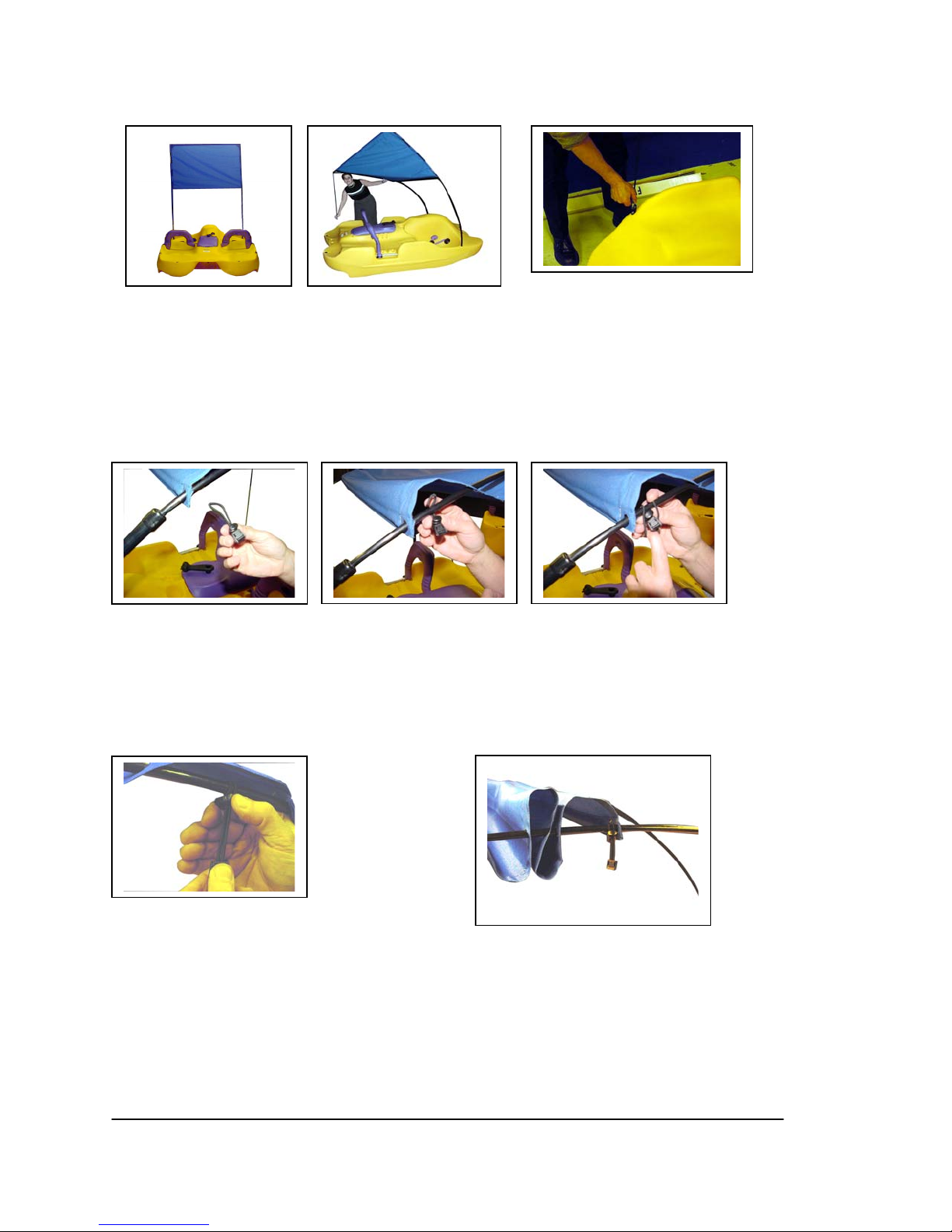

11. Clip the tie-down cord
onto the D-ring, which
you have previously
installed (steps 1-2) at the
rear of the hull. Repeat
with second tie-down
cord.
10. Take the tie-down
cord and pull bimini
gently towards the
back of the hull
9. Place two large
bimini poles snugly
and firmly into holes
for bimini at the front
of the hull.
13. Position your
bungee cord as shown
above, with cord loop
above the bimini pole
and the adjuster piece
b
elow the
p
ole.
12. Take adjustable
bungee cord and raise
it to the first weave in
your bimini, as shown
above.
14. Holding the cord in
p
lace, pass the loop over
the pole and around
adjuster piece.
15. Pull down on
adjuster piece to
tighten the bungee
cord to the bimini
p
ole. Repeat steps 12-
15 on other side of
boat
16. Adjust your canopy in your
desired way: pull it back for more
exposure to the sun, or push it
forward for more shade. Lock your
canopy in your desired position
with the bungee cord.
Future Beach™Corporation
The World’s Beach Company™
8

Water Bee™Pedal Boat Owner’s Manual and Assembly Guide
IV. Maintaining your Water Bee Pedal Boat
A) Bearing Inspection
Future Beach recommends that the owner check the bearings every 2-3 months in coarse sand,
and salt-water conditions. To check the bearing:
1. Using your 3/4” ratchet,
remove the bolt from the
crankshaft. (Note: to
remove the bolt, use vice-
grips to hold bolt on other
side in place)
3. Now the bearing may
be accessed and inspected
for grit, dirt, and any other
contaminants that may
cause damage to the drive
system.
2. Pull away crankshaft
away from bearing in
order to access the
bearing.
B) Draining water from your Water Bee pedal boat
Although your Water Bee is roto-molded, in the case that water has somehow managed to enter
inside your hull, it is important to remove it before storing and/or reusing.
2. Using a file, or
flat screwdriver,
unscrew the drain
p
lugs.
1. Locate the two drain
p
lugs at the rear of your
p
edal boat
3. Stand boat up against a wall
to let water drain from the
drain plugs removed in steps
1-2. Locate and remove drain
p
lugs on the underside of the
p
edal boat.
Future Beach™Corporation
The World’s Beach Company™
9

Water Bee™Pedal Boat Owner’s Manual and Assembly Guide
V. Pedal Boat Specifications
WB 200
• Length: 93 inches, or 235 cm
• Width: 59 inches, or 150 cm
• Height: 32 inches, or 82 cm
• Weight: 135 lbs, or 61 kg
• Carrying Capacity: 850 lbs, or 386 kg
WB 201
• Length: 72 inches, or 183 cm
• Width: 62 inches, or 158 cm
• Height: 32 inches, or 82 cm
• Weight: 85 lbs, or 39 kg
• Carrying Capacity: 600 lbs, 272 kg
WB 202
• Length: 97 inches, or 245 cm
• Width: 62 inches, or 158 cm
• Height: 34 inches, or 86 cm
• Weight: 140 lbs, or 65 kg
• Carrying Capacity: 970 lbs, or 440 kg
WB 400
• Length: 122 inches, or 310 cm
• Width: 65 inches, or 165 cm
• Height: 37 inches, or 94 cm
• Weight: 215 lbs, or 98 kg
• Carrying Capacity: 1250 lbs, or 567 kg
Future Beach™Corporation
The World’s Beach Company™
10
