FUXTEC FX-KS142 Product information sheet

Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08
2
Table of contents
1. Intended/non-intended use ........................................................ 3
2. Parts overview ......................................................................... 4
3. Warnings on the device ............................................................. 5
4. Explanation of other symbols on the device .................................. 6
5. Safety Instructions ................................................................... 8
6. Mounting the blade and the saw chain ....................................... 13
7. Fuel and chain oil ................................................................... 16
8. Cold start of the chainsaw........................................................ 18
9. Warm start of the chainsaw...................................................... 19
10. Operating the chainsaw ........................................................... 20
11. Maintenance .......................................................................... 26
12. Transport and storage ............................................................. 30
13. Troubleshooting ..................................................................... 31
14. Technical data........................................................................ 32
15. Customer Service ................................................................... 33
16. Warranty............................................................................... 33
17. Disposal note......................................................................... 33
18. EC Declaration of Conformity.................................................... 34

Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08
3
1.Intended/non-intended use
The chainsaw is used for cutting branches, tree trunks, squared timber up
to a diameter according to the cutting bar length. Only materials made of
wood may be processed.
Use adequate protective equipment during use according to the operating
instructions. All other applications such as professional tree care within the
tree are explicitly excluded. The user/operator and not the manufacturer is
liable for damage or injury resulting from misuse. Only saw-chain/cutting-
bar combinations suitable for the device as specified in the operating
instructions may be used. Part of the intended use is also the observance of
the safety instructions and the operating instructions in the operating
manual. Persons who operate and maintain the device must be familiar with
it and with possible dangers. Furthermore, the applicable accident
prevention regulations must be strictly adhered to. Other general rules in
occupational medicine and safety areas must be observed. Changes to the
device exclude any liability of the manufacturer and any resulting damage
completely and lead to the guarantee becoming void. This device is only
intended for use in open areas (garden).
Residual risks
Even when the tool is used properly, there is always a
certain residual risk that cannot be excluded. The following potential
hazards can be derived from the type and design of the tool:
-Contact with the unprotected saw chain (cutting injuries)
-Reaching into the running saw chain (cutting injury)
-Unforeseen, sudden movement of the saw-bar (cuts)
-Centrifuging parts of the saw chain
-Centrifuging of parts of the material to be cut
-Hearing damage if no prescribed hearing protection is worn
-Inhalation of cutting material particles, exhaust gases from the
combustion engine
-Contact of petrol on the skin.
Information on noise development
A certain amount of noise pollution from this device cannot be avoided. Do
not carry out noisy work at times when it is permitted and specified. If
necessary, observe rest periods and limit the duration of work to the
absolute minimum. For your personal protection and the protection of
persons in the vicinity, wear suitable hearing protection.
Warning: There may be national regulations (health and safety at work;
environment) which may restrict the use of the chainsaw.

Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08
4

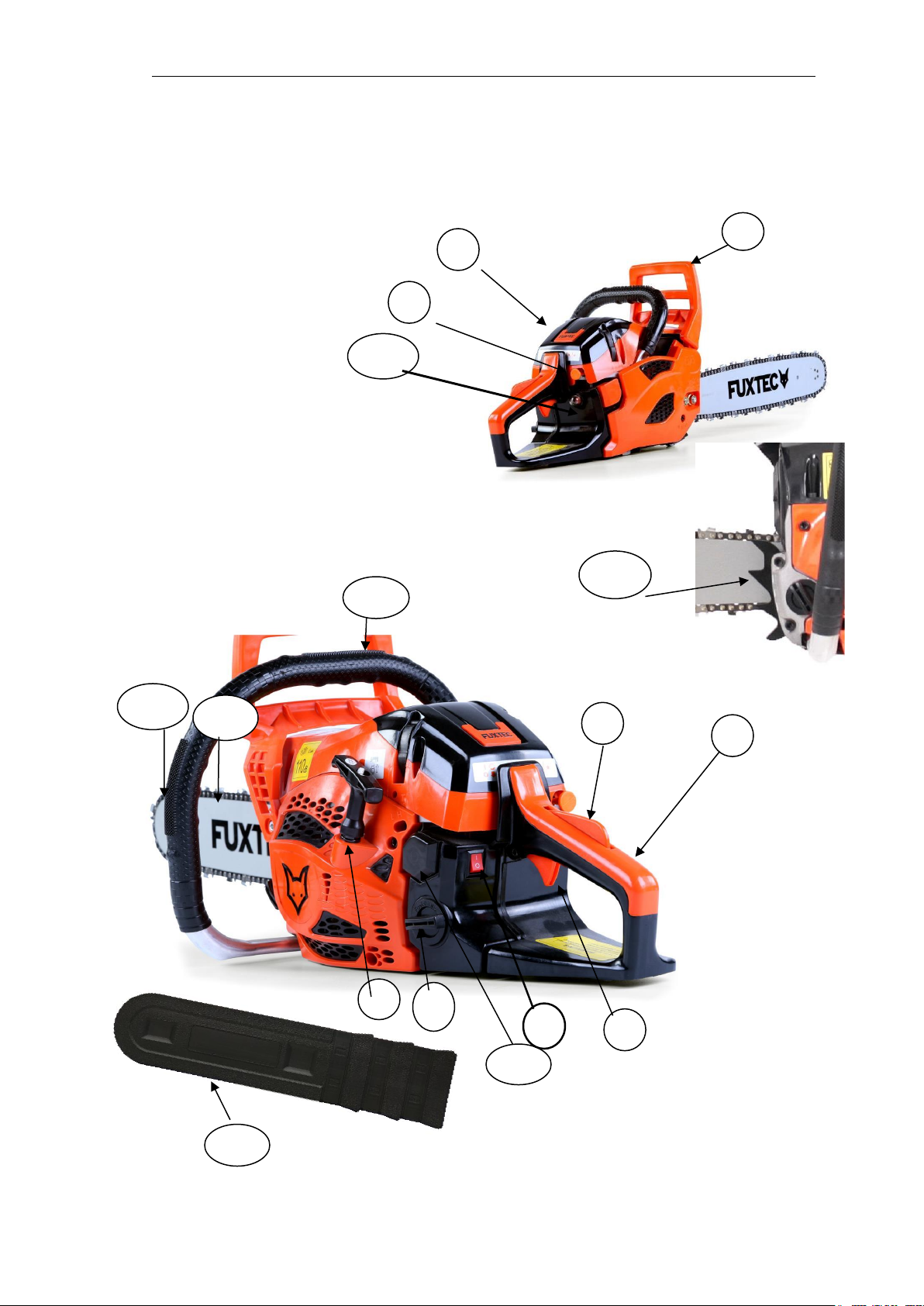

2. Parts overview
1. Front hand guard/chain brake lever
2. Starter handle
3. Air filter cover
4th choke
5. Throttle lock
6. Rear handle
7. Throttle lever
8. Stop switch
9. Fuel tank
10. Oil tank
11. Front handle
12. Saw chain
13. Guide rail
14. Transport protection
15. Claw stop
16. Primer pump
3
5
6
10
00
0
13
1
12
7
9
2
14
4
8
15
16
11

Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08
5
Notes on safety devices in the parts overview:
1. front hand guard/chain brake lever
The brake must always be locked during the starting procedure and
transport of the device. To do this, push the brake lever forward in the
direction of the blade.
5. the throttle lock ensures that the rear handle is safely gripped while
working with the device.
13 During transport, always mount the transport protection, otherwise
cuts may result.

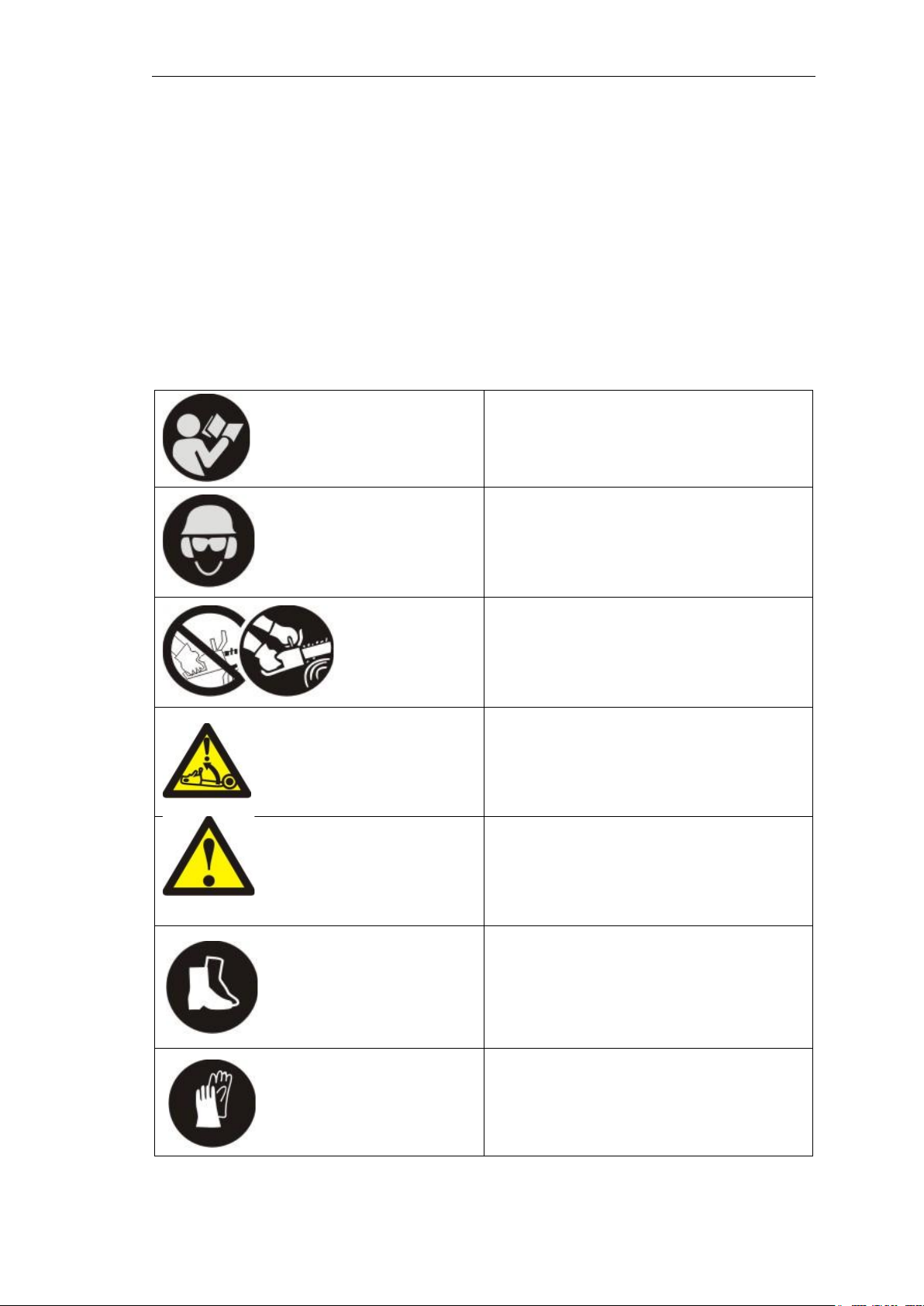

3. Warnings on the device
Read the operating instructions
before commissioning.
Always wear a helmet, safety
goggles and hearing protection.
Only use the chainsaw with both
hands.
Warning! Careful, danger of
kickback.
Read and understand the
information given in the operating
instructions and the warning texts
given on the device
Wear approved safety shoes with
non-slip soles
Wear approved safety gloves

Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08
6
4. Explanation of other symbols on the device
Symbols for safety functions and maintenance are stamped on the device.
Proceed carefully according to these indications and
don't make any mistakes.
Inlet opening for refilling "MIX GASOLINE"
40:1
Position: Above the fuel cap
Inlet opening for topping up the chain oil
Position: Above the oil cap
Notes on the switch: Turning the switch to
"O" (STOP) switches off the motor.
Position: Right on handle next to the
ON/OFF switch
When the choke button (see page 5, item 4)
is pulled, the throttle closes. The start mode
can be set as follows:
Position 1 pulled out when the engine choke
is cold
Position 0 with warm engine choke pressed
in
Position: on the right side below the air
filter
The directions indicate that the chain brake
is released (white arrow) and activated
(black arrow).
Position: Front side on the chain cover
If you adjust the screw with a turn the
screwdriver in the direction of the arrow to
the "MAX" position, the oil flow is stronger
and if you set the "MIN" position, the oil flow
is lower.
Position: Device bottom
Mount the chain link in the direction of the
arrow
Adjust the chain tension. The tension
increases in the "+" direction and decreases
in the "-" direction. Approximate value: After
adjustment, the chain should still be liftable
by about a finger's width from the blade.

Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08
7
Pull starter with Easy Start function. To start
the device, slowly and evenly pre-tension the
start spring by pulling. No jerky pulling
necessary. Do not pull beyond the dead
centre, otherwise the cable may break
Warning: The actual existing vibration emission value during the use of the
device may differ from the value specified in the instruction manual or by
the manufacturer. This can be caused by the following factors, which should
be considered before and during use:
If the device is used correctly
•Is the way of cutting the material or how it is processed correct?
•Is the condition of use of the device in order Sharpness of the cutting
tool or correct cutting tool?
•Are the handles mounted with optional vibration grips and are firmly
attached to the device body?
All the above precautions cannot exclude the risk of white finger disease or
carpal tunnel syndrome. Long-term and regular users are therefore
recommended to closely monitor the condition of their hands and fingers.
Consult a doctor immediately if any of the above symptoms occur. If you
experience an unpleasant feeling or discoloration of the skin on your hands
while using the device, stop working immediately. Take sufficient breaks
from work. Failure to take adequate breaks can result in hand-arm vibration
syndrome.
An estimation of the degree of loading in relation to the work or use of the
device should be made and appropriate breaks in work should be taken. In
this way, the degree of stress can be significantly reduced during the entire
working time. Minimize your risk of being exposed to vibrations. Maintain
this device according to the instructions in the operating manual.
If the device is to be used frequently, you should contact your dealer and
obtain anti-vibration accessories (handles) if necessary.
Avoid using the device at temperatures of t=10°C or less. Make a work plan
to limit the vibration load.

Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08
8
5. Safety Instructions
Be sure to read before using this device:
Read this manual carefully to understand how to
use this device correctly
Never operate the chainsaw if you are tired,
excited or physically unwell. Even after taking
medication that has a calming effect and drug
use, never use the chainsaw.
The chainsaw should only be used in a well-
ventilated workspace. Never run the engine in
enclosed spaces or buildings. The exhaust gases
contain dangerous carbon monoxide gas
Do not saw in bad weather, unfavourable
visibility conditions or extremely high or low
temperatures. Make sure that the log does not
have dry branches that could break off.
Wear non-slip footwear, close-fitting work
clothes and long trousers as well as safety
goggles, ear protection and a safety helmet.
Always use tested safety gloves with cut
protection

Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08
9

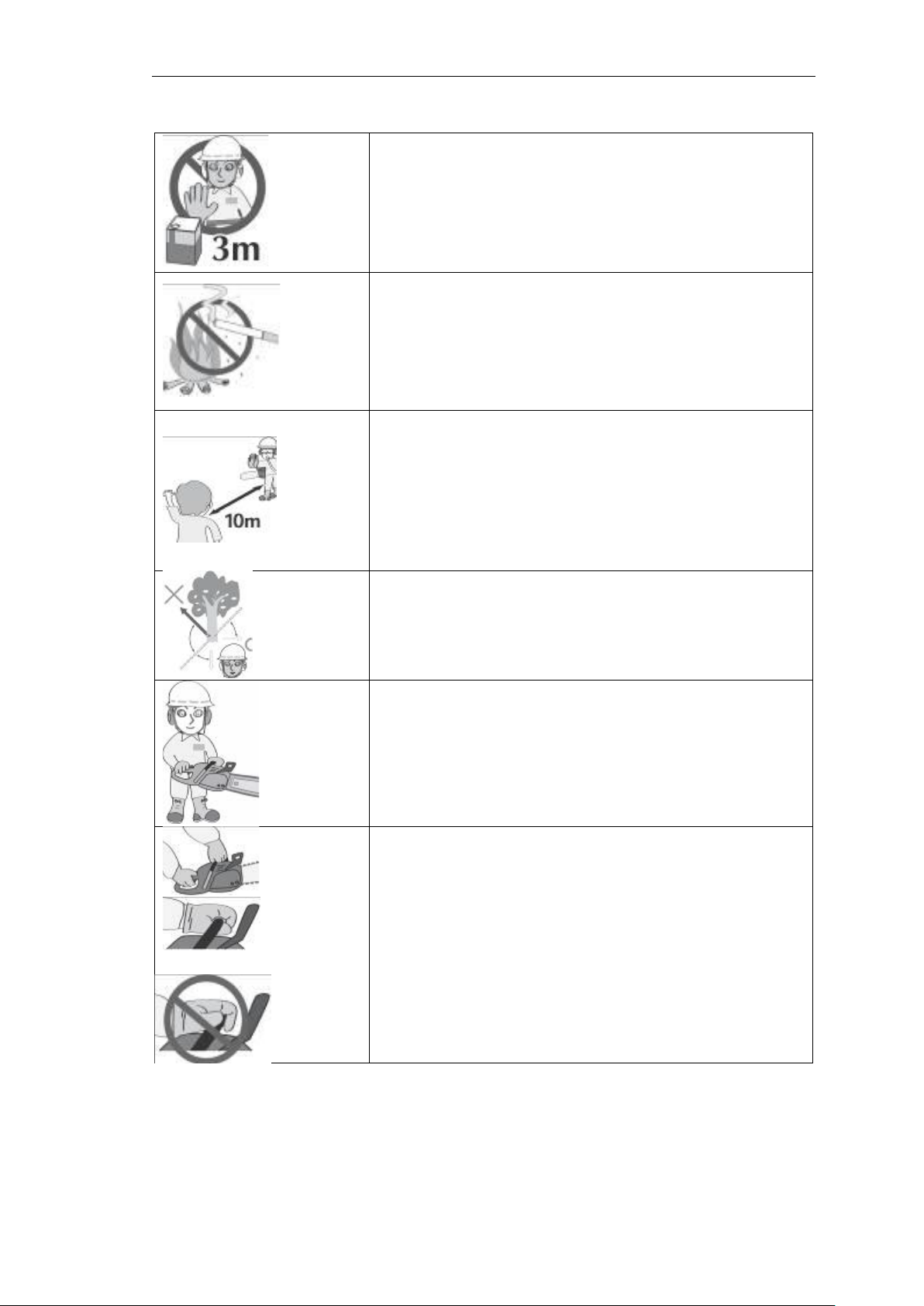

Be careful when handling fuel. If fuel is spilled,
wipe up immediately and remove the chainsaw
at least 3m from the fuelling point before
starting the engine.
Keep all sources of sparks or fire (e.g. burning
cigarettes, naked flames or spark-causing work)
away from all areas where fuel is mixed, filled or
stored.
Never smoke when handling fuel or operating the
chainsaw.
Keep other people away from the device when
starting or working with the chainsaw.
Unauthorised persons and animals must not be
allowed to enter the working area.
Ensure that children, pets and bystanders stay at
least 10 m away when starting and operating the
chainsaw
Never start work until the work area has been
cleared, a safe footing ensured and an escape
route from the reach of the falling tree has been
determined
When transporting and storing the chainsaw,
make sure that a suitable guide bar protection
device is fitted

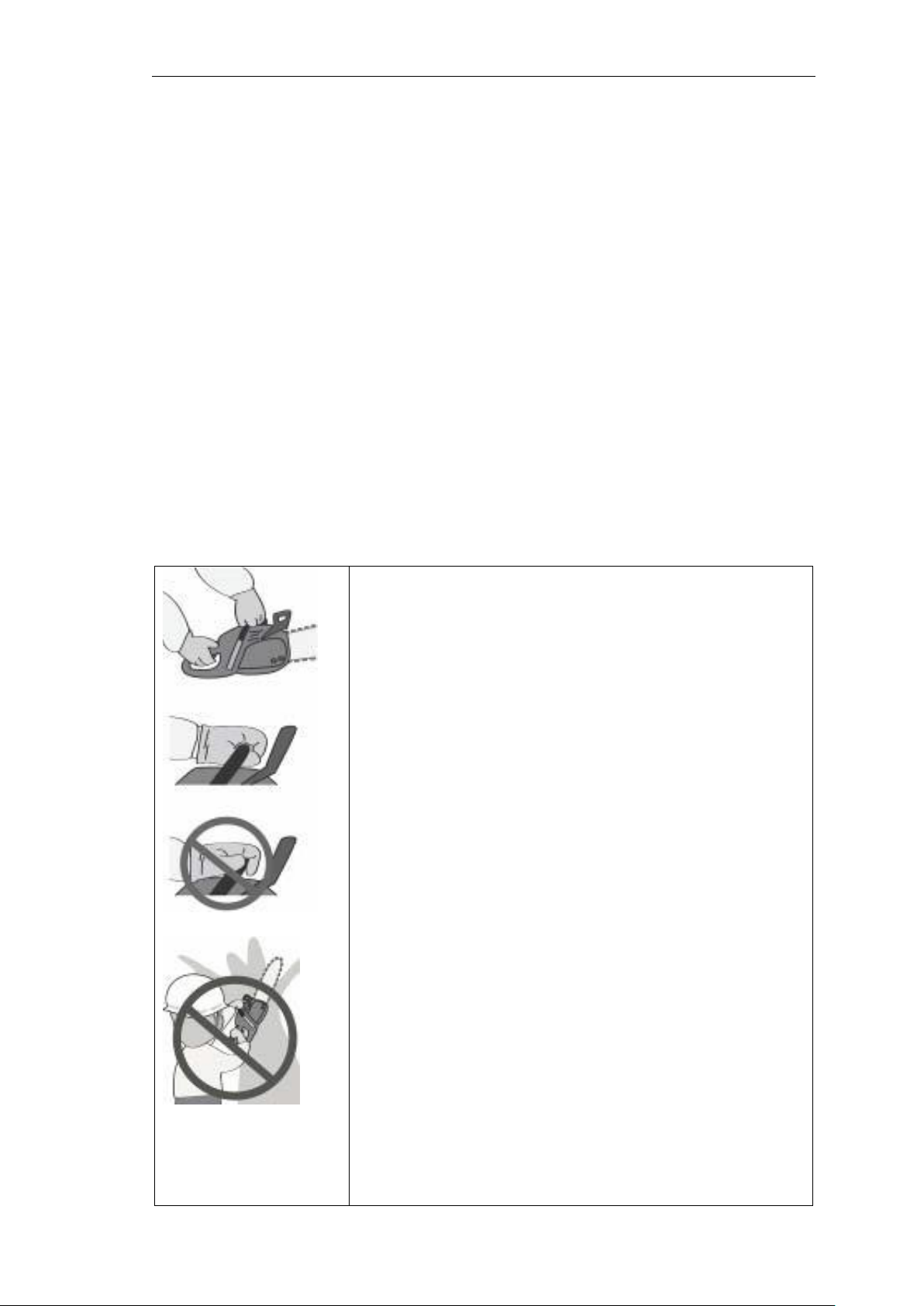

When the engine is running, always hold the
chainsaw with both hands, with all fingers firmly
grasping the handle of the chainsaw
Keep all other parts of the body away from the
chainsaw while the engine is running

Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08
10
All maintenance work on the chainsaw - with the
exception of the work listed in the operating
instructions - must be carried out by qualified
maintenance personnel
Be especially careful when cutting bushes and
undergrowth, as thin twigs can get caught in the
chain and throw you off balance or cause injury.
When cutting a branch that is under load, pay
attention to the kickback so that the rebounding
branch does not cause injury when it is cut.
When sawing, always use the claw stop on the
tree trunk.
Pay particular attention to the kickback. This is a
jerky upward movement of the guide rail caused
by the tip of the guide rail touching a solid
object. This kickback is dangerous and can cause
you to lose control of the device.
Attention must always be observed:
- exhaust fumes, lubricating oil vapour and sawdust are dangerous!
- Perform the cleaning and maintenance work before storage.
- Danger of improper maintenance, use of non-compliant spare parts, or
removal or modification of the safety devices can cause damage to the
equipment and serious injury to the person working with it.
- Check regularly that the cutting tool stops rotating when the engine is
idling.
- The device is not intended to be used by children.
- Please note that national regulations may restrict the use of the device.
- Inspect the device before each use and after dropping or other shocks to
determine significant damage or defects.
- It is necessary to receive training before use.
- Use cutting tools recommended by the manufacturer and suitable
protectors. The use of other insert tools and other accessories may cause a
risk of injury to the user. Always keep the chainsaw in good operating
condition.
- The chainsaw is equipped with a claw stop. The claw stop is for safe and
easy operation of the chainsaw. It increases your stability when carrying out
vertical sawing work.
Warning! Always use the claw stop when using. It can be anchored in the
wood and can thus be used as a pivot point.
Always place the saw flat and close to the claw fence to avoid danger.
- Always switch off the device before adjusting and mounting the device.
- Keep the chainsaw in good operating condition.

Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08
11
PRECAUTIONS FOR CHAINSAW USERS WITH REGARD TO KICKBACK
CAUTION Kickback of the chainsaw can be caused by contact of the guide
bar tip with a solid object, or if the wood to be cut is compressed and the
guide bar becomes jammed during cutting.
Contact of the tip of the guide rail with a solid object can in some cases
cause a lightning fast kickback, throwing the guide rail backwards and
upwards towards the operator. Pinching the saw-chain at the upper part of
the guide bar may cause it to bounce back and towards the operator with a
quick movement. If either of these events occurs, you could lose control of
the chainsaw, which could result in serious injury.
Do not rely solely on the built-in safety features of your chainsaw. As a user
of this equipment, you must take some precautions to ensure that all work
with the saw can be performed without accident or injury
If you become reasonably familiar with the causes and characteristics of
kickback, you will reduce or eliminate the element of surprise, which
eliminates a common cause of accidents.
When the engine is running, always hold the
chainsaw firmly with both hands, the right hand on
the rear handle and the left hand on the front
handle. Grasp the handles firmly with the whole
hand. A firm grip reduces the effect of the kickback
and helps you to keep the device under control.
Make sure that the working area is free of
obstacles. Make sure that when cutting, the tip of
the guide rail does not come into contact with other
logs, branches or obstacles, which could cause an
accident.
Always carry out the cutting process at a high
motor speed.
When cutting, ensure good balance and do not
extend your arms too far forward, and do not cut
above shoulder height.

Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08
12
Follow the manufacturer's instructions when
servicing and sharpening the chain.
If the guide bar or chain needs to be replaced, fit
only the manufacturer's recommended replacement
parts or equivalent.

Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08
13
6. Mounting the blade and the saw chain
Before mounting, the claw stop (No.15, page 5)
must be mounted at the intended location
Please fasten the claw stop (A) with the Allen
screws (B) included in the package
The standard equipment for the chainsaw
consists of the following parts shown in the
figure:
(1) Drive device
(2) Chain blade protective cover
(3) Chain blade
(4) Saw chain
(5) Allen key
(6) Screwdriver for oil thickness adjustment
Open the box; then attach the guide rail and
chains to the drive device according to the
following instructions:
ATTENTION: The teeth of the saw-chain are
very sharp, so wear thick protective gloves
when handling.
1. Pull the front hand guard towards the front
handle to check that the chain brake is not
activated.
2. Loosen the nuts and remove the chain cover
3. Attach the chain to the sprocket, then mount
the centreboard to the drive device while
The saw-chain is placed on the chain stay. The
nut of the chain tensioner on the chain cover.
(1) chain tensioner
(2) chain tensioning nut
NOTE Make sure that the saw-chain is installed
in the correct running direction in (1)
4. Mount the chain cover on the drive device
and screw on the nuts by hand.

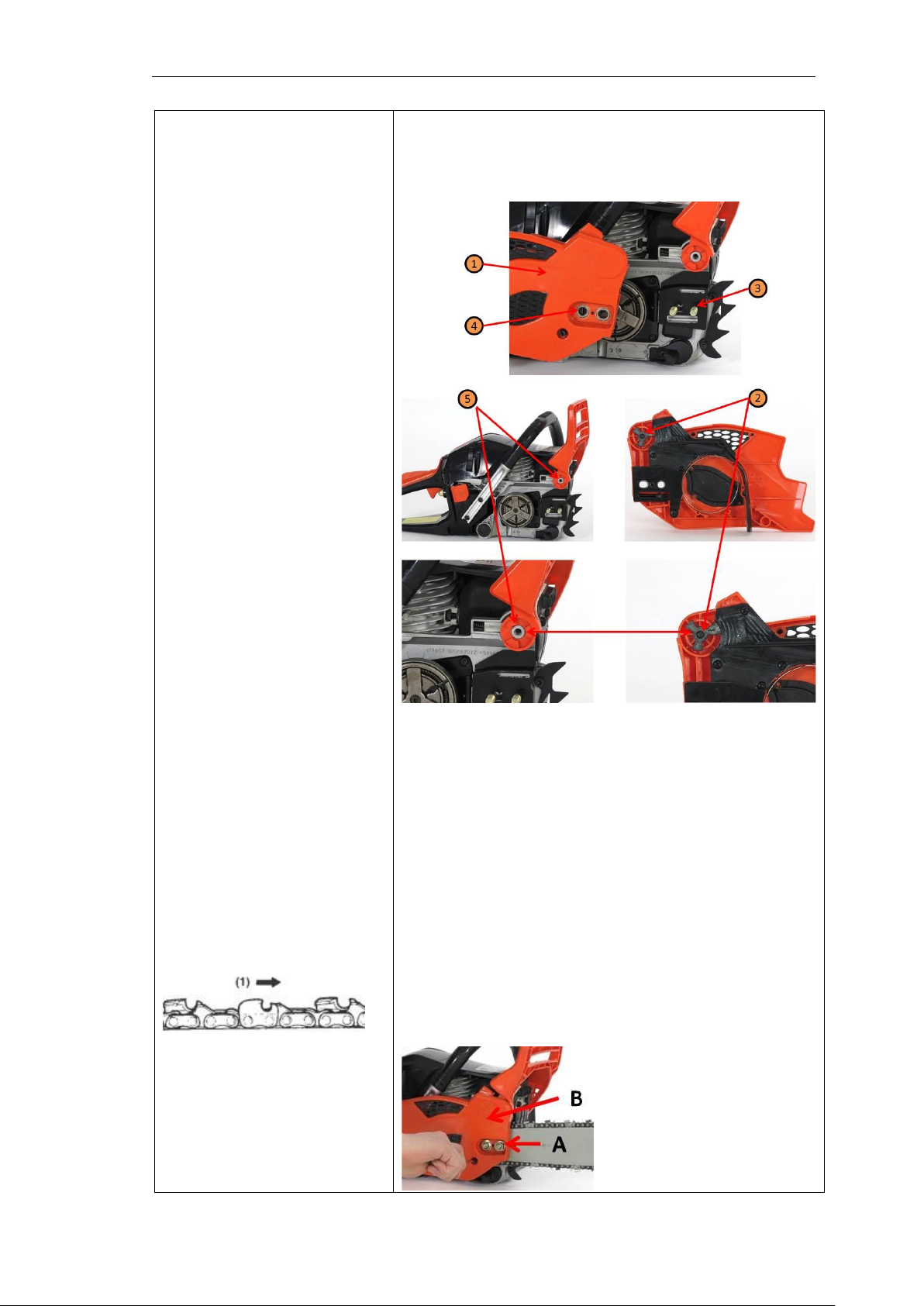

5. Mount the chain cover (1) over the stud bolts
(3) and chain tensioning nut.
Align the locating bore (4) with the stud bolt
(3). Push the chain cover (1) onto the stud

Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08
14
bolts (3).
When sliding on the chain cover, the locking
wheel (2) must be engaged in the holder (5)
provided for this purpose on the chain brake.
Adjust the position of the chain tensioning nut
on the chain cover to the lower hole of the
guide bar (next page)
(A) Clamping nut
(B) Chain cover
NOTE
Observe the correct direction of the saw-chain
(1) Direction of movement
(2)
6. fasten the chain cover to the drive unit finger
tight with nuts.

Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08
15
7. Adjust the chain tension by turning the
tensioning screw until the brackets just touch
the bottom of the guide rail.
8. Tighten the nuts securely with the guide tip
held (12-15Nm). Then check the chain for a
smooth turn and correct tension when moving
it by hand. If necessary, readjust with the loose
chain cover.
9. Tighten the clamping screw.
(1) Release
(2) Tightening
(3) Adjusting screw
If there is a blockage between the material to
be cut and the saw-chain, switch off the device.
Wait until the saw-chain has come to a
standstill. Put on cut-resistant gloves and
remove the blockage. If the saw-bar must be
removed, follow the instructions as described in
the chapter on setting up the device. After
removing and reinstalling the device, a test run
must be carried out. If vibrations or mechanical
noises are detected, stop working and contact
your dealer.
ATTENTION
A new chain extends at the beginning. Check and readjust the tension
frequently. A loose chain wears quickly and can easily slip off the guide bar.
CHECKING THE CHAIN TENSION
- The chain tension should be checked frequently during work and adjusted
if necessary.
- Tension the chain as tight as possible, but in such a way that it can still be
easily pulled along the guide rail by hand.
WARNING
- Make sure that the engine is switched off when checking the chain
tension.

Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08
16
7. Fuel and chain oil
FUEL
The engines are lubricated with oil that has a
special formula for use with air-cooled 2-stroke
petrol engines. Please use an oil with
antioxidant additive specifically designed for
use with 2-stroke air-cooled petrol engines. For
this purpose, we recommend specially adapted
FUXTEC 2-stroke oil "Made in Germany" for
a long durability of the engine (available
directly from the manufacturer).
Carefully fill the two-stroke mixture into the
tank (p.5 No.9). Make sure that no petrol
mixture runs outside the tank (danger of
ignition)
RECOMMENDED MIXING RATIO
FUEL/OIL 40:1
It must be ensured that gasoline with a
minimum octane number of 95RON is used.
Petrol in litres 1 2 3 4 5
2-stroke oil in ml 25 50 75 100 125
Keep open fire away from areas where fuel is
used or stored. Mix and store fuel only in
approved canisters.
NOTE
Most damage is caused directly or indirectly by
the fuel used. Never use 4-stroke oil for mixing.
FUXTEC SAW CHAIN OIL
We recommend the use of FUXTEC saw-chain
oil "Made in Germany" for long durability
(Available at FUXTEC direct).
Do not use used oil or reconditioned engine oil
as this could cause the oil pump to malfunction.
Carefully fill the chain lubricating oil into the oil
tank (p.5 No.10). Make sure that no chain
lubricating oil runs outside the tank (danger of
ignition)

Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08
17

Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08
18

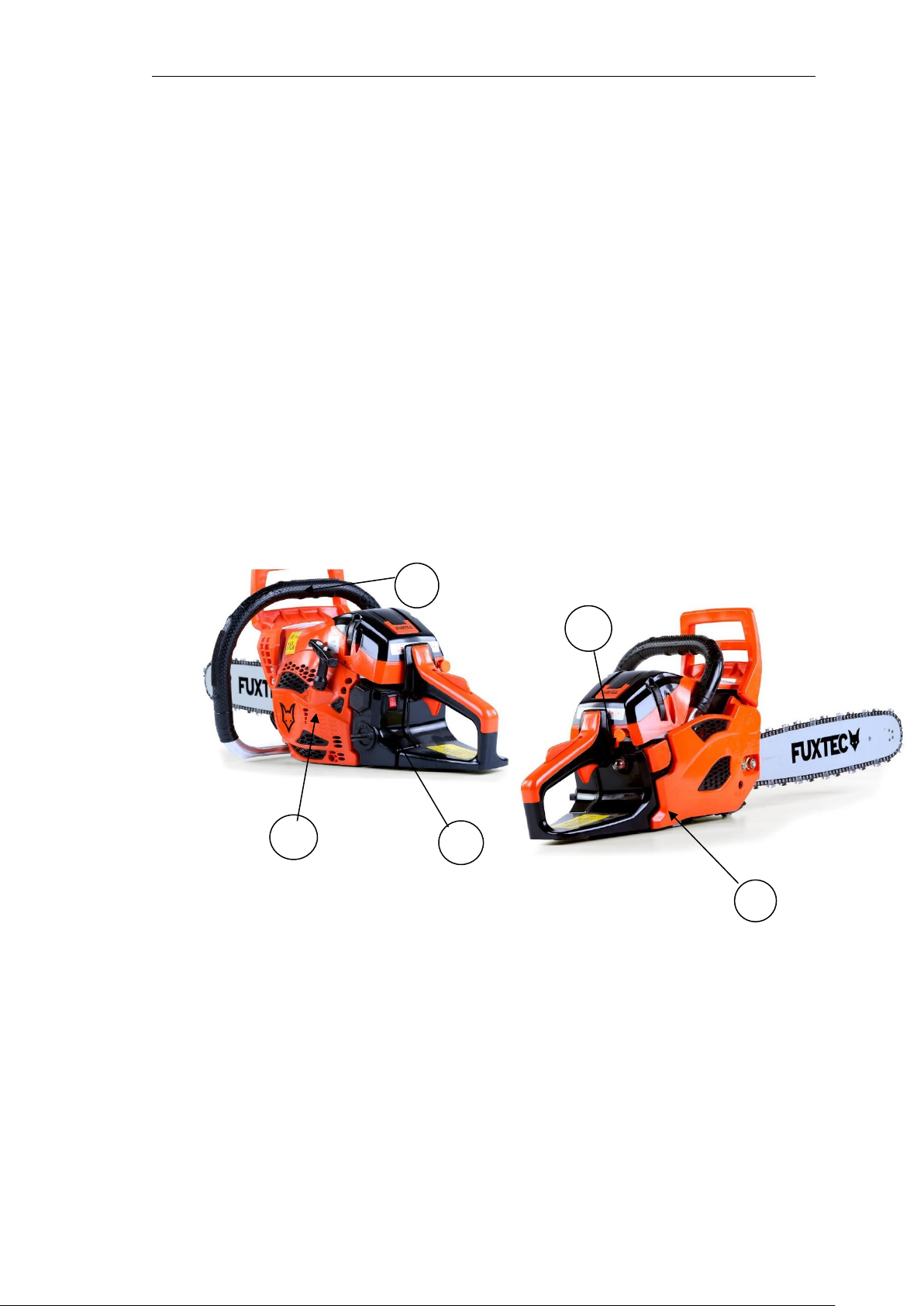

8. Cold start of the chainsaw
1. Pull out the choke (1) knob as far as it will go
2. Press the primer pump (2) 2-3 times
3. Block the chain brake (3) by pushing it forwards until you hear it
engage
4. Set the STOP switch (4) to position "1".
5. Place the saw on the floor and secure it with your right foot on the
floor
6. To do this, place your foot in the gas handle recess
7. Secure the saw with your left hand by holding the handle tube
8. Now start the saw by slowly pulling the pull starter (5) continuously.
ATTENTION: This is an Easy Starter. Therefore, DO NOT pull quickly
and jerkily. After the engine has ignited for the first time, you must
press the throttle lever to engage the automatic choke. Then pull the
cable starter until the engine starts
9. If the saw does not start, repeat this (point 8) several times
10. Release the chain brake immediately afterwards. Do not
accelerate when the chain brake is blocked, otherwise the clutch will
be damaged
Switch off the engine:
1. Set the STOP switch (4) to position "0
NOTE: Always drain the appliance before turning it off
2
1
3
5
4

Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08
19
9. Warm start of the chainsaw
1. The choke button (1) is not pulled when warm
2. Block the chain brake (3) by pushing it forwards until you hear it
engage
3. Set the STOP switch (4) to position "1".
4. Place the saw on the floor and secure it with your right foot on the
floor
5. To do this, place your foot in the gas handle recess
6. Secure the saw with your left hand by holding the handle tube
7. Now start the saw by slowly pulling the pull starter (5) continuously.
ATTENTION: This is an Easy Starter. Therefore, DO NOT pull quickly
and jerkily.
8. If the saw does not start, repeat this several times
9. Release the chain brake immediately afterwards. Do not accelerate
when the chain brake is blocked, otherwise the clutch will be
damaged
2
1
3
5
4

Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08
20
10. Operating the chainsaw
The saw-chain starts to rotate as soon as the motor starts, so make sure
that there is a sufficient safety distance
CHECKING THE OIL SUPPLY
After starting the engine, run the chain at
medium speed and check that the chain is
throwing oil, as shown in the figure.
(1) Chain oil
The amount of oil supplied can be regulated
by inserting a screwdriver into the opening at
the bottom of the
coupling side is inserted. Adjust the oil supply
quantity according to working conditions.
(1) Chain oil flow adjustment screw
(2) Less oil
(3) More oil
NOTE
It is possible that the oil tank will also empty
during fuel consumption. Therefore, make
sure that the oil tank is filled with oil each
time the saw is refuelled.
is filled up.
CARBURETTOR ADJUSTMENT
According to EU II the carburettor can only be
adjusted with a special tool. Therefore, the
chainsaw must be adjusted by a specialist
dealer. Please contact your local specialist or
the manufacturer directly.
Start the saw and let it run at medium speed
for about half a minute (so it gets a little
warm)
