FUXTEC FX-E1HE20 Product information sheet

Original User Manual FUXTEC 20V Cordless pole chainsaw FX-E1HE20
1

Original User Manual FUXTEC 20V Cordless pole chainsaw FX-E1HE20
2
Content
Introduction and safety ........................................................................................................................... 3
Intended use ........................................................................................................................................ 3
General safety instructions for power tools........................................................................................ 3
Workplace Safety ................................................................................................................................ 3
Electrical Safety ................................................................................................................................... 4
Safety of Persons ................................................................................................................................. 4
Use and treatment of the power tool ................................................................................................. 5
Use and handling of the cordless tool ................................................................................................. 5
Safety Instructions for the high branch cutter ........................................................................................ 6
General Safety Instructions ................................................................................................................. 6
Before Use ....................................................................................................................................... 6
During Operation ............................................................................................................................. 7
Causes and prevention of a kickback .............................................................................................. 9
After use ........................................................................................................................................ 10
Safety instructions for the charger .................................................................................................... 10
Safety Instructions for Li-Ion Batteries .............................................................................................. 10

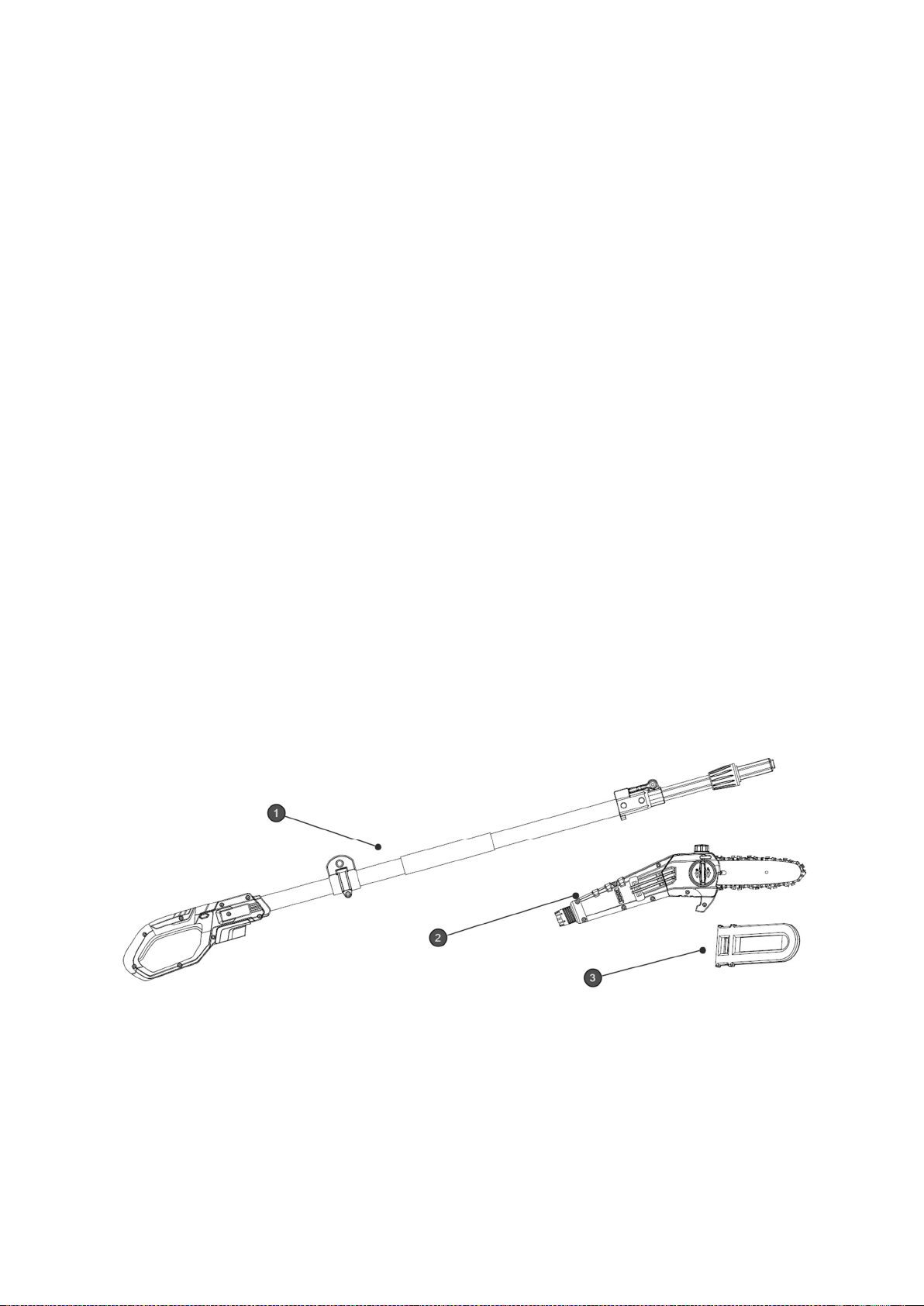

Presentation .......................................................................................................................................... 11

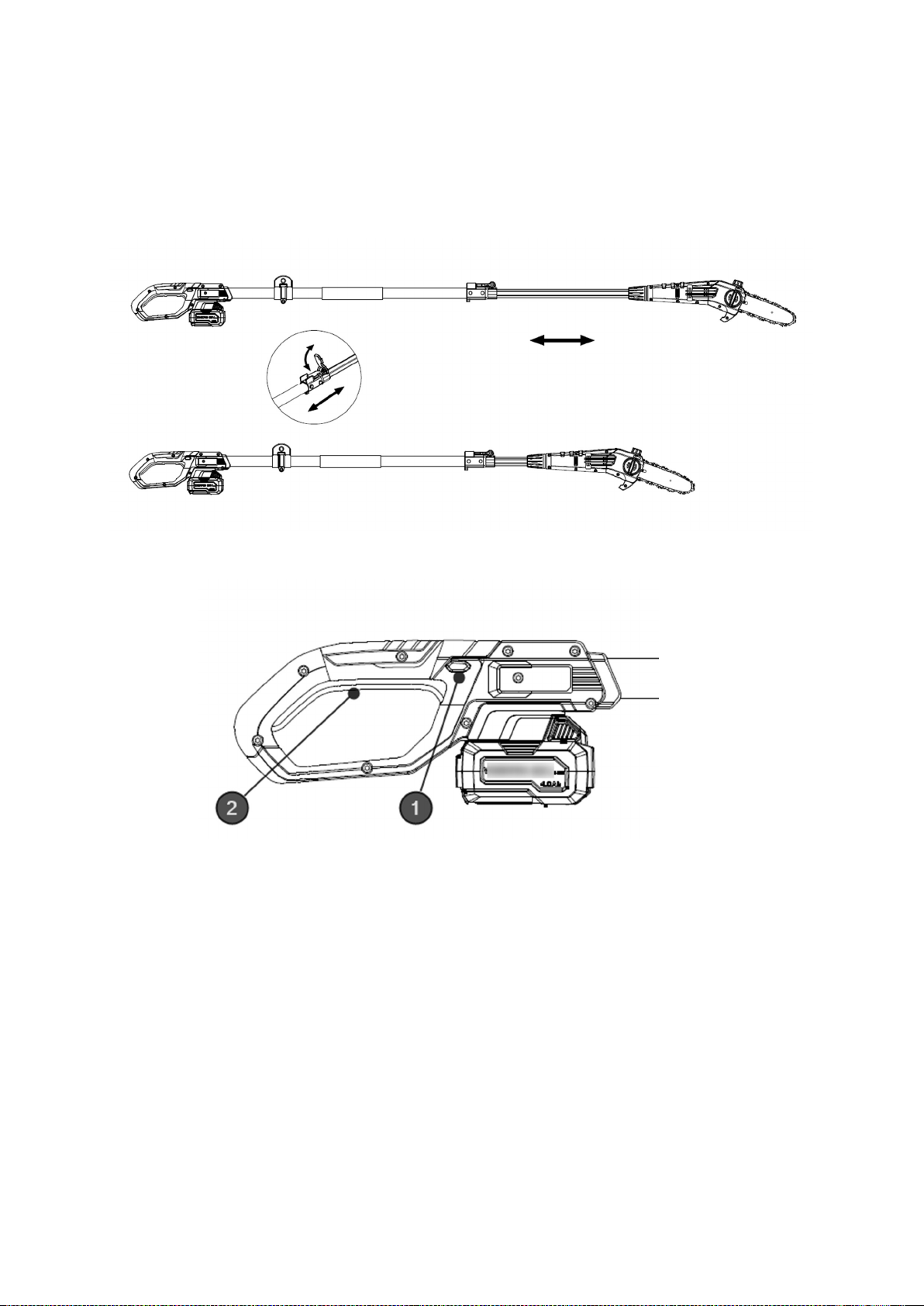

Switching the device on/off .................................................................................................................. 15

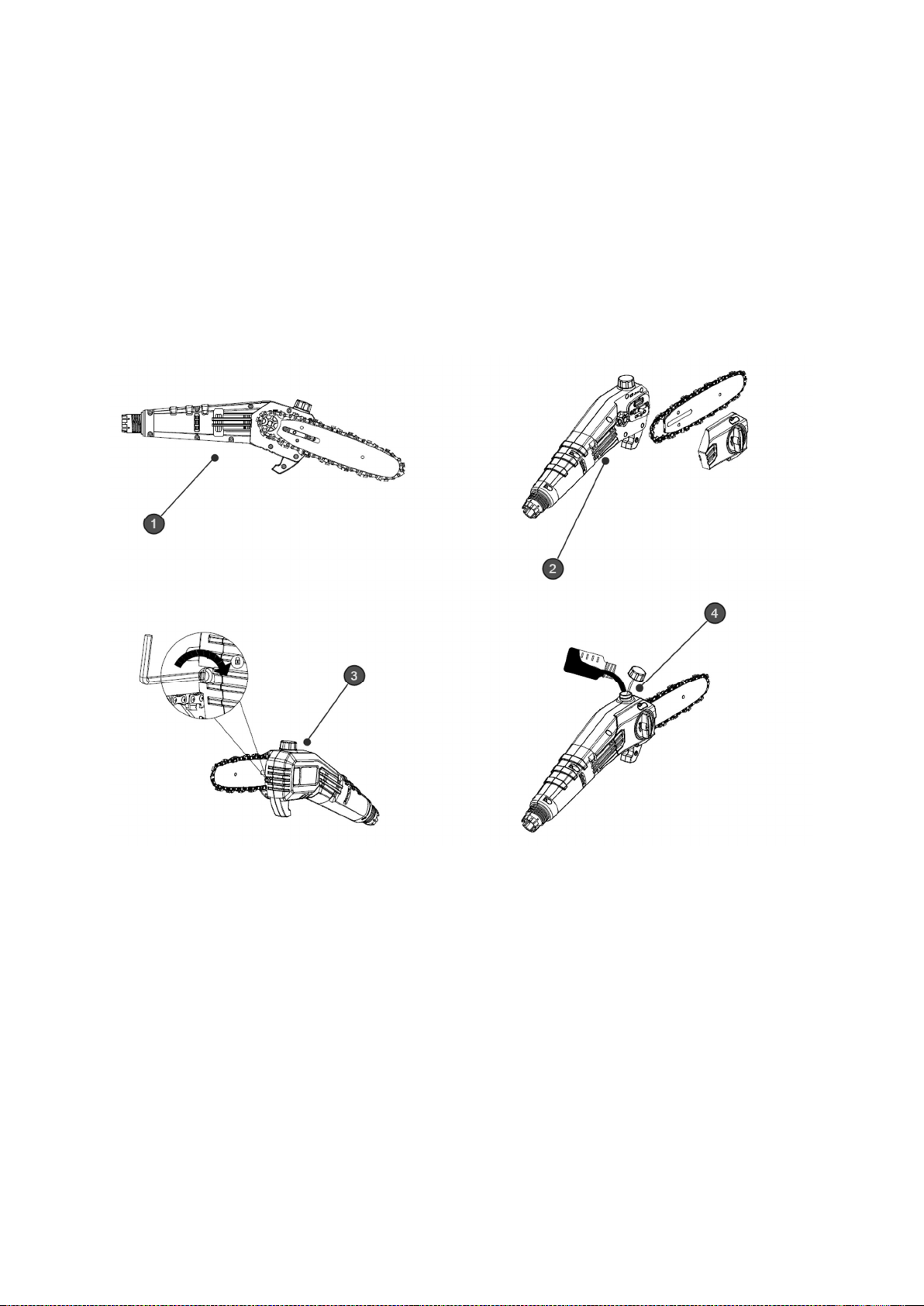

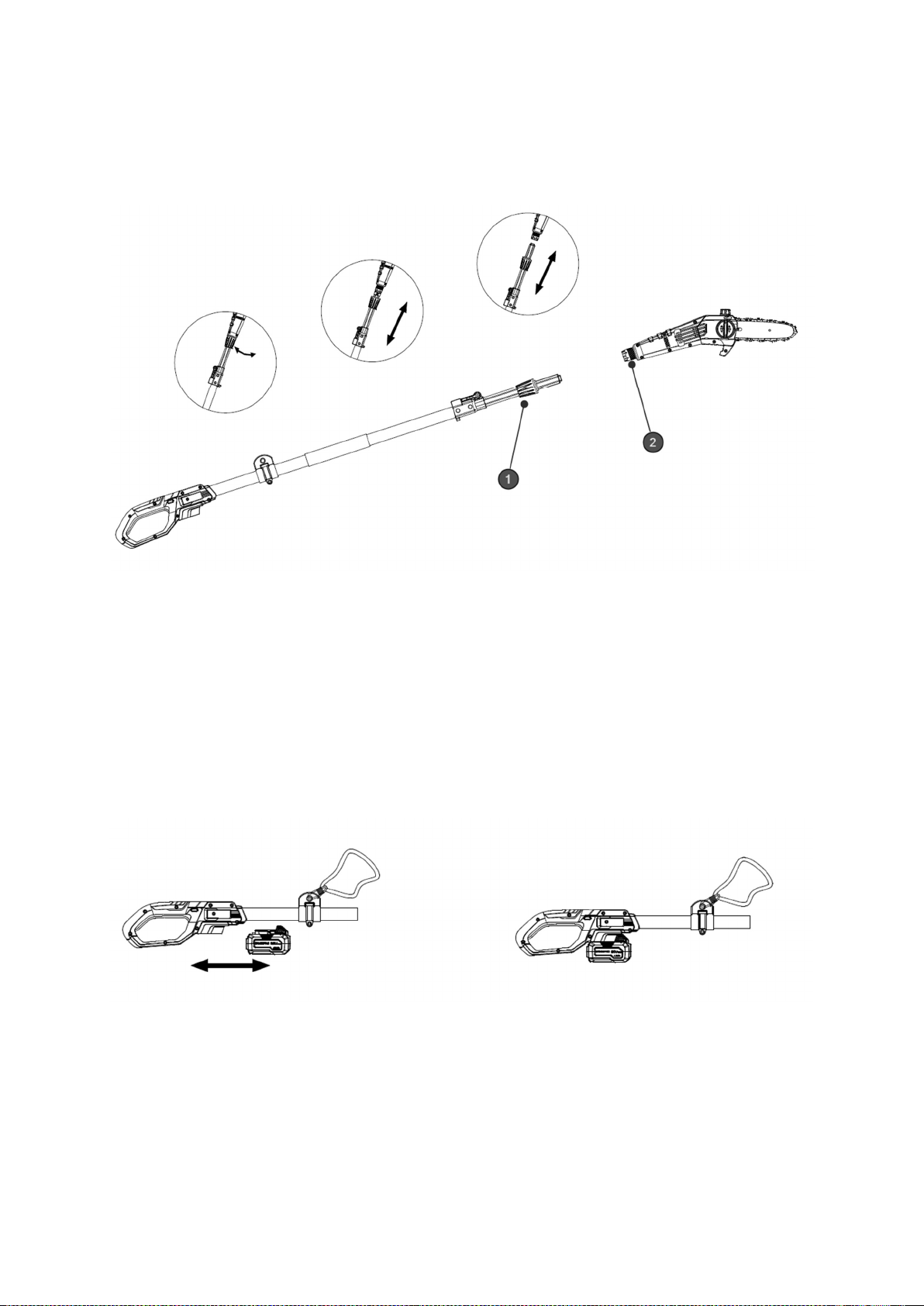

Working Instructions ............................................................................................................................. 15
Maintenance and care ........................................................................................................................... 16
Disposal ................................................................................................................................................. 16
Technical Data ....................................................................................................................................... 17
EC Declaration of Conformity ................................................................................................................ 18

Original User Manual FUXTEC 20V Cordless pole chainsaw FX-E1HE20
3
Introduction and safety
Never allow children or persons unfamiliar with these instructions to use the garden device. Children
should be supervised to ensure that they do not play with the appliance.
Intended use
This device is exclusively intended for the care of trees and bushes in private areas.
It is not suitable for felling trees, not for sawing plastic, masonry
or building materials that are not of wood.
The device must be used following the descriptions
and safety instructions are given in this user manual. Any other use is not intended. Unauthorized
use will invalidate the warranty and override any responsibility on the part of the manufacturer. The
user is liable for all damages to third parties and their property. Operate the device only in the
technical condition prescribed and delivered by the manufacturer. Unauthorized modifications to the
device exclude the manufacturer's liability for any resulting damage.
General safety instructions for power tools
WARNING!
Read all safety notices and instructions. Failure to follow the safety instructions and instructions can
cause electric shock, fire, and/or severe injury.
Keep all safety notes and instructions for future reference.
The term power tool used in the safety instructions refers to mains operated power tools (with
power cord) and cordless power tools (without power cord).
Workplace Safety
- Keep your work area clean and well lit. Clutter or unlit work areas can lead to accidents.
- Do not work with the power tool in explosive environments containing flammable liquids, gases, or
dust. Power tools produce sparks that can ignite the dust or fumes.
- Keep children and other persons away while using the power tool. If distracted, you may lose
control of the device.

Original User Manual FUXTEC 20V Cordless pole chainsaw FX-E1HE20
4
Electrical Safety
- The plug of the power tool must fit into the socket. The cap must not be changed in any way. Do
not use adapter plugs together with grounded power tools. Unchanged plugs and suitable sockets
reduce
the risk of electric shock.
- Avoid physical contact with grounded surfaces such as pipes, heaters, stoves, and refrigerators.
There is an increased risk of electric shock if your body is grounded.
- Keep power tools away from rain or moisture. The penetration of water into a power tool increases
the risk of electric shock.
- Do not use the cable to carry or hang up the power tool or to pull the plug from the socket. Keep
the cord away from heat, oil, sharp edges, or moving parts. Damaged or tangled cables increase the
risk of electric shock.
- If you use a power tool outdoors, only use extension cables that are suitable for outdoor use. The
use of an extension cable
ideal for outdoor use reduces the risk of electric shock.
- If you use a power tool outdoors, only use extension cables that are suitable for outdoor use. The
use of an extension cable
ideal for outdoor use reduces the risk of electric shock.
Safety of Persons
- Be alert, pay attention to what you are doing, and use common sense when working with a power
tool. Do not use a power tool if you are tired or under the influence of drugs, alcohol, or medication.
A moment of inattention while utilizing the power tool can cause serious injury.
- Wear personal protective equipment and always protective goggles. Wearing personal protective
equipment, such as dust mask, non-slip safety shoes, safety helmet or hearing protection,
depending on the type and use of the power tool reduces the risk of injury.
- Avoid unintentional commissioning. Make sure that the power tool is switched off before
connecting it to the power supply and/or battery, picking it up or carrying it. If you have your finger
on the switch when carrying the power tool
or if you connect the device to the power supply while it is switched on, this can lead to accidents.
- Remove adjustment tools or wrenches before turning on the power tool. A tool or key that is in a
rotating part of the device
can cause injury.
- Avoid an abnormal posture. Make sure you have a secure
Stand up and keep your balance at all times. This allows you to better control the power tool in
unexpected situations.

Original User Manual FUXTEC 20V Cordless pole chainsaw FX-E1HE20
5
- Wear suitable clothing. Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away
from moving parts. Loose clothing, jewelry, or long hair can be caught by moving parts.
Use and treatment of the power tool
- Do not overload the device. Use the appropriate power tool for your work. With the right power
tool, you will work better and safer in the specified power range.
- Do not use a power tool with a defective switch. A power tool that can no longer be switched on or
off is dangerous and must be repaired.
- Unplug the power cord and/or remove the battery before making any adjustments to the device,
changing accessories, or putting the device away. This precaution prevents unintentional starting of
the power tool.
- Keep unused power tools out of the reach of children. Do not allow persons to use the device which
is not familiar with it or have not read
these instructions. Power tools are dangerous if they are used by inexperienced persons.
- Maintain power tools with care. Check that moving parts function correctly and do not jam, that
parts are not broken or damaged in such a way that the function
of the power tool is impaired. Have damaged parts repaired before using the device. Many accidents
are caused by poorly maintained power tools.
- Keep cutting tools sharp and clean. Carefully maintained cutting tools
with sharp cutting edges jam less and are easier
to guide.
- Use power tools, accessories, insertion tools, etc. according to these instructions. Take into account
the working conditions and the job to be performed. The use of power tools for applications other
than those intended can
lead to dangerous situations.
Use and handling of the cordless tool
- Charge the batteries only with chargers recommended by the manufacturer. A charger that is
suitable for a particular type of battery poses a fire hazard when used with other batteries.
- Only use the batteries provided in the power tools. Using other batteries may result in personal
injury and fire hazards.

Original User Manual FUXTEC 20V Cordless pole chainsaw FX-E1HE20
6
- Keep the unused battery away from paper clips, coins, keys, nails, screws, or other small metal
objects that could cause the contacts to bridge. A short circuit between the battery contacts can
cause burns or fire.
- The liquid may leak from the battery if misused. Avoid any contact with it. In case of accidental
contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking
battery fluid may cause skin
irritation or burns.
Safety Instructions for the pole chainsaw
General Safety Instructions
- For your safety and the safety of others, read this user manual and its safety instructions before
using the device. Please keep the user manual and its safety instructions in a safe place for future
reference and keep them handy for any use.
- Pass on the operating instructions with the device if there is a change of ownership.
- Persons operating the device must not be under the influence of intoxicating substances (e.g.,
alcohol, drugs, or medicines).
- Operate the device only in the condition prescribed and delivered by
the manufacturer. Unauthorized modifications to the device exclude the manufacturer's liability for
any resulting damage.
- Only use the device in daylight or under good artificial lighting.
- Only use the device in dry weather conditions. Keep it away from rain or moisture. The penetration
of water into the device increases the risk of electric shock.
- Switch off the device and remove the battery in the following conditions:
 if the device is left unattended;
 before checking, cleaning or other work on the device;
 if the device starts to vibrate excessively.
Before Use
- Familiarise yourself with the pole saw and its functions and controls before starting work.
- Check the device for signs of wear or damage before starting up and after a collision.
- Do not use a device whose switch is defective and can no longer be switched on or off.
- Check that all nuts, bolts, and screws are tight to ensure that the device is operated safely.

Original User Manual FUXTEC 20V Cordless pole chainsaw FX-E1HE20
7
- Never use a device with damaged or missing parts. Have them repaired or replaced if necessary by a
qualified specialist or workshop.
- When working with or on the device, always wear sturdy shoes, long trousers, and the appropriate
personal protective equipment (safety goggles, hearing protection, non-slip work gloves, etc.). The
wearing of personal protective equipment reduces the risk of injury.
- Do not wear jewelry or loose clothing that could be detected by the high branch cutter. Keep long
hair away from the cutting unit.
- Remove adjusting tools or wrenches before you switch on the high branch cutter. A tool or key that
is in a moving part of the device can cause injury.
- Ensure sufficient lubrication of the chain. If too little lubrication is applied to the chainsaw, it is very
likely to be damaged or may tear.
During Operation
- Do not operate the device if persons (especially children) or animals are in the immediate vicinity.
- Interrupt work if you notice that people (especially children) or pets are nearby.
- Always keep your hands and feet away from the moving blades, especially when you switch on the
high branch cutter.
- Avoid an abnormal posture. Make sure you have a secure
Stand up and keep your balance at all times. This allows you to better control the pole saw in
unexpected situations and on particularly sloping areas.
- Do not use the pole saw in potentially explosive environments containing flammable liquids, gases,
or dust. The pole saw can produce sparks that can ignite the dust or vapors.
- Exercise particular caution when walking backward. There is a danger of tripping!
- Walk at a walking pace only.
- Never leave the device unattended during work interruptions and store it in a safe place.
- Keep all parts of the body away from the chain saw. Do not try to remove material to be cut or hold
material to be cut while the blade is running. Only remove trapped cutting material
when the device is switched off. A moment of inattention while using the pole saw can cause serious
injury.
- Carry the pole saw on the handle with the blade at rest. Always remove the battery when
transporting or storing the device. Careful handling of the device reduces the risk of injury from the
chain saw.

Original User Manual FUXTEC 20V Cordless pole chainsaw FX-E1HE20
8
- Hold the power tool only by its insulated grip surfaces, as the chain saw may come into contact with
concealed power lines. Contact of the saw
a live wire can put metal parts of the device under-voltage and lead to an electric shock with a live
wire that can put metal parts of the device under-voltage and lead to an electric shock.
- During the cutting process, make sure that no persons (especially children) or animals are in the
working area.
-While the saw is running, keep all parts of the body away from the saw-chain. Before starting the
saw, make sure that the saw-chain does not touch anything. When working with a high branch
cutter, a moment of carelessness can cause clothing or body parts to be caught by the saw chain.
- Wear protective goggles and hearing protection. Further protective equipment for the head, hands,
legs, and feet is recommended. Suitable protective clothing reduces the risk of injury from flying
chips and accidental contact with the saw chain.
- Do not work with the pole saw on a tree. There is a risk of injury when operating on a tree.
- Only use the device in dry weather conditions. Keep it away from rain or moisture.
- Always ensure a firm stand and only use the pole saw when standing on firm, safe, and level
ground. Slippery surfaces or unstable standing surfaces, such as on a ladder, can lead to loss of
balance or loss of control over the high branch cutter.
- Make sure that the chain saw does not come into contact with the ground or other objects during
operation.
-When cutting a branch that is under tension, expect it to spring back. If the tension in the wood
fibers is released, the tensioned branch may hit the operator and/or snatch the control away from
the high branch cutter.
- Be especially careful when cutting undergrowth and young
trees. The thin material can get caught in the saw-chain and strike you or throw you off balance.
- Wait until the power tool has stopped before putting it down.
- Never leave the device unattended during work interruptions and store it in a safe place.
- Always switch off the pole saw when transporting to other workstations.
- Never touch the pole saw on the cutting blade.
- Carry the pole saw on the front handle with the saw-chain facing away from your body. When
transporting or storing the high branch cutter, always put on the protective cover. Careful handling
of the pole saw reduces the probability of accidental contact
with the running saw chain.
- Follow instructions for lubrication, chain tension, and changing accessories. An improperly
tensioned or lubricated chain can either break or increase the risk of kickback.

Original User Manual FUXTEC 20V Cordless pole chainsaw FX-E1HE20
9
-Keep handles dry, clean, and free from oil and grease. Greasy, oily grips are slippery and lead to loss
of control.
- Only saw wood. Do not use the pole saw for work for which it is not intended. Example: Do not use
the pole saw for sawing plastic, masonry, or building materials that are not made of wood. Using the
pole saw for work not following the regulations can lead to dangerous situations.
- Operate the device only in the condition prescribed and delivered by
the manufacturer. Unauthorized modifications to the device exclude the manufacturer's liability for
any resulting damage.
- Spare parts must meet the requirements specified by the manufacturer. Therefore only use original
spare parts or spare parts approved by the manufacturer. When replacing, please follow the
installation instructions supplied and remove the cordless high hedge trimmer first.
- Have repairs carried out exclusively by a qualified specialist or a specialist workshop.
Causes and prevention of a kickback
Kickback may occur if the tip of the saw-bar touches an object
or when the wood bends and the saw-chain jams in the cut. In some cases, contact with the bar tip
may cause an unexpected backward reaction, in which the saw-bar is knocked upwards and in the
direction of the operator.
Jamming the saw-chain at the upper edge of the saw-bar can quickly push the bar back in the
direction of the operator. Any of these reactions can cause you to lose control of the saw and
possibly injure yourself seriously. Do not rely solely on the safety devices built into the chain saw. As
a user of a chain saw,
you should take various measures to be able to work without
accidents, and injuries.
A kickback is the result of incorrect or faulty use of the power tool. It can be prevented by
appropriate precautions as described below:
- Hold the pole saw with both hands, with thumb and fingers around the handles of the pole saw. Put
your body and arms in a position where you can withstand the recoil forces. If suitable measures are
taken, the operator can control the recoil forces. Never release the pole saw.
- Avoid an abnormal posture. This prevents unintentional contact with the bar tip and provides
better control of the chainsaw in unexpected
situations.
- Always use replacement bars and saw chains specified by the manufacturer. Incorrect replacement
bars and saw chains can cause the chain to break and/or kickback.
- Follow the manufacturer's instructions for the sharpening and
maintenance of the saw-chain. Too low depth limiters increase the tendency to recoil.

Original User Manual FUXTEC 20V Cordless pole chainsaw FX-E1HE20
10
After use
- Turn off the device, remove the battery, and then place the device in a safe place.
- Do not store the device within reach of children.
- Make sure that the ventilation slots of the device are free of dirt.
- Spare parts must meet the requirements specified by the manufacturer.
Therefore only use original spare parts or spare parts approved by the manufacturer. When replacing
the battery, please follow the installation instructions provided and remove the battery
first.
- Have repairs carried out exclusively by a qualified specialist or a specialist workshop.
Safety instructions for the charger
- Keep the charger away from rain or moisture. The penetration of water into a charger increases the
risk of electric shock.
- Keep the charger clean. There is a risk of electric shock from soiling.
- Check the charger, cable, and plug before each use. Do not use the charger if you notice any
damage. Do not open the charger yourself and have it repaired only by qualified personnel and only
with original spare parts.
Damaged chargers, cables, and connectors increase the risk of electric shock.
- Do not place objects on the charger or place them on soft surfaces. There is a risk of fire.
- Always check that the mains voltage corresponds to the voltage indicated on the charger's
nameplate.
- Never use the charger if the cable, plug, or the device itself is damaged by external influences. Take
the charger to the nearest specialist workshop.
- Never open the charger under any circumstances. Take it to a specialist workshop in the event of a
fault.
Safety Instructions for Li-Ion Batteries
- Do not open the battery. There is a danger of a short circuit.
- Protect the battery from heat, including continuous exposure to sunlight, fire, water, and moisture.
There is a danger of explosion.

Original User Manual FUXTEC 20V Cordless pole chainsaw FX-E1HE20
11
- Vapors may escape if the battery is damaged or misused. Supply fresh air and consult a doctor if
you have any complaints. The vapors may irritate the respiratory tract.
- The liquid may leak from the battery if misused. Avoid any contact with it. In case of accidental
contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking
battery fluid may cause skin
irritation or burns.
- Only use original rechargeable batteries with the voltage specified on the rating plate of
your power tool. When using other batteries, e.g., imitation, reconditioned batteries, or batteries
from different manufacturers, there is a risk of injury and material damage due to exploding
batteries.
- The battery voltage must match the battery charging voltage of the charger. Otherwise, there is a
risk of fire and explosion.
- Charge the batteries only with chargers recommended by the manufacturer. A charger that is
suitable for a particular type of battery poses a fire hazard when used with other batteries.
- The battery can be damaged by pointed objects such as nails or screwdrivers or by an external
force. An internal short circuit may occur, and the battery may burn, smoke, explode or overheat.
Presentation
Figure 1: pole saw
1. Handle with telescopic rod
2. Motor with the chain saw
3. Protective cover for chain saw

Original User Manual FUXTEC 20V Cordless pole chainsaw FX-E1HE20
12
Figure 2: For maintenance and care
1. Lateral view of the chain saw
2. Motor, chain saw blade incl. chain and side cover incl.
Chain tensioning sprocket
3. Set screw for chain saw oil
4. Opening of the tank for chain oil (holder 65ml)

Original User Manual FUXTEC 20V Cordless pole chainsaw FX-E1HE20
13
Figure 3: De-installation of the motor with cutting head from the telescopic
linkage for space-saving storage or transport.
Figure 4: Installing the battery

Original User Manual FUXTEC 20V Cordless pole chainsaw FX-E1HE20
14
Figure 5: Using the telescopic extension
Figure 5: Extension of the working area by 70cm
Figure 6: Safety button and on/off switch for the use of the
pole saw

Original User Manual FUXTEC 20V Cordless pole chainsaw FX-E1HE20
15
Switching the device on/off
Insert the battery into the rail provided. Then push in the safety button (Figure 6, item 1) on the side,
only then you can operate the on/off switch (Figure 6, item 2). The device now turns on. If you
release the on/off switch, the device stops working. Attention: Cutting tools can still run on
minimally.
Working Instructions
- Search the work area and remove any disturbing objects.
- Check the safety of the device before starting work.
- Take the device in both hands.
- Switch on the pole saw before you begin cutting.
- Apply even pressure to the device, but not excessive force.
- Attention Risk of injury! Only use the pole saw up to a maximum angle of 60°. Never cut a branch
directly above your head!
- Start at the bottom of the log and work upwards.
- For a clean-cut, thick branches should be sawn in 2 steps:
Saw in the branch from base to top to 1/3 of the branch diameter (see right figure point 1.).
Saw through the branch a little further out from top to bottom (see right illustration point
2.).

Original User Manual FUXTEC 20V Cordless pole chainsaw FX-E1HE20
16
- Saw off longer branches piece by piece.
- When delimbing lying logs, always saw off the branches protruding freely into the air first. Do not
cut off support branches until the log has been sawn in lengths.
- Attention Risk of injury! Branches that are resting or under tension can wedge the saw-chain in the
wood.
Maintenance and care
Caution: before carrying out any work on the power tool, remove the cordless high hedge trimmer
from the device.
Sharp cutting teeth  Wear protective gloves!
Do not use water or liquid detergents.
- Clean the pole saw after each use with a dry cloth or with a brush in case of heavy contamination.
- Never spray the device with water.
- Keep the contacts of the battery and device clean and dust-free.
- Remove the chain cover and then use a soft brush to remove debris from the guide bar, saw chain,
sprocket, and chain cover.
- The saw-chain must not sag but should be in the middle of the saw-bar
Remove 2-3 millimeters from the saw-bar.
Disposal
WARNING!
Make used power tools unusable before disposal:
 mains-operated power tools by removing the connecting plug,
 cordless power tools by removing the battery.
For EU countries only
Do not throw power tools in household waste! According to the European Directive 2012/19/EC on
waste electrical and electronic equipment and its implementation in national law, used electrical
equipment must be collected separately and sent for environmentally sound recycling.

Original User Manual FUXTEC 20V Cordless pole chainsaw FX-E1HE20
17
Recovery of raw materials instead of waste disposal. The device, accessories, and packaging should
be recycled in an environmentally friendly manner. Plastic parts are marked for recycling according
to type.
WARNING!
Do not throw batteries in the household waste, fire, or water. Do not open worn-out batteries.
Batteries should be collected, recycled, or disposed of in an environmentally friendly manner.
For EU countries only: According to Directive 2006/66/EC, defective or exhausted batteries must be
recycled.
NOTE:
Please contact your local authority/city for information on disposal options,
Recycling raw materials instead of waste disposal.
Technical Data
Cordless pole saw
Sword length 8"
Saw chain speed 4m/s
Oil tank capacity 65 ml
Max. Sound power level 90 (LwA) dB
Measured sound power level 83 (LpA) dB
Weight (without battery) 3.5 kg
Max. battery life with full
2Ah battery
approx. 50
branches (with a
maximum
circumference of
60*60mm² wood)

Original User Manual FUXTEC 20V Cordless pole chainsaw FX-E1HE20
18
EC Declaration of Conformity
Producer FUXTEC GmbH
Kappstraße 69, 71083 Herrenberg Germany
Phone.: [phone]
Fax: [phone]
Email: [email protected]
Web: www.fuxtec.de
Name E1 20V Cordless Pole Saw
Model D06101700
EC directive MD Directive: 2006 / 42 /EC
Applicable standards
EN 62841-1：2015
EN ISO 12100：2010
EN 62841-4-2：2019
EN ISO 11680-1：2011
We hereby declare that the device mentioned above, due to its design, in the version marketed
by us, complies with the necessary safety and health requirements of the listed EC directive.
Hiermit erklären wir, dass die oben genannte Maschine die grundlegenden Sicherheits- und
Gesundheitsanforderungen der oben genannten EG-Richtlinien erfüllt. Any manipulation or
change of the machine not being explicity authorized by us in advance renders this document
null and void.
Storage of the technical documentation: FUXTEC GmbH ● Kappstraße 69 ● 71083 Herrenberg
● Germany, T. Gumprecht, Management
Herrenberg, 7 January 2020
Tim Gumprecht FUXTEC GmbH
KAPPSTRASSE 69
71083 HERRENBERG GERMANY

Original User Manual FUXTEC 20V Cordless pole chainsaw FX-E1HE20
19
