FUXTEC FX-E1KS20 Product information sheet

Original User Manual FUXTEC 20V battery chainsaw FX-E1KS20
1

Original User Manual FUXTEC 20V battery chainsaw FX-E1KS20
2
Contents
Introduction and safety........................................................................................................................... 3
Intended use........................................................................................................................................ 3
General safety instructions for power tools........................................................................................ 3
Workplace safety................................................................................................................................. 3
Electrical safety ................................................................................................................................... 3
Personal safety.................................................................................................................................... 4
Use and handling of the power tool.................................................................................................... 4
Use and handling of the cordless tool................................................................................................. 5
Safety instructions for chainsaws............................................................................................................ 5
General safety information ................................................................................................................. 5
Before use........................................................................................................................................ 6
During use........................................................................................................................................ 6
Causes and prevention of a kickback .............................................................................................. 8
After use.......................................................................................................................................... 9
Safety information for the charger ..................................................................................................... 9
Safety information for Li-Ion batteries.............................................................................................. 10

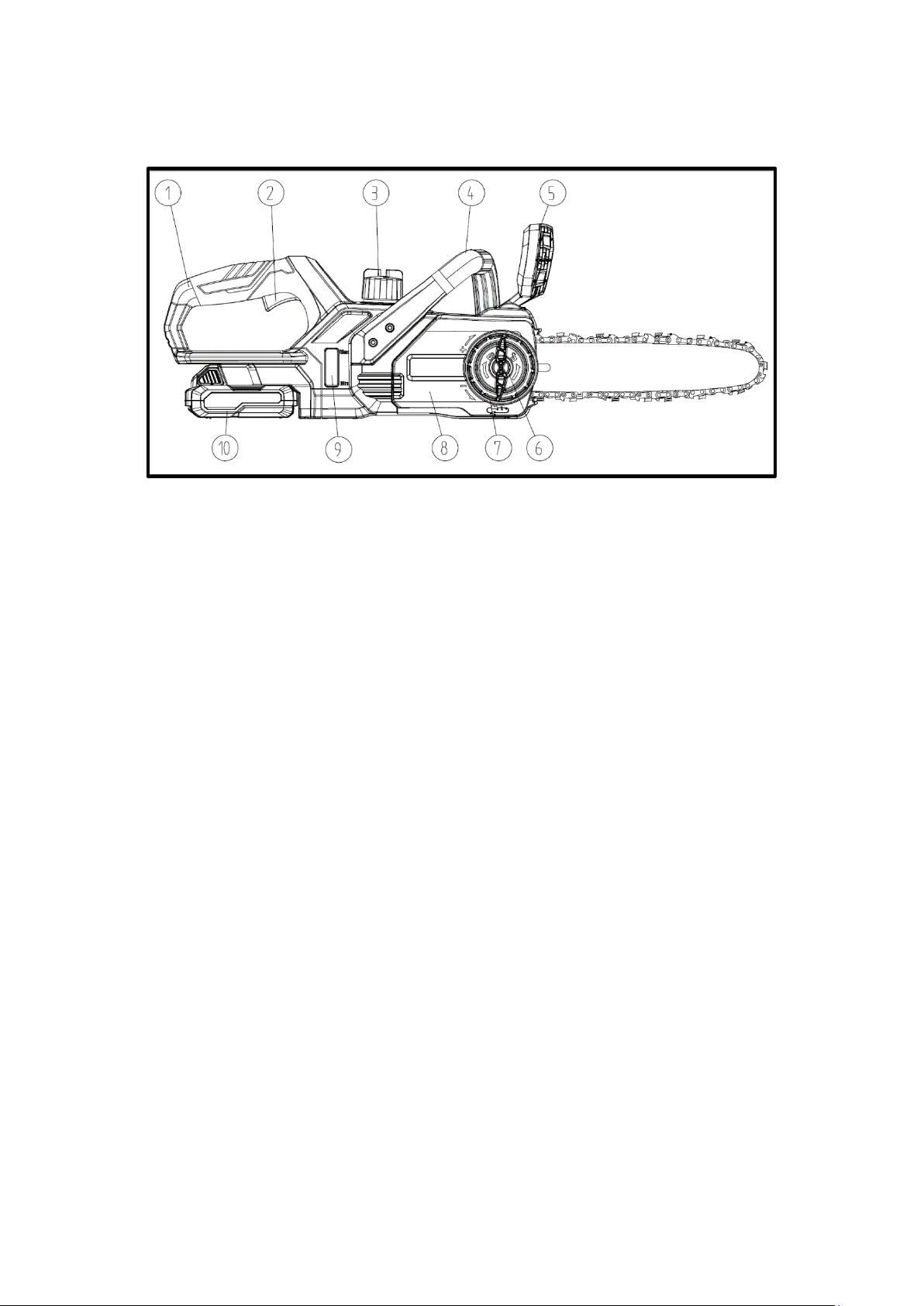

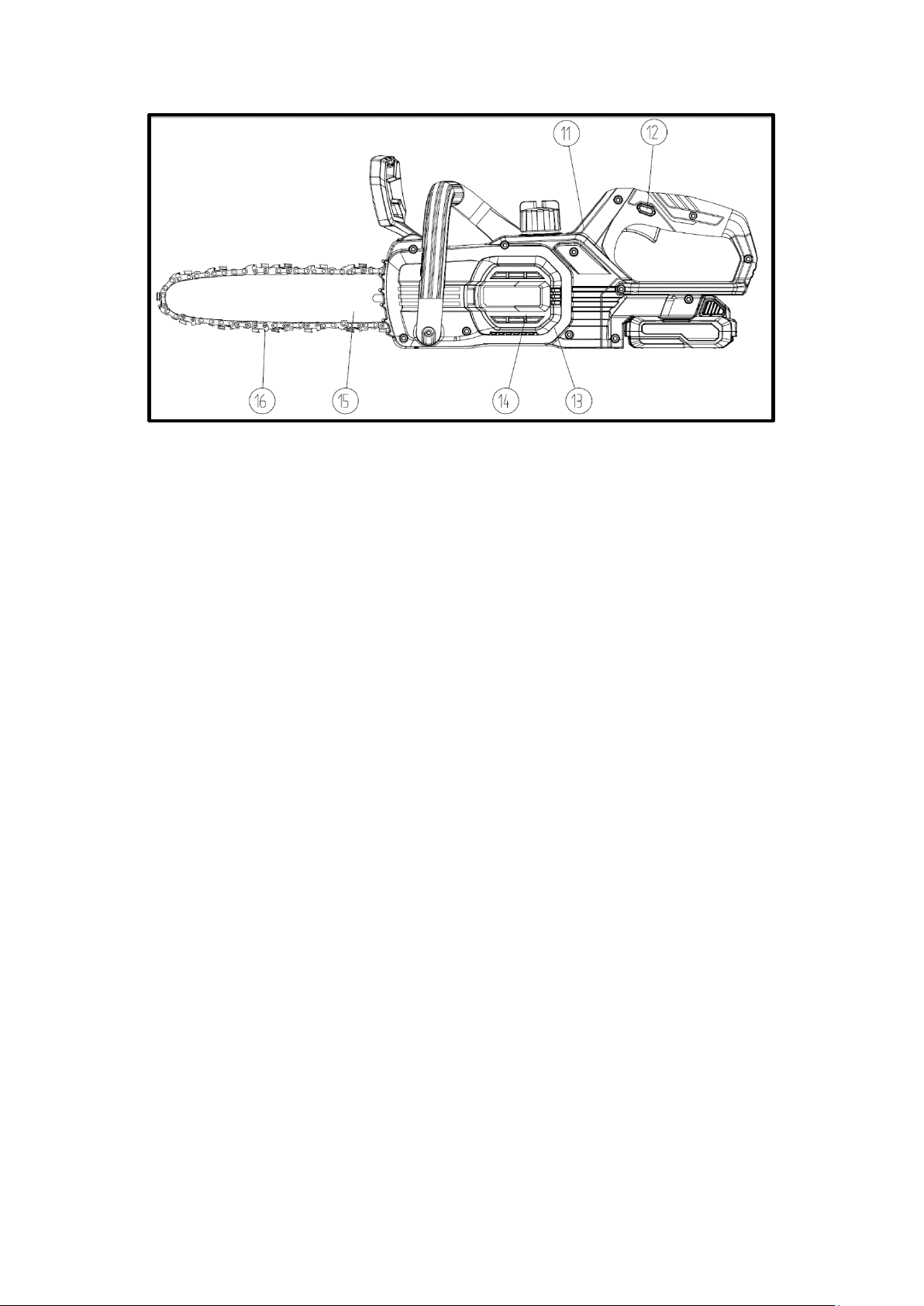

Presentation.......................................................................................................................................... 11
Switching the device on/off .................................................................................................................. 13
Operating notes..................................................................................................................................... 13
Manual activation and release of the chain brake............................................................................ 13
Checking the chain brake .................................................................................................................. 14
Chain lubrication ............................................................................................................................... 14
Basic working technique.................................................................................................................... 14

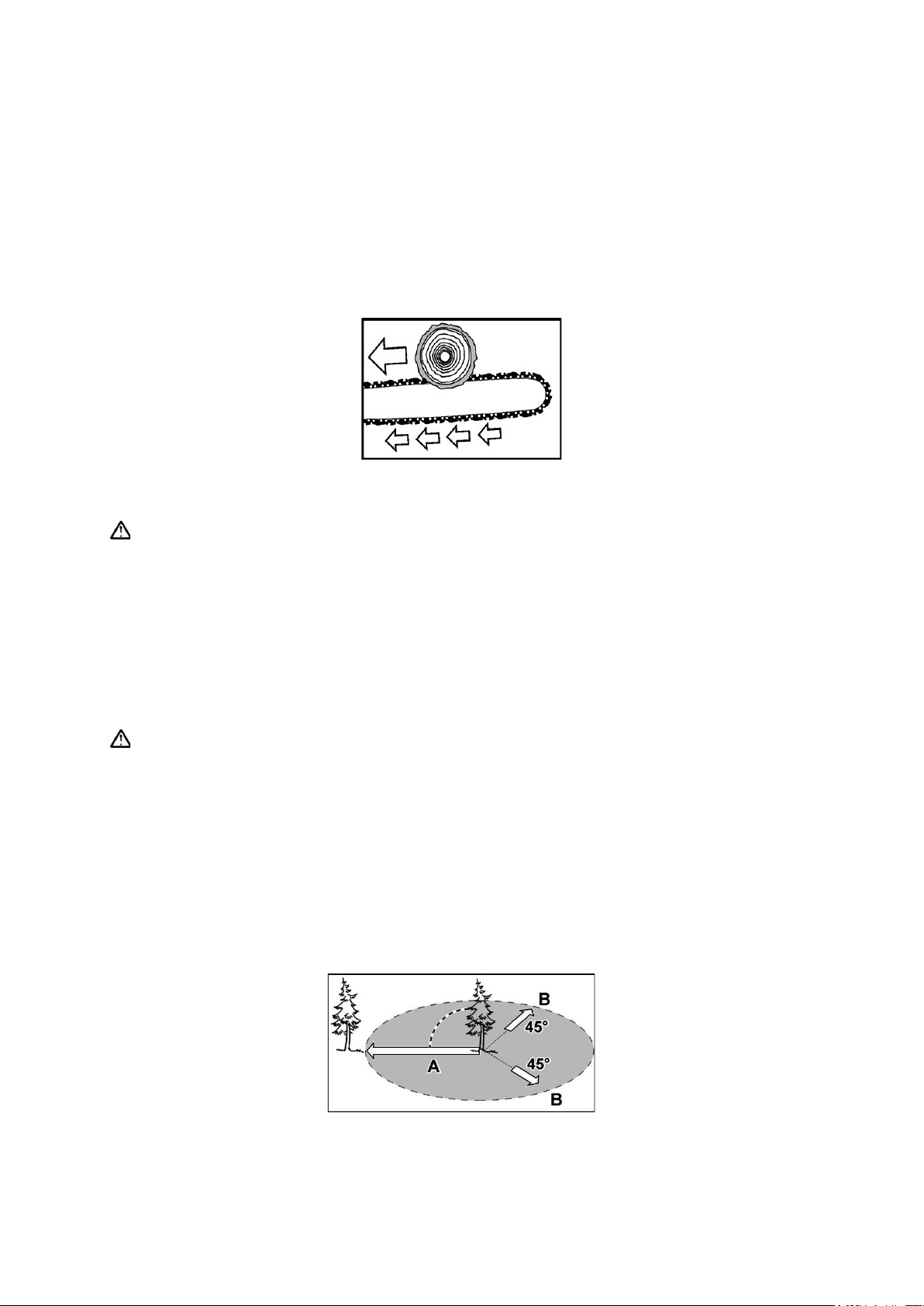

Pull sawing..................................................................................................................................... 14
Push sawing................................................................................................................................... 15
Cutting down a tree........................................................................................................................... 15
Working on logs lying flat on the ground.......................................................................................... 16
Branch removal ................................................................................................................................. 17
Maintenance and care........................................................................................................................... 17
Disposal ................................................................................................................................................. 18
Technical data ....................................................................................................................................... 19
Declaration of Conformity..................................................................................................................... 20

Original User Manual FUXTEC 20V battery chainsaw FX-E1KS20
3
Introduction and safety
Never allow children or persons unfamiliar with these instructions to use the garden device. Children
should be supervised to ensure that they do not play with the appliance.
Intended use
This appliance is intended exclusively for sawing wood and felling trees in private homes. It is not
suitable for sawing plastic, masonry or building materials other than wood.
The device to be used in accordance with the descriptions and safety information provided in this
manual. Any other use is not intended. Any other use is not in accordance with the intended purpose
and will invalidate the warranty and result in the rejection of any responsibility on the part of the
manufacturer. The user is liable for all damage to third parties and their property. Operate the device
only in the technical condition specified and delivered by the manufacturer. Unauthorized
modifications to the device preclude the manufacturer's liability for any resulting damage.
General safety instructions for power tools
WARNING!
Read all safety information and instructions. Failure to follow the safety information and instructions
may result in electric shock, fire and/or serious injury.
Keep all safety information and instructions for future reference.
The term power tool used in the safety information refers to power tools that operate on mains
power (with power cord) and battery-powered power tools (without power cord).
Workplace safety
- Keep your work area clean and well lit. Clutter or unlit work areas can lead to accidents.
- Do not work with the power tool in a potentially explosive environment containing flammable
liquids, gases or dust. Power tools generate sparks that can ignite the dust or vapours.
- Keep children and other persons away from the power tool throughout its use. If distracted, you
may lose control of the device.
Electrical safety
- Keep power tools away from rain or wet conditions. Water entering a power tool increases the risk
of electric shock.

Original User Manual FUXTEC 20V battery chainsaw FX-E1KS20
4
- Do not use the cord to carry or hang the power tool or to unplug the power tool from the wall
outlet. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or tangled cables
increase the risk of electric shock.
- If you use a power tool outdoors, only use extension cords that are suitable for outdoor use. Using
an extension cord suitable for outdoor use reduces the risk of electric shock.
Personal safety
- Be alert, pay attention to what you are doing, and use common sense when working with a power
tool. Do not use a power tool if you are tired or under the influence of drugs, alcohol or medication.
A moment of carelessness while using a power tool can cause serious injury.
- Wear personal protective equipment and always wear safety glasses. Wearing personal protective
equipment such as a dust mask, non-slip safety shoes, hard hat or ear protection, depending on the
after type and use of the power tool, reduces the risk of injury.
- Avoid unintentional start-up. Make sure that the power tool is turned off before connecting it to
the power supply and/or battery, picking it up or carrying it. If you lift your finger while carrying the
power tool on the switch or connect the device to the power supply when switched on, this can lead
to accidents.
- Remove adjustment tools or wrenches before turning on the power tool. A tool or wrench that is in
a rotating part of the device may cause injury.
- Avoid abnormal posture. Maintain a safe standing position and balance at all times. This allows you
to control the power tool better in unexpected situations.
- Wear suitable clothing. Do not wear loose clothing or jewellery. Keep hair, clothing and gloves away
from moving parts. Loose clothing, jewellery or long hair can be caught by moving parts.
Use and handling of the power tool
- Do not overload the device. Be sure to use the designated power tool for your work. With the right
power tool, you will work better and safer in the specified power range.
- Do not use a power tool whose switch is defective. A power tool that cannot be switched on or off
is dangerous and must be repaired.
- Unplug the power cord and/or remove the battery before making adjustments to the device,
changing accessories or putting the device away. This precaution prevents the power tool from
starting accidentally.
- Keep unused power tools out of the reach of children. Do not have the device used by persons who
are not familiar with it or have not read these instructions. Power tools are dangerous if they are
used by inexperienced persons.

Original User Manual FUXTEC 20V battery chainsaw FX-E1KS20
5
- Take care of power tools properly. Check that moving parts function properly and do not jam, that
parts are not broken or damaged in such a way that the function of the power tool is impaired. Have
damaged parts repaired before using the device. Many accidents are caused by poorly maintained
power tools.
- Be sure to use power tools, accessories, insert tools, etc. according to these instructions. Take into
account the working conditions and the task to be performed. The use of power tools for
applications other than those intended can lead to dangerous situations.
Use and handling of the cordless tool
- Charge the batteries only with chargers recommended by the manufacturer. Using a charger that is
suitable for a particular type of battery creates a fire hazard when used with other batteries.
- Only use the rechargeable batteries in power tools that are designed for this purpose. Use of other
batteries may cause injury and fire.
- Keep the unused battery away from paper clips, coins, keys, nails, screws, or other small metal
objects that could cause the contacts to bridge. A short circuit between the battery contacts may
cause burns or fire.
- Liquid may leak from the battery if used incorrectly. Avoid contact with it. In case of accidental
contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking
battery fluid may cause skin irritation or cause burns.
Safety instructions for chainsaws
General safety information
- For your safety and the safety of others, read this manual and its safety information before using
the device. Please keep this manual and its safety information in a safe place for future reference and
keep it handy for any operation.
- Pass on the operating instructions with the device in the event of a change of ownership.
- Persons operating the device must not be under the influence of intoxicating substances (e.g.
alcohol, drugs or medicines).
- Operate the device only in the conditions specified and supplied by the manufacturer.
technical condition. Unauthorized modifications to the device exclude the manufacturer's liability for
any resulting damage.
- Only use the device in daylight or under good artificial lighting.
- Only use the device in dry weather conditions. Keep it away from rain or moisture. Water ingress
into the device increases the risk of electric shock.

Original User Manual FUXTEC 20V battery chainsaw FX-E1KS20
6
- Turn off the device and remove the battery in the following conditions:
•if the device is left unattended;
•before checking, cleaning or other work on the device;
•if the device starts to vibrate excessively.
Before use
- Familiarize yourself with the chainsaw and its functions and controls before starting work.
- Check the device for signs of wear or damage before starting up and after a collision.
- Do not use device whose switch is defective and cannot be switched on or off.
- Check that all nuts, bolts and screws are tight to ensure that the device is operated safely.
- Never use any device with damaged or missing parts. Have them repaired or replaced if necessary
by a qualified technician or service centre.
- When working with or on the device, always wear sturdy shoes, long trousers and the appropriate
personal protective device (safety glasses, hearing protection, non-slip work gloves, etc.). Wearing
personal protective device reduces the risk of injury.
- Do not wear jewellery or loose clothing that could be caught by the chainsaw. Keep long hair away
from the cutting device.
- Remove adjusting tools or wrenches before you turn on the chainsaw. A tool or wrench that is in a
moving part of the machine can cause injury.
- Ensure that the chain is sufficiently lubricated. If there is not enough lubrication of the chainsaw, it
will most likely be damaged or may break.
During use
- Do not operate the device if persons (especially children) or animals are in the immediate vicinity.
- Interrupt work if you notice that people (especially children) or pets are nearby.
- Always keep your hands and feet away from the moving blades, especially when you turn on the
chainsaw.
- Avoid abnormal posture. Ensure that you stand securely and keep your balance at all times. This
gives you better control of the chainsaw in unexpected situations and on particularly steep slopes.
- Do not work with the chainsaw in an explosive environment containing flammable liquids, gases or
dust. The hedge trimmer may produce sparks that can ignite the dust or fumes.
- Exercise special caution when walking backwards. There is a danger of tripping!

Original User Manual FUXTEC 20V battery chainsaw FX-E1KS20
7
- Only move at walking speed.
- Never leave the device unattended during breaks in work and store it in a safe place.
- Keep all parts of the body away from the chainsaw. Do not attempt to remove material to be cut or
hold material to be cut while the blade is running. Remove trapped material only when the machine
is switched off. A moment of carelessness while using the chainsaw can cause serious injury.
- Carry the chainsaw by the handle with the blade stationary. Always remove the battery when
transporting or storing the device. Careful handling of the device reduces the risk of injury from the
chainsaw.
- Hold the power tool only by its insulated grip surfaces, as the chainsaw may come into contact with
hidden power lines. Contact of the saw with a live wire can put metal parts of the tool under voltage
and cause electric shock.
- During the cutting process, make sure that no persons (especially children) or animals are in the
working area.
-While the saw is running, keep all parts of the body away from the saw chain. Before starting the
saw, make sure that the saw chain does not touch anything. When working with a chainsaw, a
moment of carelessness may cause clothing or body parts to be caught by the saw chain.
- Wear protective goggles and hearing protection. Other protective device for head, hands, legs and
feet is recommended. Suitable protective clothing reduces the risk of injury from flying chips and
accidental contact with the saw-chain.
- Do not work with the chainsaw when on a tree. There is a risk of injury when operating on a tree.
- Only use the device in dry weather conditions. Keep it away from rain or moisture.
- Always make sure that you stand firmly and only use the chainsaw when you are standing on firm,
safe and level ground. Slippery surfaces or unstable standing surfaces, such as on a ladder, can cause
loss of balance or loss of control of the saw.
- Make sure that the chainsaw does not come into contact with the ground or other objects during
operation.
-When cutting a branch that is under tension, expect it to spring back. If the tension in the wood
fibres is released, the tensioned branch may hit the operator and/or snatch the chainsaw away from
control.
- Be especially careful when cutting undergrowth and young trees. Thin material can get caught in
the saw-chain and strike you or throw you off balance.
- Wait until the power tool has stopped before putting it down.
- Never leave the device unattended during work interruptions and store it in a safe place.

Original User Manual FUXTEC 20V battery chainsaw FX-E1KS20
8
- Always switch off the chainsaw when transporting it to other workplaces.
- Never touch the chainsaw by the cutting blade.
- Carry the chainsaw by the front handle with the power off, with the saw chain facing away from
your body. When transporting or storing the saw, always put on the protective cover. Careful
handling of the chainsaw reduces the likelihood of accidental contact with the running saw chain.
-follow instructions for lubrication, chain tension and changing accessories. An improperly tensioned
or lubricated chain can either break or increase the risk of kickback.
-Keep handles dry, clean and free from oil and grease. Greasy, oily grips are slippery and lead to loss
of control.
- Only use the chainsaw for sawing wood. Do not use the chainsaw for work for which it is not
intended. Example: Do not use the chainsaw for sawing plastic, masonry or building materials other
than wood. Using the chainsaw for non-designated work may result in dangerous situations.
- Operate the device only in the technical condition prescribed and delivered by the manufacturer.
Unauthorised modifications to the device preclude any liability of the manufacturer for any damage
resulting from such modifications.
- Spare parts must meet the requirements specified by the manufacturer. Therefore, only use original
spare parts or spare parts approved by the manufacturer. When replacing the battery, please
observe the installation instructions supplied and remove the battery beforehand.
- Have repairs carried out only by a qualified specialist or a specialist workshop.
Causes and prevention of a kickback
Kickback may occur if the tip of the saw-bar touches an object or if the wood bends and the saw-
chain becomes jammed during cutting. In some cases, contact with the bar tip can cause an
unexpected backward reaction, causing the bar to bounce up and towards the operator.
Jamming the saw-chain at the upper edge of the saw-bar can quickly push the bar back in the
direction of the operator. Any of these reactions can cause you to lose control of the saw and
possibly cause serious injury. Do not rely solely on the safety devices built into the chainsaw. As a
chainsaw user you should take various measures to be able to work without accidents and injuries.
A kickback is the result of incorrect or faulty use of the power tool. It can be prevented by taking
appropriate precautions as described below:
- Hold the chainsaw with both hands, with thumb and fingers around the handles of the chainsaw.
Move your body and arms to a position where you can withstand the kickback forces. If appropriate
measures are taken, the operator can control the kickback forces. Never let go of the chainsaw.
- Avoid abnormal posture. This prevents unintentional contact with the bar tip and allows better
control of the chainsaw in unexpected situations.

Original User Manual FUXTEC 20V battery chainsaw FX-E1KS20
9
- Always use replacement bars and saw chains specified by the manufacturer. Incorrect replacement
bars and saw chains can cause the chain to break and/or kick back.
- Follow the manufacturer's instructions for sharpening and maintenance of the saw-chain. Too low
depth limiters increase the tendency for kickback.
After use
- Turn off the device, remove the battery and then place the device in a safe place.
- Do not store the device within the reach of children.
- Make sure that the ventilation slots of the device are free from dirt.
- Replacement parts must meet the requirements specified by the manufacturer.
For this reason, only original spare parts or spare parts approved by the manufacturer should be
used. When replacing the device, please observe the installation instructions provided and remove
the
Battery.
- Only have repairs performed by a qualified specialist or a specialist workshop.
Safety information for the charger
- Keep the charger away from rain or moisture. Water entering a charger increases the risk of electric
shock.
- Keep the charger clean. Soiling increases the risk of electric shock.
- Check the charger, cable and plug before each use. Do not use the charger if you notice any
damage. Do not open the charger yourself and have it repaired by qualified personnel using only
original spare parts.
Damaged chargers, cables and plugs increase the risk of electric shock.
- Do not place any objects on the charger or place it on soft surfaces. This could result in a fire
hazard.
- Always check that the mains voltage corresponds to the voltage indicated on the charger's rating
plate.
- Never use the charger if the cable, plug or the device itself is damaged by external influences. Take
the charger to the nearest specialist workshop.
- Never open the charger. In the event of a fault, take it to a specialist workshop.

Original User Manual FUXTEC 20V battery chainsaw FX-E1KS20
10
Safety information for Li-Ion batteries
- Do not open the battery. There is a risk of short circuit.
- Protect the battery from heat, including continuous exposure to sunlight, fire, water and moisture.
There is a risk of explosion.
- Vapours may escape if the battery is damaged or used improperly. Supply fresh air and consult a
doctor if you have any complaints. The vapours can irritate the respiratory tract.
- Liquid may leak from the battery if used incorrectly. Avoid contact with it. In case of accidental
contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking
battery fluid may cause skin irritation or burns.
- Only use original batteries with the voltage specified on the rating plate of your power tool. If other
batteries are used, e.g. imitation, reconditioned batteries or batteries from other manufacturers,
there is a risk of injury and material damage due to exploding batteries.
- The battery voltage must match the battery charging voltage of the charger. Otherwise there is a
risk of fire and explosion.
- Only charge the batteries with chargers recommended by the manufacturer. Using a charger that is
suitable for a particular type of battery creates a fire hazard if it is used with other batteries.
- Sharp objects such as nails or screwdrivers or external force may damage the battery. An internal
short circuit may occur and the battery may burn, smoke, explode or overheat.
