Dear customer,
We are pleased with your confidence!
Please read these instructions for use before the first operation and before every use!
Here you will find all instructions for safe use and a long lifetime of the device. Be sure to
observe all safety instructions in these instructions!
Please always keep this instruction manual together with the device for having it at hand in
case of doubt.
GRIT SPREADER FX-GS36S (36kg)
FUXTEC GmbH
Kappstraße 69, 71083 Herrenberg, Germany

Original User Manual FUXTEC FX-GS36S
3
Table of contents
1. Intended use................................................................................................................ 4
2. Preparation and security ............................................................................................. 4
3. Customer responsibility ............................................................................................... 5
4. Scope of delivery ......................................................................................................... 5
5. Maintenance and storage ........................................................................................... 6
6. Mounting and assembly .............................................................................................. 7
7. Exploded drawing ...................................................................................................... 13
8. Customer Service ...................................................................................................... 15
9. Warranty .................................................................................................................... 15
10. Disposal information .................................................................................................. 15
11. EC Declaration of Conformity ................................................................................... 16

Original User Manual FUXTEC FX-GS36S
4
1. Intended use
The spreader is to be used exclusively for spreading granules.
If your spreader does not distribute the granules evenly, make sure that the front of the
gearbox points to the front of the spreader. The impeller must turn clockwise. Reversing the
gear will cause the impeller to rotate counterclockwise. Clean the paddlewheel after each
use, residues on the bucket wheel cause uneven distribution.
Your spreader is designed to give the best spreading results when pushed at 5 km/h (fast
walking). Slower or faster speeds will change your spreading pattern. Moist grit or granulate
changes the flow velocity and spreading pattern. Clean your spreader thoroughly after each
use. Gears are already lubricated at the factory.
2. Preparation and security
• Wear face protection or safety goggles during use
 Wear appropriate clothing. Only wear closed shoes with non-slip soles. Use of the
granulate spreader with sandals or barefoot is prohibited
• Wear close-fitting clothing. Avoid too loose clothing
• Wear non-slip gloves during use
 If necessary, wear a dust mask, starting from the material to be scattered
• Long hair should be bound back
• Apply directional markings before using the granulate spreader
• Use only in daylight or good artificial light
• Read and follow all instructions of the chemical manufacturer
ATTENTION
 During work, the line of sight must be directed to the surface to be processed; do not
be distracted
• Ensure a secure stand and direction of movement. Caution on unpaved or slippery
surfaces
• Attention: Chemicals or materials that are hazardous to the environment should be
avoided
 Follow all guidelines of the chemical manufacturer

Original User Manual FUXTEC FX-GS36S
5
3. Customer responsibility
• Read all security guidelines
• Perform maintenance work on your granulate spreader at regular intervals
• Follow the instructions in the Maintenance and Storage Guidelines section of this
manual
4. Scope of delivery

Original User Manual FUXTEC FX-GS36S
6
5. Maintenance and storage
• Store the granulate spreader in empty condition
• Storage of chemicals according to the manufacturer's guidelines
• Visual inspection of the connecting screws, nuts
• Clean the granule spreader with water and soap solution
• Keep dry
• Store in a safe, dark place
• Check all connections, nuts, and bolts for strength at regular intervals to ensure
proper operation of the granulate spreader
• Check the condition of the carrying strap regularly
• Keep all safety-relevant utensils ready

Original User Manual FUXTEC FX-GS36S
7
6. Mounting and assembly

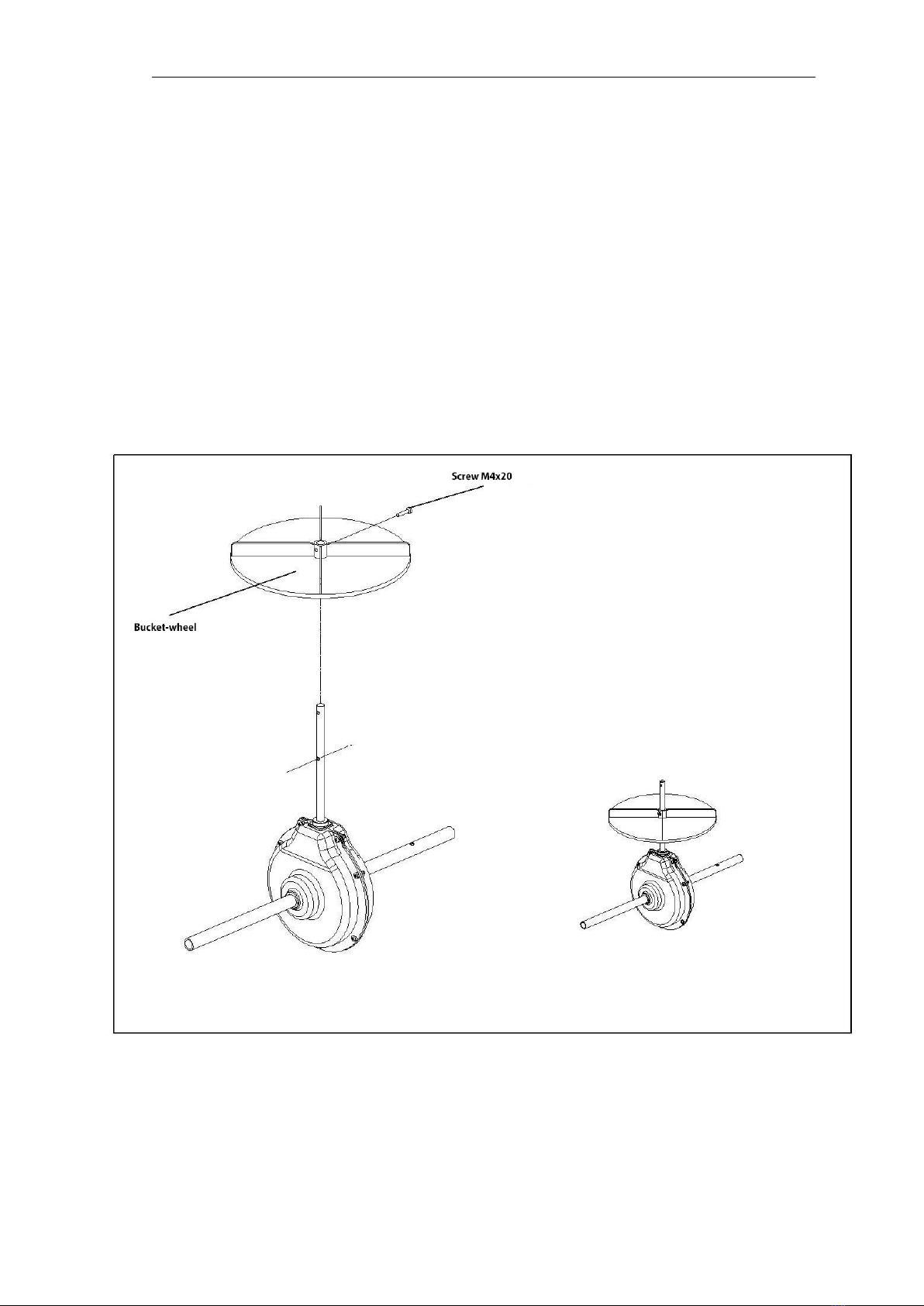

Step 1
• Mount the bucket wheel on the axles and gear unit
• Connect with the screw M4 x20 through the bucket wheel and the axle rod

Original User Manual FUXTEC FX-GS36S
8

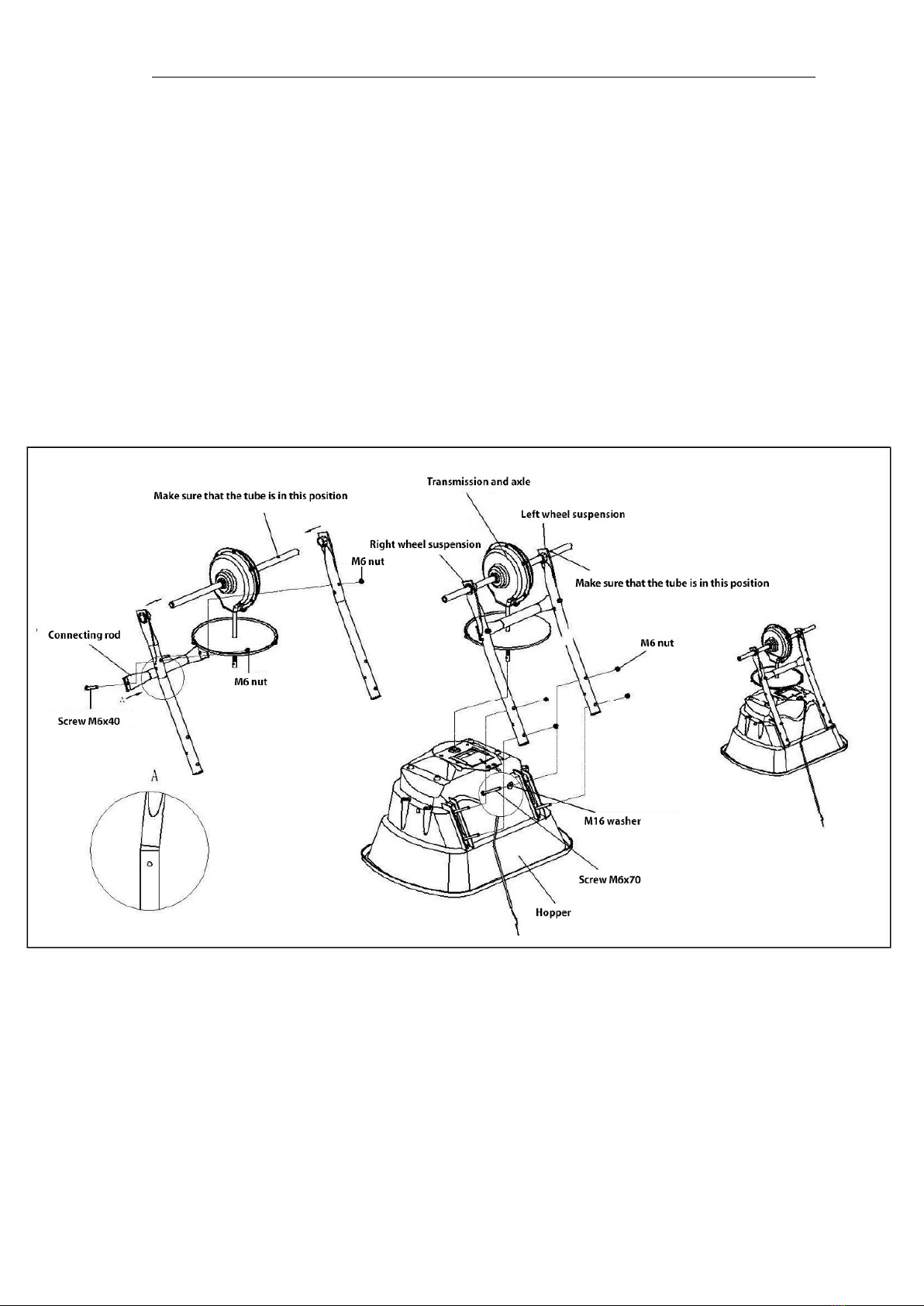

Step 2
• Take the 2 wheel suspensions and connect them to the axle as shown
• Bolt the ends of the connecting tube with the left and right suspension with M6X40
bolts and M6 nut
• Connect connecting tube with the shaft carrier plate
• Connect attached support leg with wheel suspension and funnel with M6X70 bolts,
M6 nut, and 6 mm washer
Remark: The screws should not be tightened; just pre-assemble for the time being!
–

Original User Manual FUXTEC FX-GS36S
9
Step 3
• Mount the connecting tubes with the connecting rods with two screws M6x60 and
four screws M6x35 and nut M6

Original User Manual FUXTEC FX-GS36S
10
Step 4
 Mount the inner axle bushings and the wheels, as shown in the picture.

Original User Manual FUXTEC FX-GS36S
11
Step 5
 Fix the tube with 2 screws M6x50 and the M6 nuts
 Fasten safety splint at the end of the shaft

Original User Manual FUXTEC FX-GS36S
12
Step 6
When you have completed all the above steps, you can use the lever to close the holes at
the hopper's bottom and open them entirely by moving the handle. If this is the case, you do
not need to do the following steps.
If not, please do the following steps shown in the picture:

Original User Manual FUXTEC FX-GS36S
13
7. Exploded drawing

Original User Manual FUXTEC FX-GS36S
14
NO. NAME Qty. NO. NAME Qty.
1 Insert bolt M6x25 1 32 Nut M4 7
2 Washer outside φ8 1 33 Disc φ4 14
3 Control apparatus 1 34 Settings Panel 1
4 Adjusting handle A 1 35 Fixed adjustment plate 1
5 Adjusting handle connection 1 36 Screw M5x12 2
6 Adjusting handle B 1 37 Screw M4x20 1
7 Screw ST3.9x18 1 38 Bucket-wheel 1
8 Plastic disk 1 39 Cross tube 1
9 Disc 1 40 Screw M4x12 7
10 Wingnut M6 1 41 Vertical axis Bushing 2
11 Flat washer φ6 5 42 Socket 1
12 Spring Washer φ6 1 43 Vertical axis 1
13 Counter nut M6 21 44 Small gearbox 1
14 Connection terminal 2 45 Pin φ3x16 1
15 Screw M5x10 2 46 Large gearbox 1
16 Clamping foot 1 47 Flat washer φ16 8
17 Counter nut M5 5 48 Shaft feedthrough 1
18 Pin 1 49 Pin φ4x30 1
19 Bolt M6x40 5 50 Gearbox housing 2
20 Placeholder 6 51 Wheel 12x3" 2
21 Bracket 2 52 Endcap 2
22 Bolt M6x35 7 53 Inner axle bushing 2
23 Drawbar 1 54 Outer axle bushing 2
24 Safety pin φ3x70 2 55 Axis 1
25 Bolt M6x50 2 56 Bolt M5x45 1
26 Connecting plate 2 57 Hopper 1
27 Bolt M6x60 2 58 Bolt M6x45 4
28 Connecting tube 2 59 Rivet φ5x10 4
29 Wheel bearing (right) 1 60 Grid 1
30 Wheel bearing (left) 1 61 Rain cover 1
31 Adjustment cable 1

Original User Manual FUXTEC FX-GS36S
15
8. Customer Service
The service workshops and dealers provide original spare parts. We recommend that you
take the device to an authorized service centre for annual maintenance and inspection of the
protective devices.
Please contact the dealer where you purchased the device for more information about
service and spare parts.
9. Warranty
The warranty period is 24 months from the date of purchase. Keep your proof of purchase in
a safe place. Excluded from the warranty are wearing parts and damage caused by improper
use, use of force, technical modifications, wrong accessories or non-original spare parts, and
repair attempts by non-qualified personnel. Authorized dealers may only carry out repairs.
10. Disposal information
The device is in packaging to avoid transport damages. This packaging is raw material and
is therefore reusable or returned to the raw material cycle. The tool and accessories are
made of different materials, such as metal and plastic. Take defective components to
hazardous waste disposal. Please ask at the speciality store or the municipal administration.

Original User Manual FUXTEC FX-GS36S
16
11. EC Declaration of Conformity
-------------------------------------------------------------------------------------------
Herewith we,
FUXTEC GmbH
KAPPSTRASSE 69, 71083 HERRENBERG, Germany
declare that the product designated below
GRIT SPREADER FX-GS36S (TTS80LB)
To which this declaration refers, complies with the relevant essential health and safety
requirements of the applicable EC Directives 2006/42/EC. This declaration refers only to the
device in which it was placed on the market; parts added and interventions carried out
subsequently by the end-user are not considered.
Applied harmonized standards: BS EN ISO 12100:2010
EC type-examination certificate: GB/1067/3528/11-1 (CE),
AVTECH House, Arkle Avenue, Stanley Green Trading Estate, SV93RW Handforth,
Cheshire, UK
Herrenberg, April 10, 2017
Tim Gumprecht
(Managing Partner)
Manufacturer:
FUXTEC GmbH
KAPPSTRASSE 69, 71083 HERRENBERG, Germany
Aufbewahrung der technischen Unterlagen:
FUXTEC GmbH, KAPPSTRASSE 69, 71083 HERRENBERG-GÜLTSTEIN Germany
T. Zelic, Management
