FW Skyus-E User manual

User Manual
Installation, Configuration, and Management
Skyus-E IoT Appliance
TM

1
Skyus-E User Manual
Preface
Copyright
Copyright © 2015 Feeney Wireless LLC (FW), a Novatel Wireless company. All rights reserved.
This document may not be copied in part or otherwise reproduced without prior written consent from Feeney
Wireless except where specifically permitted under US and International copyright law.
Disclaimer
The information in this document is subject to change without notice. Feeney Wireless (“FW”) assumes no
responsibility for inaccuracies or omissions and specifically disclaims any liabilities, losses, or risks, personal or
otherwise, incurred as a consequence, directly or indirectly, of the use or application of any of the contents of this
document. For the latest documentation, contact your local supplier or visit us online at www.feeneywireless.com.
This publication may contain examples of screen captures and reports used in daily operations. Examples may
include fictitious names or individuals and companies. Any similarity to names and addresses of actual businesses or
persons is entirely coincidental.
Patents and Trademarks
The Skyus-E incorporates technologies covered under U.S. Patents 8,706,104, 8,670,897, and other patents pending.
Feeney Wireless and the FW logo are trademarks of Feeney Wireless LLC. Skyus, Skyus 3G, Skyus 4G, Skyus Global,
Skyus-E, CIRA, CIRA X, CIRA X2, Crossroads, and Axiom are trademarks of Feeney Wireless LLC. VaraSight and the
VaraSight logo are trademarks of Feeney Wireless LLC.
Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or
vendors of the respective products.
Intended Use
Use this product only for the purpose it was designed for; refer to the datasheet and user documentation. For the
latest product information, visit us online at www.feeneywireless.com.
Open Source Software
This product contains software distributed under one or more open source licenses, including: GNU General Public
License Version 2, NetBSD Foundation License, and PSF License Agreement for Python 3.1.1. For more information
on this software, including licensing terms and your rights to access source code, see Appendix C: Open Source
Software Licenses or contact Feeney Wireless at www.feeneywireless.com.
Document Number: 25-52-002-10 (Revision A)

2
Skyus-E User Manual
Contents
Overview .......................................................................................................................................................................................................................4
Intended Audience..............................................................................................................................................................................................4
Scope.........................................................................................................................................................................................................................4
Specifications.........................................................................................................................................................................................................5
Block Diagram .......................................................................................................................................................................................................6
Installation....................................................................................................................................................................................................................6
Installation Summary..........................................................................................................................................................................................6
Package Contents ................................................................................................................................................................................................7
Hardware Installation .........................................................................................................................................................................................8
Installing the Skyus Modem (Optional)..................................................................................................................................................8

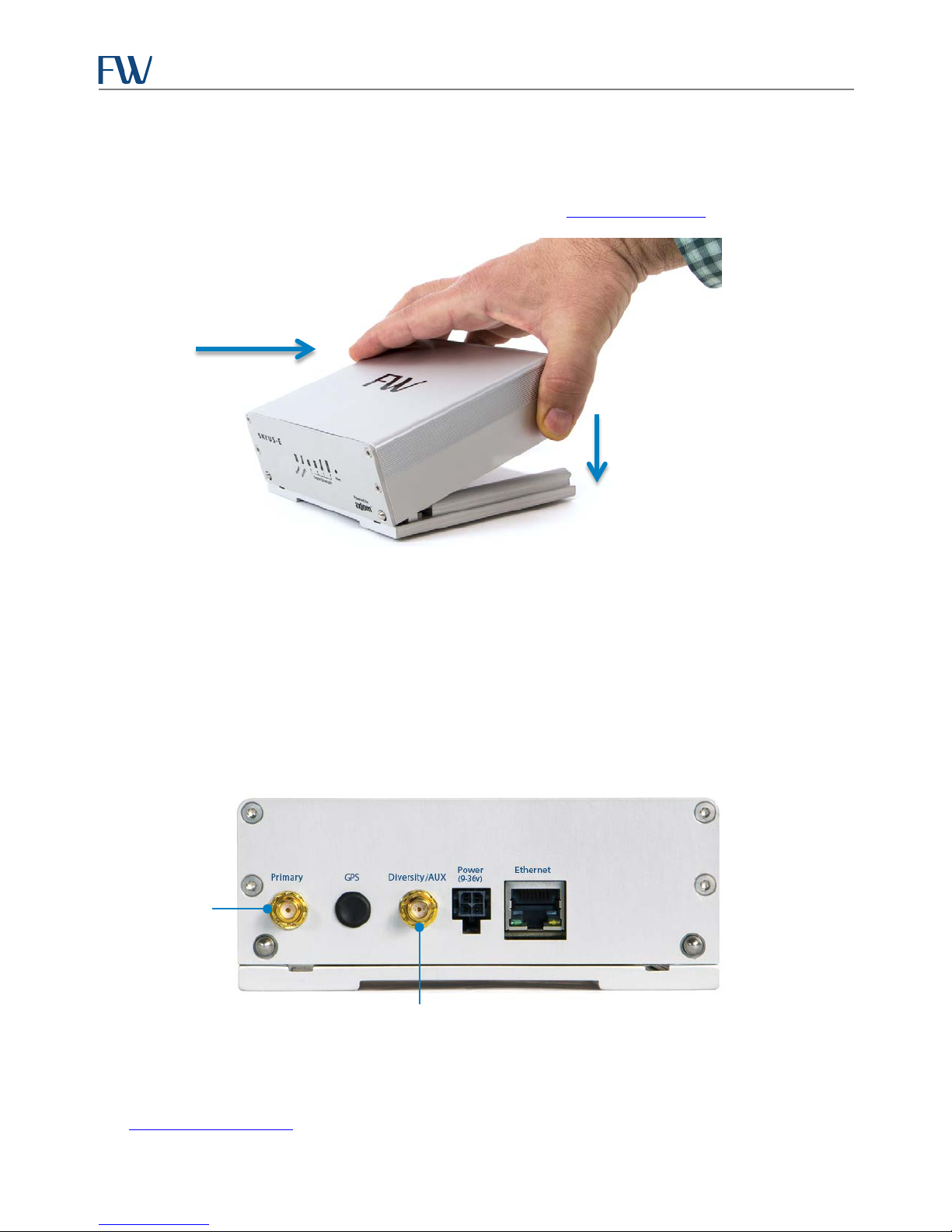

Installing the Mounting Plate.....................................................................................................................................................................9
Connecting Antennas ................................................................................................................................................................................ 10
Connecting to the LAN..............................................................................................................................................................................11

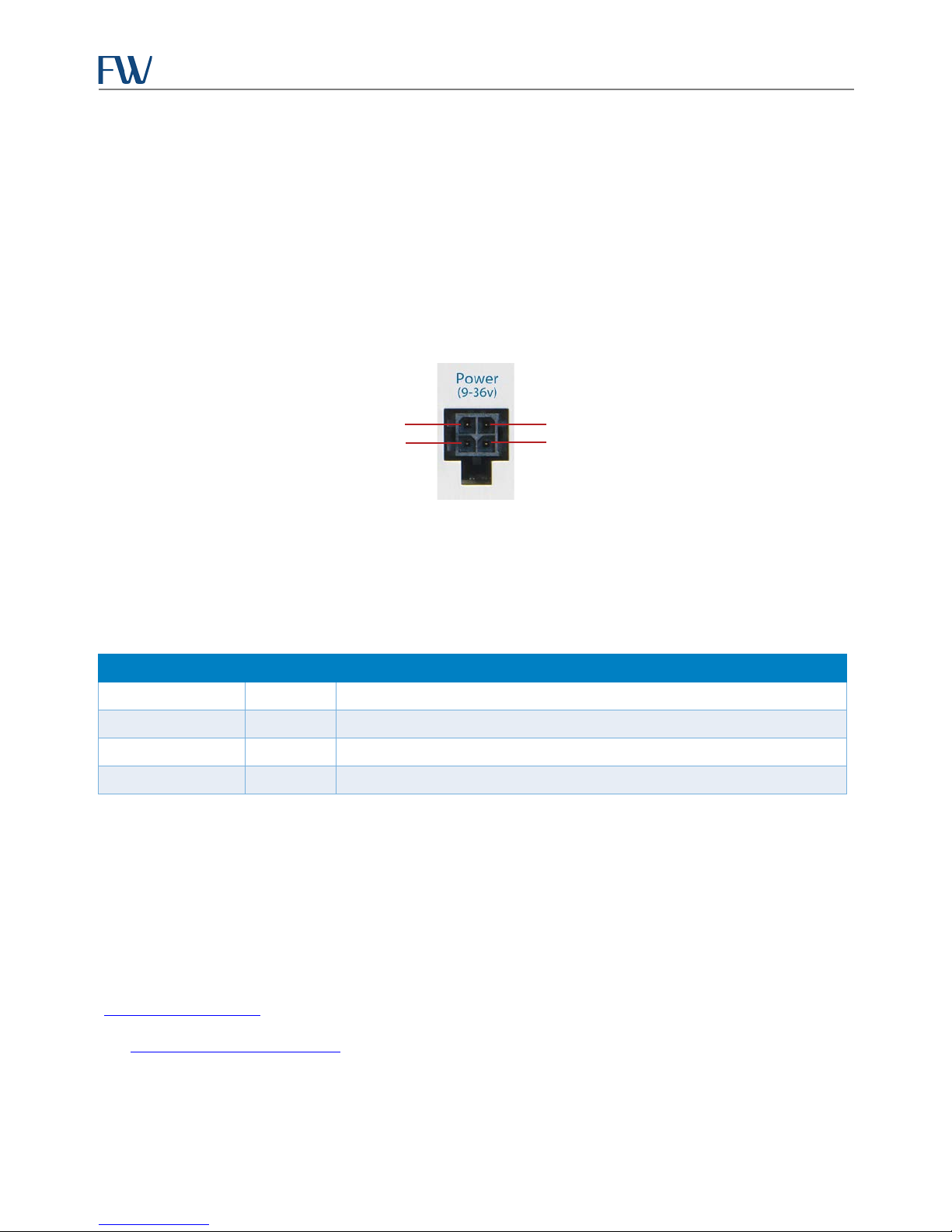

Connecting Power....................................................................................................................................................................................... 11
Power LED...................................................................................................................................................................................................11
Verifying the Connections........................................................................................................................................................................11
Activity LED ................................................................................................................................................................................................12
Signal Strength LEDs .............................................................................................................................................................................. 12
Resetting the Skyus-E ......................................................................................................................................................................................12

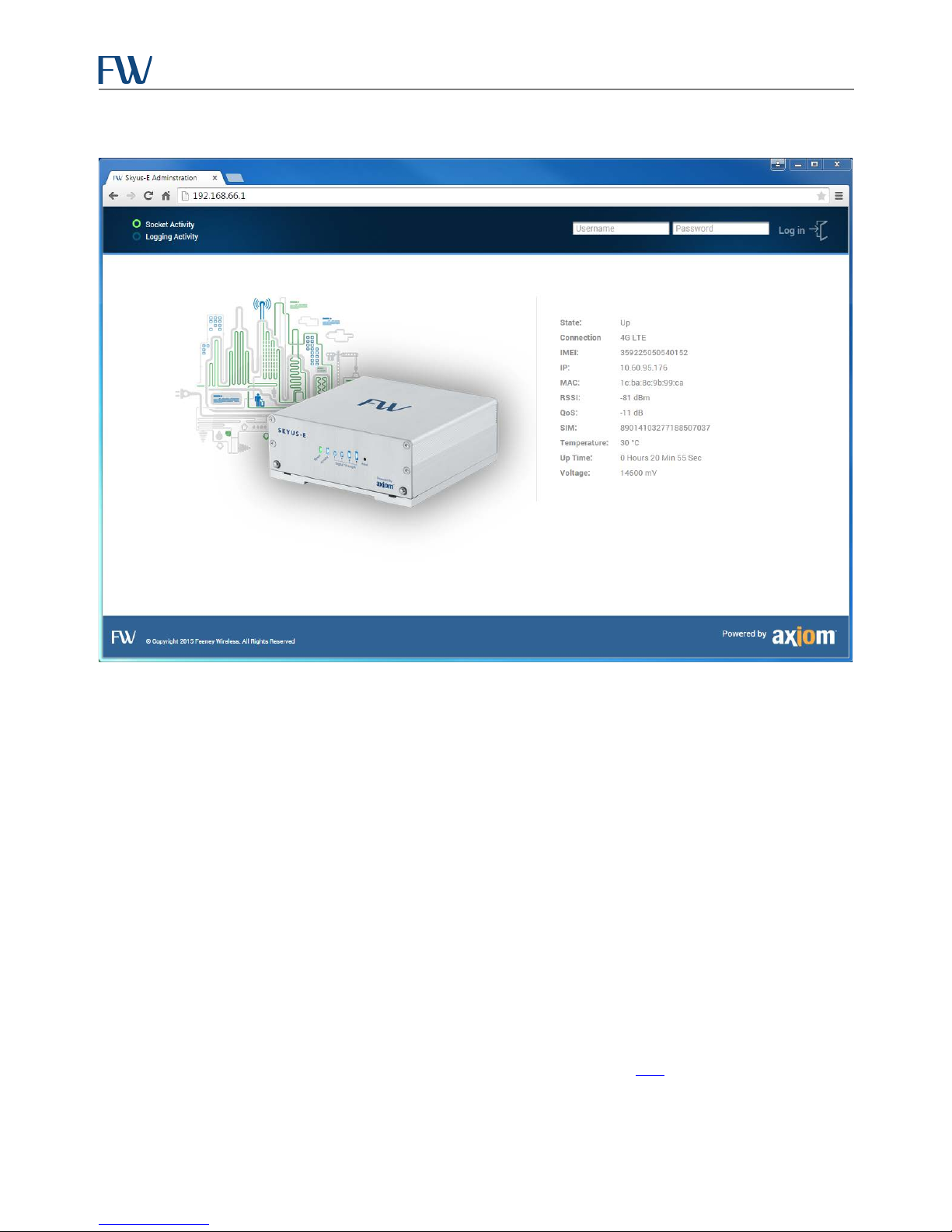

Skyus-E Administration Interface .....................................................................................................................................................................13
Skyus-E Default Settings.................................................................................................................................................................................13
Logging In ............................................................................................................................................................................................................13
Remote Access to the Skyus-E Interface .............................................................................................................................................14

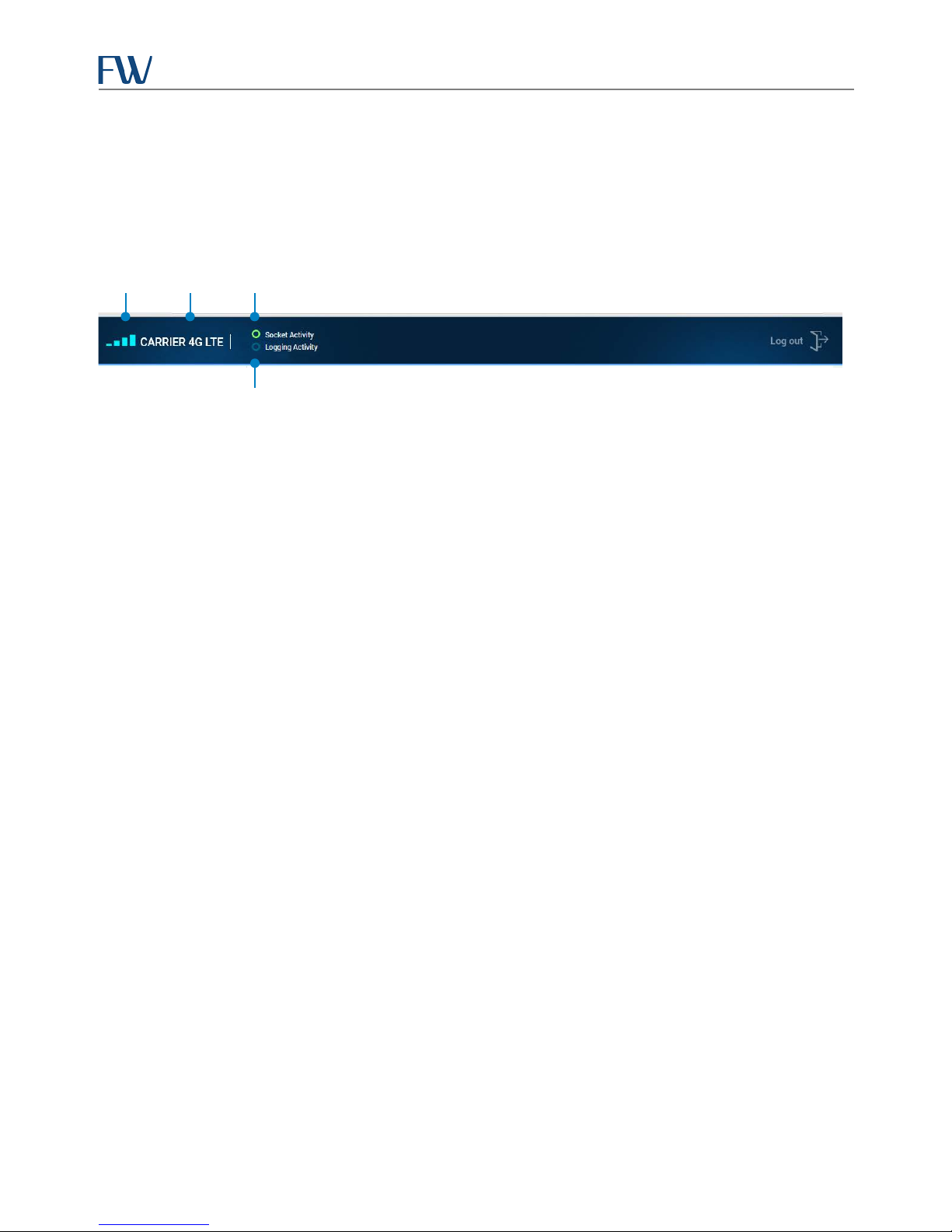

Skyus-E Banner..............................................................................................................................................................................................15
Status .....................................................................................................................................................................................................................15
Dashboard ......................................................................................................................................................................................................16
Cellular .............................................................................................................................................................................................................18
Statistics...........................................................................................................................................................................................................19
System..............................................................................................................................................................................................................20
Configuration......................................................................................................................................................................................................21
Network ...........................................................................................................................................................................................................22
Creating Firewall Rules ..........................................................................................................................................................................24

3
Skyus-E User Manual
Creating Port Forwarding Rules .........................................................................................................................................................27
Creating Routing Rules ..........................................................................................................................................................................30
APN....................................................................................................................................................................................................................31
GPO/IGS ...........................................................................................................................................................................................................32
Crossroads ......................................................................................................................................................................................................34
Connection.....................................................................................................................................................................................................35
Administration ...................................................................................................................................................................................................36
User....................................................................................................................................................................................................................36
Settings ............................................................................................................................................................................................................37
Firmware .........................................................................................................................................................................................................38
System Logging ................................................................................................................................................................................................. 39
Contacting FW .........................................................................................................................................................................................................40
Online Library .....................................................................................................................................................................................................40
FCC Compliance......................................................................................................................................................................................................41
Appendix A: Troubleshooting ...........................................................................................................................................................................42
Appendix B: Mounting Plate Template.......................................................................................................................................................... 44
Appendix C: Open Source Software Licenses.............................................................................................................................................. 45
The MIT License (MIT) ......................................................................................................................................................................................45
Linux Kernel Copyright Note ........................................................................................................................................................................45
GNU GENERAL PUBLIC LICENSE...................................................................................................................................................................45
Preamble .........................................................................................................................................................................................................45
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION ................................................................. 46
NO WARRANTY ............................................................................................................................................................................................. 49
OpenSSL Cryptography and SSL/TLS Toolkit License.........................................................................................................................49
LICENSE ISSUES.............................................................................................................................................................................................49
OpenSSL License..........................................................................................................................................................................................49
Original SSLeay License.............................................................................................................................................................................50
zlib General Purpose Compression Library Version 1.2.8 License.................................................................................................. 51
JsonCPP C++ Library License........................................................................................................................................................................51
WebSocket++ Version 0.5.1 ..........................................................................................................................................................................52
Boost Software License - Version 1.0 - August 17th, 2003 ................................................................................................................ 52
rapidjson Parser/Generator for C++ License .......................................................................................................................................... 53

4
Skyus-E User Manual
Overview
The Skyus-E IoT Appliance simplifies the effort of implementing wireless connectivity in “Internet of Things” (IoT)
networks. Built on FW’s proven Skyus cellular modem technology, the Skyus-E provides a standard Ethernet interface
for easy connection to customer devices.
The Skyus-E’s rugged, compact aluminum body and its ease of installation make it perfect for deployment in a wide
variety of IoT applications, including kiosks, digital signage, ATMs, and many others. Powered by FW’s own Linux
implementation, Axiom, the Skyus-E is capable of supporting nearly any FW Skyus module. With Axiom you get rapid
connections, integrated connection management, and robust watchdog logic. Skyus-E features include:
•Operation on all major US carrier networks
•4G LTE support on all major US carriers
•Modular design allows you to swap between Skyus carrier radio modules
•Standard Ethernet connection (LAN) to customer devices
•LED status indicators for power, activity, and signal strength
•Skyus-E Administration Interface for system configuration and monitoring
•Integration with Crossroads IoT application framework
•Powered by the Axiom field data processing framework
•Future functionality and features in firmware updates

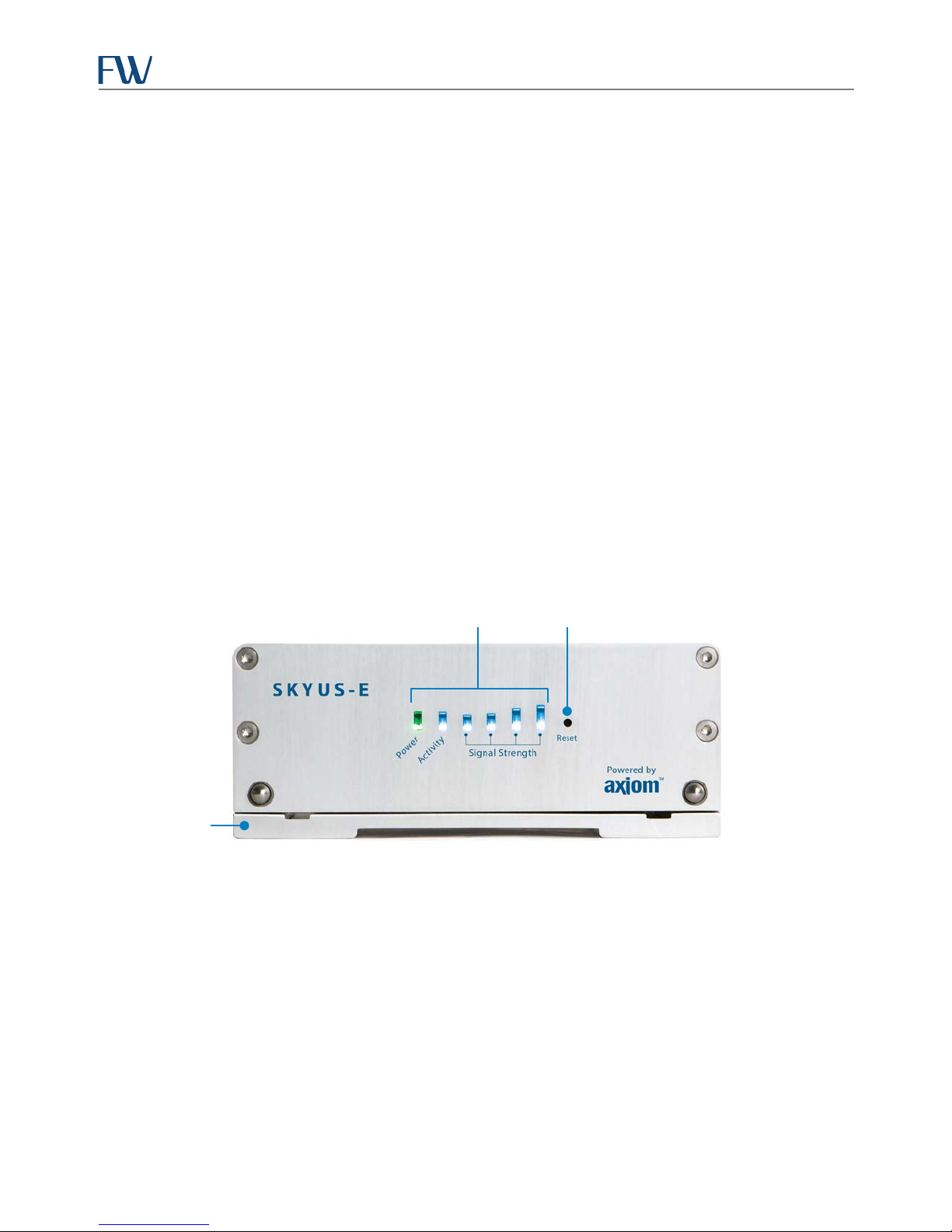

Figure 1: Skyus-E Front Panel
Intended Audience
This document is intended for users responsible for the configuration and management of the Skyus-E and assumes
the user possesses a basic working knowledge of computer networking, wireless routing, and network
administration.
Scope
This manual provides in-depth information about Skyus-E installation, configuration, and management. See the
Skyus-E Quick Start Guide for quick installation and configuration information.
Mounting Plate
Reset
LEDs Button

5
Skyus-E User Manual
Specifications
Hardware
Input Voltage •9-36V DC, AC/DC adapter
Power Consumption
•Typical*: 12V @ 0.32A (3.84W)
•Max: 12V @ 1.56A (18.75W)
•Low Power: 8V @ 0.02A (0.16W)
(* 3G module running Skyus-E Interface with Internet activity)
Environmental •Operating Temperature: -20°C to 60°C (-4°F to 140°F)
•Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Construction Rugged aluminum housing
Dimensions 5” (W) x 2” (H) x 5” (D) - Approximate, includes mounting plate
Weight •Skyus-E: 0.554 kg (1.20 lbs)
•Mounting Plate: 0.249 kg (0.55 lbs)
Mounting Tool-free mounting of Skyus-E to mounting plate (sold separately)
Data Interface One 10/100 Ethernet, RJ-45 (Ethernet switch recommended for expansion, if
needed)
Antenna Connections •Primary Cellular: 50 Ohm SMA (SubMiniature version A) female
•MIMO if 4G LTE, Receive Diversity if 3G – 50 Ohm SMA female
LEDs Power x1, Activity x1, Signal Strength x4. Signal LED color shows cellular connection
type: Blue– 4G, Green–3G, Amber–2G, No lights–No Connection.
Upgrade Kit Skyus-E upgrade kit for easy installation of existing Skyus modules.
Cellular
Technologies LTE with fallback to HSPA+, HSPA, UMTS, EDGE, GPRS, EVDO, 1xRTT (depending on
the Skyus module used)
Carriers Sprint, Verizon, AT&T, T-Mobile
Bands See the Skyus Specification Sheet for modem-specific information. (Skyus Global
not supported.)
Multi-Carrier Support Skyus 4G LTE embedded modem kit (Verizon, T-Mobile, AT&T) uses software-
switchable radio technology for multi-carrier support.
Standards/Approvals FCC Part 15, Class B
Software
Operating System AXIOM integrated connection management – FW embedded Linux image enables
rapid addition of functions, features, and carrier support.
Security Integrated onboard routing, Network Address Translation (NAT), and firewall
module
Protocols TCP/IP, UDP/IP, DHCP, HTTP

6
Skyus-E User Manual
Block Diagram
Figure 2: Skyus-E Block Diagram
Installation
The following sections describe the installation and initialization of the Skyus-E. Whether your Skyus-E is shipped
with a Skyus cellular modem installed or you are installing an existing Skyus modem in the Skyus-E appliance, these
instructions assume that the Skyus modem is already activated and provisioned.
Installation Summary
•Inspect the package contents and compare against the packing list.
•(Optional) Install your existing Skyus modem in the unit if necessary.
•Install the Skyus-E mounting plate and mount the unit to the plate.
•Connect the antennas.
•Connect the Skyus-E to the LAN or desired device using the an Ethernet cable.
•Connect power.
•Verify the WAN connection.
•Verify the LAN connection.
•Recommended: Change the default password.
Processing
Module
Skyus
Module
System
Module
USB Data
5V 1A
Primary Antenna
Secondary Antenna
10/100 Ethernet
(LAN)
Skyus-E
Power
Regulation
USB Data
5V 2A
DC Input

7
Skyus-E User Manual
Package Contents
Package contents depend on the configuration ordered. Compare the contents with the packing list. If any items are
missing or damaged, contact FW support.
Item Type Description
Skyus-E Included Skyus-E IoT Appliance
Power Supply Included Power supply options include: AC/DC, DC/DC (bare wire or auto accessory
plug), commercial or industrial temperature
Mounting Plate Accessory Skyus-E mounting plate
Antenna(s) Accessory FW offers several antennas that meet the Skyus-E antenna specifications
Ethernet Accessory 5’ Ethernet cable, RJ-45 to RJ-45
Skyus Module Accessory Skyus Cellular Modem (included in many Skyus-E configurations); see the
Skyus Specification Sheet for models

8
Skyus-E User Manual
Hardware Installation
Perform the hardware installation steps described in the following sections.
Installing the Skyus Modem (Optional)
Perform this step only if your Skyus-E was shipped to you without a modem. If your Skyus-E is equipped with a
modem, proceed to “Installing the Mounting Plate.” The figure below shows how to access inside of the Skyus-E in
order to install a Skyus radio module.
Figure 3: Skyus Modem Installation
1. Remove the Skyus-E from the mounting plate if it is attached.
2. Access the inside of the Skyus-E by removing the four screws securing the faceplate using a T9 Torx driver.
3. Locate the USB and antenna cables inside the Skyus-E enclosure. Plug the Mini B Male USB connector into
the Skyus.
4. Connect both SMA antenna cables to the Skyus. Finger-tighten the connectors only; do not use a torque
wrench.
Important: The shorter cable labeled FW8163-A is the Primary antenna cable and attaches to the
outermost antenna connector on the Skyus module. The longer cable labeled FW7837-A is the
Secondary antenna cable and attaches to the innermost antenna connector on the Skyus module
5. After connecting the antenna cables, snap the provided retaining clip into place over both connectors.
6. Slide the Skyus module into the modem compartment, carefully tucking in the cables so that they do not
extend beyond the opening of the Skyus-E enclosure.
7. Replace the faceplate.
1. Faceplate Screws x4
2. Faceplate
3. Skyus Radio Module
4. USB
5. Antenna Cable Clip
6. Secondary Antenna
7. Primary Antenna
8. Skyus-E Enclosure
9. Mounting Plate
1
2
3
4
6
7
5
9
8

9
Skyus-E User Manual
Installing the Mounting Plate
The Skyus-E attaches easily to the mounting plate (sold separately). The figure below shows the dimensions and
mounting hole locations of the plate. The mounting hardware you use will depend on the requirements of your
enclosure. Countersunk bolts or screws may be used. Appendix B “Mounting Plate Template” provides a full-scale
template you can print and use to mark the screw hole positions.
Note: The mounting plate hole spacing supports mounting to a monitor or TV using VESA standard 75 mm
hole spacing if the appropriate screws are used.

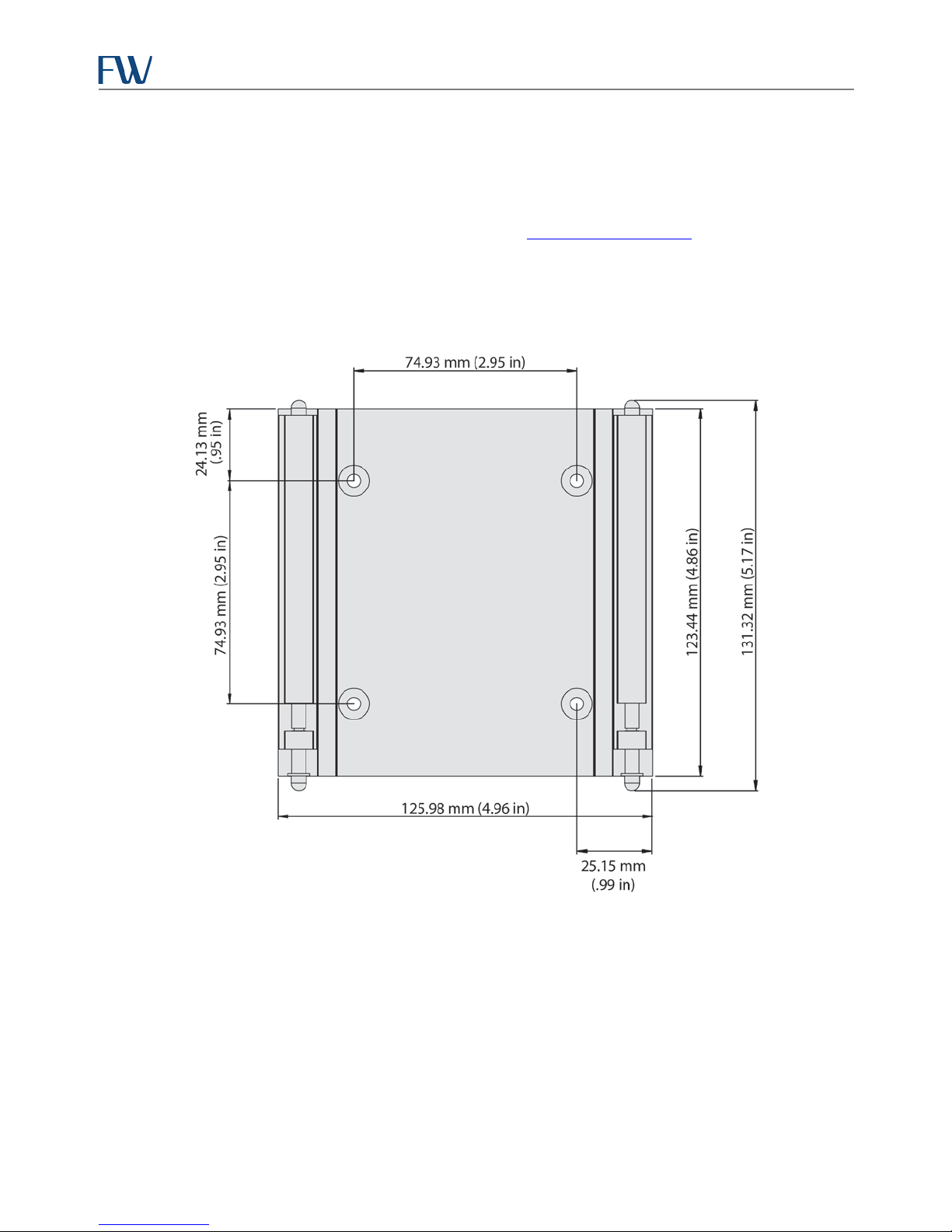

Figure 4: Mounting Plate Dimensions (Not to scale.)
