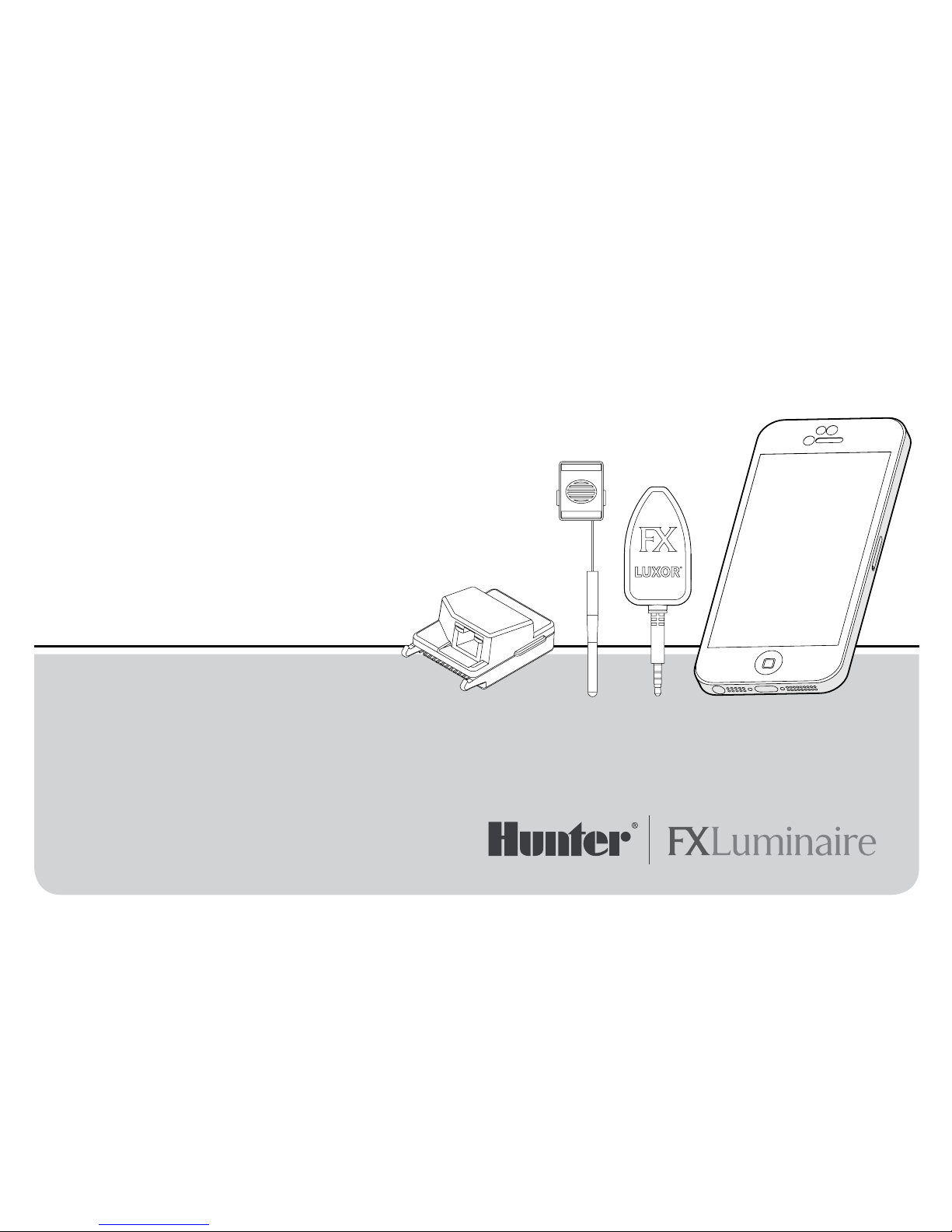

FXLuminaire Luxor ZD User manual

The Luxor ZD and ZDC Wi-Fi Control System
With Light Assignment Module and Smart Device App
®
LUXOR®
Wi-Fi System Components
IC:7693A-24WG0MAMB
FCF:W7OMRF24WG0MAMB
Contains TransmitterModule
Module: FXWIFIMOD
RR

2
Table of Contents
Overview
3Luxor® Wi-Fi Components
4Glossay of Terms
Installation
5Installing Luxor Wi-Fi
Setup
8Connecting to an Existing Network
8 Wi-Fi Module
11 LAN Module
13 Direct Connect
15 Luxor Linking (Multiple Luxors)
16 Luxor Linking Example
App
17 App Control
17 Getting Started
19 Groups
19 Add a Group
20 Tips on Working with Groups
21 Themes
21 Add a Theme
23 Tips on Working with Themes
24 Color
27 Programming with the LAM
Care and Maintenance
30 Wi-Fi Tips
31 Troubleshooting
Legal Information
32 Regulatory and Legal Information

3
Luxor®Wi-Fi Overview
The Luxor ZD and ZDC systems are capable of communicating with iOS and Android smart devices for on–demand
changes to your outdoor lighting system.
Overview
Luxor Wi-Fi Components
Table of Contents
Overview
Luxor®Wi-Fi Components
R
IC:7693A-24WG0MAMB
FCF:W7OMRF24WG0MAMB
Contains Transmitter Module
Module: FXWIFIMOD

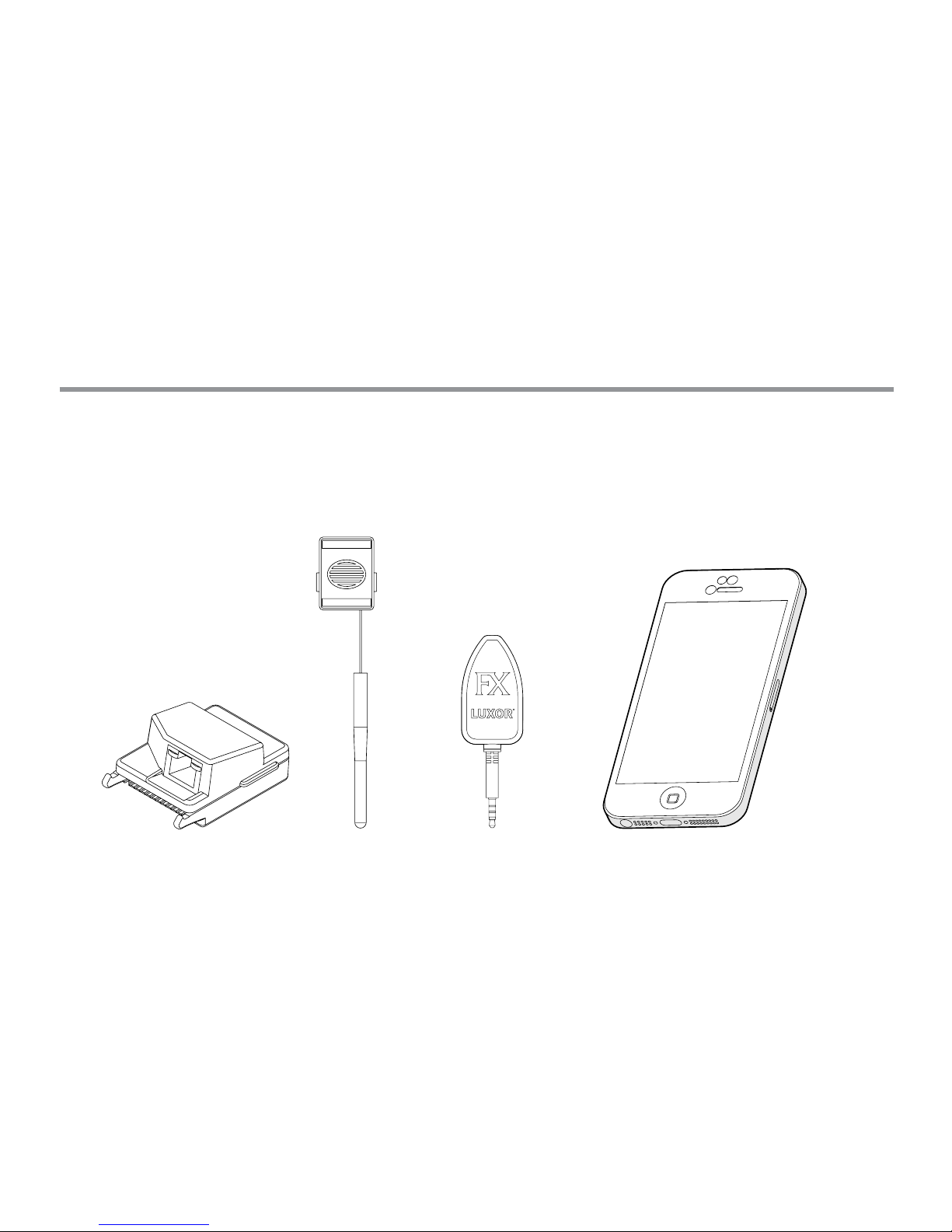

LAN Module Wi-Fi Module LAM Module iOS/Android smart device

4
Luxor®Wi-Fi Overview
Glossary of Terms
Group: An addressed set of lights that is designated
numerically and controlled as a set by the controller.
Theme: A predetermined set of groups, intensities,
and colors (ZDC only) called to action by the program
or manual functions.
Fixture/Luminaire: Light unit that contains an FX
LED board or device with FX zoning, dimming, or
color capabilities.
Intensity: Value indicating measurable amount of
brightness, from 1% to 100%.
Event: The initiation, adjustment, or conclusion of a
selected theme or group with specic intensity and/
or color settings.
Duration: The length of an event.
Hue: The primary attribute of a color represented by
values from 0 to 359.
Saturation: The richness of a color mixed with white
light, from 0% to 100%.
Color: The visual combination of hue and saturation.
LAM: Light Assignment Module. A device that
remotely assigns each FX LED xture or device to a
specic group.
RSSI: Relative Signal Strength Indicator, or a number
representing Wi-Fi signal strength.
Direct Connect: A Wi-Fi mode using the FX Wi-Fi
Module allowing the Luxor to broadcast its own
network for connection with one smart device.
LAN: Local Area Network; Luxor can connect directly
into a network through a cat5 cable.
Router: A networking device that allows computers
and electronic devices to exchange data.
SSID: Service Set Identier, or the unique identifying
name for a wireless LAN.
Table of Contents
Glossay of Terms
Cross References:

5
Luxor®Wi-Fi Installation
Press bezel lever to
the le.
Press facepack through
the bezel while holding
the tab outward.
Pull bezel outward while
holding the lever inward.
Disconnect communication
cable. Push tab outward.
Remove cover.
➊
④
②
⑤③
Table of Contents
Installation
Installing Luxor Wi-Fi

6
Luxor®Wi-Fi Installation
WI-FI MOD ONLY:
Remove the antenna plug
from the bottom plate.
WI-FI MOD ONLY:
Insert the cover
threads though
the exposed hole.
Insert facepack back
into the bezel.
WI-FI MOD ONLY:
Ensure the facepack
locks into place and
antenna wire is seeded
through the wire slot.
DO NOT PINCH THE
ANTENNA WIRE.
⑦
⑧⑨
Insert Wi-Fi or
LAN module.
⑥
NOTE: Outdoor installation requires use of antenna sleeve. Indoor installation of remote mounted facepack
requires the wall mount (LUXORFPMNT, sold separately). Once wall mount is installed onto the wall, insert
the antenna onto the back plane of the mount before inserting the module and facepack into the mount.

7
Luxor®Wi-Fi Installation
WI-FI MOD ONLY:
Insert the antenna
into the cover.
WI-FI MOD ONLY:
Press cap into antenna
wire and tighten over
the cover.
LAN MOD ONLY:
Connect cat5 cable
to LAN Module.
Reconnect commu-
nication cable. Close
bezel, ensure it locks
into place.
⑩ ⑪
⑫ ⑬

8
Luxor®Wi-Fi Setup
Setup
There are two ways to associate a Luxor controller with
a Wi-Fi network: through a networked Wi-Fi router, or
directly to a wireless iOS or Android device.
Connecting to an Existing Network (Wi-Fi Module)
To connect a Luxor to an existing Wi-Fi network, follow the
steps below. Please ensure the Wi-Fi module is already
installed per the instructions in the installation section.

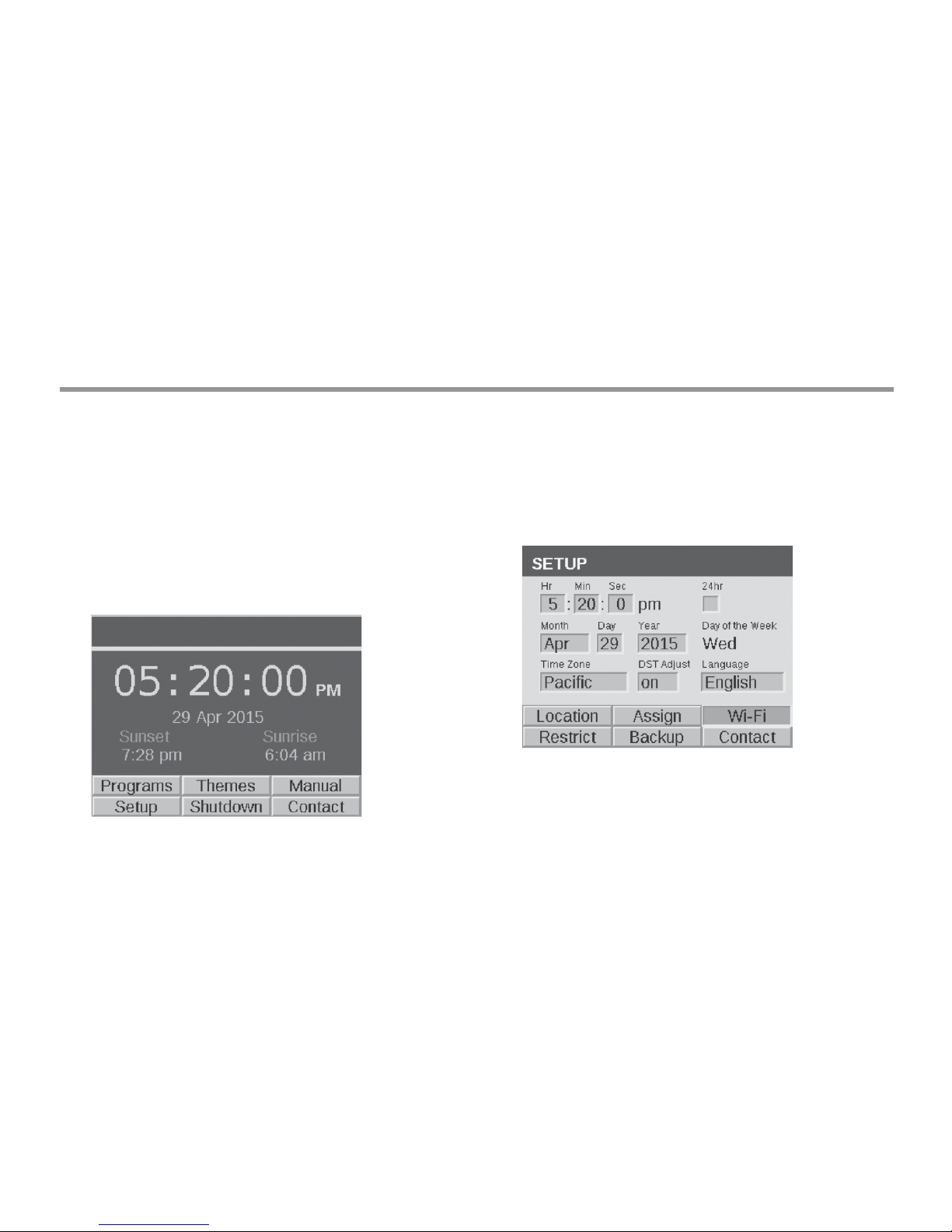

1. From the HOME screen, navigate to the SETUP screen
using the scroll wheel.
2. Scroll to and select Wi-Fi. NOTE: this menu option
changes depending of which module is inserted into
the accessory port. “Wi-Fi” displays only when the
Wi-Fi module is completely pressed into the accessory
port. “LAN” will appear for a LAN module, and
“Network” will appear if no card is inserted.
Table of Contents
Setup
Connecting to an Existing Network
Wi-Fi Module
Cross References:

9
Luxor®Wi-Fi Setup
3. Select the “network” button to choose a specic
network. NOTE: The Luxor defaults to “Direct
Connect” mode. See next section for more
information on this topic.
4. The Wi-Fi networks page auto-populates with the
SSIDs of local wireless networks within range of the
Luxor controller. The security column displays “Y”
or “N” (yes or no) if a password is required to connect
to that network. The RSSI column displays a numeric
value to indicate the signal strength of each network.
RSSI is measured between zero and 120, with
optimum performance above 70.

10
Luxor®Wi-Fi Setup
5. If a “Y” was displayed for the selected network, a
password entry screen will appear. Select each box
to scroll for the desired character and press the scroll
wheel to nalize that character. Move to the next
character space and repeat the process until the full
password is entered.
6. Select “OK.”
7. The Luxor will then connect to the network.
NOTE: connection can take up to 20 seconds.
8. If the network SSID does not appear in the list of
available networks, but the network is close enough
that it should be able to connect, select the “Other
Network” button from the Wi-Fi networks page.
9. Enter the SSID of the desired network.
10. Select the appropriate password button, and enter the
password accordingly as shown previously.
HINT: WPA is the most common in modern networks.
NOTE: For best results, ensure an RSSI of 70+

11
Luxor®Wi-Fi Setup
Connecting to an Existing Network (LAN Module)
Installing a LAN module for a direct connection between
the Luxor and the network equipment can provide a more
reliable connection. Before beginning the steps below,
please ensure the LAN module is installed per the instruc-
tions in the installation section.
1. From the HOME screen, navigate to the
SETUP screen using the scroll wheel.
2. Scroll to and select Wi-Fi. NOTE: this menu option
changes depending of which module is inserted into
the accessory port. “Wi-Fi” displays only when the
Wi-Fi module is completely pressed into the accessory
port. “LAN” will appear for a LAN module, and
“Network” will appear if no module is inserted.
Table of Contents
LAN Module

12
Luxor®Wi-Fi Setup
3. The Ethernet status screen will display as “connected”
when a cat5 connection is made between the LAN
module and the network device.
LED Indicator Lights
The Ethernet port on the LAN module has two status LEDs
that provide connection information. Two additional LEDs
provide the same information for the service processor
network management port.
LED Color Description
Left LED Amber
or Green
Speed Indicator:
• Amber on — Operating
as a gigabyte connection
(1000 Mbps).
• Green on — Operating as
a 100-Mbps connection.
• O — Operating as a 10-
Mbps connection.
Right LED Green Link/Activity Indicator:
• Blinking — There is
activity on this post.
• O — No link
is established.

13
Luxor®Wi-Fi Setup
Direct Connect
The Luxor can be placed in Direct Connect mode, allowing
an iOS or Android device to connect directly over Wi-Fi to a
single controller. This removes the need to go through the
Wi-Fi router or network in order to communicate directly
with the controller.
1. From the HOME screen, navigate to the SETUP screen
using the scroll wheel.
2. Scroll to and select Wi-Fi. NOTE: this menu option
changes depending of which module is inserted into
the accessory port. “Wi-Fi” displays only when the
Wi-Fi module is completely pressed into the accessory
port. “LAN” will appear for a LAN module, and
“Network” will appear if no module is inserted.
Table of Contents
Direct Connect

14
Luxor®Wi-Fi Setup
3. The Luxor defaults to “Direct Connect” mode. The
network name is “luxor”. If a controller ID is assigned
by the installer, then the ID number is added to the
network name (e.g. “luxor-1”). NOTE: the network
name is “lxzdc” on ZDC facepacks.
4. If a Luxor is in “network” mode, then select the NET-
WORK button on the Wi-Fi setup screen, and select
DIRECT CONNECT to switch to direct connect mode.
NOTE: The direct connect feature is
available only with the Wi-Fi module,
not the LAN module.

15
Luxor®Wi-Fi Setup
Luxor Linking (Multiple Luxors)
When multiple Luxor controllers on a single site are
connected to the same network (via LAN or Wi-Fi), the
app sees the controllers as a single system with up to 250
groups available across all controllers. Each Luxor will still
retain and automate its own programs, but when initiating
a manual group event or theme through the Luxor app, the
controllers will act as one.
1. To setup multiple Luxor controllers on a single site,
start by entering the same Wi-Fi network information
on each controller that will be linked. Refer to pages 8
or 11 for detailed instructions.
2. Assign a separate controller ID number for every
Luxor on the network. Each Luxor requires a unique
controller ID. Enter any number between 1 and
999,999 as the ID number. This feature is also useful
when using direct connect to simplify connection to
the proper Luxor.
3. When manually initiating a group from the Luxor
app, every controller will activate and every xture
assigned to that group will initiate, no matter the
controller to which the xture is connected.
4. Group/theme names and theme settings are saved
across all linked controllers and will remain in sync as
long as each Luxor remains connected to the network.
NOTE: the facepack displays only the group numbers
and theme letters; names assigned by the user are
displayed only through the app.
Table of Contents
Luxor Linking (Multiple Luxors)

16
Luxor®Wi-Fi Setup
Luxor Linking Example
LUXOR ZD ➊ controls
groups 1-25
LUXOR ZD ➋ controls
groups 26-75
GROUP 26
LUXOR ZDs
GROUP 27
GROUP 1
Table of Contents
Luxor Linking Example
Cross References:

17
Luxor®Wi-Fi App

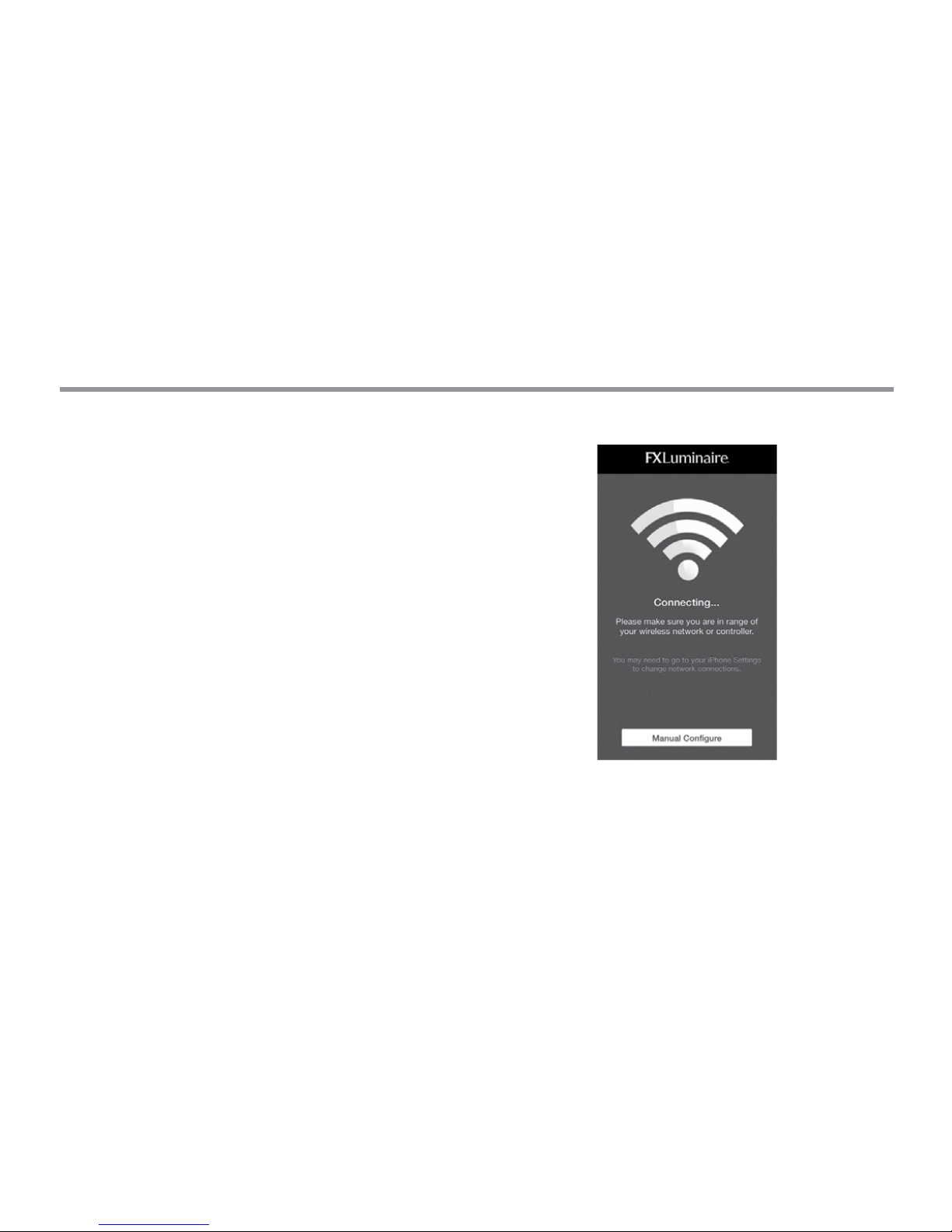

App Control
A Luxor system with a Wi-Fi Module installed can be
operated manually and with the themes mode utilizing
an iOS or Android device. The FX Luminaire Luxor App
can be downloaded from the following application stores.
Keyword search: “FX Luxor.”
• Apple iTunes Store
• Google Play Store
Getting Started
• A “connecting” screen will display once the installed
app is opened on a smart device. This screen will
remain on screen until the app makes a connection
with the Luxor.
• The smart device and the Luxor must be connected
to the same network to advance past the “connecting”
screen using the Wi-Fi or LAN modules. Once the
connection is terminated by either the smart device or
the Luxor, the “connecting” screen will reappear.
Table of Contents
App
App Control
Getting Started

18
Luxor®Wi-Fi App

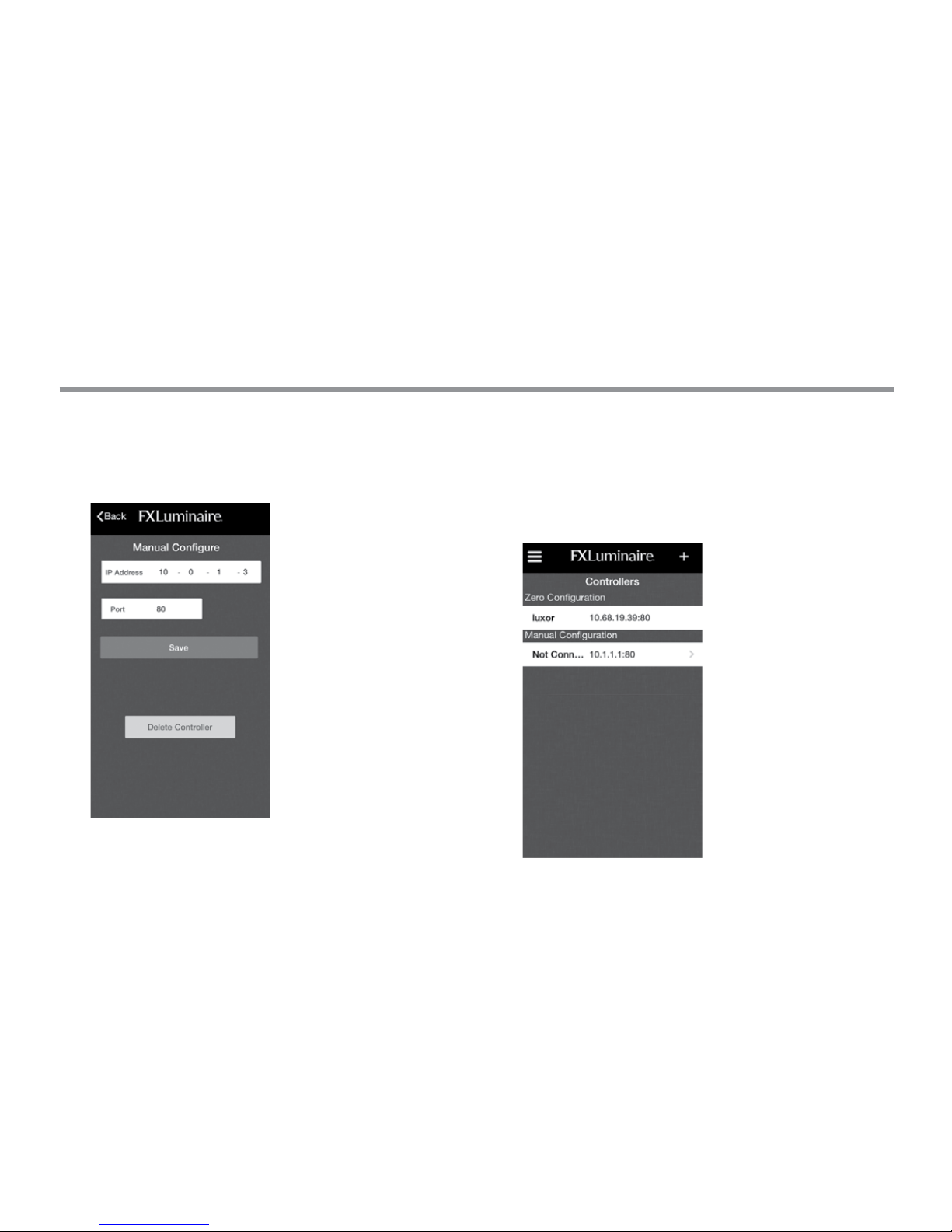

• If the app is not able to nd the Luxor controller, select
MANUAL CONFIGURE.
REMINDER: the smart device and the Luxor must be
connected to the same network.
• Enter the IP address as
displayed on the Luxor's
Wi-Fi setup screen.
• Enter the port number
as 80.
• Select the SAVE button.
• Repeat the process
if you have multiple
controllers.
• The settings menu contains a list of the active
controllers (“zero conguration”), and a separate
list of controllers that were manually congured. To
remove inactive controllers from the list, select the
arrow (“>”) to the right of the IP address and select
DELETE CONTROLLER.

19
Luxor®Wi-Fi App
Groups
Operating lights in the groups mode is a manual process
of turning lights on or o, adjusting the intensity between
zero and 100% (ZD only), and changing the colors (ZDC
only). Lights will remain as specied in the app without
an ending time. Existing programs will override the app
selections at the next event time. For example, if all lights
are on at 50% and scheduled to dim to 10% at midnight, but
the homeowner wants to increase the intensity for a party,
the user can change the intensity via the app to 100%, but
the lights will still dim to 10% at midnight per the program.
If the party is still active aer midnight, the homeowner
can again increase the intensity if desired.
Add a Group
1. Select the GROUPS tab
to show available groups
to adjust. The Luxor only
displays “named” groups.
If no groups are present
or only a few, each can be
added and named by select-
ing the + GROUP button.
Table of Contents
Groups
Add a Group

20
Luxor®Wi-Fi App
2. Enter a name for a group
with a description, such as
BBQ, Pool, or Patio.
3. Choose the group number.
All available (“un-named”)
groups will appear on this
list even if there has not
been a xture assigned to
every group.
4. Click SAVE.
5. This group will now appear
as an option under the
groups tab and can be
adjusted from 0-100%.
Repeat these steps to add
more groups.
Tips on Working with Groups
• Reorder the groups by selecting EDIT at the top right.
Press and hold the “three line” icon next to each group
name and drag the group into the desired position.
Repeat steps to adjust order of groups.
• Press the all lights o button ( ) to turn o all lights
at once. The button is not an “on” switch. To turn on
lights, adjust the intensity on specic groups or
activate a theme.
• Delete a group by selecting EDIT at the top right.
Press the red delete icon ( ) and conrm by press-
ing the secondary delete button on the right.
• FX LED devices will only perform to their specic
capabilities. For example, ZD boards can zone and
dim, but a standard FX LED board will only zone.
Thus, when a standard device is activated via the
app, the user might set the intensity to 45%, but the
light will turn only to 100% for any intensity setting
between 1 and 100, and to o at 0%.
Table of Contents
Tips on Working with Groups
Cross References:
