g-lites Titanum 15R User manual

2
T h a n k y o u f o r y o u r p a t r o n a g e . W e a r e c o n f i d e n t t h a t o u r e x c e l l e n t p r o d u c t s a n d s e r v i c e c a n s a t i s f y y o u . F o r
your own safety, please read this user manual carefully before installing the device.
In order to install, operate, and maintain the lighting safety correctly. We suggest that the installation and
operation should be done by the verified technician and follow the instruction strictly.
ACAUTION!
Keep this device away from rain and moisture!
CAUTION!
Unplug mains lead before opening the housing.
Every person involved with the installation, operation and maintenance of this device has to:
-be qualified
-follow carefully the instructions of this manual
1. INTRODUCTION
Thank you for having chosen this professional moving head.
You will see you have acquired a powerful and versatile device.
Unpack the device. Inside the carton box you should find:
1. One XLR power cable
2. One 3pin DMX cable
3. Two omega clamps
4. One user manual
（Flight case, Safety cable and Clamps are optional, please contact your dealer）
P l e a s e c h e c k c a r e f u l l y t h a t t h e r e i s n o d a m a g e c a u s e d b y t r a n s p o r t a t i o n . S h o u l d t h e r e b e a n y , p l e a s e c o n s u l t
your dealer and don’t install this device.
2. TECHNICAL PARAMETERS
POWER SUPPLIES
Input power: AC110-240V 50/60 Hz
LAMP SOURCE
Lamp source: Osram Sirius HRI 330W, 2000 hours, 8000K
Brightness: 1200 watts
Power consumption: 350W
OPTICS
Lens: anti-reflective coated lens
YiLong optic system
Output lux: 10,500 lux at 20 meters
COLOR SYSTEM
Colors: basic color wheel with 6 dichroic mirrors, plus white, two direction rainbow effect
CMY variable color mixing for infinite color possibilities

3
GOBO SYSTEM
8 rotating gobos plus open, all gobos can be easily replaceable and gobo indexing
Static gobo wheel with 14 indexing gobos plus open, gobo shaking in different speed
EFFECTS SECTION
Prism and prism rotating, with 16 prism macros
Linear dimmer in precise speed from 0% ~ 100%
Stepless frost, 0%-100% linear change frost
Motorized focus
Iris from 5%~100% with pulse iris effect
Zoom: 9°~27° linear zoom
Strobe/shutter: high speed shutter, 0-13 Hz or random strobe
CONTROL AND PROGRAMMING
DMX channels: 3 DMX modes (21/23/34 channels DMX)
Control: 3-pin & 5-pin DMX
Control board with LCD graphic display
BODY
Remote controller lamp's switch function, display light and lamp's using time
Structure: heat-proof plastic+module pressing alloy materials
MOVING BODY
Pan and tilt movement: 8 and 16 bit resolution for smooth and precise motion
Pan movement: 540°
Tilt movement: 270°
Speed of pan/tilt movement adjustable
Scan position memory, auto reposition after unexpected movement
WEIGHT & SIZE
Weight: 23 Kg. (50.7 Lb.)
Dimensions: 409 x 419 x 541mm / 16.1 x 16.5 x 21.3 inches

4
3. PHOTOMETRIC DATA
4. GOBOS

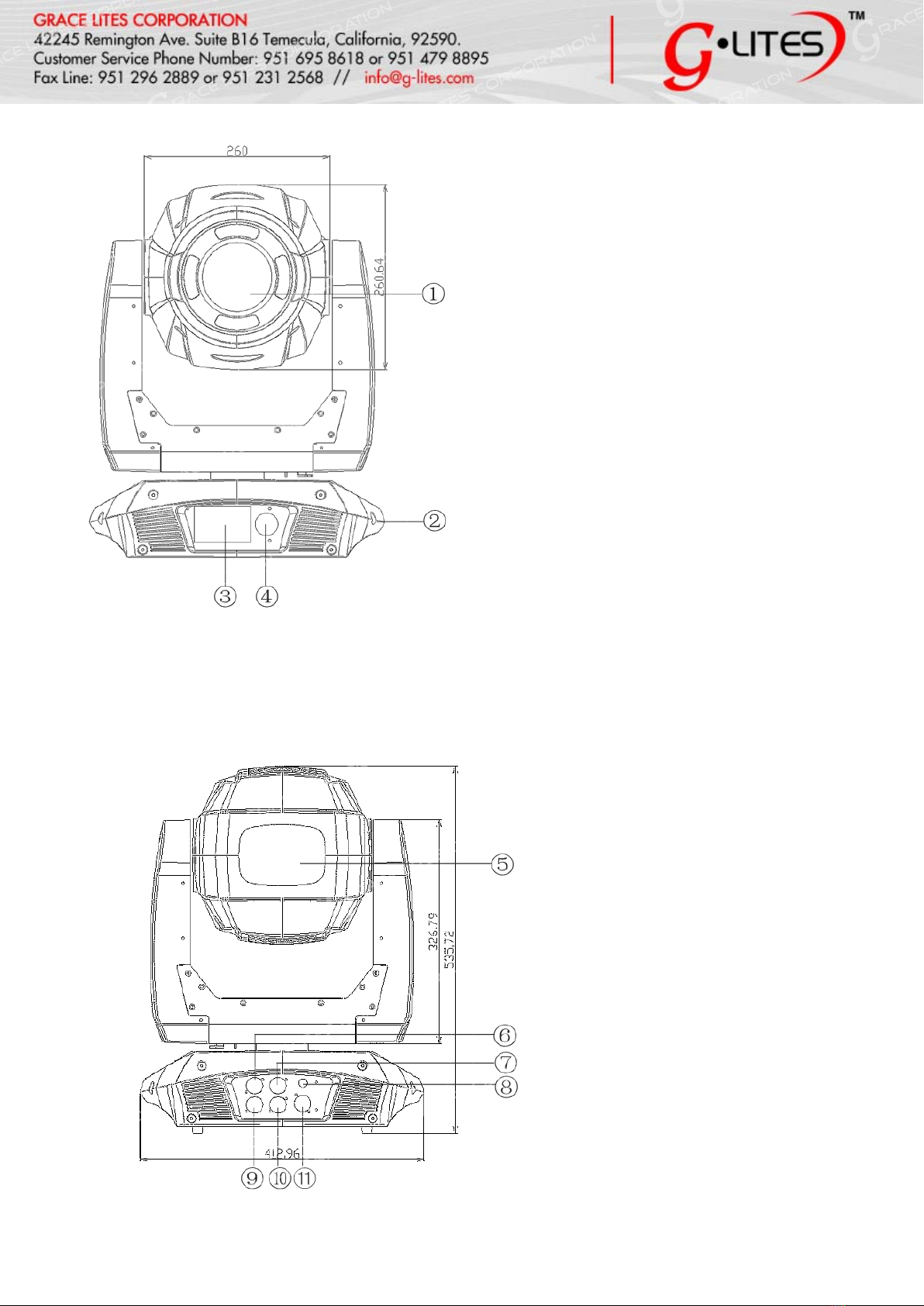

5 FIXTURE OVERVIEW

5
1) Lens.
2) Handle.
3) LCD Display.
4) Rotating button.
5) Lamp Access Panel.
6) 3-Pin DMX in.
7) 5-Pin DMX in.
8) Fuse.
9)3-Pin DMX out.
10) 5-Pin DMX out.
11) Power Cord.

6

7
6. CIRCUIT SCHEMATICS

8

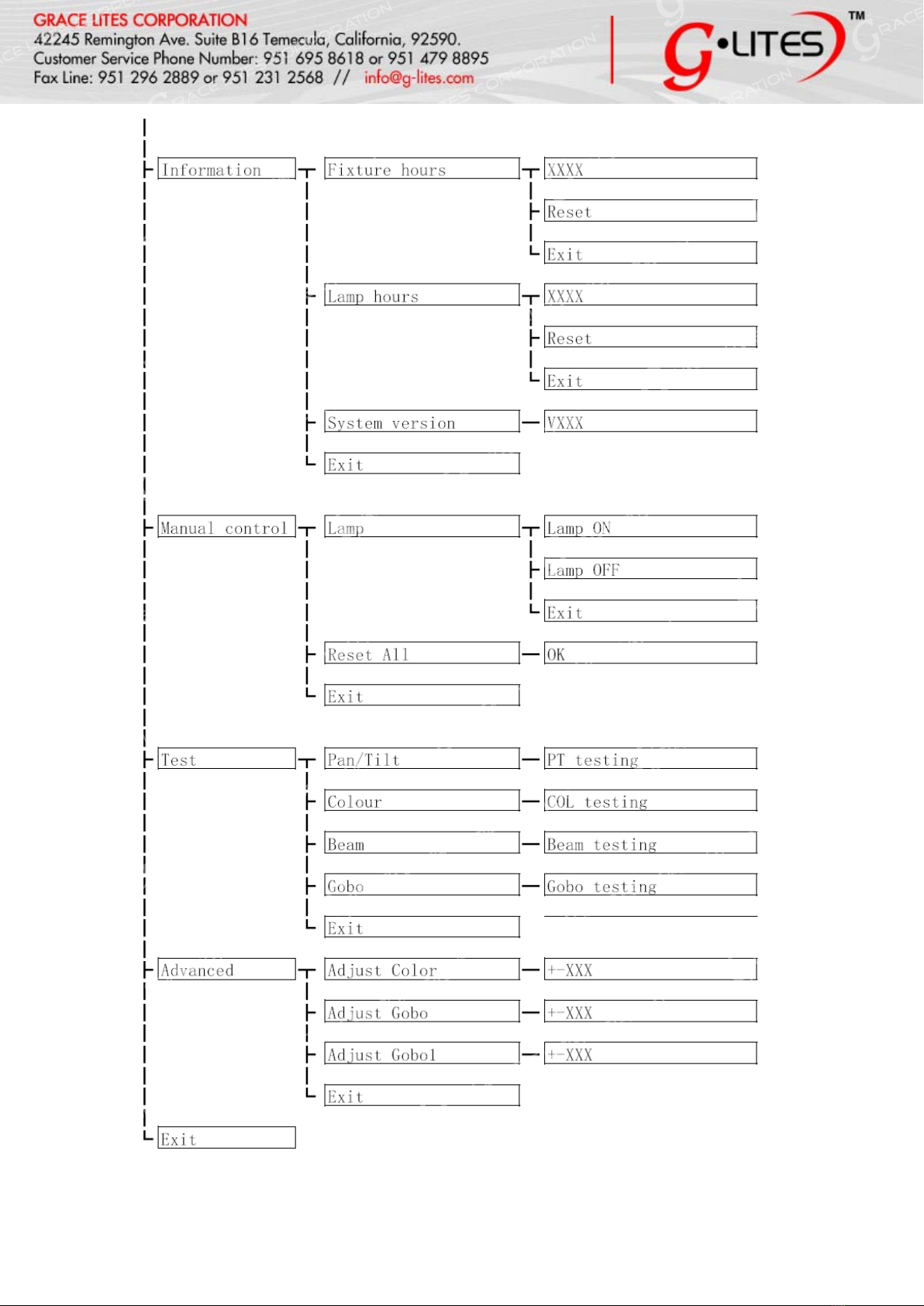

7. MENU FUNCTION

9

10
8. DMX CHANNELS
ST 23CH
BA 21CH
EX 34CH
1
Pan
1
Pan
1
Pan
2
Pan Fine
2
Pan Fine
3
Tilt
2
Tilt
3
Tilt
4
Tilt Fine
4
Tilt Fine
5
Color Wheel
3
Color Wheel
5
Color Wheel
6
Color Wheel Fine
6
Cyan
4
Cyan
7
Cyan
8
Cyan Fine
7
Magenta
5
Magenta
9
Magenta
10
Magenta Fine
8
Yellow
6
Yellow
11
Yellow
12
Yellow Fine
9
Rotating Gobo
7
Rotating Gobo
13
Rotating Gobo
10
Rotating Gobo Rotation
8
Rotating Gobo Rotation
14
Rotating gobo index
15
Rotating Gobo Fine
11
Fixed Gobo
9
Fixed Gobo
16
Fixed Gobo
17
Fixed Gobo Fine
12
3FacetPrismand
Macro
10
3FacetPrismand
Macro
18
3 Facet Prism and Macro
13
Rotating Prism
11
Rotating Prism
19
Rotating Prism
20
Rotating Prism Indexing
Fine
14
Focus
12
Focus
21
Focus
22
Focus Fine
15
Zoom
13
Zoom
23
Zoom
24
Zoom Fine
16
Shutter
14
Shutter
25
Shutter
17
Dimmer
15
Dimmer
26
Dimmer
27
Dimmer Fine
18
Iris
16
Iris
28
Iris
29
Iris Fine
19
Frost
17
Frost
30
Frost
20
Speed of CMY
18
Speed of CMY
31
Speed of CMY
21
Speed of Pan/Tilt
19
Speed of Pan/Tilt
32
Speed of Pan/Tilt
22
Color Macro-CMY
Color Wheel
20
Color Macro-CMY
Color Wheel
33
Color Macro-CMY Color
Wheel
23
Lam on&off Reset
21
Lam on&off Reset
34
Lam on&off Reset
DMX Channel’s functions and values(34DMX Channels):
Mode/Channel
Value
Function
St
Ba
Ex
1
1
1
Pan Movement 8bit:

11
0-255
Pan Movement by 540°
2
2
Pan Fine 16bit
0-255
Fine Control of Pan movement
3
2
3
Tilt Movement 8bit:
0-255
Tilt Movement by 270
4
4
Tilt Fine 16bit
0-255
Fine control of Tilt movement
5
3
5
Color Wheel
0-11
Open/White
12-23
Color 1
24-35
Color 2
36-47
Color 3
48-59
Color 4
60-71
Color 5
72-83
Color 6
128-189
Forwards rainbow effect from fast to slow
190-193
No rotation
194-255
Backwards rainbow effect from slow to fast
6
Color Wheel Fine
0-255
Color Wheel color change to any position Fine
6
4
7
Cyan Color
0-255
Cyan (0-white, 255-100% Cyan)
8
Cyan Color Fine
0-255
Cyan Fine
7
5
9
Magenta Color
0-255
Magenta (0-white, 255-100% magenta)
10
Magenta Color Fine
0-255
Magenta Fine
8
6
11
Yellow Color
0-255
Yellow (0-white, 255-100% Yellow)
12
Yellow Color Fine
0-255
Yellow Fine
9
7
13
Rotating gobos, cont. rotation
0-9
Open
10-19
Rot. gobo 1
20-29
Rot. gobo 2
30-39
Rot. gobo 3
40-49
Rot. gobo 4
50-59
Rot. gobo 5
60-69
Rot. gobo 6
70-79
Rot. gobo 7
80-89
Rot. gobo 8
90-104
Rot. gobo 1 shake

12
105-119
Rot. gobo 2 shake
120-134
Rot. gobo 3 shake
135-149
Rot. gobo 4 shake
150-164
Rot. gobo 5 shake
165-179
Rot. gobo 6 shake
180-194
Rot. gobo 7 shake
195-209
Rot. gobo 8 shake
210-255
Rot. gobo wheel cont. rotation slow to fast
10
8
14
Rotating gobo index, rotating gobo rotation
0-127
Gobo indexing
128-189
Forwards gobo rotation from fast to slow
190-193
No rotation
194-255
Backwards gobo rotation from slow to fast
15
Rotating gobo indexing Fine
0-255
Fine indexing
11
9
16
Fixed Gobos
0-7
Open/hole
8-15
Gobo 1
16-23
Gobo 2
24-31
Gobo 3
32-39
Gobo 4
40-47
Gobo 5
48-55
Gobo 6
56-63
Gobo 7
64-71
Gobo 8
72-79
Gobo 9
80-87
Gobo 10
88-95
Gobo 11
96-103
Gobo 12
104-111
Gobo 13
112-119
Gobo 14
112-119
Gobo 1 shake slow to fast
112-119
Gobo 2 shake slow to fast
112-119
Gobo 3 shake slow to fast
112-119
Gobo 4 shake slow to fast
148-154
Gobo 5 shake slow to fast
155-161
Gobo 6 shake slow to fast
162-168
Gobo 7 shake slow to fast
169-175
Gobo 8 shake slow to fast
176-182
Gobo 9 shake slow to fast
183-189
Gobo 10 shake slow to fast
190-196
Gobo 11 shake slow to fast
197-203
Gobo 12 shake slow to fast

13
204-210
Gobo 13 shake slow to fast
211-217
Gobo 14 shake slow to fast
218-255
Gobo wheel rotation from slow to fast
17
Fixed gobo indexing Fine
0-255
Fixed gobo Fine indexing
12
10
18
3 facet rotating prism, Prism / Gobo macros
0-31
Open
32-127
Rot. Prism
128-135
Macro 1
136-143
Macro 2
144-151
Macro 3
152-159
Macro 4
160-167
Macro 5
168-175
Macro 6
176-183
Macro 7
184-191
Macro 8
192-199
Macro 9
200-207
Macro 10
208-215
Macro 11
216-223
Macro 12
224-231
Macro 13
232-239
Macro 14
240-247
Macro 15
248-255
Macro 16
13
11
19
Rotating prism
0-127
Prism indexing
128-189
Forwards prism rotation from fast to slow
190-193
No rotation
194-255
Backwards prism rotation from slow to fast
20
Rotating Prism indexing Fine
0-255
Fine indexing
14
12
21
Focus
0-255
Continuous adjustment from near to far
22
Focus Fine
0-255
Continuous adjustment Fine
15
13
23
Zoom
0-255
Zoom adjustment from small to big
24
Zoom Fine
0-255
Zoom adjustment Fine
16
14
25
Shutter, strobe
0-31
Shutter closed
32-63
No function (shutter open)
64-95
Strobe effect slow to fast

14
96-127
No function (shutter open)
128-159
Pulse-effect in sequences
160-191
No function (shutter open)
192-223
Random strobe effect slow to fast
224-255
No function (shutter open)
17
15
26
Dimmer intensity
0-255
Intensity 0 to 100%
27
Fine Dimmer intensity
0-255
Dimmer intensity fine
18
16
28
Iris
0-191
Max. diameter to Min. diameter
192-223
Pulse closing fast to slow
224-255
Pulse opening slow to fast
29
Iris Fine
0-255
Iris Fine
19
17
30
Frost
0-191
Frost 0~100%
192-223
Pulse opening fast to slow
224-254
Pulse closing slow to fast
255
Max. Frost
20
18
31
Speed Of CMY & Colour macro Speed
0-255
Speed Max －>Min
21
19
32
Speed Pan/Tilt movement
0-225
Max to min speed
226-255
No function
22
20
33
Color macros - CMY and colour wheel
0-7
OFF
8-15
Macro1
16-23
Macro2
24-31
Macro3
32-39
Macro4
40-47
Macro5
48-55
Macro6
56-63
Macro7
64-71
Macro8
72-79
Macro9
80-87
Macro10
88-95
Macro11
96-103
Macro12
104-111
Macro13
112-119
Macro14
120-127
Macro15
128-135
Macro16

15
136-143
Macro17
144-151
Macro18
152-159
Macro19
160-167
Macro20
168-175
Macro21
176-183
Macro22
184-191
Macro23
192-199
Macro24
200-207
Macro25
208-215
Macro26
216-223
Macro27
224-231
Macro28
232-239
Macro29
240-247
Macro30
248-255
Random CMY
23
21
34
Lamp on/off, reset, internal programs
0-39
No function
40-59
Lamp on
60-79
Lamp switch off
80-84
All motor reset
85-255
No function

16
9. SAFETY INSTRUCTIONS
CAUTION!
Becarefulwithyouroperations.Withadangerousvoltageyoucansuffer a dangerous
electric shock when touching wires!
This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe
operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in
this user manual.
1. In order to guarantee the product’s life, please don’t put it in the damp places or even the environment
over 60 degress.
2. Always mount this unit in safe and stable matter.
The qualified professionals are allowed to carry out the lamp installation, operation and maintenance, but
they must guarantee to operate in strict accordance with the instructions referred to.
3.Usinglamp,thechangerateofpowervoltageshouldbewithin±10%,ifthevoltageistoohigh,it will
shorten the light’s life; if it’s not enough, the lamp will be dark.
4. Please restart it after turning off light for 20 minutes until full-cooling. Frequent switching will reduce the
life span of lamps and bulbs; intermittent using will improve the life of bulbs and lamps.
▲Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer will
not accept liability for any resulting defects or problems.
If the device has been exposed to temperature changes due to environmental changes, do not switch it on
immediately. The arising condensation could damage the device. Leave the device switched off until it has
reached room temperatures.
This device falls under protection-class. Therefore it is essential that the device be earthed.
The electric connection must carry out by qualified person.
Make sure that the available voltage is not higher than stated at the end of this manual.
Makesurethepowercordisnevercrimpedordamagedbysharpedges.Ifthiswouldbethe case,
replacement of the cable must be done by an authorized dealer.
Alwaysdisconnectfromthemains,whenthedeviceisnotinuseorbeforecleaningit.Onlyhandlethe
power cord by the plug. Never pull out the plug by tugging the power cord.
During initial start-upsomesmokeorsmellmayarise.Thisisanormalprocessanddoesnotnecessarily
mean that the device is defective, it should decrease gradually.
Please don’t project the beam onto combustible substances.
If the external flexible cable or cord of this luminaries is damaged, it shall be exclusively replaced by the
manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
CAUTION!
Never touch the device during operation!
The housing may heat up!

17
CCAUTION!
NNever look directly into the light source,
AAs sensitive persons may suffer an epileptic shock.
Please be aware that damages caused by manual modifications to b e t h e d e v i c e a r e n o t s u b j e c t t o w a r r a n t y .
Keep away from children and non-professionals.
10. GENERAL GUIDELINES
T h i s d e v i c e i s a l i g h t i n g e f f e c t f o r a p r o f e s s i o n a l u s e o n s t a g e s , i n d i s c o t h e q u e s , t h e a t r e s , e t c . , t h e d e v i c e w a s
designed for indoor use only.
This fixture is only allowed to be operated with the max alternating current which stated in the technical
specifications in the last page of this manual.
Lighting effects are not designed for permanent operation.
Consistent operation breaks may ensure that the device will serve you for a long time without defects.
Do not shake the device. Avoid brute force when installing or operating the device.
While choosing the installation-spot, please make sure that the device is not exposed to extreme heat,
moisture or dust. Please don’t project the beam onto combustible substances. The minimum distance between
light-output from the projector and the illuminated surface must be more than 0,5 meter.
If you use the quick lock cam in hanging up the fixture, please make sure the quick lock fasteners turned in
the quick lock holes correctly.
Operate the device only after having familiarized with its functions. Do not permit operation by persons not
qualified for operating the device. Most damages are the result of unprofessional operation.
Please use the original packaging if the device is to be transported.
For safety reasons, please be aware that all modifications on the device are forbidden.
Ifthisdevicewillbeoperatedinanywaydifferenttotheonedescribed in this manual, the product may
suffer damages and the guarantee becomes void.
Furthermore, any other operation may lead to short-circuit, burns, electric shock, lamp explosion, crash, etc.
11. INSTALLATION INSTRUCTIONS
CAUTION!
Only install the lamp with the device unplugged from the mains.
CAUTION!
The lamp has to be replaced when it is damaged or deformed.
Before replacing the lamp let the lamp cool down, because during operation, the lamp can reach very high
temperature. During the installation of halogen lamps do not touch the glass bulbs bare handed. Always use
a cloth to handle the lamps during insertion and removal.
Do not install lamps with a higher wattage. They generate higher temperatures than which the device was
designed for.

18
12. CLEANING AND MAINTENANCE
1. To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.
2. Do not spill water or other liquids into or on to your unit.
3. During long periods of non-use, disconnect the unit’s main power.
4. It should be installed in a well-ventilated place, at a distance of 50 centimeters or more with the walls. At
the same time, please check if the fan and ventilation holes are unobstructed.
The following points have to be considered during the inspection
1) All screws for installing the devices or parts of the device have to be tightly connected and must not be
corroded.
2) There must not be any deformations on the housing, color lenses. Fixations and installations spots
(ceiling, suspension, trussing).
3) Mechanically moved parts must not show any traces of wearing and must not rotate with unbalances.
4) The electric power supply cables must not show any damage, material fatigue or sediments. Further
instructions depending on the installation spot and usage have to be adhered by a skilled installer and
any safety problems have to be removed.
CAUTION!
Disconnect from mains before starting maintenance operation!
In order to make the lights in good condition and extend the life time, we suggest a regular cleaning to the
lights.
1) Clean the inside and outside lens each week to avoid the weakness of the lights due to accumulation of
dust.
2) Clean the fan each week.
3) To make sure the smooth gobo rotation, we suggest adding proper lube to the wheel each three month,
avoiding the excessive lube splashes during the gobo rotating,
4) A detailed electric check by approved electrical engineer each three month, make sure that the circuit
contacts are in good condition, prevent the poor contact of circuit from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint-free cloth. Never use alcohol or
solvents.
There are no serviceable parts inside the device except for the lamp. Please refer to the instructions under
“Installation instructions”.
Should you need any spare parts, please order genuine parts from your local dealer.
All information is subject to change without prior notice.
