Use and care manual
BO 450/451 612
Built-in oven

2
en-us
Table of Contents
Use and care manual
9Safety Definitions 3
IMPORTANT SAFETY INSTRUCTIONS 4
Proper Installation and Maintenance 4
Fire Safety 5
Burn Prevention 6
Child Safety 7
Cleaning Safety 7
Cookware Safety 8
Proposition 65Warning 8
] Causes of damage 9
7 Environmental protection 9
Tips for saving energy 9
* Familiarizing yourself with your appliance 10
Oven 10
Displays and controls 11
Symbols 11
Colors and display 12
Automatic door opening 12
Standby 12
Activate appliance 12
Additional information (and )12
Cooling fan 13
Program selection positions 13
Accessories 14
Special accessories 15
K Before using the appliance for the first time 15
Setting the language 15
Setting the time format 15
Setting the time 15
Setting the date format 16
Setting the date 16
Setting the temperature unit 16
Completing initial set-up 16
Heating up the oven 16
Cleaning accessories 16
1 Operating the appliance 16
Oven interior 16

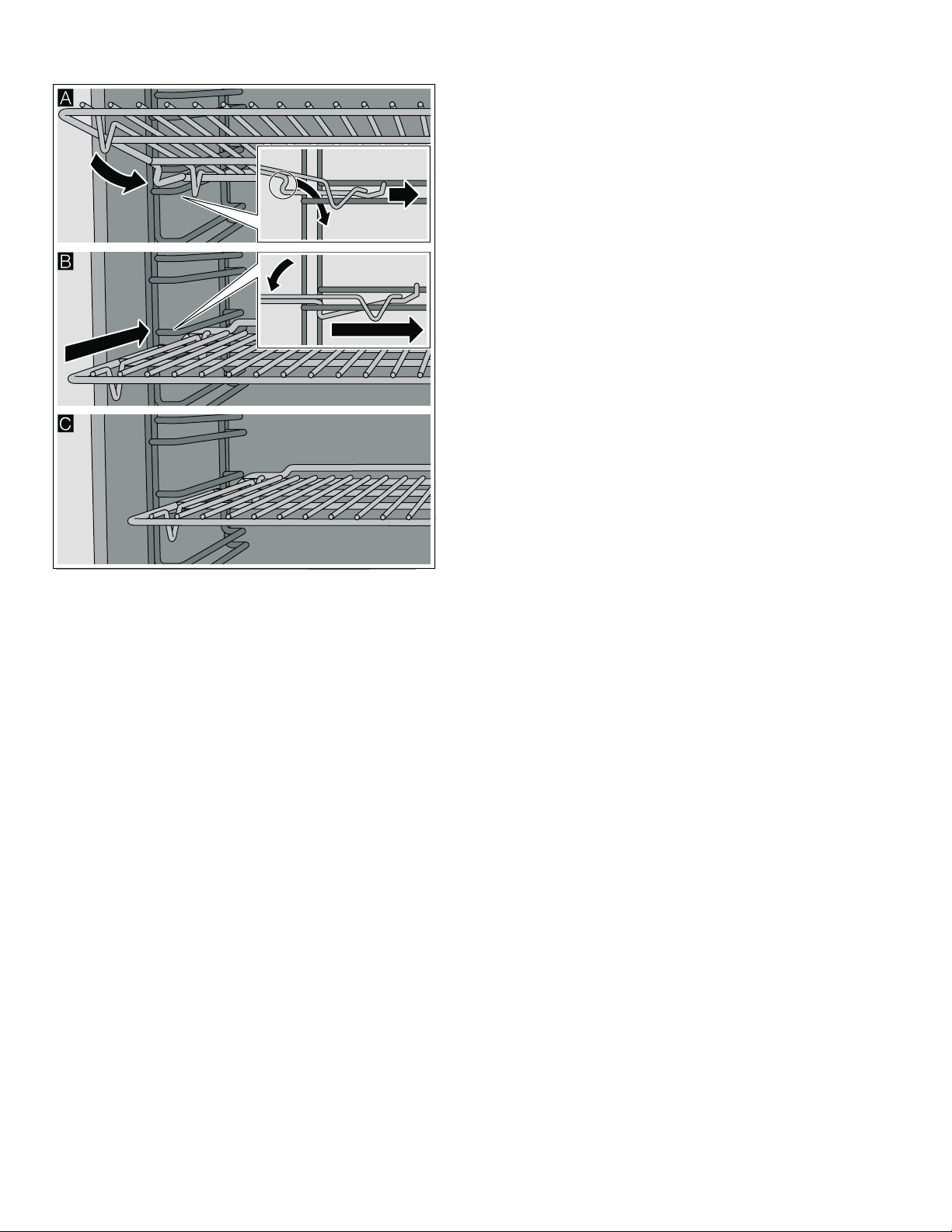

Inserting the rack 16
Turning on 17
Quick heat 17
Safety shut-off 17
O Timer functions 18
Launching the timer menu 18
Timer 18
Stopwatch 18
Cooking time 19
End of cooking time 20
F Sabbath mode and Yom Tov mode 21
Sabbath mode 21
Yom Tov mode 21
n Automatic programs 22
Information on the settings 22
Selecting a dish 22
Applying settings for dishes 23
Calling up the last automatic programs used 23
Ž Personal recipes 24
Recording a recipe 24
Programming a recipe 24
Entering a name 25
Starting a recipe 25
Change recipe 25
Deleting a recipe 25
@ Core temperature probe 26
Inserting the core temperature probe into the food 26
Setting the core temperature 27
Core temperature guidelines 27
v Roasting function 29
A Childproof lock 29
Activating the child lock 29
Deactivating the child lock 29
o Home Connect 30
Setting Up 30
Remote Start 31
Home Connect settings 31
Remote Diagnostics 32
Information on Data Protection 32
Declaration of Conformity 32
Wi-Fi®Module 32
Q Basic settings 34
D Cleaning and maintenance 37
Cleaning agents 37
Removing the plug-in grid 38

3
Safety Definitions en-us
. Pyrolysis (self-cleaning) 38
Preparing the pyrolytic self-cleaning feature 39
Starting self-clean (pyrolysis) 39
Cleaning the Accessories with the Pyrolytic
Self-cleaning Feature 39
3 Troubleshooting 40
Power cut 40
Demo mode 40
Replacing the oven lamp 41
4 Customer service 42
J Tables and tips 42
Vegetables 43
Side dishes and dishes 44
Fish 47
Meat 48
Poultry 51
Grilling and roasting 52
Baked goods 53
Dough proving (leaving to rise) 59
Desserts 59
Defrosting 60
Preserving 61
Disinfecting 61
Drying 62
Baking stone 62
Roasting dish 63
Acrylamide in foodstuffs 64
Additional information on products, accessories,
replacement parts and services can be found at
www.gaggenau.com and in the online shop
www.gaggenau.com/zz/store
9Safety Definitions
SafetyDefinitions 9WARNING
This indicates that death or serious injuries may
occur as a result of non-observance of this
warning.
9CAUTION
This indicates that minor or moderate injuries may
occur as a result of non-observance of this
warning.
NOTICE
This indicates that damage to the appliance or property
may occur as a result of non-compliance with this
advisory.
Note: This alerts you to important information and/or
tips.

9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
4
IMPORTANT SAFETY INSTRUCTIONS
READANDSAVETHESEINSTRUCTIONS 9WARNING
When properly cared for, your new
appliance has been designed to be
safe and reliable. Read all
instructions carefully before use.
These precautions will reduce the
risk of burns, electric shock, fire,
and injury to persons. When using
kitchen appliances, basic safety
precautions must be followed,
including those in the following
pages.
Proper Installation and Maintenance
Have the installer show you the location
of the circuit breaker or fuse. Mark it for
easy reference.
This appliance must be properly installed
and grounded by a qualified technician.
Connect only to properly grounded outlet.
Refer to Installation Instructions for
details.
This appliance is intended for normal
family household use only. It is not
approved for outdoor use. See the
Statement of Limited Product Warranty. If
you have any questions, contact the
manufacturer.
Do not store or use corrosive chemicals,
vapors, flammables or nonfood products
in or near this appliance. It is specifically
designed for use when heating or
cooking food. The use of corrosive
chemicals in heating or cleaning will
damage the appliance and could result in
injury.
Do not operate this appliance if it is not
working properly, or if it has been
damaged. Contact an authorized servicer.
Do not obstruct oven vents.
Do not repair or replace any part of the
appliance unless specifically
recommended in this manual. Refer all
servicing to an authorized servicer.
9WARNING
Risk of burns!
To avoid risk of injury, turn off the
interior light before cleaning the
oven to allow the bulbs to cool down.
The bulbs can become very hot when
switched on. Keep the light off while
cleaning the oven.
9WARNING
Make sure the appliance and lights
are cool and power to the appliance
has been turned off before replacing
the light bulb(s). Failure to do so
could result in electrical shock or
burns. The lenses (if equipped) must
be in place when using the
appliance. The lenses (if equipped)
serve to protect the light bulb from
breaking. The lenses (if equipped)
are made of glass. Handle carefully
to avoid breaking. Broken glass can
cause an injury.

5
9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
9WARNING
Light socket is live when door is
open if main power supply is not
turned off.
Fire Safety
9WARNING
NEVER cover any slots, holes or
passages in the oven bottom or
cover an entire rack with materials
such as aluminum foil. Doing so
blocks air flow through the oven.
Aluminum foil linings may also trap
heat, causing a fire hazard.
If materials inside an oven or warming
drawer should ignite, keep door closed.
Turn off the appliance and disconnect the
circuit at the circuit breaker box.
9WARNING
Use this appliance only for its
intended use as described in this
manual. NEVER use this appliance
as a space heater to heat or warm
the room. Doing so may result in
overheating the appliance. Never use
the appliance for storage.
Always have a working smoke detector
near the kitchen.
In the event that personal clothing or hair
catches fire, drop and roll immediately to
extinguish flames.
Have an appropriate fire extinguisher
available, nearby, highly visible and easily
accessible near the appliance.
Smother flames from food fires other than
grease fires with baking soda. Never use
water on cooking fires.
9WARNING
TO REDUCE THE RISK OF INJURY
TO PERSONS IN THE EVENT OF A
GREASE FIRE, OBSERVE THE
FOLLOWING:
1. SMOTHER FLAMES with a close-
fitting lid, cookie sheet, or metal
tray, then turn off the burner. BE
CAREFUL TO PREVENT BURNS.
If the flames do not go out
immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN
– You may be burned.
3. DO NOT USE WATER, including
wet dishcloths or towels – a
violent steam explosion will result.
4. Use an extinguisher ONLY if:
– You know you have a Class ABC
extinguisher, and you already
know how to operate it.
– The fire is small and contained
in the area where it started.
– The fire department is being
called.
– You can fight the fire with your
back to an exit.

9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
6
Burn Prevention
DO NOT TOUCH HEATING ELEMENTS
OR INTERIOR SURFACES OF OVEN -
Heating elements may be hot even though
they are dark in color. Interior surfaces of
an oven become hot enough to cause
burns. During and after use, do not touch,
or let clothing, potholders, or other
flammable materials contact heating
elements or interior surfaces of oven until
they have had sufficient time to cool.
Other surfaces of the appliance may
become hot enough to cause burns.
Among these surfaces are oven vent
openings, surfaces near these openings
and oven doors.
Exercise caution when opening the
appliance. Standing to the side, open the
door (or drawer) slowly and slightly to let
hot air and/or steam escape. Keep your
face clear of the opening and make sure
there are no children or pets near the
unit. After the release of hot air and/or
steam, proceed with your cooking. Keep
doors shut unless necessary for cooking
or cleaning purposes. Do not leave open
doors unattended.
9WARNING
Risk of burns!
The inside of the appliance door
becomes very hot during operation.
Always open the appliance door as
far as it will go. Ensure that the
appliance door does not swing back.
Avoid contact with the inside of the
appliance door.
Do not heat or warm unopened food
containers. Build-up of pressure may
cause the container to burst and cause
injury.
Use caution when cooking foods with
high alcohol content (e.g. rum, brandy,
bourbon) in the oven. Alcohol evaporates
at high temperatures. There is a risk of
burning as the alcohol vapors may catch
fire in the oven. Use only small quantities
of alcohol in foods, and open the oven
door carefully.
Always place oven racks in desired
location while oven is cool. Always use
oven mitts, when the oven is warm. If a
rack must be moved while oven is hot, do
not let potholder contact the heating
elements.
9CAUTION
To avoid possible injury or damage
to the appliance, ensure rack is
installed exactly per installation
instructions and not backwards or
upside down.
Always use dry potholders. Moist or damp
potholders on hot surfaces may result in
burns from steam. Do not let potholder
touch hot heating elements. Do not use a
towel or other bulky cloth.
Secure all loose garments, etc. before
beginning. Tie long hair so that it does
not hang loose, and do not wear loose
fitting clothing or hanging garments, such
as ties, scarves, jewelry, or dangling
sleeves.

7
9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
Child Safety
When children become old enough to use
the appliance, it is the responsibility of
the parents or legal guardians to ensure
that they are instructed in safe practices
by qualified persons.
Do not allow anyone to climb, stand, lean,
sit, or hang on any part of an appliance,
especially a door, warming drawer, or
storage drawer. This can damage the
appliance, and the unit may tip over,
potentially causing severe injury.
Do not allow children to use this
appliance unless closely supervised by
an adult. Children and pets should not be
left alone or unattended in the area where
the appliance is in use. They should never
be allowed to play in its vicinity, whether
or not the appliance is in use.
9CAUTION
Items of interest to children should
not be stored in an appliance, in
cabinets above an appliance or on
the backsplash. Children climbing
on an appliance to reach items could
be seriously injured.
Cleaning Safety
IMPORTANT SAFETY NOTICE: The
California Safe Drinking Water and Toxic
Enforcement Act requires the Governor of
California to publish a list of substances
known to the state to cause cancer, birth
defects or other reproductive harm, and
requires businesses to warn customers of
potential exposure to such substances.
The burning of gas cooking fuel and the
elimination of soil during self-cleaning
can generate some by-products which are
on the list. To minimize exposure to these
substances, always operate this unit
according to the instructions contained in
this booklet and provide good ventilation.
When self-cleaning, confirm that the door
locks and will not open. If the door does
not lock, do not run Self-Clean. Contact
service.
Wipe out excessive spillage before self-
cleaning the oven.
Birds have very sensitive respiratory
systems. Keep pet birds out of the
kitchen or other rooms where kitchen
fumes could reach them. During self-
clean, fumes are released that may be
harmful to birds. Other kitchen fumes
such as overheating margarines and
cooking oils may also be harmful.
Keep oven free from grease build up.

9IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
8
Cookware Safety
NOTICE
Do not place food directly on oven
bottom.
Follow the manufacturer’s directions
when using cooking or roasting bags.
Do not clean parts or accessories in the
self-clean oven.
9WARNING
Risk of electric shock!
Use of a wrong core temperature
probe can damage the insulation.
Use only the core temperature probe
intended for this appliance.
Proposition 65Warning:
This product may contain a chemical
known to the State of California, which
can cause cancer or reproductive harm.
Therefore, the packaging of your product
may bear the following label as required
by California:

&DQFHUDQG5HSURGXFWLYH+DUPZZZ3:DUQLQJVFDJRY
67$7(2)&$/,)251,$352326,7,21:$51,1*
:$51,1*

9
Causes of damage en-us
] Causes of damage
Causesofdamage NOTICES:
▯Accessories, foil, baking paper or cookware on the
bottom of the oven interior: do not place any
accessories on the bottom of the oven interior. Do not
line the bottom of the oven interior with any type of foil
or baking paper. Do not place cookware on the bottom
of the oven interior when a temperature above 122°F
(50 °C) is set. This produces a build-up of heat.
Baking and roasting times are no longer correct and
the enamel is damaged.
▯Water in the hot oven interior: Never pour water into
the hot oven interior. Steam is produced. Damage to
the enamel can arise due to the temperature change.
▯Do not leave moist groceries in a closed oven for an
extended period of time. It can lead to corrosion
inside the oven.
▯Fruit juice can leave stains in the oven. Always remove
fruit juice immediately when safe to touch, and wipe
up first with a damp and then a dry cloth.
▯Cooling with the appliance door open: only allow the
oven cavity to cool when it is closed. Even if the
appliance door is only open a little, front panels of
adjacent units could be damaged over time.
▯Highly soiled door seal: the appliance door will no
longer close properly during operation if the door seal
is highly soiled. Adjoining furniture fronts may be
damaged. Always keep the door seal clean.
▯Appliance door as a seat or storage surface: do not
stand, sit or hang on the appliance door. Do not place
any cookware or accessories on the appliance door.
▯Inserting accessories: depending on the appliance
type, accessories can scratch the door pane when
closing the appliance door. Always slide accessories
fully into the oven interior.
▯Do not hold or carry the appliance by the door handle.
The door handle cannot carry the weight of the device
and could break off.
7 Environmental protection
Environmentalprotection Unpack the appliance and dispose of the packaging in
an environmentally friendly manner.
Tips for saving energy
▯Open the appliance door as little as possible while
cooking, baking or roasting.
▯Use dark, black-painted or enameled baking forms.
These absorb the heat particularly well.
▯It is best to bake several cakes in succession. The
oven is still warm. This shortens the baking time for
the second cake. You can also slide in two loaf tins
next to each other.
▯In the hot air mode, you can bake simultaneously on
several levels.
▯For longer cooking times, you can switch off the oven
10minutes before the end of the cooking time and you
can use the residual heat to finish cooking.

10
en-us Familiarizing yourself with your appliance
* Familiarizing yourself with your
appliance
Familiari zingyourself withyour appliance You will get to know your new appliance here. We
explain the control panel and the individual controls to
you. You are informed about the oven interior and
accessories.
Oven
NOTICE
Do not place food directly on oven bottom.
Do not obstruct oven vents.




1 Door seal
2 Grill heating element
3 Socket for core temperature probe
4 Socket for additional heating element
(special accessory for baking stone and roaster)
5 Oven vents
6 Recessed handle

11
Familiarizing yourself with your appliance en-us
Displays and controls
These instructions apply to different versions of the
appliance. Slight deviations are possible depending on
the appliance type.
Operation is identical for all appliance versions.
--------
Symbols
--------
1 Control panel These areas are touch-sensi-
tive. Touch a symbol to select
the applicable function.
2 Display The display shows current set-
tings and options, for example.
3 Rotary selector With the rotary selector you
can select the temperature
and make other settings.
4 Program
selector
With the program selector,
you can select the heating
function, the cleaning function
or the basic settings.



 )
Symbol Function
IStart
ØStop
HPause/end
'Cancel
ŽDelete
™Confirm/save settings
CSelection arrow
!Open appliance door
(Launching additional information
’Quick heating with status indicator
iCalling up automatic programs or indi-
vidual recipes
gRecording a menu
%Edit settings
4Enter a name
lDelete letters
0Child lock
MLaunching the timer menu
/Launching the Sabbath mode
°Demo mode
+Core temperature probe
¤Start pre-roast stage
£End pre-roast stage

12
en-us Familiarizing yourself with your appliance
Colors and display
Colors
The various colors serve to guide you in the various
adjustment situations.
Presentation
The presentation of symbols, values or the entire display
changes depending on the situation.
Automatic door opening
When you touch the !symbol, the appliance door
springs open and you can open it fully with the handle
recess at the side.
Automatic door opening does not work when the child
lock is activated or in the event of a power failure. You
can open the door manually with the handle recess at the
side.
Standby
The appliance switches to standby mode if no function is
set or the childproof lock is activated.
The brightness of the control panel is dimmed in standby
mode.
Notes
▯Different things can be displayed in standby mode.
The default setting is the GAGGENAU logo and the
time.
▯The brightness of the display depends on the vertical
viewing angle.
▯You can change the display and the brightness at any
time in the basic settings. ~"Basic settings"
on page 34
Activate appliance
In order to exit standby mode, you can either
▯Set the function selector,
▯Touch a control panel,
▯or open or close the door.
Now you can set the desired function. Read the
appropriate chapters to learn how to set functions.
Notes
▯If "Standby screen = off" is selected in the factory
setting, you must turn the function selector to exit the
standby mode.
▯The standby display appears again if you have not
made any settings for a long while after activation.
▯The cooking compartment lighting goes out after a
little while if the door is open.
Additional information (and )
By touching the (symbol, you can call up additional
information. For example, information on the type of
heating set or on the current temperature of the cooking
compartment.
Note: During continuous operation after heating up,
slight deviations in temperature are normal.
The )symbol appears for important information and
indicates that an action is required. Important information
on safety and operating status is also occasionally
displayed automatically. These messages disappear
automatically after a few seconds, or must be confirmed
with ™.
With Home Connect messages, the Home Connect
status additionally appears in the ). You will find more
information about this in the section entitled ~"Home
Connect" on page 30.
Orange First settings
Main functions
Blue Basic settings
Cleaning
White Adjustable values
Zoom The display of the setting you are just
changing is enlarged.
Just before it elapses, a duration that
is just elapsing is enlarged (e.g. the
last 60seconds in the case of timers).
Minimized
display screen
After a short time, the display screen
is minimized and only the most
important things are displayed. This
function is the default and can be
modified in the basic settings.
 )

13
Familiarizing yourself with your appliance en-us
Cooling fan
Your appliance has a cooling fan. The cooling fan
switches on during operation. Depending on the
appliance version, the warm air escapes above or under
the door.
After removing cooked food, keep the door closed until
the appliance cools down. The appliance door must not
be left ajar, as adjoining kitchen furniture may be
damaged. The cooling fan continues to run for a while
and then switches off automatically.
9CAUTION
Do not cover up the ventilation slots. Otherwise,
the appliance will become overheated.
Program selection positions













Position Function/ type of heat-
ing
Temperature Application
0 Off position
žLight Turn on the oven cavity light. Access to other
functions, e.g. automatic programs, individual
recipes, remote start (Home Connect).
2H
Convection
120- 550°F (50- 300°C)
Default temperature 340°F
(170°C)
Hot air: for cakes, cookies and soufflés on sev-
eral levels.
The fan on the rear wall distributes the heat
evenly in the oven interior.
3I
Economy
120- 550°F (50- 300°C)
Default temperature 340°F
(170°C)
Energy-saving convection mode for cakes,
meat, baked casseroles, and gratins. The conve-
nience features (e.g. the oven lighting) remain
off. The oven temperature can only be displayed
while the oven is heating up. Do not preheat the
oven.
Place the food into the cold, empty cooking
compartment and start the stated cooking time.
Keep the oven door closed during cooking to
prevent heat escaping from the oven.
4N
Top + bottom heat
120- 550°F (50- 300°C)
Default temperature 340°F
(170°C)
For cakes in tins or on a tray, soufflés, roasts.
5P
Top heat
120- 550°F (50- 300°C)
Default temperature 340°F
(170°C)
Targeted heat from above, e.g. baking over fruit
tarts with meringues.
6L
Bottom heat
120- 550°F (50- 300°C)
Default temperature 340°F
(170°C)
For after-baking, e.g. for moist fruit tarts, for
preserving or for dishes in a water bath.
7K
Convection + bottom
heat
120- 550°F (50- 300°C)
Default temperature 340°F
(170°C)
Heat from below for moist cakes such as fruit
tarts.

14
en-us Familiarizing yourself with your appliance
Accessories
Use only the accessories included or obtainable from
after-sales service. It has been specially adapted to your
appliance. Make sure you always insert accessories into
the interior the right way round.
Your appliance comes with the following accessories:
8Z
Broil +
circulated air
120- 550°F (50- 300°C)
Default temperature 430°F
(220°C)
Even all-round heating of meat, poultry and
whole fish.
9Q
Broil
120- 550°F (50- 300°C)
Default temperature 430°F
(220°C)
Flat pieces of meat, sausages, or fish fillet. Bak-
ing over and preparing au gratin.
10 S
Economy broil
120- 550°F (50- 300°C)
Default temperature 430°F
(220°C)
Only the middle part of the broil element is
heated. Energy-saving grilling of small quanti-
ties.
11 T
Baking stone function
120- 550°F (50- 300°C)
Default temperature 480°F
(250°C)
Can only be used with the baking stone and
heating element (optional accessories).
Baking stone heated from below for crispy
pizza, bread or bread rolls like out of a stone
oven.
12 U
Roaster function
120- 430°F (50- 220°C)
Default temperature 360°F
(180°C)
Can only be used with the roaster, pull-out sys-
tem and heating element (optional accesso-
ries).
Heatable cast roaster for large amounts of
meat, soufflé or holiday roast.
13 V
Dough proofing
85- 120°F (30- 50°C)
Default temperature 100°F
(38°C)
Raising: for yeast and sour dough.
The dough rises much faster than at room tem-
perature. The optimum temperature setting for
yeast dough is 38°C (approx. 100°F).
14 W
Defrosting
100- 140°F (40- 60°C)
Default temperature 115°F
(45°C)
For vegetables, meat, fish and fruit.
St
Factory setting
In the factory setting, you can adapt your appli-
ance individually.
œ
Pyrolysis
905°F (485°C) Self-cleaning
Position Function/ type of heat-
ing
Temperature Application
Baking tray, enameled
Wire grill tray
Grill tray
Plug-in core temperature
probe

15
Before using the appliance for the first time en-us
Special accessories
You can order the following accessories from your
specialist dealer:
Use the accessories only as indicated. The manufacturer
assumes no liability for incorrect usage of the
accessories.
Remove any accessories that are not required during
operation from the cooking compartment. Bush for the
additional heating element at the back of the cooking
compartment: Always leave the cover in during normal
operation without the additional heating element.
K Before using the appliance for the first
time
Beforeusingtheapplianceforthefi rsttime In this chapter, you can find out what you must do
before using your oven to prepare food for the first time.
First read the section entitled.
The appliance must be completely installed and
connected.
After connecting the appliance to the power supply, the
"Initial settings "menu will be displayed. Now you can now
configure your new appliance for initial set-up.
Notes
▯The "Initial settings" menu will appear only after the
appliance has been connected to a power supply and
switched on for the first time, or if the appliance has
not been connected to a power supply for a number of
days.
Once the appliance has been connected to a power
supply, the GAGGENAU logo will appear first for
approximately 30seconds. The "Initial settings" menu
will then appear automatically.
▯You can change the settings at any time in the basic
settings. ~"Basic settings" on page 34
Setting the language
The default language appears in the display.
1. Select the desired display language with the rotary
selector.
2. Confirm with ™.
Setting the time format
the two possible formats 24h and AM/PM appear in the
display. The default format is 24h.
1. Set the required format with the rotary selector.
2. Confirm with ™.
Setting the time
The time appears in the display.
1. Set the required time with the rotary selector.
2. Confirm with ™.
BA 016165 Pull-out system
Fully extendable telescopic pull-out
rack and pyrolysis-proof cast frame
BA 026115 Baking tray, enameled, ^" (15mm)
deep
BA 036165 Wire rack, chrome-plated, without
opening, with feet
BA 226105 Grill tray, enameled, 1]" (30 mm) deep
BA 046115 Glass tray, 1" (24mm) deep
BA 056115 Heating element for baking stone and
roaster (230 V)
BA 056125 Heating element for baking stone and
roaster (400 V)
BA 056133 Baking stone
Including baking stone support and
pizza paddle (order heating element
separately)
BS 020002 Pizza paddle, set of 2
GN 340230 GN 2/3cast aluminum roaster,
height 61/2” (165 mm), non-stick
(Order heating element and pull-out
system separately)

16
en-us Operating the appliance
Setting the date format
The three possible formats D.M.Y, D/M/Y and M/D/Y
appear in the display. The D.M.Y is the default.
1. Set the required format with the rotary selector.
2. Confirm with ™.
Setting the date
The default date appears in the display. The day setting is
already active.
1. Set the required day with the rotary selector.
2. Switch to the month setting with the Csymbol.
3. Set the month with the rotary selector.
4. Switch to the year setting with the Csymbol.
5. Set the year with the rotary selector.
6. Confirm with ™.
Setting the temperature unit
The two possible units °C and °F will appear on the
display. The default unit is °C.
1. Use the rotary selector to select the unit you require.
2. Press ™to confirm.
Completing initial set-up
"Initial set-up complete" will appear on the display.
Press ™to confirm.
The appliance will switch to standby mode and the
standby display will appear. The appliance is now ready
to use.
Heating up the oven
Make sure that there is no leftover packaging in the
cooking compartment.
To eliminate the new-appliance smell, heat up the oven
with it empty and the door closed. One hour with hot
air Hat 200 °C is ideal for this.
Cleaning accessories
Before using accessories for the first time, thoroughly
clean them with hot soapy water and a soft dish cloth.
1 Operating the appliance
Operati ngtheappliance Oven interior
The oven interior has four insertion levels. These are
counted from the bottom up.
9CAUTION
Do not place anything on the cooking compartment
floor. Do not cover it with aluminium foil. A build-up
of heat could damage the appliance or cause
injury.
9CAUTION
Do not slide any accessories between the shelf
positions, or they may tip.
Inserting the rack
The accessories feature a rack stop function. The rack
stop function prevents tilting of accessories when pulling
them out. You must insert accessories in the oven interior
correctly so that tilt protection will work.
Inserting the rack
1. Tilt the rack to guide the rack stop in between the rails
of the rack holders ¨. The rack stop has to face
downwards.
2. Lower the rack and slide it into the oven, so that the
rack stop can engage ©. Make sure the rack’s safety
rod is at the rear and top ª.





17
Operating the appliance en-us
Turning on
1. Set the required heating mode using the function
selector. The chosen heating mode and the default
temperature are displayed.
2. If you want to change the default temperature:
set the required temperature with the rotary selector.
The preheating symbol ’appears on the display. The
bar continuously shows the preheating status. When the
set temperature is reached, a signal sounds and the
preheating symbol ’goes off.
Note: The oven interior lighting stays switched off at a
temperature setting below 160° F (70°C).
Switching off:
Turn the function selector to 0.
Quick heat
With the "Quick heat" function, your appliance reaches
the desired temperature particularly quickly in the top
heat, bottom heat, and top/bottom heat types of heating.
To ensure an even cooking result, do not place your food
in the cooking compartment until "Quick heat" is
complete and the ’heat-up symbol goes out.
Note: The "Quick heat" function is preset in the factory
settings. In the basic settings, you can select ’Quick
heat or “Heat-up.~"Basic settings" on page 34
Safety shut-off
For your protection, the appliance has a safety shut-off
feature. Every heating operation is switched off after
12hours if the appliance is not operated during this time.
A message appears in the display.
Exception:
programming with the long-term timer.
Turn the program selection to 0, after which you can
operate the appliance in the manner to which you are
accustomed.

18
en-us Timer functions
O Timer functions
Timer functions In the timer menu, set:
ŠTimer
pStopwatch
6Cooking time (not in the idle state)
5Cooking time end (not in the idle state)
Launching the timer menu
You can launch the timer menu from any mode. Only from
the factory settings, program selection is set to S, the
time menu is not available.
Touch the Msymbol.
The timer menu appears.
Timer
The timer runs independently of the other appliance
functions. You can enter a maximum of 90minutes.
Setting the timer
1. Call up the Timer menu.
The "Timer" function Šis displayed.
2. Turn the rotary selector to set the desired time.
3. Start with I.
The Timer menu closes and the timer starts to run. The
symbol for the timer Šappears on the display and the
time can be seen counting down.
A signal sounds once the time has elapsed. The audible
signal ceases if you touch the ™symbol.
You can exit the Timer menu at any time by touching the '
symbol. This way, the settings are lost.
Suspend timer:
Call up the Timer menu. Select the "Timer" function with
C, select Š, and touch the Hsymbol. To let the timer run
on, touch the Isymbol.
Switch off the timer early:
Call up the Timer menu. Select the "Timer" function with
C, select Š, and touch the Žsymbol.
Stopwatch
The stopwatch runs independently of the other appliance
functions.
The stopwatch counts up from 0seconds to 90minutes.
It has a pause function. Therefore, you can stop the timer
in between times.
Starting the stopwatch
1. Launch the timer menu.
2. With C, select the "Stopwatch" function p.
3. Start with I.
The timer menu is closed and the time runs. The p
symbol and the elapsing timer are shown in the display.
7LPHU


6WRSZDWFK


19
Timer functions en-us
Stopping and restarting the stopwatch
1. Launch the timer menu.
2. With C, select the "Stopwatch" function p.
3. Touch the Hsymbol.
The time stops. The symbol changes to Start Iagain.
4. Start with I.
The time continues to run. Once 90minutes have been
reached, the display pulsates and a signal sounds. It
goes off when you touch the ™symbol. The psymbol
disappears from the display. The operation has ended.
Switching off the stopwatch:
Launch the timer menu. With C, select the "Stopwatch"
function pand touch the Žsymbol.
Cooking time
If you set a cooking time for your meal, the appliance
switches off heating automatically after this time has
elapsed.
You can set a cooking time from 1minute to 23:59hours.
Setting the cooking time
You have set the heating function and temperature and
you have placed your dish in the oven interior.
1. Touch the Msymbol.
2. With C, select the "Cooking time" function 6.
3. Set the required cooking time with the rotary selector.
4. Start with I.
The appliance starts. The timer menu is closed. The
temperature, the operating mode, the remaining cooking
time and the end of the cooking time appear in the
display.
One minute before expiration of the cooking time, the
expiring cooking time is enlarged in the display.
The appliance switches off after expiration of the cooking
time. The 6pulsates and a signal sounds. It goes off
prematurely if you touch the ™symbol, open the
appliance door or set the program selection to 0.
Interrupting the cooking time:
Launch the timer menu. With C, select the "Cooking
time" function 6. With Hinterrupt the cooking time. With
Icontinue the cooking time.
Changing the cooking time:
Launch the timer menu. With C, select the "Cooking
time" function 6. Set the cooking time with the rotary
selector. Start with I.
Clearing the cooking time:
Launch the timer menu. With C, select the "Cooking
time" function 6. Clear the cooking time with Ž. Return
to normal operation with '.

6WRSZDWFK

&RRNLQJ7LPH
 )

)

20
en-us Timer functions
Canceling the entire operation:
Set the program selection to 0.
Note: You can also change the heating function and
temperature during the cooking time.
End of cooking time
You can defer the end of the cooking time until later.
Example: it is 2pm. The meal takes 40minutes to cook. It
should be ready by 3.30pm.
Enter the cooking time and shift the end of the cooking
time to 3.30pm. The electronic circuitry calculates the
starting time. The appliance starts automatically at
2:50pm and switches off at 3.30pm.
Note that easily perishable foodstuffs must not be left in
the oven for too long.
Shifting the end of the cooking time
You have set the heating function, the temperature and
the cooking time.
1. Touch the Msymbol.
2. With C, select the "End of cooking time" function 5.
3. Set the required cooking time end with the rotary
selector.
4. Start with I.
The appliance assumes a waiting mode. The operating
mode, the temperature, the cooking time and the end of
the cooking time appear in the display. The appliance
starts at the calculated time and switches off
automatically when the cooking time has elapsed.
Note: If the 6symbol flashes: you have not set a cooking
time. Always set a cooking time first.
The appliance switches off after expiration of the cooking
time. The 5pulsates and a signal sounds. It goes off
prematurely if you touch the ™symbol, open the
appliance door or set the program selection to 0.
Changing the cooking time end:
Launch the timer menu. With C, select "End of cooking
time" 5. Set the required cooking time end with the
rotary selector. Start with I.
Canceling the entire operation:
Set the program selection to 0.
&RRNLQJWLPHHQG


 )
