ICS Subset Extension Cable Assembly
Replacement Kit
MODELS 12587-101 &12587-102
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains
sensitive business and technical information that is confidential and proprietary to GAI-Tronics. GAI-
Tronics retains all intellectual property and other rights in or to the information contained herein, and
such information may only be used in connection with the operation of your GAI-Tronics product or
system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any
third party.
General Information
The Model 12587-101 and 12587-102 ICS Subset Extension Cables allow the ICS remote subset to be
positioned up to 100 feet from the remote amplifier. Model 12587-101 Extension Cable allows the
interconnection of multiple cable assemblies for additional length. Model 12587-102 includes a stainless
steel wall plate to allow for a wall receptacle installation. Both cable assemblies are compatible with all
ICS Page/Party®remote subsets.
The Model 12587-101 consists of the following:
Qty Description
1 Cable, 25-foot, 25-conductor, PVC jack cable with molded DB25 connectors on each end
2 4-40 male/female hex jack screws
The Model 12587-102 includes the following components:
Qty Description
1 Cable, 25-foot, 25-conductor, PVC jack cable with molded DB25 connectors on each end
1 Wall plate, stainless steel with DB25 opening
2 Wall plate attachment screws
2 4-40 male/female hex jack screws

Pub. 42003-231A
MODELS 12587-101 &-102 ICS SUBSET EXTENSION CABLE ASSEMBLY REPLACEMENT KIT Page: 2 of 3
f:\standard ioms - current release\42003 kit manuals\42003-231a.doc
04/10
Installation as a Wall Receptacle
1. Arrange the cable so that the DB25 male connector is located at the amplifier enclosure and the
cable’s DB25 female connector is located at the wall receptacle. Remove the thumb screws from the
female DB25 connector. See Figure 1.
2. Route the 25-foot cable/plug assembly inside the wall from the amplifier location to the desired wall
receptacle location, and mount it by using a single gang wall plate mounting bracket (such as L-Com
WPMB1). Make the connection in accordance with the appropriate electrical code.
3. Install the DB25 female connector on the supplied wall plate, using the included two 4-40 jack
screws to attach the connector to the wall plate.

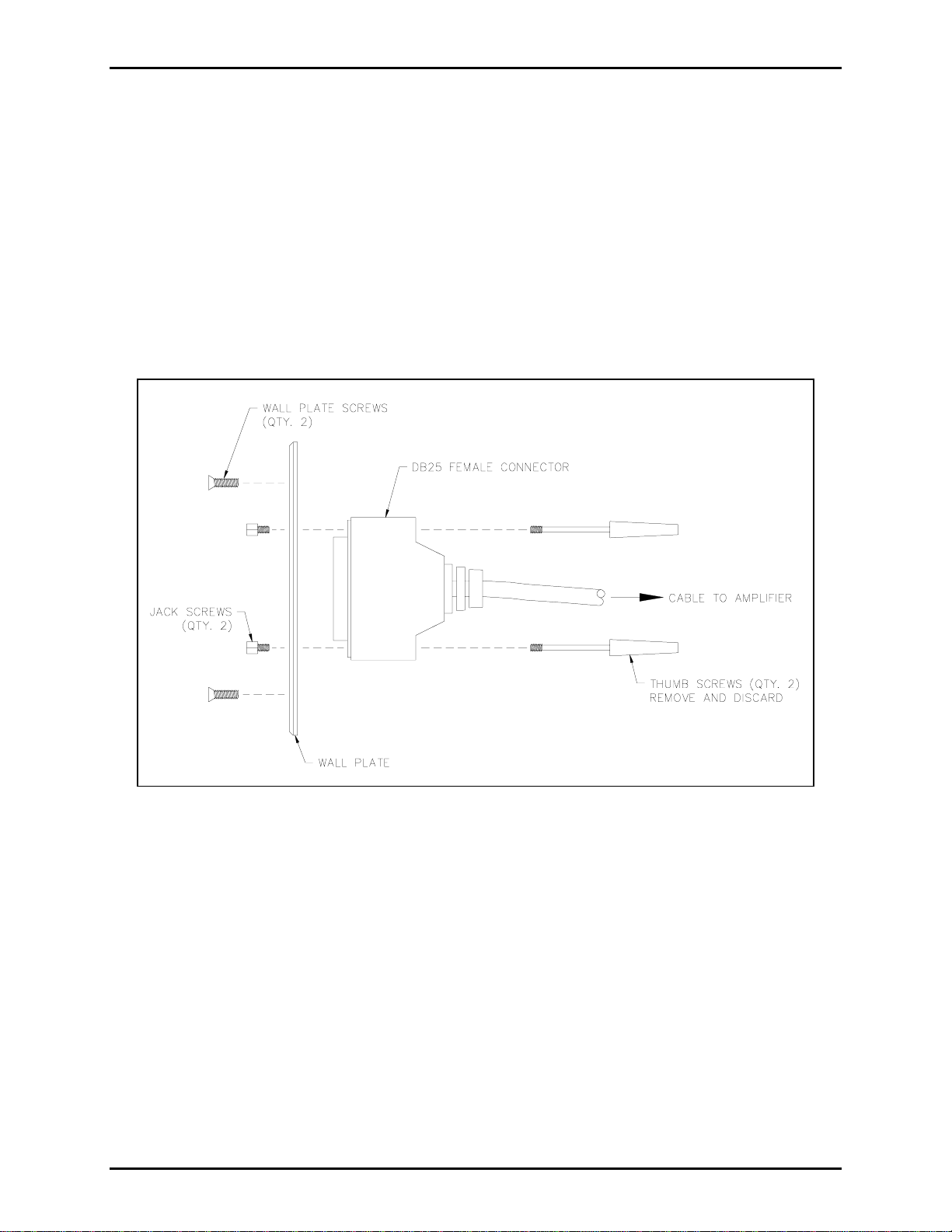

Figure 1. Installation as a Wall Receptacle
4. Install the wall plate using the two mounting screws provided.
5. After all connections have been made, plug the DB25 male connector into the receptacle at the
amplifier enclosure.
6. Plug the subset plug into the DB25 wall receptacle. Be sure that the connector housing seats fully
into place, and use the DB25 connector thumb screws to secure the connector.

Pub. 42003-231A
MODELS 12587-101 &-102 ICS SUBSET EXTENSION CABLE ASSEMBLY REPLACEMENT KIT Page: 3 of 3
f:\standard ioms - current release\42003 kit manuals\42003-231a.doc
04/10
Installation as a Subset Extension Cord
1. Arrange the extension cable so that the DB25 male connector is connected at the amplifier enclosure
or wall receptacle. Remove the thumb screws from the DB25 female connector. Install the two jack
screws provided. See Figure 2.
2. Plug the cable’s female DB25 connector into the remote subset cable’s (or an additional extension
cable’s) DB25 male connector and secure the connectors. Additional extension cables may be
connected in order to attain the necessary length. The maximum total length of the combined
extension cables is 100 feet.
3. When a cable is of sufficient length to reach the subset has been assembled, connect the female
DB25 connector at the end of the cable to the receptacle on the remote subset.
Figure 2. Installation as a Subset Extension
