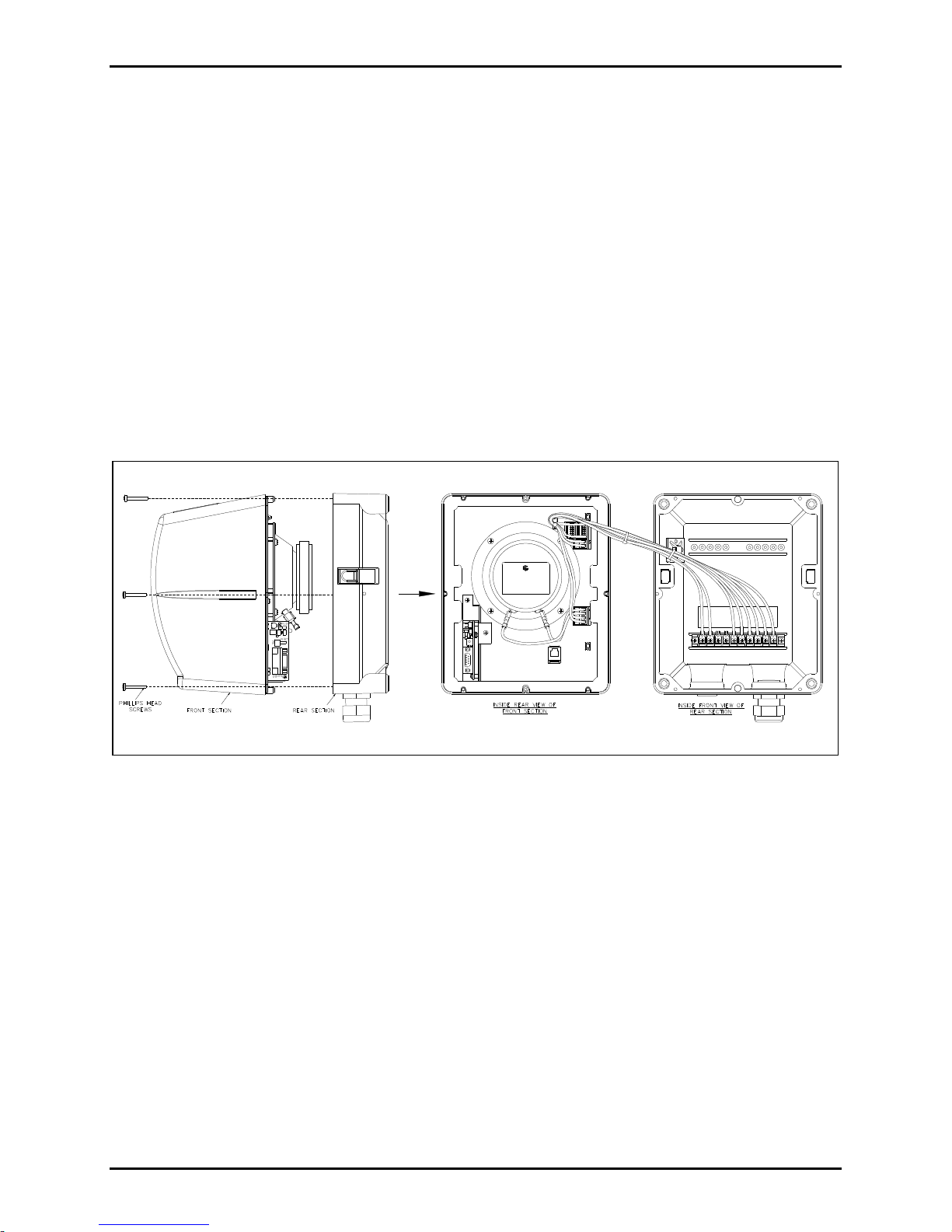

Opening the Addressable Amplified Speaker ....................................................................................10
WiFi Interface Setup (Model 13382)...................................................................................................11
VoIP PCBA Configuration...................................................................................................................14
Closing the Addressable Amplified Speaker......................................................................................14
Installation ....................................................................................................................................15
Mechanical Receipt Inspection............................................................................................................16
Cable Installation Safety Considerations............................................................................................16
Required Tools......................................................................................................................................16
Mounting................................................................................................................................................16

TABLE OF CONTENTS PUB.42004-462A
GAI-Tronics Corporation 400 E. Wyomissing Ave. Mohnton, PA 19540 USA
610-777-1374 800-492-1212 Fax: [phone]
VISIT WWW.GAI-TRONICS.COM FOR PRODUCT LITERATURE AND MANUALS
Cable Installation..................................................................................................................................17
Closing the Addressable Amplified Speaker......................................................................................21
Field Installed Options..................................................................................................................22
Model 12506-001 Remote Volume Control Assembly .......................................................................22
Model 190-003PS Weatherproof Power Supply Kit..........................................................................23

Pub.: 42004-462A
GAI-Tronics Corporation 400 E. Wyomissing Ave. Mohnton, PA 19540 USA
610-777-1374 800-492-1212 Fax: [phone]
VISIT WWW.GAI-TRONICS.COM FOR PRODUCT LITERATURE AND MANUALS
GAI-TRONICS® CORPORATION
A HUBBELL COMPANY
Model 13382 WiFi and 13383 VoIP
Addressable Amplified Speakers
Foreword
Scope of Manual
This manual offers descriptive data and service information for the VoIP and WiFi Addressable
Amplified Speaker Assemblies.
Nomenclature
The model number, located on the nameplate on top of the speaker, specifically identifies GAI-Tronics
equipment.
Ordering Replacement Parts
When ordering replacement parts or requesting equipment information, please include the complete
identification number. This applies to all components, kits, and chassis. If the component part number is
not known, the order should include the number of the chassis or kit of which it is a part and sufficient
description of the desired component to identify it. Order parts from:
Customer Service
GAI-Tronics Corporation
400 E. Wyomissing Ave.
Mohnton, PA 19540
US: 800-492-1212
Outside US: 610-777-1374
Service and Repair
Inoperative or malfunctioning equipment should be returned to the factory for repair. Please call
1-800-492-1212 or 610-777-1374 to obtain a Return Authorization number, published repair prices, and
shipping instructions.
NOTE:A purchase order or credit card number is required prior to processing non-warranty repairs.

Pub. 42004-462A
Model 13382 WiFi and 13383 VoIP Addressable Amplified Speakers Page 2 of 24
f:\standard ioms - current release\42004 instr. manuals\42004-462a.doc
12/13
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains
sensitive business and technical information that is confidential and proprietary to GAI-Tronics.
GAI-Tronics retains all intellectual property and other rights in or to the information contained herein,
and such information may only be used in connection with the operation of your GAI-Tronics product or
system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any
third party.
Computer Software Copyrights
This product contains copyrighted computer programs stored in semiconductor memory. These programs
are copyrighted by GAI-Tronics Corporation and may not be reproduced in any form without expressed
written permission from GAI-Tronics.
Warranty
GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment supplied hereunder
shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product
literature, and if applicable, shall be fit for the purpose specified in the agreed-upon quotation or proposal document. If (a)
Seller’s goods prove to be defective in workmanship and/or material under normal and proper usage, or unfit for the purpose
specified and agreed upon, and (b) Buyer’s claim is made within the warranty period set forth above, Buyer may return such
goods to GAI-Tronics’ nearest depot repair facility, freight prepaid, at which time they will be repaired or replaced, at Seller’s
option, without charge to Buyer. Repair or replacement shall be Buyer’s sole and exclusive remedy, and the warranty period on
any repaired or replacement equipment shall be one (1) year from the date the original equipment was shipped. In no event shall
GAI-Tronics’ warranty obligations with respect to equipment exceed 100% of the total cost of the equipment supplied hereunder.
The applicability of any such third-party warranty will be determined solely by GAI-Tronics.
Services. Any services GAI-Tronics provides hereunder, whether directly or through subcontractors, shall be performed in
accordance with the standard of care with which such services are normally provided in the industry. If the services fail to meet
the applicable industry standard, GAI-Tronics will, for a period of one (1) year from the date of completion, re-perform such
services at no cost to the Buyer. Re-performance of services shall be Buyer’s sole and exclusive remedy, and in no event shall
GAI-Tronics’ warranty obligations with respect to services exceed 100% of the total cost of services provided hereunder.
Limitations/Exclusions. The warranty on any equipment supplied hereunder is subject to Customer’s use in compliance
with applicable FCC regulations and manufacturer specifications. The warranties herein shall not apply to, and GAI-Tronics
shall not be responsible for, any damage to the goods or failure of the services supplied hereunder, to the extent caused by
accident, misuse, abuse, neglect, system design, product modification, failure to follow instructions contained in the product
manual, repair, or attempted repair by anyone not authorized by GAI-Tronics, improper installation, installation of parts that do
not conform to the quality or specifications of the original parts or accessories, damage or loss occurred during shipment, or any
unit which is not new when sold or upon which the serial number has been defaced, modified or removed. The warranty does not
extend to damage incurred by natural causes including Force Majeure. The warranty does not cover microprocessors if failure is
due to static damage or application of improper voltage. THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE
IN LIEU OF AND EXCLUDE ALL OTHER WARRANTIES AND REMEDIES, WHETHER EXPRESS OR IMPLIED BY
OPERATION OF LAW OR OTHERWISE, INCLUDING ANY WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
Operational and Maintenance Procedures.Buyer acknowledges that any improper use, maintenance, or
modification of the equipment provided hereunder, or use of unqualified maintenance or service technicians will severely impair
the operational effectiveness of the entire communication system. Buyer hereby agrees to indemnify, defend and hold GAI-
Tronics harmless from and against any and all third party claims arising, in any manner, out of: (a) Buyer’s neglect of the
equipment; (b) Buyer’s use of technicians not authorized by GAI-Tronics to service the equipment; or (c) Buyer’s improper use
or modification of the equipment or failure to follow the operational and maintenance procedures provided with the equipment.
Limitation of Liability/Damages.In no event (even should circumstances cause the exclusive warranties and remedies
set forth in the Warranty section to fail of their essential purpose) shall either party be liable for any indirect, incidental, special or
consequential damages (including, but not limited to, loss of use, loss of anticipated profits, or damages arising from delay)
whether such claims are alleged to have arisen out of breach of warranty, breach of contract, strict or absolute liability in tort, or
other act, error or omission, or from any other cause whatsoever, or any combination of the foregoing.

Pub. 42004-462A
Model 13382 WiFi and 13383 VoIP Addressable Amplified Speakers Page 3 of 24
f:\standard ioms - current release\42004 instr. manuals\42004-462a.doc
12/13
Safety and General Information
Installation should only be performed by qualified service personnel in accordance with the
National Electrical Code or applicable local codes.
Power Sources - Operate this unit only from the type of power source indicated on the label. If
unsure of the type of power supply to use, contact qualified service personnel.
For units intended to operate from battery power, refer to operating instructions.
For units intended to operate with External Power Supplies, use only the recommended
approved power supplies.
For units intended to operate with a limited power source, this power source must comply
with EN60950. Substitutions may damage the unit or cause fire or shock.
Outdoor Product:
Power Lines - An outdoor system should not be located in the vicinity of overhead power lines, electric
lights, or power circuits, or where it may contact such power lines or circuits, as this contact might be
fatal. Refer to the National Electrical Code Article 800 regarding installation.
User Instructions
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Exposure to Radio Frequency Energy
This equipment complies with FCC’s RF radiation exposure limits set forth for an uncontrolled
environment. The antenna(s) used for this transmitter must be installed and operated to provide a
separation distance of at least 20 cm from all persons and must not be collocated or operating in
conjunction with any other antenna or transmitter. Installers must ensure that 20 cm separation distance
will be maintained between the device and users.
Antenna Care
Unauthorized antennas, modifications, or attachments could damage the radio and may violate FCC
regulations.
Do NOT hold the antenna when the radio is IN USE. Holding the antenna affects the effective range.
Approved Accessories
Only use GAI-Tronics Corporation approved accessories. Please visit www.gai-tronics.com.
Electromagnetic Interference/Compatibility
Electronic equipment may be susceptible to electromagnetic interference. If you experience interference,
visit the FCC website at http://www.fcc.gov for possible solutions.

Pub. 42004-462A
Model 13382 WiFi and 13383 VoIP Addressable Amplified Speakers Page 4 of 24
f:\standard ioms - current release\42004 instr. manuals\42004-462a.doc
12/13
Safe Handling of CMOS Integrated Circuit Devices
Many of the integrated circuit devices used in communications equipment are of the Complementary
Metal Oxide Semiconductor (CMOS) type. Because of their high open circuit impedance, CMOS
integrated circuits are vulnerable to damage from static charges. Care must be taken handling, shipping,
and servicing them and the assemblies in which they are used.
Even though protection devices are provided in CMOS integrated circuit inputs, the protection is effective
only against overvoltage in the hundreds of volts range such as is encountered in an operating system. In
a system, circuit elements distribute static charges and load the CMOS circuits, decreasing the chance of
damage. However, CMOS circuits can be damaged by improper handling of the modules, even in a
system.
To avoid damage to circuits, observe the following handling, shipping, and servicing precautions:
1. Prior to and while servicing a circuit module, particularly after moving within the service area,
momentarily touch both hands to a bare metal, earth-grounded surface. This will discharge any static
charge that may have accumulated on the person doing the servicing.
NOTE:Wearing a conductive wrist strap will minimize static build-up during servicing.
2. Whenever possible, avoid touching any electrically conductive parts of the circuit module with your
hands.
3. Power down the unit before installing or removing the circuit module.
4. When servicing a circuit module, avoid carpeted areas, dry environments, and certain types of
clothing (silk, nylon, etc.) because they contribute to static build-up. Similarly, disconnect the test
probe prior to removing the ground lead.
5. All electrically powered test equipment should be grounded. Apply the ground lead from the test
equipment to the circuit module before connecting the test probe.
6. If a circuit module is removed from the system, it is desirable to lay it on a conductive surface (such
as a sheet of aluminum foil) which is connected to ground through 100k of resistance.
7. When soldering, be sure the soldering iron is grounded and has a grounded tip.
8. Prior to connecting jumpers, replacing circuit components, or touching CMOS pins (if this becomes
necessary in the replacement of an integrated circuit device), be sure to discharge any static build-up
as described in procedure 1. Since voltage differences can exist across the human body, it is
recommended that only one hand be used if it is necessary to touch pins on the CMOS device and
associated board wiring.
9. When replacing a CMOS integrated circuit device, leave the device in its conductive rail container or
conductive foam until it is to be inserted into the printed circuit module.
10. All low impedance test equipment (such as pulse generators, etc.) should be connected to CMOS
device inputs after power is applied to the CMOS circuitry. Similarly, such low impedance
equipment should be disconnected before power is turned off.
11. Replacement modules shipped separately from the factory will be packaged in a conductive material.
Any modules being transported from one area to another should be wrapped in a similar material
(aluminum foil may be used). Never use non-conductive material for packaging these modules.

Pub. 42004-462A
Model 13382 WiFi and 13383 VoIP Addressable Amplified Speakers Page 5 of 24
f:\standard ioms - current release\42004 instr. manuals\42004-462a.doc
12/13
General Information
Product Overview
The Model 13383 VoIP Addressable Amplified Speaker enables broadcasting to personnel throughout a
facility via an existing Local Area Network (LAN). The Model 13382 WiFi Addressable Amplified
Speaker provides the same capability as the Model 13383 but permits connection to an existing Wireless
LAN (WLAN).
These speaker assemblies are completely self-contained and can easily be added to an existing LAN
(10/100 Base-T Ethernet) or WLAN (IEEE 802.11 b/g) with minimal cost or effort.
Each speaker model includes an integral VoIP interface and speaker amplifier. The Model 13382
additionally includes a WiFi interface circuit and antenna.
Power can be provided via a PoE connection (Model 13383 only, 802.3af compliant) or the external
power supply provided with each unit. Each speaker is capable of providing a maximum 115 dBm output
at 1 meter when powered via PoE or the 15 V dc power supply provided with each unit; or 118 dBm
output at 1 meter via an external 24 V dc power supply.
For additional design flexibility, each Addressable Amplified Speaker can provide a 600-ohm, 0 dBm
audio output. This output can be connected to the audio input of a central amplifier or any equipment that
requires a 600-ohm audio input, to further expand the broadcast system.
Each VoIP or WiFi Speaker is capable of providing two dry contact (N. O.) outputs. Each output is
programmable for a variety of uses such as activation of a strobe in a high noise area or initiating a door
latch remotely.
The GAI-Tronics VoIP and WiFi Speakers provide the flexibility to address a diverse range of
applications. A wide variety of functions can be achieved by altering the configuration data stored in the
non-volatile memory. Configuration options include:
Web page configuration
Configuration file
Command Line Interface (CLI)

Pub. 42004-462A
Model 13382 WiFi and 13383 VoIP Addressable Amplified Speakers Page 6 of 24
f:\standard ioms - current release\42004 instr. manuals\42004-462a.doc
12/13
Features and Functions
The GAI-Tronics Models 13382 WiFi and 13383
VoIP Addressable Amplified Speakers are
equipped with the following features:
Wired or WiFi VoIP
One-way broadcasting from VoIP network
Weatherproof enclosure
Power-over-Ethernet, 802.3af Compliant
(Model 13383 only)
Wireless 802.11b, IEEE 802.11g Compliant
(Model 13382 only)
A high-efficiency (>80%) Class D amplifier
600-ohm audio output
Two dry contact closure outputs
SIP compatible (RFC3261)
Real-time status reporting via TMA software
(purchased separately)
Configurable via web page, serial link or
download
Multicast capability, up to eight addresses
Universal ac input power supply provided, 15 V dc
Optional local volume control
Provides up to 8 watts into an 8-ohm load (115 dB spl), measured at 1 meter on axis, with PoE power
input (or 15 V dc)
Provides up to 30 watts into an 8-ohm load (118 dB spl), measured at 1 meter on axis, with 24 V dc
power input
System Requirements and Limitations
A 100 Base-T Ethernet with SIP Server is required for systems containing three or more VoIP
Addressable Amplified Speaker Assemblies. The operation of this equipment is limited by the
customer’s LAN media capabilities and the services available at each end point. The performance of the
VoIP Speaker Assembly is dependent on the provision of sufficient bandwidth and prioritization on the
network to give the quality of service required. In addition, the setup, installation, and software version
of key components such as switches and routers can have a significant effect on the operation of this
equipment. Improper connections or loose cables can also affect their operation.
The Addressable Amplified Assemblies require a local 15 V dc or 24 V dc power for operation. Each
unit is provided with a universal (120/240 V ac) power supply that provides a 15 V dc output. GAI-
Tronics Model 190-003PS Weatherproof Power Supply Kit is available (purchased separately) to provide
a 24 V dc output.
Figure 1. VoIP/WiFi Addressable Amplified
Speaker Assembly

Pub. 42004-462A
Model 13382 WiFi and 13383 VoIP Addressable Amplified Speakers Page 7 of 24
f:\standard ioms - current release\42004 instr. manuals\42004-462a.doc
12/13
The following network facilities should be provided (This may vary widely depending on how your
network is deployed):
SIP proxy server (to route calls)
SIP registrar server (frequently combined with proxy servers)
TFTP server (for downloading configuration files).
TCP Syslog server (for reporting alarms and external inputs)
SMTP server (for reporting via email)
STNP server (to synchronize the internal clock)
STUN server (for NAT firewall traversal)
Dedicated systems, such as Gatekeepers, VoIP-enabled PABXs or soft PABXs may also provide these
functions.
The GAI-Tronics VoIP/WiFi Addressable Amplified Speakers only support Session Initiation Protocol
(SIP) to RFC3261 Call Control signaling.
In addition to direct access, peer-to-peer or via a SIP server, each amplified speaker is capable of
receiving a Multicast broadcast. Multicast allows a single audio stream to be sent to multiple end points
simultaneously, to achieve multi-point paging or Public Address functionality over IP. Multicast requires
the use of a SIP server that specifically supports Multicast functionality and each speaker must be
configured (enabled) to receive Multicast packets.
Available Models
Table 1. VoIP/WiFi Addressable Amplified Speakers Model Chart
Part No. Description
13382 WiFi VoIP Addressable Amplified Speaker
13383 VoIP Addressable Amplified Speaker

Pub. 42004-462A
Model 13382 WiFi and 13383 VoIP Addressable Amplified Speakers Page 8 of 24
f:\standard ioms - current release\42004 instr. manuals\42004-462a.doc
12/13
Replacement Parts and Kits
Table 2. Replacement Parts and Kits
Part No. Description 13382 13383
61512-038 Wiring Harness, VoIP Weatherproof Amplified Speaker 
13327-021 Speaker 
19101-037 WLAN Antenna, SMA Wireless 
61531-055 Cable, WiFi Power 
69625-001 PCBA, VoIP Broadcast Carrier 
69868-001 PCBA, Ethernet Wireless Interface 
12506-001 Remote Volume Control L-Pad (optional) 
40419-015 Power Supply, 120/240 V ac, 15 V dc output 
61007-043 Patch Cable, Cat5e 350 MHz 
100-02-7013-000 VoIP Interface PCBA 
Performance Specifications
Power Options
AC Power Requirements (utilizing plug-in power supply provided with unit)
Input voltage ............................................................................................................. 120/240 V ac, 50/60 Hz
Input current...................................................................................... 0.35 A @ 120 V ac, 0.2 A @ 240 V ac
Power over Ethernet (PoE) Requirements (Model 13382 only)
Power .............................................................................................................. 802.3af compliant (via RJ45)
Audio
Output
Speaker output power
With PoE or 15 V dc power supply.........................................................................8 W into 8-ohm load
With 24 V dc power source................................................................................... 30 W into 8-ohm load
Sound pressure level
@ 8 W .................................................................................................................115 dB SPL, at 1 meter
@ 30 W................................................................................................................118 dB SPL, at 1 meter
Line out (into 600 ohms)................................................................................................................. 1.0 Vrms
Frequency response....................................................................................................................300–3000 Hz
Dispersion
Nominal coverage when surface-mounted to wall (ref. −6 dB)
Vertical........................................................................................................................................ Upward: 40º
Downward: 60º
Horizontal ..................................................................................................................................................90º

Pub. 42004-462A
Model 13382 WiFi and 13383 VoIP Addressable Amplified Speakers Page 9 of 24
f:\standard ioms - current release\42004 instr. manuals\42004-462a.doc
12/13
Network (Ethernet)
Signaling ....................................................................................... SIP (RFC3261 compliant) Loose routing
Configuration .............................................................................................................. Embedded web server
Embedded Telnet server
Configuration file download
Configuration file building tool (Vconf.exe)
Direct serial connection
(Nine-way D-type female connector
Command line interface
SNTP with time zone and daylight saving
Automatic updating via TFTP
Password protection
Compliance to Standards .............................................................................................. FCC CRF 47 Part 15
Control Outputs
Output 1 (isolated solid state switch)..........................................50 milliamps @ 30 V ac/dc (resistive load)
Output 2 (isolated SPST relay) .......................................................... 10 amps @ 30 V ac/dc (resistive load)
WiFi Module (Model 13382 only)
Antenna (internal) ....................................................................... 2.4 GHz, 2.0 dBi, 50 Ω, omni-directional,
¼ wavelength dipole configuration, VSWR ≤2.0
Standards.............................................................................................................. Wireless 802.11b, 802.11g
Static IP provisioning or DHCP STUN client (NAT traversal)
Frequency............................................................................................................ Europe 2.412 – 2.472 GHz
USA 2.412 – 2.462 GHz
Mechanical
Physical dimensions................................................. 8.02 8.12 9.52 inches (203.7 206.2 241.8 mm)
Enclosure material ..................................................................... Glass-reinforced polyester, 0.20-inch thick
Hardware..................................................................................... Urethane gaskets, stainless steel hardware
Color ..................................................................................................................................................... Black
Shipping weights
Model 13382 ......................................................................................................................... 7.3 lbs. (3.3 kg)
Model 13383 ......................................................................................................................... 7.0 lbs. (3.2 kg)
Environmental
Temperature range ............................................................................... −4º F to +140º F (−20° C to +60° C)
Weatherproof rating....................................................................................................................... Rainproof
Humidity ...................................................................................................................... 95% non-condensing
Approval Standards
USA ............................................................. FCC Modular Approval, FCC ID: FCC ID: XM5-SM2144N1
CFR Title 47 FCC Part 15, Subpart B and C
Canada .............................................................. Industry Canada Module Approval IC: 8516A-SM2144N2
Industry Canada ICES-003, RSS-Gen, RSS-210
EU ............................................................................................ EN 300 328 (R&TTE Directive 1999/5/EC)
EN 301 489 (EMC Directive 2004/108/EC)

Pub. 42004-462A
Model 13382 WiFi and 13383 VoIP Addressable Amplified Speakers Page 10 of 24
f:\standard ioms - current release\42004 instr. manuals\42004-462a.doc
12/13
Programming and Set Up
NOTE:The Model 13382 WiFi and 13383 VoIP Addressable Amplified Speakers include the same
embedded browser as do GAI-Tronics’ VoIP and WiFi telephones. There are many programmable
parameters utilized by our telephones that are not utilized by the VoIP Amplified Speakers. All speakers
are factory programmed for maximum operating proficiency. Please do not make any programming
changes other than those directed in this manual.
Opening the Addressable Amplified Speaker
The Addressable Amplified Speaker must be opened for programming and installation. Bench
programming and testing is recommended. Remove the speaker from the carton and position on a flat
surface with the front of the speaker facing up. Although the front section attaches to the rear section
with six Phillips screws, only two screws have been secured during the production process. Back out the
two screws on the left and right side of the speaker. All screws are captive and will remain in the front
section. Lift the front section straight up and flip to the left-hand side of the rear section. Refer to Figure
2.
Figure 2: Addressable Amplified Speaker (Model 13382 shown)

Pub. 42004-462A
Model 13382 WiFi and 13383 VoIP Addressable Amplified Speakers Page 11 of 24
f:\standard ioms - current release\42004 instr. manuals\42004-462a.doc
12/13
WiFi Interface Setup (Model 13382)
Configuration of the WiFi interface PCBA is required to set up security of the WLAN unit’s connection.
For first time configuration of the WiFi interface, power the unit by connecting dc power to TB101.
Refer to Figure 7. To reconfigure a unit, power the unit and press MSEL button, PB1, on the WiFi
interface PCBA for 20 seconds to return default settings to the PCBA.
Connect to the ad-hoc network GTC using a PC/laptop with a wireless capability. Open a web browser
on PC and type http://192.168.1.3/iChip into the address field.
In the following webpage enter password for the password to enter configuration of the WiFi interface
PCBA.
Figure 3. WiFi Interface Log In Webpage

Pub. 42004-462A
Model 13382 WiFi and 13383 VoIP Addressable Amplified Speakers Page 12 of 24
f:\standard ioms - current release\42004 instr. manuals\42004-462a.doc
12/13
Figure 4. WiFi Interface Network Configuration Webpage

Pub. 42004-462A
Model 13382 WiFi and 13383 VoIP Addressable Amplified Speakers Page 13 of 24
f:\standard ioms - current release\42004 instr. manuals\42004-462a.doc
12/13
In the Network Configuration page, enter the parameters WLCH, WSTO, WLK1, WLPP and WLSI.
Other settings need not be entered.
WLCH is the Wireless LAN Channel.
WSTO is the Wireless Security Type. The following are the choices:
Table 3. Wireless Security Type Choices
WSTO Setting Wireless Security Type
0 NONE
1 WEP-64
2 WEP-128
3 WPA
4 WPA2
WLK1 is the WEP key. It is ten HEX characters for WEP-64 or 26 HEX characters for WEP-128.
If NONE, WPA or WPA2 are used, leave blank.
WLPP is the Wireless LAN WPA Passphrase. If NONE, WEP-64 or WEP-128 are used leave blank.
WLSI is the SSID of the Access Point you connect to. This entry is case sensitive.
After entering parameters, press “SUBMIT” button to save configuration. Now the VoIP PCBA can be
accessed through the wireless network for configuration.

Pub. 42004-462A
Model 13382 WiFi and 13383 VoIP Addressable Amplified Speakers Page 14 of 24
f:\standard ioms - current release\42004 instr. manuals\42004-462a.doc
12/13
VoIP PCBA Configuration
For the first time configuration of the VoIP PCBA, power the unit by connecting dc power to TB101 and
connect Ethernet port of the VoIP PCBA to a 10/100 Base-T Ethernet network. Refer to Figure 7.
The easiest way to get started is to make a network connection to the unit and log on via a web browser.
The unit is initially set with a static IP address:
IP address 192.168.1.2
A user name and password will be requested. The initial factory settings are:
User Name user
Password password
Changing the user name and password is recommended. This security measure helps to prevent
unauthorized changes to the VoIP PCBA Interface’s configuration.
NOTE:The audio output level is set by configuring the Hands-free Output on the Audio Settings
webpage during the configuration of the speaker.
VoIP PCBA Initial Network Configuration
Each VoIP PCBA must be set up for the network prior to installation. Assign a local ID, domain, proxy,
and registrar.
Assign a host name The host name provides identification of the different VoIP PCBAs on the
network.
Test Verify that calls can be made successfully.
Maintain Monitor alarms. Set up auto-updates.
Refer to Pub. 42004-482 for detailed programming instructions of this VoIP device.
Closing the Addressable Amplified Speaker
Assemble the speaker sections and tighten the front panel screws to 16 to 20 in-lbs. of torque.

Pub. 42004-462A
Model 13382 WiFi and 13383 VoIP Addressable Amplified Speakers Page 15 of 24
f:\standard ioms - current release\42004 instr. manuals\42004-462a.doc
12/13
Installation
Install equipment without modification and according to all applicable local and national electrical codes.
Consult the National Electrical Code (NFPA 70), Canadian Standards Association (CSA 22.1), and local
codes for specific requirements regarding your installation. Class 2 circuit wiring must be performed in
accordance with NEC 725.55.
Read, follow, and retain instructions – All safety and operating instructions should be read and followed
before operating the unit. Retain instructions for future reference.
WARNING This product can contain hazardous voltages. Always remove power to this
station and any associated equipment before beginning any installation.
CAUTION Do not install this equipment in areas other than those indicated on the
approval listing in the “Specifications” section of this manual. Such installation may cause a safety
hazard and consequent injury or property damage.
Heed warnings – Adhere to all warnings on the unit and in the operating instructions.
Attachments – Attachments not recommended by the product manufacturer should not be used, as they
may cause hazards.
Servicing – Do not attempt to service this unit by yourself. Opening or removing covers may expose you
to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
This permanently connected apparatus must have an ALL-POLE MAINS switch with a contact separation
of at least 3 mm in each pole incorporated in the electrical installation of the building.
Outdoor Installation Product
Power lines - An outdoor system should not be located in the vicinity of overhead power lines, electric
lights, or power circuits, where it may contact such power lines or circuits, as this contact might be fatal.
Refer to the National Electrical Code Article 800 regarding installation.
Antenna Care
Unauthorized antennas, modifications, or attachments could damage the radio and may violate FCC
regulations.
Electromagnetic Interference/Compatibility
Electronic equipment may be susceptible to electromagnetic interference. If you experience interference,
visit the FCC website at http://www.fcc.gov for possible solutions.

Pub. 42004-462A
Model 13382 WiFi and 13383 VoIP Addressable Amplified Speakers Page 16 of 24
f:\standard ioms - current release\42004 instr. manuals\42004-462a.doc
12/13
Mechanical Receipt Inspection
The Addressable Amplified Speaker is shipped in a cardboard container, protected from movement and
distress by a self-forming packaging material. Thoroughly inspect it as soon as possible after delivery.
In-transit damage should be immediately reported to the transportation company.
Cable Installation Safety Considerations
Interconnecting, communications, and Class 2 dc power cables should be separated from electrical light
or other Class 1 circuits by at least 2 inches. The exception is where Class 1 wiring or power circuits are
run in a raceway, or are metal-sheathed or metal-clad, or are permanently separated from the conductors
of the other circuitry by a continuous and firmly fixed nonconductor such as porcelain tubes or flexible
tubing in addition to the insulation on the wire. Communications cables and in-building wiring should be
listed and marked for the purpose according to NEC Article 800.
Required Tools
#1 Phillips screwdriver
1/16-inch flat blade screwdriver (for TB101, TB1 and TB3 connections only)
Mounting
Refer to “Opening the Addressable Amplified Speaker” section on page 10 and to Figure 2.
After opening the Addressable Amplified Speaker, untwist the nylon tie used for wire management.
Unplug the quick-connect fastons from the speaker and unplug the dual 7-point connectors (TB1), 2-point
connector (TB2), and 4-point connector (TB3) from the PCBA. The front section can now be completely
separated from the rear section. See Figure 5.
Mount the rear section to any flat surface using 1/4-inch diameter customer-provided screws in each of
the four 0.280-inch mounting holes in the corners of the rear section. Refer to Figure 5 for mounting hole
pattern dimensions. A Model 231-001 Pole Mounting Kit can also be used for pole or surface mounting.
Two customer-provided mounting screws are required to surface mount this kit. The kit includes four
mounting screws needed to secure the speaker to the kit’s bracket.

Pub. 42004-462A
Model 13382 WiFi and 13383 VoIP Addressable Amplified Speakers Page 17 of 24
f:\standard ioms - current release\42004 instr. manuals\42004-462a.doc
12/13
Figure 5. Mounting Detail
Cable Installation
Each of the speaker assemblies is designed for bottom cable entry, where two ¾-inch conduit entries are
located. Field wiring can enter the speaker housing using the installed ¾-inch NPT cable bushing
(bottom right), or with rigid or flexible conduit by removing the installed bushing. The ¾-inch male
conduit plug (bottom left) can be removed for additional conduit connections. Refer to Figure 6. When
conduit entries are closed and sealed, the speaker is completely rain-tight.
Figure 6. Bottom view of speaker assembly
Install the necessary cable for wiring the speaker.

Pub. 42004-462A
Model 13382 WiFi and 13383 VoIP Addressable Amplified Speakers Page 18 of 24
f:\standard ioms - current release\42004 instr. manuals\42004-462a.doc
12/13
Field Wire Connections to Terminal Block
The Addressable Amplified Speaker provides terminal blocks inside the rear portion of the housing for
most field wiring. Each terminal block is labeled to indicate the functionality. Refer to Figure 7. When
connecting to TB101 it is recommended that spade or ring lug connectors are used.
Figure 7. TB101 Wiring Location
VoIP PCBA Connection in the Model 13383
Power the unit by either local power or PoE.
For local power, connect dc power to the terminal blocks on the back box (observing polarity) and
connect Ethernet port of VoIP PCBA to a 10/100 Base-T Ethernet Network. PoE would be applied via
the RJ45 connection.
