GAI-Tronics 13352 User manual

Pub. 43004-030A
GAI-Tronics Corporation P.O. Box 1060, Reading, PA 19607-1060 USA
610-777-1374 800-492-1212 Fax: [phone]
VISIT WWW.GAI-TRONICS.COM FOR PRODUCT LITERATURE AND MANUALS
GAI-TRONICS® CORPORATION
A HUBBELL COMPANY
Model 13352, 13362 and 13372
Addressable Amplified Speakers
Installation and Operation Manual
Table of Contents
Foreword .........................................................................................................................................3
Scope of Manual......................................................................................................................................3
Nomenclature ..........................................................................................................................................3
Ordering Replacement Parts .................................................................................................................3
Service and Repair..................................................................................................................................3
Confidentiality Notice.............................................................................................................................4
FCC Licensing Information...................................................................................................................4
Computer Software Copyrights.............................................................................................................5
Warranty .................................................................................................................................................5
Safety and General Information............................................................................................................6
User Instructions...............................................................................................................................................6
Exposure to Radio Frequency Energy..............................................................................................................6
Antenna Care....................................................................................................................................................6
Electromagnetic Interference/Compatibility.....................................................................................................6
Hospitals or Health Care Facilities...................................................................................................................6
Medical Devices - Pacemakers.........................................................................................................................6
Blasting Caps and Areas...................................................................................................................................6
Safe Handling of CMOS Integrated Circuit Devices...........................................................................7
Replacement Parts and Kits...................................................................................................................8
Programming Software and Cable........................................................................................................8
Performance Specifications....................................................................................................................9
Introduction...................................................................................................................................11
Functional Description.................................................................................................................12
Generic Operation.................................................................................................................................12
Selective Operation...............................................................................................................................12
DTMF Signaling.................................................................................................................................................12
2-Tone Signaling ................................................................................................................................................13
Volume Adjustments.............................................................................................................................13

Table of Contents Pub. 43003-030A
GAI-Tronics Corporation P.O. Box 1060, Reading, PA 19607-1060 USA
610-777-1374 800-492-1212 Fax: [phone]
VISIT WWW.GAI-TRONICS.COM FOR PRODUCT LITERATURE AND MANUALS
Remote Volume Adjustment...............................................................................................................................13
Local Volume Adjustment..................................................................................................................................13
Field Installed Options .................................................................................................................14
Model SPK200 Solar Panel Interface Kit...........................................................................................14
Model XB001 External Long-Life Battery Kit...................................................................................14
Model 40404-048 External Power Supply...........................................................................................15
Model BB133 Battery Back-up Kit......................................................................................................16
Model 12506-001 Remote Volume Control Assembly .......................................................................16
PC Programming..................................................................................................................................16
Operation.......................................................................................................................................17
Use Cases................................................................................................................................................17
Generic Broadcast Activation.............................................................................................................................17
Selective Broadcast Activation ...........................................................................................................................17
Remote Volume Adjustment (DTMF only)........................................................................................................18
Selective Broadcast Operation, Wrong Activation Code Received....................................................................18
Installation ....................................................................................................................................19
Mechanical Receipt Inspection............................................................................................................19
Equipment Required.............................................................................................................................19
Cable Installation Safety Considerations............................................................................................19
Programming.........................................................................................................................................19
General Description ............................................................................................................................................19
CARD Suite Software Installation......................................................................................................................19
RF Module Programming Software Installation.................................................................................................20
Preparing to Program..........................................................................................................................................20
Programming the Addressable Speaker PCBA (All Models) ...........................................................21
Settings and Adjustments....................................................................................................................................22
Programming the RF Module (19101-024 Programming Kit) - Models 13362/13372 Only..........23
Mounting ............................................................................................................................................................23
Wiring.................................................................................................................................................................24
12506-001 Remote Volume Control Wiring Instructions..................................................................25
Hardware Configuration..............................................................................................................28
Jumpers...............................................................................................................................................................28
Fuses ...................................................................................................................................................................28
LEDs...................................................................................................................................................................28
TB1 Wiring Connector .......................................................................................................................................29
Radio Connector Pinout......................................................................................................................................30
Terminal Strip Designations ...............................................................................................................................31
Definitions and Acronyms............................................................................................................32

Pub. 43004-030A
GAI-Tronics Corporation P.O. Box 1060, Reading, PA 19607-1060 USA
610-777-1374 800-492-1212 Fax: [phone]
VISIT WWW.GAI-TRONICS.COM FOR PRODUCT LITERATURE AND MANUALS
Model 13352, 13362, and 13372
Addressable Amplified Speakers
Installation and Operation Manual
Foreword
Scope of Manual
This manual offers descriptive data and service information for the Addressable Amplified Speaker
Assemblies.
Nomenclature
The model number, located on the nameplate on the bottom, specifically identifies GAI-Tronics
equipment. If additional options are ordered, the option will be identified on the circuit board.
Ordering Replacement Parts
When ordering replacement parts or requesting equipment information, please include the complete
identification number. This applies to all components, kits, and chassis. If the component part number is
not known, the order should include the number of the chassis or kit of which it is a part and sufficient
description of the desired component to identify it. Order parts from:
Customer Service
GAI-Tronics Corporation
400 E. Wyomissing Ave.
Mohnton, PA 19540
US: 800-492-1212
Outside US: 610-777-1374
Service and Repair
Inoperative or malfunctioning equipment should be returned to the factory for repair. Please call
1-800-492-1212 or 610-777-1374 to obtain a Return Authorization number, published repair prices, and
shipping instructions.
NOTE:A purchase order or credit card number is required prior to processing non-warranty repairs.

Page 4 of 32
Model 13352, 13362, and 13372 Addressable Amplified Speaker Assemblies Pub.: 43004-030A
d:\radio products-draft\gtc 43004\43004-030a\43004-030a.doc
06/05
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains
sensitive business and technical information that is confidential and proprietary to GAI-Tronics.
GAI-Tronics retains all intellectual property and other rights in or to the information contained herein,
and such information may only be used in connection with the operation of your GAI-Tronics product or
system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any
third party.
FCC Licensing Information
Your radio operates on General Mobile Radio Service (GMRS) frequencies and is subject to the Rules
and Regulations of the Federal Communications Commission (FCC). The FCC requires that all operators
using GMRS frequencies obtain a radio license before operating their equipment. To obtain the FCC
forms, go to http://wireless.fcc.gov/services/personal/generalmobile/index.html to obtain Forms 605 and
159, which include all forms and instructions.
Changes or modifications not approved by GAI-Tronics Corporation may void the user’s authority
granted by the FCC to operate this radio and should not be made. To comply with FCC requirements,
transmitter adjustments should be made only by or under the supervision of a person certified as
technically qualified to perform transmitter maintenance and repairs in the private land mobile and fixed
services as certified by an organization representative of the user of those services. Replacement of any
transmitter component (crystal, semiconductor, etc.) not authorized by the FCC equipment authorization
for this radio could violate FCC rules.
NOTE: Use of this radio outside the country where it was intended to be distributed is subject to
government regulations and may be prohibited.
Federal Communications Commission (FCC)
1-202-418-0177 1-800-418-FORM
1-800-418-3676
1-888-CALL-FCC
1-888-225-5322
Or: http://www.fcc.gov

Page 5 of 32
Model 13352, 13362, and 13372 Addressable Amplified Speaker Assemblies Pub.: 43004-030A
d:\radio products-draft\gtc 43004\43004-030a\43004-030a.doc
06/05
Computer Software Copyrights
This product contains copyrighted computer programs stored in semiconductor memory. These programs
are copyrighted by GAI-Tronics Corporation and may not be reproduced in any form without express
written permission from GAI-Tronics.
Warranty
GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment
supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product
specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed-upon
quotation or proposal document. If (a) Seller’s goods prove to be defective in workmanship and/or material under
normal and proper usage, or unfit for the purpose specified and agreed upon, and (b) Buyer’s claim is made within
the warranty period set forth above, Buyer may return such goods to GAI-Tronics’ nearest depot repair facility,
freight prepaid, at which time they will be repaired or replaced, at Seller’s option, without charge to Buyer. Repair
or replacement shall be Buyer’s sole and exclusive remedy, and the warranty period on any repaired or replacement
equipment shall be one (1) year from the date the original equipment was shipped. In no event shall GAI-Tronics’
warranty obligations with respect to equipment exceed 100% of the total cost of the equipment supplied hereunder.
The applicability of any such third-party warranty will be determined solely by GAI-Tronics.
Services. Any services GAI-Tronics provides hereunder, whether directly or through subcontractors, shall be
performed in accordance with the standard of care with which such services are normally provided in the industry.
If the services fail to meet the applicable industry standard, GAI-Tronics will, for a period of one (1) year from the
date of completion, re-perform such services at no cost to the Buyer. Re-performance of services shall be Buyer’s
sole and exclusive remedy, and in no event shall GAI-Tronics’ warranty obligations with respect to services exceed
100% of the total cost of services provided hereunder.
Limitations/Exclusions. The warranty on any equipment supplied hereunder is subject to Customer’s use in
compliance with applicable FCC regulations and manufacturer specifications. The warranties herein shall not apply
to, and GAI-Tronics shall not be responsible for, any damage to the goods or failure of the services supplied
hereunder, to the extent caused by accident, misuse, abuse, neglect, system design, product modification, failure to
follow instructions contained in the product manual, repair, or attempted repair by anyone not authorized by GAI-
Tronics, improper installation, installation of parts that do not conform to the quality or specifications of the original
parts or accessories, damage or loss occurred during shipment, or any unit which is not new when sold or upon
which the serial number has been defaced, modified or removed. The warranty does not extend to damage incurred
by natural causes including Force Majeure. The warranty does not cover microprocessors if failure is due to static
damage or application of improper voltage. THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE
IN LIEU OF AND EXCLUDE ALL OTHER WARRANTIES AND REMEDIES, WHETHER EXPRESS OR
IMPLIED BY OPERATION OF LAW OR OTHERWISE, INCLUDING ANY WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Operational and Maintenance Procedures.Buyer acknowledges that any improper use, maintenance, or
modification of the equipment provided hereunder, or use of unqualified maintenance or service technicians will
severely impair the operational effectiveness of the entire communication system. Buyer hereby agrees to
indemnify, defend and hold GAI-Tronics harmless from and against any and all third party claims arising, in any
manner, out of: (a) Buyer’s neglect of the equipment; (b) Buyer’s use of technicians not authorized by GAI-Tronics
to service the equipment; or (c) Buyer’s improper use or modification of the equipment or failure to follow the
operational and maintenance procedures provided with the equipment.
Limitation of Liability/Damages.In no event (even should circumstances cause the exclusive warranties and
remedies set forth in the Warranty section to fail of their essential purpose) shall either party be liable for any
indirect, incidental, special or consequential damages (including, but not limited to, loss of use, loss of anticipated
profits, or damages arising from delay) whether such claims are alleged to have arisen out of breach of warranty,
breach of contract, strict or absolute liability in tort, or other act, error or omission, or from any other cause
whatsoever, or any combination of the foregoing.

Page 6 of 32
Model 13352, 13362, and 13372 Addressable Amplified Speaker Assemblies Pub.: 43004-030A
d:\radio products-draft\gtc 43004\43004-030a\43004-030a.doc
06/05
Safety and General Information
User Instructions
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Exposure to Radio Frequency Energy
Your radio is designed to comply with the following standards and guidelines regarding exposure of human beings to radio
frequency electromagnetic energy:
•FCC, Code of Federal Regulations; 47 CFR part 2 sub-part J
•American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992
•Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition
•International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998
•Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radio Frequency Electromagnetic Fields in the
Frequency Range from 3 kHz to 300 GHz, 1999
Antenna Care
Unauthorized antennas, modifications, or attachments could damage the radio and may violate FCC regulations.
Do NOT hold the antenna when the radio is IN USE. Holding the antenna affects the effective range.
Approved Accessories
Only use GAI-Tronics Corporation approved accessories. See WWW.GAI-TRONICS.COM
Electromagnetic Interference/Compatibility
Electronic equipment may be susceptible to electromagnetic interference. If you experience interference, visit the FCC website
at http://www.fcc.gov for possible solutions.
Operational Cautions
Hospitals or Health Care Facilities
To avoid electromagnetic interference and/or compatibility conflicts, turn off your radio in any facility where posted notices
instruct you to do so. Hospital or health care facilities may be using equipment that is sensitive to external RF energy.
Aircraft/Airports
Airports may be using equipment that is sensitive to external RF energy. Any use of a radio must be in accordance with
applicable regulations.
Medical Devices - Pacemakers
These recommendations are consistent with the independent research by, and recommendations of the U.S. Food and Drug
Administration. Persons with pacemakers should:
•ALWAYS keep the radio more than six inches (15 cm) from their pacemaker when the radio is turned ON.
•Do NOT carry the radio in the breast pocket.
•Turn the radio OFF immediately if you have any reason to suspect that interference is taking place.
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn off your radio when you are near electrical blasting caps, in a
blasting area, or in areas posted: “Turn off two-way radio.” Obey all signs and instructions.

Page 7 of 32
Model 13352, 13362, and 13372 Addressable Amplified Speaker Assemblies Pub.: 43004-030A
d:\radio products-draft\gtc 43004\43004-030a\43004-030a.doc
06/05
Safe Handling of CMOS Integrated Circuit Devices
Many of the integrated circuit devices used in communications equipment are of the Complementary
Metal Oxide Semiconductor (CMOS) type. Because of their high open circuit impedance, CMOS
integrated circuits are vulnerable to damage from static charges. Care must be taken handling, shipping,
and servicing them and the assemblies in which they are used.
Even though protection devices are provided in CMOS integrated circuit inputs, the protection is effective
only against overvoltage in the hundreds of volts range such as is encountered in an operating system. In
a system, circuit elements distribute static charges and load the CMOS circuits, decreasing the chance of
damage. However, CMOS circuits can be damaged by improper handling of the modules, even in a
system.
To avoid damage to circuits, observe the following handling, shipping, and servicing precautions:
1. Prior to and while servicing a circuit module, particularly after moving within the service area,
momentarily touch both hands to a bare metal, earth-grounded surface. This will discharge any static
charge that may have accumulated on the person doing the servicing.
NOTE:Wearing a conductive wrist strap will minimize static build-up during servicing.
2. Whenever possible, avoid touching any electrically conductive parts of the circuit module with your
hands.
3. Power down the unit before installing or removing the circuit module.
4. When servicing a circuit module, avoid carpeted areas, dry environments, and certain types of
clothing (silk, nylon, etc.) because they contribute to static build-up. Similarly, disconnect the test
probe prior to removing the ground lead.
5. All electrically powered test equipment should be grounded. Apply the ground lead from the test
equipment to the circuit module before connecting the test probe.
6. If a circuit module is removed from the system, it is desirable to lay it on a conductive surface (such
as a sheet of aluminum foil) which is connected to ground through 100k of resistance.
7. When soldering, be sure the soldering iron is grounded and has a grounded tip.
8. Prior to connecting jumpers, replacing circuit components, or touching CMOS pins (if this becomes
necessary in the replacement of an integrated circuit device), be sure to discharge any static build-up
as described in procedure 1. Since voltage differences can exist across the human body, it is
recommended that only one hand be used if it is necessary to touch pins on the CMOS device and
associated board wiring.
9. When replacing a CMOS integrated circuit device, leave the device in its conductive rail container or
conductive foam until it is to be inserted into the printed circuit module.
10. All low impedance test equipment (such as pulse generators, etc.) should be connected to CMOS
device inputs after power is applied to the CMOS circuitry. Similarly, such low impedance
equipment should be disconnected before power is turned off.
11. Replacement modules shipped separately from the factory will be packaged in a conductive material.
Any modules being transported from one area to another should be wrapped in a similar material
(aluminum foil may be used). Never use non-conductive material for packaging these modules.

Page 8 of 32
Model 13352, 13362, and 13372 Addressable Amplified Speaker Assemblies Pub.: 43004-030A
d:\radio products-draft\gtc 43004\43004-030a\43004-030a.doc
06/05
Replacement Parts and Kits
Part No. Description 13352 13362 13372
12544-003 Wiring Harness, Weatherproof Amplified Speaker 
12544-006 Wiring Harness, 600-ohm 
13327-021 Speaker 
19101-022 VHF Radio 
19101-023 UHF Radio 
19502-007 VHF Antenna, 152-160 MHz 
19502-009 UHF Antenna, 432-468 MHz 
61213-008 Cable, HDDB15 male to 8-pin 
69834-001 PCBA, Weatherproof Amplified Speaker 
BB133 Battery Back-up Kit 
40201-010 Battery, 2.8 Ah, 12 V dc (included in BB133) 
XB001 External Weatherproof Long-life Battery Kit 
40201-008 Battery, 18 Ah, 12 V dc for XB001 
SPK200 Solar Panel Interface Kit 
12506-001 Remote Volume Control L-Pad 
RFP7784-108 Solar Panel 
40404-048 12 V dc Power Supply, 3.5A 
Programming Software and Cable
Part No. Description 13352 13362 13372
19101-024 RF Module Programming Kit (software & cable) 
XAC1000A CARD Suite Programming Software CD 
XAC0004A Programming Cable (for speaker) 

Page 9 of 32
Model 13352, 13362, and 13372 Addressable Amplified Speaker Assemblies Pub.: 43004-030A
d:\radio products-draft\gtc 43004\43004-030a\43004-030a.doc
06/05
Performance Specifications
Electronic
Output power ...................................................................................................2 mW to 8 W (default 1 watt)
Sound pressure level ...............................................................................................107 spl, 1 watt at 1 meter
Nominal coverage when surface-mounted to wall (ref. –6 dB)
Vertical........................................................................................................................................ Upward: 40º
Downward: 60º
Horizontal ..................................................................................................................................................90º
Model 13352 audio input level ......................................................................................... 20 to 1500 mVrms
Audio speaker volume adjustment........................................................................................... 80-116 dB spl
Audio speaker volume ..........................................Factory set @ nominal 89 dB spl at a distance of 1 meter
Frequency response............................................................................................... 450 Hz - 3000 Hz +/-5 dB
Power Requirements
Model BB133 Battery Back-up Kit
Voltage............................................................................................................................................... 12 V dc
Capacity .............................................................................................................................................. 2.8 Ah
Battery life .....................................................................................................................2 hours at full output
Model XB001 External Long-Life Battery Kit (with 40201-008 battery)
Voltage............................................................................................................................................... 12 V dc
Capacity ................................................................................................................................................ 18 Ah
Battery life ...................................................................................................................80 hours at full output
External dc power source
Voltage..................................................................................... Regulated 12.6-15 V dc, nominal 13.8 V dc
Current ............................................................................................................................................. 3.5 amps
Solar panel output (at charge controller module)
Voltage (trickle charge) ..................................................................................................................... 12 V dc
Mechanical
Physical dimensions............................................................................................... 8.02 ×8.12 ×9.52 inches
Enclosure material ...................................................................... Glass-reinforced polyester, 0.20 inch thick
Hardware...................................................................................... Urethane gaskets, stainless steel hardware
Color ......................................................................................................................................................Black
Shipping weights
Model 13352 ........................................................................................................................................ 66
Model 13362 /13372 ............................................................................................................................ 73
Environmental
Temperature range .............................................................................................................. -20° C to +60° C
Weatherproof rating ........................................................................................................................ Rainproof
Humidity ...................................................................................................................... 95% non-condensing

Page 10 of 32
Model 13352, 13362, and 13372 Addressable Amplified Speaker Assemblies Pub.: 43004-030A
d:\radio products-draft\gtc 43004\43004-030a\43004-030a.doc
06/05
RF Module (Models 13362 /13372 only)
General
Frequency range..............................................................................................................VHF: 154-174 MHz
UHF: 450-470 MHz
Antenna impedance................................................................................................................................ 50 Ω
Operating voltage............................................................................................... 9-18 V dc, 12 V dc nominal
Decoder................................................................................................................................. CTCSS/CDCSS
Receiver (measurement procedures made per ANSI/TIA/EIA-603)
Sensitivity (12 dB SINAD)............................................................................................................... 0.25 µV
Inter-modulation ................................................................................................................................... 60 dB
Spurious response ................................................................................................................................. 55 dB
Audio output .................................................................................................................. 300 mVrms, 1 Vp-p
3 kHz deviated signal
Approvals
FCC Identifier ............................................................................................................... VHF: AIERT 17-142
UHF: AIERT 17-442
FCC Compliance..................................................................................................................................Part 90
VHF Antenna
Dimensions ......................................................................................................... Maximum 3.00 inches high
Mounting................................................................................................................................ BNC connector
Impedance .............................................................................................................................................. 50 Ω
UHF Antenna
Dimensions ......................................................................................................... Maximum 3.00 inches high
Mounting................................................................................................................................ BNC connector
Impedance .............................................................................................................................................. 50 Ω

Page 11 of 32
Model 13352, 13362, and 13372 Addressable Amplified Speaker Assemblies Pub.: 43004-030A
d:\radio products-draft\gtc 43004\43004-030a\43004-030a.doc
06/05

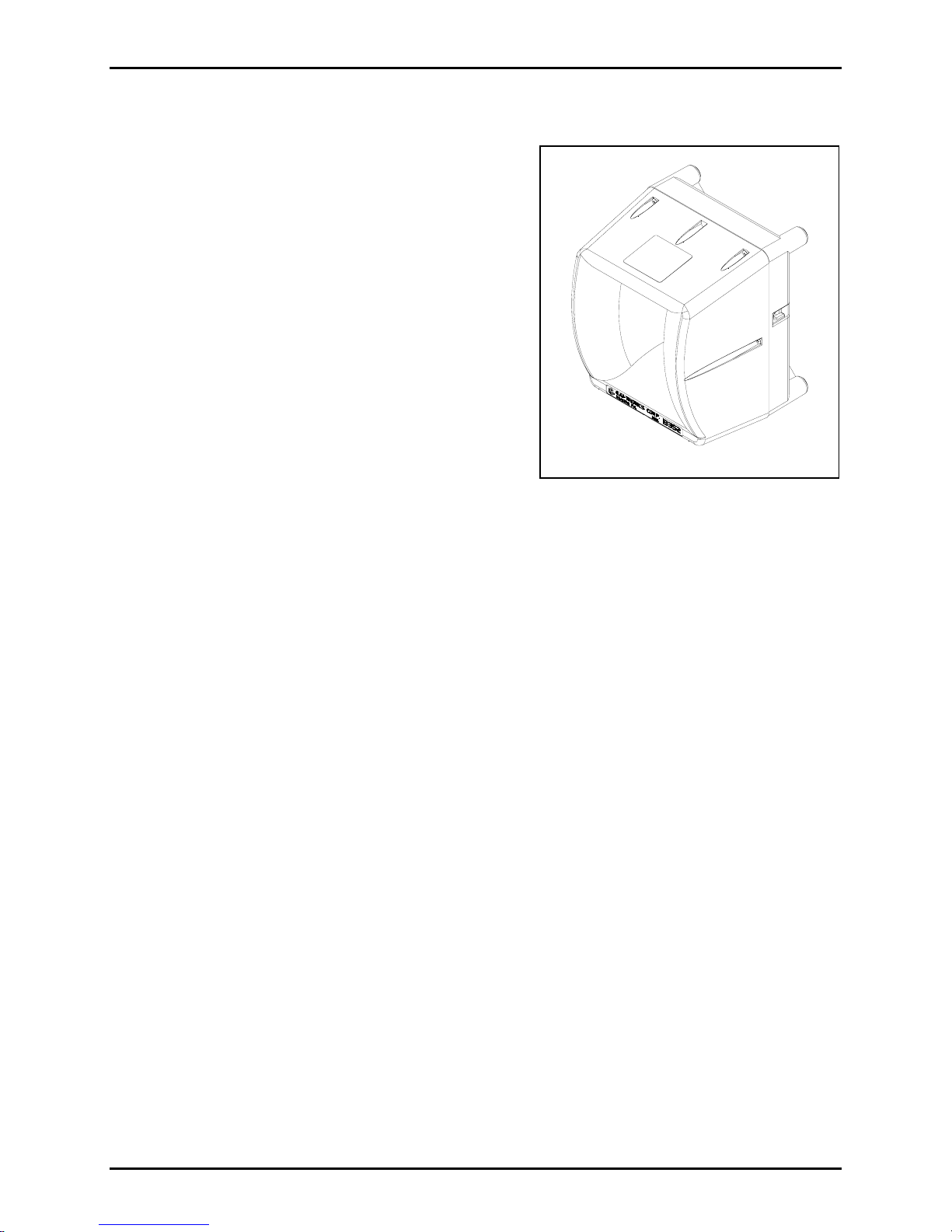

Introduction
The GAI-Tronics Model 13352, 13362 and 13372
Addressable Amplified Speaker Assemblies are designed
for remote paging in temporary or permanent applications
such as public gatherings, construction sites, or amusement
parks.
Model 13352 accepts a 600-ohm, 0-dBm signal from a
telephone page port or paging adapter using two telephone
wire pairs: one pair for audio and the other for contact
closure access. This configuration provides one-way
paging using existing telephone wiring with local 12 V dc
power.
Model 13362 and Model 13372 incorporate VHF and UHF
(respectively) to provide wireless, one-way paging from a
few feet to many miles away depending on the terrain, the
antenna system, and the transmitting device.
These speakers can be added to an existing radio system
with minimal cost or effort. With local 12 V dc or
battery/solar power, reliable public address paging is
possible from a portable, mobile, or base radio.
Each of the wireless speaker assemblies can be programmed for individual, group (zone), or system-wide
access via DTMF or 2-Tone coding with up to eight different access codes. The volume of each speaker
can be programmed via the XAC1000A CARD Suite software or controlled remotely via DTMF code.
There are also termination provisions for a remote, hard-wired L-pad volume control. Each unit can be
bench-programmed prior to installation, thus limiting field installation time.
All of the models can operate in a Generic or a Selective broadcast mode of operation through the use of a
preprogrammed access code. In the Generic mode, the speaker assembly broadcasts all system
communications received on the 600-ohm input or the programmed (licensed) RF frequency and PL code
(if used). In the Selective mode, only communications preceded with the speaker’s preprogrammed
access codes are broadcast.
Figure 1. Addressable Amplified Speaker
Assembly

Page 12 of 32
Model 13352, 13362, and 13372 Addressable Amplified Speaker Assemblies Pub.: 43004-030A
d:\radio products-draft\gtc 43004\43004-030a\43004-030a.doc
06/05
Functional Description
Each Addressable Amplified Speaker is capable of two different modes of operation; Generic Operation
and Selective Operation.
Generic Operation
While in the “off” state or sleep mode, the speaker assembly detects the presence of a page closure
(Model 13352) or carrier-detect (Models 13362/13372) and becomes activated. Any audio that is being
transmitted is now broadcast over the loudspeaker while the page closure is present. After a
preprogrammed amount of time after the page closure (Model 13352) or carrier-detect (Model
13362/13372) is no longer present, the speaker assembly returns to the “off” state. Each speaker is
factory-programmed for this mode of operation (default).
NOTE:The speaker can be programmed via the XAC1000A CARD Suite software to provide receive
capability at all times. In this mode, the speaker should be connected to a constant external 12 V dc
power supply. The speaker “on” state can be overridden by the shutdown closure input, which returns the
unit to its “off” state. This can be used in areas where an all-page command is given but the speaker local
to the page location is turned off to reduce feedback. The “shutdown” closure input could be from a
handset hookswitch, relay, or other similar device.
Selective Operation
Selective Operation allows addressable access to each speaker using DTMF or 2-Tone signaling. Either
“DTMF” or “2-Tone” must be selected via the CARD Suite programming software.
While in the “off” state, the speaker assembly detects the presence of a page closure (Model 13352) or
carrier-detect (Models 13362/13372) and becomes activated. The speaker assembly waits for the
preprogrammed code to enable the speaker amplifier. If the correct code is detected, the speaker
assembly determines if it is an audio message or an audio level adjustment command.
•If it is an audio message, the speaker assembly is energized and the audio is transmitted to the speaker
output.
•If it is an audio level adjustment command, the speaker assembly is energized and a test tone is
transmitted to the speaker output. After a preprogrammed amount of time without the page closure
(Model 13352) or carrier-detect (Model 13362/13372) being present, the assembly returns to sleep
mode.
During either DTMF or 2-Tone operation, the speaker assembly recognizes one to eight codes that can be
used for unit activation. The first code is used for individual paging, and is the only code used for remote
volume adjustments (DTMF only). Any of the other seven codes can be used for zone or all paging
functionality.
DTMF Signaling
In this operating mode, the speaker assembly detects preprogrammed DTMF tones in this operating mode.
The protocol for the DTMF symbol stream during this operation is the programmed digit length (1-8
digits) followed by a “#” DTMF symbol. The DTMF symbol stream cannot include the “*” or “#” in its
identification string. The DTMF code is programmed via the CARD Suite software application. If the
code is blank, the unit will not have this operating functionality.

Page 13 of 32
Model 13352, 13362, and 13372 Addressable Amplified Speaker Assemblies Pub.: 43004-030A
d:\radio products-draft\gtc 43004\43004-030a\43004-030a.doc
06/05
2-Tone Signaling
In this operating mode, the speaker assembly detects preprogrammed 2-Tone signaling codes. The 2-
Tone protocol is one frequency followed by a second frequency, and is programmed via the CARD Suite
software application. If the 2-Tone code is blank, the unit will not have this operating functionality.
Volume Adjustments
The speaker assembly volume can be adjusted by two methods: remote volume adjustment and optional
local volume adjustment. The default volume level is programmed through the CARD Suite software
package.
Remote Volume Adjustment
The remote volume adjustment is performed through the use of DTMF control only. The speaker
receives the audio level from the DTMF signal and delivers a 1-kHz signal to the speaker output
corresponding to the volume level defined. The PTT of the transmitting device (radio, remote controller,
etc.) must be activated during the volume adjustment process.
The protocol for initiating remote volume control is: the speaker’s individual identification access code,
followed by a “#” to activate the unit, and then an “*” to enter the test tone mode.
After the “*”, a test tone is generated for a time period that is preprogrammed via Card Suite. During the
test tone, the volume level can be changed by increasing or decreasing the setting by one step. Press “*”
to increase or “#” to decrease, without entering the assembly identification code.
