Gainscha GI-2408T Series User manual

INTELLIGENT SERIES
GI-2408T / GI-3406T / GI-2410TM / GI-3407TM Series
4" Industrial Thermal Transfer Barcode Printer
USER’S
MANUAL
Ver.1.0.1

Agency Compliance and Approvals
EN 55032, Class A
EN 55024
This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
FCC part 15B, Class A
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
manufacturer’s instruction manual, may cause harmful interference with radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference, in which case you will be required to correct the interference at
your own expense.
Environmental protection
Do not dispose of this product in an unsorted public trash can. You should recycle
this product according to local regulations. For more information, please see our
website:
website：http://www.gainscha.com.tw

1
Contents
1. Introduction...............................................................................................................................................................4
1.1 Product Introduction......................................................................................................................................4
1.2 Product Features...............................................................................................................................................6
1.2.1 Printer Standard Features.....................................................................................................................6
1.2.2 Printer Optional Features .....................................................................................................................8
2. Operations Overview.............................................................................................................................................9
2.1 Unpacking and Inspection ...........................................................................................................................9
2.2 Printer Overview............................................................................................................................................10

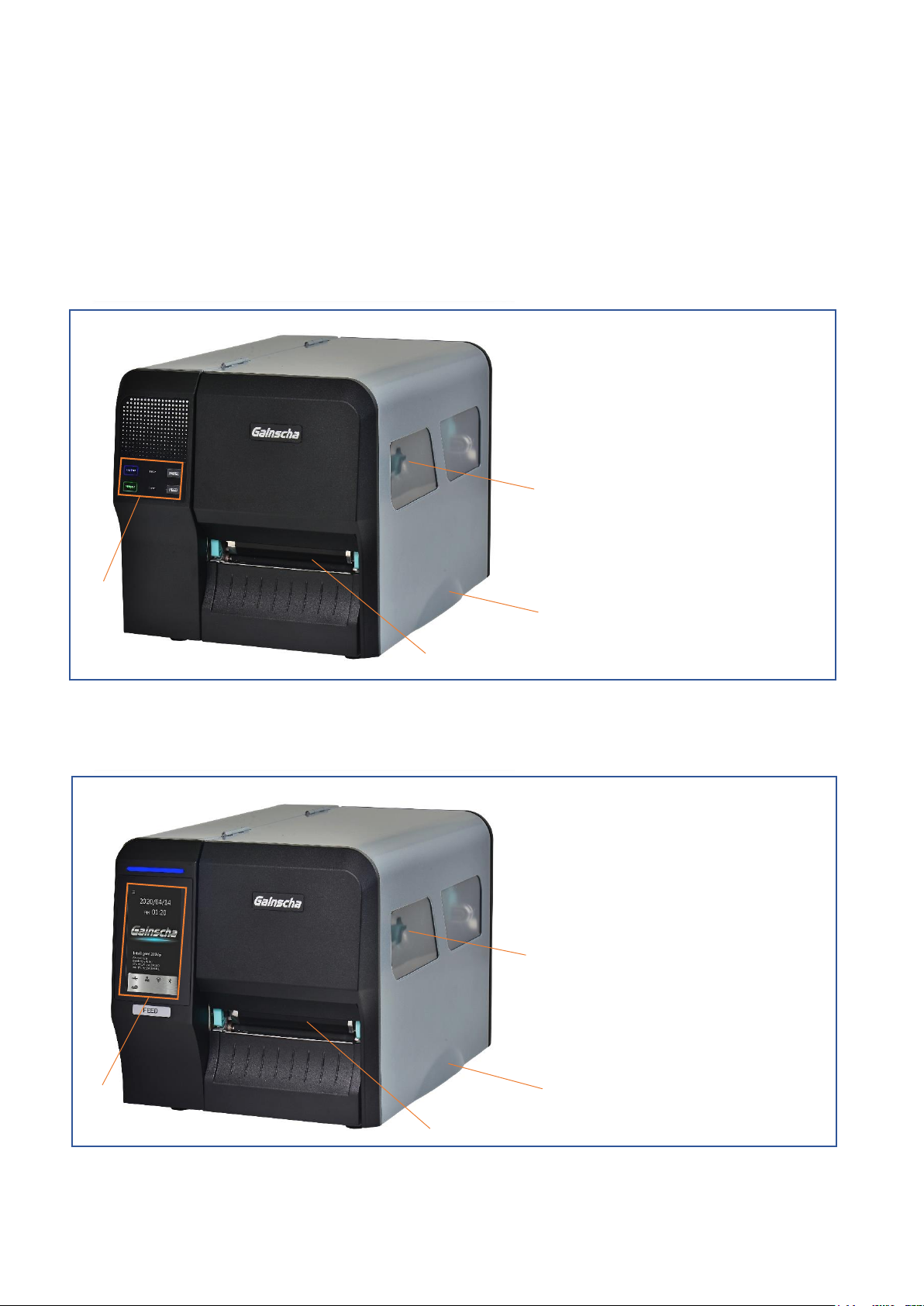

2.2.1 Front View.................................................................................................................................................10
2.2.2 Interior View............................................................................................................................................11
2.2.3 Front View.................................................................................................................................................12
2.2.4 Rear view...................................................................................................................................................17
3. Setup..........................................................................................................................................................................18
3.1 Setting up the Printer..................................................................................................................................18

2
3.2 Install Printer Driver (all series) ............................................................................................................... 19
3.3 Loading the Ribbon......................................................................................................................................22
3.3.1 Loading the Ribbon..............................................................................................................................22
3.3.2 Ribbon loading path............................................................................................................................23
3.4 Loading the Media........................................................................................................................................24
3.4.1 Loading the Media................................................................................................................................24
3.4.2 Media loading path.............................................................................................................................. 25
3.5 Loading the Peeler (Dealer options).....................................................................................................26
3.5.1 Loading the Media................................................................................................................................29
4. Adjustment Knob .................................................................................................................................................30
4.1 Print Head Pressure Adjustment Knob................................................................................................ 30
4.2 Vertical position adjustment knob on the right side of the print head................................31
4.3 Mechanism Fine Adjustment to Avoid Ribbon Wrinkles ............................................................32
5. Button Functions ..................................................................................................................................................35
5.1 Regular Button Functions.......................................................................................................................... 35
5.2 Power-on Utilities .........................................................................................................................................36

3
6. PrinterUtility ...........................................................................................................................................................37
6.1 Start the PrinterUtility .................................................................................................................................37
6.2 Printer Function .............................................................................................................................................38
7. LCD Menu Function for GI-2410TM and GI- 3407TM Series............................................................39
7.1 Enter the Menu...............................................................................................................................................39
7.2 Menu Overview..............................................................................................................................................40
8. Troubleshooting...................................................................................................................................................44
8.1 Common Problems....................................................................................................................................... 44
9. Maintenance...........................................................................................................................................................46
10. Revise History......................................................................................................................................................47

4
1. Introduction
1.1 Product Introduction
Thank you very much for purchasing Gainscha bar code label printer.
The new high-performance GI Series was designed to deliver the cleanest and high quality
barcodes. It features a die-cast print mechanism housed in a very strong yet lightweight
cabinet. This new design results in a more durable printer that is suited for your most heavy-
duty demand cycles.
There have T and TM Series, and includes 203 dpi / 300 dpi series, which can be applied to
printing very small 2D barcodes, graphics, fine print and other ultrahigh-resolution images.
The T Series printers are loaded with standard features including four color lights and two
menu buttons; The TM Series printers are loaded with standard features including a 4.3” color
touch display and one menu button, support for 450 meter long ribbons, 8” OD media rolls,
built-in Ethernet, 1 or 3 USB hosts for keyboard and scanner connections, USB 2.0, serial
interfaces, optional internal Bluetooth module and WIFI module.
Fonts and bar codes can be printed in four directions. This model has a built-in high-quality
and efficient True Type Font engine. With a flexible firmware design, users can also download
True Type Font from the computer to the printer's memory. In addition to scalable fonts, eight

5
different sizes of alphanumeric maps (bitmap font) are provided.
To print label formats, please refer to the instructions provided with your labeling software,
available on Gainscha website http://www.gainscha.com.tw。
⚫Applications
o Manufacturing & Warehousing
◼Work in Progress
◼Item Labels
◼Instruction labels
◼Agency labels
◼Compliance labels
◼Logistics management labels
◼Electronics labels
◼Industrial-duty Printing
o Parcel Post
◼Shipping/ Receiving Labels
o Healthcare
◼Patient Identification
◼Pharmacy
◼Specimen Identification
o Retail Marking
◼Price tags
◼Shelf labels
◼Jewelry tags
◼Asset management labels
◼Care labels
o Small Office/ Home Office

6
1.2 Product Features
1.2.1 Printer Standard Features
MODEL
GI-2408T
GI-3406T
GI-2410TM
GI-3407TM
Level
Economic
Economic
Empower
Empower
Resolution
8dots/mm
(203DPI)
12dots/mm
(300DPI)
8dots/mm
(203DPI)
12dots/mm
(300DPI)
Printing Method
Thermal Transfer &Direct Thermal
Max. print speed
203mm(8”)/
second
152mm(6”)/
second
254mm(10”)/
second
117.8mm(7”)/
second
Max. print width
104 mm (4.09“)
106.7 mm (4.2“)
108 mm (4.25”)
104 mm (4.09”)
Max. print length
2,286mm (90“)
1,016mm (40“)
2,286mm (90“)
1,016mm (40“)
CPU 规格
400 MHZ, 32 bits, ARM9
Memory RAM
128 MB SDRAM
256 MB SDRAM
Memory ROM
128 MB Flash Memory
256 MB Flash Memory
Interface
•USB 2.0 High Speed 480Mbps
•USB Host 2.0, for scanner or PC
keyboard
•RS-232
•Internal Ethernet 10/100Mbps
•Internal Bluetooth 4.0 (factory
option)
•Internal WiFi (factory option)
Real Time Clock
Standard
Buzzer
Standard
Dealer options
•Guillotine cutter (full cut and
partial cut)
•Peeler
Sensors
•Gap transmissive sensor (position
adjustable)
•Black mark reflective sensor
(position adjustable)
•Head open sensor
•Ribbon out sensor
•Ribbon end sensor
•Label end sensor
•Label begin sensor
Power
Internal universal switching power supply

7
Input: AC 90-240V, 1.5A, 50-60Hz, Output: DC 24V, 5A, 120W
User Interface
•1 power switch
•2 buttons (Feed & Pause)
•4 LEDs (Online, Error, Ribbon,
Communication status)
•Capacitive Touch Screen, TFT LCD
4.3" 16 bits Color, 272 x 480
pixels, with back lights
•1 power switch, 1 buttons (Feed),
3 LEDs (Online, Error, Ribbon
status)
Internal fonts
•8 alpha-numeric bitmap fonts
•True type font engine (need download scalable font file)
1D Barcode
Code 11, Code 39, Code 93, Code 128 (subsets A, B, C), UPC-A, UPC-E, UCC-128,
Codabar, EAN/JAN-8, EAN/JAN-13, Interleaved 2 of 5, ITF14, MSI Pleassy,
PostCode, Telepen
2D Barcode
QR Code, Micro QR Code, PDF417, Micro PDF417, MaxiCode, Aztec Code, Data
Matrix
Rotation
Font and barcode support 0, 90, 180, 270 degree
Printer language
Compatible to TSPL, EPL, ZPL, ZPL II, DPL
Ribbon
450 M long, max. OD 105 mm, 1” core (ink coated outside)
Ribbon width
Max.115mm (4.5”)
Media type
Continuous, die-cut, black mark, fan-fold (outside wound)
Media width
20~ 120 mm (0.78“ ~ 4.72“)
Media thickness
0.06~0.254mm (2.36 ~ 10 mil)
Media core
diameter
25.4 mm ~ 76.2 mm (1” ~ 3”)
Label roll capacity
203 mm (8“) OD
Label length
5 ~2,286 mm
(0.2“ ~ 90“)
5 ~1,016 mm
(0.2“ ~40“)
5 ~2,286 mm
(0.2“ ~ 90“)
5 ~1,016 mm
(0.2“ ~40“)
Physical
dimension
425mm(L)*255mm(W)*265mm(H)
Net Weight
9.65kg

8
1.2.2 Printer Optional Features
Product option feature
User
options
Dealer
options
Factory
options
Internal Bluetooth module in front panel
○
○
Internal WIFI module in front panel
○
○
Peel-off module assembly
○
○
Textile Care Cutter
○
NOTE：Except for the linerless cutter, all regular/heavy duty/care label cutters DO NOT cut on media
with glue.
Enclosure
Die-cast based print mechanism/Metal cover with large clear media view
window
Safety regulation
FCC Class A, CE Class A, CCC, BIS, CB
Environment
condition
Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
Environmental
concern
Comply with RoHS, REACH, WEEE
Accessories
•Windows labeling software CD
disk
•Quick start guide
•USB cable
•Power cord
