GALA GDH-3018 User manual

Manual of Dehumidifier
model no. GDH-3018

Table of Contents
Safety Warning………………………………………………..2
Frequent enquiries ……………………………………………3
Installation……………………………………………………..4
Components…………………………………………………..5
Control Panel…………………………………………………..6
Operation Methods……………………………………………7
Drainage……………………………………………………… 8-9
Maintenance…………………………………………………10
Troubleshooting………………………………………………11
Technical Parameters ……………………………………….12
1

Safety Warning
For your safety, please read the following contents carefully
before using this dehumidifier:
Requirements:
 Install this humidifier in smooth place to reduce vibration and noise.
 Do not place this dehumidifier in water or other liquids.
 In order to prevent accidents, please do not use this dehumidifier if wires
or
other connections are damaged.
 This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience
and
knowledge if they have been given supervision or instruction concerning use
of
the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.cleaning and user maintenance shall
not be made by children without supervision.
 When stop, reset or clean this dehumidifier, please cut off the power.
 Please use at the specified voltage.
 This dehumidifier can only be used indoor, please do not use for other purposes.
 Please do not place heavy objects on this dehumidifier.
 Please empty water tank to prevent overflow and spill before restarting
this
dehumidifier.
 Please do not incline in case that the spilled water damages this dehumidifier.
 Please do not place waste rods and hard objects into the dehumidifier in case
that error and damage occur.
 If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
 When this dehumidifier is not used for long time, please unplug the electric cord.
 Power supply of the Dehumidifier shall comply with the safety regulations where
it is used and ensure reliable grounding.
Prohibition:
▲ Please do not place this dehumidifier close to heating devices (flame or heaters,
etc.).
▲Please do not turn on or turn off this dehumidifier by plugging in or pulling out
the plug.
▲Do not use insecticide spray or other flammable substances in the vicinity of this
dehumidifier.
▲Do not scratch appearance of this dehumidifier with sharp matters.
▲Do not splash oil or water into this dehumidifier.
▲Do not clean this dehumidifier with water, please wipe it with subhumid soft
cloth.
▲Do not wipe this dehumidifier with chemical solvents such as benzene, gasoline
and alcohol, etc. If this dehumidifier is indeed dirty, please wipe with
neutral
detergent.
▲Please do not incline this dehumidifier over 45°or place this dehumidifier
upside down.

2

Frequent enquiries


Q: Why is less water stored in water tank of the
dehumidifier in winter?
In winter temperature is low and air is dry. In comparison with summer,
the dehumidification ability of the dehumidifier decreases remarkably,
this is not a fault.



Q: Why the dehumidifier cannot run or stops
runningsuddenly？
 This dehumidifier may be full of water or water tank is not installed properly,
drain the water in water tank, or re-install water tank in correct way.
 At the moment the dehumidifier may be in the “dehumidification mode”,
the ambient temperature is lower or higher (dehumidification cannot be
performed when the ambient temperature is ＜5℃ or ＞32℃).

The ambient temperature for operation of the dehumidifier is 5- 32℃,
and the relative humidity is 30%-80%. The optimal temperature for use is
16-32℃;




Q: Why is hot air blown out from air supply outlet?
 This dehumidifier extracts the air in the room, and the dehumidification unit
cools the air, the temperature decreases below the condensation point, the air
condenses into water drops, which falls into water tank finally, and the
dehumidified air is heated by the temperature returning unit. This can reduce
energy consumption and also accelerate dehumidification, therefore, hot air
is blown out, and this not a fault.






3

Installation



Please drain the water from water tank before running.
During running please do not open doors and windows as much as
possible since this can save energy resources.
When the dehumidifier is installed, a certain space must be reserved
around this dehumidifier, the minimum distance above is 50cm, and
the minimum distance in front/rear and left/right is 20cm as required,
as shown in figure below.
When big noise is found during operation of this dehumidifier:
It is recommended inserting pads or damping rubber sheets, etc.
below this dehumidifier, this can reduce vibration and noise, and can
also reduce sinking of wood floor or carpet.











Minimum:50cm





Minimum:20cm
Minimum:20cm





Minimum:20cm







Minimum:20cm


4

Components
Front side
Back side
5
Water tank
Water tank handle
Water tank cover
Wind blade
Back cover
Front cover
Control panel
Handle
Filter frame
Drain
Wrapping post
Wheel

Control panel with
negative ion function
Timer
24h timer setup, press this key to set on/off time of the dehumidifier, and
the setting range is 1-24h. If you cancel timer setup, press twice
continuously after confirmation of setting time.
Negative ion
Press this key to start the negative ion function, and press it
again to cancel.
Air speed
In CONTINUOUS mode air speed, HIGH and
LOW
can be circularly selected.
LCD Display
In AUTO, CONTINUOUS AND DRYING modes,
etc., this figure displays room humidity. When
humidity is set in AUTO mode, this figure shows
the set humidity; and displays the set time in timer
state, % represents percentage of humidity.
Humidity setting
Once this key is pressed, the humidity is displayed circularly
in the range of 40%-45%-50%-55%-60%-65%-70%, and the
humidity setting is only valid in AUTO mode.
Mode
During startup or timer startup press this key to select AUTO,
CONTINUOUS and DRYING modes, etc., and the indicator lamp
corres
p
ondin
g
t
o
t
he selec
t
ed
m
ode is on.
On/off key Press this key to turn on or turn off the dehumidifier.
6
3S-
ION
( )
IONIZER HIGH TANK
FULL AUTO
CNT/
LOW
Timer Function Speed GDH-3018
Fan
Indicator
Humidity
Clothes
Dry
On/Off
Power
Swing
INSIDE DRYING




Operating methods
Description of functions

Setting of timer off
 When the dehumidifier is running, press the [Timer key] to adjust time from 1h
to 24h, pressing the key once to increase the setting time by 1h, after the setting
time exceeds 24h, the figure returns to 1 to start cycle. The Timer key can also
be pressed all the time, the time increases and changes circularly, when the set
time expires, the dehumidifier turns off automatically. After the setting is
completed, if the Timer key does not act at all within 5s, the set time is
confirmed. In timer off state the key lamp on the [Timer key] is normally on.
Setting of timer on
 When the dehumidifier is in standby state, the method for adjustment of setting
time by the [Timer key] is the same as timer off. After the setting is completed,
if the Timer key does not act at all within 5s, the set time is confirmed. In timer
on state the key lamp on the [Timer key] is normally on, and the set time is
displayed on control panel.
AUTO mode
 Select AUTO dehumidification, if the room humidity is >the set humidity+5%,
the compressor starts, and the motor runs at high speed., if the room humidity is
between the set humidity+5% and the set humidity-5%, the compressor starts,
and the motor runs at low speed, if the room humidity is <the set humidity-5%,
the compressor stops, the fan runs at low speed. The initial value of the set
humidity is 50%.
CONTINUOUSmode
 Select CONTINUOUS dehumidification, no matter how the relative humidity in
the room is, the compressor starts, the fan runs at high speed in default, and the
air speed can be regulated via the air speed key.
DRYING function in dehumidifier
 Press the [Drying key in dehumidifier] for over 2s to start drying in the
dehumidifier, and the whole drying procedure needs approximate 1h:
1. The dehumidifier starts at HIGH air speed and releases air continuously for
30min;
2. The dehumidifier turns to run at LOW air speed and lasts for 15min;
 How to stop:
1. Press the Mode key again for over 2s to cancel drying in dehumidifier, and
recover to the running state before start of drying.
2. Press the [Power key] to stop drying in dehumidifier and recover to the standby
state.



7

Drainage
1. Use of water tank
When the water tank is full of water, the full water icon on LCD
flashes (the compressor, fan and negative ion will stop running), the
BUZZER sounds for 10 times to remind the user till water is drained.
Place both hands
respectively at the side of
the back cover side of the
depression, gently remove
the water tank and open the
tank cover on the right side
of the body, then pour the
water from the gap between
water tank and the cover.
Close the tank cover,and
rotating water tank handle
down,then put the water tank
gently and put it back in the
right place to restart
dehumidifier.
Attention: when the water tank is full of water, please empty it. Before
putting the water tank into the dehumidifier, please confirm whether the
floater rotates flexibly or not, and then push it in position with both hands.
8



2. Continuous drainage
If you do not want to drain water in the water tank frequently, you can
connect a drainage pipe (with inner diameter 9mm) on the back of this
dehumidifier to drain water, and this pipe shall be bought by the user.

Find the position where the
water outlet is blocked on the
back, as shown in figure below:
Pull down the water plug.















Connect a drainage pipe at
proper length onto the water
outlet.
Before using please check
whether the drainage pipe is
connected firmly or not in case
that water leaks.















Attention: the level height of externally connected water pipe shall not be higher
than the water outlet, and the water pipe at rear-end shall transit smoothly,
otherwise, the leakage risk exists since drainage is not smooth.

9



Maintenance
Precautions:
Please disconnect power supply before maintenance or repair to prevent
electric shock.
If the dehumidifier is not used for long time, please disconnect power
supply.
Please do not clean the dehumidifier body with chemical solvents such as
alcohol, gasoline and benzene, etc.。



Please clean the water tank and its
cover with soft cloth dipped in
cold or warm water at regular
time to prevent mould inside the
dehumidifier.




Wipe the surface of the
dehumidifier slightly with wet
cloth, and do not use detergent
or abrasive in case the plastic
surface is damaged.
Clean the washable PP
strainer at lease once per
two weeks simply with
cold or warm water, do not
use chemical solvents or
hot water.
















10

Troubleshooting
If the following problems occur to the dehumidifier, the following
solutions can be adopted.
Symptoms Possible reasons Solutions
The dehumidifier does not
run
Does power plug fall? Insert power plug into socket.
Is the water tank full of water? (the
water tank is full of water or is placed
at incorrect position)
Drain water from the water
tank, and then install the
water tank again.
The ambient temperature is lower
than 5℃ or higher than 32℃ Normal phenomenon
The dehumidification
function is not effective
Is the room temperature or humidity
too low?
In dry season the
dehumidification ability will
reduce.
Are the air outlet and inlet blocked? Clean up the objects blocking
the air outlet and inlet.
Air is not blown out Is the air strainer blocked?
Clean the
according to
method.
air
the
strainer
above
Noise is abnormal during
operation
Is the dehumidifier placed improperly
so that it is inclined or unstable? Please place the dehumidifier
in smooth place.
Is the air strainer blocked?
Clean the air strainer
according to the above
method.
There is “tittering” sound
The flowing sound of
refrigerant, which is a normal
phenomenon.
Water leaks
Connection of drainage pipe becomes
loose Fasten drainage pipe.
Drainage system is blocked Remove obstacles
straighten out water pipe.
and
Frosting occurs
The ambient temperature is low, and
it is in the state waiting for defrost.
It is a normal phenomenon,
and the dehumidifier has the
automatic defrosting function.
11

Technical Parameters
Model GDH-3018
Operating voltage 220-240V/50Hz
Dehumidification ability 30L/day @ 30℃80%RH
18L/day @ 26.7℃60%RH
Rated power 360W
Capacity of water tank 5L
Weight (net) 13.5kg
Dimensions (mm)
(HxWxD) 498 x 343 x 240
All data are for reference only, and are modified for improvement
of product functions or technology without notice.
12



Meaning of crossed –out wheeled dustbin:
Do
not dispose of electrical appliances as
unsorted
municipal waste, useseparate
collection
facilities. Contact your local
governmentfor
information regarding
the collection systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous
substances can
leakinto the groundwaterand get into thefood chain, damaging
your health and well-
being.
When replacing old appliances with new ones, the retailer is legally obligated to
take
back your old appliance for disposals at least free of charge.

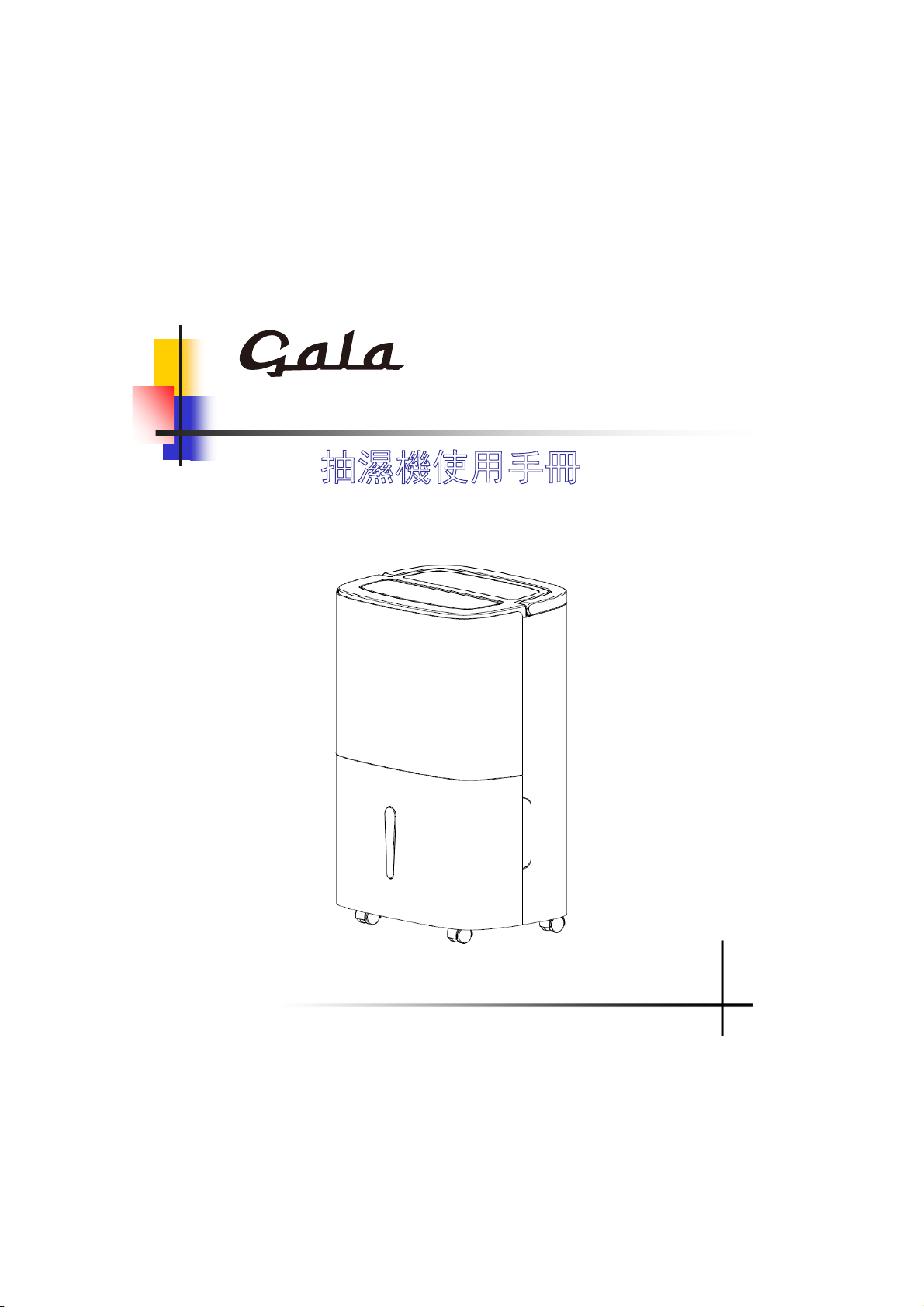

抽濕機使用手冊
Manual of Dehumidifier
model no. GDH-3018

目
錄
目
錄
安全警示………………………………………………………..2
常見問題………………………………………………………..3
安裝
4
安裝
……………………………………………………………..
4
組件……………………………………………………………..5
控制面板………………………………………………..…6
操作方法
操作方法
………………………………………………………7
排水……………………………………………………………8-9
保養……………………………………………………………10
故障排除
故障排除
………………………………………………………
11
技術參數 ………………………………………………………12
1

安全警示
要求：

將本機安裝於平地以減少震動和噪音
為了您的安全，請在使用本機前仔細閱讀以下內容：

。
切勿將本機放置於水或者其他液體中。
為防止意外發生，請勿在電線或其他連接損壞的情況下使用
本機。
對本機維修僅限專業電工。
在無人指導的情況下勿讓小孩觸碰。

在停止使用
重置或清洗本機時
請拔掉電源

在停止使用
，
重置或清洗本機時
，
請拔掉電源
。
請在規定電壓下使用。
本機僅供室內使用，請勿做其他用途。
請勿置重物於本機之上。
重啟本機前請清空水箱以免溢濺。
請勿傾斜以免溢出的水損壞本機。
請勿放置硬物於機內，避免錯誤及損壞的發生。
發生異常時（如發出焦味等），請關閉本機並拔下電源線。
長期不使用本機時，請拔下電源線。
禁止:
▲請勿將本機置於發熱裝置（火焰或加熱器等）附近。
▲
請勿以插上或拔掉插頭來 啟或關閉本機
▲
請勿以插上或拔掉插頭來
開
啟或關閉本機
。
▲不要在本機附近使用殺蟲噴霧劑或其他可燃性物質。
▲勿用尖銳的東西劃傷本機外觀。
▲勿將油或水濺入本機。
▲勿用水清洗本機，用半濕的軟布擦拭即可。
▲勿用諸如苯、汽油、酒精等化學溶劑擦拭本機。若機體確實
很髒，請使用中性的清潔劑擦洗。
▲請勿將機器傾倒超過45°或倒置機器。
2

常見問題
Q
為何冬天抽濕機水
箱中存水較少
？
Q
:
為何冬天抽濕機水
箱中存水較少
？
在冬天，氣溫低，空氣乾燥。相較夏天，抽濕機的抽濕能
力劇烈下降，這並非故障。
Q:為何抽濕機無法運轉或突然停止運轉？
本機可能處於水滿，或者水箱沒裝好狀態，倒掉水箱裏的
水，或者重新按照正確方式把水箱裝好即可。
可能此時處於“抽濕模式”環境溫度較低或較高 (當環境溫
度低於5℃或高於32℃將無法抽濕)。
Q:
為何送風口吹出熱風
?
機器的使用環境溫度為5-32℃，相對濕度30%-80%。最佳使
用溫度為16-32℃；
Q:
為何送風口吹出熱風
?
本機抽取室內的空氣，由抽濕單元將其冷卻，溫度降低到
凝露點以下，凝結成水滴，水滴最後落入水箱，經過抽濕
的空氣再由回溫單元升溫，這樣做能夠降低能耗，也加快
抽濕的速度，所以排出即為熱風，這並非故障。
3

安裝
運轉之前請將水箱中的水倒掉。
運轉中請儘量少開門窗，這樣做可以節省能源。
安裝抽濕機的時候， 務必在本機周圍留下一定的空間要
求上方最小50cm，前後左右最小20cm。如下圖。
本機在使用時發現噪音大時：
建議在本機 墊上墊子或減震橡膠板等
這樣可以減少
建議在本機
下
墊上墊子或減震橡膠板等
，
這樣可以減少
振動和噪音，還能減少木地板或地毯的凹陷。
4

組件
前側
導風葉
水箱
把手
水箱蓋 面板
背板
控制面板
水箱
水箱
把手
後側
把手
過濾網框
繞線柱
排水口
過濾網框
5
腳輪
