Galanz DUK001W Operator's manual

DUK001W
TUMBLE DRYER

Safety information.......................................................................1
Product description.....................................................................4
Control panel...............................................................................5
Use..............................................................................................6
Drying hints...............................................................................10
Drying programme.....................................................................11
Care and cleaning.....................................................................12
Troubleshooting Guide..............................................................13
Technical data...........................................................................14
Installation.................................................................................16
...........................................................17
Guarantee/Customer Service....................................................18
Electric diagram.........................................................................20
Environmental Concerns
Thank you for choosing our dryers. Please read this manual carefully.
It provides instruction, and maintenance. Retain it for future reference.
Record the model and serial numbers of your machine. Quote this
information to your dealer if you require service.
The following symbols are used in this manual:
Important information concerning your personal safety
and information on how to avoid damaging the appliance
General information and tips
Environmental information

This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
To avoid danger to children, ensure all packaging is disposed of safely.
Ensure children under 3 years of age are supervised.
Wait until the drum has stopped completely prior to removing laundry
from the dryer.
Children and pets should be kept away when the dryer is working to
ensure they do not become trapped. Always check the drum carefully
before closing the door.
Do not install the appliance close to fire or heat sources.
Do not rest any burning candles or cigarettes on the appliance.
Do not install the appliance in areas prone to damp or rainfall as water on
the electrical components can damage the appliance and / or cause accidents.
Do not install the dryer in places under direct sunlight as this can
damage the plastic and rubber components.
Do not use water jets on the appliance when cleaning it.
In order to avoid danger of fire caused by excessive drying, do not
use the appliance to dry the following items: Cushions, quilts and the like
(these items accumulate heat).
When using stain remover on your laundry, ensure you run an extra rinse cycle prior to loading the
tumble dryer.
Ensure all pockets are empty prior to loading laundry into the tumble dryer.
Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol,
kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water
with an extra amount of detergent before being dried in the tumble dryer.
Ensure the openings in the base are not obstructed by carpets.
The hot air discharge from the dryer cannot be shared with other exhaust passages from devices
that burn gases or other fuels.
Read and understand thoroughly these safety instructions before
use. The items indicated here are very important safety precautions
which must be followed. Any failure and losses caused by ignoring
the above mentioned items and cautions mentioned in the operation
and installation instruction are not covered by our warranty or any
liability.
The appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be done by
children without supervision.
Children of less than 3 years should be kept away unless continuously supervised.
The rear surface of the appliance shall be placed against a wall.
The appliance must not be supplied through an external switching device, such as
a timer.
Disassembly, repair or modification must not be carried out by people
other than qualified technical staff.
The household electrical supply system should include safety devices
such as a fuse and the specifications and safety details provided should
meet requirements of the dryer operation under normal load.
The power plug must be connected to a three-core socket with an earth
wire and must be grounded properly and reliably.
If the supply cord damaged, it must be replaced by the manufacturer,
its service agent similarly qualified persons in order to avoid a hazard.
Don't disconnect the power plug by pulling the supply cord. Remove using the plug.
Don't use the supply cord when connecting the power plug if the supply cord is loose.
Don't touch the power plug with wet hands. Wipe dust or water drops off the power plug with a dry
cloth.
Don't over-bend the supply cord or put it under stress.
Don't use the supply cord/socket/power plug if it is damaged or broken.
Possible Electric Shock
Possible Explosions
Don't put combustible liquids such as gasoline, petrol and
alcohol into the appliance or nearby. Don't put clothes
contaminated with these liquids into the appliance.
Don't connect / disconnect the power plug when leakage of gas
or other combustible gas occurs.
Fire Accidents/Short Circuit Or Electric Leakage May Occur
Never stop a tumble dryer before the end of the cycle unless all items
are quickly removed and spread out so that the heat is dissipated
Personal Injury May Occur
Gasoline
Petrol
Alcohol

Other Instructions
This appliance is designed for washable fabrics which are designed to be machine dried. Follow
the instructions on garment labels.
Any electrical work required to install this appliance should be carried out by a qualified electrician
or competent person.
If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate
freely under the appliance.
Do not climb onto the dryer or rest heavy objects / heating devices or items with water or liquid
leakage on the dryer as this may deform the face panel and plastic components.
Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can
cause extensive damage and must not be placed into the machine.
After having installed the appliance, check that it is not pressing or standing on its electrical supply
cable or vent hose.
Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles
and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
Always unplug the appliance after use or before cleaning and maintenance.
Do not overload the appliance. See the relevant section in the user manual.
Clothes which are dripping wet should not be placed in the dryer.
Garments which have been in contact with volatile petroleum products should not be machine
dried. If volatile cleaning fluids are used, care should be taken to ensure that the fluid is removed
from the garment before placing in the machine.
Never use the tumble dryer if the power supply cable, the control panel, the working surface or the
base are damaged so that the inside of the tumble dryer is accessible.
The tumble dryer is not be used if industrial chemicals have been used for cleaning.
Lint must not to be allowed to accumulate around the tumble dryer.
Do not dry unwashed items in the tumble dryer.
Fabric softeners or similar products should be used as specified by the fabric softener instructions.
The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items
are left at a temperature that ensures that the items will not be damaged.
Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances
burning gas or other fuels.
The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge
on the opposite side to that of the tumble dryer in such a way that a full opening of the tumble
dryer door is restricted.
Adequate ventilation must be provided to avoid the back flow of gases into the room from
appliances burning other fuels, including open fires.
For items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol,
kerosene, use a spot detergent before placing in the dryer.
Place the laundry in the drum, one item at a time, shaking them out as much as possible.
Remove all objects from pockets such as lighters and matches.
Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in
a tumble dryer. The items become warm, causing an oxidation reaction in the oil.
Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire.
Piling, tacking or storing oil affected items can prevent heat from escaping and so create a fire hazard.
If it is unavoidable that fabrics containing vegetable or cooking oil or items that have been
contaminated by hair care products are to be placed in the tumble dryer, first wash the item in hot
water with extra detergent as this will reduce, but not eliminate, the hazard.
1
2
4
3
5
6
7
8

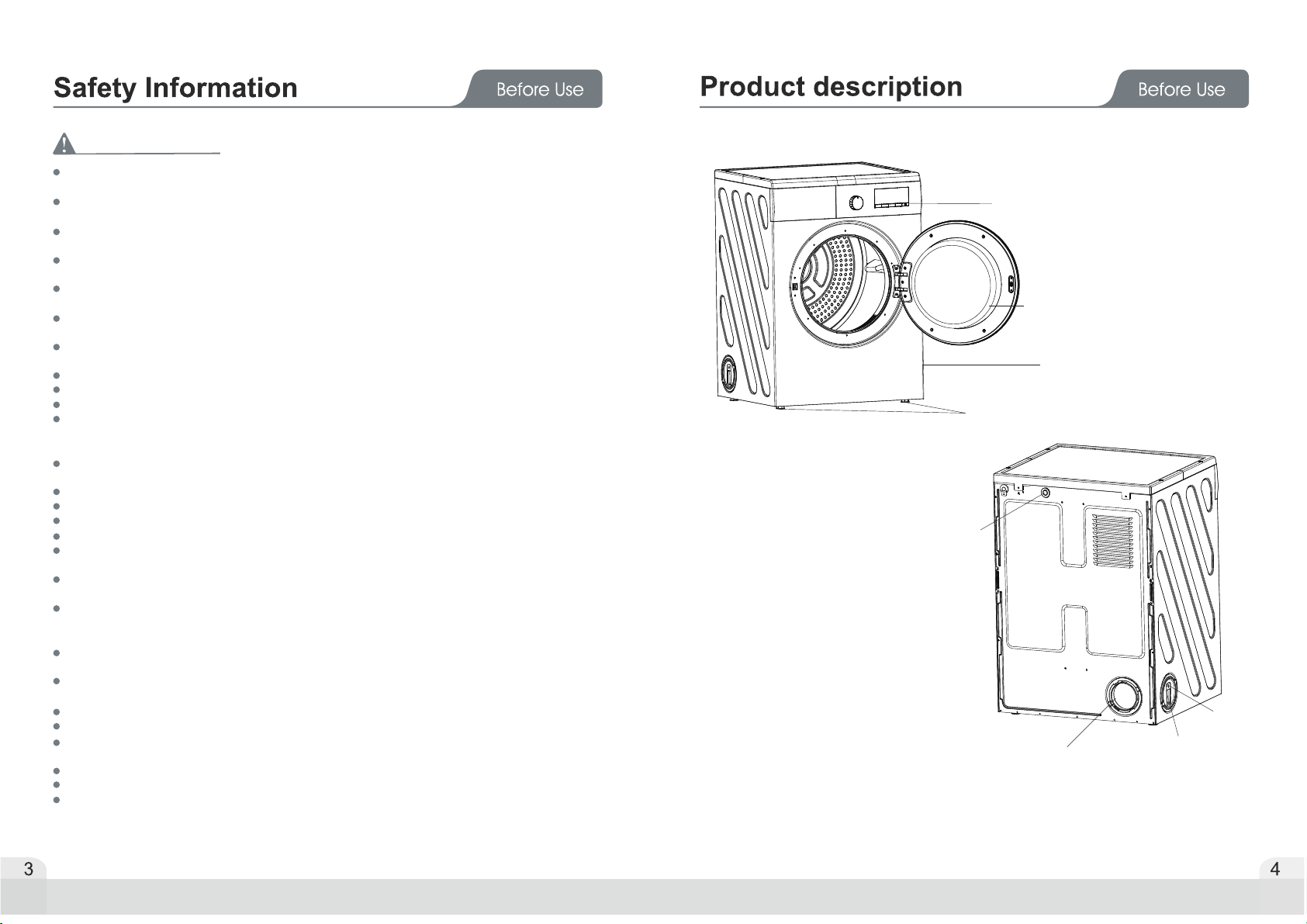

1.Control Panel
2.Door AS
3.Cabinet
4.Adjustable Feet
5.Thermostat reset button
6.Side Vent outlet
7.Vent Pipe over
8. Rear vent outlet

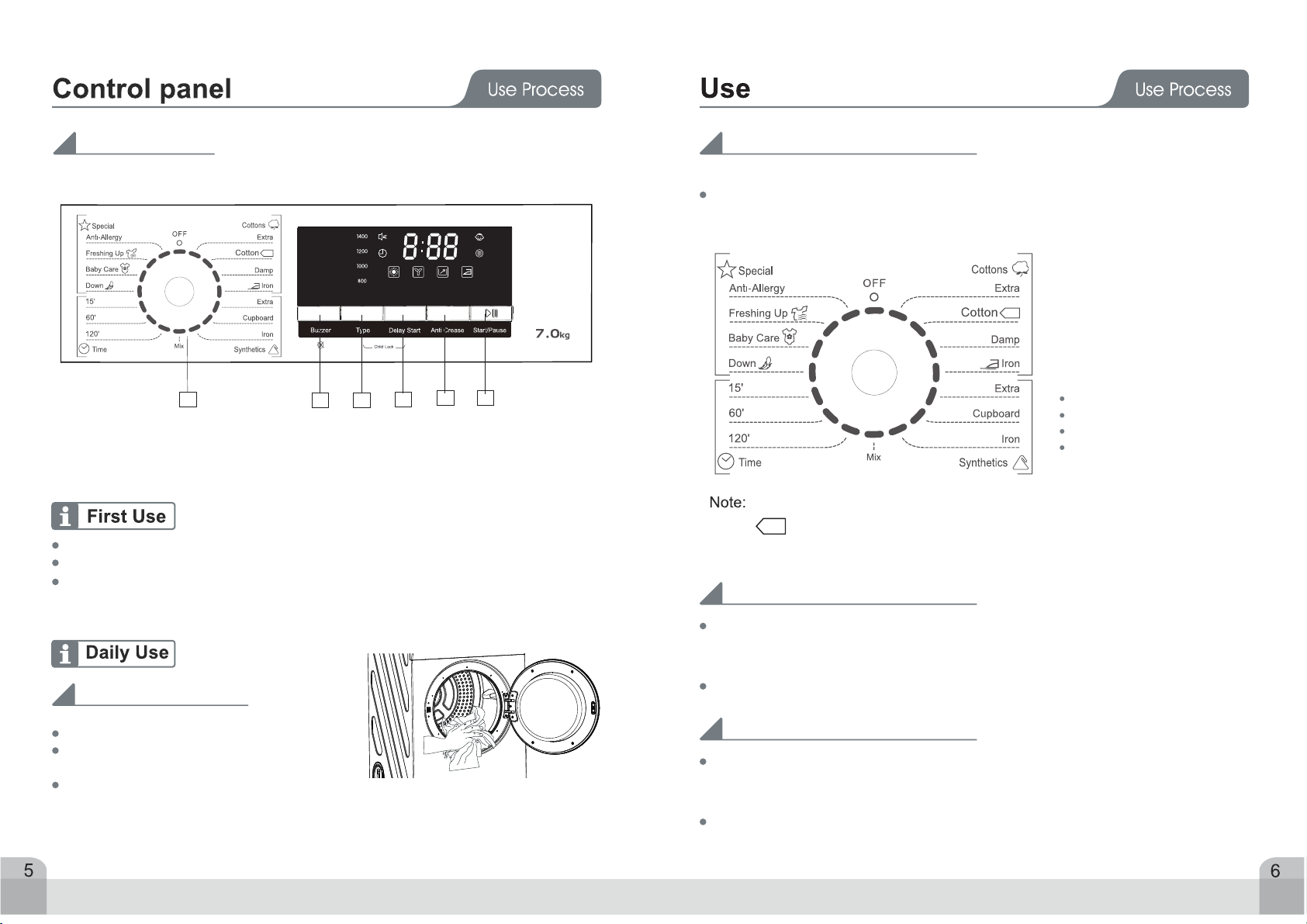

Control panel
“C ” is for the “standard cotton programme”.The programme is suitable to dry normal
wet cotton laundry and it is the most efficient programme in terms of energy consumption for
drying wet cotton laundry.
otton
1.Start/Puase 2.Anti-Crease 3.Delay Start 4.Type 5.Buzzer
6.Programme selector Dial
Turn the programme selector dial to the required programme. The corresponding
light starts to flash.
The programme will be switched off if you have not pressed any button for 5 minutes.
654321
Ensure that electrical connections comply with the installation instructions.
Remove the polystyrene block and any material from the drum.
Before using your tumble dryer for the first time. We recommend that you place a few damp
cloths inside the appliance and dry for 30 minutes.
There may be dust inside a brand new tumble dryer.
Connect The Appliance
Open the door (see picture).
Place the laundry in the drum, one item at a time,
shaking them out as much as possible.
Close the door. Please check the laundry does not
get caught between the door and filter.
Select The Required Programme
The selector dial is divided into
following sections:
Cottons
Synthetics
Time
Special
Automatic Controlled Drying
You can choose different programme base on your different clothes materials. The device has
the function with sensor the moisture in order to automatically adjust the drying time for optimal
drying.
This automatic control system is fit for most programme except Time.
Time Controlled Drying
You can choose the time of drying according to the actual situation, the knob is turned to the
Time, and you can also increase it to the desired time by pressing the Time button. This
automatic control system is fit for most programme except Time.
To cancel a programme which is running, turn the programme selector dial to “off”. At the end of
drying, turn the selector dial to “off” to switch the machine off before removing the laundry.

Depending on the programme, different functions can be combined. These must be selected
after choosing the desired programme and before depressing the Start/Pause button. When
these buttons are pressed, the corresponding indicator lights come on. When they are
pressed again, the indicator lights go out.
Select Anti Crease
Select Delay start
“Delay cancelled 1 2  3• • • • 23 24”
Select Dry Type
Display
Indicator lights
Programme Option Buttons
Select Buzzer
The buzzer can be selected during normal use. Press the “Buzzer” button to turn off the
buzzer and corresponding light. Press once again to activate the buzzer and corresponding
light. A sound will be emitted.
This button allows you to select the drying programme depending on the rotating speed of
washer. The higher rotational speed, the shorter the corresponding drying time.
Anti-crease is a default setting at the end of each programme. Longer Anti-crease can be
selected while the programme is in standby or running.
This button allows you to delay the start of the programme by up to 24 hours (each time the
button is pressed the time is increased by 1 hour). This option must be selected after setting
the required programme and before pressing Start/Pause to commence drying. When
Start /Pause is pressed, the corresponding indicator lights start to flash and countdown begins.
Select Start/Pause
The countdown begins after you have pressed the Start/Pause button. The corresponding light
illuminates when you have pressed this button. All indicator lights go out except Delay Start
pilot light.
Select the required programme options and press the Start/Pause button to commence drying.
The dryer will pause after pressing the button again or opening the door while the programme
is running. When the machine is suspended, Programme Selection Dial and other keys are
invalid except Start/Pause, Anti Crease and Buzzer keys. To re-start the programme, press the
Start/Pause button once again.
Programme duration
After you have selected the programme, it's duration (in hours and minutes) appears on the
display. It is calculated automatically on the basis of the maximum load accepted for each type
of fabric and of the required degree of drying. When the programme starts, the remaining time
is displayed.
Delay start
If you have selected a delay time, the remaining time is displayed. Once you press the
“Start/Pause” button, the appliance will start the delayed process. If you want to check the
programme selected, please press the “Start/Pause” button once more and the time of selected
programme shows.
Incorrect option selection
If you select an option that is incorrect or not compatible with the programme you have selected,
the sound “Bi, Bi, Bi” will be emitted and the display shows Ers (error).
These lights indicate the following functions:
Drying light " ", This light indicates that the appliance is in the drying phase.
Cooling light " ", This light indicates that the appliance is in the cooling phase. At the end of
drying, there is 10 minutes cooling phase to cool the laundry.
End of programme light " ",
Anti Crease light " ", This light indicates when the Anti-Crease function is selected and is in
addition to the Cotton programme
Filter light " ", This light illuminates on every cycle to remind you that the filter must be cleaned
at the end of the programme.
Child Lock light " " This light indicates that the appliance is locked.
Buzzer light " ", This light indicates when the buzzer function is selected. The Buzzer status
default is on.
Delay Start light " ", This light indicates when the delay start programme is selected.
Dry Type light "800, 1000, 1200, 1400" This light indicates when the Type function is selected.
When you choose different drying intensities, the corresponding indicator light turns on.
This light indicates the end of the cooling phase. This phase contains
a 30 minute default anti-crease function with the exception of the Cotton programme. Clothes can
be removed at any time.
The display shows the following information:

Thermostat reset
If during operation, the heating element doesn't work, the manual
thermostat may have been activated. To reset, first turn the programme
selector dial to the position “Synthetics Light” and press the start
button. Approximately 20 minutes later, press the thermostat
reset button as shown.
Thermostat reset button
All drying programmes end with a 10 minute cooling phase. If the laundry is not removed at the end
of the cycle, the dryer runs the anti-crease phase (default: 30 minutes, elect: 120 minutes). If you do
not remove the laundry, the dryer will stop automatically at the end of the anti-crease phase. The
display shows “End” and the buzzer sounds for 15 seconds when the buzzer function is on. To finish,
turn the programme selector dial to off.
Important:
If the door of the appliance is opened while the programme is running, the “Start” button must be
pressed again after closing the door in order to restart the programme from the point at which it was
interrupted.
At The End Of The Programme
After Each Use
Important:
If the drying programme has to be stopped before it reaches the end, to avoid a build-up of heat
inside the appliance, we recommend that you turn the dial to “OFF ” , then to “Refresh” and then
depress the“ Start/Pause” button.
Modifying the programme
To change a programme which is running, first cancel it by turning the programme selector dial to
“OFF”. Select the new programme and press the “Start/Pause” button.
Attention: "- --" signals the dormant state
Standby mode without any operation for 10 minutes automatically enters the dormant state.
Controller shows "End" without any operation for 10 minutes and automatically enters the
dormant state.

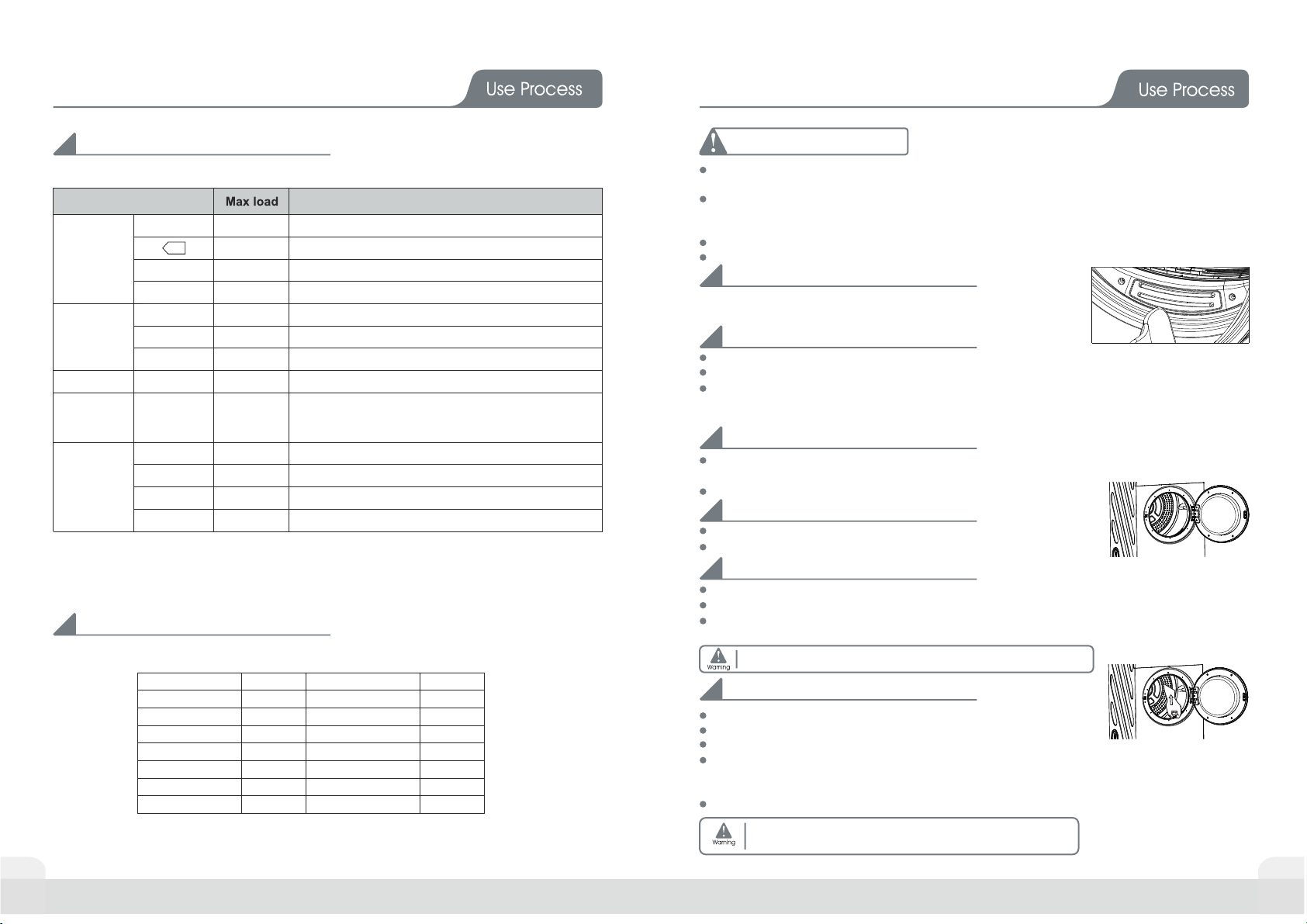

Before Loading Laundry
Never tumble dry delicate items such as net curtains, wool, silk, fabrics with metal trim, nylon tights,
bulky materials such as anoraks, blankets, quilts, sleeping bags, feather quilts and any items
containing rubber foam or materials similar to rubber foam.
Always follow the instructions on garment labels:
Close pillowcases and covers with fasteners to prevent small laundry items getting tangled inside
them.
Close press studs, zips, hooks, tie belts and apron strings. Sort laundry according to type and
degree of drying required.
Do not over-dry laundry, this avoids creasing and saves energy.
Avoid drying dark clothes with light coloured fluffy items such as towels as they could attract fluff.
The laundry must be thoroughly spun before tumble drying.
Easy-care items, e.g. shirts, should be briefly pre-spun before drying.
Knitted textiles (knitted underwear) may shrink a little after drying. Please do not over-dry items of
this type. It is advisable to allow for shrinkage when choosing the size of new purchases.
You can put starched items into your dryer. However, to achieve the desired starched effect,
choose the programme “Iron dry”. To remove any starch residue, wipe out the internal drum after
drying with a moist cloth and then rub it dry.
To avoid a static charge when drying is completed, use either a fabric softener when you are
washing the laundry or a fabric conditioner specifically for tumble dryers.
Remove the laundry when the dryer has finished drying.
If individual items are still damp after drying, set a brief post-drying time, but at least 30 minutes -
this will be necessary particularly for multi-layered items (e.g. collars, pockets, etc.)
During Laundry
Make sure that no metal objects are left in the laundry (e. g. hair clips, safety pins, pins)
Close pillowcases, close zip fasteners, hooks and poppers. Tie any belts or long tapes.
To avoid laundry becoming tangled close zips, button up duvet covers and tie loose ties or
ribbons (e. g. of aprons).
Turn items with double-layered fabrics inside out (e. g. with cotton lined anoraks, the cotton layer
should be outermost) .These fabrics will then dry better.
Remove all objects from pockets such as lighters and matches.
Maximum Loads
Recommended loads are indicated in the programme charts.
General rules:
Cotton, linen: drum full but not too tightly packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum no more than quarter full.
Try to load the maximum capacity of the machine as small loads are uneconomical.
WARNING: The appliance must not be plugged into an external switching device, such as a timer,
or connected to a circuit that is regularly switched on and off by a utility.
May be tumble dried
Normal drying (high temperature)
Delicate drying (low temperature)
May not be tumble dried

Bathrobe 1600g Night Dress 265g
Napkin 130g Ladies' Briefs 130g
Quilt Cover 930g Men's Work Shirt 800g
Sheet 665g Men's Shirt 265g
Pillow Case 266g Men's Pyjamas 130g
Tablecloth 330g Blouse 665g
Towelling Towel 265g Men's Underpants 130g
Tea Cloth 130g
11 12
7kg
7kg
Extra Drying bathrobes, towels, jeans, work clothes.
Cottons Drying bathrobes, towels, jeans, work clothes.
Light 7kg Drying shirt, T-shirt, cotton trousers.
Iron 7kg Drying knitted items, cotton shirts.
Extra 3.5kg
3.5kg
Drying sheet, bed linen, table linen, starched laundary.
Cupboard
Synthetics For sheets, tablecloths, synthetic items.
Light 3.5kg For synthetic items.
Mix Mix 3.5kg For knitted items, shirts.
Time 15,60,120 7.0kg
Drying thick or mulit-layered textiles, e.g.terry towelling
items and individual items of laundry or for small
volumes
Special
Down 3.5kg For down items.
Baby Care 3.5kg For silk items.
1.5kg
Freshing Up For refreshing or gently cleaning textiles.
Anti-Bac 2.0kg For underpants, shirts.
If the weight of laundry is less than 1 kg it is more efficient to select the " Time controlled Drying "
programme.
Laundry Weights
Drying Programme
Programme Description Of Programme
Care And Cleaning
Care And Cleaning
You must DISCONNECT the appliance from the electricity supply before you can carry out any
cleaning or maintenance work.
Don't clean the dryer by directly spraying water onto the dryer. Don't clean the dryer with benzene,
thinner, alcohol or acetone as these can cause discoloration, deformation, damage, electric shock
or fire.
When cleaning the product, be sure to unplug the power cord.
During the drying cycle, the control panel or the door may accumulate moisture.
Clean with a soft, damp cloth. Do not use abrasive substances.
Don't spray cleaners directly on the panel.
The control panel finish may be damaged by some laundry pre-treatment soil and stain remover
products. Apply such products away from your dryer and wipe up any spills or overspray
immediately.
To clean the stainless steel tumbler, use a damp cloth with a mild, non-abrasive cleaner suitable
for stainless steel surfaces.
Remove the cleaner residue and dry with a clean cloth.
Control Panel
Stainless Steel Tumbler
The dryer has a high-gloss finish. Clean with a soft, damp cloth. Don't use abrasive substances.
Protect the surface from sharp objects as they may scratch or damage the finish.
Don't place any heavy or sharp objects or a detergent box on the dryer. Keep them on the
purchased pedestal or in a separate storage box.
Dryer Exterior
Do Not Use Without The Lint Filter
Drying Programme
Clean periodically the interior part of the door to remove any fluff.
Accurate cleaning ensures correct drying.
Cleaning The Door
In order to function correctly, the humidity sensor must be kept clean.
Please clean regularly (refer to diagram).
Humidity Sensor
Pull up the housing and open to remove the lint filter.
Clean lint, fibre and cotton strands by hand or with a soft piece of cloth.
Close the lint filter and place it back into its housing.
A layer can build up on the filter pores that can cause clogging of the filter after using the dryer for
extended periods. Wash the lint filter with warm water to remove the layer that builds up on the lint
filter surface. Dry the lint filter completely before reinstalling it.
The lint trap must be cleaned frequently.
Cleaning The Filter
Always clean the lint filter and the inner surfaces of
the loading door after each drying process.

13 14
Certain problems are due to lack of simple maintenance or oversights, which can be solved easily
without calling out an engineer. Before contacting your local Service Center, please carry out the
checks listed below.
During machine operation, if the appliance stops suddenly it is an indication that the machine is
not working correctly. Refer to the table below and, once the problem has been rectified, press the
Start/Pause button to restart the programme.
Malfunction Possible Cause Solution
Dryer does
not work
Mains plug is not plugged in.
Loading door is open.
Have you pressed the button?
Plug in at main socket.
Close loading door.
Press the button again.
Drying results
unsatisfactory
Wrong programme selected.
Filter clogged.
Incorrect volume of laundry.
Sediment on humidity sensor.
Select a different programme the
next time you dry(see "Drying
Programme "section).
Clean lint filter.
Observe recommended loading
volumes.
Drum light does
not work(option)
Light bulb is defective. Replace light bulb.
Drying cycle ends
shortly after
programme starts.
"END" light
illuminated.
Not enough washing loaded or
washing load is too dry for
selected programme.
Select higher drying level(e. g.
Heavy instead of Strong)
Drying cycle lasts
an unusually long
time
Load volume is too big. Reduce load volume.
If you are unable to identify or solve the problem contact our service center. Before telephoning,
make a note of the model, serial number and purchase date of your machine: the Service Center
will require this information.
Note: All the following data in the table is based on results tested in according with En61121:2013
standard. This data may vary on products due to the following: different laundry type, residual
moisture, environmental conditions and voltage fluctuation.
IMPORTANT: If you call out an engineer to a fault listed above, or to repair a fault caused by
incorrect use or installation, a charge will be made even if the appliance is under guarantee.
Technical Data
595*555*850
7.0
Power(left-on mode)(W) 0.78
Power(off mode)(W) 0.72
Energy consuption at full load(kWh) 4.29
Programme time at full load(min) 152.3
5 ~ 35
Ambient Temperature range(°C)
Procedure
Care must be taken to ensure that the appliance does not stand on the electrical supply cable.
Any electrical work required to install this appliance should be carried out by a qualified
electrician or competent person.
IMPORTANT: The appliance must not bulit-in.
Unpacking:All packing must be removed before using the appliance.
Should the appliance be moved, it must be transported vertically.
Check Accessory: Open the accessory bag and check the accessories.
It is dangerous to alter the specifications or attempt to modify this product in any way.
Earth Note
This appliance must be earthed. In case of failure or damage, earth can provide a minimum
resistance to reduce the possibility of electric shock. The power cord has grounding wire attached to
the plug. The plug must be inserted into a properly installed and grounded socket (in accordance
with all local rules and standards).
Troubleshooting Guide

15 16
Positioning
It is recommended that, for your convenience, the machine is positioned close to your washing
machine. Whilst drying, the tumble dryer will expel a certain amount of warm, very moist air and this
should be removed from the room as quickly as possible to prevent condensation. In an extremely
well-ventilated room or close to an open window, this may occur naturally. However, in general, it is
better to carry the dryer's exhaust outside via the vent hose supplied with the appliance; ending
either temporarily at an open window, or permanently at a fixed ventilation grille, fitted to an exterior
wall or window.
The tumble dryer must be installed in a clean place, where dirt does not build up. Make sure there
are no obstructing items or material near the air-intake louvres provided at the back (e.g. paper, rags
etc). To keep vibration and noise to a minimum when the dryer is in use, it should be placed on a firm,
level surface.
If the floor is uneven, adjust the adjustable feet. Do not put
any wooden pieces or other objects under the feet or base.
When pressure is applied to the edge of the machine it
should not shake (please check in two directions).If shaking
is present re-adjust the adjustable feet.
IMPORTANT:
The hot air emitted by the tumble dryer can reach
temperatures of up to 60°C.The appliance must therefore
not be installed on floors which are not resistant to high temperatures.
Removing Transport Safety Packaging Foam
Before using the machine, the packaging foam must be removed from the drum.
1. Open the loading door.
2. Pull off adhesive strips on top of drum from inside machine.
3. Remove the two packaging foams from inside machine.

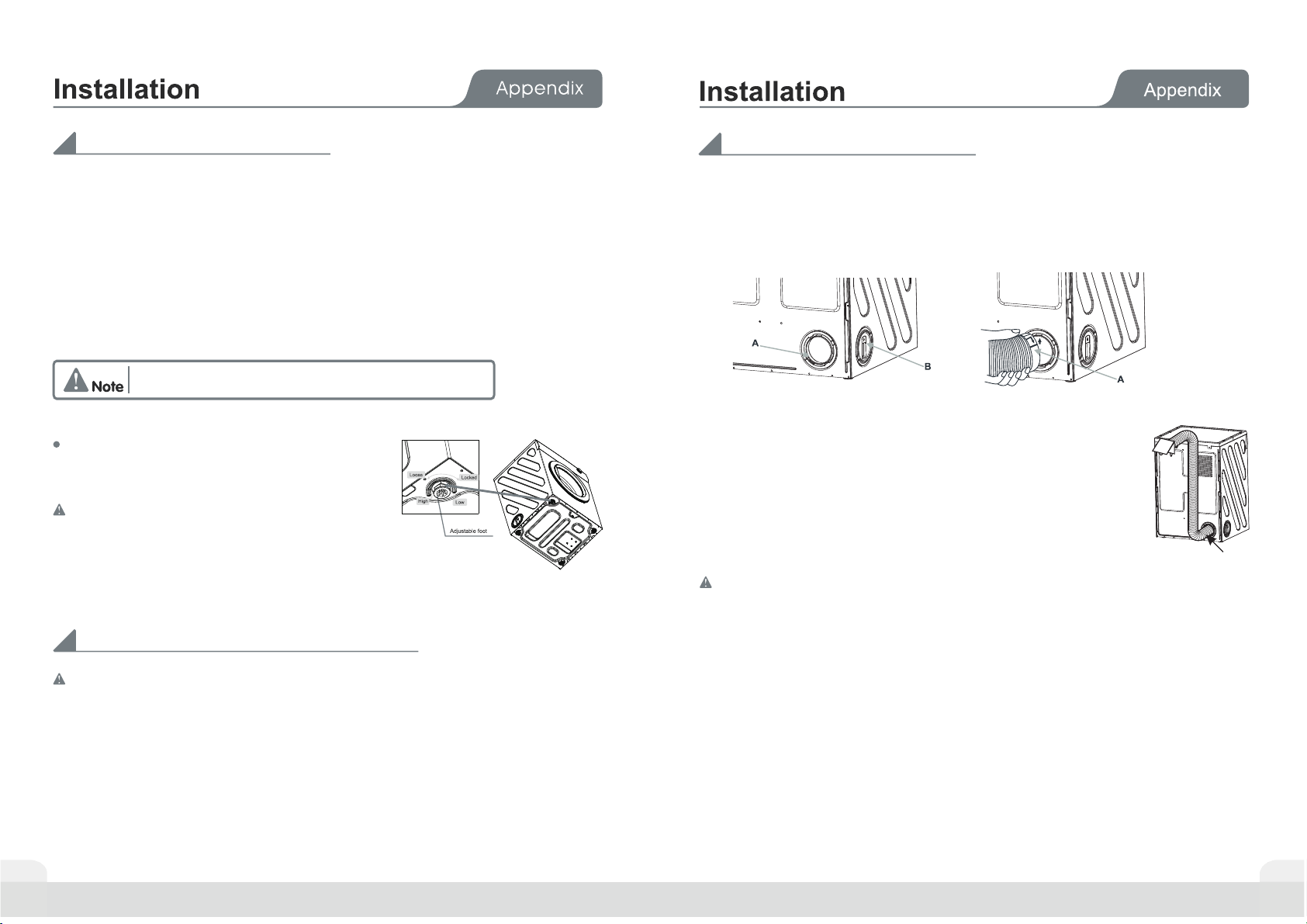

Fitting The Vent Hose
To simplify the installation, there is a choice of vent outlets: one at the back, the other in the left hand
side. Connect the hose to whichever is the more convenient by pulling the ring nut (A)from the vent
outlet at the back, aligning arrows of hose and ring nut, fastening by screwing hose to the direction
of arrow and pushing it firmly back into place. The unused vents should now be sealed with the
special snap cover (B) provided.
Caution!
If the hose is long and the room temperature low, the moisture might condense
inside the hose. This is an unavoidable natural phenomenon. To prevent this
water from lying in the hose or flowing back into the tumble dryer, it is advisable
to drill a small hole (dia.3 mm) in the lowest point of the hose and to place a
small container below it. (See picture, point B). Once connected to the dryer,
run the vent hose to the desired outlet point, ensuring it contains no more than
two bends. As to the outlet itself, if you have decided on a fixed wall/window
grille, a good local builder's merchant should be able to supply you with the
necessary fittings and installation advice.
It is important not to connect the vent hose to, for example, a cooker hood, or a chimney or flue
pipe designed to carry the exhaust from a fuel burning appliance.
Note that to avoid condensation problems, it is essential that the dryer is fitted with the flexible
hose to carry hot air outside the kitchen. In order to prevent the appliance from overheating, it is
important that the steam exhaust is unobstructed. If the dryer is fitted next to kitchen units, make
sure that the vent hose is not squashed. If the hose is partially squashed, drying efficiency will be
reduced, resulting in longer drying times and higher energy consumption. If the hose is completely
squashed, the safety cut-outs with which the machine is fitted may operate.
B

17 18
Environmental Concerns
Electrical Connection
Any electrical work required to install this appliance should be carried out by a qualified electrician
or competent person.
THIS APPLIANCE MUST BE EARTHED
The manufacturer declines any liability should this safety measure not be observed.
Before switching on, make sure the electricity supply voltage is the same as that indicated on the
appliance's rating plate.
Should the plug need to be replaced for any reason, proceed as described below. The wires in the
mains lead are coloured in accordance with the following code:
Green and Yellow-Earth
Blue-Neutral
Brown-Live
The wire coloured green and yellow must be connected to the terminal marked with the letter or
by the earth symbol or coloured green and yellow.
Warning
A cut off plug inserted into a socket is a serious safety (shock) hazard.
Ensure that the cut off plug is disposed of safely.
Permanent connection
In case of permanent connection it is necessary that you install a double pole
switch. The switch must not break the yellow and green earth cable at any point.
Packaging Materials
The materials marked with the symbol are recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing of them properly inappropriate collection
containers.
Old machine
Use authorized disposal site for your old appliance. Help to keep your country tidy!
The symbol means: caution, risk of fire, oil-affected items can ignite spontaneously, especially
when exposed to heat sources such as in a tumble dryer. The items become warm, causing an
oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can
become hot enough to catch fire. Piling, stacking or storing oil affected items can prevent heat
from escaping and so create a fire hazard. If it is unavoidable that fabrics that contain vegetable
or cooking oil or that have been contaminated by hair care products are to be placed in a tumble
dryer, they should first be washed in hot water with extra detergent - this will reduce but not
eliminate the hazard.
Ecological Hints
Try to load the maximum capacity of the machine as small loads are uneconomical.
Do not over-dry laundry, this avoids creasing and saves energy.
Select the drying programme according to the type of laundry and the required degree of dryness.
Clean the filters regularly to avoid excessive drying times and high electricity consumption.
Ventilate the room well.
To save energy and to help protect the environment, we recommend that you follow these hints:
Standard Guarantee Conditions
The appliance has been correctly installed and used only on the electricity supply stated on the
rating plate.
The appliance has been used for normal domestic purposes only and in accordance with the
manufacturer's instructions.
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any
person not authorised by us.
This guarantee is in addition to your statutory and other legal rights.
The manufacturer's warranty on this product is only valid on the condition that:
This Guarantee Does Not Cover
Damage or calls resulting from transportation, improper use or neglect, the replacement of any
light bulbs or removable parts of glass or plastic.
Appliances found to be in use within a commercial environment, plus those which are subject to
rental agreements.
Products of our manufacture which are not marketed by us.
Guarantee/Customer Service Appendix
The symbol on the product or on its packaging indicates that this product may not be treated as
household waste. Instead it should be taken to the appropriate collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information
about recycling of this product, please contact your local council, your household waste disposal
service or the shop where you purchased the product.
Appendix

19 20
Guarantee/Customer Service
Marking Explanation
CE marking
VVolt
WHz
Tested safety
Watt Hertz
Alternating current
risk of fire
~
Appendix
LN
~
CN1
CN2
CN3
CN6
CN4 P2
E
Lamp
Door switch
Capacitance
Temperature
sensor
Guide
sensor
Control
board
Operation
panel
Earth
s2 s3
1
2
6
1
5
Pump
Door
L
N
Brown
White
Blue GND
R_H
GND
ＦＥ
Ｗ_Ｔ１
+5V
GND
STB
RST
CLK
DIO
Thermostat Heater
