Galaxy Equipment 177GCT10 User manual

- 1 -
User Manual
Adjustable Speed
Conveyor Toaster
Please read the manual thoroughly prior to equipment set-up, operation and maintenance.
177GCT10 07/2020

- 2 -
User Manual
Important Safety Information .................3
Circuit Diagram ...........................4
Discharge Assembly .......................5
Before Using Your Conveyor Toaster...........5
Using Your Conveyor Toaster ................6
Cleaning & Maintenance . . . . . . . . . . . . . . . . . . . . 6
Specifications.............................7
Warranty .................................8
Index

- 3 -
User Manual
When using electrical appliances, basic safety precautions should always be followed,
including the following:
1. Read all instructions carefully and completely.
2. For commercial use only.
3. DO NOT touch hot surfaces.
4. Protect against electrical shock by keeping all cords, plugs, and other electrical components away
from water or other liquids.
5. Unplug this unit when not in use and before cleaning.
6. Allow the unit to cool before putting on or taking off parts.
7. DO NOT operate this or any appliance with a damaged electrical cord or plug.
8. DO NOT operate this or any appliance after it has malfunctioned or has been damaged in any way.
9. DO NOT use outdoors.
10. DO NOT place on or near a hot gas or electric burner.
11. Attach plug to appliance first, then plug electrical cord into the wall outlet.
12. Disconnect the unit by removing the electrical plug from the wall outlet.
13. DO NOT use appliance for any application other than intended use.
14. DO NOT insert metal utensils or oversized foods into this unit, as they may cause a fire and
heighten the risk of electrical shock.
15. DO NOT store any item on top of this unit when in operation.
16. DO NOT allow this oven to touch or to be covered by flammable material,
such as curtains, draperies, walls, etc., when in operation.
17. DO NOT clean with metal scouring pads, as pieces can break off and touch electrical
components, heightening the risk of electrical shock.
18. Never place materials such as paper, cardboard, plastic, etc. in this oven.
19. DO NOT cover interior of this unit with metal foil, as it may cause the oven to overheat.
20. Avoid scratching the surface or nicking the edges of this unit. If the oven is damaged
or broken, contact customer service before use.
21. Turn off the appliance by removing the plug from the wall outlet.
22. Note that the use of accessories not recommended by the manufacturer may result in injury.
23. Children should be supervised to ensure that they DO NOT play with the oven.
24. This appliance is not intended for use by persons (including children) with reduced physical sensory
or mental capabilities, or lack of experience and knowledge, unless a person responsible for their safety
has given them supervision or instruction concerning use of the appliance.
25. When using the appliance in shops, snack bars, hotels etc., check the voltage and
outlet to make sure the appliance is correctly connected with power.
26. Place unit on a flat surface that is well ventilated. The appliance must be supervised
during operation. DO NOT leave appliance without powering off.
NOTE: Save these instructions for future reference.
Safety

- 4 -
User Manual
Circuit Diagram
QS
2
3
4
N
L
EH1
EH2
HL1
R
E
P1
P2
D
MODEL: CONVEYOR TOASTER
177GCT10
1.75kW/120VAC/50-60Hz
WIRING DIAGRAM
XL
LEGEND DESCRIPTION
HL1
QS
EH1, EH2
∞
M
R
XL
25A/300V
120V
16A/250V
710W, 1040W/120V
12x12/120V
120V/60Hz
30W/150
90°C 16A/250V
θS
θS
DIN5408/4A

- 5 -
User Manual

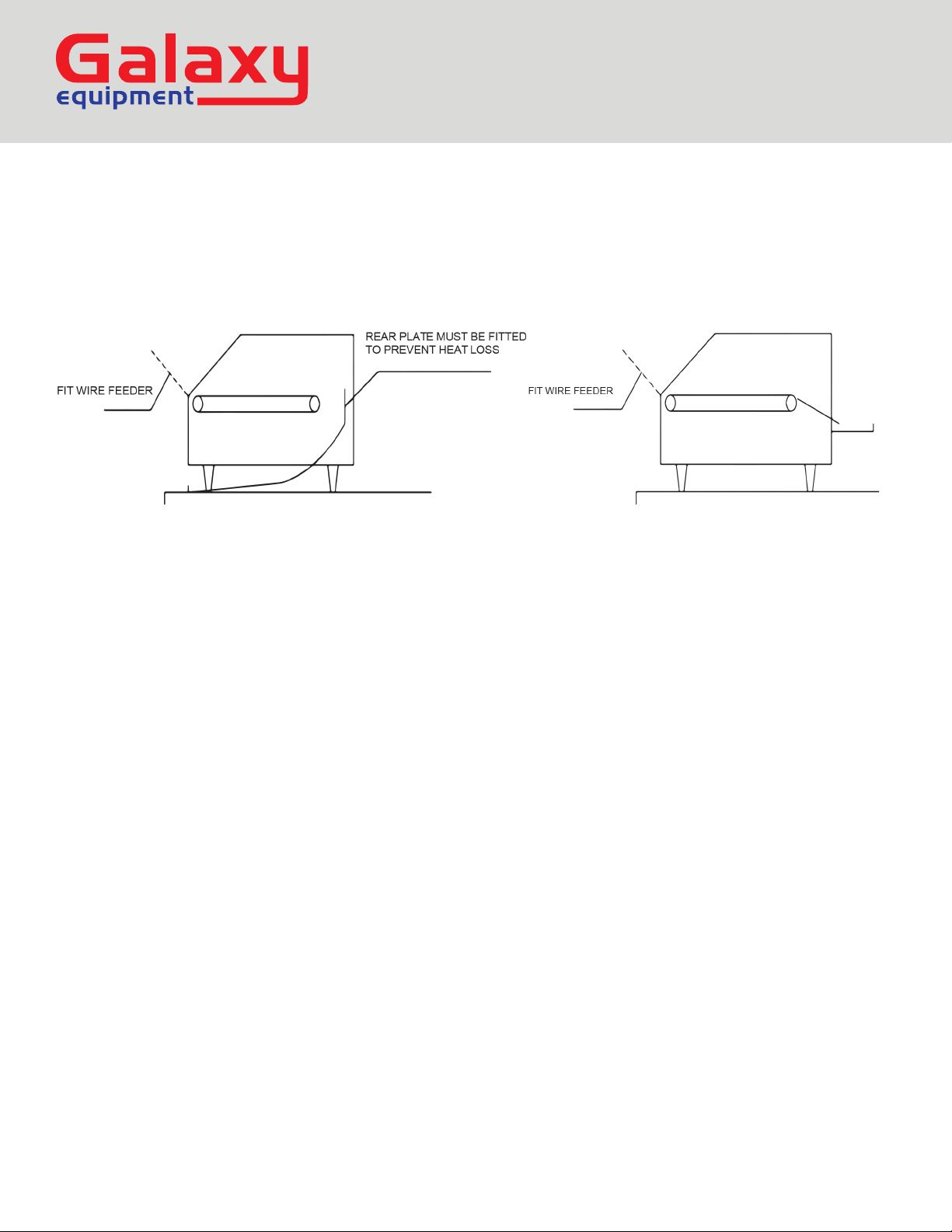

FRONT DISCHARGE
1. Pull metal plate up to the closed position
and latch. This will direct food to the
bottom of the toaster.
2. Pick up the longer of the two chutes.
3. Slide the flanged end of the chute up
underneath the toaster.
4. Rest the flanged end of the chute onto
the interior ledge.
REAR DISCHARGE
1. Push the metal plate down to the open
position. This will direct food to the back
of the toaster.
2. Loosen the two rear screws.
3. Pick up the smaller of the two chutes.
4. Slide the two keyholes on the chute behind
the loosened screws. If the chute does not
fit all the way down, loosen the screws more.
5. Tighten the screws to secure the chute
to the toaster.
As detailed in the diagrams below, the unit can either be assembled with front or rear
discharge depending on installation position and preference.
Discharge Assembly
Before cooking anything in your oven for the first time, please follow these simple
instructions:
1. This conveyor toaster has been designed to continuously produce toasted bread or buns.
The desired toasted color of the product can be adjusted by changing the belt speed of
the conveyor. Depending on installation position, the toasted product can be discharged
to the front or rear of the unit.
2. Ensure the support feet are assembled to the unit before commencing operation.
3. Thoroughly clean as described in the cleaning section of this manual (page 6).
4. For best results, allow the unit to preheat for 20-25 minutes before use so that the correct
operating temperature can be reached.
Before Using Your Toaster

- 6 -
User Manual
CAUTION: THIS APPLIANCE SHOULD NOT BE IMMERSED IN WATER.
USE ONLY A DAMP CLOTH OR SPONGE DIPPED IN SOAPY WATER.
DO NOT USE STEEL WOOL AS IT WILL DAMAGE THE BRIGHT STAINLESS STEEL FINISH.
EXTERIOR & CRUMB TRAY
1. Unplug the power cord from the wall outlet.
2. Wait for the oven to cool.
3. Wipe off the unit with a dry cloth and wait at least half an hour before reconnecting
to the power outlet.
4. Remove the crumb tray from the unit by pulling forward. Dispose of the crumbs and clean the
tray with a damp cloth or sponge dipped in soapy water. Refit the tray before reusing the unit.
CONVEYOR BELT
1. Turn off the toaster and allow the unit to cool down.
2. Turn the unit on and set to Standby Mode, adjust the belt to slow speed.
3. Using an abrasive pad, wipe the conveyor belt in a back and forth motion
(ie: side to side) to remove baked-on product.
4. Finally, clean the belt with a damp cloth in the same manner described in number 3.
The unit has two controls.
1. Speed/color control
Determines the length of time the toast or product is in the heating chamber.
The slower the speed, the longer the exposure and the darker the product.
2. Heat control switch has 4 settings.
“OFF” - In this position, the unit is off.
“STANDBY” - In this position, the conveyor belt will run and both top and bottom
elements will operate at 25% capacity. This mode is designed to keep the unit warm
in quiet periods to reduce start-up time and conserve energy.
“BREAD” - In this position, both top and bottom elements operate at full capacity.
This is the ideal mode for toasting bread.
“BUNS” - In this position, only the top element operates at full capacity.
This is the ideal setting for toasting one side only of a bun.
Cleaning & Maintenance
Using Your Toaster
SUGGESTED CLEANER
Noble Chemical QuikSan Food Contact & Surface Sanitizer

- 7 -
User Manual

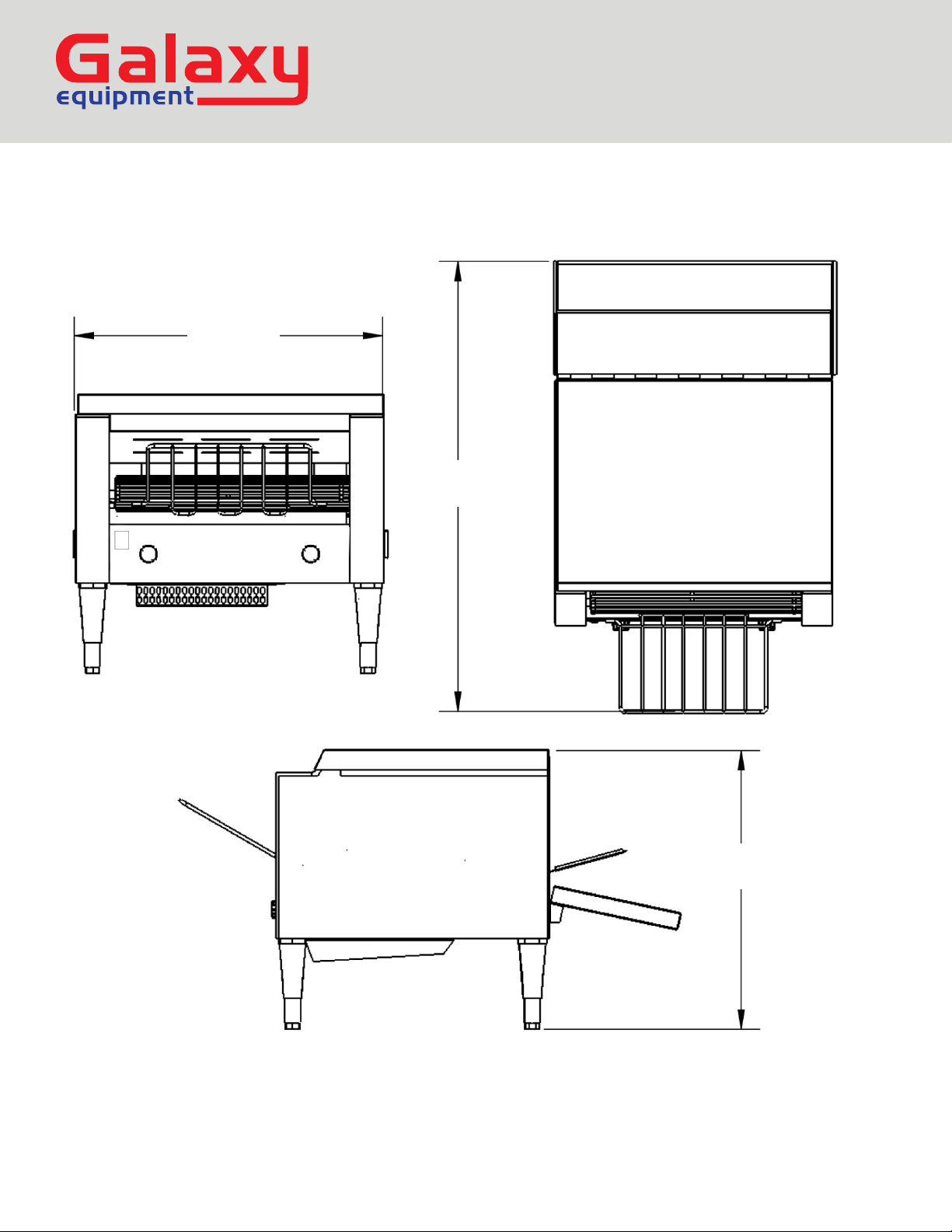

Dimensions
14.5"
30"
16.5"

- 8 -
User Manual
Equipment Limited Warranty
To Make a Warranty Claim:
For Warranty Inquiries contact the locaon where you purchased the product:
• WebstaurantStore.com: Contact [e-mail]. Please have your order number ready.
• The Restaurant Store: If you purchased this unit from your local store, please contact your store directly.
• TheRestaurantStore.com: Online purchases, call 717-392-7261. Please have your order number ready.
Failure to contact the designated locaon prior to obtaining equipment service may void your warranty.
Galaxy makes no other warranes, express or implied, statutory or otherwise, and HEREBY DISCLAIMS ALL IMPLIED
WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR A PARTICULAR PURPOSE.
This Limited Warranty does not cover:
• Equipment sold or used outside the Connental United States
• Use of unltered water (if applicable)
• Galaxy has the sole discreon on wearable parts not covered under warranty
• Equipment not purchased directly from an authorized dealer
• Equipment that has been altered, modied, or repaired by anyone other than an authorized service agency
• Equipment where the serial number plate has been removed or altered.
• Damage or failure due to improper installaon, improper ulity connecon or supply, and issues resulng from improper
venlaon or airow.
• Defects and damage due to improper maintenance, wear and tear, misuse, abuse, vandalism, or Act of God.
Any acon for breach of this warranty must be commenced within 6 months of the date on which the breach occurred.
No modicaon of this warranty, or waiver of its terms, shall be eecve unless approved in a wring signed by the pares.
The laws of the Commonwealth of Pennsylvania shall govern this warranty and the pares’ rights and dues under it.
Galaxy shall not under any circumstances be liable for incidental or consequenal damages of any kind, including but no
limited to loss of prots.
Galaxy warrants its equipment to be free from defects in material and workmanship for a period of 6 months. This is the sole and
exclusive warranty made by Galaxy covering your Galaxy brand equipment. A claim under this warranty must be made within 6 months
from the date of purchase of the equipment. Only the equipment’s original purchaser may make a claim under this warranty. Galaxy
reserves the right to approve or deny the repair or replacement of any part or repair request. The warranty is not transferable. Galaxy
Equipment installed in/on a food truck or trailer will be limited to a period of 30 days from the original date of purchase.
