GAMA GA-200 User manual

Parts Identification &
Service Manual
Proportioning Unit
Issue 1.0 - 08/03/19
Ref. NR-00126-ENG
Before installing the unit and starting it up, carefully read all the technical
and safety documentation included in this manual. Pay special attention
to the information to know and understand the handling and the
conditions of use of the unit. All of the information is aimed at enhancing
User Safety and avoiding possible breakdowns derived from the incorrect
use of the unit.

Parts Identification
& Manual Service
2/40 Issue 1.0 Ref. NR-00126-ENG
http://www.gamapur.com/
HI-TECH SPRAY EQUIPMENT, S. A. (hereinafter “HI-TECH”) provides this LIMITED WARRANTY (hereinafter
“Warranty”) to the original purchaser (hereinafter “Customer”) covering this equipment and the original HI-TECH
manufactured accessories delivered with the equipment (hereinafter “Product”) against defects in material or
workmanship of the Product (hereinafter “Defect” or “Defective”) for a period of two (2) years from the date of first
purchase as shown on the original HI-TECH invoice (hereinafter “Warranty Period”).
If during the Warranty Period under normal use, the Product is suspected by Customer to be Defective in material or
workmanship, it is Customer’s responsibility to contact HI-TECH and return the Product to HI-TECH as directed by HI-
TECH, freight prepaid. If HI-TECH determines that the Product is Defective and that such Defect is covered by this
Warranty, HI-TECH will credit Customer for the reasonable freight charges incurred by Customer in returning the
Defective Product to HI-TECH, and HI-TECH (or its authorized agent) will, at HI-TECH’s option, repair or replace the
Product, subject to the following:
Original Invoice: The original invoice must be kept as proof of the date of first sale and the Product serial number. The
Warranty does not cover any Product if the Original Invoice appears to have been modified or altered, or when the serial
number on the Product appears to have been altered or defaced.
Product Maintenance: It is the Customer’s responsibility to maintain the Product properly. See your maintenance
schedule and owner’s manual for details. The Warranty does not cover an improperly maintained Product.
Non-HI-TECH Components and Accessories: Non-HI-TECH manufactured components and accessories that are used
in the operation of the Product are not covered by this Warranty. Such components and accessories shall be subject to
the warranty offered to the Customer, if any, by the original manufacturer of such component or accessory.
Other Warranty Exclusions: The Warranty does not cover any Product that HI-TECH determines has been damaged or
fails to operate properly due to misuse, negligence, abuse, carelessness, neglect, or accident. By way of example only,
this includes:
•Normal wear and tear.
•Improper or unauthorized installation, repair, alteration, adjustment or modification of the Product.
•Use of heating devices, pumping equipment, dispensers, or other parts or accessories with the Product that
have not been approved or manufactured by HI-TECH.
•Failure to follow the operating instructions and recommendations provided by HI-TECH.
•Cosmetic damage.
•Fire, flood, “acts of God,” or other contingencies beyond the control of HI-TECH.
THE WARRANTY DESCRIBED HEREIN IS THE EXCLUSIVE REMEDY FOR THE CUSTOMER AND IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS, IMPLIED, STATUTORY OR OTHERWISE, AND THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE AND ALL OTHER WARRANTIES ARE HEREBY DISCLAIMED. TO THE FULLEST
EXTENT PERMITTED BY LAW, HI-TECH SHALL NOT BE RESPONSIBLE, WHETHER BASED IN CONTRACT, TORT (INCLUDING,
WITHOUT LIMITATION, NEGLIGENCE), WARRANTY OR ANY OTHER LEGAL OR EQUITABLE GROUNDS, FOR ANY
CONSEQUENTIAL, INDIRECT, INCIDENTAL, LOST PROFITS, SPECIAL, PUNITIVE OR EXEMPLARY DAMAGES, WHETHER TO
PERSON OR PROPERTY, ARISING FROM OR RELATING TO THE PRODUCT, EVEN IF HI-TECH HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH LOSSES OR DAMAGES.
Non-Warranty Service by HI-TECH: If HI-TECH determines that the suspected Defect of the Product is not covered by
this Warranty, disposition of the Product will be made pursuant to the terms and conditions of HI-TECH’s written
estimate on a time and materials basis.
Continuing Warranty for Products Repaired or Replaced under Warranty: Following the repair or replacement of a
Product covered by this Warranty, such Product will continue to be subject to the original Warranty for the remainder of
original Warranty Period or for three (3) months from the repair or replacement date, whichever is longer.
No Rights Implied: Nothing in the sale, lease or rental of any Product by HI-TECH shall be construed to grant any right,
interest or license in or under any patent, trademark, copyright, trade secret or other proprietary right or material owned
by anyone; nor does HI-TECH encourage the infringement of same.
Exclusive Warranty: This writing is the final, complete, and exclusive expression of the Warranty covering the Product.
Any statements made by HI-TECH, its employees or agents that differ from the terms of this Warranty shall have no
effect. It is expressly understood that Customer’s acceptance of this Warranty, by performance or otherwise, is upon
and subject solely to the terms and conditions hereof, and any additional or different terms and conditions proposed or
expressed by Customer or anyone, whether in writing or otherwise, are null and void unless specifically agreed to in
writing by an Officer of HI-TECH.
WARRANTY

Parts Identification
& Manual Service
3/40 Issue 1.0 Ref. NR-00126-ENG
http://www.gamapur.com/
All information provided in this Service Manual is assumed to be correct; although this does not
constitute any implicit or explicit liability or guarantee. HI-TECH reserves the right at any time
and without prior warning to make all improvements and modifications necessary to this Service
Manual, in order to rectify any possible typographical errors, supplement the information
contained or insert changes predicated by the performance or use of the unit.
The GA-200 Hydraulic Airless series metering unit has been designed and manufactured in
full compliance to the provisions of Machine Directive 89/392/CEE in its modified form and the
National Regulations that transpose it. It also meets all European Directives concerning
electromagnetic compatibility and electrical safety and the provisions of the Harmonised Norms
that are applicable.
This chapter contains information on the safety, handling and use of the GA-200 Hydraulic
Airless series metering unit.
Before installing the unit and starting it up, carefully read all the technical
and safety documentation included in this manual. Pay special attention
to the information to know and understand the operation and the
conditions of use of the unit. All of the information is aimed at enhancing
User Safety and avoiding possible breakdowns derived from the incorrect
use of the unit.
WARNING! Establishes information to alert on a situation that might cause serious
injuries if the instructions are not followed.
PRECAUTION! Establishes information that indicates how to avoid damage to the unit
or how to avoid a situation that could cause minor injuries.
NB: is relevant information on a procedure being carried out.
Careful study of this manual will enable the operator to know the characteristics of the unit and
the operating procedures. By following the instructions and recommendations contained herein,
you will reduce the potential risk of accidents in the installation, use or maintenance of the unit;
you will provide a better opportunity for incident-free operation for a longer time, greater output
and the possibility of detecting and resolving problems fast and simply.
Keep this Service Manual for future consultation of useful information at all times. If you lose
this manual, ask for a new copy from your HI-TECH local distributor or directly contact HI-TECH
SPRAY EQUIPMENT.
WARNING! The design of the GA-200 Hydraulic Airless series metering unit does not
allow its use in potentially explosive atmospheres or to exceed the pressure and
temperature limits described in the technical specifications of this manual.
SAFETY AND HANDLING

Parts Identification
& Manual Service
4/40 Issue 1.0 Ref. NR-00126-ENG
http://www.gamapur.com/

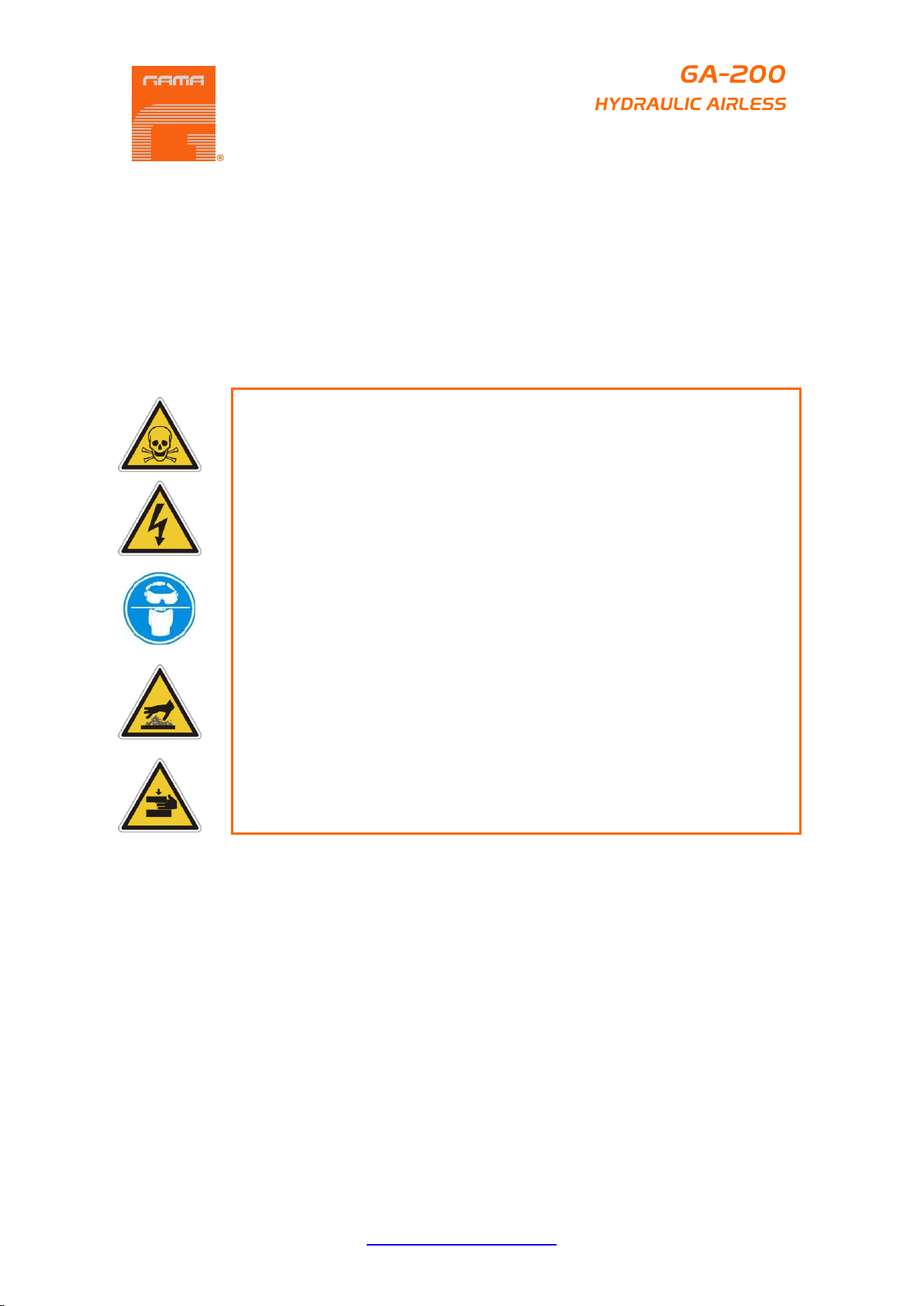

When working with the unit, it is recommended that the operator wear suitable clothing and
elements of personal protection, including, without limitation, gloves, protective goggles, safety
footwear and face masks. Use breathing equipment when working with the machine in
enclosed spaces or in areas with insufficient ventilation. The introduction and follow-up of
safety measures must not be limited to those described in this manual. Before starting up the
machine, a comprehensive analysis must be made of the risks derived from the products to be
dispensed, the type of application and the working environment
To prevent all possible bodily harm caused by incorrect handling of the
raw materials and solvents used in the process, carefully read the safety
information provided by your supplier.
Deal with the waste caused according to current regulations.
Disconnect the unit from the power supply before carrying out any
operation inside the electrical console.
The electrical maintenance of the machine must only be performed by a
qualified electrician.
To avoid damage caused by the impact of pressurized fluids, do not open
any connection or perform maintenance work on components subject to
pressure until the pressure has been completely eliminated.
Use suitable protection when operating, maintaining or remaining in the
operating area of the unit. This includes, but is not limited to, the use of
masks, protective goggles, gloves, shoes and safety clothing.
The unit includes components that reach temperatures that are liable to
cause burns. The hot parts of the unit must not be handled until they
have cooled.
To prevent serious harm by crushing or loss of limbs, do not work with
the unit without the safety guards installed on all moving parts. Make
sure that all of the safety protections are correctly reinstalled after all
repair or maintenance work is completed.

Parts Identification
& Manual Service
5/40 Issue 1.0 Ref. NR-00126-ENG
http://www.gamapur.com/
ATTENTION:
This equipment generates very high fluid pressure. High pressure spray can cause serious
injury. Read and understand all instructions before operating.
Never point the spray gun at anyone or at any part of the body. Never put hand, fingers over the
spray tip.
Always have the tip guard in place on the spray gun while spraying.
High pressure fluid in the hoses can be very dangerous. If the hose develops a leak, split or
rupture due to any kind of wear, damage or misuse, the high-pressure spray emitted from it can
cause a fluid injection injury or other serious bodily injury or properly damage.
Never use a damaged hose
Tighten all fluid connections securely before each use. High pressure fluid can dislodge a loose
coupling or allow high pressure spray to be emitted from the coupling.
Proper hose grounding continuity is essential to maintaining a grounded spray system.
If any fluid appears to penetrate your skin, get emergency medical care at once. Do not treat as
a simple cut. Tell the doctor exactly what fluid was injected.
All chemicals used in the pump must be compatible with the wetted parts of the pump.
PRESSURE HAZARD
This pump can develop 240 bar working pressure. Be sure that all spray equipment and
accessories used are rated to withstand this pressure. Do not exceed the maximum working
pressure of any component or accessory used in the system.
FIRE OR EXPLOSION HAZARD
Static electricity is created by the flow of fluid through the pump and hose. If every part of the
spray equipment is not properly grounded, sparking may occur and the system may become
hazardous. Sparking may also occur when plugging in or unplugging a power supply cord.
Sparks can ignite fumes from solvents and the fluid being sprayed, dust particles, whether you
are spraying indoors or outdoors, and can cause a fire or explosion.
If you experience any static sparking or even a slight shock while using the equipment, stop
spraying immediately. Check the system for proper grounding. Do not use the system again until
the problem has been identified and corrected.
GAS ENGINE (WHERE APPLICABLE)
Always place pump outside of structure in fresh air. Keep all solvents away from the engine
exhaust. Never fill fuel tank with a running or hot engine. Hot surface can ignite spilled fuel.
Always attach ground wire from pump unit to a grounded object, such as a metal water pipe.
Refer to engine owner’s manual for complete safety information.
PRESSURE RELIEVE PROCEDURE
To reduce the risk of serious bodily injury, including fluid injection, splashing fluid or solvent in
the eyes or on the skin, or injury from moving parts or electric shock, always follow this
procedure whenever you shut off the sprayer, when checking or servicing any part of the spray
system, when installing, cleaning or changing spray tips, and whenever you stop spraying:

Parts Identification
& Manual Service
6/40 Issue 1.0 Ref. NR-00126-ENG
http://www.gamapur.com/
•Engage the gun safety latch.
•Turn the ON/OFF switch to OFF (red).
•Unplug the power supply cord.
•Disengage the gun safety latch. Hold a metal part of the gun to the side of a grounded
metal pail, and trigger the gun to relieve pressure.
•Engage the gun safety latch
•Open the pressure drain valve, having a container ready to catch the drainage.
GROUNDING INSTRUCTIONS
Electric models must be grounded. In the event of an electrical short circuit, grounding reduces
the risk of electric shock by providing an escape wire for the electric current. This product is
equipped with a cord having a grounding wire with an appropriate grounding plug. The plug
must be plugged into an outlet that is properly installed and grounded in accordance with all
local codes and ordinances.
DANGER! - Improper installation of the grounding plug can result in a risk of electric
shock. If repair or replacement of the cord or plug is necessary, do not connect the green
grounding wire to either flat blade terminal. The wire with insulation having a green outer
surface with or without yellow stripes is the grounding wire and must be connected to
the grounding pin.
NB: Before starting to work the pump must be connected to ground. The pump must be
connected to ground with a ground wire which is supplied with the pump (4mm2 of
section and a clamp).
GASOLINE ENGINE SAFETY
•Honda engines are designed to give safe and dependable service if operated according
to instructions. Read and understand the Honda Owner’s Manual before operating the
engine. Failure to do so could result in personal injury or equipment damage.
•To prevent fire hazards and to provide adequate ventilation, keep the engine at least 1
meter (3 feet) away from buildings and other equipment during operation. Do not place
flammable objects close to the engine.
•Children and pets must be kept away from the area of operation due to a possibility of
burns from hot engine components or injury from any equipment the engine may be
used to operate.
•Know how to stop the engine quickly, and understand the operation of all controls.
Never permit anyone to operate the engine without proper instructions.
•Gasoline is extremely flammable and is explosive under certain conditions.
•Refuel in a well-ventilated area with the engine stopped.
•Do not smoke or allow flames or sparks in the refuelling area or where gasoline is
stored.
•Do not overfill the fuel tank. After refuelling, make sure the tank cap is closed properly
and securely.
•Be careful not to spill fuel when refuelling. Fuel vapor or spilled fuel may ignite. If any
fuel is spilled, make sure the area is dry before starting the engine.

Parts Identification
& Manual Service
7/40 Issue 1.0 Ref. NR-00126-ENG
http://www.gamapur.com/
•Never run the engine in an enclosed or confined area. Exhaust contains poisonous
carbon monoxide gas; exposure may cause loss of consciousness and may lead to
death.
•The muffler becomes very hot during operation and remains hot for a while after
stopping the engine. Be careful not to touch the muffler while it is hot. To avoid severe
burns or fire hazards, let the engine cool before transporting it or storing it indoors.
•Never ship/transport unit with gasoline in the tank.

Parts Identification
& Manual Service
8/40 Issue 1.0 Ref. NR-00126-ENG
http://www.gamapur.com/
•Attach and airless spray gun to the spray hose. Do not attach the tip to the spray gun
yet. Remove the tip if it is already attached.
•Check the hydraulic fluid level daily before starting the unit. The hydraulic fluid level
should be at the “Full” mark, on the dipstick.
•For gas models, check the engine oil level daily before starting the unit. The gasoline
engine oil level is determined by the engine manufacturer.
•Place the suction pipe into a container of solvent/water.
•Place the bleed hose into a metal waste container.
•Set the pressure to minimum by turning the pressure control knob fully counter
clockwise.
•Open the hydraulic shut-off valve located on the hydraulic pressure hose. The handle
should be in line with the hose.
•Open the bleed valve by turning it fully counter clockwise.
•Start the engine or turn on the electric motor.
a) To start the gas engine:
Move the fuel valve lever to the open position.
Move the throttle lever to its middle point.
Move the choke lever to the closed position for a cold engine or to the open
position for a warm engine.
Turn the engine switch to the ON position.
Pull the starter rope briskly until the engine starts.
b) To start the electric motor, move the ON/OFF switch to the ON position.
•Turn the pressure control knob clockwise approximately 1/3 of the way down to
increase pressure until the sprayer cycles evenly and solvent flows freely from the bleed
hose.
•Allow the sprayer to run for 15-30 seconds to flush the test fluid out through the bleed
hose and into the waste container.
•Turn off the unit
a) To turn off the gas engine:
Set the pressure to minimum by turning the pressure control knob fully counter
clockwise.
Move the throttle lever to the slow position.
Turn the engine switch to the OFF position
b) To turn off the electric motor:
Set the pressure to minimum by turning the pressure control knob fully counter
clockwise.
Move the ON/OFF switch to the OFF position.
OPERATION

Parts Identification
& Manual Service
9/40 Issue 1.0 Ref. NR-00126-ENG
http://www.gamapur.com/
PREPARING TO PAINT
Before painting, it is important to make sure that the fluid in the system is compatible with the
paint that is going to be used.
NB: Incompatible fluids and paint may cause the valves to become stuck closed, which
would require disassembly and cleaning of the sprayer´s fluid suction.
CAUTION! Always keep the trigger lock on the spray gun in the
locked position while preparing the system.
•Place the suction pipe into a container of the appropriate solvent.
NB: If you are spraying a water-based latex, flush with warm, clean water. If you are
using any other material, check with the material manufacturer for a compatible solvent.
•Place the bleed hose into a metal waste container.
•Set the pressure to minimum by turning the pressure control knob fully counter
clockwise.
•Open the hydraulic shut-off valve located on the hydraulic pressure hose. The handle
should be in line with the hose.
•Open the bleed valve by turning it fully counter clockwise.
•Start the engine or turn on the electric motor.
a) To start the gas engine:
Move the fuel valve lever to the open position.
Move the throttle lever to its middle point.
Move the choke lever to the closed position for a cold engine or to the open
position for a warm engine.
Turn the engine switch to the ON position.
Pull the starter rope briskly until the engine starts.
b) To start the electric motor, move the ON/OFF switch to the ON position.
•Turn the pressure control knob clockwise approximately 1/3 of the way down to
increase pressure until the sprayer cycles evenly and solvent flows freely from the bleed
hose.
•Allow the sprayer to run for 15-30 seconds to flush the test fluid out through the bleed
hose and into the waste container.
•Turn off the unit.
a) To turn off the gas engine:
Set the pressure to minimum by turning the pressure control knob fully counter
clockwise.
Move the throttle lever to the slow position.
Turn the engine switch to the OFF position.

Parts Identification
& Manual Service
10/40 Issue 1.0 Ref. NR-00126-ENG
http://www.gamapur.com/
b) To turn off the electric motor:
Set the pressure to minimum by turning the pressure control knob fully counter
clockwise.
Move the ON/OFF switch to the OFF position.
NB: Make sure that the spray gun does not have a tip or tip guard installed.
•Close the bleed valve by turning it fully clockwise.
•Start the engine or turn on the electric motor.
•Turn the pressure control knob clockwise approximately 1/3 of the way down to
increase pressure.
•Unlock the gun by turning the gun trigger lock to the unlocked position.
•Trigger the gun into the metal waste container until the old solvent is gone and fresh
solvent is coming out of the gun.
•Lock the gun by turning the gun trigger lock to the locked position.
•Set down the gun and increase the pressure by turning the pressure control knob slowly
clockwise.
•Check the entire system for leaks. If leaks occur, follow the “Pressure Relief Procedure”
in this manual before tightening any fitting or hoses.
•Follow the “Pressure Relief Procedure” in this manual before changing from solvent to
paint.
WARNING! Be sure to follow the pressure relief procedure when
shutting the unit down for any purpose, including servicing or adjusting
any part of the spray system, changing or cleaning spray tips, or
preparing for cleanup.
PAINTING
•Place the suction pipe into a container of paint.
•Place the bleed hose into a metal waste container.
•Set the pressure to minimum by turning the pressure control knob fully counter
clockwise.
•Open the hydraulic shut-off valve located on the hydraulic pressure hose. The handle
should be in line with the hose.
•Open the bleed valve by turning it fully counter clockwise.
•Start the engine or turn on the electric motor.
a) To start the gas engine:
Move the fuel valve lever to the open position.
Move the throttle lever to its middle point.

Parts Identification
& Manual Service
11/40 Issue 1.0 Ref. NR-00126-ENG
http://www.gamapur.com/
Move the choke lever to the closed position for a cold engine or to the open
position for a warm engine.
Turn the engine switch to the ON position.
Pull the starter rope briskly until the engine starts.
b) To start the electric motor, move the ON/OFF switch to the ON position.
•Turn the pressure control knob clockwise approximately 1/3 of the way down to
increase pressure until the sprayer cycles evenly and paint flows freely from the bleed
hose.
•Turn off the unit:
a) To turn off the gas engine.
Set the pressure to minimum by turning the pressure control knob fully counter
clockwise.
Move the throttle lever to the slow position.
Turn the engine switch to the OFF position.
b) To turn off the electric motor.
Set the pressure to minimum by turning the pressure control knob fully counter
clockwise.
Move the ON/OFF switch to the OFF position.
•Remove the bleed hose from the waste container and place it into the container of
paint.
•Close the bleed valve by turning it fully clockwise.
•Start the engine or turn on the electric motor.
•Turn the pressure control knob clockwise approximately 1/3 of the way down to
increase pressure.
•Unlock the gun by turning the gun trigger lock to the unlocked position.
WARNING! Ground the gun by holding it against the edge of the metal
container while flushing. Failure to do so may lead to a static electric
discharge, which may cause a fire.
•Trigger the gun into the metal waste container until all air and solvent is flushed from
the spray hose and paint is flowing freely from the gun.
•Lock the gun by turning the gun trigger lock to the locked position.
•Turn off the unit.
•Attach tip guard and tip to the gun as instructed by the tip guard or tip manuals.
WARNING! POSSIBLE INJECTION HAZARD. Do not spray without the
tip guard in place. Never trigger the gun unless the tip is in either the
spray or the unclog position. Always engage the gun trigger lock before
removing, replacing or cleaning tip.

Parts Identification
& Manual Service
12/40 Issue 1.0 Ref. NR-00126-ENG
http://www.gamapur.com/
Star the engine or turn on the electric motor.
Increase the pressure by turning the pressure control knob slowly clockwise and test the spray
pattern on a piece of cardboard. Adjust the pressure control knob until the spray from the gun is
completely atomized.
NB: Turning the pressure up higher then needed to atomize the paint will cause
premature tip wear and additional over spray.
PRESSURE RELIEVE PROCEDURE
WARNING! Be sure to follow the pressure relief procedure when
shutting the unit down for any purpose, including servicing or adjusting
any part of the spray system, changing or cleaning spray tips, or
preparing for cleanup.
•Lock the gun by turning the gun trigger lock to the locked position.
•Turn off the unit
a) To turn off the gas engine
Set the pressure to minimum by turning the pressure control knob fully counter
clockwise.
Move the throttle lever to the slow position
Turn the engine switch to the OFF position.
b) To turn off the electric motor.
Set the pressure to minimum by turning the pressure control knob fully counter
clockwise.
Move the ON/OFF switch to the OFF position.
•Close the hydraulic shut -off valve on the hydraulic pressure hose.
•Unlock the gun by turning the gun trigger lock to the unlocked position.
•Hold the metal part of the gun firmly to the side of a metal waste container to ground the
gun and avoid a build-up of static electricity.
•Trigger the gun to remove any pressure that may still be in the hose.
•Lock the gun by turning the gun trigger lock to the locked position.
•Place the bleed hose into the metal waste container.
•Open the bleed valve by turning it fully counter clockwise.

Parts Identification
& Manual Service
13/40 Issue 1.0 Ref. NR-00126-ENG
http://www.gamapur.com/
WARNING!
Special clean-up instructions for use with flammable solvent.
•Always flush spray gun preferably outside and at least one hose length from spray
pump.
•If collecting flushed solvents in a one-gallon metal container, place it into an empty five-
gallon container, then flush solvents.
•Area must be free of flammable vapours.
•Follow all clean-up instructions.
CAUTION! The sprayer, hose, and gun should be cleaned thoroughly
after daily use. Failure to do so permits material to build up, seriously
affecting the performance of the unit.
WARNING! Always spray at minimum pressure with the gun nozzle tip
removed when using mineral spirits or any other solvent to clean the
prayer, hose, or gun. Static electricity build-up may result in a fire or
explosion in the presence of flammable vapours.
•Follow the “Pressure Relief Procedure” found in the Operation section of this manual.
•Remove the gun tip and tip guard and clean with a brush using the appropriate solvent.
•Place the suction pipe into a container of the appropriate solvent.
CAUTION! Use only compatible solvents when cleaning out oil-based
enamels, lacquers, coal tar, and epoxies. Check with the fluid
manufacturer for the recommended solvent.
•Place the bleed hose into the metal waste container.
•Set the pressure to minimum by turning the pressure control knob fully counter
clockwise.
•Open the hydraulic shut-off valve located on the hydraulic pressure hose. The handle
should be in line with the hose.
•Open the bleed valve by turning it fully counter clockwise.
•Start the engine or turn on the electric motor.
•Allow the solvent to circulate through the unit and flush the paint out of the bleed hose
into the metal waste container.
•Turn off the unit.
•Close the bleed valve by turning it fully clockwise.
•Star the engine or turn on the electric motor
CLEANUP

Parts Identification
& Manual Service
14/40 Issue 1.0 Ref. NR-00126-ENG
http://www.gamapur.com/
WARNING! Ground the gun by holding it against the edge of the metal
container while flushing. Failure to do so may lead to a static electric
discharge, which may cause a fire.
•Trigger the gun into the metal waste container until the paint is flushed out off the hose
and solvent is coming out of the gun.
•Continue to trigger the spray gun into the waste container until the solvent coming out of
the gun is clean.
NB: For long term or cold weather storage, pump mineral sprits through the entire
system.
•Follow the ‘’Pressure Relief Procedure’’ found in the Operation section of this manual.
•Store the unit in a clean, dry area.
WARNING!
Do not store the unit under pressure.
CLEANING A CLOGGED TIP
1. Follow the ‘’Pressure Relief Procedure’’ in the Operation section on this manual.
2. In the tip clogs, rotate the tip handle 180º until the arrow on the handle is facing the
opposite of the spray direction and the handle clicks in the reverse position.
3. Trigger the gun once so that the pressure can blow the clog out. NEVER use the tip in
the reverse position for more than ONE trigger pull at a time. This procedure can be
repeated until the tip is free of clogging.
WARNING! The flow from the spray tip is at very high pressure. Contac
with any body part may be dangerous. Do not place finger on gun outlet.
Do not point the gun at any person. Never operate the spray gun without
the proper tip guard.

Parts Identification
& Manual Service
15/40 Issue 1.0 Ref. NR-00126-ENG
http://www.gamapur.com/
WARNING! Before proceeding, follow the Pressure Relief Procedure
outlined previously in this manual. Additionally, follow all other warnings
to reduce the risk of an injection injury, injury from moving parts or
electric shock. Always unplug the sprayer before servicing.
DAILY MAINTENANCE
Two daily procedures are required for routine operator maintenance on this unit:
•Lubricating the upper packing.
•Cleaning the rock catcher.
Lubricating the Upper Packings
•Clean out the paint that has seeped past the upper packings into the packing oil
reservoir above the fluid section.
•Fill the packing oil reservoir 1/2 full with Piston Lube supplied by the factory. This will
extend packing life.
NB: Do not over -fill the reservoir so that it overflows and drips into the paint.
MAINTAINING THE HYDRAULIC SYSTEM
CAUTION! Use of Hydraulic Fluid DIN 51524 standard, section 1 & 2 (for
example ISO VG 46) is mandatory in the hydraulic system. Do not use any
other hydraulic fluid. Use of any other hydraulic fluid may seriously
damage the hydraulic system and will void the warranty.
1. Check the hydraulic fluid daily. It should be at the “Full” mark on the dipstick. If it is low,
add only Hydraulic Fluid DIN 51524 standard, section 1 & 2 (for example ISO VG 46).
Never add or change hydraulic fluid except in a clean, dust-free area. Contamination of
the hydraulic fluid will shorten hydraulic pump life and may void warranty.
2. Change the hydraulic fluid every twelve months. Drain the old fluid from the tank. Start
the unit at just enough pressure to operate the fluid section. Run the unit at this low
pressure for at least 5 minutes. This removes air from the system. Check the fluid level
after this procedure.
3. The hydraulic system has an external, replaceable hydraulic filter. Change the filter
every twelve months.
MAINTENANCE

Parts Identification
& Manual Service
16/40 Issue 1.0 Ref. NR-00126-ENG
http://www.gamapur.com/
BASIC ENGINE MAINTENANCE (GAS ENGINE)
For detailed engine maintenance and technical specifications refer to the separate gasoline
engine manual.
All service to the engine should be performed by an authorized Honda Power Equipment dealer.
DAILY
•Check engine oil level, and fill as necessary.
•Check gasoline level, and fill as necessary.
WARNING! Always follow the fueling procedure outlined earlier in this
manual.
FIRST 20 HOURS
1. Change engine oil.
EVERY 100 HOURS
1. Change engine oil.
2. Clean the sediment cup.
3. Clean and re-gad the spark plug.
4. Clean the spark arrestor
WEEKLY
Remove the air filter cover and clean the element. In very dusty environments, check the filter
daily. Replace the element as needed. Replacement elements can be purchased from your
local Honda dealer.
ENGINE OPERATION SERVICE
1. Clean and oil air filter pad on gasoline engine every 25 hours or once weekly. Do not
permit the air intake screen around the fly wheel of the gas engine to load up with paint
or trash. Clean it regularly. The service life and efficiency of the gas engine model
depends upon keeping the gasoline engine running properly. Change the oil in the
engine every 100 hours. Failure to observe this may result in engine overheating.
Consult the engine manufacturer’s service manual provided.
2. To conserve fuel, service life, and efficiency of the unit, always operate the gasoline
engine at the lowest RPM at which it runs smoothly without labouring and delivers the
amount required for the particular painting operation. Higher RPM does not produce
higher working pressure. The gasoline engine is connected to the hydraulic pump by a
pulley combination designed to produce full paint delivery of 1.2 GPM at maximum
RPM.
3. The warranty on gasoline engines or electric motors is limited to the original
manufacturer.

Parts Identification
& Manual Service
17/40 Issue 1.0 Ref. NR-00126-ENG
http://www.gamapur.com/
TROUBLE
POSSIBLE CAUSE
SOLUTION
Pump delivers on
upstroke only or
goes up slowly and
down fast.
▪Lower foot valve ball is not
seating due to trash or wear.
▪Material too viscous to siphon.
▪Air leaking in on siphon side or
damaged siphon hose. Siphon
may be too small for heavy
material.
▪Remove foot valve assembly.
Clean and inspect. Test foot
valve by filling with water; if ball
fails to seal the seat, replace
ball.
▪Thin material, contact
manufacturer for proper thinning
procedures.
▪Tighten all connections between
pump and paint container. If
damaged, replace. Switch to
larger diameter siphon set.
Pump delivers on
down stroke only or
goes up fast and
down slowly.
▪Upper ball is not seating due to
trash or wear.
▪Lower packing set is worn.
▪Check upper seat and ball with
water. If ball fails to seal,
replace seat.
▪Replace packing set if worn.
Pump moves up
and down fast,
delivering material.
▪Material container is empty or
material is too thick to flow
through siphon hose.
▪Bottom ball stuck to foot valve
seat.
▪Siphon hose is kinked or loose.
▪Refill with new material. If too
thick, remove siphon hose,
immerse fluid section in
material, and start pump to
prime. Add thinner to material.
Change to bigger siphon set.
Open bleed valve to remove air
and restart pump.
▪Remove foot valve. Clean ball
and seat.
▪Straighten.
Pump moves up
and down slowly
when spray gun is
shut off.
▪Loose connections. Bleed valve
is open partially or bleed valve
is worn. Lower packing seat is
worn.
▪Upper and/or lower ball not
seating.
▪Check all connections between
pump and gun. Tighten as
necessary. If material is flowing
from bleed hose, close bleed
valve or replace, if necessary.
Should none of the above be
evident, replace lower packing.
▪Reseat balls by cleaning.
Not enough fluid
pressure at gun.
▪Spray tip is worn.
▪Outlet filter or gun filter is
clogged.
▪Low voltage and/or inadequate
amperage.
▪Hose size or length is too small
or too long.
▪Replace.
▪Clean or replace filter.
▪Check electrical service.
Correct as required.
▪Increase hose size to minimize
pressure drop through hose
and/or reduce hose length.
Pump chatters on
up or down stroke.
▪Solvent has caused upper
packing to swell.
▪Replace packing.
TROUBLESHOOTING

Parts Identification
& Manual Service
18/40 Issue 1.0 Ref. NR-00126-ENG
http://www.gamapur.com/
TROUBLE
POSSIBLE CAUSE
SOLUTION
Oil motor stalls at
bottom (no unusual
heat problems).
▪Fluid pump piston seat
unthreaded.
▪Valve sticking or oil motor trip
rod shifter assembly separated.
▪If connecting rod is okay,
remove cylinder head plug and
pop valve down. Replace plug
and start machine. If machine
cycles up and stops at bottom
again, then problem is piston
seat on fluid pump. Check
piston seat. Repair or replace
as necessary. If piston seat is
okay and problem does not
change, check oil motor.
▪Remove valve and check for
scratches and rough movement
when sliding it up and down.
Replace valve and spool in this
condition. Check trip rod for
possible separation and spool in
this condition. Check trip rod for
possible separation.
Oil motor stalls at
top (no unusual
heat problems).
▪Valve sticking.
▪Broken spring retainer (valve
rod assembly).
▪Broken spring or valve rod.
▪Air in hydraulic motor.
▪Air in fluid pump
▪Remove valve and check for
scratches and rough movement
when sliding it up and down.
Replace valve and spool in this
condition.
▪Replace valve rod assembly.
▪Replace valve rod assembly
▪Reset valve. Purge Air,
generally accomplished by low
pressure cycling of motor/pump
assembly for 5-10 minutes.
Check for causes of air
introduction:
oLoose fittings in tank.
oLoose fittings on hydraulic
pump.
oLoose hose connections.
oLow oil in reservoir.
▪Stall at top can occur randomly
when fluid pump picks up air.
Reset valve. Avoid air in the
fluid pump.

Parts Identification
& Manual Service
19/40 Issue 1.0 Ref. NR-00126-ENG
http://www.gamapur.com/
Mechanical (with Electrical Motor)
Maximum working pressure: _________________232,5 kgf/cm2 (22,8 MPa) / 3306 psi /228 bar
Max. Production:_____________________________________________5,7 l/min / 1,51 gal/min
Maximum PCD size:________________________________________________ 1 gun →0,036”
_______________________________________________________________2 guns →0,026”
Electric Motor Power: ____________________________________ 4,02 HP / 3 kW (220v 50 Hz)
Approximate weight (hydraulic tank empty): _____________________________66 kg / 145,5 lb
Approximate weight (hydraulic tank full): ______________________________ 70,4 kg / 155,2 lb
Hydraulic tank capacity: _______________________________________________ 5 l / 1,32 gal
Mechanical (with Gasoline Engine)
Maximum working pressure: ________________ 232,5 kgf/cm2 (22,8 MPa) / 3306 psi / 228 bar
Max. Production:_____________________________________________6,4 l/min / 1,69 gal/min
Maximum PCD size:________________________________________________ 1 gun →0,043”
_______________________________________________________________2 guns →0,033”
Gasoline Motor Power:_____________________________________________ 5,5 HP / 4,1 kW
Approximate weight (hydraulic & gasoline tanks empty): ___________________72 kg / 158,7 lb
Approximate weight (hydraulic & gasoline tanks full): ______________________78,5 kg / 173 lb
Hydraulic tank capacity: _______________________________________________ 5 l / 1,32 gal
Gasoline tank capacity: ________________________________________________ 3 l / 0,8 gal
Hydraulic oil type:______________DIN 51524 standard, section 1 & 2 (for example ISO VG 46)
Gasoline Fuel type (*): ___________________________________ E5 (95/98 octane without oil)
Motor Lubricant (*):___________________________________________________SAE 10/30W
(*) Only GA-200 G model
Dimensions: ___________________________________________________H: 1352 mm / 53 in
W: 945 mm / 37 in
L: 745 mm / 29 in
TECHNICAL SPECIFICATIONS

Parts Identification
& Manual Service
20/40 Issue 1.0 Ref. NR-00126-ENG
http://www.gamapur.com/
Figure 1. GA-200 model, General Description.
GENERAL DESCRIPTION
