Game Winner HU2339101-GW User manual

12V Digital Feeder Control Unit
Style #164833 (HU2339101-GW)
Please keep this instruction manual for future reference
Customer Service: [phone], 8:00am to 5:00pm, Pacific Standard Time,
Monday thru Friday
-------- OR --------
Customer Service: [phone], 7:00am to 12:00am CST daily
Live Chat at: www.academy.com
Email: [e-mail]
(Made in China)
HU2339101-GW 20210304_V1.0
Pg.1

Warnings -----------------------------------------------------------
Parts List -----------------------------------------------------------
Hardware List ----------------------------------------------------
Tools required ----------------------------------------------------
Product Diagram ------------------------------------------------
Assembly Instructions -----------------------------------------
How to install the battery ------------------------------------
How to operate the timer ------------------------------------
Testing the feeder ----------------------------------------------
Replacement Parts ----------------------------------------------
Warranty ----------------------------------------------------------
Table of Contents Page
3
4
5
6
7
8-10
11
12
13
14
15-16
NOTE: Before beginning assembly of product, make sure all
parts are present. Compare parts with package content list
and hardware contents. If any part is missing or damaged do
not attempt to assemble the unit. Contact customer service
for replacement parts.
HU2339101-GW 20210304_V1.0
Pg.2

Warnings
PAY ATTENTION to these statements when reading this manual and the
information contained can save your life.
DANGER : Indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING : Be alert to the possibility of serious bodily injury if the
instructions are not followed. Be sure to read and carefully follow all of the
messages.
CAUTION : Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
READ AND FOLLOW ALL SAFETY STATEMENTS, WARNINGS, ASSEMBLY
INSTRUCTIONS AND USE & CARE DIRECTIONS BEFORE ATTEMPTING TO
ASSEMBLE. KEEP THIS MANUAL FOR FUTURE REFERENCE.
REFER TO THE IMAGES IN THIS MANUAL FOR VISUALIZATION OF THE
ASSEMBLY PROCESS IN ADDITION TO READING THE INSTRUCTIONS.
SOME PARTS CONTAIN SHARP EDGES. SHARP POINTS OR EDGES CAN
SCRATCH, POKE, OR PUNCTURE. WEAR APPROPRIATE CLOTHING AND
SAFETY GLOVES DURING ASSEMBLY.
THE 12V RECHARGEABLE BATTERY (NOT INCLUDED) SHOULD HAVE A
COMPLETE CHARGE PRIOR TO THE FIRST TIME OF OPERATION. THIS
USUALLY REQUIRES A MINIMUM OF AT LEAST SIX (6) HOURS OF
CHARGING. *BUT ALWAYS REFER TO SUPPLIER MANUAL OF THE
RECHARGEABLE BATTERY FOR PROPER OPERATION
THE PROPER SPACING BETWEEN THE SPIN PLATE AND THE FUNNEL IS
3/8 INCH. THIS IS VERY IMPORTANT FOR SERVICE FREE OPERATION.
TO TEST YOUR FEEDER FOLLOW THE INSTRUCTIONS IN THE TIMER
MANUAL. DO NOT TEST FEEDER WHEN IT CONTAINS FEED. TEST
FEEDER WHEN EMPTY ONLY! TESTING THE FEEDER WHILE IT CONTAINS
FEED WILL CAUSE FEED TO BE DISCHARGED AT A HIGH VELOCITY AND
COULD RESULT IN BODY INJURY. FAILURE TO FOLLOW THESE
INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR DEATH!
HU2339101-GW 20210304_V1.0
Pg.3

1
Funnel
1 pc
2
Timer Kit Body
2a
–metal housing
2b
- spinner plate
2c
- 12V motor
2d
- grommet
1 pc
3
Mounting Bracket
2 pcs
4
Digital Timer
1 pc
Parts List
HU2339101-GW 20210304_V1.0
Pg.4
2a
2b
2d
2c

A
Hex. Bolt (M6x20)
10 pcs
B
Flat Washer (dia. 6mm/18)
2 pcs
C
Butterfly Nut (M6)
2 pcs
D
Flange Nut (M6)
2 pcs
E
Wing Bolt
1 PC
Hardware List
HU2339101-GW 20210304_V1.0
Pg.5

Tools Required
1
Adjustable
Wrench
HU2339101-GW 20210304_V1.0
Pg.6

Product Diagram
HU2339101-GW 20210304_V1.0
Pg.7
1
2
3
4

Assembly Instructions

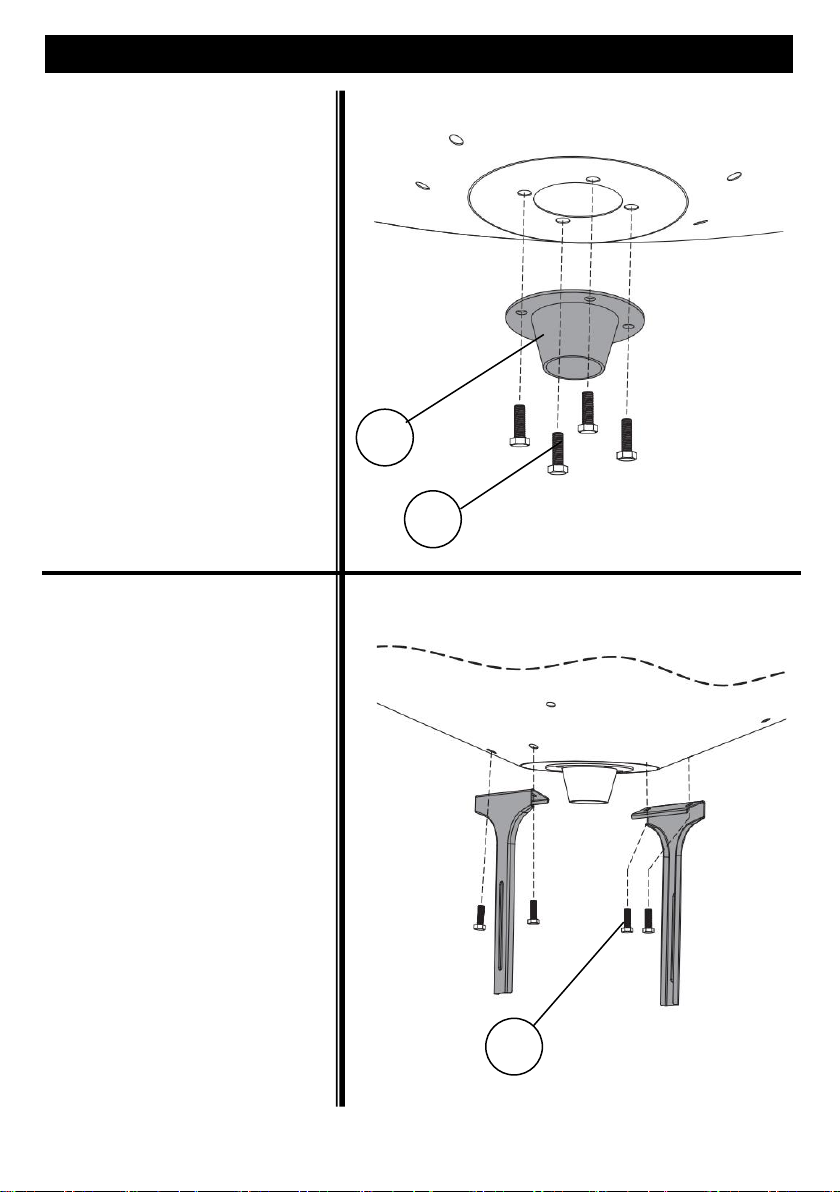

Step 1:
Attach Funnel (#1) to the
bottom of hopper using bolts
(A, M6x20).
Step 2:
Hardware :
#A –4 pcs
Attach the Mounting brackets
(#3) to the bottom of hopper
using bolts (A, M6x20).
Hardware :
#A –4 pcs
HU2339101-GW 20210304_V1.0
Pg.8
3
1
A

Assembly Instructions
Step 3:
Attach Timer Kit Body ( #2)
to the Mounting brackets
(#3) using bolts (A, M6x20),
flange nuts (D, M6),
washers (B, 6mm) and
butterfly nuts (C, M6). Use
wing bolts (E) to secure
door
Hardware :
#A –2 pcs #B –2 pcs
#C –2 pcs #D –2 pcs
#E –1 pc
HU2339101-GW 20210304_V1.0
A
D
B
C
E
Pg.9

Assembly Instructions
Step 4:
If the feeder is equipped
with a varmint guard,
attached it back to the
bottom of Deer Feeder if it
fits.
HU2339101-GW 20210304_V1.0
Pg.10

HOW TO INSTALL BATTERY
CAUTION
CONNECT THE DIGITAL TIMER TO A 12V RECHARGEABLE BATTERY
(NOT INCLUDED) BY ATTACHING THE RED ALLIGATOR CLIP TO THE
POSITIVE TERMINAL (+) AND THE BLACK ALLIGATOR CLIP TO THE
NEGATIVE (-) TERMINAL.
WARNING
THE 12V RECHARGEABLE BATTERY (NOT INCLUDED) SHOULD HAVE A
COMPLETE CHARGE PRIOR TO FIRST TIME OPERATION. REFER TO
USER INSTRUCTION OF THE BATTERY.
CONNECTING THE BATTERY IN ANY OTHER WAY WILL PERMANENTLY
DAMAGE YOUR UNIT. TAKE EXTREME CARE TO MAKE THIS
CONNECTION PROPERLY. FAILURE TO FOLLOW THESE
INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR DEATH.
HU2339101-GW 20210304_V1.0
Pg.11

HOW TO OPERATE THE TIMER
CAUTION
HOW TO OPERATE THE DIGITAL TIMER
READ THE OPERATION MANUAL INCLUDED IN THE DIGITAL TIMER UNIT.
ATTENTION
THE PROPER SPACING BETWEEN THE SPIN PLATE AND THE FUNNEL IS
3/8 INCH (0.953 cm). THIS IS VERY IMPORTANT FOR SERVICE- FREE
OPERATION.
3/8” / 0.953 cm
HU2339101-GW 20210304_V1.0
Pg.12

Testing the Feeder
WARNING
THE 12V RECHARGEABLE BATTERY ( NOT INCLUDED) SHOULD HAVE A
COMPLETE CHARGE PRIOR TO FIRST TIME OPERATION. REFER TO
USER INSTRUCTION OF THE BATTERY.
TO TEST YOUR FEEDER, FOLLOW THE INSTRUCTIONS IN THE TIMER
MANUAL. DO NOT TEST FEEDER WHEN IT CONTAINS FEED. TEST
FEEDER WHEN EMPTY ONLY! TESTING THE FEEDER WHILE IT
CONTAINS FEED WILL CAUSE FEED TO BE DISCHARGED AT A HIGH
VELOCITY AND COULD RESULT IN BODY INJURY. FAILURE TO FOLLOW
THESE INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR DEATH!
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
- THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
- THE DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
DO NOT USE THIS UNIT AROUND POWER GENERATING EQUIPMENT
(TRANSFORMERS, GENERATORS, SUBSTATIONS, ETC) AND/OR POWER
TRANSMISSION EQUIPMENT (POWER LINES). FAILURE TO FOLLOW
THESE INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR DEATH.
HU2339101-GW 20210304_V1.0
Pg.13

Replacement Parts
HU2339101-GW 20210304_V1.0
Pg.14
Part Number Component Part Name
PLA-CF0002 1 Funnel
MET-CF0015 2a Metal Housing
MET-CF0006 2b Spinner Plate
ELE-CF0003 2c 12V Motor
PLA-CF0003 2d Grommet
MET-CF0016 3 Mounting Bracket
ELE-CF0004 4 Digital Timer
HAR-CF0003 Hardware

Warranty Information
1. Manufacturer warrants this Product to be free from defects in workmanship and
materials for a period of 90 days from the date of purchase, PROVIDED claims
are submitted, in writing, with proof of purchase.
2. If any part of this item fails because of a manufacturing defect within the
Limited Warranty Period, Manufacturer offers to replace such part(s) provide
that such parts have not been improperly repaired, altered, or tampered with or
subject to misuse, abuse or exposed to corrosive conditions. This Limited
Warranty is, however, subject to certain limitations, exclusions, time limits and
exceptions (Hereinafter “Conditions”) as listed below. Read these Conditions
carefully.
3. This Limited Warranty shall be limited to the replacement or repair of any part(s)
which Manufacturer determines, after reasonable examination, to have been
defective at the time of manufacturing and manufacturer’s obligation(s) shall be
limited to replacement, if any, of defective part(s) which shall be shipped at
Original Purchaser’s expense to Original Purchaser’s designated shipping
address.
4. This Limited Warranty is given to and covers the ORIGINAL PURCHASER
ONLY and such coverage terminates 90 days from the date of purchase.
5. DAMAGE LIMITATION WARNING: IN NO EVENT SHALL MANUFACTURER
BE LIABLE FOR ANY INCIDENTIAL OR CONSEQUENTIAL DAMAGES,
INCLUDING (BUT NOT LIMITED TO) LOSS OF USE OF THE PRODUCT,
LOSS OF TIME, INCONVENIENCE, EXPENSES FOR TRAVEL,
TRANSPORTATION, LODGING EXPENSES, LOSS OF FOOD, LOSS BY
DAMAGE TO PERSONAL PROPERTY OR LOSS OF INCOME, PROFITS OR
REVENUE.
6. MANUFACTURER’S OBLIGATION: Manufacturer’s liability shall be limited to
the delivery of a good, merchantable Product and, if necessary, the repair or
replacement, at manufacturer’s option, of any defective part or unit.
7. TRANSFER LIMITATIONS: This Limited Warranty is not assignable or
transferable. It covers only the original purchaser.
8. RESERVED RIGHT TO CHANGE: Manufacturer reserves the right to make
changes or improvements to products it produces in the future without
imposing on itself any obligations to install the same improvements in the
products it has previously manufactured.
9. This Limited Warranty gives the Original Purchaser specific legal rights but
there may be other rights which vary by jurisdiction.
10. This warranty does not cover the following items:
- Chips or scratches on porcelain or painted surfaces
- Rust or corrosion is not deemed a manufacturing or materials defect
- Discoloration or loss of paint due to handling during assembly, heat or
cleaning products. Paint may require touch up.
- Stainless steel discoloration or corrosion
- Consumables such as batteries
- Damages caused by wild game
HU2339101-GW 20210304_V1.0
Pg.15

Warranty Information
IF CUSTOMER SERVICE IS NECESSARY:
The Original Purchaser is responsible for shipping and handling charges of
the returned item(s) and replacement parts, if any.
All parts to be replaced will need to be shipped before replacement items
will be sent.
Follow the Customer Service Representative’s instructions exactly. If a
return is necessary, it must be packed carefully and shipped prepaid.
Should you encounter any problem
or
Obtaining replacement parts
CALL US FIRST.
Do not return product to the store.
WE CAN HELP.
Rankam (China) Manufacturing Co. Ltd.
18/F., New Lee Wah Centre, 88 Tokwawan Road,
Kowloon, Hong Kong
Please contact Rankam Customer Service at [e-mail]
or at 1-888-837-1380, Mon to Fri, 8:00 a.m. –5:00 p.m. Pacific Standard Time.
