Gamma+ SPEKTRA ZOOM/200W FRESNEL LED Installation instructions

User Instruction
SPEKTRA ZOOM/200W FRESNEL LED

CONTENTS
1. INSTRUCTION
1) Unpacking
2) Introduction
3) AC Power
4) Safety Instruction
5) Cleaning
2. FEATURE
3. SET UP
1) 3-Pin to 5-Pin Conversion Chart
2) Setting up a DMX Serial Data Link
3) Master/Slave Fixture Linking
4. DMX CHANNEL SUMMARY
1) Operation method
2) Dmx Channels

1. INSTRUCTION Led Par Light
Unpacking: Thank you for purchasing our products. Every unit has been thoroughly tested and
has been shipped in perfect operating condition. Carefully check the shipping carton for damage
that may have occurred during shipping. If the carton appears to be damaged, carefully inspect
your fixture for any damage and be sure all accessories necessary to operate the unit has arrived
intact. In the case damage has been found or parts are missing, Save the carton and all packing
materials. In the event a fixture must be returned to the factory. It is important that the fixture be
returned in the original factory box and packing.
Introduction: The unit is a DMX intelligent Led Par Light. This light can be used in a stand alone
mode or connected in a Master/Slave configuration. The unit can also be controlled via DMX
controller. This light has three operating modes: stand alone mode, Master/Slave and DMX control
mode.
AC Power: This fixture has an auto-switching power supply that can accommodate a wide range
of input voltages. The only thing necessary to do before powering on the unit is to make sure the
line voltage you are applying is within the range of accepted voltages. This fixture will
accommodate between 90V and 240V AC. All fixtures must be powered directly off a switched
circuit and cannot be run off a rheostat (variable resistor) or dimmer circuit. Even if the rheostat or
dimmer channel is used solely for a 0-100% switch.
Safety Instructions:
➢To reduce the risk of electrical shock or fire, do not expose this unit rain or moisture
➢• Do not spill water or other liquids into or on to your unit.
➢• Be sure that the local power outlet match that of the required volt-age for your unit.
➢• Do not attempt to operate this unit if the power cord has been frayed or broken. Do not
attempt to remove or break off the ground prong from the electrical cord. This prong is used to
reduce the risk of electrical shock and fire in case of an internal short.
➢• Disconnect from main power before making any type of connection.
➢• Do not remove the cover under any conditions. There are no user serviceable parts inside.
➢• Never operate this unit when it’s cover is removed.
➢• Never plug this unit in to a dimmer pack
➢•Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
➢• Do not attempt to operate this unit, if it becomes damaged.
➢• This unit is intended for indoor use.
➢• During long periods of non-use, disconnect the unit’s main power.
➢• Always mount this unit in safe and stable matter.
➢• Power-supply cords should be routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular attention to the point they exit from
Please read these instructions carefully, which includes important information
about the installation, usage and maintenance of this product.

the unit.
➢• Cleaning -The fixture should be cleaned only as recommended by the manufacturer. See
page 3 for cleaning details.
➢• Heat -The appliance should be situated away from heat sources, such as radiators, heat
registers, stoves, or other appliances (including amplifiers) that produce heat.
➢• The fixture should be serviced by qualified service personnel when:
a) The power-supply cord or the plug has been damaged.
b) Objects have fallen, or liquid has been spilled into the appliance.
c) The appliance has been exposed to rain or water.
d) The appliance does not appear to operate normally or exhibits a marked change in
performance.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,
doing so will void your manufacturers warranty. In the unlikely event your unit may require service
please contact us.
Cleaning: Due to fog residue, smoke, and dust cleaning the internal and external optical lenses
must be carried out periodically to optimize light output.
1. Use normal glass cleaner and a soft cloth to wipe down the outside casing.
2. Clean the external optics with glass cleaner and a soft cloth every 20 days.
3. Always be sure to dry all parts completely before plugging the unit back in.
Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog
residue, dust, dew).
2. Features Led Par Light
VOLTAGES:
AC 100V-240V，50/60Hz
POWER CONSUMPTION:
250W@230V
LED:
Light Source: 200W Cool White or Warm White COB Led
Quantity: 1pcs
Manufacturers Rated LED Life 50000 Hours
COLOURS:
linear color mixing with Macro
DIMMER:
0-100% linearly adjustable
STROBE:
Electronic Strobe 0 -25F.P.S
ZOOM ANGLE: 5 -60°

CONTROL:
DMX512, 3 pins interfaces RDM Control Protocol
3 Channels in standard mode Master/Salve Synchronous
Control Mode:
DMX512 / Master-Slave / Auto / Sound
HOUSING:
Cast aluminum, IP20 Indoor
WORK ENVIRONMENT TEMPERATURE: -10°C-40°C
CARTONS PACKING DIMENSION:
Inner: 300*300*510MM
WEIGHT:
Net weight : 7.50Kg
3. Set Up Led Par Light
Notice: Be sure to follow figures two and three when making your own cables. Do not use the
ground lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug
or allow the shield conductor to come in contact with the XLR’s outer casing. Grounding the shield
could cause a short circuit and erratic behavior.
Figure 3
XLR Pin Configuration
Pin 1 = Ground
Pin 2 = Data Compliment(negative)
Pin 3 = Data True(positive)

3-Pin to 5-Pin Conversion Chart:
Note! If you use a controller with a 5 pin DMX output connector,you will need to use a 5 pin to 3
pin adapter. The chart below details a proper cable conversion:
3-Pin to 5-Pin Conversion
Conductor
3 Pin Female(Output)
5 Pin Male(Input)
Ground/Shield
Pin 1
Pin 1
Data(-) signal
Pin 2
Pin 2
Data(+) signal
Pin 3
Pin 3
Not Used
Do not use
Not Used
Do not use

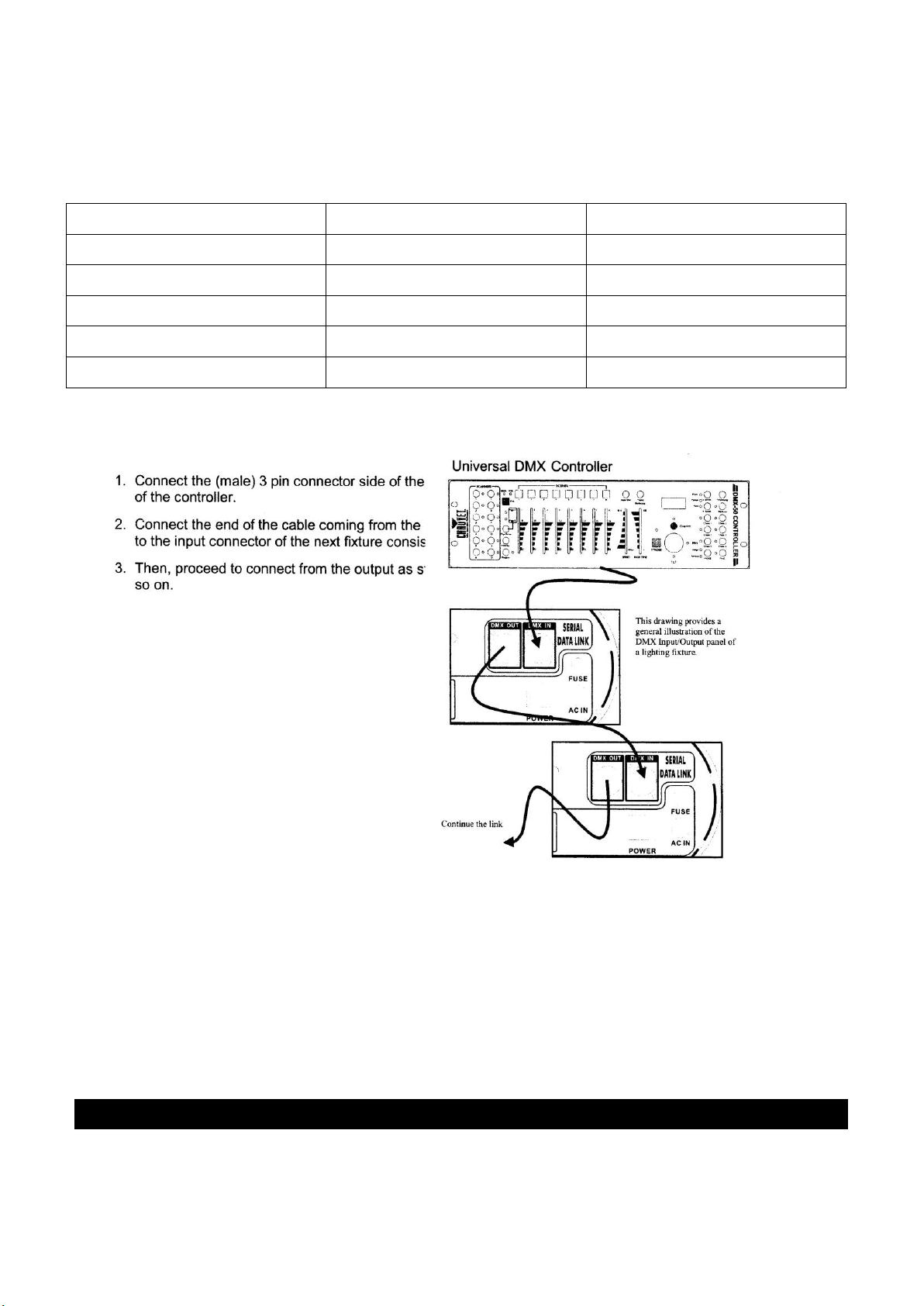

Setting up a DMX Serial Data Link:
Master/Slave Fixture Linking:
1. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin
connector of the first fixture.
2. Connect the end of the cable coming from the first fixture which will have a (female) 3 pin
connector to the input connector of the next fixture consisting of a (male) 3 pin connector.
Then, proceed to connect from the output as stated above to the input of the following fixture
and so on.
4. DMX Channels Summary Led Par Light
4.1 Operation method
1. keystrokes 2. Basic usage

【MENU】The main menu select or return to the higher level
menu
【UP】Increasing menu choices or parameters
【DOWN】Menu to select or parameters
【ENTER】Enter or select submenu

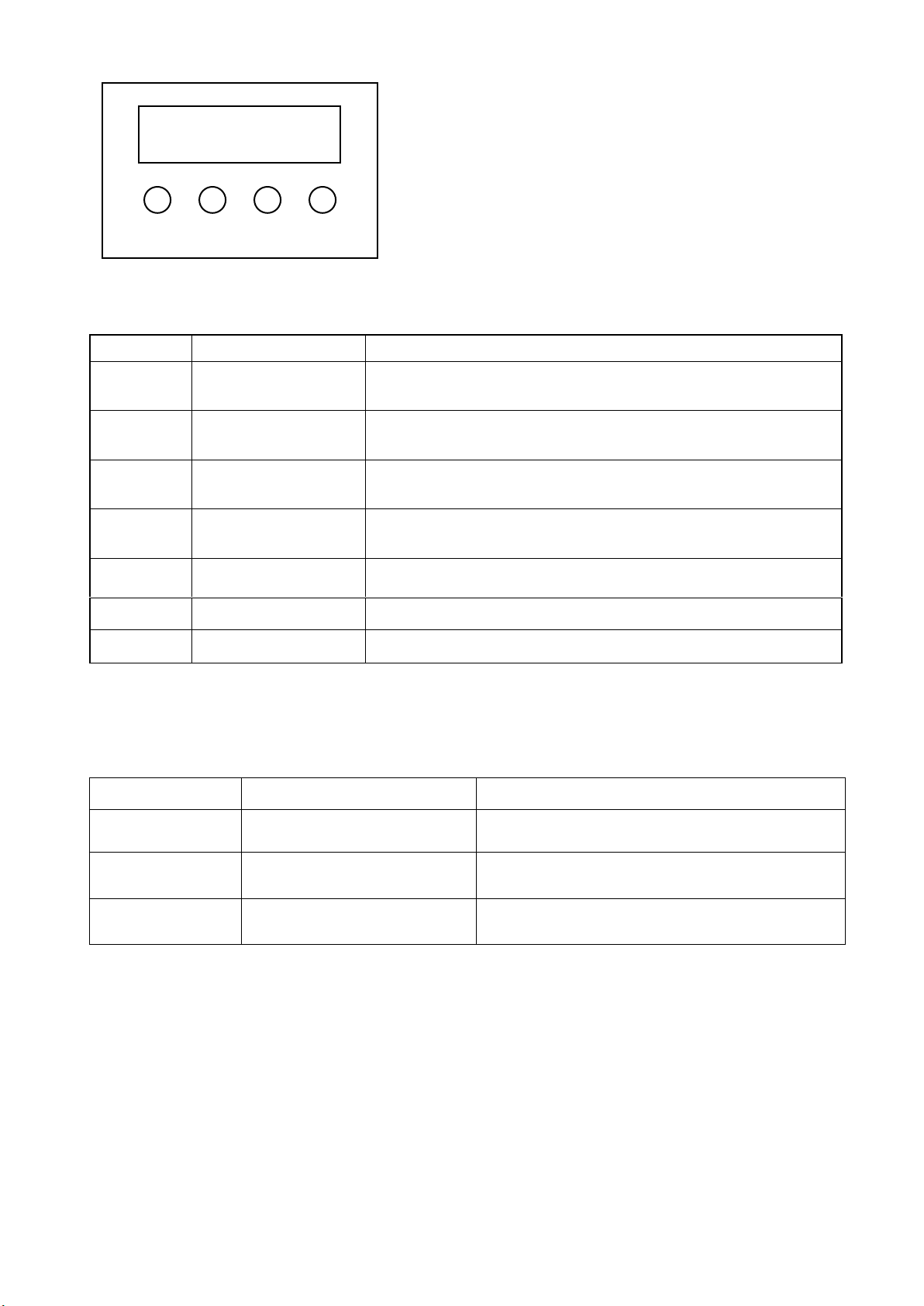

LED Display Screen Operation:
4.2 Dmx Channels
NO.
Display
Functions
1
A001
3 channels address setting,（001—512）
B、C key to plus/minus
2
CC99
Rainway jump color changing,（01—99）
B、C key to control changing speed
3
DE99
Rainway pluse/shade color changing（01—99）
B、C key to control changing speed
4
BE00
Rainway sound changing,（01—99）
B、C key to control sound changing speed
5
W255
White dimminer (000-255)
6
F255
Liner Zoom(000-255)
7
N000
Strobe from Near to Far (000-255)
Channel
Function
No.
CH1
White dimmer
W dimmer, linear dimmer, dark -bright
CH2
Strobe
Strobe from slow to fast
CH3
Zoom
Zoom from near to far
MENU UP DOWN ENTER
