Garage Smart Multi Bike Lifter User manual

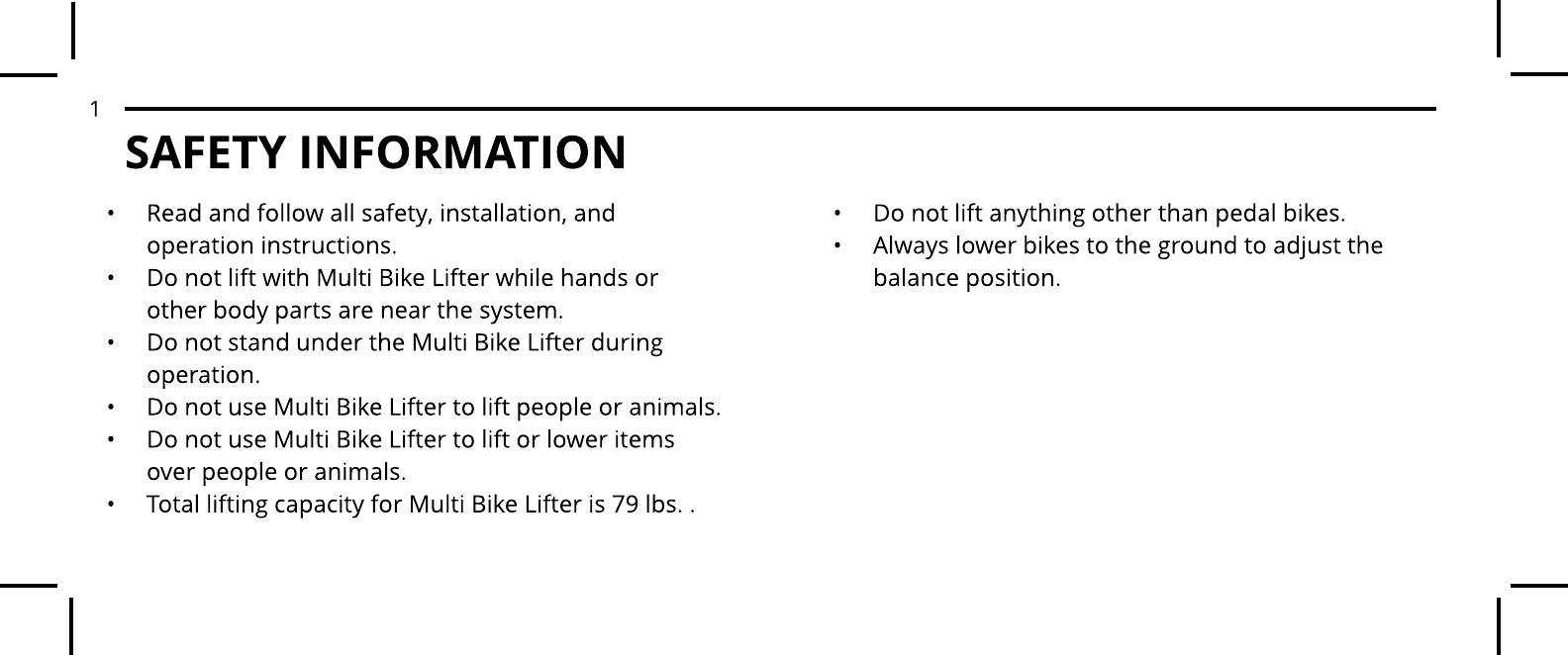

SAFETY INFORMATION
- Read and follow all safety, installation, and
operation instructions.
- Do not lift with Multi Bike Lifter while hands or
other body parts are near the system.
- Do not stand under the Multi Bike Lifter during
operation.
- Do not use Multi Bike Lifter to lift people or animals.
- Do not use Multi Bike Lifter to lift or lower items
over people or animals.
- Total lifting capacity for Multi Bike Lifter is 79 lbs. .
- Do not lift anything other than pedal bikes.
- Always lower bikes to the ground to adjust the
balance position.
1
PARTSIDENTIFIER 2
Multi Bike Lifter (x1)
Alignment Sticker Set
Lifting Straps (x6)

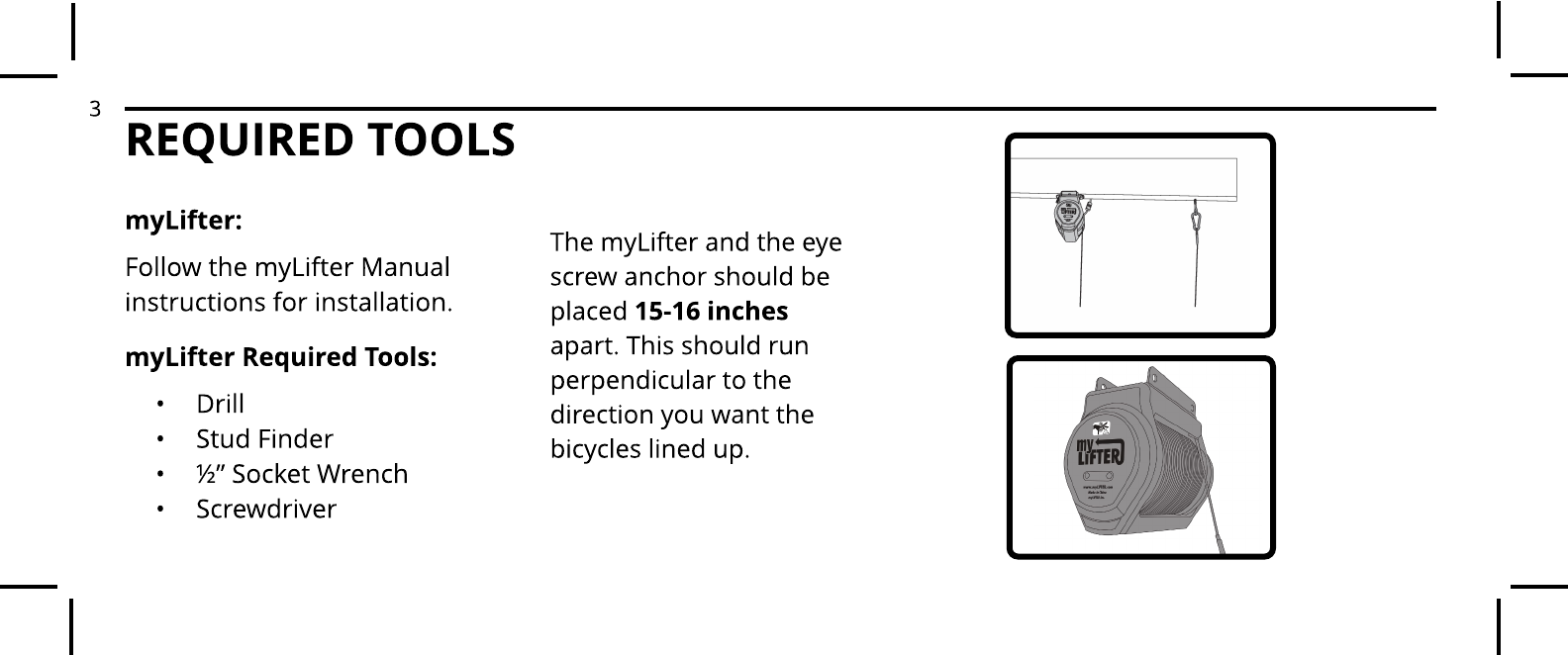

REQUIRED TOOLS
myLifter:
Follow the myLifter Manual
instructions for installation.
myLifter Required Tools:
- Drill
- Stud Finder
- ½?Socket Wrench
- Screwdriver
The myLifter and the eye
screw anchor should be
placed 15-16 inches
apart. This should run
perpendicular to the
direction you want the
bicycles lined up.
3
INSTALLATION

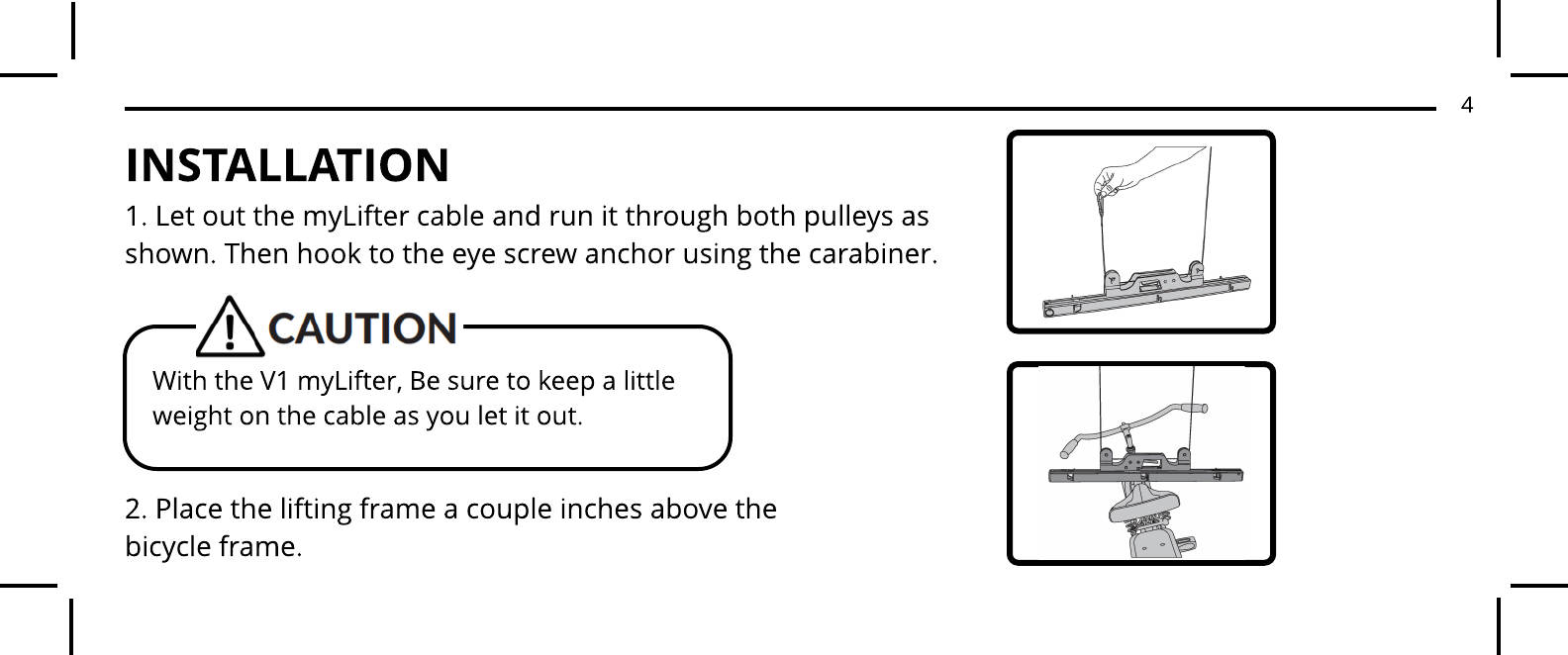

1. Let out the myLifter cable and run it through both pulleys as
shown. Then hook to the eye screw anchor using the carabiner.
With the V1 myLifter, Be sure to keep a little
weight on the cable as you let it out.
2. Place the lifting frame a couple inches above the
bicycle frame.
4
INSTALLATION
3. Run each strap through the spokes of a wheel and
back to an adjacent hook.
4. Adjust straps to take slack out but not to lift the
bike. Up to 3 bikes can be attached.
5
INSTALLATION

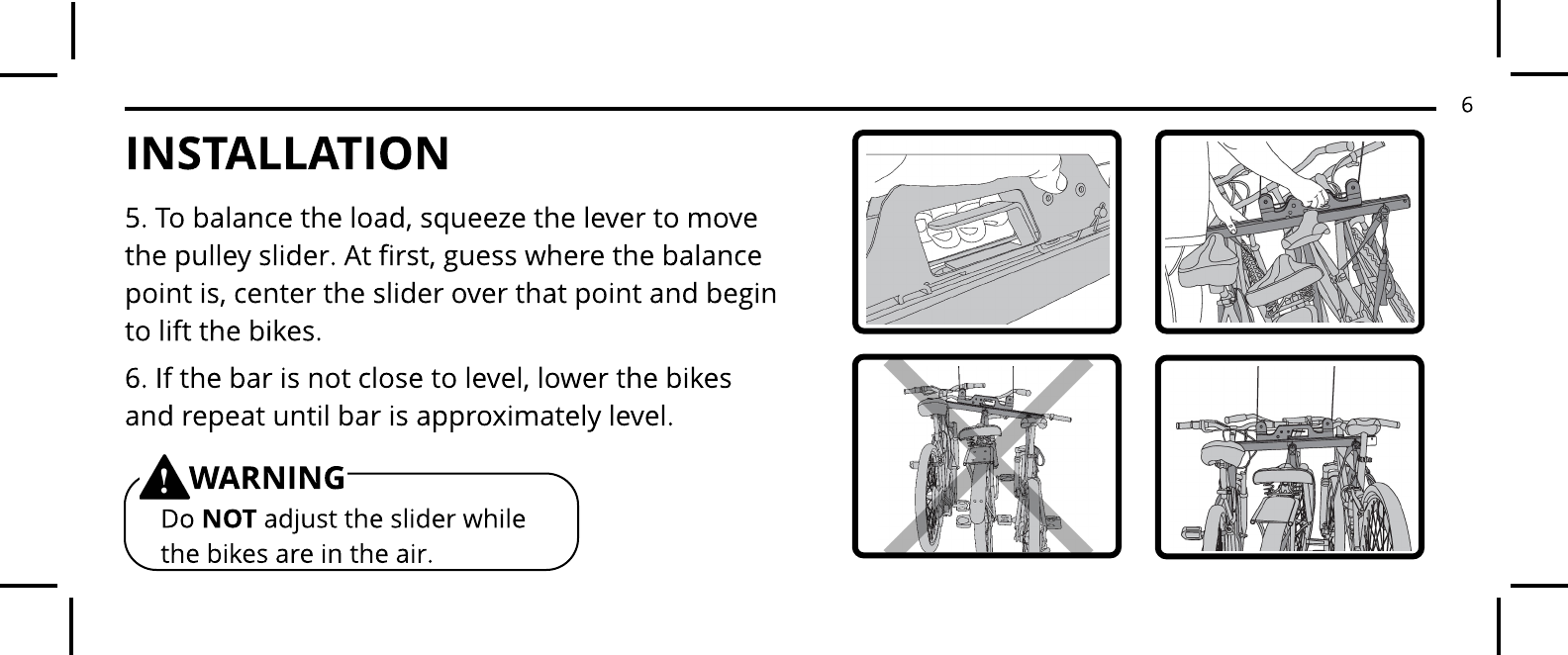

5. To balance the load, squeeze the lever to move
the pulley slider. At first, guess where the balance
point is, center the slider over that point and begin
to lift the bikes.
6. If the bar is not close to level, lower the bikes
and repeat until bar is approximately level.
6
Do NOT adjust the slider while
the bikes are in the air.
WARNING
INSTALLATION
7. Place an arrow sticker on the pulley slider and
one on the hook frame after bikes are balanced.
This allows you to quickly position the pulley slider
when all three bikes are on the lifter.
7
8. If you plan to use only one or two bike at a time, place
stickers for each usage scenario. The Multi-Bike Lifter can
balance with bikes in any position.
INSTALLATION

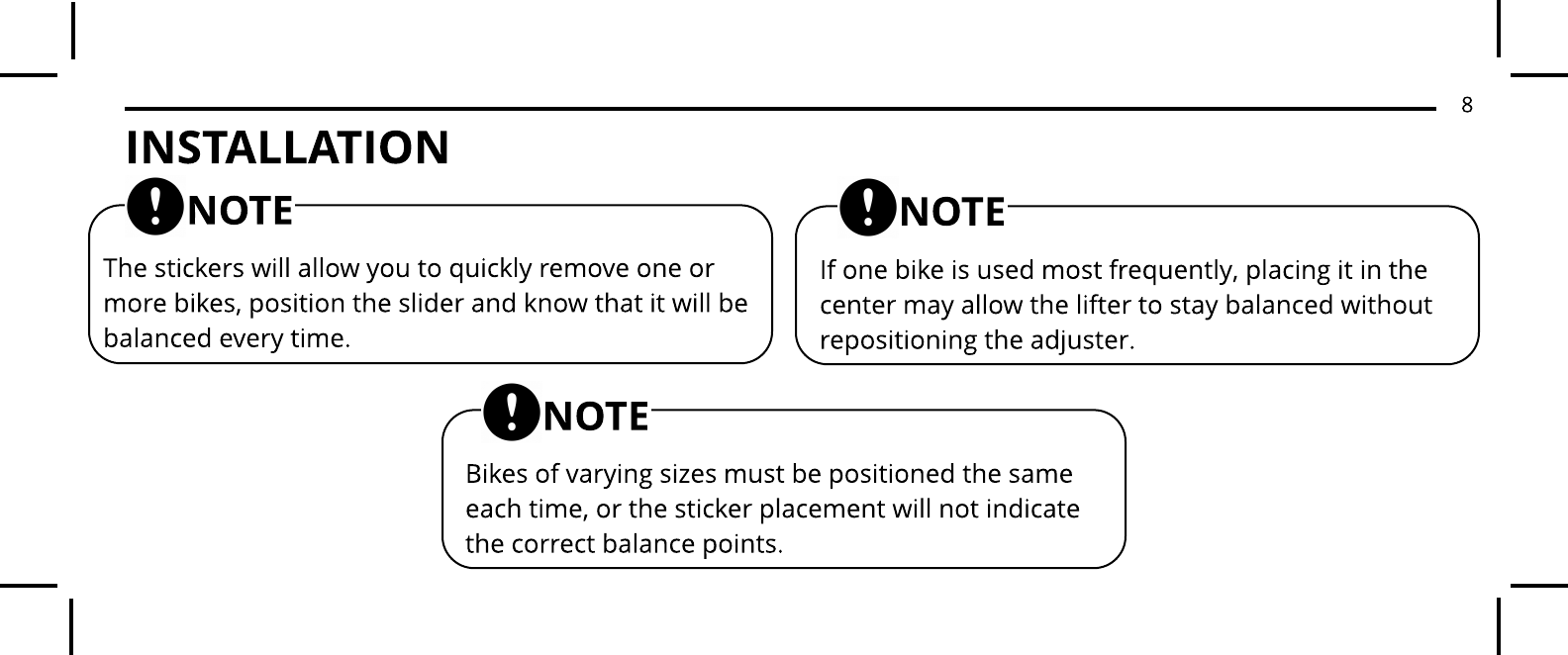

The stickers will allow you to quickly remove one or
more bikes, position the slider and know that it will be
balanced every time.
If one bike is used most frequently, placing it in the
center may allow the lifter to stay balanced without
repositioning the adjuster.
8
Bikes of varying sizes must be positioned the same
each time, or the sticker placement will not indicate
the correct balance points.
NOTE
NOTE
NOTE
Frequently Asked Questions
When I?m lifting one bike on the end, why can?t I get the bar perfectly level?
Dependingon theweight of thebike, the bar maynot beperfectlylevel but thisshouldn?t causeanyproblems. Aslightlynon-level bar isOKto
lift with, see page 6.
Do I have to place the straps through the wheel?
No, thestrap helpsalign the front wheel, but theycan be placed asyou choose.
If I set my upper smart point previously, why are my bikes closer to the ceiling than before?
If you have changed your strap lengths, thiswill move your bikescloser or farther from theliftingbar. Reset smart pointswhenever you adjust
straps.
What weight can my Multi-Bike Lifter lift?
The frameweighsabout 21 lbs, sothe lifter will onlylift another 79 lbs.
9
LIMITED WARRANTY
Limited Three-Year Warranty on Hardware
Garage Smart offers a limited three-year warranty on the hardware
components of its lifting systems. If a defect in the hardware, or any
component thereof, appears at any time during the first three years after
purchase, Garage Smart will repair or replace (at its option) the system or the
defective component at no cost to you beyond the cost of shipping the
defective item to us.
Who Makes This Warranty
This warranty is made by
Garage Smart
Who Is Covered
This warranty extends only to the original purchaser of the product. This warranty
is intended for natural persons only and does not extend to any corporation,
limited liability company, or commercial entity.
What Is Covered
The limited three-year warranty on hardware covers manufacturing defects and
includes parts, labor, and the cost of shipping the repaired (or replacement)
product from Garage Smart to you. The warranty does not cover installation of
repaired or replacement items. If we send replacement parts, we may use new or
reconditioned parts. If we send a replacement unit, we may use a new or
reconditioned unit.
10

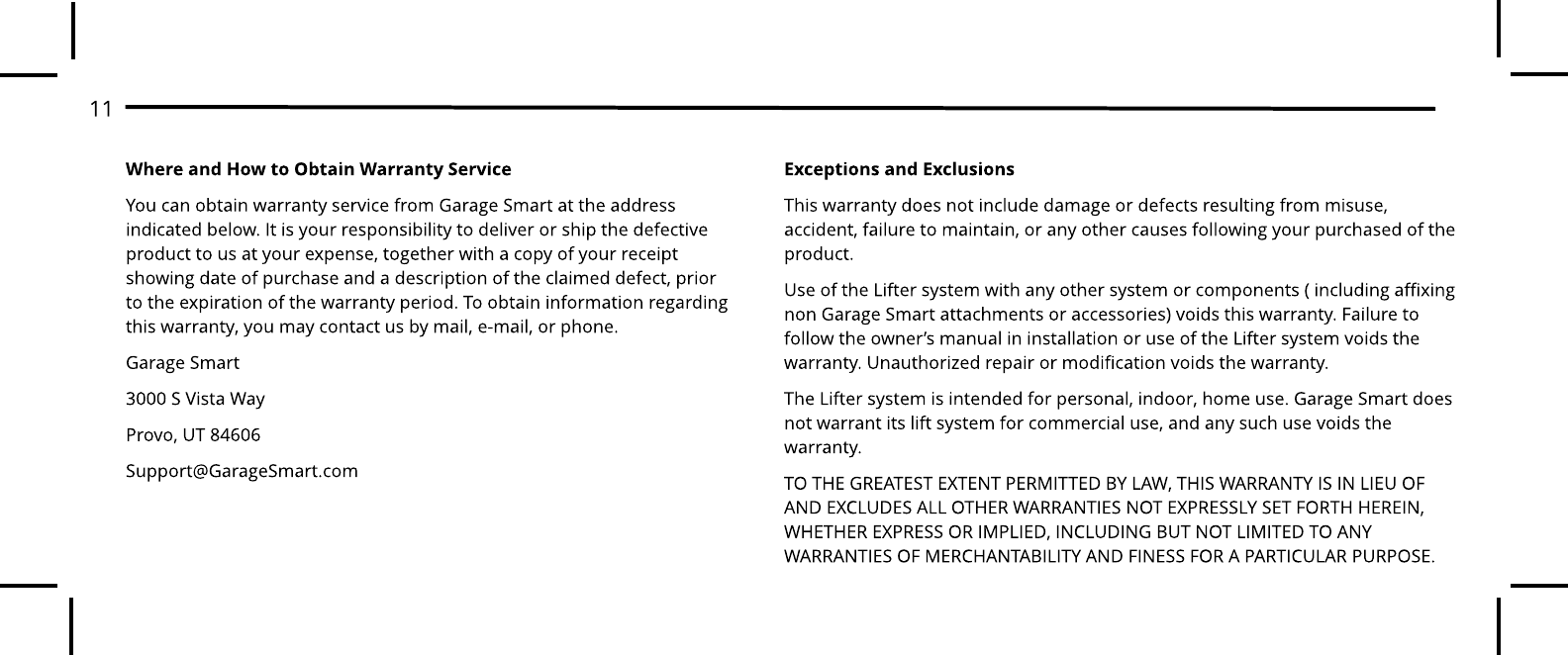

Where and How to Obtain Warranty Service
You can obtain warranty service from Garage Smart at the address
indicated below. It is your responsibility to deliver or ship the defective
product to us at your expense, together with a copy of your receipt
showing date of purchase and a description of the claimed defect, prior
to the expiration of the warranty period. To obtain information regarding
this warranty, you may contact us by mail, e-mail, or phone.
Garage Smart
3000 SVista Way
Provo, UT 84606
Support@GarageSmart.com
Exceptions and Exclusions
This warranty does not include damage or defects resulting from misuse,
accident, failure to maintain, or any other causes following your purchased of the
product.
Use of the Lifter system with any other system or components ( including affixing
non Garage Smart attachments or accessories) voids this warranty. Failure to
follow the owner?s manual in installation or use of the Lifter system voids the
warranty. Unauthorized repair or modification voids the warranty.
The Lifter system is intended for personal, indoor, home use. Garage Smart does
not warrant its lift system for commercial use, and any such use voids the
warranty.
TO THEGREATEST EXTENT PERMITTED BYLAW, THISWARRANTYISIN LIEU OF
AND EXCLUDESALL OTHERWARRANTIESNOTEXPRESSLYSET FORTH HEREIN,
WHETHEREXPRESSORIMPLIED, INCLUDING BUT NOT LIMITED TO ANY
WARRANTIESOFMERCHANTABILITYAND FINESSFORA PARTICULARPURPOSE.
11
Limitation of Liability
THESOLEREMEDIESAFFORDED UNDERTHISWARRANTYAREREPAIR, REPLACEMENT, OR, IFREPAIRORREPLACEMENT ISNOT
COMMERCIALLYPRACTICABLEORCANNOTBETIMELYMADE, A REFUND OFTHEPURCHASEPRICE. IN NO EVENT SHALL THELIABILITYOF
GARAGESMART RELATED TO ANYPRODUCT EXCEED THEPURCHASEPRICEOFTHEPRODUCT. YOURUSEOFGARAGESMARTPRODUCTSISAT
YOUROWN RISK. GARAGESMART SHALL NOT BELIABLEUNDERANYCIRCUMSTANCESFORCONSEQUENTIAL, INDIRECT, SPECIAL, OR
INCEDENTAL DAMAGESARISING FROM ORIN CONNECTION WITH THEUSEOFANYGARAGESMART PRODUCT. (SOMESTATESDO NOTALLOW
THEEXCLUSION ORLIMITATIONOFINCIDENTAL ORCONSEQUENTIAL DAMAGES, SO THEABOVELIMITATION OREXCLUSION MAYNOT APPLY
TO YOU.)
Other Legal Rights
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
