Gardena 10000 SL Inox User manual

D
GBFNLS
I
E
P
DK
GARDENA
®

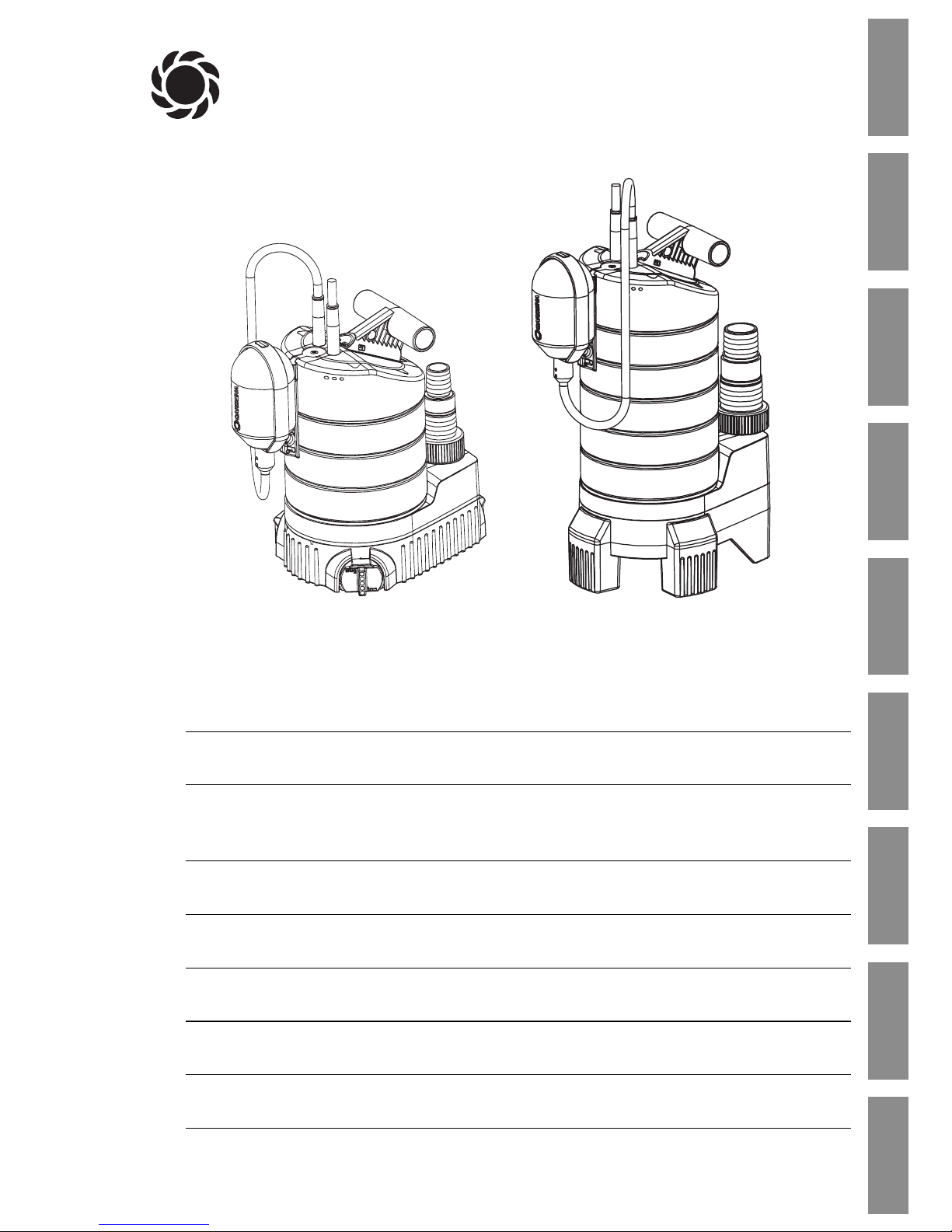

10000 SL Inox Art. 1784 18000 SP Inox Art. 1798
DGebrauchsanweisung
Tauchpumpe / Schmutzwasserpumpe
GB Operating Instructions
Submersible Pump / Dirty Water Pump
FMode d’emploi
Pompe d’évacuation pour eaux claires /
Pompe d’évacuation pour eaux chargées
NL Gebruiksaanwijzing
Dompelpomp / Vuilwaterpomp
SBruksanvisning
Dränkbar pump / Spillvattenpump
IIstruzioni per l’uso
Pompa sommersa / Pompa sommersa per acqua sporca
EManual de instrucciones
Bomba sumergible / Bomba para aguas sucias
PInstruções de utilização
Bomba submersível / Bomba para águas sujas
DK Brugsanvisning
Dykpumpe / Dykpumpe til urent vand

12
GB
Intended use
Liquids to be pumped
Please note
GARDENA
Submersible Pump 10000 SL Inox
Dirty Water Pump 18000 SP Inox
Welcome to the garden of GARDENA ...
Please read these operating instructions carefully and observe
the notes given. Use the instructions to familiarise yourself with
the pump, its correct use, and the notes on safety.
For safety reasons, children under 16 as well as persons not
familiar with these operating instructions should not use this
pump.
vKeep these operating instructions in a safe place.
1. Applications Range of Your GARDENA Pump . . . . . . . . . . . . . . . . 12
2. For Your Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3. Initial Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5. Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6. Trouble-Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7. Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
8. Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
9. Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1. Applications Range of Your GARDENA Pump
GARDENA Pumps have been designed for private use around
your house and garden. They are predominantly destinated for
drainage after flooding, transfer of liquids, draining containers, tak-
ing water from wells and shafts, draining boats and yachts as well
as for water aeration and circulation for a limited period of time.
Liquids which can be handled by the GARDENA Pump are the fol-
lowing: clean and contaminated water (max. particle size 10000 SL
Inox = 5 mm / 18000 SP Inox = 38 mm), swimming pool water
(prerequisite is the recommended dosage of additives) and soapy
water.
The pumps are fully submersible (waterproof sealed) and can be
immersed in the liquid down to a depth of 9 m.
The GARDENA Pumps are not designed for continuous
operation (e.g. continuous circulating operation) in a pond.
Your pump’s life will be shortened correspondingly by such
operation.
Corrosive, easily combustible or explosive substances
(e.g. gasoline, petroleum, nitro thinner), fats, oils, salt-water
and waste water of toilets and urinals must not be pumped.
The temperature of the liquid handled should not exceed
35 °C.
Contents

13
GB
2. For Your Safety
According to DIN VDE (German Electrical Engineers’ Associa-
tion) 0100, submersible pumps and dirty water pumps may only
be used in swimming pools, garden ponds, and fountains if the
pump is operated via a residual-current device with a residual-
current rating of ≤30 mA. The pump must not be operated
when there are persons in the swimming pool or garden pond.
For safety reasons we recommend that you always operate
the pump via a residual-current device (DIN VDE 0100-702
and 0100-738).
vPlease contact your electrician.
In Austria, according to ÖVE B/EN 60 555 part 1 to 3, pumps
which are used in swimming pools and garden ponds, and
equipped with firm power cable should be fed via an ÖVE
approved isolating transformer – rated voltage must not exceed
230 V.
In Switzerland mobile appliances which are used outdoors,
must be connected via a residual-current device.
According to DIN VDE (German Electrical Engineers’ Associa-
tion) 0620, mains power cables must not have a smaller cross-
section than the rubber-sheathed cables of the designation
H05 RNF (model 10000 SL Inox) or H07 RNF (model 18000 SP
Inox). The cable length must be at least 10 m.
Data indicated on the type plate must match technical data of
the mains supply.
vTake care that the electrical connections are made within
dry area, protected from flooding.
Protect plug and power cable from heat, oil and sharp edges.
vDon’t use the power cable for plugging off.
The power cable or the float switch must not be used for mount-
ing or relocating the pump. For submerging or lifting/securing
the pump, fix a rope to the pump’s carrying handle.
Extension cables must meet the requirements of DIN VDE 0620.
vBefore operating the pump, first make a visual check, if there
is any damage of the pump (esp. regarding power cable and
plug).
vObserve the minimum water level and the max. delivery
height (see 8. Technical Data).
A damaged pump must not be used.
vIn case of damage, please have the pump checked by our
GARDENA Service Centre.
During manual operation, the pump must be switched off as
soon as all the liquid has been pumped away.
vObserve the pump at all times during manual operation.
Dry-running operation causes increased wear and is to be
avoided. Therefore, in manual operation the pump must be
immediately unplugged when water fails to flow.
Avoid running of the pump for more than 10 min. against closed
delivery side of the pump.
Residual-current device
In Austria
In Switzerland
Mains power
Visual check
Manual operation
Notes on use

14
GB
Sand and other abrasive substances cause increased wear and
reduce the pump’s output.
Take care that the pump is located where the inlet openings at
the suction base are obstructed neither completely nor partly.
Stand the pump on a brick if using in a pond.
When you purchase your pump the swivel feet are set to the
flat suction position (1 mm).
vFor normal operation, turn the feet 180° to 5 mm.
The pump is lifted 5 mm.
vClear the outlet line before use.
The pump is automatically switched off on overheating by
the built-in thermal motor protector. After having cooled down,
the motor automatically switches on again (see 6. Trouble
Shooting).

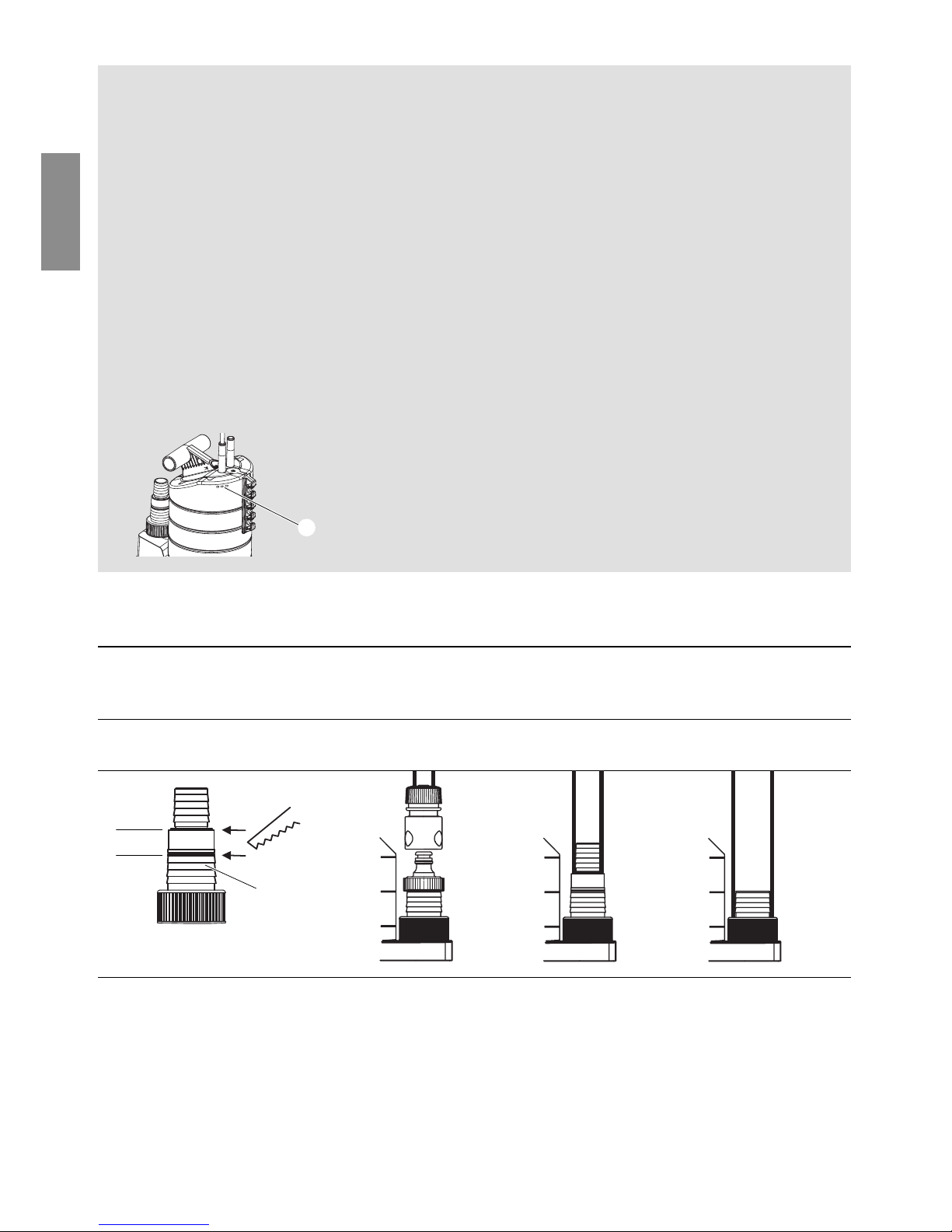

The automatic deaerating valve eliminates any air pockets in
the pump. Air escapes by the vent bores 4and air bubbles
form under water. This is not a defect of your pump, but serves
to deaerate the pump.
It may take several seconds for the air to escape when the
pump is immersed for the first time.
Note on
10000 SL Inox
Thermal motor protector
Automatic deaerating valve
4
3. Initial Operation
13 mm (1/2”)
Hose diameter 15mm (5/8”) 25 mm (1”) 38 mm (1 1/2”)
for 10000 SL Inox: 19 mm (3/4”)
Hose diameter
for 18000 SP Inox: – 38 mm (1 1/2”) 50 mm (2”)
Hose connection
of universal fitting 7
Hose connection Cut off topmost Do not cut off Cut off top two
nipple at a. any nipples. nipples at b.
The following connection kits are required for 13 mm to
19 mm connections:
13 mm (1/2”): GARDENA Pump Connection Set, Art. No. 1750
or GARDENA Tap Connector, Art. No. (2)902,
and GARDENA Standard Hose Connector,
Art. No. (2)915
7
a
b
For 10000 SL Inox:

15
GB
15 mm (5/8”): GARDENA Tap Connector, Art. No. (2)902,
and GARDENA Standard Hose Connector,
Art. No. (2)916
19 mm (3/4”): GARDENA Pump Connection Set, Art. No. 1752
or GARDENA Tap Connector, Art. No. 2802,
and GARDENA Standard Hose Connector,
Art. No. 2817.
Best results in delivery capacity are achieved when using 38 mm
(1 1/2”) hoses.
Best results in delivery capacity are achieved when using 50 mm
(2”) hoses.
The universal fitting 7allows you to connect all the hoses listed
in the previous table.
1. Cut off nipples of the universal fitting 7, which are not needed,
to match the hose connection.
2. Screw the universal fitting 7onto the pump.
3. Connect the hose to the universal fitting 7.
We recommend that you secure 50 mm (2”) and 38 mm (1 1/2”)
hoses additionally with a GARDENA Hose Clip Art. No. 7195
(for 50 mm) and Art. No. 7194 (for 38 mm).
Only for 10000 SL Inox:
For flat suction we recommend using a 13 mm (1/2”) or 15 mm
(5/8”) hose.
Only for 13 mm (1/2”) hose:
The universal fitting 7can also be equipped with a GARDENA
Regulator Valve Art. No. 977 so that the contents of the out-
let line do not flow back through the pump after pumping. The
Regulator Valve can be ordered from your GARDENA dealer.
4. Operation
The float switch 5turns the pump on automatically when the
water level exceeds the cut-in height and the water is pumped out.
The float switch 5turns the pump off again as soon as the water
level falls below the cut-out height.
1. Stand the pump on a firm surface
– or –
use a rope attached through the bore hole in the carrying
handle 2to immerse the pump in a well or shaft.
During automatic operation, ensure that the float switch
5
can move freely.
2. Plug the power cable 1into a mains socket.
For 18000 SP Inox:
Connecting the hose:
7
1
2
5
3
Automatic operation:

16
GB
Manual operation:
Only for 10000 SL Inox:
Flat suction /
Normal operation
Adjusting the Cut-in and Cut-out Height:
The maximum cut-in height and minimum cut-out height (see
8. Technical Data) can be adjusted.
vPress the cable of the float switch 5into an opening in the float
switch lock 3.
Do not select a cable length that is too long or short to ensure
that the float switch can turn on and off properly.
•The higher the opening of the float switch lock 3, the higher
the cut-in and cut-out height.
•The shorter the length of cable between the float switch 5
and the float switch lock 3, the lower the cut-in height and the
higher the cut-out height.
The cable length between the float switch 5and the float switch
lock 3must always be at least 10 cm.
The pump remains in constant operation because the float switch
is bypassed.
1. Push the float switch 5onto the float switch lock 3with the
cable downward.
2. Stand the pump on a firm surface
– or –
use a rope attached through the bore hole in the carrying
handle 2to immerse the pump in a well or shaft.
3. Plug the power cable 1into a mains socket.
The residual water height (approx. 1 mm for 10000 SL Inox /
40 mm for 18000 SP Inox) is only reached during manual opera-
tion since the float switch turns off the pump during automatic
operation before this water level is reached.
VIf the water height is lower than 3.5 cm, fill the pump
before operation over the universal fitting 7with water.
Flat suction: Normal operation:
v
Turn the 3 swivel feet
8v
Turn the 3 swivel feet
8
180° to 1 mm. 180° to 5 mm.
Flat suction up to 1 mm. Flat suction up to 5 mm.
The residual water level of approx. 1 mm is only reached during
flat suction in the manual operation mode. If the water level is
lower than 25 mm, you can accelerate flat suction by switching
the pump off and on 2 to 3 times.
5
3
8
5
3
1
2

17
GB
17
Flushing the Pump:

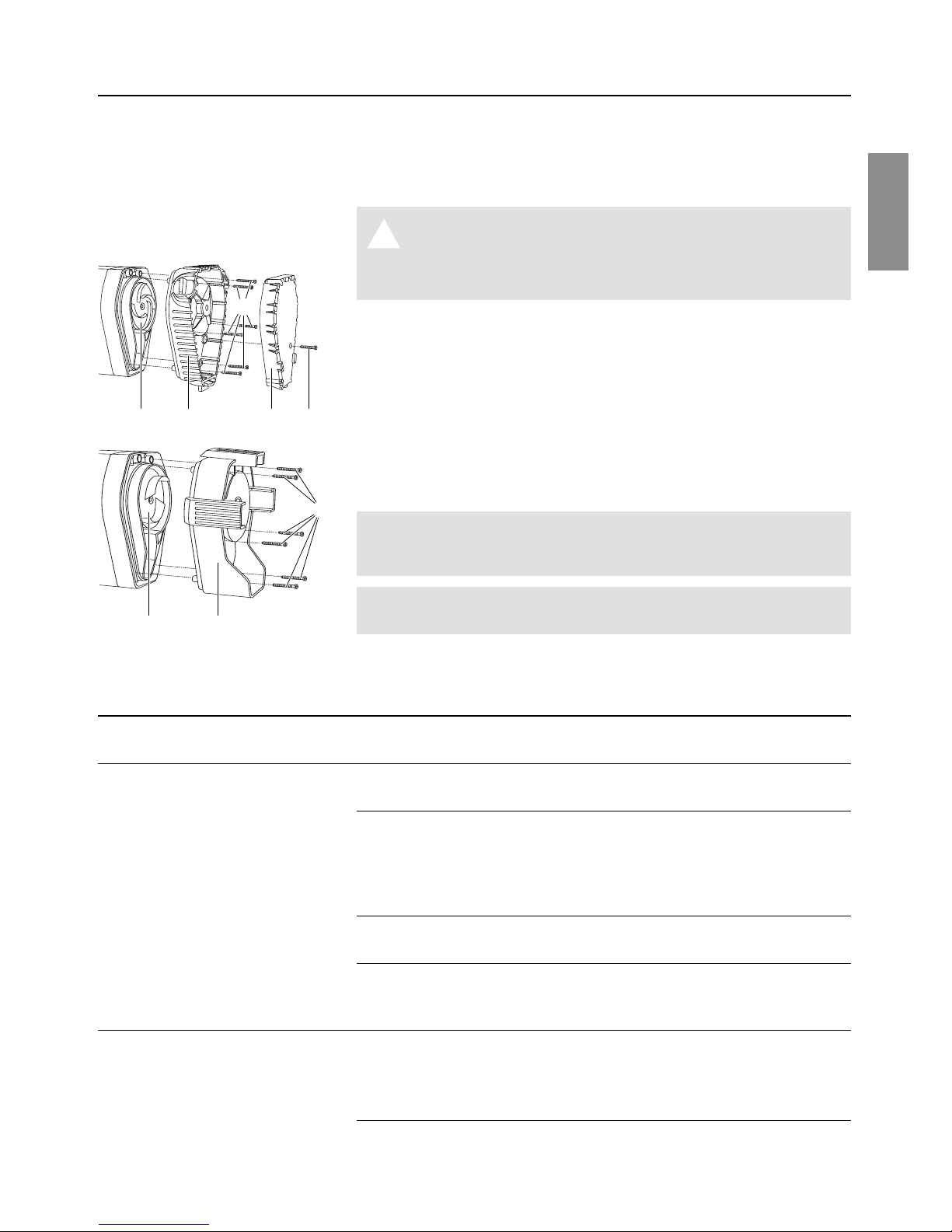

Cleaning the suction
base and impeller:
5. Cleaning
The pumps are virtually maintenance-free.
After having pumped chlorinated swimming pool water or other
liquids leaving residues, the pump should be rinsed with clear
water.
Warning! Electric shock!
ARisk of injury due to electric shock.
VDisconnect the pump from the mains before clean-
ing the suction base and impeller.
1. Only for 10000 SL Inox: Unscrew the Phillips screw A
and pull the suction base cover 0off the suction base 6.
2. Unscrew the 6 Phillips screws 8and pull the suction base 6
off the pump.
3. Clean suction base 6, impeller 9and suction base cover 0
if necessary.
4. Reinstall the suction base 6and screw in the Phillips screws 8.
5. Only for 10000 SL Inox: Insert the suction base cover 0into
the suction base 6and screw in the Phillips screw A.
Note for 10000 SL Inox:
It is often sufficient to simply remove the suction base cover 0
and clean the suction base cover 0and suction base 6.
For safety reasons a damaged impeller 9can only be ex-
changed by the GARDENA Service Centre.
6. Trouble-Shooting
Problem Probable cause Remedy
Pump is running, Air cannot escape, since vOpen pressure line
but doesn’t deliver. pressure line is closed. (e.g. kinked pressure pipe).
Air locks in the suction base. vWait for max. 60 seconds
until the pump deaerates
automatically over the vent
valve. If necessary, switch
off and start it again.
Impeller clogged. vDisconnect plug and clean
impeller (see 5. Cleaning).
When starting the pump, vSubmerge pump deeper.
water height falls below the
min. water level.
Pump doesn’t start or Thermal overload switch has vDisconnect plug and clean
suddenly stops during switched the pump off due impeller (see 5. Cleaning).
operation. to overheating. Observe max. media temper-
ature of 35 °C.
9 6 0 A
8
96
8

18
GB
Problem Probable cause Remedy
Pump doesn’t start or No power. vCheck fuses and electric
suddenly stops during connections.
operation. Dirt particles are jammed vDisconnect plug and clean
in the suction base. suction base (see 5. Clean-
ing).
Pump runs, but output Suction base is clogged. vDisconnect plug and clean
suddenly decreases. suction base (s. 5. Cleaning).
Only for 10000 SL Inox:
Pump does not reach The suction base cover 0vDisconnect the plug from
residual water height of is missing in the suction base. the mains and install the
1 mm during flat suction. suction base cover 0(see
5. Cleaning).
Attention! Repairs on electrical parts should only be done by our
GARDENA Service Centres.
If you have any problems with your Pump, please contact our Service.
7. Storing Your Pump
Store the pump away from frost before the first frost sets in.
The product must not be added to normal household waste. It
must be disposed of in line with local environmental regulations.
8. Technical Data
Submersible Pump Dirty Water Pump
Type 10000 SL Inox (Art. 1784) 18000 SP Inox (Art. 1798)
Rated power 380 W 1000 W
Max. delivery capacity 10.000 l/h 18.000 l/h
Max. pressure 0.7 bar 1.0 bar
Max. delivery height 7 m 10 m
Max. submersion depth 9 m 9 m
Residual water level 1 mm 40 mm
Contaminated water with
particle size of max. 5 mm 38 mm
Power cable 10 m H05 RNF 10 m H07 RNF
Pump connection 38 mm (1 1/2”)- / 25 mm (1”)- 50 mm (2”)- / 38 mm (1 1/2”)-
graduated nipple, option graduated nipple
GARDENA Water hose
Plug-in-system
Min. water level for operation 35 mm 100 mm
Weight approx. 4.4 kg 7.1 kg
Frost-free storage
Disposal:
(in accordance with
RL2002/96/EC)

19
GB

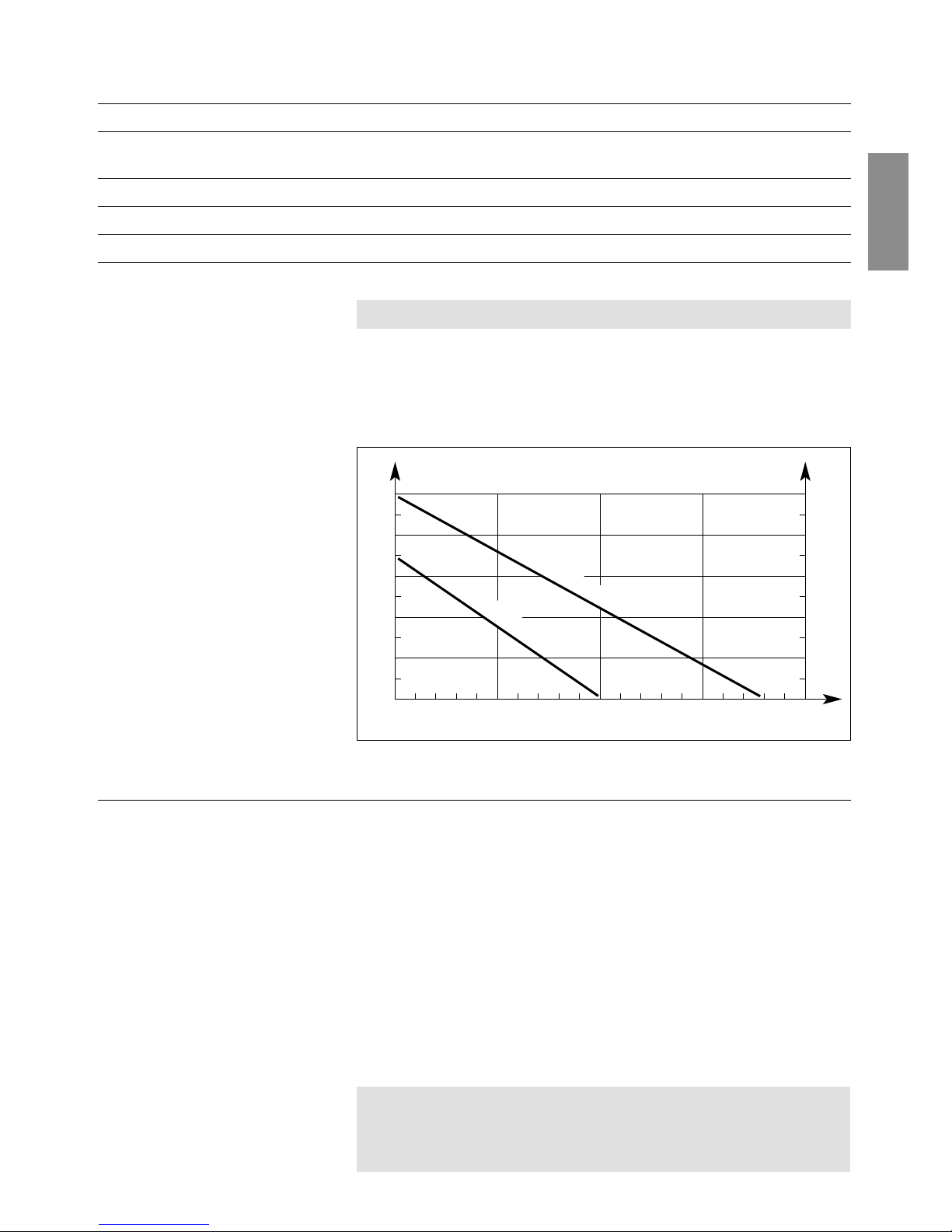

Performance characteristics
Submersible Pump Dirty Water Pump
Type 10000 SL Inox (Art. 1784) 18000 SP Inox (Art. 1798)
Max. media temperature 35 °C 35 °C
Mains voltage /
mains frequency 230 V / 50 Hz 230 V / 50 Hz
Min. cut-in height 235 mm 340 mm
Min./max. cut-out height 30 mm / 135 mm 50 mm / 225 mm
Noise level LWA1) 48 dB(A) 55 dB(A)
1) Measuring method according to EN 60335-1
The cut-in and cut-out height varies.
Only for 10000 SL Inox:
The residual water height (flat suction down to approx. 1 mm)
is only reached during manual operation with the swivel feet 8
Cut-in / Cut-out height
m
10
8
6
4
2
00 5000 10000 15000 20000 l/h
bar
1,0
0,8
0,6
0,4
0,2
10000 SL Inox
18000 SP Inox
Warranty
9. Service
GARDENA guarantees this product for 2 years (from date of
purchase). This guarantee covers all serious defects of the unit
that can be proved to be material or manufacturing faults. Under
warranty we will either replace the unit or repair it free of charge
if the following conditions apply:
•The unit must have been handled properly and in keeping
with the requirements of the operating instructions.
•Neither the purchaser or a non-authorised third party have
attempted to repair the unit.
The impeller is a wearing part and is not covered by the guaran-
tee.
This manufacturer’s guarantee does not affect the user’s existing
warranty claims against the dealer/seller.
If you have any problems with your pump, please contact our
Customer Service or return the defective unit together with
a short description of the problem directly to one of the
GARDENA Service Centres listed on the back of this leaflet.

20
GB
EU Certificate of Conformity
The undersigned
GARDENA Manufacturing · Hans-Lorenser-Str. 40 · D-89079 Ulm
hereby certifies that, when leaving our factory, the units indicated below are in accordance with the
harmonised EU guidelines, EU standards of safety and product specific standards.
This certificate becomes void if the units are modified without our approval.
Description of the units: Submersible Pump / Dirty Water Pump
Types: 10000 SL Inox / 18000 SP Inox
Art. No.: 1784 / 1798
EU directives: Machinery Directive 98/37/EC
Electromagnetic Compatibility 89/336/EC
Low Voltage Directive 73/23/EC
Directive 93/68/EC
Harmonised
European standards: EN 292-1 Ulm, 04.06.2002
EN 292-2
EN 60335-1
EN 60335-2-41
Year of CE marking: 2002 Thomas Heinl
Technical Dept. Manager
Product Liability
We expressly point out that, in accordance with the product
liability law, we are not liable for any damage caused by our
units if it is due to improper repair or if parts exchanged are not
original GARDENA parts or parts approved by us, and, if the
repairs were not carried out by a GARDENA Service Centre or
an authorised specialist. The same applies to spare parts and
accessories.

Deutschland / Germany
GARDENA
Manufacturing GmbH
Service Center
Hans-Lorenser-Straße 40
D-89079 Ulm
Produktfragen:
([phone]
Reparaturen:
([phone]
[e-mail]
Argentina
Argensem®S.A.
Calle Colonia Japonesa s/n
(1625) Loma Verde
Escobar, Buenos Aires
Phone: [phone]
[e-mail]
Australia
Nylex Consumer Products
50-70 Stanley Drive
Somerton, Victoria, 3062
Phone: [phone]
[e-mail]
Austria / Österreich
GARDENA
Österreich Ges.m.b.H.
Stettnerweg 11-15
2100 Korneuburg
Tel.: [phone]
[e-mail]
Belgium
GARDENA Belgium NV/SA
Sterrebeekstraat 163
1930 Zaventem
Phone: [phone]
Mail: [e-mail]
Brazil
Palash Comércio e
Importação Ltda.
Rua Américo Brasiliense,
2414 - Chácara Sto Antonio
São Paulo - SP - Brasil -
CEP 04715-005
Phone: [phone]
[e-mail]
Bulgaria
DENEX LTD.
2 Luis Ahalier Str. - 7th floor
Sofia 1404
Phone: [phone]
[e-mail]
Canada
GARDENA Canada Ltd.
100 Summerlea Road
Brampton, Ontario L6T 4X3
Phone: [phone]
[e-mail]
Chile
Antonio Martinic y Cia Ltda.
Cassillas 272
Centro de Cassillas
Santiago de Chile
Phone: [phone]
[e-mail]
Costa Rica
Compania Exim
Euroiberoamericana S.A.
Los Colegios, Moravia,
200 metros al Sur del Colegio
Saint Francis - San José
Phone: [phone]
[e-mail]
Croatia
KLIS d.o.o.
Stanciceva 79
10419 Vukovina
Phone: [phone]
[e-mail]
Cyprus
FARMOKIPIKI LTD
P.O. Box 7098
74, Digeni Akrita Ave.
1641 Nicosia
Phone: [phone]
[e-mail]
Czech Republic
GARDENA spol. s r.o.
Шнpskб 20a, и.p. 1153
627 00 Brno
Phone: [phone]
[e-mail]
Denmark
GARDENA Norden AB
Salgsafdeling Danmark
Box 9003
S-200 39 Malmö
[e-mail]
Finland
Habitec Oy
Martinkyläntie 52
01720 Vantaa
France
GARDENA
PARIS NORD 2
69, rue de la Belle Etoile
BP 57080
ROISSY EN FRANCE
95948 ROISSY CDG CEDEX
Tél. [phone]
service.consommateurs@
gardena.fr
Great Britain
GARDENA UK Ltd.
27-28 Brenkley Way
Blezard Business Park
Seaton Burn
Newcastle upon Tyne
NE13 6DS
[e-mail]
Greece
Agrokip
G. Psomadopoulos & Co.
33 A, Ifestou str. –
Industrial Area
194 00 Koropi, Athens
Phone: [phone]
[e-mail]
www.agrokip.gr
Hungary
GARDENA
Magyarország Kft.
Késmárk utca 22
1158 Budapest
Phone: [phone]
[e-mail]
Iceland
Ó. Johnson & Kaaber
Tunguhalsi 1
110 Reykjavik
[e-mail]
Ireland
Michael McLoughlin & Sons
Hardware Limited
Long Mile Road
Dublin 12
Italy
GARDENA Italia S.p.A.
Via Donizetti 22
20020 Lainate (Mi)
Phone: [phone]
[e-mail]
Japan
KAKUICHI Co. Ltd.
Sumitomo Realty &
Development Kojimachi
BLDG., 8F
5-1 Nibanncyo, Chiyoda-ku
Tokyo 102-0084
Phone: [phone]
[e-mail]
Luxembourg
Magasins Jules Neuberg
Grand Rue 30
Boîte postale 12
L-2010 Luxembourg
Phone: [phone]
[e-mail]
Netherlands
GARDENA Nederland B.V.
Postbus 50176
1305 AD ALMERE
Phone: [phone]
[e-mail]
Neth. Antilles
Jonka Enterprises N.V.
Sta. Rosa Weg 196
P.O. Box 8200
Curaçao
Phone: [phone]
[e-mail]
New Zealand
NYLEX New Zealand Limited
Building 2, 118 Savill Drive
Mangere, Auckland
Phone: [phone]
[e-mail]
Norway
GARDENA Norden AB
Salgskontor Norge
Karihaugveien 89
1086 Oslo
[e-mail]
Poland
GARDENA Polska Sp. z o.o.
Szymanów 9 d
05-532 Baniocha
Phone: [phone]
[e-mail]
Portugal
GARDENA Portugal Lda.
Recta da Granja do Marquês
Edif. GARDENA Algueirão
2725-596 Mem Martins
Phone: [phone]
[e-mail]
Romania
MADEX INTERNATIONAL SRL
Soseaua Odaii 117-123,
Sector 1,
Bucureєti, RO 013603
Phone: [phone]
[e-mail]
Russia / Россия
АО АМИДА ТТЦ
ул. Моcфилмовcкая 66
117330 Моcква
Phone: (+ 7) 095 956 99 00
[e-mail]
Singapore
Hy - Ray PRIVATE LIMITED
40 Jalan Pemimpin
#02-08 Tat Ann Building
Singapore 577185
Phone: [phone]
[e-mail]
Slovak Republic
GARDENA Slovensko, s.r.o.
Panónska cesta 17
851 04 Bratislava
Phone: [phone]
[e-mail]
Slovenia
Silk d.o.o.
Brodiљиe 15
1236 Trzin
Phone: [phone]
[e-mail]
South Africa
GARDENA
South Africa (Pty.) Ltd.
P.O. Box 11534
Vorna Valley 1686
Phone: [phone]
[e-mail]
Spain
GARDENA IBÉRICA S.L.U.
C/ Basauri, nº 6
La Florida
28023 Madrid
Phone: [phone]
[e-mail]
Sweden
GARDENA Norden AB
Försäljningskontor Sverige
Box 9003
200 39 Malmö
[e-mail]
Switzerland / Schweiz
GARDENA (Schweiz) AG
Bitziberg 1
8184 Bachenbülach
Phone: [phone]
[e-mail]
Turkey
GARDENA / Dost Diþ Ticaret
Mümessillik A.Þ. Sanayi
Çad. Adil Sokak No.1
Kartal - Ýstanbul
Phone: [phone]
[e-mail]
Ukraine / Украина
ALTSEST JSC
4 Petropavlivska Street
Petropavlivska
Borschahivka Town
Kyivo Svyatoshyn Region
08130, Ukraine
Phone: [phone]
[e-mail]
USA
Melnor Inc.
3085 Shawnee Drive
Winchester, VA 22604
Phone: [phone]
[e-mail]
1784-20.960.03 / 0606
©GARDENA
Manufacturing GmbH
D-89070 Ulm
http://www.gardena.com
84
