GARDENJACK EPW1800 Installation manual

EPW1800
O
RIGINAL INSTRUCTIONS
SAFETY AND OPERATING MANUAL

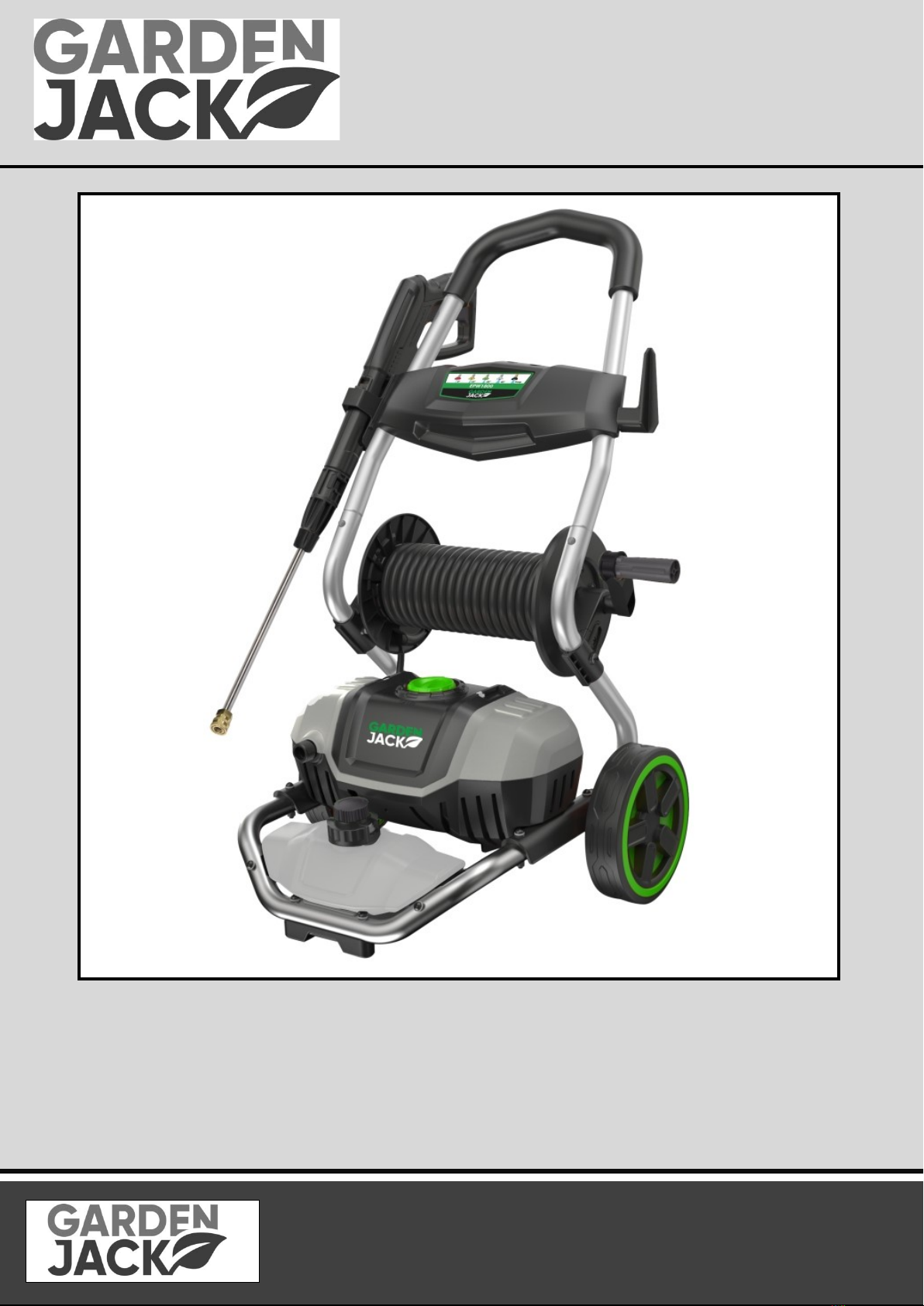

Electric Pressure Washer
EPW1800

EPW1800
Welcome to Gardenjack!
Dear Customer, Congratulations on your purchase. Before using the
Product for the first time please be sure to read these instructions for use.
They provide you with all information necessary for using the product safely and to
ensure its long service life.
Closely observe allsafety information in these instructions!
General Safety Warnings…..................………………………………...01 - 02
Safety Symbols ……….…………………………………….……….....................03
Machine Details and Product Includes……….…………………………….….04
Assembly……………………………………………………………………………….......05
Pressure Washer Operation…….....…..………………………………….06 - 07
Vacuum Operation & Care / Maintenance……………………………........08
Troubleshoot...............………………………………………………….…………….09
Gardenjack Guarantee.....…………………………………………………………….10
Parts Diagram..........…………………………………………………………………...13

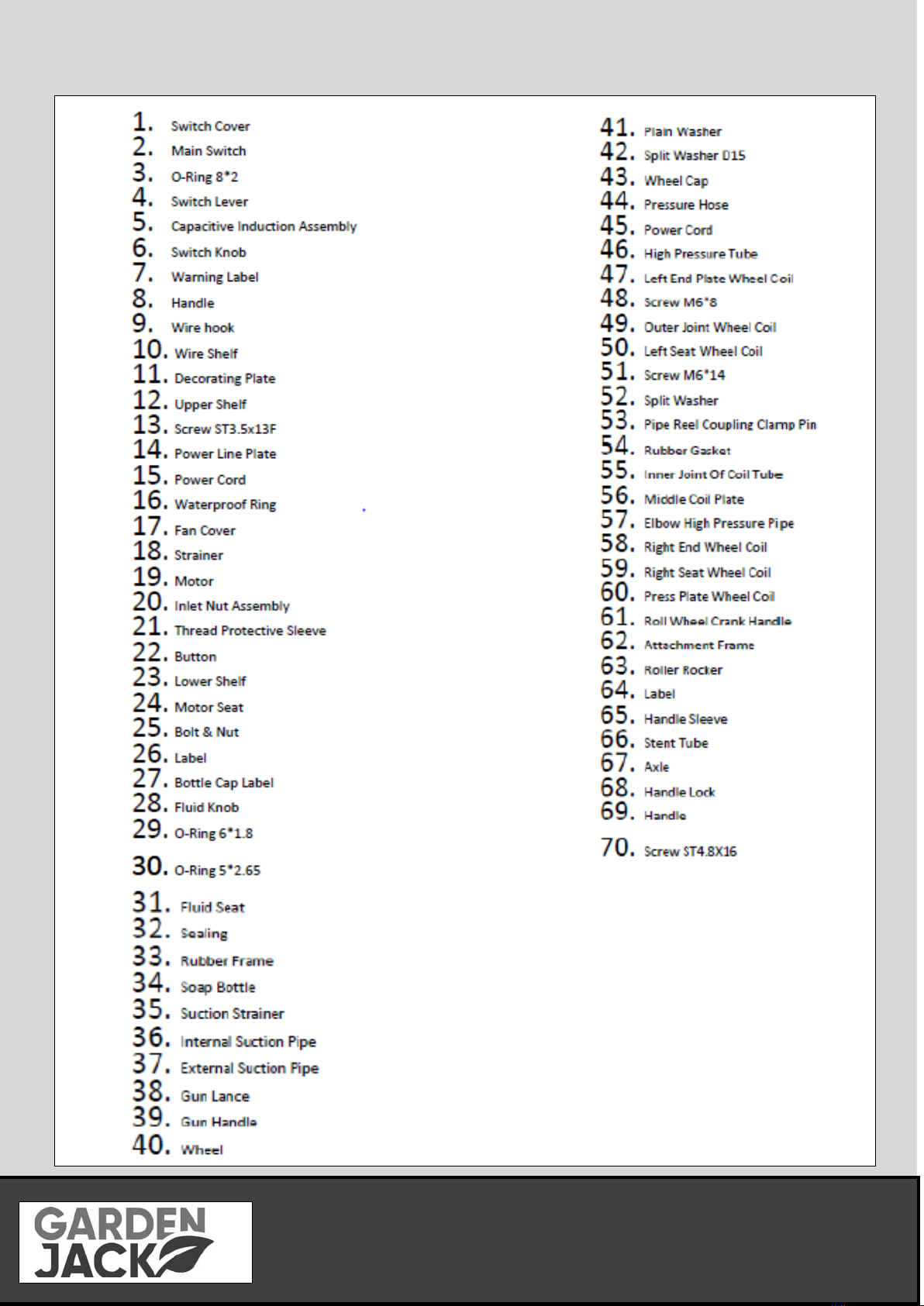

Parts List………………………………………………………………….........…….......14
Gardenjack Guarantee & EC Declaration………………………………………11
Declaration…………………………............................................……………12

EPW1800
01
GENERAL SAFETY WARNINGS
WARNING Read all safety warnings and
all instructions. Failure to follow the warnings
and instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for
future reference. The term "power tool" in
the warnings refers to your electric (corded)
power tool or battery-operated (cordless) power
tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use
any adapter plugs with grounded power tools.
Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with grounded surfaces,
such as pipes, radiators, ranges and
refrigerators. There is an increased risk of
electric shock if your body is grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk
of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power
tools may result in serious personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off position before connecting to
power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your
finger on the switch or energising power tools that
have the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.

EPW1800
02
GENERAL SAFETY WARNINGS
e) Do notover reach. Keep proper footing and
balance at alltimes. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery.Keep your hair, clothing and gloves
away from moving parts. Loose clothes,
jewellery or long hair can becaught in moving
parts.
4. Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does
not turn it on and off. Any power tool that
cannot be controlled with the switch is
dangerous and must be repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment
or binding ofmoving parts, breakage ofparts and
any other condition thatmay affect the power
tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by
poorly maintained power tools.
f) Use the power tool, accessories and tool bits
etc. in accordance with these instructions, taking
into account the working conditions and the work
to be performed. Use ofthe power tool for
operations different from those intended could
result in a hazardous situation.
5. Service
a) Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
b) If the replacement of the supply cord is
necessary, this has to be done by the
manufacturer or its agent in order to avoid a
safety hazard.

EPW1800
03
SAFETY SYMBOLS
Read the manual before set-up and/or use.
Do not dispose with house-hold waste.
SYMBOL DESCRIPTION
Conforms to relevant safety standards.

EPW1800
04
MACHINE DETAILS AND PRODUCT INCLUDES
Included:
1. High Pressure Hose
2. Accessories Hook
3. High Pressure House Hook
4. Handle
5. Switch Assembly
6. Motor Pump
7. Water Inlet Connector
8. Soap Bottle Assembly
9. Adjustable Nozzle
10. Gun
11. Power Cord
12. Hose Reel Assembly
13. Extension Wand
14.
Technical Specifications:
Power Output: 1800W
Voltage: 220V 50Hz
Rated Pressure: 100bar
Max Pressure: 140bar 2030 PSI
Rated Flow: 6L/min
Max Flow: 7L/min
Max Water Inlet
Pressure: 1.2 MPa
Max Water Inlet
Temperature: 50°C
Dimensions: 889 x 508 x 635mm
Weight: 14kg

01010101
EPW1800
05

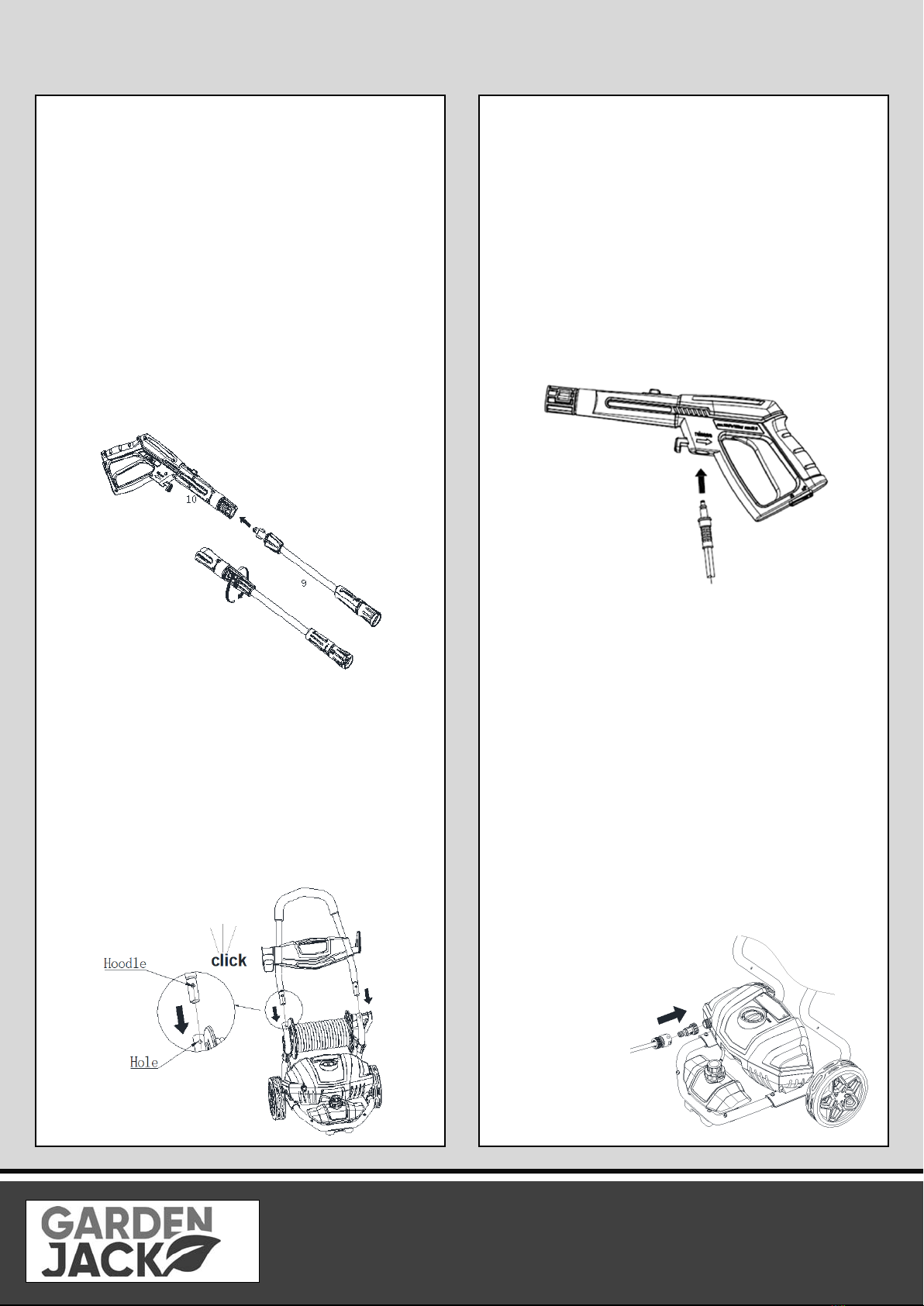

Assembly InstructionsAssembly Instructions
1.Install the spray wand to the
trigger gun
Insert the adjustable spray wand (9) into
the trigger gun (10). Push and turn the
adjustable nozzle clockwise onto the
trigger gun (10) until hand tight to lock it
in place. When the pieces are joined
properly, you cannot separate the two
components by pulling straight out on the
adjustable nozzle. All attachments must
be inserted into the gun for proper use.
2. Join the handle assembly
Insert the two ends of the handle assembly
into the two holes at the top of the base as
shown. Press the hoodle until it is inserted
into the hoodle hole, and the handle is
fixed when you hear a "CLICK" sound.
3. Attach the high pressure hose to
the trigger gun
Attach the high pressure hose to the gun.
Insert and quick-connect it tight to avoid
leakage. When the pieces are joined
properly, you cannot separate the two
components by pulling straight out from
the gun. Push the hose lock button, then
you can pull out high pressure hose.
4. Attach the high pressure hose to
the pressure washer
Attach the hose connector to pressure
washer. Before attaching the connector to
the male fitting, remove the plastic cap,
which is inserted onto the male fitting on
the pressure washer before shipping. This
plastic cap can be discarded once
removed. After both components have
been installed, attach the garden hose
with connector screw on the pressure
washer. Connect the garden hose to the
waterspout.

01010101
EPW1800
06
Operating Instructions
Starting Up.
Warning: ALWAYS turn off the unit's
motor BEFORE turning off the unit's
water supply.
Serious damage could occur to the motor
if the unit is run without water.
1. Turn on the water supply tap fully.
2.Unlock trigger (by pressing the safety
button first and then actuate the trigger)
for a few seconds; let the water flow out
from the nozzle.
3. Check if water leaks from joints. If it
does, please reconnect the water hose,
the spray gun or the lance to make sure
each accessory is connected correctly.
4. Connect to power supply.
5. Set the power switch at the position
"I"
Stopping the washer
Warning: ALWAYS turn off the unit's
motor BEFORE turning off the unit's
water supply.
Serious damage could occur to the motor
if the unit is run without water.
1. Release the trigger, the motor will
stop operation.
2. Set the switch at the position" O".
3. Disconnect the plug from the socket.
WARNING! Failure to follow the above
instructions may cause damage to the
machine.
Changing accessories
1. Release the trigger.
2. Turn off the power switch (the
position" O").
3. Disassemble the original adjustable
Nozzle.
4. Mount the adjustable Nozzle and
Detergent Bottle.
CAUTION: Never disconnect the high -
pressure discharge hose from the
machine while the system is still
pressurised. To depressurise the unit,
turn off the motor, turn off the water
supply and squeeze the trigger 2-3
times.

01010101
EPW1800
07
Operating Instructions
1. Safety valve and/or pressure
limiting valve
Warning!
Do not tamper with or adjust the safety
valve setting.
The safety valve is also a pressure limiting
valve. When the gun trigger is released,
the valve opens , pressure switch action,
the machine automatically shut down.
If the gun nozzle is blocked, the machine
pressure rises and the safety valve opens
the pressure switch action and the
machine automatically shut down. You
can refer to the following point 7 to use a
needle to clean the nozzle.
2. Automatic On/Off
The pressure cleaner is equipped with an
automatic on/off switch. The pressure
cleaner will only run when the power
switch is in the ON position and the
trigger on the gun is squeezed. When you
release the trigger to stop spraying water
through the gun, the motor on the
pressure cleaner will automatically shut
off. Simply squeeze the trigger again to
resume using the cleaner. To stop using
the pressure cleaner, release the trigger
and switch the unit to the OFF position.
The unit should be turned completely
OFF while not in use or while unattended.
3. Hold the gun
It is very important to bleed the gun
before using the pressure cleaner. Refer
to the “Assembly Instructions” to
assemble the pressure cleaner. To bleed
the gun, simply connect the garden hose
to the pressure cleaner and squeeze the
trigger BEFORE turning the electrical
supply on. This allows any air trapped
inside the pressure cleaner and gun to be
removed before using the unit. Continue
holding trigger for approximately one
minute to allow any excess air out of the
unit. Water will flow through the gun at
low pressure during this procedure. For
more bleeding tips, see the section titled
“Operating Instructions.”
4.Gun Safety Lock
This pressure cleaner is equipped with a
gun trigger safety lock. When not using
the pressure cleaner, use the safety lock
to keep from accidentally engaging the
high pressure spray.

01010101
EPW1800
08
Operating Instructions
5. Using cleaning agent
- Fill detergent tank with an appropriate
cleaning agent.
- The cleaning agent automatically
comes out when being set to low-
pressure water jet by turning pressure
adjusting ring of variable nozzle lance.
6. Adjustable Spray Nozzle
The adjustable nozzle will allow you to
use any variety of spray patterns from a
full fan spray (Diagram 1) to a direct
stream spray (Diagram 2). When using
the pressure washer to clean wood
decks, siding, vehicles etc., always start
using the fan spray and begin spraying
from a minimum 36” away to avoid
damaging the surface of the material you
are cleaning. Always begin by spraying in
a testing area free and clear of people
and objects.
7. Rotate The Gun
The gun rotating will adjust your cleaning
angle during a full fan spray pattern, to
make every user find its most comfortable
and efficient cleaning position. Push the
button to “unlock” side, the rotating
function will be opened. And push the
button to “unlock” side if you don’t need
this function.
8. Unblock lance
When the nozzle is clogged, it will cause the
pump to build pressure and may cause unit
to surge, you can clean the nozzle inserting
needle into the tip to rid of the deposits.
For the adjustable nozzle, you can lubricate
the nozzle collar (high pressure to low
pressure) by using non-water soluble grease
regularly.

01010101
EPW1800
09
TROUBLESHOOTING
Turn off the appliance and remove the main plug prior to performing any care and
maintenance work. Repair work and work on the electrical components may not only be
performed by an authorised customer service. You can rectify minor faults yourself with the
help of the following overview. If in doubt, please consult the authorised customer service.

01010101
EPW1800
10
GARDENJACK GUARANTEE
1. Guarantee
1.1 Lumberjack guarantees befree from
defects caused by faulty construction or
manufacture. 1.2. During this period
Lumberjack, will repair or replace free of
charge anyparts which areproved tobe
faulty inaccordance with paragraph 1.1
providing that: 1.2.1 You follow the
claims procedure set out in clause 2
1.2.2 Lumberjack and its authorised
dealers are given reasonable opportunity
after receiving notice ofthe claim to
examine the product 1.2.3 If asked to do
sobyLumberjack or its Authorised
dealer, you return the product at your
owncost to Lumberjack’s or supplying
Authorised
Dealer’s premises, for the examination
to take place clearly stating the Returns
Material Authorisation number given by
Lumberjack or an Authorised Dealer.
1.2.4 The fault in question is not caused
by industrial use, accidental damage, fair
wear and tear, wilful damage, neglect,
incorrect electrical connection, misuse,
or alteration or repair of the product
without approval. 1.2.5 The product has
been used in a domestic environment
only 1.2.6 The fault does not relate to
consumable items suchas blades,
bearings, drive belts, or other wearing
parts which can reasonably be expected
to wear at different rates depending on
usage.
1.2.7 The product has not been used for
hire purposes. 1.2.8 The product has been
purchased by you as the guarantee isnot
transferable from a private sale. 2. Claims
Procedure2.1 In the first instance please
contact theAuthorised Dealer who
supplied the product to you. In our
experience many initial problems with
machines that are thought to be faulty due
to faulty parts are actually solved by
correct setting up or adjustment of the
machine. Agood Authorised Dealer should
beable to resolve the majority ofthese
issues much more quickly than processing
aclaimunder theguarantee. If a return is
requested by the Authorised Dealer or
Lumberjack, you will be provided with a
Returns Material Authorisation number
which must be clearly stated on the
returned package, andany accompanying
correspondence. Failure toprovide a
Returns Material Authorisation number
may result in item being refused delivery
atAuthorised Dealer. 2.2 Any issues with
the product resulting in a potential claim
under the guarantee must be reported to
the Authorised Dealer from which it was
purchased within 48hours of Receipt. 2.3
If the Authorised Dealer who supplied the
product to you has been unable to satisfy
your query, anyclaims madeunder this
Guarantee should bemade directly to
Lumberjack.

01010101
EPW1800
11
GARDENJACK GUARANTEE / EC DECLARATION OF CONFORMITY
of purchase toLumberjack. If you
include a contact number with this it will
speed your claim up.
2.4 Pleasenote that it is essential that
the letter ofclaim reaches Lumberjack on
the last day ofthis Guarantee at the
latest. Late claims will not be considered.
3. Limitation ofLiability
3.1 We only supply products for
domestic and private use. You agree not
to usethe product for any commercial,
business or resale purposes and we have
no liability to you for any loss of profit,
loss ofbusiness, business interruption or
loss ofbusiness opportunity.
3.2 This Guarantee does not confer any
rights other thanthese expressly set out
above and does not cover any claims for
consequential loss or damage. This
Guarantee is offered as anextra benefit
and does not affect your statutory rights
as a consumer.
4. Notice
This Guarantee applies to all product
purchased from an Authorised Dealer of
Lumberjack within the United Kingdom.
Terms ofGuarantee may vary in other
countries.
EC DECLARATION OF CONFORMITY
We hereby declare that the machine
described below complies with the
relevant basic safety Directives, both in
its basic design and construction as well
as in the version put into circulation by
us. This declaration shall cease to be valid
if the machine is modified without our
prior approval.
2000/14/EC
2014/30/EU
2006/42/EC
2011/65/EU
Type of instrument: Pressure Washer
LT510-1600A (B) / LT510-1800A (B) /
LT511-1600A (B) / LT511-1800A (B) /
LT511-1600MINI
Applicable EU directives:
• EU Machinery Directive 2006/42 / EC
• EU Low Voltage Directive 2014/35 / EU
• EU directive on electromagnetic
compatibility 2014/30 / EC
• Noise & Vibration ISO 3744 & ISO5349
Measured sound power level: 87.5 dB
Guaranteed sound power level: 91 dB
The undersigned act on behalf and
under the power of attorney of the
company management.
Authorised Documentation
Representative

EPW1800
12
CE DECLARATION OF CONFORMITY
GARDENJACK
Unit C, Manders Ind. Est.,
Old Heath Road, Wolverhampton,
WV1 2RP.
Tel: [phone]
Declaresthat the ELECTRIC PRESSURE WASHER (EPW1800)
Is in compliance with the regulations included in the Directives: 2014/35/EU
EC DECLARATION OF CONFORMITY
Certificate for EC-type examination delivered by Intertek Testing Services Hangzhou – 16 No. 1 Ave.,
Xiasha Economic Development District, Hangzhou 310018, China (Registration No.:190900418HZH-
V1)
Person who declares: Bill Evans
07.04.2021
The Director

010101
EPW1800
13
Parts Diagram

Parts List
EPW1800 14
