Gardenline PCH25 User manual

26cc 2-Stroke Petrol Chainsaw
User Guide
After Sales Support
Now you have purchased a Gardenline®
product you can rest assured in the
knowledge that as well as your
3 year parts and labour guarantee
you have the added peace of
mind of dedicated helplines
and web support
AFTER SALES SUPPORT
1800 909 909
www.powertoolsupport.com
MODEL: PCH25 PRODUCT CODE: 46460 10/2014
YEAR WARRANTY
2
AUS

SUA 1800 909 909 www.powertoolsupport.com email: [email protected]
AFTER SALES SUPPORT 46460
2
Contents
03 Warranty
03 Introduction
03 Environmental protection
04 Description of symbols
04 Symbols on the machine
05 Specifications
06 General safety instructions
08 Additional safety rules for petrol chainsaws
11 Unpacking
11 Contents of carton
12 Parts list
13 Unpacking
13 Fitting the bucking spikes
13 Installing the guide bar and chain
15 Filling up with fuel and oil
17 Adding chain oil
17 Starting the chainsaw
18 Stopping the chainsaw
18 Checking the oil supply
19 Adjusting the carburettor
19 Chain brake
20 Operation
20 Guard against kickback
21 Felling a tree
03 Guard against kickback
03 Felling a tree
22 Limbing
22 Bucking
22 Pruning
23 Maintenance
25 Service

SUA 1800 909 909 www.powertoolsupport.com email: [email protected]
AFTER SALES SUPPORT 46460
3
Introduction
Your new Gardenline®chainsaw will more than satisfy
your expectations. It has been manufactured under stringent
Gardenline®Quality Standards to meet superior performance
criteria.
You will find your new chainsaw easy and safe to operate, and, with proper care,
it will give you many years of dependable service.
CAUTION. Carefully read through this entire instruction manual before using
your new Gardenline®chainsaw. Take special care to heed the Cautions and
Warnings.
Your Gardenline®chainsaw has many features that will make your job faster and
easier. Safety, performance, and dependability have been given top priority in the
development of this chainsaw, making it easy to maintain and operate.
Environmental protection
Recycle unwanted materials instead of disposing of them as waste.
All tools, hoses and packaging should be sorted, taken to the local
recycling centre and disposed of in an environmentally safe way.
1
What your 3 year warranty means
Great care has gone into the manufacture of this product and it should
therefore provide you with years of good service when used properly.
In the event of product failure within its intended use over the
course of the first 3 years after the date of purchase, we will remedy
the problem as quickly as possible once it has been brought to our
attention. In the unlikely event of such an occurrence, or if you require
any information about the product please contact us via our after sales
support services, details of which can be found in this manual and on
the product itself.
After Sales Support TEL: [phone]
YEAR WARRANTY

SUA 1800 909 909 www.powertoolsupport.com email: [email protected]
AFTER SALES SUPPORT 46460
4

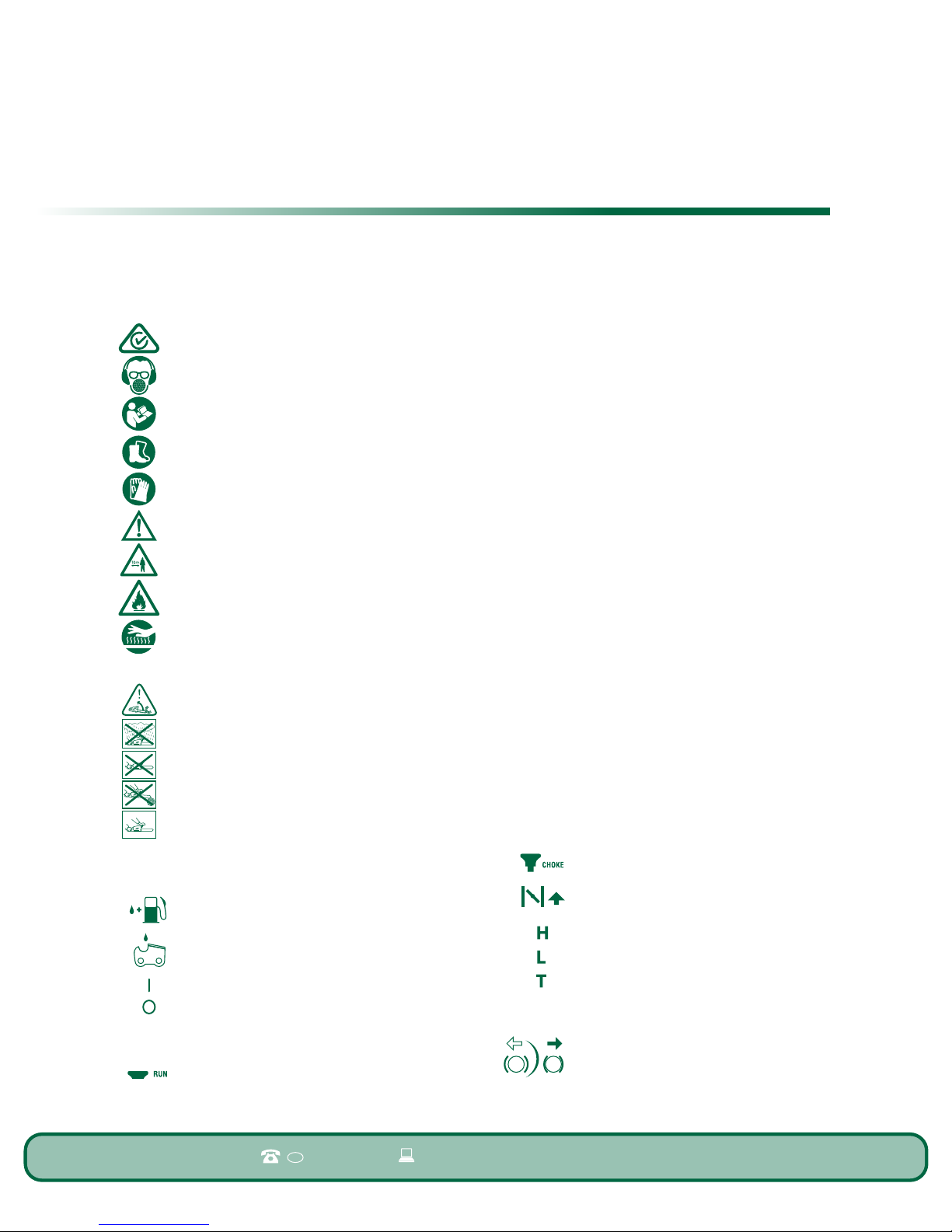

Description of symbols
The rating plate on your tool may show symbols. These represent important
information about the product or instructions on its use.
Conforms to relevant safety standards.
Wear hearing protection. Wear eye protection. Wear head protection.
Read these instructions for use carefully.
Wear safety footwear.
Wear safety gloves.
Warning.
Use at a distance of at least 10m from other people.
Explosive material.
Extremely hot surface. Do not touch a hot muffler, gear box or cylinder, you
may get burned. These parts get extremely hot from operation and remain
hot for a short time after the unit is turned off.
WARNING! Danger of kickback.
Do not operate unit in the rain.
Do not attempt to hold saw with one hand.
Do not use the point of the bar.
Hold saw properly with both hands.
General Information & Safety Instructions
2
Symbols on the machine
Fuel inlet.
(Position: under the fuel tank cap.)
Chain oil inlet.
(Position: next to the oil tank cap.)
On/Off.
(Position: on the on/off switch.)
Setting the on/off switch to Off,
stops the engine immediately.
Run position.
Start position (when engine is cold.)
Choke control
(Position: next to knob on the filter cover)
High run adjustment screw.
Low run adjustment screw.
Idle adjustment screw.
(Position: left side of machine close
to pull start handle.)
Chain brake released (hollow arrow)
and activated (solid arrow.) (Position:
right side of machine, on chain drive cover.)

SUA 1800 909 909 www.powertoolsupport.com email: [email protected]
AFTER SALES SUPPORT 46460
5
2
General Information & Safety Instructions
Specifications
Engine displacement: 26 cc
Maximum engine power: 700W
Engine type: Air cooled, single cylinder, two-stroke cycle
Recommended maximum
engine speed at idling: 3000+/- 500 min-1
Maximum engine speed
with cutting attachment: 10000 min-1
Fuel type: Unleaded petrol/2-stroke oil (25:1)
Fuel tank capacity: 230 ml
Bar oil tank capacity: 160 ml
Bar and chain lubricant: Standard bar and chain oil
Bar oil feed system: Mechanical pump
Sprocket wheel: 6–teeth x 9.525 mm (3/8”) pitch
Chain Bar Type: Sprocket nose
Chain bar length: 305 mm (12”)
Chain pitch: 9.525 mm (3/8”)
Weight (including guide bar
and chain): 3.85 kg
Sound pressure level: 112 db(A)
Noise level. 88 dbA measured at 7 metres
Spark plug: NHSP LD L8RTF
Alternate Spark Plugs: Alt Bosch WSR6A NKG BPMR7A

SUA 1800 909 909 www.powertoolsupport.com email: [email protected]
AFTER SALES SUPPORT 46460
6
2
Safety instructions
WARNING Read and understand all instructions. Failure to follow all instructions
listed below may result in electric shock, fire and/or serious injury. The term “power
tool” in all of the warnings below refers to your mains-operated (corded) power
tool, battery-operated (cordless) power tool, or petrol operated power tool.
Save these instructions
Work area
• Keepworkareacleanandwelllit.Clutteredanddarkareasinviteaccidents.
• Donotoperatepowertoolsinexplosiveatmospheres,suchasinthepresenceof
flammable liquids, gases, or dust. Power tools create sparks which may ignite the
dust or fumes.
• Keepchildrenandbystandersawaywhileoperatingapowertool.Distractions
can cause you to lose control.
Personal safety
• Stayalert,watchwhatyouaredoingandusecommonsensewhenoperatinga
power tool. Do not use a power tool while you are tired or under the influence
of drugs, alcohol, or medication. A moment of inattention while operating power
tools may result in serious personal injury.
• Usesafetyequipment.Alwaysweareyeprotection.Safetyequipmentsuchas
a dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
• Removeanyadjustingkeyorwrenchbeforeturningthetoolon.Awrenchor
a key that is left attached to a rotating part of the power tool may result in
personal injury.
• Donotoverreach.Keepproperfootingandbalanceatalltimes.Thisenables
better control of the power tool in unexpected situations.
• Dressproperly.Donotwearlooseclothingorjewellery.Keepyourhair,clothing
and gloves away from moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
• Ifdevicesareprovidedfortheconnectionofdustextractionandcollection
facilities ensure that these are connected and properly used. Use of these devices
can reduce dust-related hazards.
General Information & Safety Instructions

SUA 1800 909 909 www.powertoolsupport.com email: [email protected]
AFTER SALES SUPPORT 46460
7
2
Power tool use and care
• Donotforcethepowertool.Usethecorrectpowertoolforyourapplication.
The correct power tool will do the job better and safer at the rate for which it was
designed.
•Donotusethepowertooliftheswitchdoesnotturnitonandoff.Anypowertool
that cannot be controlled with the switch is dangerous and must be repaired.
• Turntooloffcompletelybeforemakinganyadjustments,changingaccessories,or
storing power tools. Such preventive safety measures reduce the risk of starting
the power tool accidentally.
• Storeidlepowertoolsoutofthereachofchildrenanddonotallowpersons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
• Maintainpowertools.Checkformisalignmentorbindingofmovingparts,
breakage of parts and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
• Keepcuttingtoolssharpandclean.Properlymaintainedcuttingtoolswithsharp
cutting edges are less likely to bind and are easier to control.
• Usethepowertool,accessoriesandtoolbitsetc.,inaccordancewiththese
instructions and in the manner intended for the particular type of power tool, taking
into account the working conditions and the work to be performed. Use of the power
tool for operations different from intended could result in a hazardous situation.
Service
• Haveyourpowertoolservicedbyaqualiedrepairpersonnelusingonlyidentical
replacement parts. This will ensure that the safety of the power tool is maintained.
General Information & Safety Instructions

SUA 1800 909 909 www.powertoolsupport.com email: [email protected]
AFTER SALES SUPPORT 46460
8
2
Additional safety rules for petrol chainsaws
Note. For safety reasons the chainsaw is shipped with the chain brake fully
engaged. This brake must be released before the saw becomes operational.
•Nevercutintotheground.
•Nevercutintowirefences.
•Nevercutintosaplings.
•Nevercutintopreparedwood.
•Usethechainsawtocutonlywood.
•Itisadvisabletoprovideasupportforthechainsawwhencuttingbranches.
Do not cut using the bar point and beware of branches under tension.
•Childrenunder18mustnotusechainsaws.
•Keeppeopleawayfromthechainsawwheninuse.
•Checkthefollowingconditionsbeforebeginningwork:
– There should be no people in the felling area.
– Make sure there is a second person within calling distance.
– The working area should be free from obstacles.
•Wearsuitableclotheswhichdonothindermovement.
•Usespecicprotectionduringoperationsinvolvinghead,hands,feet,
eyes and ears.
•Itisrecommendedtheuseofahelmetwithavisorduringfelling,branchcutting
and chopping operations.
•Weargloveswithanexternalprotectionwhenusingthechainsaw.
•Useearprotectiontopreventhearinginjuries.
•Wearsafetybootswhenusingthechainsaw.
•Duringtransportthebrakemustbeappliedtoavoidaccidentalstart-up.
•Donotusethechainsawinrainyorwindyconditionsorinpoorlight.
•Findasuitablepositionbeforebeginningwork.
General Information & Safety Instructions

SUA 1800 909 909 www.powertoolsupport.com email: [email protected]
AFTER SALES SUPPORT 46460
9
2
General Information & Safety Instructions
•Whenworkingonslopes,thesawoperatormuststandbesideorabovethe
wood to cut, i.e. felled trees.
•Usethechainsawholdingitrmlywithbothhands.
•Makeawedge-shapedcutbeforefellingthetree,thenthefellingcutleavinga
hinge for the felling direction.
•Bewareofanyfallingbranchesafterfellingoperations.
•Bewareofwoodsplinterswhencuttingchoppedwood.
•Ensureyourchainsawissuitableforthejob.
•Neverworkaboveshoulderlevelorreachouttocutabranch:ensureyouhave
stable footing at all times.
•Donotoperateinahazardouslocation.Suchareasincludewherethereisarisk
of explosion of petrol fumes, leaking gas or explosive dust.
•Donotoperateinaconnedarea.Exhaustgases,smokeorfumescouldreach
dangerous concentrations.
•Protectyourtool.ThischainsawisNOTWEATHERPROOFandshouldnotbe
exposed to direct sunlight, high ambient temperature and damp, wet or high
humidity conditions.
•Takecarenottospillfuel.Whenrefuellingthechainsawensurethatthemotor
has been switched off. Prevent the spilling of fuel as this may also ignite with
the hot motor. Never refuel whilst the engine running.
•Becarefulwhereyoustorethechainsaw.Storethetoolinadryareaawayfrom
flammable liquids.
•Keepyourdistance.Thechainsawemitsexhaustfumes.Ensurebystanderskeep
a safe distance.
•Operatinginstructionsandinstructionsforcommoncuttingtasks,includingthe
use of personal protection equipment, the need for adequate training and the
risks involved when operating the unit while tired, ill or under the influence of
alcohol or other drugs.
Note. Tree felling should not be attempted by un-trained operators.

SUA 1800 909 909 www.powertoolsupport.com email: [email protected]
AFTER SALES SUPPORT 46460
10
2
General Information & Safety Instructions
•Ensureyouuseoil-mixfuel.Ensurethatyoumix25partsunleadedfuelto1part
2-stroke oil. If not, the engine will overheat and cause damage to your chainsaw.
•Neverllfueltankindoors.Neverllfueltankwhenengineisrunningorhot.Do
not smoke when filling fuel tank.
Kickback safety precautions
•Kickbackmayoccurwhenthetipoftheguidebartouchesanobject,orwhenthe
wood closes in and pinches the saw chain.
•Ifthebartiporpointcontacts,itcanproducearapidreversereaction,kickingthe
guide bar up and back towards the operator. This is known as rotational kickback.
•Pinchingthesawchainalongthetopoftheguidebarmaypushtheguidebar
rapidly back towards the operator. This is known as pinch kickback.
•Eitherofthesereactionscancauselossofcontrolofthesaw,resultinginserious
personal injury.
•Donotrelyexclusivelyonthesafetydevicesbuiltintoyoursaw.Takethe
following steps to help avoid accident or injury:
•Reducetheelementofsurprisebyunderstandingwhatcauseskickback.
•Keeparmgriponthechainsawusingbothhands,therighthandontherear
handle and the left hand on the front handle when the motor is running. A firm
grip will help maintain control. Do not let go whilst the motor is running.
•Makesurethattheareaofoperationisfreeofobstructions.Donotletthepoint
of the guide bar contact a log, branch or any other object.
•Usehighspeedswhencutting.
•Donotoverreachorcutaboveshoulderheight.
•Carefullyfollowthesharpeningandmaintenanceinstructionsgiveninthis
manual.
•Useonlyreplacementbarsandchainsspeciedbythemanufacturer.

SUA 1800 909 909 www.powertoolsupport.com email: [email protected]
AFTER SALES SUPPORT 46460
11
2
General Information & Safety Instructions
DANGER! BEWARE OF KICKBACK!
WARNING! Kickback can lead to dangerous loss of control of the chainsaw and
result in serious or fatal injury to the saw operator or to anyone standing close
by. Always be alert. Rotational kickback and pinch kickback are major chainsaw
operational dangers and the leading cause of most accidents.
Unpacking
Due to modern mass production techniques, it is unlikely that your Gardenline®
Power Tool is faulty or that a part is missing.
If you find anything wrong, do not operate the tool until the parts have been
replaced or the fault has been rectified.
Failure to do so could result in serious personal injury.
Contents of carton
The Gardenline®Petrol Chainsaw is supplied with the following accessories
as standard.
 •1xInstructionManual
 •1xWarrantyCard&Details
 •1xChain
 •1xChainbar
 •1xDoubleendedwrench
 •1xScrewdriver
 •1xSharpeningle
 •1xBuckingspikesandscrews

SUA 1800 909 909 www.powertoolsupport.com email: [email protected]
AFTER SALES SUPPORT 46460
12
3
Parts List
28
27 12
18
23
14
13
15
24
1. Guide bar
2. Chain
3. Chain tensioning screw
4. Chain drive side cover
5. Chain drive side cover nut
6. Air filter
7. Front guard (chain brake)
8. Top handle
9. Filter cover
10. Filter cover knob
11. Rear handle
12. Recoil starter
13. Idling adjustment screw
14. HIGH (Fast) run
adjustment screw
15. LOW (Slow) run
adjustment screw
16. Choke control
17. On/Off switch
18. Trigger switch
19. Lock off switch
20. Chain catcher
21. Oil tank cap
22. Fuel tank cap
23. Drive sprocket
24. Chain tensioner pin
25. Double ended wrench
26. Screwdriver
27. Priming bulb
28. Bucking spikes and fixing
screws (x 2)
29. Chain sharpening file
30. Side cover locking knob
6
10 16 2122 8
25
22053430 1
17
9
19 711
26
29

SUA 1800 909 909 www.powertoolsupport.com email: [email protected]
AFTER SALES SUPPORT 46460
13
Getting Started 4
Unpacking
Due to modern mass production techniques, it is unlikely that your chain saw is
faulty or that a part is missing. If you find anything wrong, do not operate the
tool until the parts have been replaced or the fault has been rectified. Failure to
do so could result in serious personal injury.
Fitting the bucking spikes
Fit the bucking spikes as shown using
the two cross-headed screws provided. (Fig A)
Installing the guide bar and chain
WARNING. The chain has sharp edges.
Use work gloves for safety.
IMPORTANT. Front guard (chain brake) must be disengaged
when installing the guide bar and chain.
1.
Pull the front guard (7) towards the rear of the saw until
there is a “click” to make sure that the chain brake is released. (Fig B)
2. Remove the chain cover by: -
a) Removing the chain drive cover nut. (Fig C)
b) Removing the rear side cover locking knob. (Fig D)
c) Removing the side cover. (Fig E)
3. Fully loosen the chain tensioning screw
(3) by turning in an anti-clockwise direction. (Fig F)
4. Place the guide bar (1) in position over the threaded stud
and locate on the two guide pins. Slide the guide bar fully
towards the sprocket of the saw. (Fig G)
A
B
C
D E F G

SUA 1800 909 909 www.powertoolsupport.com email: [email protected]
AFTER SALES SUPPORT 46460
14
5. Place the chain (2) around the drive sprocket wheel (23) with the chain links in the
direction shown on the bar and fit the chain around the guide bar. (Fig H&I)
6. Replace the chain drive cover on to the chainsaw and hold the cover on to the
chain bar. DO NOT SECURE WITH THE NUT. (Fig J)
7. Fit the securing nut and tighten FINGER TIGHT. Check again the cover is flat on the
surface of the bar. (Fig K)
8. While holding the cover on firmly, grasp the chain bar and slide the bar outward
slowly. When the chain tensioning pin aligns with the clearance hole in the bar,
the cover will drop firmly and flat on the bar. If the chain tensioning pin does not
align, adjust the tension screw so the pin aligns with the hole in the bar. The pin
must enter the bar before the nut is applied. (Fig L)
9. Tighten the chain tensioner screw (3) until the links of the chain just touch the
bottom edge of the guide bar. (Fig M)
11. Tighten the rear side cover locking knob firmly. (Fig N)
12. Tighten the chain drive side cover nut firmly. (Fig O)
Note. Ensure the engine is switched off when making any adjustments to the
chain and bar.
Getting Started 4
H
L
I
M
J
N
K
O

SUA 1800 909 909 www.powertoolsupport.com email: [email protected]
AFTER SALES SUPPORT 46460
15
CAUTION. A new chain will stretch after just a few minutes of use. Check and, if
necessary, re-adjust the chain tension. A loose chain causes rapid wear to both the
chain and the guide bar and could derail causing a major safety hazard.
Prior to making any adjustments to the saw, Turn the saw off. Do not make ANY
adjustments with the saw motor running.
To tighten a loose chain, make sure the motor is turned off. Loosen the chain drive
side cover nut. There is no need to loosen or remove the rear side cover locking knob.
Using the screwdriver provided on the tube spanner, turn the chain tensioning
screw clockwise to tighten the chain. Do not over tighten, the chain should be
able to lift 5 mm from the middle of the bar.
Retighten the chain drive side cover nut firmly. Run chain saw for approx 30 sec
and turn saw Off. Retest the chain.
Filling up with fuel and oil
WARNING. Petrol is very flammable. Avoid smoking or causing any sparks or
flames near fuel. Make sure that you stop the motor and allow it to cool before
refuelling the machine. Select outdoor bare ground for fuelling and move at least
3 metres away from the fuelling point before starting the motor.
It is suggested to wear safety glasses when mixing fuel.
•Onlyuseoilthatisexpresslylabelledforusewithair-cooled2-strokeengines.
DO NOT use BIA or TCW (2-stroke water-cooling type) mixed oil.
The recommended mixing ratio is PETROL 25: OIL 1
•UseunleadedpetrolwithaminimumOctanenumberof89.Ifyouusepetrol
with an Octane number lower than 89, there is a danger that the engine might
overheat and the piston seize.
•Poorqualitypetroloroilmaydamagesealingrings,fuellinesorthefueltank.
Do not use waste or regenerated oil, it can damage the oil pump.
CAUTION. To maximise the lifetime of the engine, avoid the following:
•Donotuserawpetrol,itwillseverelydamagetheengineveryquickly.
•Donotrunthetankdry,asthismaycausedamagetotheengine.
•Donotuseoilmeantfor4-strokeengines,itwillcausesparkplugfouling,exhaust
blocking and piston ring sticking.
Fuel and Lubrication 5

SUA 1800 909 909 www.powertoolsupport.com email: [email protected]
AFTER SALES SUPPORT 46460
16
•Donotusefuelmixturesthathavebeenleftstandingforonemonthormore,
they can cause clogging of the carburettor.
Before storing the chainsaw for an extended period, empty the fuel tank, clean
it then run the motor to empty the carburettor.
Note. Do not discard an unwanted fuel container with household waste. It
must be taken to an authorised repository site.
Mixing fuel (25:1 mixing ratio)
Mixing ratio is 25:1
1 litre of petrol and 40 mls of 2-stroke oil OR
5 litres of petrol and 200 mls of 2-stroke oil
1. Measure out the quantities of petrol and oil to be mixed.
2. Put some of the petrol into a clean, approved fuel container.
3. Pour in all of the oil and mix well.
4. Pour in the rest of the petrol and again mix well (at least one minute).
5. It is very important to mix the two ingredients properly to prevent unnecessary
engine wear.
6. Make sure that the container is clearly labelled that it is 2-stroke mixture.

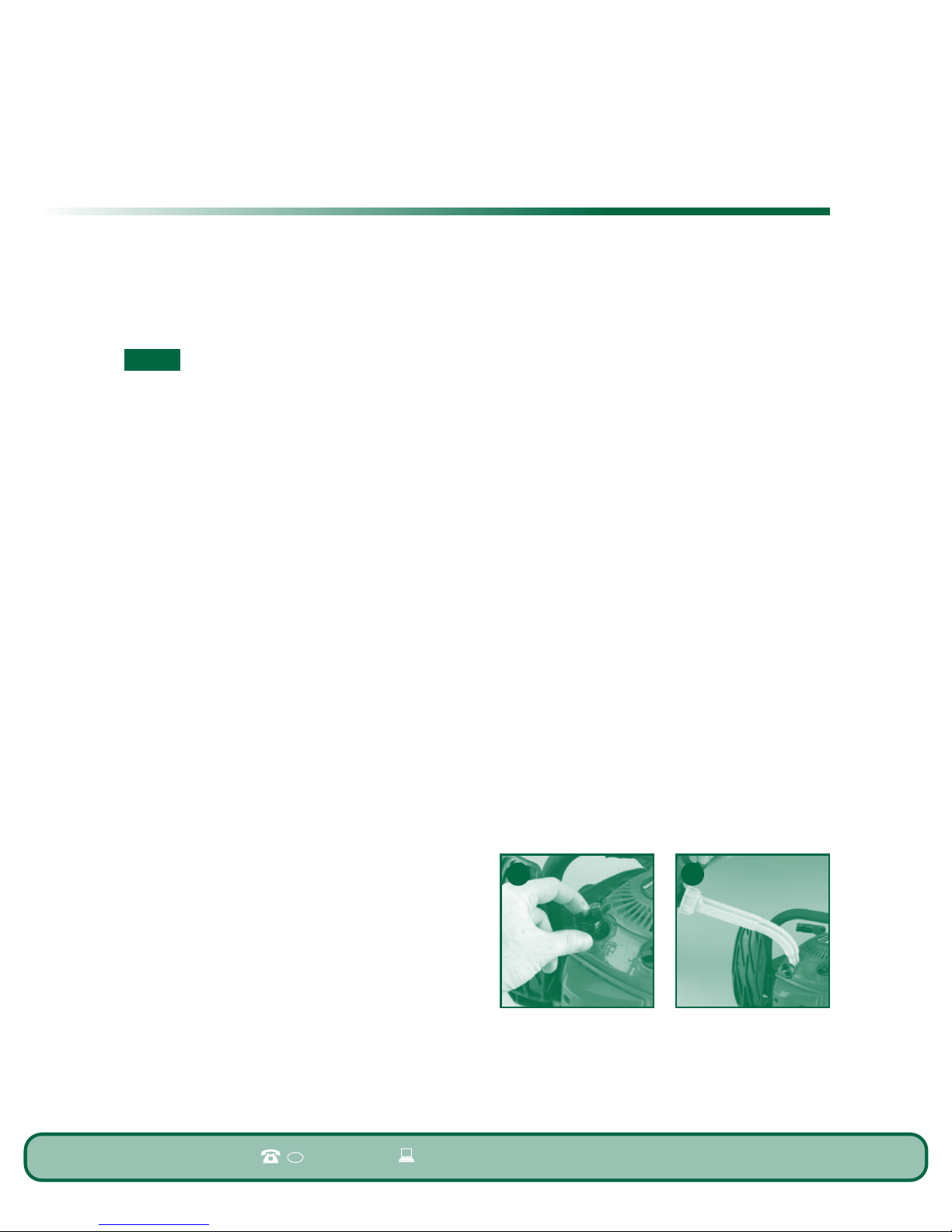

Fuelling the chainsaw
1. The engine must be stopped and cool. Place the chainsaw on its side with the
fuel tank cap facing upwards.
2. Make sure that the fuel mixture is well mixed.
3. Remove the fuel tank cap (22). (Fig P)
4. Fill the fuel tank to about 80%
of its capacity. (Fig Q)
5. Fasten the fuel cap securely and wipe up
any fuel spillage around the machine.
5
Fuel and Lubrication
P Q

SUA 1800 909 909 www.powertoolsupport.com email: [email protected]
AFTER SALES SUPPORT 46460
17
Operating Instructions 6

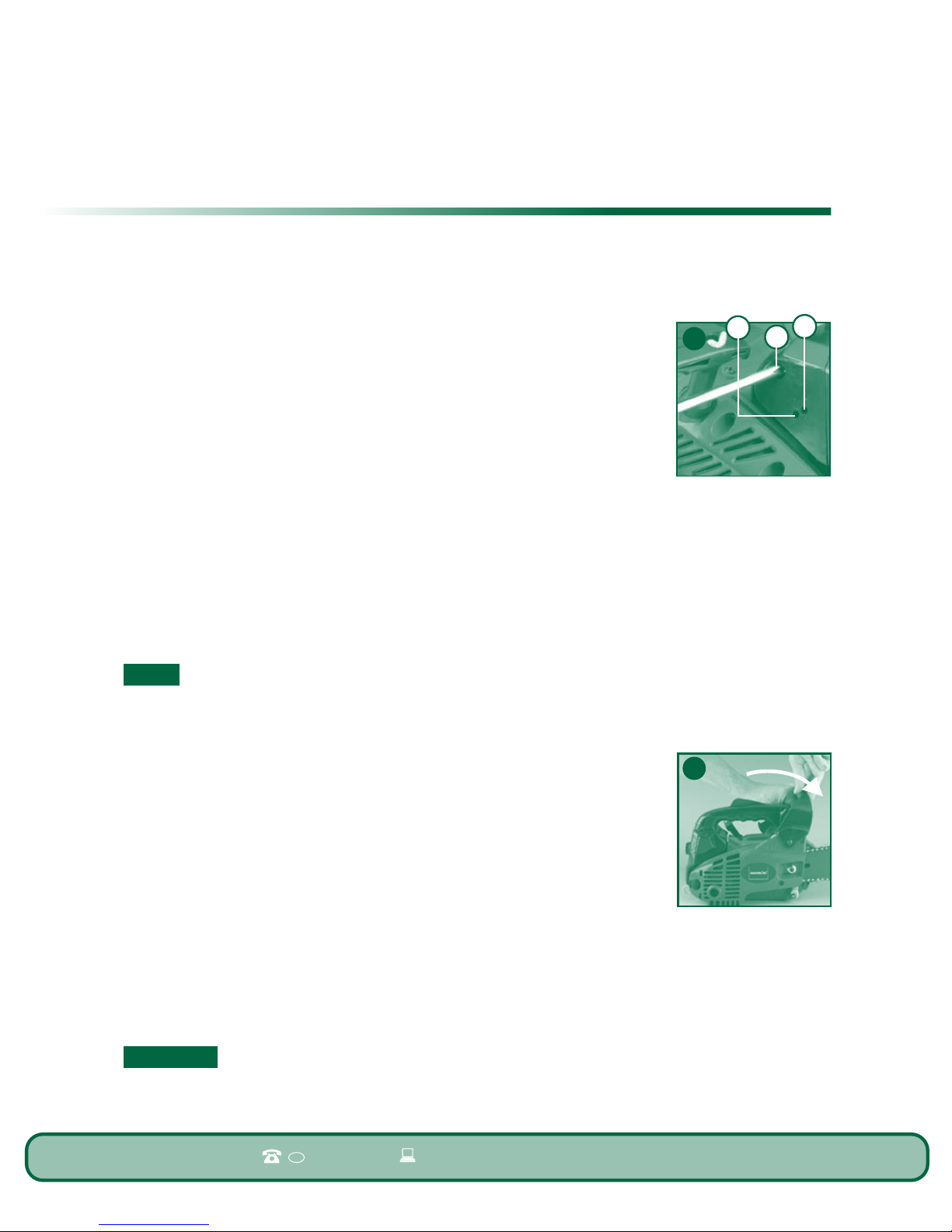

Adding chain oil
WARNING. Never start work unless the chain and bar are
lubricated.
1. Place the chainsaw on its side with the oil cap facing up.
Unscrew and remove the oil tank cap (21). (Fig R)
2. Fill the tank to 80% capacity with chain oil. (Fig S)
3. Fasten the cap and wipe up any oil spillage.
4. Release the chain brake by pulling the front hand guard (7),
firmly towards the back of the chainsaw until a click is heard.
To check the chain brake has been released, you should be able
to move the chain by hand.
Starting the chainsaw
WARNING. Do not start the motor whilst the saw hangs from
one hand. This is very dangerous as the chain may come in
contact with your body.
1. Fill the fuel and oil tanks respectively and tighten the caps
securely.
2. Set the On/Off switch (17) to On (the I position). (Fig T).
Make sure the brake is On when starting for safety, by pushing
the front guard forward.
3. When the machine is cold first pull out
the choke control (16) to the CHOKE
position. (Fully extended). (Fig U).
Note. Once the choke control has been pulled out,
it cannot be pushed back to the run position.
4. Depress the priming bulb (27) 6 times or when the bulb is full
of fuel. (Fig V).
Note. Points 3 and 4 are not required if engine is warm or
is being restarted. The choke returns automatically when the
trigger switch is operated.
R
S
T
U
V

SUA 1800 909 909 www.powertoolsupport.com email: [email protected]
AFTER SALES SUPPORT 46460
18
6
5. Hold the chainsaw securely on the ground and pull vigorously
on the recoil starter (12). Repeat (up to 15 times for first time
operation) until the engine “kicks” (attempts to start). (Fig W).
6. Depress the Lock off button and
pull slightly on the trigger so the
choke moves to the run position. (Fig X).
7. Pull the recoil starter (12) again and restart the engine.
Allow the engine to warm up. (Fig Y).
8. When restarting the engine when it is still warm, set the
choke control to the RUN position. Hold the chainsaw
securely on the ground and pull vigorously on the recoil
starter (12). Allow the engine to run for a few moments
with the trigger switch pulled slightly.
9. When ready to start cutting, release the brake, by
pulling the front guard back.
Stopping the chainsaw
1. Release the trigger switch.
2. Set the on/off switch (17) to Off by pressing the O portion on
the On/Off switch. (Fig Z).
Note. Especially after the first starting of the chain saw, the
tension of the chain should be checked. The chain will become
loose on the first start up and will require adjustment.
Note. Adjustment is made on the SIDE of the bar cover.
Refer Page 13.
Checking the oil supply
Run the engine at medium speed and check that the chain
splatters a thin line of oil which can be seen on the ground
when the bar is pointed downwards (Fig AA). This is normal.
If there is no line of chain oil, stop the motor immediately and
investigate the cause. The oil tank could be empty or the oil
supply to the chain blocked. This may require removal of the
bar and checking that the upper oil hole in the bar is clear of
any blockages.
Operating Instructions
W
X
Y
Z
AA

SUA 1800 909 909 www.powertoolsupport.com email: [email protected]
AFTER SALES SUPPORT 46460
19
6
Operating Instructions
Adjusting the carburettor
The carburettor is factory set and should not require adjustment.
Changes in operating conditions may require fine tuning of
the carburettor. Proceed as follows.
1. Stop the engine and screw in both the H and L needles (14
and 15) using screwdriver (26). Do not force. (Fig AB)
2. Turn the H screw (14) back 3/4 of a turn.
3. Turn the L screw (15) back 1-1/2 turns.
4. Start the engine and let it warm up with the trigger
switch half pulled in. When the engine is warm, release the trigger switch.
5. Turn the L screw (15) slowly clockwise until the idling speed is at its maximum
then turn the screw back (anticlockwise) 1/4 of a turn.
6. Turn the idling adjusting screw (T) (13) anticlockwise until the chain does not turn.
7. If the idling speed is too slow, turn screw (T) clockwise.
8. Make a test cut and adjust screw (H) (14) for best cutting power, not for maximum speed.
Note. It is preferred the above operation is performed by a service centre to
ensure the correct setting for both safety and performance is achieved.
Chain brake
The chain brake operates automatically in the event of
kickback. As the guide bar (1) kicks up, the wrist of the
operator’s hand on the top handle knocks against the front
guard (7) causing the front guard to move forward and
activating the chain brake.
1. The chain brake can be operated manually by moving the
front guard forward. (Fig AC)
2. To release the chain brake, pull the front guard towards the top handle until a
“click” is heard.
Hold the top handle (8) and pull back the front guard firmly by grasping the guard
on the right hand side and pulling back. This is a firm operation and will require
the operator to pull back firmly.
CAUTION. Check that the chain brake is operating correctly each time the
chainsaw is used.
T
LH
AB
AC

SUA 1800 909 909 www.powertoolsupport.com email: [email protected]
AFTER SALES SUPPORT 46460
20
6
Operating Instructions
Operation
WARNINGS.
• Alwaysfollowthesafetyinstructionsgivenatthefrontofthismanual.This
chainsaw must only be used for cutting wood. It must not be used for cutting
other types of material. Do not use the chainsaw as a lever for lifting, moving or
splitting objects.
• Donotattachthechainsawtoaxedstand.
• Donotattachanydevicestothechainsawotherthanthosespeciedbythe
manufacturer.
Helpful hints
• Donotforcethesawintothecut.Applyonlylightpressurewhilstrunningthe
engine at full throttle.
• Ifthesawchaingetscaughtinthecut,donottrytoremoveitbytwistingthe
guide or pulling forcibly. Use a lever or wedge to open up the cut so that the saw
chain is freed.
While cutting, always:
• Runthechainsawmotoratfullrevs.Thismakesthejobsafer,asthereisless
chance of pull-in or kick-back.
• Positionyourbodytotheleftofthechainsawsoifitkicksbackuncontrollably,it
goes over your right shoulder, never stand in the cutting line of the saw.
• Keeparmgripwithyourlefthandonthefronthandle,withyourthumb
securely below the handle.
• Theswivelofyourwristinakick-backsituationwillactivatethechainbrake.
• Makesurethechainistensionedcorrectly.
Guard against kickback
Check the operation of the chain brake each time you use the chainsaw.
Run the saw at full throttle for 1-2 seconds then push the front guard (7)
forwards. The chain should stop immediately. If the chain is slow to stop or only
slows down you must take the tool to an authorised repair centre to have the
brake band and clutch drum replaced. Disengage the chain brake by pulling the
