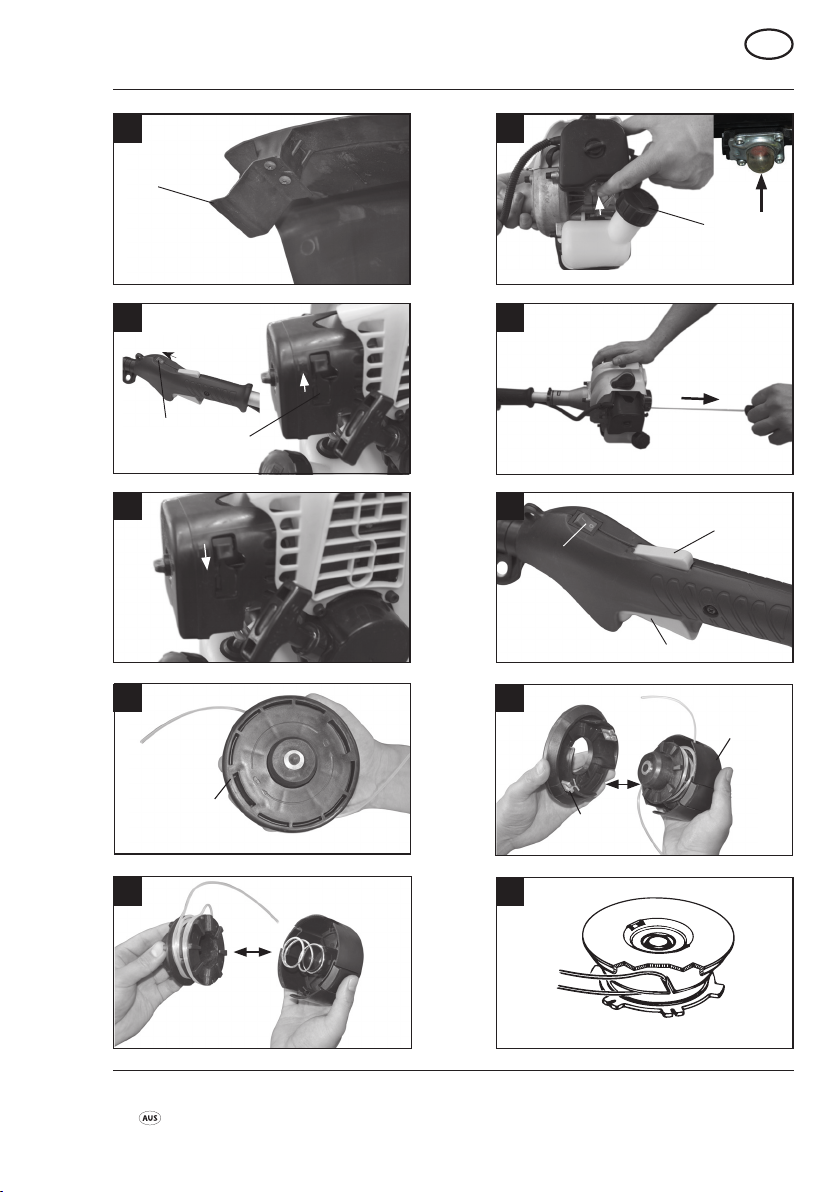

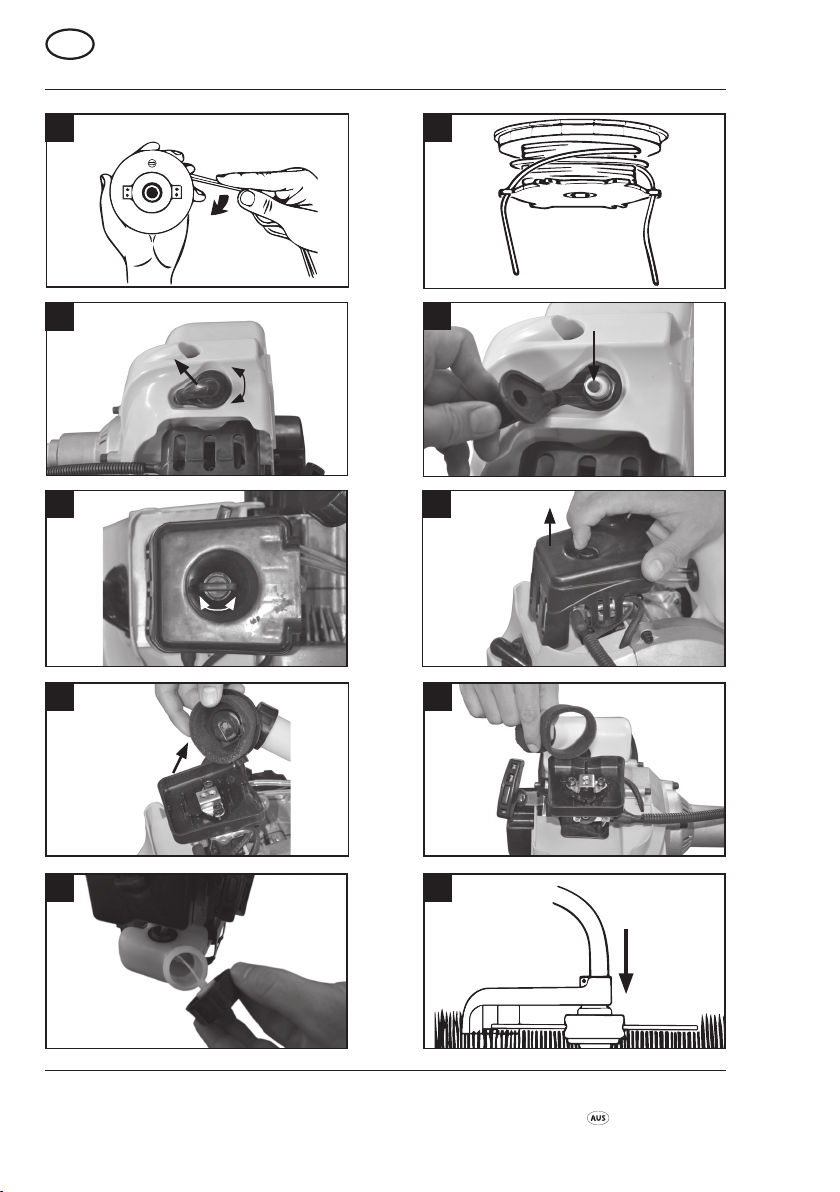

MFH3300-4P Utilisation
E
8
4
7
D
18
20
22
24
26
19
21
23
25
27
19a
A
B
C
7

8AFTER SALES SUPPORT
 [e-mail]  1300 855 831
MODEL: MFH3300-4P PRODUCT CODE: 47629 02/2017
AUS
Utilisation MFH3300-4P
WIND CORD
28
30
32
34
36
29
31
33
35
37

AFTER SALES SUPPORT 9
 1300 855 831  [e-mail]
MODEL: MFH3300-4P PRODUCT CODE: 47629 02/2017
AUS
MFH3300-4P Utilisation
90045000
16
15
38 39
15
4140
42
10 11
GH
43
2 mm
46
G
H
44
I J
45
K
47
J
48
13a
L
MN

10 AFTER SALES SUPPORT
 [e-mail]  1300 855 831
MODEL: MFH3300-4P PRODUCT CODE: 47629 02/2017
AUS
Explanation of Symbols MFH3300-4P

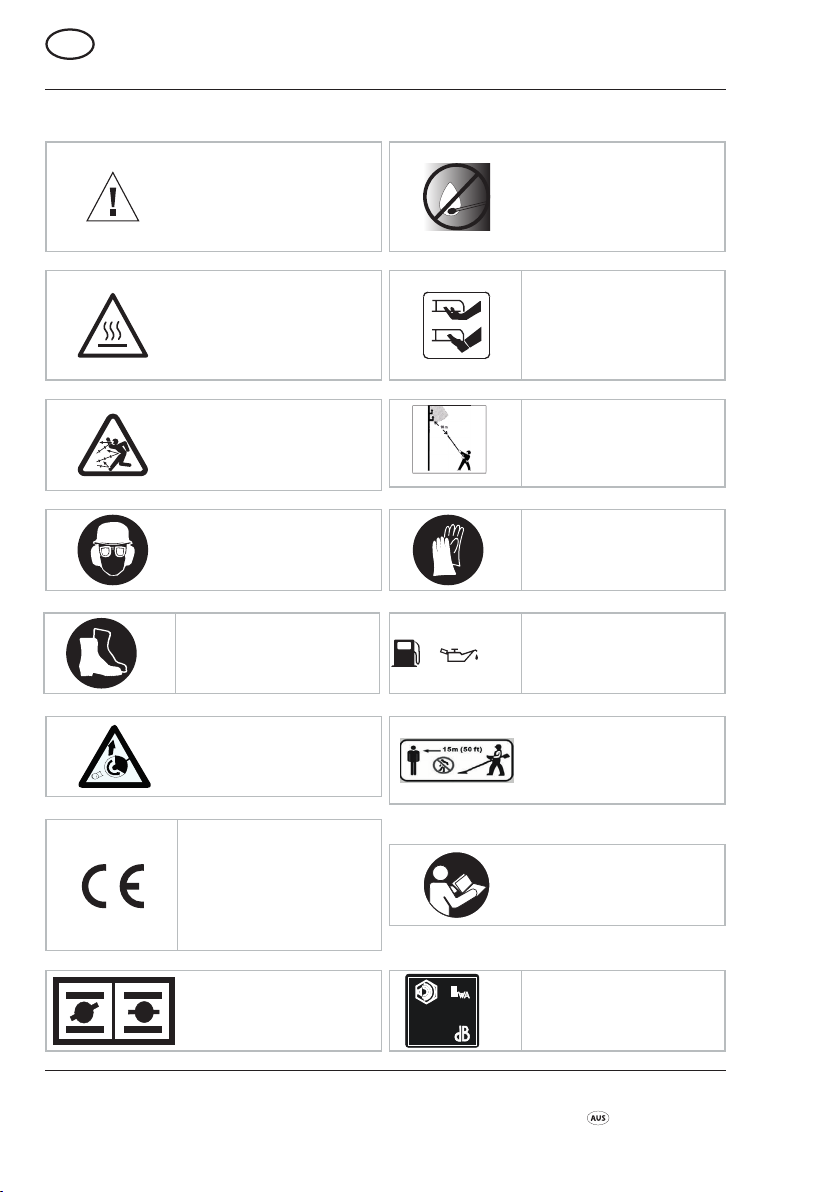

Explanation of Symbols
Read the instruction
manual.
Warning! Denotes
risk of personal injury,
loss of life, or damage
to the tool in case of
non-observance.
Warning! The exhaust
and other parts of the
engine will get very
hot during use, do not
touch!
Warning! Beware of
thrown objects hit by
cutting attachments.
Never use without
properly mounted blade
guard.
The product complies
with the applicable Eu-
ropean directives and
an evaluation method
of conformity for this
directives was done.
Warning! Keep all chil-
dren, bystanders and
helpers 15 meters away
from the brush cutter!
Wear protective helmet,
ear and eye protection.
Warning! Petrol is
very ammable. Avoid
smoking or bringing
any ame or sparks
near fuel.
Warning! Risk of injury!
Do not let your hands
or feet come in contact
with the blades when
the motor is running.
Wear robust footwear
when using the device!
Wear protective gloves
when using the device!
+40:1
Symbol for refuelling
the “MIX PETROL” on
fuel tank cap.
Caution thrown objects
when operating brush
cutter.
Electric shock can
cause fatal injury. Keep
a distance of at least 10
m from power cables.
B
Bring the choke lever
into position when star-
ting!
Guaranteed sound
power level LWA 112dB
112

AFTER SALES SUPPORT 11
 1300 855 831  [e-mail]
MODEL: MFH3300-4P PRODUCT CODE: 47629 02/2017
AUS
MFH3300-4P Introduction
I. INTRODUCTION
Congratulations on choosing to buy a GARDENLINE®product.
All products brought to you by GARDENLINE®are manufactured to the highest
standards of performance and safety, and as part of our philosophy of customer
service and satisfaction, are backed by our comprehensive 1 Year Warranty.
We hope you will enjoy using your purchase for many years to come.
Note:
According to the applicable product liability law the manufacturer of this device is not
liable for damages which arise on or in connection with this device in case of:
• improper handling,
• non-compliance with the instructions for use,
• repairs by third party, non-authorised skilled workers,
• installation and replacement of non-original spare parts,
• improper use.
Recommendations:
Read the entire text of the operating instructions prior to the assembly and operation
of the device.
These operating instructions are intended to make it easier for you to get familiar
with your device and utilise its intended possibilities of use.
The operating instructions contain important notes on how to work safely, properly
and economically with your machine and how to avoid dangers, save repair costs,
reduce downtime, and increase the reliability and working life of the machine.
In addition to the safety regulations contained herein, you must in any case comply
with the applicable regulations of your country with respect to the operation of the
machine.
Keep the operating instructions in a clear plastic folder to protect them from dirt
and humidity; store them near the machine. The instructions should be read and
carefully understood by each operator prior to using the machine. Only persons who
have been trained in the use of the machine and are aware of the related dangers
and risks should be allowed use the machine. The local required minimum age must
be met.
In addition to the safety notes contained in these operating instructions and any
specic regulations in your country, the generally recognised technical rules for the
operation of identically constructed machines must be observed.

12 AFTER SALES SUPPORT
 [e-mail]  1300 855 831
MODEL: MFH3300-4P PRODUCT CODE: 47629 02/2017
AUS
Layout/Scope of delivery MFH3300-4P

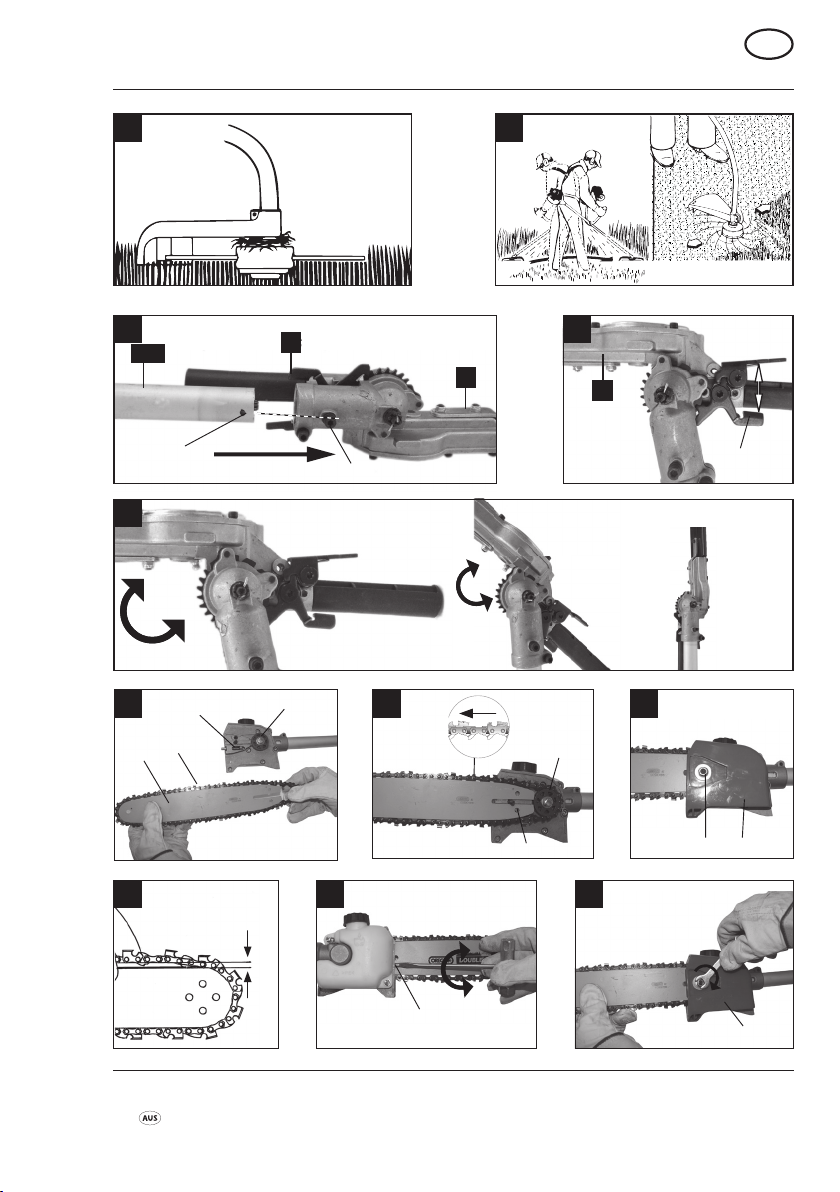

II. L AYOUT (Fig. 1-3)
1 Motor and drive unit
2 Recoil starter
3 Tank
4 Throttle lever
5 Support
6 Front handle
7 Start/Stop switch
8 Throttle lever “lock off" switch
9 Chain saw attachment
10 Chain saw bar
11 Saw chain
12 Automatic oil pump
13 Hedge trimmer attachment
13a Connecting rod
14 Adjustment lever
15 Cutting unit
16 Brush cutter attachment
17 Protection shield (brush cutter + grass trimmer)
18 Cutting unit
18a Shield
18b Outer ange
19 Grass trimmer attachment
19a Line cassette
20 Belt
21 Spark plug wrench + screwdriver
22 Open-end-spanner (8mm / 10mm)
23 Allen key (size 6)
24 Allen key (size 4)
25 Combined oil /petrol cylinder
III. SCOPE OF DELIVERY
Motor drive unit (1x) Cable ties (3x)
Chainsaw (1x) Spark plug wrench (1x)
Hedge trimmer (1x) Belt (1x)
Brush cutter (1x) Front handle (1x)
Grass trimmer (1x) Screws M5 x 35 (4x)

AFTER SALES SUPPORT 13
 1300 855 831  [e-mail]
MODEL: MFH3300-4P PRODUCT CODE: 47629 02/2017
AUS
MFH3300-4P Scope of delivery/Intended use
Combined oil/petrol cylinder (1x) Cover (1x)
Open-ended spanner (8 mm / 10 mm) (1x) Nuts M5 (4x)
Allen key (size 4) (1x) Manual (1x)
Allen key (size 6) (1x)
• Open the packaging and take out the equipment with care.
• Remove the packaging material.
• Check that all listed contents are present.
• Inspect the equipment and parts for any damage. Please contact the helpline if
anything is missing.
• If possible, keep the packaging until the end of the guarantee period.
• Read the operating instructions fully to familiarise yourself with the tool prior to
using it.
• Only use original accessories and spare parts. Spare parts are available by con-
tacting the helpline.
• Specify the part numbers when you contact the helpline.
m ATTENTION!
The device and packaging materials are not toys!
Children must not be allowed to play with plastic bags, lm and small parts!
There is a risk of swallowing and suffocation!
IV. INTENDED USE
The brush cutter (using the cutting blade) is designed for cutting young trees, large
weeds and undergrowth.
The power trimmer (using the line spool with cutting line) is designed for cutting
lawns, grassed areas and smaller weeds.
The hedge trimmer is suitable for cutting hedges, bushes and shrubs.
The pole-mounted chainsaw is designed for lopping off tree branches. It is not suita-
ble for extensive sawing work, felling trees or cutting any materials other than wood.
The operating instructions as supplied by the manufacturer must be followed at all
times to ensure that the equipment is used properly. Any use which is not expressly
permitted in the manual may result in damage to the equipment and place the user
in serious danger. Observe the restrictions in the safety instructions.
mIMPORTANT! Due to the high risk of bodily injury to the user, the brush cutter
must not be used to carry out the following work: to clean dirt and debris off walk-
ways, or to chop up tree or hedge clippings. Similarly, the brush must not be used to
level out raised soil or natural areas. For safety reasons, the drive unit must not be
used as a drive unit for other work tools or tool-kits of any kind.

14 AFTER SALES SUPPORT
 [e-mail]  1300 855 831
MODEL: MFH3300-4P PRODUCT CODE: 47629 02/2017
AUS
Intended use/Safety regulations MFH3300-4P
Non-permitted users:
Persons who are not familiar with the operating manual, children, young people
under the age of 16 as well as persons under the inuence of alcohol, drugs or med-
ication must not operate the unit.
The equipment is only to be used for its prescribed purpose. Any other use is
deemed to be a case of misuse. The user/operator and not the manufacturer will be
liable for any damage or injuries of any kind resulting from such misuse.
Please note that our equipment has not been designed for use in commercial, trade
or industrial applications. The warranty will be voided if the equipment is used in
such applications or purposes.
V. SAFETY REGULATIONS
• Make sure that no people or animals are close to the working area (keep a mini-
mum distance of 15m).
• Grass being cut and thrown up may contain foreign objects such as stones.
Wear protective clothing and be aware of the hazards that could occur. You are
responsible for the safety in your working area, and you are liable for damages
to persons or property.
• Do not use the tool when you are tired or distracted, or your ability to react is
impaired when you are under the inuence of alcohol or medication. Inattentive-
ness may cause serious injuries.
• Always wear approved safety and protective clothing. Wear safety goggles, ear
protection and high-quality safety gloves. Use leg protection when using the
brush cutter.
• Use high-quality skid-proof protective shoes with safety steel caps. Never oper-
ate the tool wearing sandals, thongs or when barefoot.
• Always wear an approved safety helmet when working with the hedge trimmer
or chain saw.
• Do not wear loose clothing or jewellery. Wear long trousers to protect your legs.
Ensure that long hair is covered or tied back so as it cannot be caught in the
moving parts of the tool. Loose clothing, jewellery, and long hair can get caught
in the moving parts. Wear suitable and durable tight working clothes.
• Keep body parts and clothing away from the cutting tool when you start the
engine, or keep it running.
• Make sure you are standing in a stable and secure position during work. Avoid
moving backwards with the tool due to risk of stumbling.
• Avoid any unnatural posture while using the tool.
• When the petrol cutting blade has been operating for a period of time, it may
cause a circulatory disorder due to vibration (Raynaud‘s disease). In this case,
it is impossible to specify any length of operation, because this differs from per-

AFTER SALES SUPPORT 15
 1300 855 831  [e-mail]
MODEL: MFH3300-4P PRODUCT CODE: 47629 02/2017
AUS
MFH3300-4P Safety regulations
son to person. The following factors can have an inuence on this phenomenon:
Circulatory disorders in the hands of the operator, low outdoor temperatures,
long hours of operation. Therefore, it is recommended to wear warm protective
gloves, and to take breaks at regular intervals.
• The exhaust of internal combustion engines is poisonous and can lead to
breathing difculties or even suffocation. Do not operate the tool inside or in
poorly ventilated work areas.
• Rell the petrol tank only outdoors, or in well-ventilated areas.
• Petrol and petrol vapours are highly ammable. Keep away from ammable
materials and sources of ignition.
• Do not smoke while refueling or operating the tool.
• Immediately wipe away spilled petrol.
• Start the motor only at a location far away from the place of refuelling.
• Always make sure that the engine fuel cap is well closed before starting. Look
out for possible fuel leakage.
• When the engine is running or the engine is hot, do not open the cap of the fuel
tank. Only rell the fuel tank when the engine is fully switched off and has been
allowed to cool.
• Open the cap of the fuel tank slowly so that petrol vapour can escape.
• Make sure the handles are dry, clean and free of petrol mixed with oil.
• Do not use the tool without the exhaust pipe and ensure exhaust pipe guard is
correctly installed.
• Do not touch the exhaust pipe, there is a risk of burns.
• Only use the fuel as recommended in the manual. Keep petrol only in contain-
ers designed petrol storage and store it at a safe location.
• While cutting on a slope, always stand below the cutting tool.
• Make sure no objects or other debris are collected in the trimmer head, in the
protective hood, or in the engine before starting
• Always switch off the tool before you put it down.
• Do not use any wire, or anything similar in the line spool.
• Only use the recommend nylon line in the trimmer head. Do not use any wire.
• Only work during daylight, or when the area is illuminated well.
• Subject the tool to a visual inspection before each use.
• Check, if all screws and connecting parts are tightened.
• Always use both hands to hold the tool.
• Check the tool, and its components and guards for damages, or wear and tear
before each use and have it repaired if necessary. Do not override any of the
safety devices on the machine. Do not use the tool when damages or signs of
wear become apparent.
• Keep the tools clean and fully functional to ensure better and safer work.
• Always maintain a safe distance between the tool and your body during work.
• Always switch off the tool when work will be interrupted or you change your
working location. When changing location wait until the cutting tools have com-

16 AFTER SALES SUPPORT
 [e-mail]  1300 855 831
MODEL: MFH3300-4P PRODUCT CODE: 47629 02/2017
AUS
Safety regulations MFH3300-4P
pletely stopped and turn off the engine.
• Never leave the tool unsupervised at the place of work. Store the tool at a safe
place when not in use.
• People operating the machine must not be distracted.
• Never use the tool during rain, in a humid or wet environment and do not store it
outdoors.
• Should the tool become wet, wait until it is completely dry before you use it
again.
• Before starting work, check the work area to be cut for possible foreign objects
and to remove them before you start. Should you encounter a foreign object
during cutting, switch off the tool before removing this object.
• If the tool is jammed by a foreign object (stones, piles of grass etc), switch it
off and remove the object using a blunt item. Never use your ngers to remove
jammed foreign objects as this may cause serious injuries.
• Always keep the running tool away from your body.
• Attention: the cutting tool still runs for some time after the tool is switched off!
• Do not overload the engine, and do not use it for work the tool is not designed
for.
• Always make sure the ventilation openings are free of dirt.
• Store the tool out of the reach of children.
• Store the tool at a safe and dry location.
• Check the engine for damages after impact, or other damages.
• Keep body parts and pieces of clothing away from the trimmer head when you
start the engine, or keep it running.
• Always keep in mind that especially during trimming of lawn edges, gravel
enclosures, and similar locations stone and dirt can be hurled away from the
cutting line.
• Never cross roads or paths when the tool is switched on.
• Never cut against hard objects such as stone, etc. This way you avoid injuries,
and damages to the tool.
• Never use the tool without the guards attached.
• Never use your hands to stop the cutting device.
• Always wait until it stops on its own.
• Hold and guide the trimmer head as close to the ground as possible.
• Only cut grass growing on the ground. Do not cut grass in cracks in walls, grow-
ing or on rocks, etc.
• Always make sure no objects, or other debris is collecting in the trimmer head,
in the protective hood, or in the engine.
• Only use the tool, when the guard is attached.
• Always switch off the tool, before you put it down.
• Keep in mind that there is risk of injuries in the area of the cutting device intend-
ed to cut off the line.

AFTER SALES SUPPORT 17
 1300 855 831  [e-mail]
MODEL: MFH3300-4P PRODUCT CODE: 47629 02/2017
AUS
MFH3300-4P Safety regulations
mCAUTION! The cutting tool continues rotating for a few seconds after the
engine is turned off.
• Put the tool down only after the cutting tool has completely stopped and the
motor is turned off.
• When the cutting tool is damaged, it must be replaced at once.
• Always use the original line only. Never use a metal wire instead of the nylon
line.
• Tool and cutting tools must be properly inspected and serviced periodically.
Damages must be repaired by a service center.
• Only use accessories recommended by the manufacturer.
• Have your tool serviced only by qualied personnel and by use of original spare
parts only. This ensures that the tool will work safely in the future.
Remaining hazards
• There will always be residual risks, even if you use this equipment according to
instructions. The following hazards can occur in connection with the construc-
tion and design of this tool.
• Health hazards resulting from swinging of hand and arm if the equipment is
used for an extended period and if it is not operated or maintained properly.
• Injuries and material damage caused by ejection of tool attachments which are
unexpectedly thrown from the equipment because of sudden damage, wear and
tear or improper attachment.
• Use the gripping spikes for every cut as the starting point and always start the
cut with the saw chain running. Make the cut in such a way that the saw does
not get jammed in the wood.
• Pay particular attention to branches under tension.
• Always pull the tool out of the wood when the saw chain is running.
• Never work with the tool above shoulder height or with only one hand.
• Always stand away from the falling direction. Position yourself on a slope above
the tree to be felled.
• Always stand sideways when carrying out sawing work on a tree which is locat-
ed on a slope, never work from above or below.
• Always look out for the falling direction of the parts which are cut off.
• Never start the cut with the bar tip and never cut with the bar tip.
• Risk of kickback! There is always a risk of kickback when the bar tip touches
the wood or other objects. This makes the chainsaw uncontrollable and it may
be thrown towards the operator with great force.
• Do not use the tool as a lever to move objects.
• Always use the chain guard during transport and storage.
• Secure the tool during transport in order to prevent loss of petrol, damage or
injury.

18 AFTER SALES SUPPORT
 [e-mail]  1300 855 831
MODEL: MFH3300-4P PRODUCT CODE: 47629 02/2017
AUS
Safety regulations/Before starting the equipment MFH3300-4P
mWARNING! Keep passers-by away from running equipment but never
work by yourself.
• Keep within earshot of others in case you need help.
• Stop the engine immediately when someone approaches you.
• Make sure that the saw chain does not come in contact with foreign objects
such as stones, fences, nails and similar. These objects could be ejected and
injure the operator or passers-by or damage the saw chain.
• Do not use the machine within 10 metres of a position from which it can reach
high-voltage cables.
Before working on the tool itself (e.g. transport, set-up, retooling, cleaning
and maintenance), disconnect the spark plug cap!
VI. BEFORE STARTING THE EQUIPMENT
Each time before use, check the following:
• That there are no leaks in the petrol system.
• That the equipment is in perfect condition and that the safety devices and cut-
ting devices are complete.
• That all screws are securely fastened.
• That all moving parts move smoothly.
1 Fuel and oil
Recommended petrols
Use only a mixture of unleaded non-ethanol petrol and 2-stroke engine oil. Mix
the fuel mixture as indicated in the fuel mixing table. 40:1. 40 parts unleaded pet-
rol to 1 part 2-stroke engine oil
mIMPORTANT! Do only use unleaded non-ethanol petrol.
mIMPORTANT! Do not use a fuel mixture which has been stored for longer than
90 days.
mIMPORTANT! Never use 2-stroke oil with a recommended mixing ratio of
100:1. The manufacturer’s warranty will be voided in case of engine damage due
to inadequate lubrication.
mIMPORTANT! Only use containers designed and approved for the purpose to
transport and store fuel.
Pour the correct quantities of petrol and 2-stroke oil into the mixing bottle (see
scale printed on the bottle). Replace the mixing bottle cap securely, then shake to
mix the fuel well.

AFTER SALES SUPPORT 19
 1300 855 831  [e-mail]
MODEL: MFH3300-4P PRODUCT CODE: 47629 02/2017
AUS
MFH3300-4P Before starting the equipment/ Attachment
Never use oil for 4-stroke engine or water cooled 2-stroke engine. It can cause
spark plug fouling, exhaust part blocking or piston ring sticking.
Mixed fuels, which have been left unused for a period of one month or more, may
clog the carburetor or result in the engine foiling to operate property. Put remaining
petrol into an airtight container and keep it in a dark and cool room.
2 Petrol mixing table
Mixing procedure: 40 parts petrol to 1 part oil
Example:
1 L Petrol : 0.025 L 2-stroke oil
5 L Petrol : 0.125 L 2-stroke oil
mWARNING!
Take care of the emission of exhaust gases.
Always shut off engine before fueling. Never add fuel to a machine with a run-
ning or hot engine. Take care of re!
Ensure that the hedge trimmer attachment is adequately greased. Check after
every 10 hours of use.
Ensure that the chain saw attachment is adequately greased. Check after every
10 hours of use.
VII. ATTACHMENT
ASSEM BLY
1. Assemble the handle on the machine (Fig. 2-3)
• Install the front handle as shown on the (Fig. 3).
• Make sure that you align the pin with the hole. Tighten the screws only loose-
ly before you have the most comfortable working position set to the risers. The
front handle should be aligned as in (Fig. 2+3) shown, then tighten the screws.
2.Mounting the shaft (Fig. 4)
• Pull out the locking pin (a) and insert the lower part of the shaft (b) until the
locking pin engages. The locking pin (a) is in the right position when it is fully
seated in the bore.
• Lastly, tighten the knob (c) securely.
3.Assemble the protection shield (Fig. 5-7)
• Fix the protection shield (17) at the brush cutter attachment (16) with 4 screws.
Use the screwdriver and wrench enclosed.
mWARNING! Use only original manufacturer‘s replacement parts, accessories

20 AFTER SALES SUPPORT
 [e-mail]  1300 855 831
MODEL: MFH3300-4P PRODUCT CODE: 47629 02/2017
AUS
Attachment MFH3300-4P
and attachments. Failure to do so can cause poor performance, possible injury
and may void your warranty. Never use the machine without the guard assembled!
4.Assemble and disassemble the cutting head grass trimmer / nylon cutting
head (Fig. 8-9)
• Release the nut:
Line up the two holes of ange and shield, use one screwdriver to hold the
ange as below and turn the socket wrench clockwise, the nut will be released.
• Fit the Nylon cutting head:
Remove another shield after the nut has been released. While holding the ange,
take the Nylon cutting head on the shaft and rotate anti-clockwise, the Nylon cut-
ting head is tted (Fig. 8-9).
• Release the Nylon cutting head:
Use screwdriver to hold ange and then rotate the Nylon cutting head clock-
wise, it will be released.
Brush cutter / Cutter blade
• Fit the blade (Fig. 10-12).
Take the outer ange off after release the nut, then put the blade (18), out-
er ange (18b), shield (18a) and nut according to priority as (Fig.12). Note the
blade rotation direction needs be same as below picture. Use screwdriver to
hold ange and tighten nut anti-clockwise (shown in Fig.11), ensure the nut is
tightened enough.
• To remove the blade. Use a screwdriver driver or allen key to hold ange and
release nut, the blade can be removed.
mWARNING!
Please make sure the cutting head has been assembled correctly before use!
Note: The packaging material is made of recycled materials. Dispose of packag-
ing materials in accordance with regulations.
5.Fit the belt (Fig. 13-15)
• The combined petrol grass trimmer, chain saw, brush cutter must be used with
the belt.
• Balance the machine when the tool is switched off.
-Wear the belt.
-Adjust the belt length so that the snap hook (Fig. 15/K) is about a hand‘s
breadth below the right hip.
-Hang the petrol brush cutter on a hook.
-Hang the machine.
• When standing in a normal working posture, the blade should touch the ground.
• It is important that the petrol brush cutter is always well balanced.

AFTER SALES SUPPORT 21
 1300 855 831  [e-mail]
MODEL: MFH3300-4P PRODUCT CODE: 47629 02/2017
AUS
MFH3300-4P Attachment/Operation
• For operation, hook the petrol brush cutter into the snap hook (Fig. 15/K) of the
belt while the engine is running.
mATTENTION! (Fig. 17) In an emergency, the safety latch (Fig. 17/l) can be
pulled from the belt. The machine then detaches immediately from the belt (20)
and falls to the ground.
6. Mounting the hedge trimmer (Fig. 40-42)
• Place the hedge trimmer cutting unit (15) precisely as shown in (Fig. 40) on the con-
necting rod (13a).Locking hole (Fig. 40/M) and locking pin (Fig. 40/N) must be on top
of each other. Tighten the locking pin (Fig. 40/N)
• Adjust the slope by unlocking the lock (Fig. 41/L). Push the locking lever (Fig. 41/L)
and adjust the cutting unit into the right position.
• The hedge trimmer can be tilted from 0 ° to 90 ° (Fig. 42).
7. Fitting the chain saw bar and the chain (Fig. 43-45)
• Remove the chain wheel cover (Fig. 45/ Item J) by undoing the fastening nut
(Item I). Lay the chain (11) as shown into the groove which runs around the chain
saw bar (10).
• Note the alignment of the chain teeth (Fig. 44). Insert the chain saw bar as shown
in (Fig. 44) into the mount at the gear unit.
• Place the chain round the chain wheel (Item H). Make sure that the teeth of the
chain engage securely in the chain wheel. The chain saw bar must be hooked into
the chain tensioning bolt (Item G).
• Fit the chain wheel cover
mIMPORTANT!Do not fully tighten the fastening screw until after you have adjust-
ed the chain tension (see section 7.1).
7.1 Tensioning the chain (Fig. 45-48)
mIMPORTANT! Always pull out the spark boot plug (Fig. 30 + 31) before perform-
ing any checks or adjustments.
• Undo the fastening screw (Item I) of the chain wheel cover by a few turns
(Fig. 45).
• Adjust the chain tension with the chain tensioning screw (Fig. 47/ Item K). Turning
the screw clockwise increases the chain tension, turning it anti-clockwise de-
creases the chain tension. The chain is correctly tensioned if it can be raised by
around 2 mm in the middle of the chain saw bar (Fig. 46).
• Tighten the xing screw of the chain wheel cover (Fig. 48).
mIMPORTANT! All the chain links must lie properly in the guide groove of the
chain saw bar.

22 AFTER SALES SUPPORT
 [e-mail]  1300 855 831
MODEL: MFH3300-4P PRODUCT CODE: 47629 02/2017
AUS
Operation MFH3300-4P
Notes on tensioning the chain:
The chain must be properly tensioned to ensure safe operation. When the saw
chain can be raised by around 2 mm in the middle of the chain saw bar, you know
that the chain tension is ideal. During cutting, the temperature of the chain rises and
its length changes. It is important therefore to check the chain tension at least every
10 minutes and to adjust it again as required. This applies in particular to new saw
chains. When you have nished working, slacken the chain again as it will shorten
when it cools down. This will help to prevent damage to the chain.
VIII. OPERATION
When working with the equipment as grass trimmer and brush cutter, the appro-
priate plastic guard hood for cutting blade mode or cutting line mode must be t-
ted to prevent objects being ejected out by the equipment.
The integrated blade (Fig. 18/A) in the cutting line guard hood automatically cuts
the line to the optimum length (Fig. 18).
Filling with petrol (Fig. 19)
m Danger of injury! Petrol is explosive!
Turn off and cool the motor down before lling the tank with petrol. You must
observe all safety instructions relating to handing petrol.
m Risk of device damage!
The device is supplied without motor or gearbox oil.
ATTENTION! Before operating, you must ll it with petrol.
• Unscrew the tank cap (D) and remove it (Fig. 19).
• Pour in the petrol carefully. Avoid spilling! Immediately remove the fuel and clean
the machine with clean rag when spilling petrol.
• Screw the tank cap on rmly by hand.
Draining petrol (Fig. 36)
• Hold a collection container beneath the petrol drain bolt.
• Unscrew the tank cap and remove it.
• Allow the petrol to run out completely.
• Screw the tank cap on rmly by hand.
Start on the unit
Do not start the unit until it has been completely assembled.
m Danger of injury!
Only start the petrol multi garden tool if an attachment is connected! Re-
move the appropriate transportation protection and inspect the unit in good

AFTER SALES SUPPORT 23
 1300 855 831  [e-mail]
MODEL: MFH3300-4P PRODUCT CODE: 47629 02/2017
AUS
MFH3300-4P Operation/ Working instructions
working condition. Never use a damaged, poorly adjusted or serviced or not
completely and securely assembled device.
Check before use!
• Check the safe condition of the device:
• Check the device for leaks.
• Check the device for visual defects.
• Check that all parts of the device have been securely tted.
• Check that all safety devices are in proper condition.
Start (Fig. 19-23)
Once the machine has been set up properly, start the engine as follows:
1. Turn the "lock OFF" switch (Fig. 20/7) to the ON position.
2. Put the choke lever (Fig. 20/C) on the position.
3. Press the petrol pump 10 times (Fig. 19).
4. Pull the recoil starter handle (2) 3 times to start the engine (Fig. 21).
Never place feet on the shaft or kneel on it.
5. Wait a while adjust the choke lever to position (Fig. 22).
6. When the engine is running and idling, press the "lock OFF" switch (7) and then
switch the throttle lever (4) on, the machine will be working (Fig. 23).
7. If any problems, press the "lock OFF" switch to OFF position, the machine will
stop running. If you need to stop the cutting head working, release the throttle
lever (Fig. 23/4).
8. If any problem occurs, pull the pin of the safety belt, then release the brush cutter
immediately (Fig. 17).
9. If the machine is hot, the throttle lever can be adjusted to ON position directly
when restarting the machine.
Note: If the engine does not start up even after several attempts, read the section
"Engine troubleshooting".
Note: Always pull the starter cord out in a straight line. If it is pulled out at an angle,
then friction will occur on the eyelet. As a result of this friction, the cable will become
frayed and will wear away faster. Always hold the starter handle when the cable
retracts. Never allow the cable to snap back when it has been pulled out.
Note: Do not start the motor in tall grass.
m ATTENTION!When the engine has been switched off, the cutting unit continues
running for several seconds therefore do not touch the cutting unit until it has come
to a standstill!

24 AFTER SALES SUPPORT
 [e-mail]  1300 855 831
MODEL: MFH3300-4P PRODUCT CODE: 47629 02/2017
AUS
Working instructions MFH3300-4P
IX. WORKING INSTRUCTIONS
Working with brush cutter / grass trimmer
• When you work with the petrol brush cutter for the rst time, familiarise yourself
with the operation and control of the petrol cutting blade without running the
engine.
• The design of the petrol brush cutter allows for operation only at the right side of
the user's body.
• Hold the petrol brush cutter rmly with both hands on the handles.
• Always make sure that the cutting tool continues to rotate briey after the throttle
has been released.
• Always work with high speed so you have the best cutting results.
• Caution: Always be extra careful when working in difcult terrain and slopes. Cut
tall grass gradually so as not to overload the unit.
• Always wear safety glasses and hearing protection and a safety helmet.
Mowing with the grass trimmer
• Use the plastic line cassette for a clean cut also at uneven edges, fencing posts,
and trees.
• Carefully advance the trimming line to an obstacle, and use the tip of the line to
cut around the obstacle. When the trimming line comes into contact with stones,
trees, and walls, the line wears out or breaks off ahead of time.
• Swing the petrol cutting blade like a normal scythe horizontally from right to left
and back again. You dene the cutting height depending on how high you are
holding the tool (Fig. 39).
• Never replace the nylon line with a metal wire.
Mowing with brush cutter and hedge trimmer
Use the cutting blade to comb through brushwood, young tree populations (trunk
diameter of maximum 2cm), and high grass.
• While using metal cutting tools, there is generally a risk of recoil, when the tool
hits a solid obstacle (stones, trees, branches, etc.). Thereby, the tool is hurled
backwards against the rotating direction.
• To cut brushwood, you “immerse” the cutting blade from the top.
mCAUTION! Be especially careful, when using this working technique, because the
further away the cutting tool is from the ground, the higher the risk that objects to be
cut and particles will be hurled sideways.
mCAUTION! Incorrect use and misuse can damage the bush cutter and cause
severe injuries because of pieces hurled away.

AFTER SALES SUPPORT 25
 1300 855 831  [e-mail]
MODEL: MFH3300-4P PRODUCT CODE: 47629 02/2017
AUS
MFH3300-4P Working instructions
To minimise the risk of accidents by use of the cutting blade, take note of
following points:
• Never cut shrubbery or wood whose diameter is larger than 2cm.
• Avoid contact with metal bodies, stones, etc.
• Periodically check the cutting blade for damages. Never continue to use a dam-
aged cutting blade.
• When the cutting blade becomes apparently blunt, it must be sharpened accord-
ing to instructions. When the cutting blade is apparently out of balance, it must be
replaced.
Automatic thread trimming (Fig. 37 - 39)
The petrol cutting blade is delivered with a lled line cassette (Fig. 24/19a).
This line will wear out during work. To feed new line, forcefully press the head of the
line cassette onto the ground while the engine is running at working speed.
The line is automatically fed due to centrifugal force.
The knife (Fig. 18/E) at the protection shield (17) will shorten the trimming line to the
correct length.
Run the trim line approach cautiously to an obstacle and cut with the tip of the line
around the obstacle.
Working with chain saw
Precautions for Saw procedure
Never stand under the branch you want to saw. Use special caution when working
with branches under tension and splintering wood. Possible risk of injury caused by
falling branches and catapulting pieces of wood. In general, it is recommended to
set the pruning saw at an angle of 60 ° to the ground.
While cutting, hold the tool securely with both hands and always ensure you
are in a balanced position with safe footing.
• Never try to use your tool with one hand. The loss of control of your tool can cause
serious injury or death. Never work on a ladder, a tree branch or other unstable
surfaces.
• Never cut with the upper edge or the tip of the chain saw bar.
• Make sure that the chain tension is always correctly adjusted.
• Apply a little pressure to guide the machine but do not overload the motor.
Clear the work area before cutting interfering branches and undergrowth. Then you
create a retreat area, far from the spot where the cut branches fall on, and remove
any obstacles there. Keep the work area clean, remove the cut branches immediate-
ly. Pay attention to your point, wind direction and the possible direction of fall of the
branches. Be prepared that fallen branches can strike back. Place all other tools and
equipment at a safe distance from the branches to be cut, but not in the retreat area.
